MW TOOLS ODMP06 User manual

ODMP06-10-18 - NLFREN - v1.0 - 12122014
HANDLEIDING - MODE D’EMPLOI - MANUAL
ODMP06 (724561010)
ODMP10 (724561011)
ODMP18 (724561012)
Pneumatische/manuele vloeistofafzuiger
Aspirateur de liquide pneumatique/manuel
Pneumatic/manual uid extractor
P.02 Gelieve te lezen en voor later gebruik bewaren
P.03 Veuillez lire et conserver pour consultation ultérieure
P.04 Please read and keep for future reference
FR
EN
NL
copyrighted document - all rights reserved by FBC

ODMP06-10-18 - NLFREN - v1.0 - 12122014
2
NL

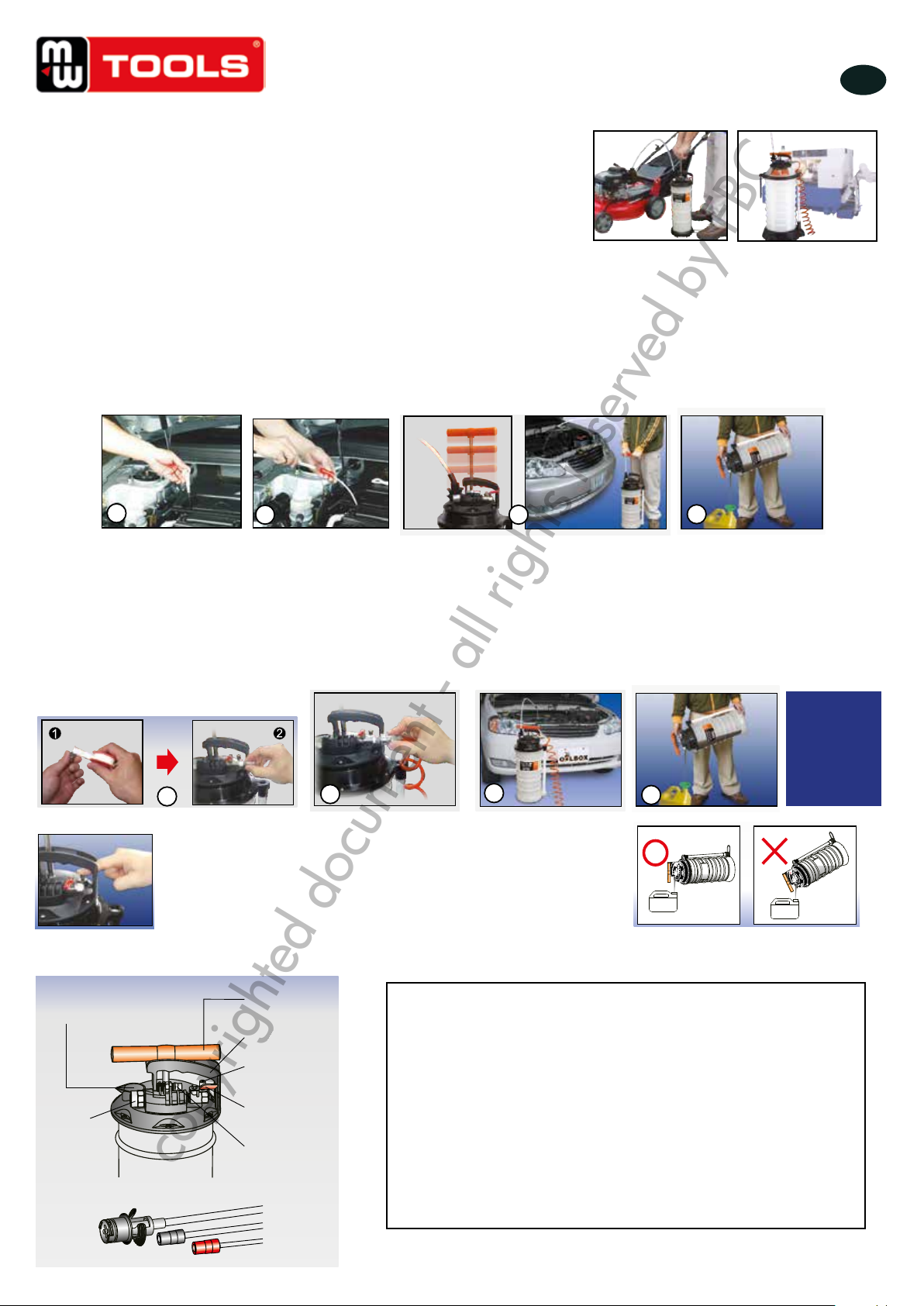

Gebruiksaanwijzingen
1. Verwijder de oliepeilstok.
2. Selecteer een slang met gepaste diameter en steek deze in het peilstok gat, totdat ze de bodem van het oliecarter bereikt.
Verbind de hoofdbuis met het toestel en met de afzuigslang.
3. Breng de hendel zo ver mogelijk omhoog en pomp meermaals omhoog en omlaag om het vacuüm te starten. Het toestel zal dan
automatisch beginnen de olie af te zuigen.
4. Nadat al de olie afgezogen werd, verwijder de zuigbuis van de peilstok buis (monteer de oliepeilstok opnieuw). Verwijder de hoofdbuis
van het toestel.
Giet de olie langzaam in een container en voer de gebruikte olie op een passende wijze af.
Gebruiksaanwijzingen
Manuele modus
1. Verwijder de oliepeilstok.
2. Selecteer een slang met gepaste diameter en steek deze in het peilstok gat, totdat ze de bodem van het oliecarter bereikt.
Verbind de hoofdbuis met het toestel en met de afzuigslang.
3. Breng de hendel zo ver mogelijk omhoog en pomp meermaals omhoog en omlaag om het vacuüm te starten. Het toestel zal dan
automatisch beginnen de olie af te zuigen.
4. Nadat al de olie afgezogen werd, verwijder de zuigbuis van de peilstok buis (monteer de oliepeilstok opnieuw). Verwijder de hoofdbuis
van het toestel.
Giet de olie langzaam in een container en voer de gebruikte olie op een passende wijze af.
Toepassingsgebied
Onze olie/vloeistofafzuiger is geschikt voor het afzuigen van alle soorten motor- en
transmissieoliën, smeermiddelen van auto’s, motoren, boten, stationaire motoren,
vrachtwagens, mobilhomes, maaimachines, landbouwvoertuigen en industriële machines.
Het kan ook worden gebruikt voor het hevelen van niet-corrosieve vloeistoffen zoals water
uit aquaria, enz.
Aandacht !
Alvorens het toestel opnieuw te gebruiken, druk op het
ontlastventiel gedurende minstens 5 seconden, om het vacuüm
te verwijderen, dat zich eventueel in de binnenste slang van de
pomp gevormd heeft.
Omschrijving
WAARSCHUWING !
• Gebruik het toestel niet voor het afzuigen, hevelen of opslag van
gevaarlijke chemische stoffen, vergiften, zuren, logen, oplosmiddelen
of ontvlambare producten. Als zo’n product bij toeval afgezogen
werd, moet het toestel onmiddellijk leeggemaakt en grondig gereinigd
worden.
• Als het toestel werd gebruikt om zout water af te zuigen, bijv. ruimwater,
reinig het grondig met fris en schoon water.
• Het toestel is niet geschikt voor langdurige opslag van olie of andere
vloeistoffen. De gebruikte olie moet in een gepaste container gegoten
worden en op een passende wijze afgevoerd worden.
• Sla het toestel of de slangen niet in de buurt van vlammen of onder
hoge temperaturen op. Blootstel het niet aan de zon, regen of sneeuw.
• Demonteer het toestel niet, laat het niet dompelen en pas het niet aan
voor een ander doel dan deze waarvoor het ontworpen werd.
• Laat het toestel niet vallen, gooi het niet en maak er geen misbruik van.
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
12 3 4
Pneumatische modus
1. Voor het gebruik, breng schroefdraad tape om de snelkoppeling voor de montage van de snelkoppeling
op het toestel.
2. Zorg ervoor, dat de hefboom van de opening- en sluitingsklep in de “gesloten” positie is.
Sluit de luchtslang van de compressor aan de snelkoppeling aan.
3. Draai vervolgens de hefboom naar de positie “open”. Het toestel zal dan automatisch beginnen de olie af te zuigen.
4. Nadat alle olie afgezogen werd, draai de hefboom naar de positie “gesloten” en koppel de luchtslang van het toestel los. Verwijder de
zuigbuis van de peilstok buis (monteer de peilstok opnieuw). Verwijder de hoofdbuis van het toestel.
Giet de olie langzaam in een container en voer de gebruikte olie op een passende wijze af.
123
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
4
Olie inlaat/uitlaat &
hoofdbuis verbinding
Pomphendel
Draaggreep
Ontluchtventiel
knop
Hefboom voor
opening- en
sluitingsklep
Snelkoppeling
Uitlaat
Aansluiting:
1/4 inch
Werkdruk:
6,2 bar
copyrighted document - all rights reserved by FBC

3
ODMP06-10-18 - NLFREN - v1.0 - 12122014
FR
Instructions d’utilisation
Mode manuel
1. Enlevez la jauge d’huile.
2. Choisissez le tuyau du diamètre approprié et insérez-le dans le trou de la jauge jusqu’à ce qu’il atteigne le fond du carter d’huile.
Connectez la buse principale à l’appareil et au tuyau d’aspiration.
3. Levez la poignée au maximum et pompez plusieurs fois de haut en bas pour faire démarrer l’aspirateur. L’appareil va ensuite aspirer
l’huile automatiquement.
4. Quand toute l’huile a été aspirée, enlevez le tuyau d’aspiration de la buse de la jauge (remettez la jauge). Enlevez la buse principale de
l’appareil.
Versez lentement l’huile dans un récipient et éliminez l’huile usagée de manière appropriée.
Champ d’application
Notre aspirateur d’huile/liquide est conçu pour aspirer tous types d’huiles de moteur, de
transmission et lubriants de voitures, motos, bateaux, moteurs stationnaires, camions,
mobil homes, tondeuses, véhicules agricoles et machines industrielles. Il peut également
servir à siphonner toutes sortes de liquides non corrosifs tels que l’eau des aquariums, etc.
Attention !
Avant d’utiliser à nouveau l’appareil, appuyez sur la valve de
décharge pendant au moins 5 secondes pour évacuer tout le
vide qui peut s’être formé dans le tuyau de la pompe intérieure.
Description
AVERTISSEMENT !
• N’utilisez pas l’appareil pour aspirer, siphonner ou stocker des
produits chimiques dangereux, des poisons, des acides, des bases, des
solvants ou des produits inammables. Si un tel produit a été aspiré
par accident, l’appareil doit être immédiatement vidé et soigneusement
nettoyé.
• Si l’appareil a été utilisé pour aspirer de l’eau salée, par ex. de l’eau
de cale, nettoyez-le soigneusement avec de l’eau fraîche.
• L’appareil n’est pas destiné au stockage à long terme d’huiles ou de
liquides. L’huile usagée doit être versée dans un récipient adapté et
éliminée de manière appropriée.
• Ne stockez pas l’appareil ou les tuyaux près de ammes ou à de hautes
températures, ne l’exposez pas au soleil, à la pluie ou à la neige.
• Ne démontez pas l’appareil, ne le plongez pas dans l’eau, ne le
transformez pas pour un autre usage que celui pour lequel il est conçu.
• Ne faites pas tomber l’appareil, ne le lancez pas et ne l’employez pas
pour un usage impropre.
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
12 3 4
Mode pneumatique
1. Avant utilisation, appliquez du ruban de letage au raccord rapide et connectez-le ensuite sur l’appareil.
2. Assurez-vous que le levier de la valve d’ouverture et de fermeture est en position «fermé».
Branchez le tuyau d’air du compresseur au raccord rapide.
3. Tournez ensuite le levier sur «ouvert». L’appareil va commencer automatiquement à aspirer l’huile.
4. Quand toute l’huile a été aspirée, tournez le levier en position «fermé» et débranchez le tuyau d’air de l’appareil. Enlevez la buse
d’aspiration de la buse de la jauge (remettez la jauge). Enlevez la buse principale de l’appareil.
Versez lentement l’huile dans un récipient et éliminez l’huile usagée de manière appropriée.
123
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
4
Entrée/Sortie d’huile &
Connexion de la buse
principale
Poignée de
pompage
Poignée de
transport
Bouton valve
de décharge
Levier de
la valve
d’ouverture et
de fermeture
Raccord
rapide
Échappement
Raccord:
1/4 pouce
Pression de
service:
6,2 bars
copyrighted document - all rights reserved by FBC

4
ODMP06-10-18 - NLFREN - v1.0 - 12122014
EN
Operating instructions
Manual
1. Remove the oil dipstick.
2. Select and insert the appropriate diameter extracting tube into the dipstick hole till it reaches the bottom of the oil pan, connect the main
tube to the unit and to the extracting tube.
3. Raise the unit handle to it’s highest limit and fully pump the handle up and down several times to start the vacuum. The unit will then
automatically start to extract the oil.
4. After all the oil has been extracted, remove the extraction tube from the dipstick tube (ret the oil dipstick). Remove the main suction tube
from the unit.
Slowly pour the used oil into a suitable container and dispose of in an appropriate manner.
Application
Our oil/uid extractor is designed for extracting all types of engine, transmission and
lubricating oils from cars, motorcycles, marine engines, stationary engines, trucks, RV’s,
lawn mowers, agricultural vehicles and industrial machinery. Also for siphoning all kinds
of non corrosive liquids, such as water from the aquarium, etc.
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
Important !
Prior to using the extractor again, ensure to press the release
valve for at least 5 seconds to release any vacuum that may
have formed in the inner pump tube.
Description
WARNING!
• Do not use the unit to extract, siphon or store dangerous chemicals,
poisons, acids, alkalis, solvents or ammable products. If by chance
products such as these were used in the unit, it must be immediately
drained, washed and thoroughly cleaned.
• If the unit was used to extract salt water, e.g. bilge water, wash the unit
with fresh and clean water thoroughly.
• The unit is not designed for long term storage of oil or other uids, the
used oil must be poured into a suitable container and disposed of in an
appropriate manner.
• Do not store either the unit or suction tubes near open ames, in areas
of high temperatures, direct sunlight, rain or snow.
• Do not dismantle, temper with or adapt the unit for another purpose
than what it was originally intended for.
• Do not drop, throw or misuse the unit.
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
12 3 4
Pneumatic
1. Before use, apply thread tape to the quick coupler before tting the coupler to the unit.
2. Ensure that the “open & close valve lever” is in the “close” position.
Connect the air compressor air line hose to the quick coupler.
3. Then turn the lever to the “open” position. The unit will then automatically start to extract the oil.
4. After all the oil has been extracted, turn the lever to the “close” position and disconnect the air line hose from the unit. Remove the
extracting tube from the dipstick tube (ret the oil dipstick). Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and dispose of in an appropriate manner.
123
APPLICATION
Our Oil/Fluid Extractor is designed
for extracting all types of engine,
transmission and lubricating oils from cars,
motorcycles, marine engines,
stationary engines, trucks, RV's,
lawn mowers, agricultural vehicles and
industrial machinery. Also for siphoning
all kinds of non corrosive liquids, such as
water from the aquarium, etc.
Illustrations
Muffler
Oil Inlet / Outlet &
Main Tube Connection
OPERATING INSTRUCTIONS
1.Remove the oil
dipstick.
2. Select and insert the
appropriate diameter
extracting tube into the
dipstick hole until it
reaches the bottom of
the oil pan.
Connect the main tube
to the unit and to the
extracting tube.
3.Raise the handle to its highest limit and fully pump the
handle up and down several times to start the vacuum.
The unit will then automatically start to extract the oil.
5.After all the oil has been extracted, turn the lever to the
“close” position and disconnect the air line hose from
the unit.
Remove the extracting tube from the dipstick tube
(refit the oil dipstick).
Remove the main suction tube from the unit.
Slowly pour the used oil into a suitable container and
dispose of in an appropriate manner.
1. Do not use the unit to extract, siphon or store
dangerous chemicals, poisons, acids,
alkalis, solvents or ANY flammable products.
If by chance products such as these were
used in the unit it must be immediately
drained, washed and thoroughly cleaned.
2. If the unit was used to extract salt water,
eg. Bilge water, thoroughly flush and wash
the unit with fresh, clean water.
3.The unit is not designed for long term storage
of oil, or other fluids, the used oil must be
poured into a suitable container and
disposed of in an appropriate manner.
4.Do not store either the unit or suction tubes
near open flames, in areas of high
temperatures, direct sunlight, rain or snow.
5.Do not dismantle, temper with or adapt the
unit for any other purpose than what it was
originally intended for.
6.Do not drop, throw or misuse the unit.
WARNING:
Multinational Patents in USA., JAPAN,
GERMANY, UK, AUSTRALIA,
TAIWAN & CHINA.
Manual / Pneumatic
Fluid Extractor
Manual / Pneumatic
Fluid Extractor
RAPIDEZ
Pump Handle
Carry Handle
Release Valve
Button
Open & Close
Valve Lever
Quick Coupler
Working Pressure 90PSI With Air Inlet 1/4"
Manual
Manual
OM-11060
6L
OM-11105
10.5L
OM-11198
18L
OM-11040
4L 4.After all the oil has
been extracted remove
the extracting tube
from the dipstick tube
(refit the oil dipstick)
and the main suction
tube from the unit.
S pour the used oil into a suitable container and
dispose of in an appropriate manner.
lowly
Important Note:
Prior to using the extractor
again ensure to press the
“Release Valve”
for at least 5 seconds to
release any vacuum that
may have formed in the
inner pump tube.
Pump the
handle.
Ø 9.8mm / Ø 6.7mm / Ø 5.8mm OD
Pneumatic
Pneumatic
4.Then turn the lever to
the“open” position.
The unit will then
automatically start
to extract the oil.
Before use, apply thread tape to the quick
coupler before fitting the coupler to the unit.
3.Ensure that the “open &
close valve lever” is
in the “close” position.
Connect the air
compressor air line
hose to the quick
coupler.
Copyright © 2011 . All rights reserved.Ölbox GmbH
4
Connection:
1/4 inch
Working
pressure:
6.2 bar
copyrighted document - all rights reserved by FBC

5
ODMP06-10-18 - NLFREN - v1.0 - 12122014
Fabrikant/Invoerder
Fabricant/Importateur
Manufacturer/Retailer
Verklaart hierbij dat het volgende product :
Déclare par la présente que le produit suivant :
Hereby declares that the following product :
Product
Produit
Product
Manuele en pneumatische vloeistofafzuiger
Aspirateur de liquide manuel et pneumatique
Manual and pneumatic uid extractor
Order nr. :
Geldende CE-richtlijnen
Normes CE en vigueur
Relevant EU directives
2006/42/EC
Overeenstemt met de bestemming van de hierboven aangeduide richtlijnen - met inbegrip van deze betreffende het tijdstip
van de verklaring der geldende veranderingen.
Répond aux normes générales caractérisées plus haut, y compris celles dont la date correspond aux modications en vigueur.
Meets the provisions of the aforementioned directive, including, any amendments valid at the time of this statement.
Test report reference: CST196709/3/TF
Bart Vynckier, Director
VYNCKIER TOOLS nv/sa
Vynckier Tools nv/sa
Avenue Patrick Wagnonlaan, 7
ZAEM de Haureu
B-7700 Mouscron - Moeskroen
EG conformiteitsverklaring
Déclaration de conformité CE
EC declaration of conformity
ODMP06 (724561010)
ODMP10 (724561011)
ODMP18 (724561012)
FR
EN
NL
Moeskroen/Mouscron, 10/08/2015
copyrighted document - all rights reserved by FBC
