USER HANDBOOK
ANGLE GLASS COOKER HOOD
ART28201

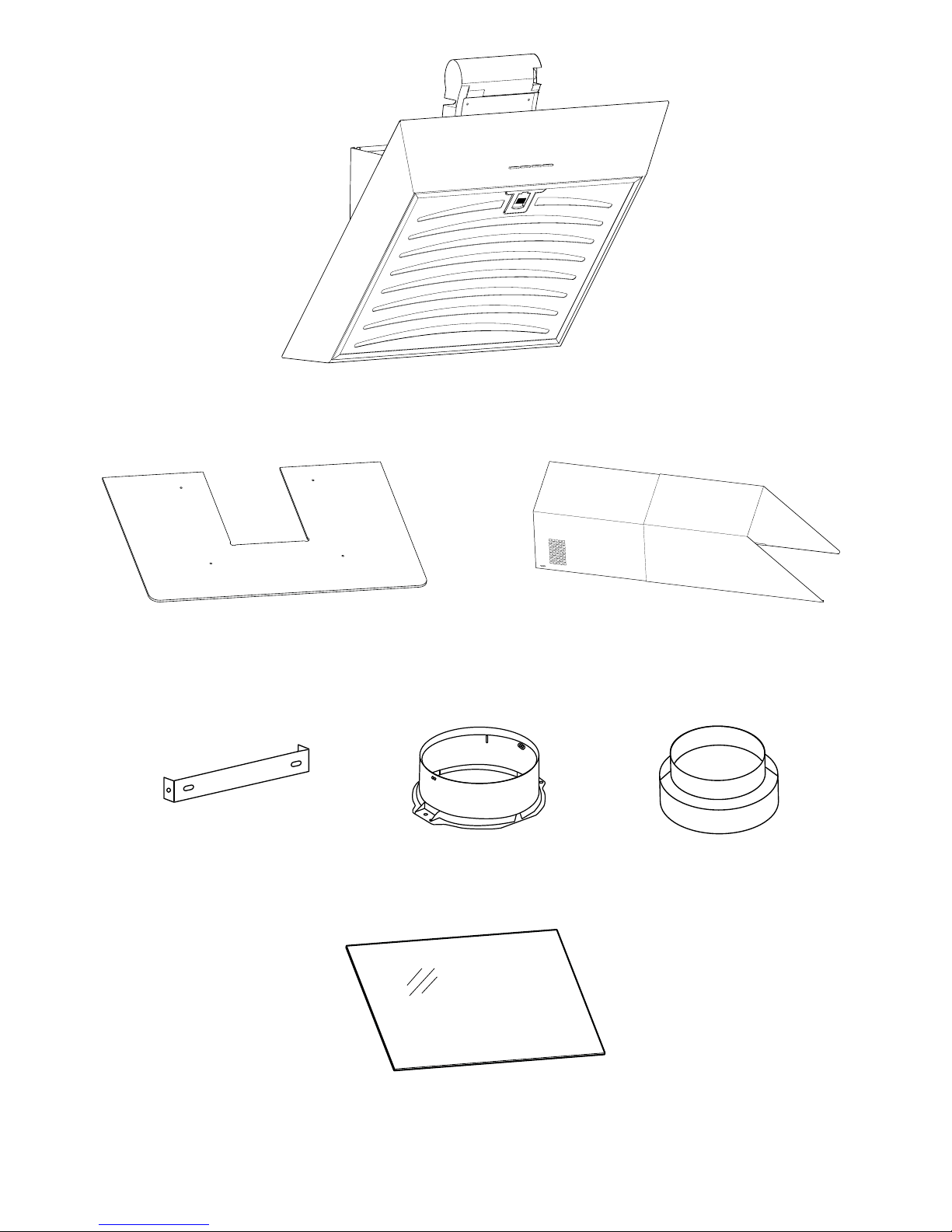

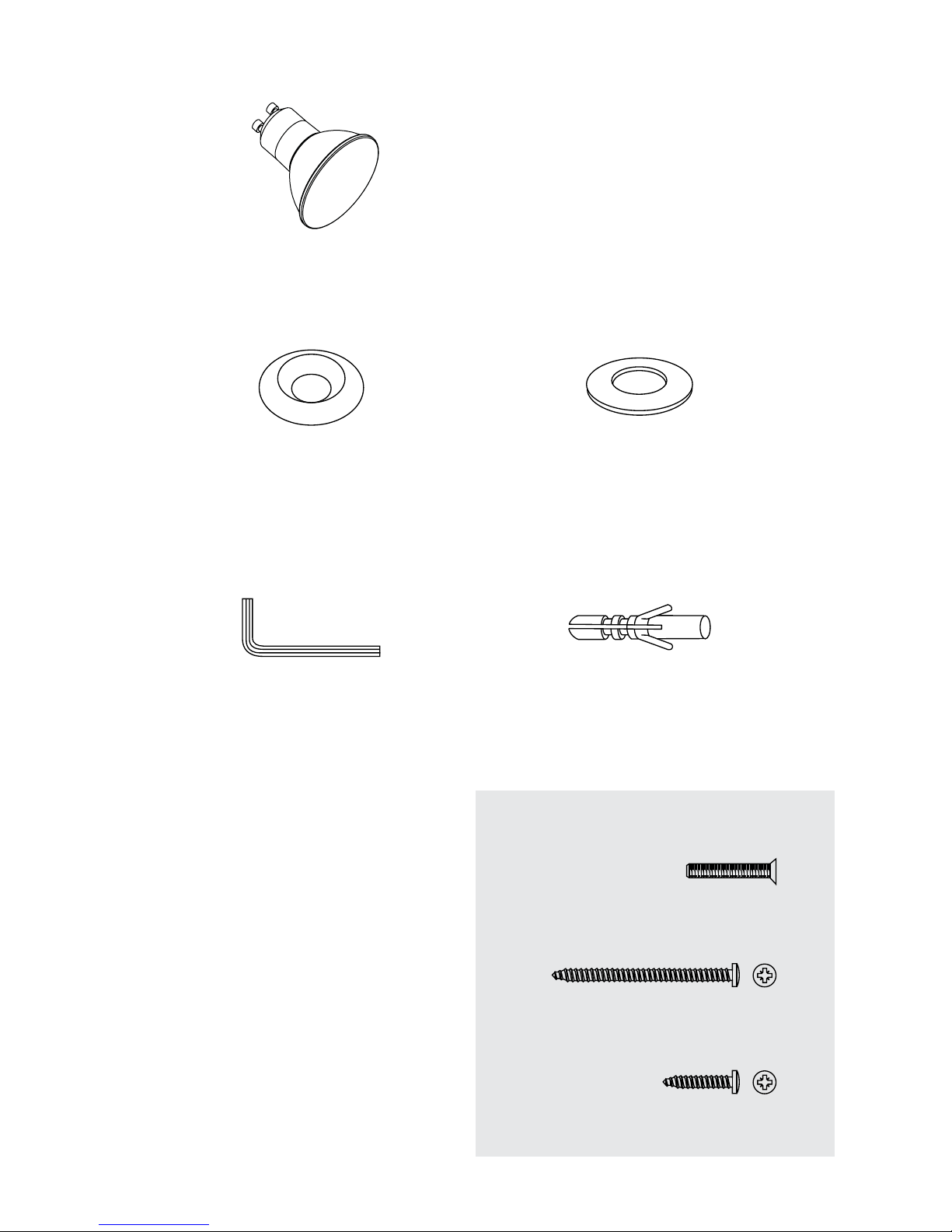

[01] x 1
[02] x 1 [03] x 1+1
[04] x 1 [05] x 1
[07] x 1
[06] x 1

1 : 1
[09] x 4
[10] x 6
(4 x 32mm)
[12] x 4
(3.5 x 10mm)
[09] x 4
[08] x 2
[13] x 1
[09] x 4
[11] x 6

4
Let's
get started...
Getting started... 05
Before you start 06
Safety 08
In more detail... 10
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Technical and legal information
Guarantee
CE Declaration of conformity
11
11
12
15
16
16
18
19
Appendix
20
Assembly
GB IE Cooker Hood

5
Getting
Started...
Getting started...
GB IE
Before you start 06
Safety 08

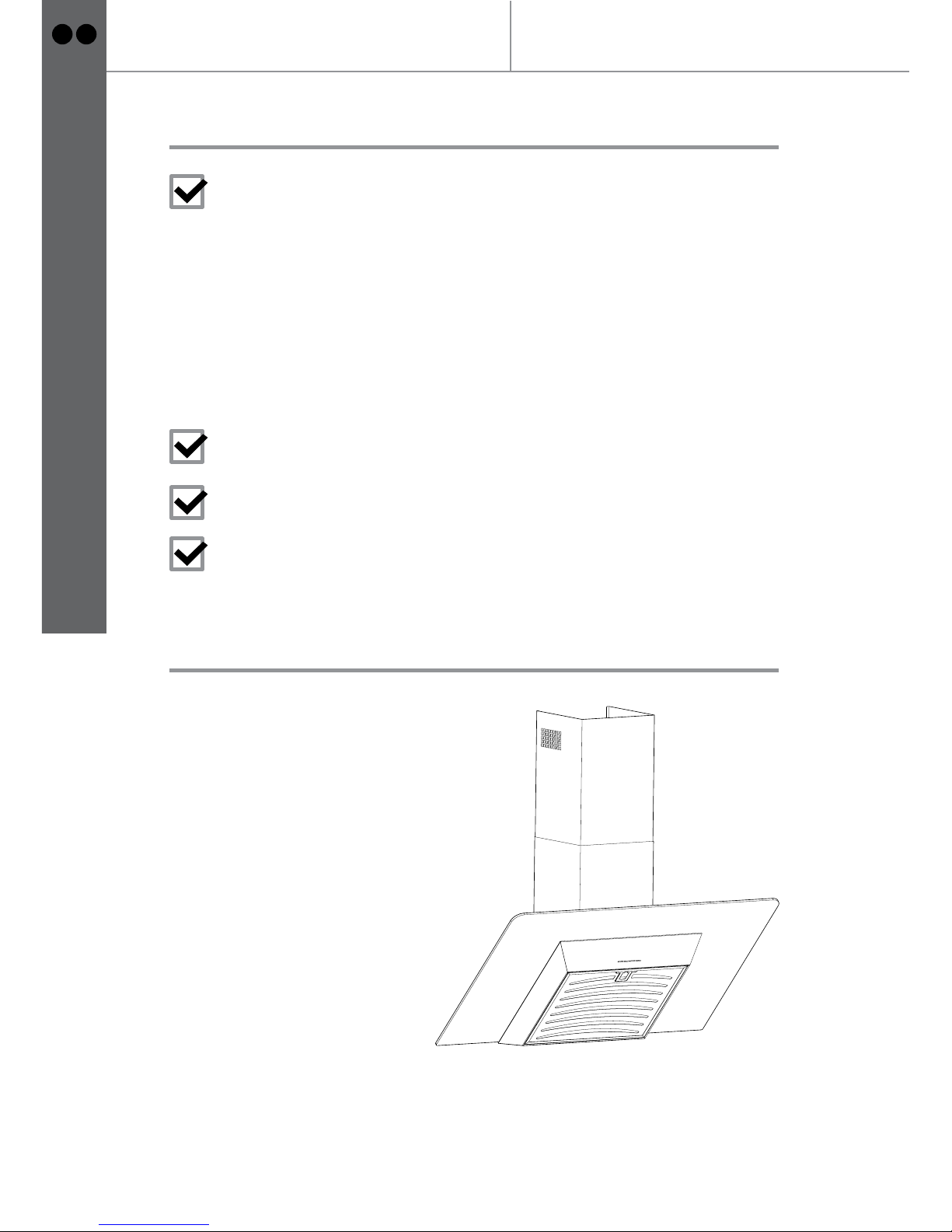

Before you start
Things to check before you start
To avoid the risks that are always present when you use an
electrical appliance it is important that this cooker hood is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards. We recommend that
you keep this instruction booklet for future reference and
pass it on to any future owners. After unpacking the cooker
hood please check that it is not damaged. If in doubt, do
not use the appliance but contact Customer Services on
0844 800 1128 (UK), 1 800 535542 (Ireland) and 01 56 48
02 60 (France).
Check the package and make sure you have all of the parts
listed.
Decide on the appropriate location for your product.
This product contains glass. Care must be taken when
tting or handling to prevent personal injury or damage to
the product.

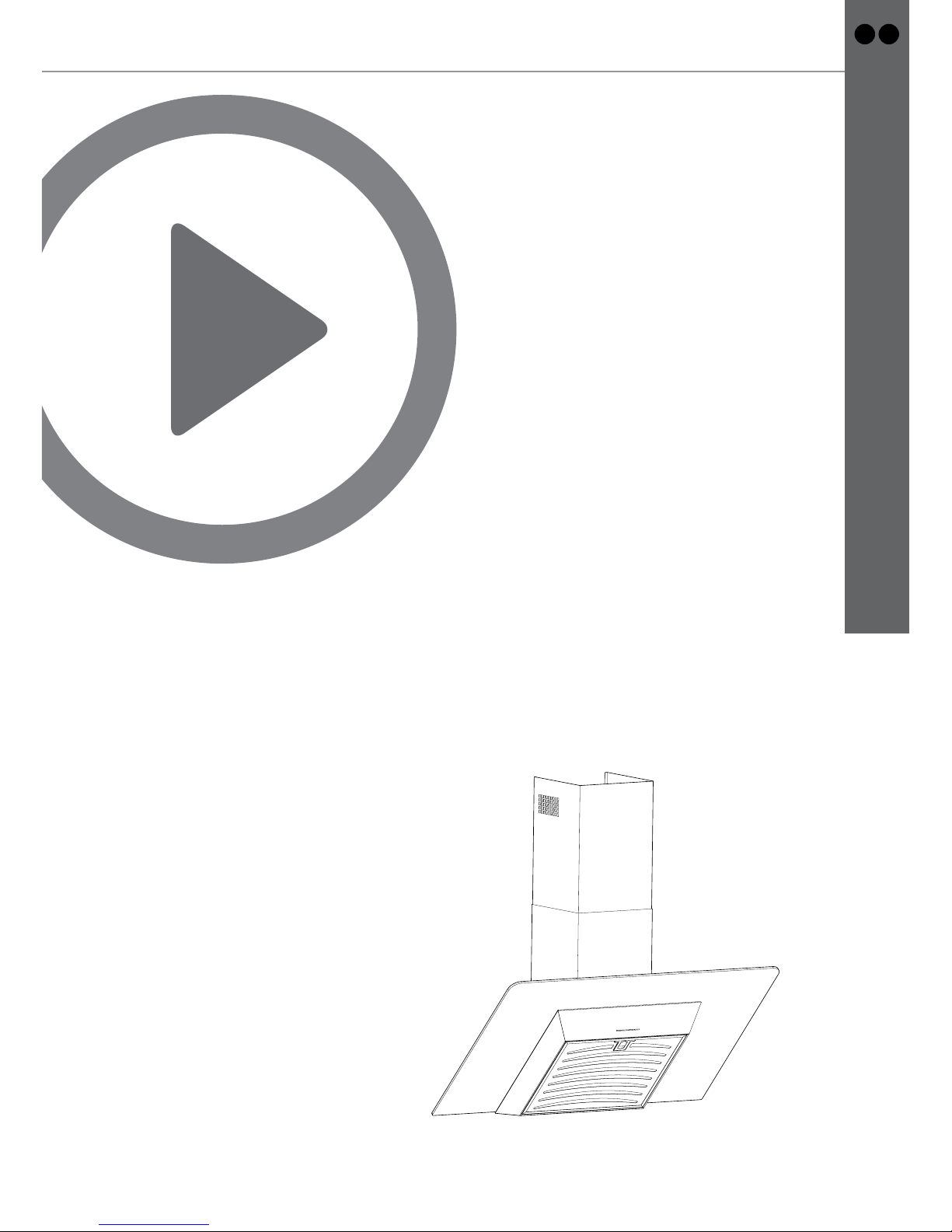

Your product
1. Cooker hood
6
Getting started...
GB IE

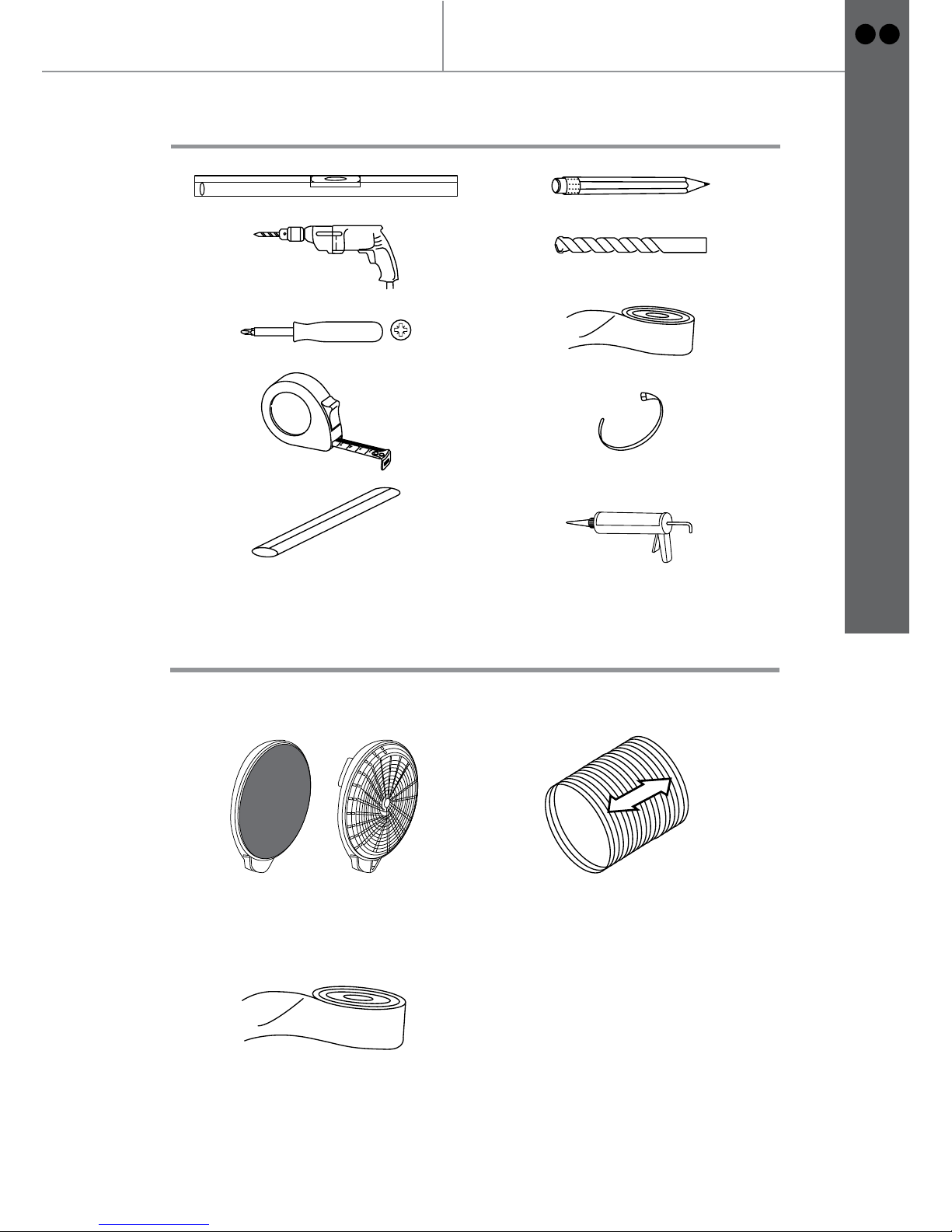

You will need
Ø6mm
Ø125mm or Ø150mm
Before you start
CARBFILT4 (UK & IE)
OR CARBFILT4CL (FR)
SELF ADHESIVE
ALUMINIUM TAPE
Ø125mm or Ø150mm
VENT PACK 2 (UK & IE)
Accessories not supplied
Recirculation Extraction
CARBON FILTER ORDERING HOTLINE
0844 800 1128 (UK) 1 800 535542 (IE) 7
Getting started...
GB IE
SILICONE

These instructions are for your safety. Please read through
them thoroughly prior to installation and retain them for
future reference.
All installation work must be carried out by a competent
person or qualied electrician.
The appliance is for domestic use only.
Please dispose of the packing material carefully.
Warning: consult local regulations regarding fumes outlets.
Do not connect the hood to a fume, ventilation or hot air
duct.
Conrm that room ventilation is appropriate with the local
authorities.
Make sure the maximum air extraction ow rate for the
appliances in the room does not exceed 4 Pa (0.04 mbar).
The room must have adequate ventilation if an extractor
hood is used simultaneously with appliances that run on
gas or other fuels.
The evacuated air must be extracted through ducts that are
used for evacuating fumes from appliances that run on gas
or other fuels.
Regulations regarding air extraction must be complied with.
Warning: before connecting the hood: switch off the
electricity supply and check that the supplied voltage and
frequency coincide with that indicated on the appliance
nameplate.
Warning: the hood may stop working during an
electrostatic discharge (e. g. lightning). This involves no risk
of damage. Switch off the electricity supply to the hood and
reconnect after one minute.
Means for disconnection must be incorporated in the xed
wiring in accordance with the wiring rules. An all-pole
disconnection switch having a contact separation of at least
3mm in all poles should be connected in xed wiring.
This appliance is not intended for use by persons
(including children) with reduced physical sensory, or
mental capabilities, or by those who lack experience and
knowledge, unless they have been given supervision and
instruction concerning the use of the appliance by a person
responsible for their safety.
Safety
8
Getting started...
GB IE

Children should be supervised so that they do not play with
the appliance.
To avoid the risk of re, clean the metal lter regularly,
watch closely and control pans containing hot oil.
Do not use the hood if it shows signs of damage or
imperfection. Contact customer services.
WARNING: Accessible parts may become hot during use.
Young children should be kept away. Care should be taken
to avoid touching the (appliance e.g hob, cooker..).
Flambe cooking must not be carried out underneath this
appliance.
A steam cleaner is not to be used.
The appliance is not intended to be operated by means of
external timer or separated remote-control system.
When installing the cooker hood, make sure that the
following recommended distances between the top
of cooker and the lowest part of the cooker hood are
observed:
> Gas cookers: 750mm
> Electric cookers: 650mm
Safety
IMPORTANT - RETAIN THIS
INFORMATION FOR FUTURE
REFERENCE: READ CAREFULLY
9
Getting started...
GB IE

10
In more details...
In more
details...
GB IE
Product functions 11
Operation 11
Care and maintenance 12
Troubleshooting 15
Recycling and disposal 16
Technical and legal information 16
Guarantee 18
CE Declaration of conformity 19

Product functions
This appliance extracts the air of the kitchen to remove the odours
and keep an optimum level of the air quality inside the room, it
also allows you to illuminate the cooking area.
Operation
• Switch on the appliance at the switched fused connection unit.
The appliance is ready for operation functions.
I Low speed
II Medium speed
III High speed
Switching light on/off
To obtain the best results from your cooker hood it is
recommended that you leave it switched on for 15 minutes after
you have nished cooking.
Product Functions
Operation
11
In more detail...
GB IE
Cooker Hood

Care and maintenance
Care and maintenance
Warning: always switch off the electricity supply before carrying
out maintenance work on the hood. In the event of a fault, contact
customer services.

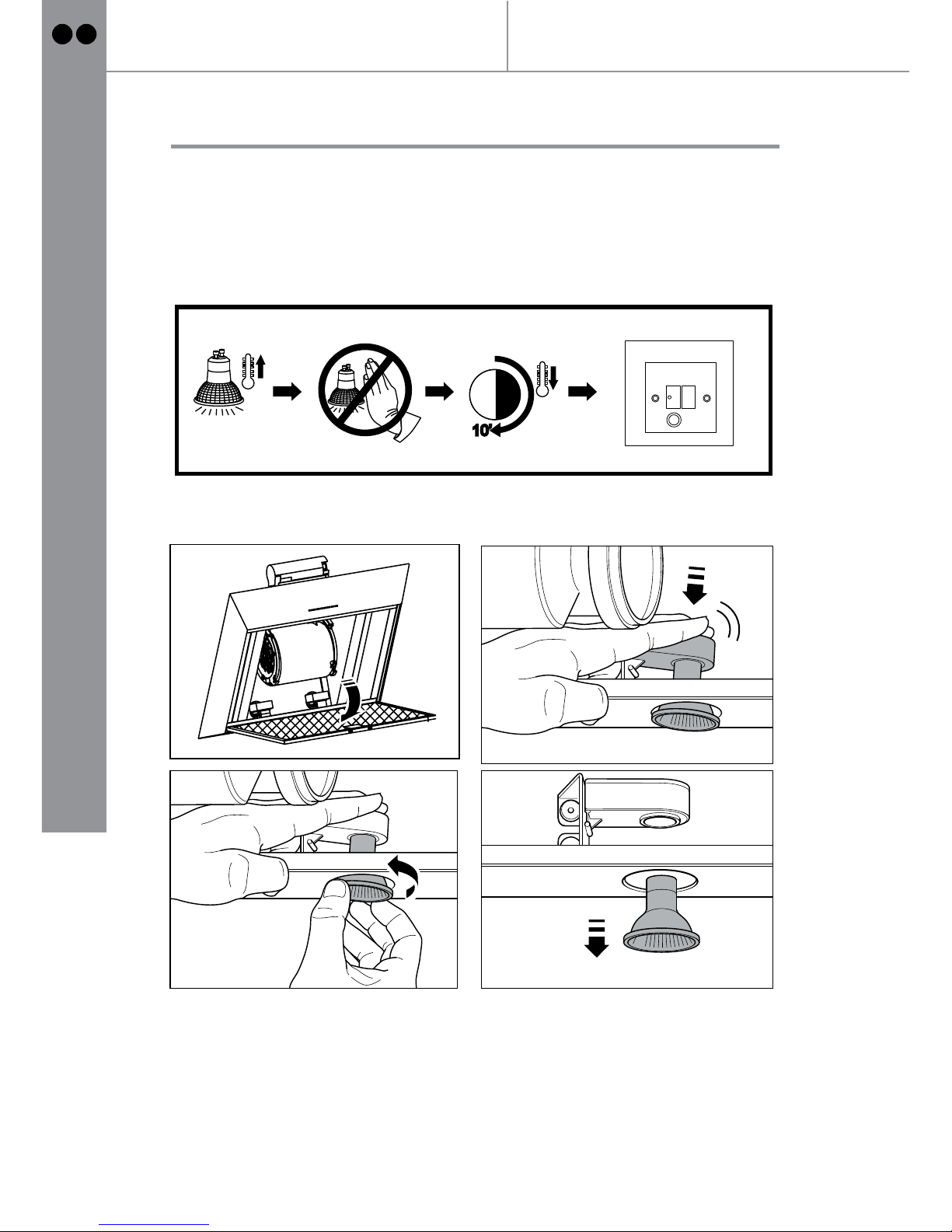

Bulb replacement
10’
The Bulb may be hot, leave it 10 minutes before replacement.
Turn to replace the Bulb.
OFF
N(bleu)
L(brun)
N(bleu)
L(brun)
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3AMP FUSE
FUSE ON
EUR UK
12
In more detail...
GB IE

Care and maintenance
CLICK
2 X ACTIVE CHARCOAL FILTER (NOT SUPPLIED).
MODEL NUMBER CARBFILT4 (UK & IE) OR CARBFILT4CL (FR).
13
In more detail...
GB IE

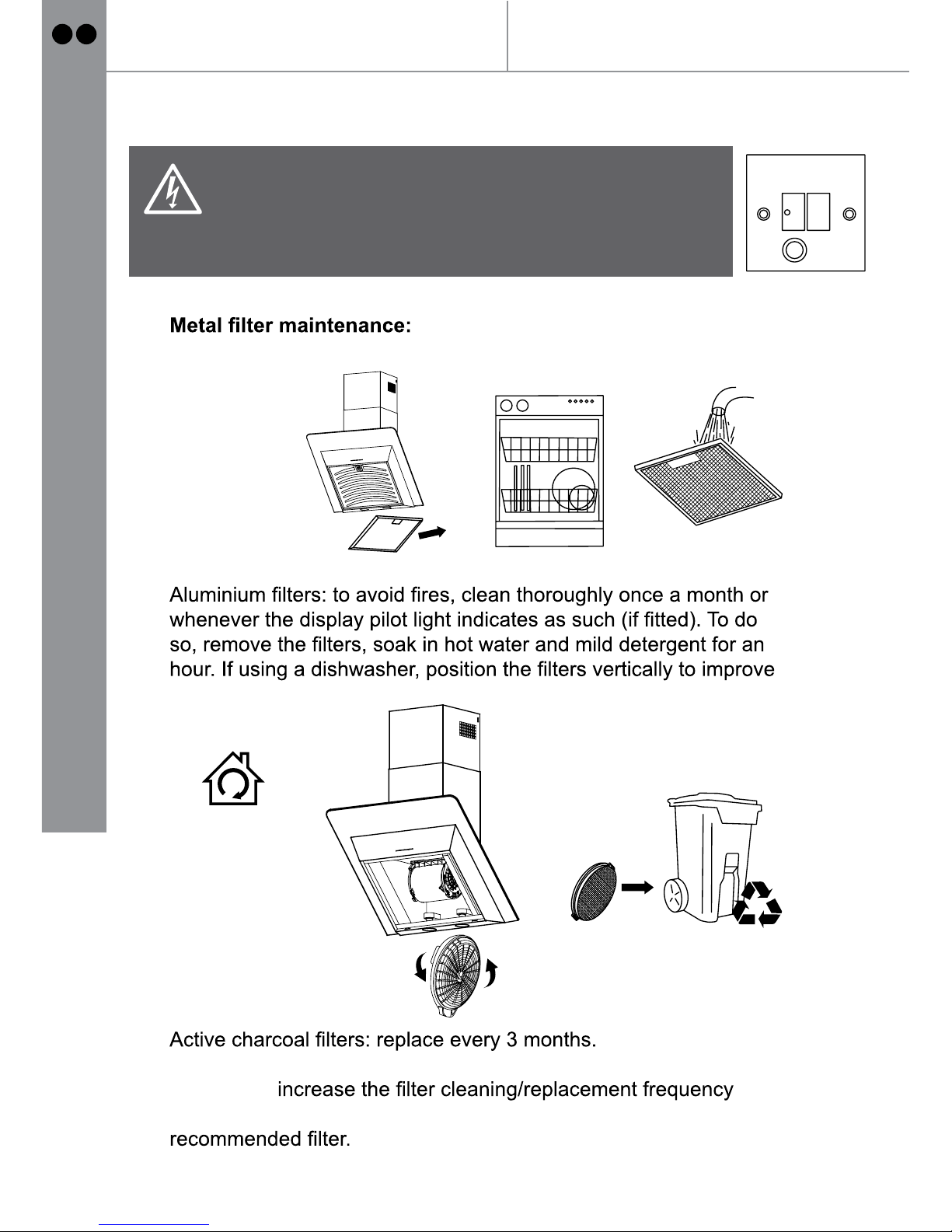

Use non-corrosive, liquid detergent or a stainless steel cleaner.
1 x MONTH
MAX.65˚C
the cleaning process.
3 x MONTH
Important:
if the hood is used for more than 2 hours a day. Always use the
1 MONTH
3 MONTHS
FUSE
OFF
Warning
Always switch off the electricity supply before
performing maintenance work. In the event of a fault,
contact customer services.
Care and maintenance
14
In more detail...
GB IE

Troubleshooting
Troubleshooting
Fault Cause Solution
Excessive
Vibration
The Appliance is not hung
properly on the brackets.
Take down the appliance
and check it is properly
xed.
The fan blade is damaged. Switch off the appliance.
Repair to be carried out by
qualied service personnel
only.
The fan motor is not xed
tightly.
Light on, but fan
does not work.
The fan blade is jammed.
The motor is damaged.
Both light and fan
do not work.
Light bulb broken. Replace with a bulb with
correct rating.
Power connection loose. Check power supply.
Suction
performance not
good
Speed may be too low. Select a higher speed.
Distance between the
appliance and the cooking
place too large.
Readjust the distance to:
Gas cookers: 75cm
Electric cookers: 65cm
Metallic anti-grease lter
is dirty.
Clean lters (see Care
and maintenance)
15
In more detail...
GB IE

Recycling and disposal
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
The symbol on the product or its packaging indicates
that this product cannot be treated as normal
household waste. This product must be handed over to
an electric and electronic equipment collection point for
recycling.
On ensuring that this product is disposed of correctly, you will help
to avoid possible negative consequences for the environment
and public health, which could occur if this product is not handled
correctly. To receive more detailed information about recycling this
product, contact your local government, domestic waste disposal
services or the outlet where the product was bought.
Technical and legal information
The Manufacturer declines all liability for damage caused to
persons and objects due to incorrect or improper installation of the
appliance.
Power supply : 220-240V~ 50Hz
Power consumption – Fan : 95W
Power consumption – Luminary : 2 x 50W Max
Power consumption – Total : 195W
Protection class : II
Light bulb : Max. 50W (GU-10)
Airow : 480m/ hr max
Noise level : 61dBa max
16
In more detail...
GB IE
Cooker Hood
Technical and legal information

All installation work must be carried out by a
competent person or qualied electrician.
Before connecting the mains supply ensure that
the mains voltage corresponds to the voltage on
the rating plate inside the cooker hood.
WARNING : THIS APPLIANCE MUST BE
EARTHED.
Mains Supply could be connected to the Mains Voltage by Direct
Connection
OFF
N(bleu)
L(brun)
N(bleu)
L(brun)
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3AMP FUSE
FUSE ON
EUR UK
Direct Connection
If the appliance is being connected directly to the mains an
omnipolar circuit-breaker must be installed with a minimum
opening of 3mm between contacts.
If the cable is damaged or to be replaced, the operation must be
carried out the by a qualied electrician with dedicated tools to
avoid any accidents.
The installer must ensure that the correct electrical connection has
been made and that it complies with wiring diagram.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorized
technicians only.
17
In more detail...
GB IE
Technical and legal information

Guarantee
Guarantee
This appliance is covered by a 24 months guarantee. The
guarantee will in no way affect your statutory rights and
cannot be varied by any other guarantee, which may have
been issued with the unit.
This Guarantee Does Not Cover:
A. Service calls which are not related to any defect in the
appliance. The cost of a service call will be charged if the problem
is not found to be an appliance fault. For example: -
• Correcting the installation of the appliance.
• Instructing you how to use the appliance.
• Replacing house fuses or correcting house wiring.
• Correcting faults caused by the user.
• Noise or vibration that is considered normal.
• Accidental or wilful damage, misuse or modications likely to or
which do affect the appliance or its performance.
• Consumable items such as lters and light bulbs.
B. Defects caused by factors other than:
• Normal domestic use or
• Use in accordance with the Appliance User Guide.
C. The cost of repairs carried out by non-authorised repairs or the
cost of correcting such unauthorised repairs.
D. Normal recommended maintenance as set out in the Appliance
User Guide.
This appliance has been designed for use in a normal domestic
(residential) environment. This appliance is not designed for
commercial use (whatsoever). Any commercial use by a Customer
will affect the appliance’s guarantee.
The Manufacturer’s Authorised Repairer must be contacted if
service is required during the period of this guarantee.
CUSTOMER SERVICE HELP LINES
When calling customer service, please ensure you have the model
number and serial number to hand.
Please keep your receipt or invoice in a safe place as they will be
required as proof of date of purchase.
UK and N.Ireland – ISDAL
– t: 0844 8001128
– e: [email protected]
Republic of Ireland (ROI) – ISDAL – t: 1-800 535542
France – SIDEPAR – t: 01 56 48 02 60 - e: [e-mail]
18
In more detail...
GB IE

CE Declaration of conformity
CE Declaration of conformity
This appliance respects laws of the suppression of radio-
interference.
As the Manufacturer has a policy of continuous product
improvement, it reserves the right to adapt and carry out any
19
In more detail...
GB IE
ADRESS:
C/ Ter nº 2, Torelló 08570 - Barcelona (Spain)
MACHINE APPLICATION: CLTHAL60-C
TYPE:
Decorative Cooker Hood
EC DIRECTIVES APPLIED:
Standard EN 60335-1 Safety of household and similar electrical appliances
Standard EN 60335 part 2-31, particular requirements for range hoods
Standard EN 55014 Limits and methods of measurement of radio disturbance
Standard EN 61000-3-2 Electromagnetic compatibility limits for harmonic.
Standard EN 61000-4-5 Electromagnetic compatibility (EMC)
APPLIED INTERNATIONAL TECHNICAL
STANDARDS AND SPECIFICATIONS: ISO9001.2008
PLACE: Torelló
APPLIED HARMONIZED
STANDARDS:
MANUFACTURER: CATA
David Sala
Technical Manager
We hereby certify that the mentioned accessory complies with the essential requirements of the
European Directives applicable, including their modifications and the corresponding transpositions
from the national law.
Comply with the European Directives 2006/95/CE: LVD
and the 2004/108/CE: EMC
ADDRESS
AGS60PK-F

01
20
Assembly
You can choose two type of installation:
- Ducted option
- Recirculation option
