MyCableMart ZT-T-505A User manual

3D Full HD 1080P HDMI Extender Over Single CAT5e/6 With IR（
（（
（60M）
））
）
HDMI EXTENDER
User Manual
HDMI Extender Over Single CAT5e/6 With IR（60M）
(3D Full HD 1080P)
Model ZT-T-505A
Bring High-Definition to your life!

3D Full HD 1080P HDMI Extender Over Single CAT5e/6 With IR（
（（
（60M）
））
）
Thank you for purchasing our product. To ensure safety and many years
of trouble-free operation of this product, please read the manual
carefully before using this product.
1.0 INTRODUCTION
The HDMI to RJ45 Extender use a single cat-5e or cat-6 (recommended)
cables up to 60 meters instead of HDMI cable to transmit high definition signal,
helping reducing costs. Long distance transmission of high definition is very
difficult because HDMI cable is very expensive. The Extender is designed to
supply for long distance transmission of high definition signal.
2.0 FEATURES
1) Signal transmission :CAT5e or CAT6(recommended) cables up to 60
meters instead of HDMI cables are connected between TX and RX
Extender.
2) Support HDMI1.3,HDCP 1.2 protocol compliant.
3) Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.
4) Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.
5) Support CEC.
6) Support 20~60KHz IR working.
7) Audio format support :
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.
8) No loss of quality.
9) Installs in minutes.
10) Needs DC5V/1A power supply (included).
3.0 PACKAGING ACCESSORIES:
When first unpacking your extender please check to see if the following items
are included:
1.HDMI Transmitter------------------1 PC
2.HDMI Receiver---------------------1 PC
3.IR-TX ---------------------------------1 PC
4.IR-RX ---------------------------------1 PC
5.Power supply------------------------2 PC
6.User manual-------------------------1 PC
4.0 SPECIFICATION
Length of CAT-6 cable between Transmitter and Receiver-----------------------------------------Up to 60 meters
HDMI Input--------------------------------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input -----------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output------------------------------------------------------24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output-----------------------------------------------------------LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth----------------------------------------------------------------------------------------------------------165MHz
Max baud rate----------------------------------------------------------------------------------------------------------4.95Gbps

3D Full HD 1080P HDMI Extender Over Single CAT5e/6 With IR（
（（
（60M）
））
）
Input Video signal -------------------------------------------------------------------------------------------0.5~1.5Volts p-p
Output DDC signal-----------------------------------------------------------------------------------------5Volts p-p (TT1L)
Input/Output HDMI cable distance-------------------------------------------≤20m AWG26 HDMI standard cable
Max working current----------------------------------------------------------------------------------------------------800mA
Power adapter format -----------------------------------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range------------------------------------------------------------------------------ (-15 to +55℃)
Operating Humidity range------------------------------------------------------------5 to 90%RH (No Condensation)

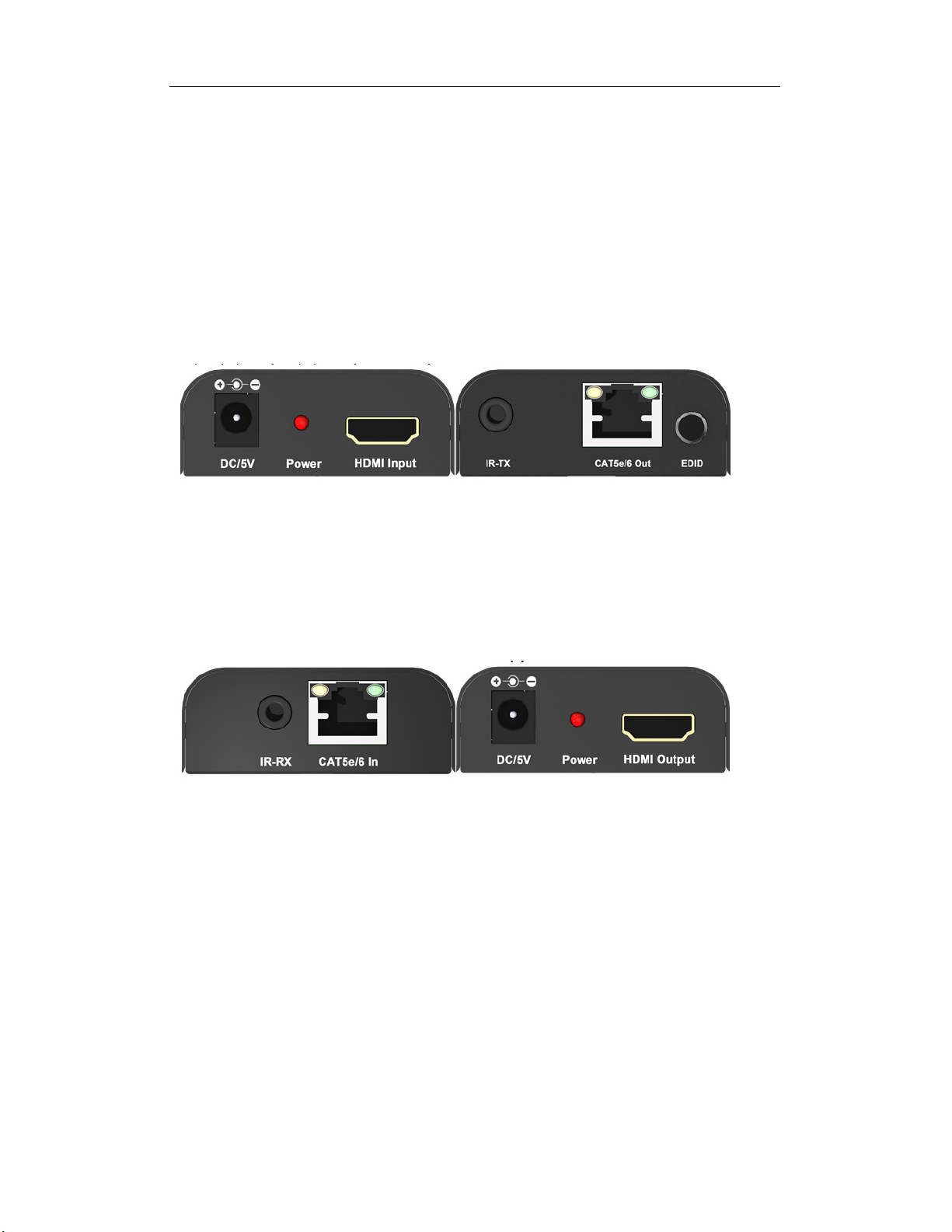

5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal
inputs, outputs, and power requirements.
DC/5V-------------------------------------------Power Input
Power---------------------------------------Power Indicator
HDMI Input -------------------------------HDMI Input port
IR-TX -----------------------------------------IR transmitter
CAT5e/6 Out -----------------------------CAT5e/6 output
EDID -------------------------------------EDID copy button
IR-RX ---------------------------------------------IR receiver
CAT5e/6 In ---------------------------------CAT5e/6 Input
DC/5V-------------------------------------------Power Input
Power---------------------------------------Power Indicator
HDMI Output ---------------------------HDMI output port
6.0 CONNECT AND OPERATE
Before installation, please make sure all devices you wish to connect have
been turned off.

3D Full HD 1080P HDMI Extender Over Single CAT5e/6 With IR（
（（
（60M）
））
）
6.01.Connect HDMI signal source to the transmitter of HDMI extender.
6.02.Use LAN cable (Recommend:CAT 6) to connect transmitter and
receiver of HDMI Extender.
6.03.Connect the display equipment with HDMI connector to the receiver of
HDMI extender.
6.04.Power on all connected devices, Choose the input of the display device
to its HDMI channel.
The method of EDID copy of display terminal:
Connect the HDMI input port of the HDMI extender transmitter to the TV with t
he power adapter, and press the EDID button on the transmitter for 1-3 secon
ds to complete the EDID copy.
7.0 INSTALLATION AND PRECAUTIONS
To avoid electric shock, product damage and to protect your safety, please
note the following:
1. Please slowly plug or unplug signal cables and do not repeatedly plug and
unplug.
2. The equipment should not be placed under direct sun-light, damp areas, or
an unventilated environment.
3. Liquids should not be placed on the equipment.
4. Do not install the equipment near heat sources such as fire, power, or other
amplifiers that produce heat.
5. Do not insert the metal or other objects to the equipment in addition to
connecting cables to ports.
6. Dispose of electronics properly based on local disposal regulations
