mychway HR-808H Technical specifications

HR-808H

01-09
11-19
21-29

新一代依美强效的科技品牌
韩国进口激光器的核心技术
高端护理科技美容产品
HR-808H

HR-808H

HR-808H
HR-808H

“用科技见证你的美”
HR-808H

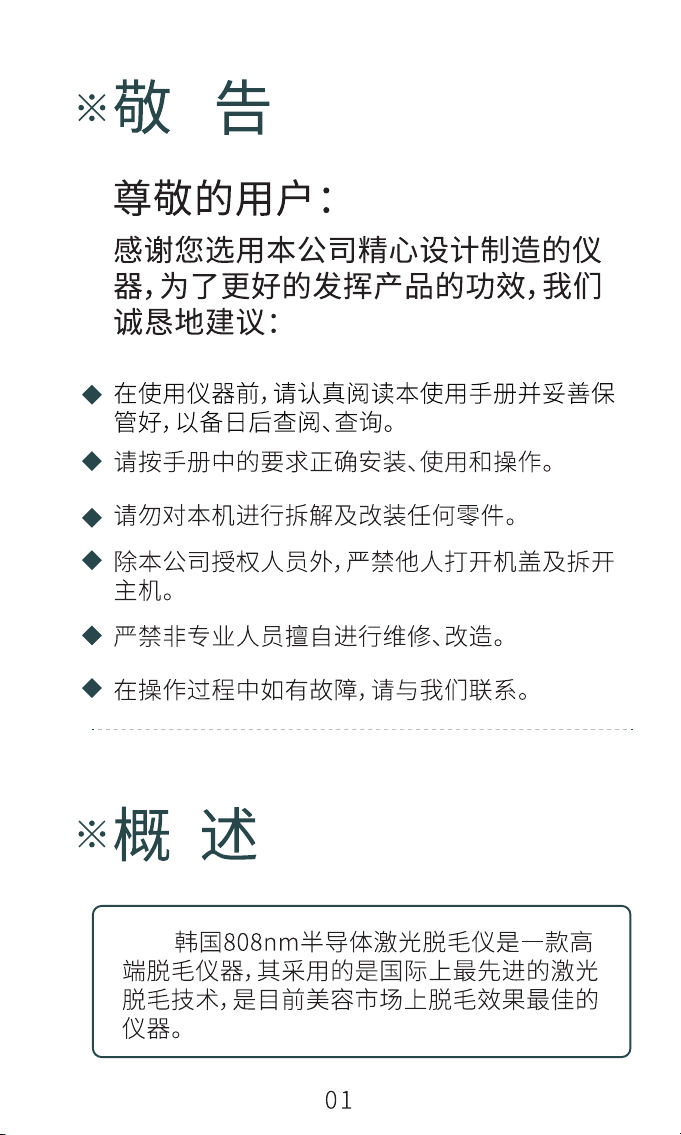

ATTENTION
DEAR USERS：
Thank you for choosing the instrument
designed and manufactured by our company.
In order to better play the effectiveness of the
product, we sincerely suggest that：
Before using the instrument, please read this manual
carefully and keep it properly. Well managed for future
reference and inquiry.
◆
Please install, use and operate correctly according to
the manual.
◆
Do not disassemble or refit any parts of the machine.
◆
Except for the authorized personnel of the company, it
is strictly forbidden to open and open the machine
cover host.
◆
It is strictly forbidden for non professional personnel to
carry out maintenance and transformation without
authorization.
◆
If there is any fault during operation, please contact us.
◆
SUMMARY
South Korea 808nm semiconductor laser hair
removal instrument is a high-end hair removal
instrument, which adopts the most advanced laser
hair removal technology in the world, and is the
current beauty market.
※
11

Laser: using the world's top stacked laser.
PRODUCT ADVANTAGES
FUNCTIONAL PRINCIPLE
※
◆
Efficient and stable refrigeration system.
◆
◆
Super long service life: 10 million times of
continuous light emission.
Ultra high peak power: single target power up to
50W / bar.
The laser refrigeration system adopts semiconductor
refrigeration, which can ensure the continuous opera-
tion of the whole system for 7 * 24 hours. Air cooling +
water cooling, which is widely used in the market, can
only work for 2-3 hours.
Using contact sapphire cooling system, high efficiency
of cooling conduction, make skin more comfortable in
the process.
Intelligent water temperature control system: avoid
high water temperature and damage handle.
Unique shape design and color matching make the
product more beautiful and fashionable.
808nm semiconductor laser hair removal system,
using its unique long pulse width laser, penetrates the
skin to the hair follicle, according to the selective wide
laser, penetrates the skin to the hair follicle. According to
the selective light absorption principle, the laser energy
is preferentially absorbed by the melanin in the hair, and
then makes the hair lose the regeneration ability. At the
same time, in the operation process, the system realizes
the unique dynamic cooling of sapphire. The technology
can cool the skin in a short time, ensure that the skin will
not be burned, and achieve the painless, fast and
long-term hair removal effect.
12

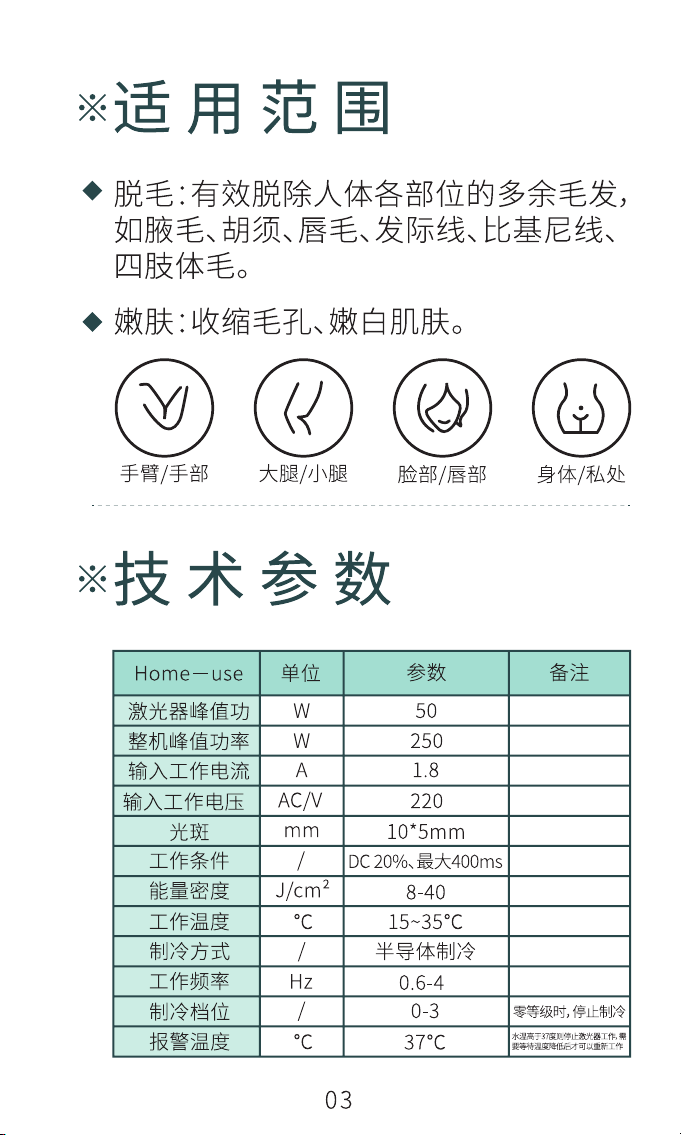

SCOPE OF APPLICATION
◆
◆
Depilation: effectively remove the redundant
hair of various parts of the human body, such
as armpit hair, beard, lip hair, bikini line and
body hair of limbs.
Tender skin: shrink pores and whiten skin.
Face/LipsThigh/LegArm/Hands Body/Privates
TECHNICAL PARAMETERS
※
Stop when 0
Stopping
working
Home－use
Peak power of laser
Peak power of the
whole machine
Input working current
Input working voltage
Illuminance Area
Working conditions
Energy density
Working temperature
Refrigeration mode
Working frequency
Cooling gear
Alarm temperature
measur-
ement parameter note
W
W
A
AC/V
mm
/
J/cm²
℃
/
Hz
/
℃
50
250
1.8
220
10*5mm
DC 20%、max 400ms
8-40
15~35℃
semiconductor
0.6-4
0-3
37℃
13

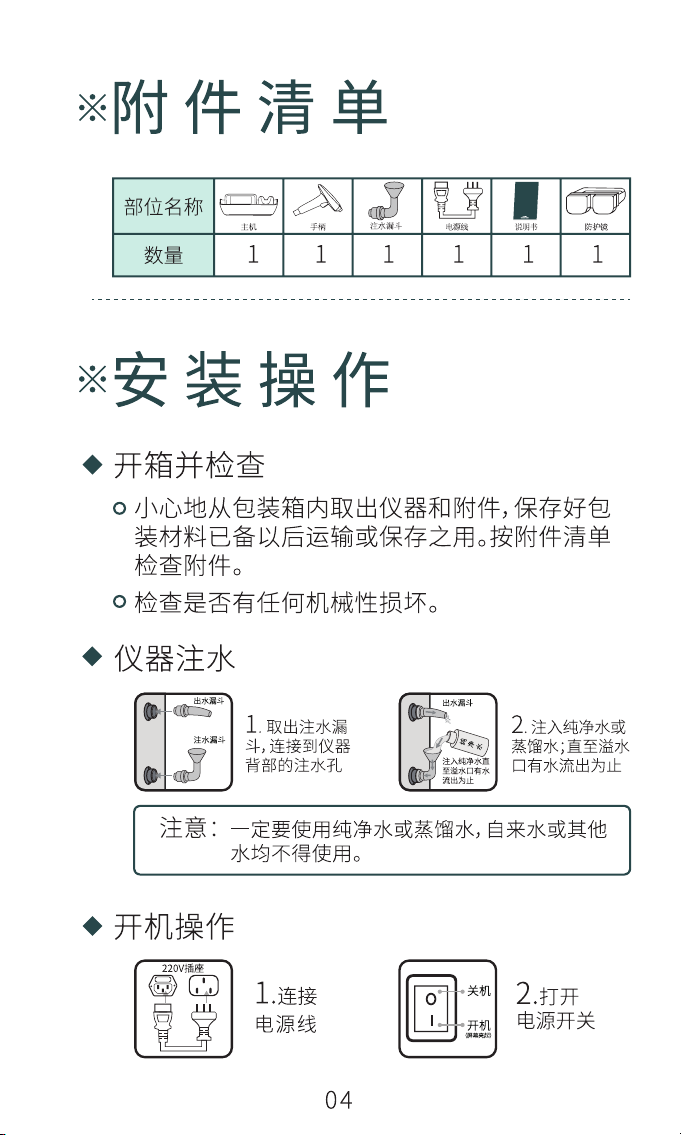

LIST OF ATTACHMENTS
※
Most Handle Water injection
funnel power cord instructions Protective glasses
1 1 1 1 1 1
Part
name
Number
HR-808H
Unpacking and inspection
◆
◆
◆
INSTALLATION OPERATION
※
Carefully take out the instrument and accessories
from the packing box and keep the packing materials
ready for future transportation or storage. Check the
accessories according to the attachment list.
Check for any mechanical damage.
Instrument water injection
Note：
1.Take out the water
injection funnel and
connect it to the
water injection hole
on the back of the
instrument.
2. Inject pure water or
distilled water until
there is water flowing
out of the overflow
port.
Power on operation
1.Connect the
power line
2.Open the
power line
Be sure to use pure water or distilled water.
Do not use tap water or other water.
220V registered jack
ON
OFF
14
Water injection
funnel

◆

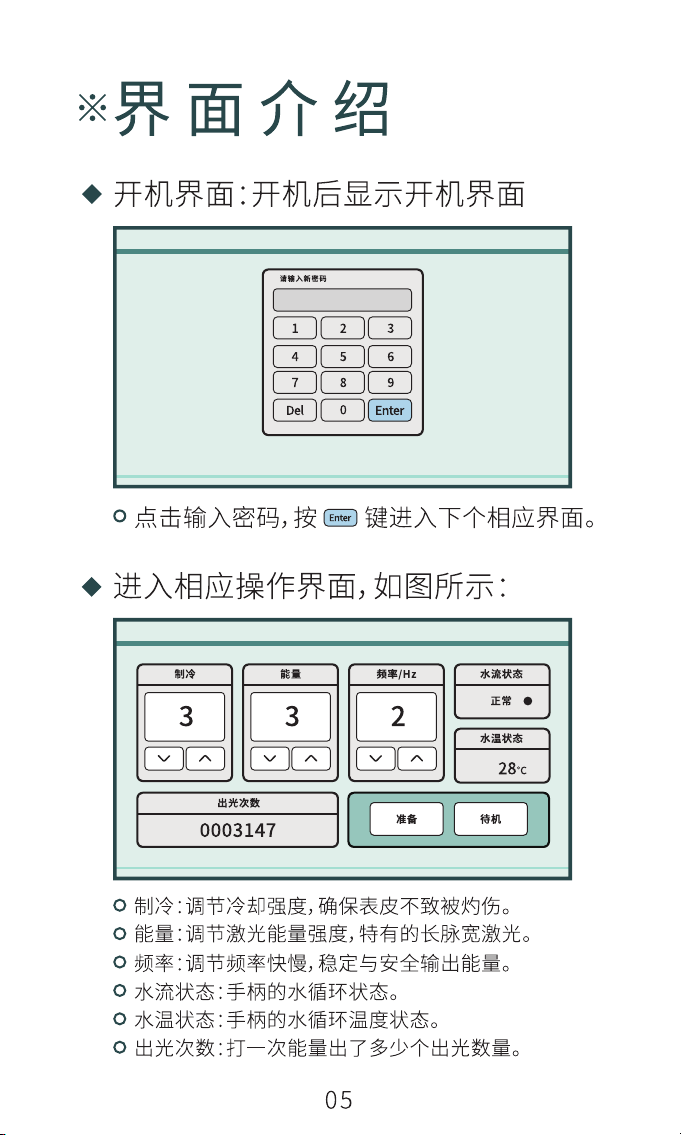

Click to enter the password and press enter to enter the next
corresponding interface.
Boot interface: boot interface
INTERFACE INTRODUCTION
※
1 2 3
4 5 6
7 8 9
Del 0Enter
New password please
Refrigeration: adjust the cooling intensity to ensure that the skin will
not be burned.
Energy: adjust the laser energy intensity, unique long pulse width laser.
Frequency: adjust the frequency, stable and safe output energy.
Flow state: the water circulation state of the handle.
Water temperature state: the water circulation temperature state of
the handle.
The number of times of light: how many times does the energy give out.
◆Enter the corresponding operation interface,
as shown in the figure:
Cooling Energy Frequency Flow
Temperarture
Ready
Number
Stand By
3
28℃
3 2
0003147
Normal/
Unusual
15
HR-808H
HR-808H

Shaving
1
Adjust operating parameters
3
The operation process
4
Apply cold gel
2
Before operation, a shaving process should
be carried out, and the hair should be kept
1-2mm to facilitate the absorption of light by
the hair.
Apply a little cold gel on the operation area.
The thickness of the coin should not be too
thick, otherwise the effect will be affected.
.According to the guest's skin color, hair thickness
and depilation position, select the corresponding
operation parameters, and adjust them according
to the customer's feeling.
Fit the skin, avoid light leakage, and slowly
slide the handle probe for operation.
Energy regulation: starting from energy 4, if the
operator thinks that the heat is too large, the energy
will be reduced; if there is a slight thermal expan-
sion, it means that melanin is absorbed by the laser
with the wavelength of 808nm, and the light energy
is converted into heat energy to destroy the melanin
of hair follicle, and the effect is the best.
OPERATION STEPS
※
16

◆
◆

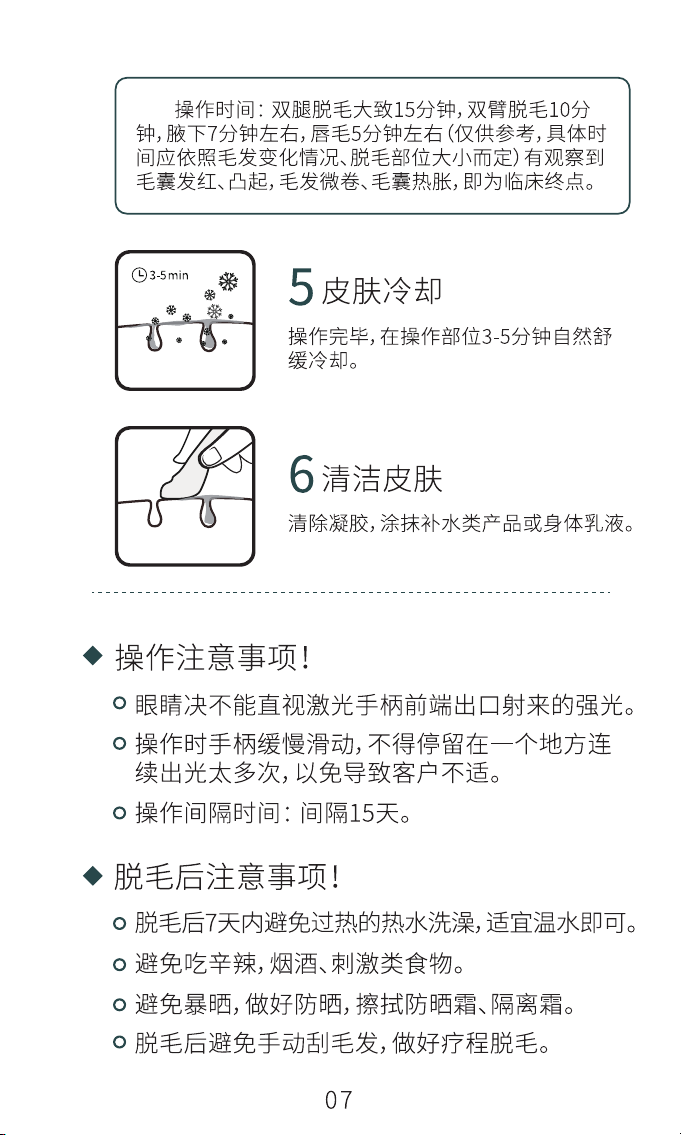

Skin cooling
5
After operation, cool the operating part for
3-5 minutes.
Clean the skin
6
Remove gel, apply moisturizing products or
body lotion.
Eyes must not look directly at the strong light coming
from the exit of the front end of the laser handle.
Avoid hot water bath within 7 days after depilation, suitable
for warm water.
Avoid spicy, tobacco, alcohol, stimulant food.
Avoid exposure to the sun, do a good job in sun
protection, wipe sunscreen, isolation cream.
Avoid manual shaving after depilation, do a good
course of depilation.
During operation, the handle should slide slowly,
and it should not stay in one place for too many
times to avoid customer discomfort.
Treatment interval: 15days.
Operation time: about 15 minutes for legs, 10
minutes for arms, 7 minutes for armpit and 5
minutes for lip hair (for reference only, the specific
time should be determined according to the
changes of hair and the size of hair removal part).
The clinical end point is that the hair follicles are
red and protruding, the hair is slightly curled and
the hair follicles are hot.
Operation precautions
Precautions after depilation
17
