MYD-C7Z010/20 Product User Manual
MYD-C7Z010/20
Product User Manual
Version 1.2
Aug 31, 2015

MYiR-Tech | www.myirtech.com
MYD-C7Z010/20 Product User Manual
Revision History
Version
Description
Date
V1.0
Initial Version
2015/5/11
V1.1
Add eMMC,Ext Watchdog and Reset circuit description
2015/7/28
V1.2
Replace product pictures,move watchdog section to product
datasheet
2015/8/31

MYiR-Tech | www.myirtech.com
MYD-C7Z010/20 Product User Manual
Table of contents
Table of contents...............................................................................................................3
Chapter 1 Overview ...........................................................................................................1
1.1 Product Description......................................................................................................... 1
1.2 Picture.............................................................................................................................. 1
Chapter 2 Hardware Resource.........................................................................................2
2.1 SoC Board Resources....................................................................................................... 2
2.2 Carry Board Resources .................................................................................................... 2
Chapter 3 Hardware...........................................................................................................5
3.1 Interface .......................................................................................................................... 5
3.2 PS Interface...................................................................................................................... 6
3.2.1 Ethernet.............................................................................................................. 6
3.2.2 USB......................................................................................................................... 6
3.2.3 CAN ........................................................................................................................ 6
3.2.4 RS232..................................................................................................................... 7
3.2.5 I2C........................................................................................................................... 7
3.2.6 KEY......................................................................................................................... 7
3.2.7 JTAG ...................................................................................................................... 7
3.2.8 Micro SD Card...................................................................................................... 7
3.2.9 RTC......................................................................................................................... 7
3.2.10 eMMC................................................................................................................... 7
3.3 PL Interface...................................................................................................................... 7
3.3.1 FMC ........................................................................................................................ 8
3.3.2 Pmod...................................................................................................................... 8
3.3.3 XADC...................................................................................................................... 8
3.3.4 SATA、SFP、PCI-E............................................................................................ 8
3.4 Reset Circuit..................................................................................................................... 8
Chapter 4 Software Resource ..........................................................................................9
4.1 Linux Resources........................................................................................................ 9

MYiR-Tech | www.myirtech.com
MYD-C7Z010/20 Product User Manual
4.2 Logic Resources...................................................................................................... 10
Chapter 5 Mechanical parameters.................................................................................11
Appendix 1 Warranty & Technical Support Services ..................................................12

MYiR-Tech | www.myirtech.com 1/ 15
MYD-C7Z010/20 Product User Manual
Chapter 1 Overview
1.1 Product Description
MYD-C7Z010/20 is composed of the core board named MYC-C7Z010/20 and the floor
board named MYB-C7Z010/20. The core of MYC-C7Z010/20 is SoC Xilinx
Zynq-7010/7020 All Programmable SoC. Using The ARM processor and FPGA
architectures tightly integrated. With dual-core ARM Cortex-A9 MPCore and 7 Series
FPGA. High performance, low power consumption, Meet a variety of your design needs
It operates at up to 1GHz, and has rich peripherals including high-speed USB, I2C, LCD
interfaces, CAN interfaces, JTAG debug interface,ADC, Serial port, Touch Screen and TF
card interface, etc.
1.2 Picture
Figure 1-1

MYiR-Tech | www.myirtech.com 2/ 15
MYD-C7Z010/20 Product User Manual
Chapter 2 Hardware Resource

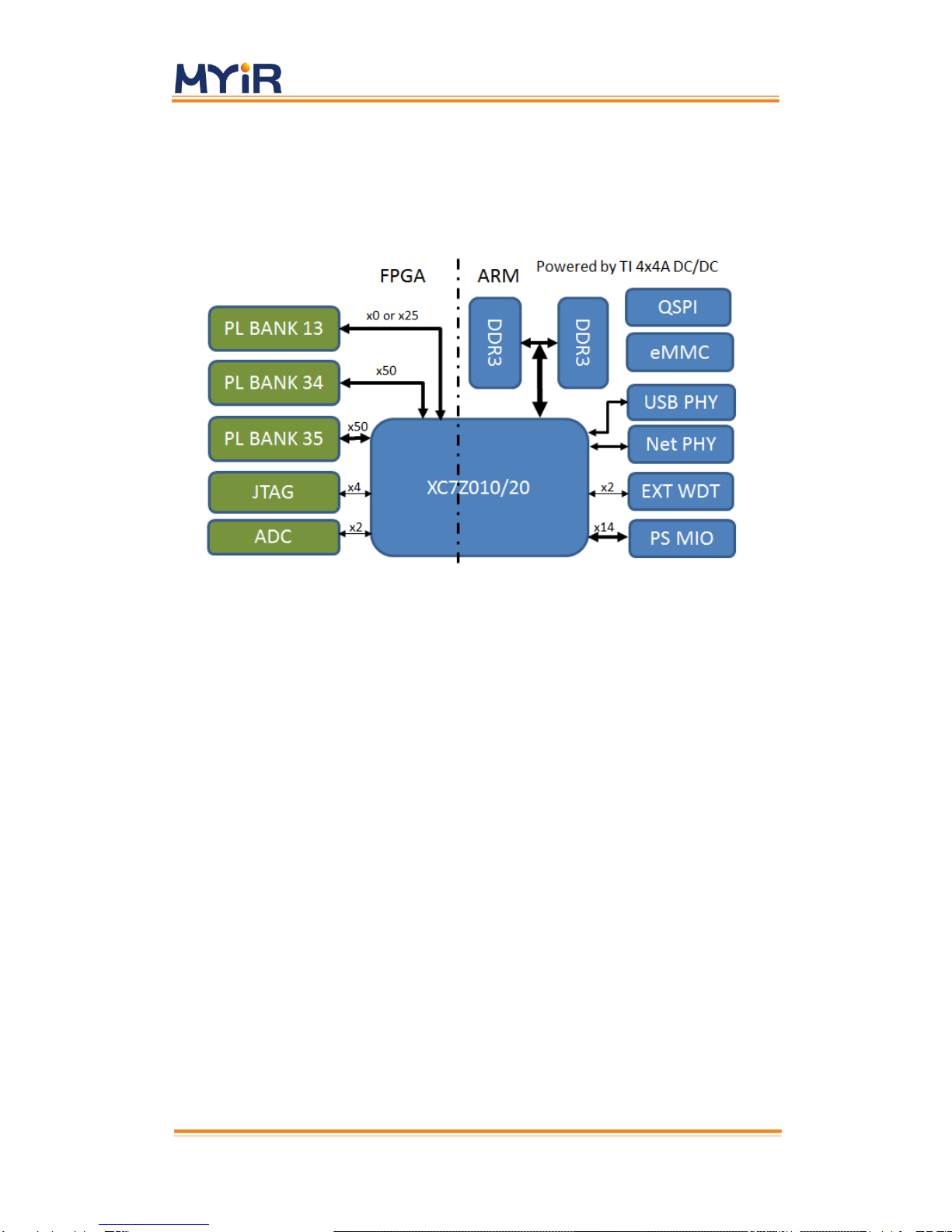

2.1 SoC Board Resources
图2-1
1GB DDR3 SDRAM
4GB eMMC
Qual SPI-Flash 16MB/32MB
10/100/1000Mb/s Ethernet
External watchdog
One power LED (blue), One FPGA programming LED (red) and One user LED
(green)

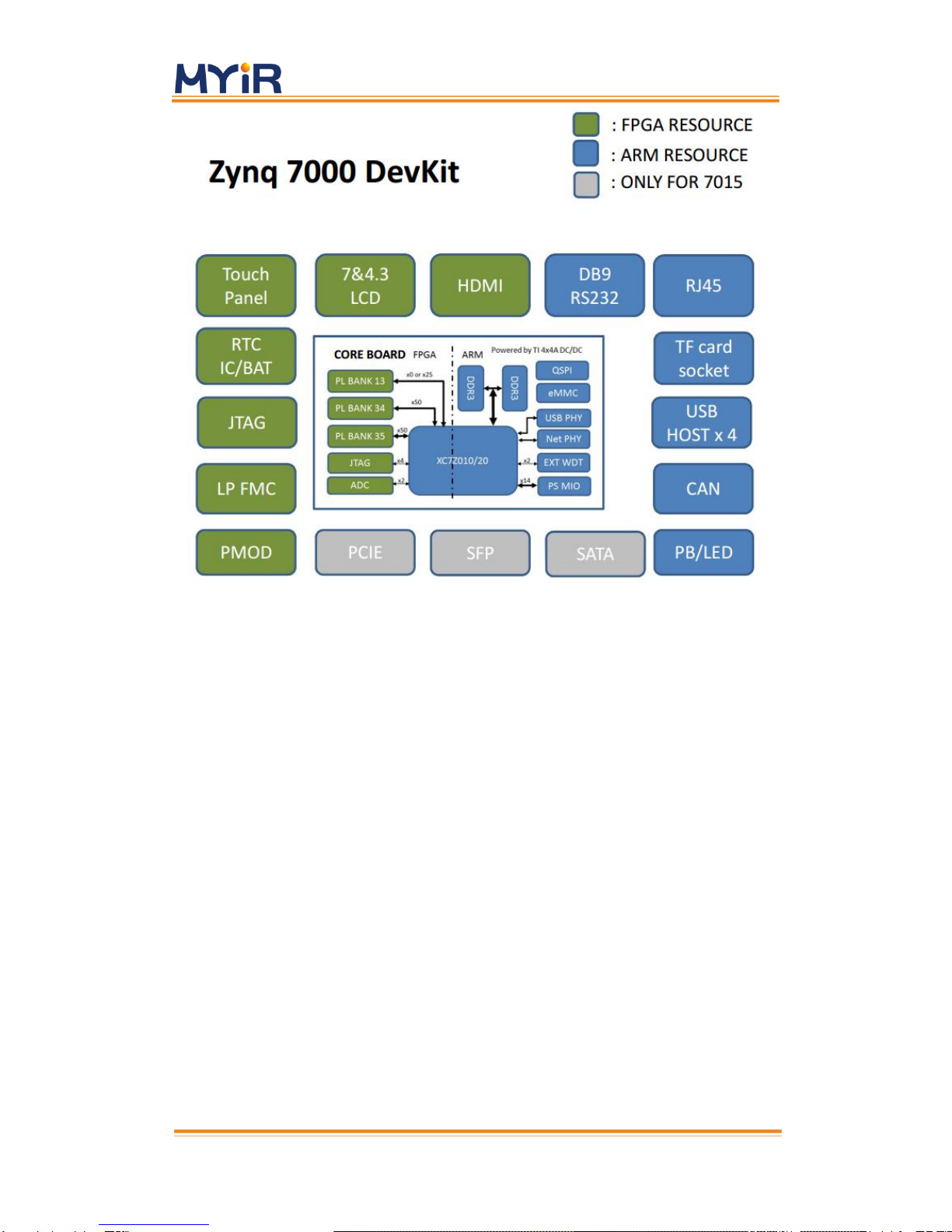

2.2 Carry Board Resources

MYiR-Tech | www.myirtech.com 3/ 15
MYD-C7Z010/20 Product User Manual
PS Unit
1 channel Gigabit Ethernet
4 channel USB Host (USB HUB)
1 channel CAN Interface
1 channel RS232
1 channel I2C Interface
1 Reset KEY, 1 User KEY
1 channel JTAG
External real-time clock
PL Unit
XADC Interface
1 Channel Xilinx LPFMC Interfcae
1 Channel HDMI Interfcae, YCrCb 16bit, no audio
1 Channel LCD DIP Interfcae, RGB 16bit
Resistive capacitive touch screen interface, in LCD Interface

MYiR-Tech | www.myirtech.com 4/ 15
MYD-C7Z010/20 Product User Manual
3 Channel Pmod ( only for XC7Z020 )
1 Power LED
1 FMC LED

MYiR-Tech | www.myirtech.com 5/ 15
MYD-C7Z010/20 Product User Manual
Chapter 3 Hardware
3.1 Interface
Figure 3-1
Num
Description
Uint
J1
Power SW
J2, J3
SoC Module Dock female
J4, J5
USB HUB, USB Type A Female
PS
J4
RS232, DB9
PS
J7
JTAG
PS
J8
Gigabit Ethernet Interface, RJ45 with Transformer
PS
J9
HDMI, Type A Female
PL
J10
LCDTouch Screen Interface,DIP
PL
J11
LCD touch-screen interface, FPC Cable
J12
XADC Input
PL
J13
PMOD 1, only XC7Z020
PL
J14
PMOD 2, only XC7Z020
PL
J15
PMOD 3, only XC7Z020
PL
J16
PCI-E x 1 Slot
Reserved
J17
SATA
Reserved
J18
SFP cage
Reserved
J19
TF card Slot
PS

MYiR-Tech | www.myirtech.com 6/ 15
MYD-C7Z010/20 Product User Manual
Num
Description
Uint
J26
RTC Battery, CR2032
PS
JP1
CAN resistor Jumper
JP2,JP3
Boot/JTAG select Jumper
PS
JP8
FMC Jumper
Reserved
U14
5V DCDC Module
P1
12V Power interface, DC2.0
CON1
CAN interface
PS
CON2
HD Power
CON3
SFP Interface
Reserved
CON4
Ground
U18
LP FMC
PL
K1
Manual Reset KEY
PS
K2
User KEY
PS
D10,
D11,
D12,
D13
USB LED
PS
D51
User LED
PL
D53
Power LED
Table 3-1
3.2 PS Interface
3.2.1 Ethernet
1 Channel 10/100/1GMbps Ethernet, PHY chip on the SoC board. Four pairs of Gigabit
PHY differential signals connect to the J8 of carry board. J8 is a RJ45 block which
Integrated transformer .Output signal 1000 BASE-T.
3.2.2 USB
1 Channel USB 2.0 high speed interface, Extended to four USB host by USB hub chip
USB2514. USB2514 is on the carry board, connected to J4, J5.
3.2.3 CAN
1 Channel CAN interface, connected to CON1.

MYiR-Tech | www.myirtech.com 7/ 15
MYD-C7Z010/20 Product User Manual
3.2.4 RS232
1 Channel RS232, DB9 interface, use for default debug serial port, connected to J6.
3.2.5 I2C
1 Channel I2C interface, use for control RTC, HDMI and Touch chip.
3.2.6 KEY
A reset KEY K1 can be reset the PS unit, a user KEY K2 can be use for input function.
3.2.7 JTAG
1 Channel 14 Pin ARM JTAG, use for debug the PS and PL, connected to J7.
3.2.8 Micro SD Card
1 Channel micro SD Card interface and connected to J19, the controller of micro SD card
is SD/SDIO 0.
3.2.9 RTC
External RTC chip DS3231S, control using I2C. J26 is the CR2032 battery holders,
achieve the function of Real-Time Clock.
3.2.10 eMMC
The core board is equipped with 4GB eMMC on SD/SDIO/eMMC 1 controller, the CD pin
of the SD/SDIO/eMMC controller must be connected to gnd, or else the emmc will not
work properly. Please refrence the vivado project on the DVD to configure the pin.
3.3 PL Interface

MYiR-Tech | www.myirtech.com 8/ 15
MYD-C7Z010/20 Product User Manual
3.3.1 FMC
FMC is anANSI/VITA standard that defines I/O mezzanine modules with connection to an
FPGAor other device with re-configurable I/O capability, can be maximize the utilization of
PCB.
MYD-C7Z010/20 include1 channel Xilinx FMC interface, use the 160 pin LPC. U18 is the
FMC LPC female dock, Match male dock model for ASP-134603-01 made by Samtec.
3.3.2 Pmod
Pmod is a kind of expansion interface with little pin , Pmod modules can be connected to
a variety of functions, such as I / O, peripherals, sensors, data acquisition and so on.
Pmod 6-pin and 12-pin two kinds, Development board contains three groups of 12-pin
Pmod, they are connected to J13 ~ J15. Only XC7Z020 can use Pmod. For more
information plesase see the schematics.
3.3.3 XADC
The XADC block contains two 12-bit, 1 MSPS ADCs, connected to J12. For more
information plesase see the < MYC-C7Z01020 Pin Description Table >.
3.3.4 SATA、SFP、PCI-E
No connected, reserve for XC7015.
3.4 Reset Circuit
CPU pin PS_MIO7 controls the reset of the USB and network phy chip, reset is low active.

MYiR-Tech | www.myirtech.com 9/ 15
MYD-C7Z010/20 Product User Manual
Chapter 4 Software Resource
4.1 Linux Resources
Category
Name
Remark
Code
Tool
chains
gcc 4.6.1
gcc version 4.6.1
(Sourcery CodeBench Lite 2011.09-50)
Boot
loader
BOOT.BIN
First bootstrap Include FSBL and u-boot
Yes
Linux
Kernel
Linux 3.15.0
Linux kernel customized for the MYD-C7Z010/20
hardware
Yes
Driver
USB Host
USB Host driver
Yes
Ethernet
Gigabit Ethernet driver
Yes
MMC/SD/TF
MMC/SD/TF Card driver
Yes
CAN
CAN driver
Yes
LCD Controller
XYLON LCD screen driver
Yes
HDMI
HDMI SII902X driver
Yes
Button
Button driver
Yes
UART
Serial driver
Yes
LED
LED driver
Yes
GPIO
GPIO driver
Yes
QSPI
QSPI Flash S25FL256S driver
Yes
RTC
DS3231 RTC driver
Yes
Resistive Touch
TSC2007 Resistive Touch driver
Yes
Capacitive Touch
FT5X0XCapacitive Touch driver
Yes
XADC
XADC driver
Yes
File
system
Ramdisk
Ramdisk image
Yes
Rootfs
Made by Buildroot, include Qt
Yes
Table 4-1

MYiR-Tech | www.myirtech.com 10 / 15
MYD-C7Z010/20 Product User Manual
4.2 Logic Resources
Type
Name
Remark
Logic
Peripherals
LogiCVC
A image display controller developed by xylon
(Evaluation License)
LogiCLK
A Clock Generator developed by xylon (Evaluation
License)
Xillybus
Is a FIFO, what is use by AXI connected to PS
from PL
Table 4-2

MYiR-Tech | www.myirtech.com 11 / 15
MYD-C7Z010/20 Product User Manual
Chapter 5 Mechanical parameters
Operating Temperature:
-40~+85 Celsius, Industrial grade( compliancewith CE, FCC, CCC)
-0~+ 70 Celsius, Business grade ( compliancewith CE, FCC, CCC)
Ambient Temperature: -50~100 Celsius
Humidity: 20%~90%
Power Supply:
SoC Board : 5V 2.5W
MYD-C7Z010/20 : 12V/0.6A , 6W(with LCD)
Footprint: 280 Pin 0.8mm pitch double row PCB connector
PCB:
Carry Board: 4 Layer, Flash-Gold, Lead free
SoC Board: 10 Layer, Flash-Gold, Lead free
Dimensions:
Carry Board: 190mm x 110 mm
SoC Board: 75mm x 55 mm

MYiR-Tech | www.myirtech.com 12 / 15
MYD-C7Z010/20 Product User Manual
Appendix 1 Warranty & Technical Support
Services
MYIR Tech Limited is a global provider of ARM hardware and software tools, design
solutions for embedded applications. We support our customers in a wide range of
services to accelerate your time to market.
MYIR is an ARM Connected Community Member and work closely with ARM and many
semiconductor vendors. We sell products ranging from board level products such as
development boards, single board computers and CPU modules to help with your
evaluation, prototype, and system integration or creating your own applications. Our
products are used widely in industrial control, medical devices, consumer electronic,
telecommunication systems, Human Machine Interface (HMI) and more other embedded
applications. MYIR has an experienced team and provides custom design services based
on ARM processors to help customers make your idea a reality.
The contents below introduce to customers the warranty and technical support services
provided by MYIR as well as the matters needing attention in using MYIR’s products.
Service Guarantee
MYIR regards the product quality as the life of an enterprise. We strictly check and control
the core board design, the procurement of components, production control, product
testing, packaging, shipping and other aspects and strive to provide products with best
quality to customers. We believe that only quality products and excellent services can
ensure the long-term cooperation and mutual benefit.
Price
MYIR insists on providing customers with the most valuable products. We do not pursue
excess profits which we think only for short-time cooperation. Instead, we hope to
establish long-term cooperation and win-win business with customers. So we will offer
reasonable prices in the hope of making the business greater with the customers together
hand in hand.
Delivery Time
MYIR will always keep a certain stock for its regular products. If your order quantity is less
than the amount of inventory, the delivery time would be within three days; if your order
quantity is greater than the number of inventory, the delivery time would be always four to

MYiR-Tech | www.myirtech.com 13 / 15
MYD-C7Z010/20 Product User Manual
six weeks. If for any urgent delivery, we can negotiate with customer and try to supply the
goods in advance.
Technical Support
MYIR has a professional technical support team. Customer can contact us by email
([e-mail]), we will try to reply you within 48 hours. For mass production
and customized products, we will specify person to follow the case and ensure the smooth
production.
After-sale Service
MYIR offers one year free technical support and after-sales maintenance service from the
purchase date. The service covers:
1. Technical support service
a) MYIR offers technical support for the hardware and software materials
which have provided to customers;
b) To help customers compile and run the source code we offer;
c) To help customers solve problems occurred during operations if users
follow the user manual documents;
d) To judge whether the failure exists;
e) To provide free software upgrading service.
However, the following situations are not included in the scope of our free technical
support service:
a) Hardware or software problems occurred during customers’ own
development;
b) Problems occurred when customers compile or run the OS which is tailored
by themselves;
c) Problems occurred during customers’ own applications development;
d) Problems occurred during the modification of MYIR’s software source code.
2. After-sales maintenance service
The products except LCD, which are not used properly, will take the twelve months free
maintenance service since the purchase date. But following situations are not included in
the scope of our free maintenance service:
a) The warranty period is expired;
b) The customer cannot provide proof-of-purchase or the product has no serial number;

MYiR-Tech | www.myirtech.com 14 / 15
MYD-C7Z010/20 Product User Manual
c) The customer has not followed the instruction of the manual which has caused the
damage the product;
d) Due to the natural disasters (unexpected matters), or natural attrition of the
components, or unexpected matters leads the defects of appearance/function;
e) Due to the power supply, bump, leaking of the roof, pets, moist, impurities into the
boards, all those reasons which have caused the damage of the products or defects of
appearance;
f) Due to unauthorized weld or dismantle parts or repair the products which has caused
the damage of the products or defects of appearance;
g) Due to unauthorized installation of the software, system or incorrect configuration or
computer virus which has caused the damage of products.
Warm tips:
1) MYIR does not supply maintenance service to LCD. We suggest the customer first
check the LCD when receiving the goods. In case the LCD cannot run or no display,
customer should contact MYIR within 7 business days from the moment get the
goods.
2) Please do not use finger nails or hard sharp object to touch the surface of the LCD.
3) MYIR suggests user purchasing a piece of special wiper to wipe the LCD after long
time use, please avoid clean the surface with fingers or hands to leave fingerprint.
4) Do not clean the surface of the screen with chemicals.
5) Please read through the product user manual before you using MYIR’s products.
6) For any maintenance service, customers should communicate with MYIR to confirm
the issue first. MYIR’s support team will judge the failure to see if the goods need to be
returned for repair service, we will issue you RMA number for return maintenance
service after confirmation.
3. Maintenance period and charges
a) MYIR will test the products within three days after receipt of the returned goods and
inform customer the testing result. Then we will arrange shipment within one week for the
repaired goods to the customer. For any special failure, we will negotiate with customers
to confirm the maintenance period.
b) For products within warranty period and caused by quality problem, MYIR offers free
maintenance service; for products within warranty period but out of free maintenance

MYiR-Tech | www.myirtech.com 15 / 15
MYD-C7Z010/20 Product User Manual
service scope, MYIR provides maintenance service but shall charge some basic material
cost; for products out of warranty period, MYIR provides maintenance service but shall
charge some basic material cost and handling fee.
4. Shipping cost
During the warranty period, the shipping cost which delivered to MYIR should be
responsible by user; MYIR will pay for the return shipping cost to users when the product
is repaired. If the warranty period is expired, all the shipping cost will be responsible by
users.
5. Products Life Cycle
MYIR will always select mainstream chips for our design, thus to ensure at least ten years
continuous supply; if meeting some main chip stopping production, we will inform
customers in time and assist customers with products updating and upgrading.
Value-added Services
1. MYIR provides services of driver development base on MYIR’s products, like serial
port, USB, Ethernet, LCD, etc.
2. MYIR provides the services of OS porting, BSP drivers’ development, API software
development, etc.
3. MYIR provides other products supporting services like power adapter, LCD panel, etc.
4. ODM/OEM services.
MYIR Tech Limited
Room 1306, Wensheng Center, Wenjin Plaza,
North Wenjin Road, Luohu District, Shenzhen, China 518020
Support Email: [e-mail]
Sales Email: [e-mail]
Phone: [phone]
Fax: [phone]
Website: www.myirtech.com
