Nacecare Numatic TT 516 User manual

Owner Instructions
Mode d’emploi
T T 516
(TT 1840)
Original Instructions
Warning! Read instructions before using the machine.
Attention
Lisez la notice avant d’utiliser la machine.

2
20
21
19
Machine Overview
1. Operator control panel
2. On / Off Lever
3. Waste water tank
4. Clean water tank
5. Brush deck
6. Squeegee blades
7. Floor-tool retaining knobs
8. Clean-water on / off tap
9. Clean-water emptying cap
10. Rear moving wheels
11. Floor-tool vacuum hose
12. Vacuum hose
13. Separator
14. Clean-water ller cap
15. Clean-water level indicator
16. Clean-water tank ll point
17. Top tank (waste water) drainage hose
18. On / Off Switch
19. Vacuum Switch
20. Pump Switch
21. Power Light
22. Handle Position lever
1
3
4
5
6
7
810
12
13
14
15
16
17
112
9
2
22
18
Français (voir page 16)

3
Fill using a hose, bucket or a suitable container. (Fig 5).
Please read before commencing any operation.
After the removal of all the packaging, carefully open and check the contents. !
1
2
Using the handle position lever, move the handle into the
upright position. (Fig 1).
Fit the Brush / Pad (Fig 2).
Swing the oor-tool carrier from
behind the brush. (Fig 3).
4
3
5
Use the two locking knobs tted to the oor-tool, secure to the
oor-tool to the oor-tool carrier. (Fig 4).
Fill the clean-water tank to a Max of 5 Gall
(see page 6)
For operation and cleaning controls
(see page 9)
Fig 1
Fig 2 Fig 3
Fig 4
Fig 5
Quick Set-Up Guide
!
0Gall
Tip the machine.
(see Page 4)

4
Machine Set-Up
Fitting the brushes
Slide the brush / pad under the brush deck (Fig 6).
Featuring the Nulock brush system.
The brush is tted simply by pushing and twisting to lock in place, making tting and removal a simple
process.
Fit the brush / pad onto the Nulock drive chuck, twist to lock
the brush / pad in place (Fig 7).
Only use manufacturer supplied brushes.
This machine requires a 16” brush or a 16”pad.
Fig 6
Fig 7
Safety gloves are recommended for the changing of used brushes.
Tipping the Machine
0Gall
0Gall
2Gall
Min

5
The TT 516 is equipped with a large 5 gall clean-water tank allowing large areas to be cleaning in a single ll.
Filling the clean-water tank
To ll the clean-water tank, remove the ller cap (Fig 10).
Fill using a hose, bucket or a suitable container. (Fig 11).
Note.
Great care must be taken to ensure that contaminants (leaves, hair, dirt, etc) are not allowed to enter the
clean-water tank during the lling process.
If using a bucket or similar, ensure it is always clean and free from debris.
Fig 10
Fig 11
Machine Set-Up

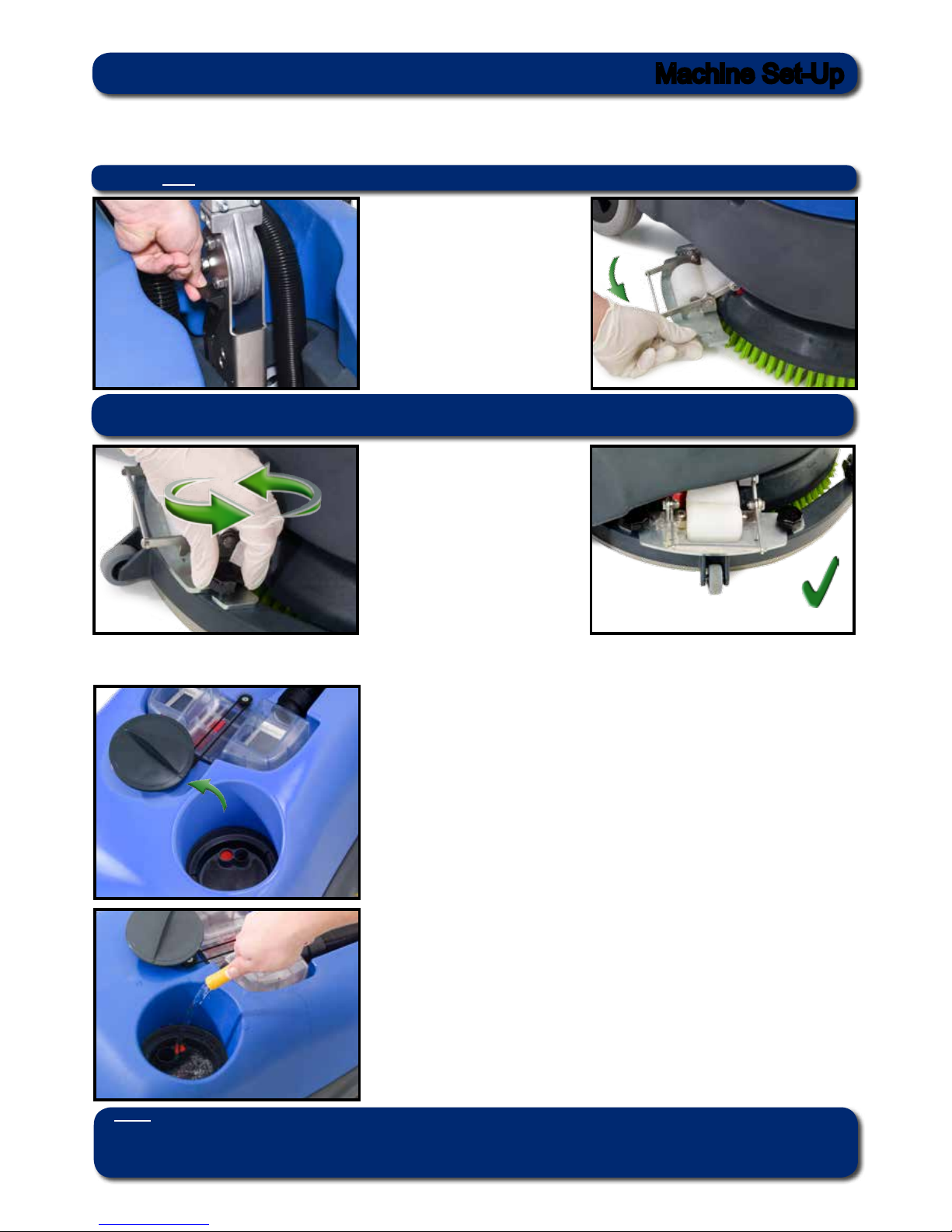

Fitting the Floor Tool
The oor tool has been designed for quick tting, allowing easy squeegee blade replacement and a safety knock-off
feature if the oor tool gets snagged, whilst in transit.
The oor tool carrier can be
raised and locked from moving
by operating the locking lever,
upwards and backwards.
this lever can be found next to the
lower section of the handle.
Unlock and swing the oor-tool
carrier to the side of the machine
(Fig 8).
Secure to the carrier using the
two knobs tted to the oor-tool
carrier (Fig 9) - (Fig 9a).
Do not over tighten the retaining
knobs.
Fig 9
Fig 9a
Note:
It is easier to t the oor-tool if the weight of the machine is resting on the brush. Ensure the brush is tted rst.
Fig 8
Note The lever moves upward and backward motion to lock the oortool in the raised position.

6
Control of Substances Hazardous to Health (COSHH)
For best results use a non-foaming type of chemical, dilute to the manufacturer’s specication.
For further guidance on hazardous substances refer to health and safety instructions online.
Water Flow Adjustment
Located on the left of the machine is the On / Off water tap
(Fig 14 / 15).
Pre-cleaning advice.
Important
Do not operate machine unless the Operator Manual has been read and fully understood.
!!
Before performing the cleaning operation, place out
appropriate warning signs and sweep or dust-mop the oor
(Fig 16).
WHEN HANDLING AND MIXING CHEMICALS.
Always ensure that chemical manufacturer’s safety guidelines are followed.
Only use chemicals recommended for use in auto scrubber-dryers.
!
Fig 14 Fig 15
Fig 16
Numatic part (629044) Wet Floor sign
(available if required)
Machine Set-Up
Fill Level Indicator
Fill the clean water tank to a maximum of 5 gall, including cleaning chemicals if required.
Follow chemical manufacturing guide lines.
Use the ll indicator
(Fig 12).
Showing the clean-water tank full
(Fig 13a).
Fig 12 Fig 13 Fig 13a
Showing the clean-water tank empty
(Fig 13).

7
Moving the machine
Caution
When moving or lifting the TT 516, follow the national safety guidelines on lifting.
! !
When the bottom tank (clean water) is full the machine can be
tilted to a maximum of 450(Fig 19).
When the top tank (waste water) is full the machine can be
tilted to a maximum of 100for transporting to dumping area
(Fig 18).
Caution:
Ensure both tanks are empty before attempting to lift the machine.
! !
Transport the machine by tilting back on to the main transit
wheels (Fig 17).
Weight of empty machine 38.5Kg (85 lbs) g 20.
Fig 17
Fig 18
Fig 19
Fig 20
Machine Set-Up

8
Pre-scrub mode
The TT 516 has been designed to cope with a variety of oor types and different levels of soiling.
On heavily soiled oors use a ‘double scrub’ technique.
First pre-scrub the oor with the oor-tool in the raised position (Fig 21), allow the chemical time to work, then scrub
the area a second time with the oor-tool lowered.
To raise the oor-tool, ensure the oor-tool carrier is central to the machine (Fig 22).
Lift the lever near the base of the handle and lock into position (Fig 23).
The clean-water / chemical mix is deposited via ‘THRU-FEED’ system.
The waste water is then retrieved by the oor-tool
Overlap the scrubbing path by 10cm to ensure an even clean (Fig 24).
If streaking occurs, wipe the oor-tool blades clean (Fig 25).
Floor tool in use
Note Care must be taken to reduce speed when cornering or when manoeuvring around obstacles.
Fig 21 Fig 22 Fig 23
Fig 24
Fig 25
Note The lever moves upward and backward motion to lock the oortool in the raised position.
Machine Operation

9
1 1
Setting the cleaning controls
To start: hold down either trigger and press the yellow start button once
2
Ensure your TT 516 machine has been plugged into a suitable power supply.
Select the desired function using the ON / OFF switches tted to the handle.
Vac Switch Pump Switch
Note: The Pump Switch will only function when the Brush is in operation.

10
ALWAYS ENSURE THAT THE POWER SUPPLY IS DISCONNECTED,
PRIOR TO ANY MAINTENANCE OPERATION.
! !
After use, empty waste-water tank using
emptying hose and ush-out with clean
water. A
Remove the two hoses and disconnect the
separator from the machine (Fig 28). Undo
the separator restraining strap (Fig 28a) and
lift off the separator. The separator has a
sealing-rubber which should be examined at
every clean-down (Fig 29).
Rinse using clean water.
NOTE: Avoid over tightening the clean water draining cap.
The TT 516 has been designed with ease of use in mind, this included easy stripping-down and cleaning.
Remove the two lters clipped into the separator and ush with clean water (Fig 30)(Fig 30a).
Replace by tting the rear of the lter rst then clipping the front to lock in place (Fig 31) (Fig 32).
Once emptied the top waste-water tank can simply be lifted off. (Fig 33).
The clean-water tank can be drained via the yellow cap tted to the left
hand side of the machine. The cap has a rubber seal and might require a
spanner to remove. (Fig 34).
Fig 28 Fig 29
Fig 30 Fig 31 Fig 32
Fig 34
A
Fig 30a
Fig 33

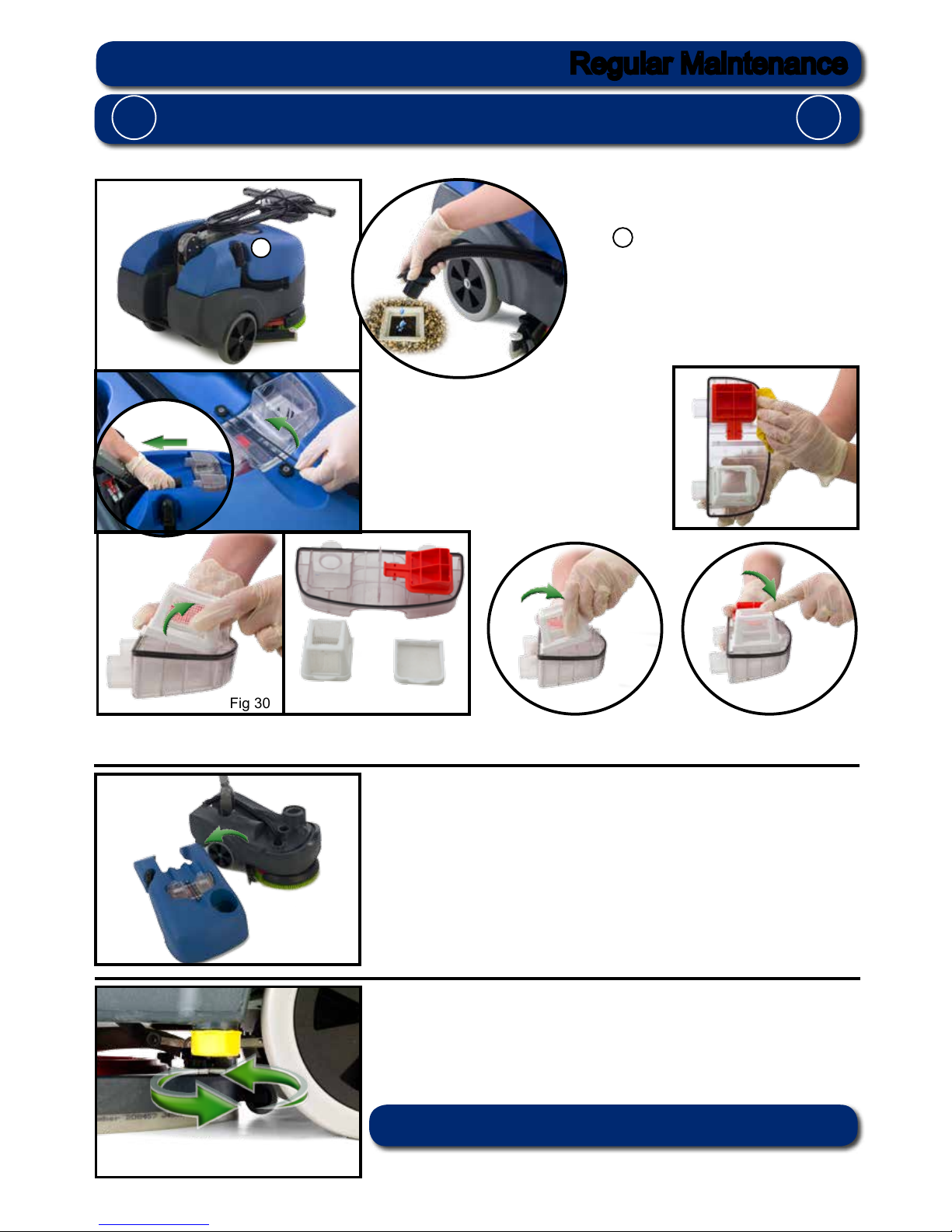

Regular Maintenance
Fig 28a

11
Replacing the Waste Water Tank
Place the suction hose as shown
(Fig 39).
Place the tank onto the machine
(Fig 39a).
Ret the separator and reconnect the
vacuum and suction hose (Fig 40).
Ret the separator restraining strap
(Fig 40a).
Fig 39
Fig 40
Fig 39a
Regular Maintenance
Notes:
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
..............................................................................
Fig 40a

12
! !
ALWAYS ENSURE THAT THE POWER SUPPLY IS DISCONNECTED PRIOR TO ANY
MAINTENANCE.
To change the oor-tool, rstly swing the oor-tool clear of the
machine (Fig 41).
Undo the two oor-tool retaining knobs (Fig 42).
Unscrew the four knobs securing the blade holder (Fig 43).
Remove the blade holder (Fig 44).
Replace the Squeegee blades using (606261) replacement blade set (Fig 45), tting the blades on to the moulded
location lugs.
Ret the blade holder, retain using the two outer knobs
(Fig 46)
Retting the Floor Tool Blades
Ensure the slotted blade goes to the front of the
oor-tool (Fig 47).
Ret the oor-tool using the two central knobs to
the oor-tool.
Refer to Page 5 for tting instructions.
1. Floor-tool main body
2. Blade carrier
3. Rear blade
4. Front blade (slotted)
5. Retaining Knobs x 4
1
2
3
5
4
Fig 41
Fig 42
Fig 43 Fig 44 Fig 45
Fig 46 Fig 47
Note:
The blades are designed to be reversible, thus
extending their useful working life.
Use Genuine NUMATIC spare parts.
use
Replacement Blade Set (606261)

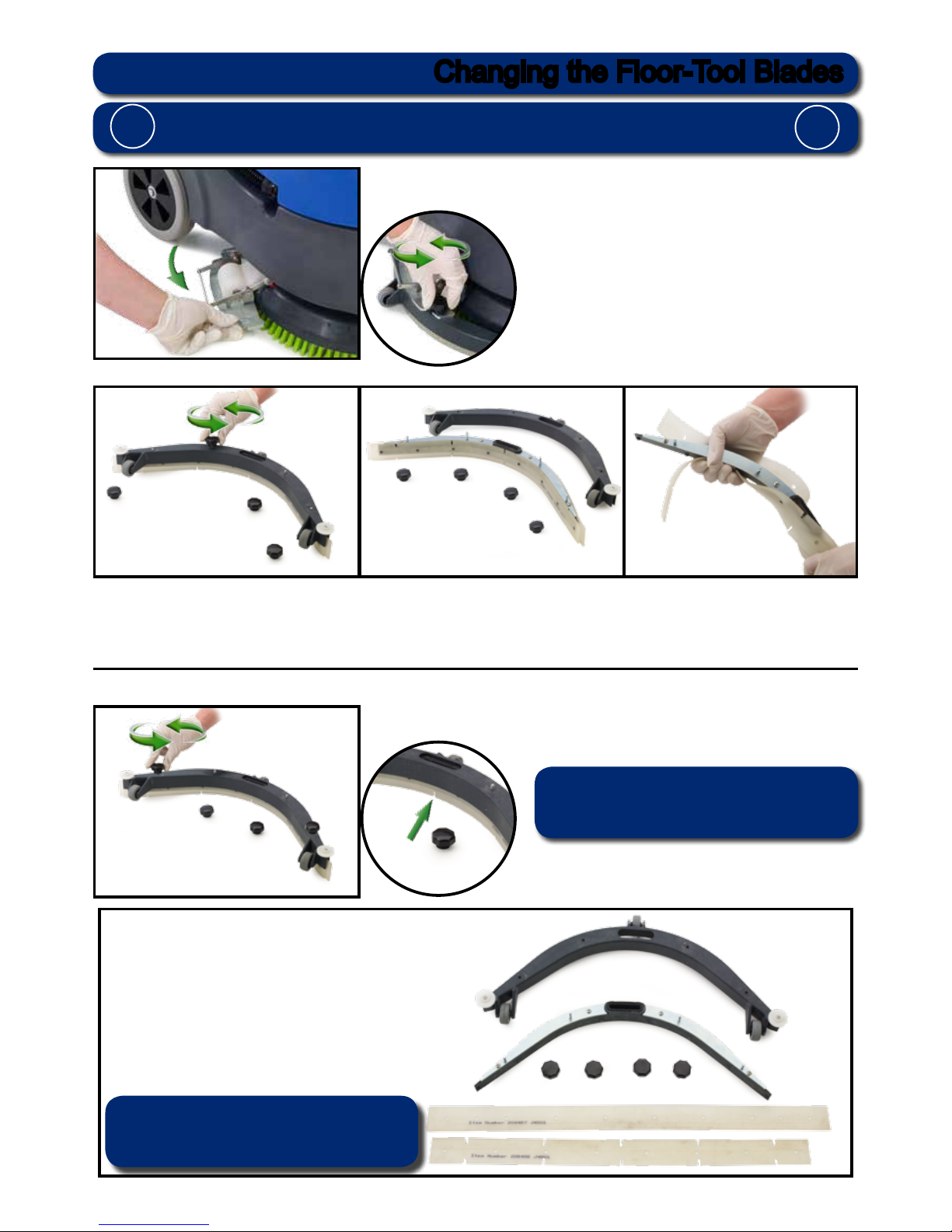

Changing the Floor-Tool Blades

13
Rating Label
Safety Critical Component
Mains lead:
SJTW 20m x 16 AWG x 3 core
About the Machine
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Company Name & Address
Machine Description
Voltage Frequency
Power rating
Max Gradient
Weight (ready to use)
Rating
Machine yr/wk Serial number
Ear Protection Safety Footwear Head Protection Safety Gloves
Dust/Allergens
Protection
Eye Protection Protective
Clothing Hi-Vis Jacket Caution
wet oor sign
Note:
A risk assessment should be conducted to determine which PPE should be worn.
PPE
(Personal protective equipment) that may be required for certain operations).
Daily
Keep the machine clean
Ensure brushes/ pads/ squeegee/ lters are in good condition
Check for any worn or damaged parts and replace immediately
Drain and rinse dirty water tank after every use
Store machine with brush deck secured in tilted position
Weekly – as daily and –
Check brush or pad and skirt and rinse
Check oor tool blades for wear and wipe clean
Clean separator assembly including lter and check condition of seal
Flush out system with clean water and clean lters
Do not steam clean or pressure wash
Twin Tec
Maintenance

14
As with all electrical equipment care and attention must be exercised at all times during its use, in addition
to ensuring that routine and preventative maintenance is carried out periodically in order to ensure its safe
operation.
Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render
this equipment unsafe and the manufacturer can accept no responsibility or liability in this respect.
When ordering spare parts always quote the Model Number / Serial Number specied on the Rating Plate.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
This machine is not suitable for picking-up hazardous dust.
Do not use on surfaces having a gradient exceeding that marked on the appliance.
The machine is not to be stored outdoors in wet conditions.
This machine is for indoor use only.
Read the instruction manual before using the appliance.
This product meets the requirements of CSA / CAN 60335-2-72
NOTES
This machine is also suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and
ofces for other than normal housekeeping purposes.
• Ensure only competent persons unpack/assemble the machine.
• Keep your machine clean.
• Keep your brushes in good condition.
• Replace any worn or damaged parts immediately.
• Regularly examine the power cord for damage, such as cracking or ageing. If damage is found,
replace the cord before further use.
• Only replace the power cord with the correct Numatic approved replacement parts.
• Ensure that the work area is clear of obstructions and / or people.
• Ensure that the working area is well illuminated.
• Pre-sweep the area to be cleaned.
• Use steam cleaners or pressure washers to clean the machine or use in the rain.
• Attempt machine maintenance or cleaning unless the power plug has been removed from the supply
outlet.
• Allow any inexperienced repairs. Call the experts.
• Strain cable or try to unplug by pulling on cable.
• Leave the brush pad on the machine when not in use.
• Allow the machine to be used by inexperienced or unauthorised operators or without appropriate training.
• Use the machine without the solution tanks properly positioned on the machine, as shown in the instructions.
• Expect the machine to provide trouble-free, reliable operation unless maintained correctly.
• Lift or pull the machine by any of the operating triggers - Use the main handle.
• Remove the handle from the machine except for service and repair.
• Use on surfaces having a gradient exceeding that marked on the machine.
ORIGINAL INSTRUCTIONS
READ MANUAL BEFORE USE
Information for Scrubber Dryer
Component Interval Inspect for
Mains Lead DAILY Scufng, cracks, splits, conductors showing
Brushes DAILY Bristle damage, wear, drive collar wear
Squeegee Blade BEFORE EACH USE Wear, cracks, splits
Filters BEFORE EACH USE Clogging and debris retention
Tanks AFTER EACH USE Rinse dirty water tank after use
WARNING
CAUTION
DO
DON’T

15
Only use brushes provided with the appliance or those specied in the instruction manual.
The use of other brushes may impair safety.
A full range of brushes and accessories are available for this product.
Only use brushes or pads which are suitable for the correct operation of the machine for the specic task being
performed.
It is essential that this equipment is correctly assembled and operated in accordance with current safety regulations.
When using the equipment always ensure that all necessary precautions are taken to guarantee the safety of the
operator and any other persons who may be affected.
Wear non-slip footwear when scrubbing. Use a respiratory mask in dusty environments.
When cleaning, servicing or maintaining the machine, replacing parts or converting to another function the power
source shall be switched off.
Mains operated machines shall be disconnected by removing the power plug, and battery operated machines shall be
disconnected by switching off the isolating key.
Machines left unattended shall be secured against unintentional movement.
Operators shall be adequately instructed as to the correct use of the machine.
When detergents or other liquids are used, read the manufacturer’s instructions.
Do not allow the supply cord to come into contact with the rotating brushes.
WARNING
Data
Brush Motor Vac Motor Power Noise Speed Brush Dimensions
400 W 300 W 120v 60Hz 71 dB(A) 50Hz = 150rpm 16” Width - 20.5”
Length - 35”
Height - 44.6”
Gross Weight
Full
Protection Class Hand Arm
Vibration
Pad Net Weight Cleaning
Range
Water Capacity
122.6 lbs IPX 4 1.4 +/- 0.06ms² 16” 85 lbs 42 m 5 gall
Fluid Flow
tap @400
Brush / Pad
Pressure
Cleaning Speed
0.35 LPM 27.4 / 26.2
G/ cm2
0 - 2.6 mph TT 516
PROBLEM CAUSE SOLUTION
Poor water pick-up Waste-water tank full
Clogged / blocked vacuum hose
Loose hose connections
Debris basket lter clogged/blocked
Separator lter clogged / blocked
Poor separator seal
Damaged separator seal
Damaged / split vacuum hose
Damaged oor-tool blades
Empty waste-water tank
Remove and clean
Push tight connections
Remove and clean
Remove and clean
Clean and ret
Renew (contact service dept)
Renew (contact service dept)
Renew (contact service dept)
No brush / scrub function No brushes tted Check and t
Little or no water ow Clean-water tank empty
Clean-water tank lter blocked/ clogged
Fill clean-water tank
Remove and clean
Trouble-Shooting

16
20
21
19
Vue d’ensemble de la machine
1. Tableau de bord de l’opérateur
2. Levier marche-arrêt
3. Réservoir d’eau sale
4. Réservoir d’eau propre
5. Plateau de la brosse
6. Lamelles
7. Boutons de retenue du suceur
8. Robinet marche-arrêt de l’eau propre
9. Bouchon de vidange de l’eau propre
10. Roues arrière
11. Tuyau à dépression du suceur
12. Tuyau à dépression
13. Séparateur
14. Bouchon de remplissage de l’eau propre
15. Indicateur de niveau d’eau propre
16. Point de remplissage du réservoir d’eau propre
17. Tuyau de vidange du réservoir supérieur (eau sale)
18. Marche
19. Commutateur de l’aspiration
20. Commutateur de la pompe
21. Voyant d’alimentation
22. Levier de positionnement de poignée
1
3
4
5
6
7
810
12
13
14
15
16
17
112
9
2
22
18

17
Procédez au remplissage en utilisant un tuyau, un seau ou un
récipient adapté (Fig.5.).
À LIRE AVANT D’ENTREPRENDRE TOUTE OPÉRATION.
Après avoir retiré tous les emballages, ouvrez le carton avec précaution et vériez-en le contenu.
1
2
À l’aide du levier de positionnement de poignée, relevez la
poignée en position verticale (g. 1)
Installez la brosse / le disque
(g. 2).
Sortez le support du suceur
situé derrière la brosse (g. 3
4
3
5
À l’aide des deux boutons de blocage installés sur le suceur, xez
celui-ci sur son support (g. 4).
Remplissez le réservoir d’eau propre à un
maximum de 5 gall (voir page 20).
Pour les commandes d’utilisation et de nettoyage,
voir page 23
Fig 1
Fig 2 Fig 3
Fig 4
Fig 5
Guide d’installation rapide
Inclinaison du machine
0Gall

18

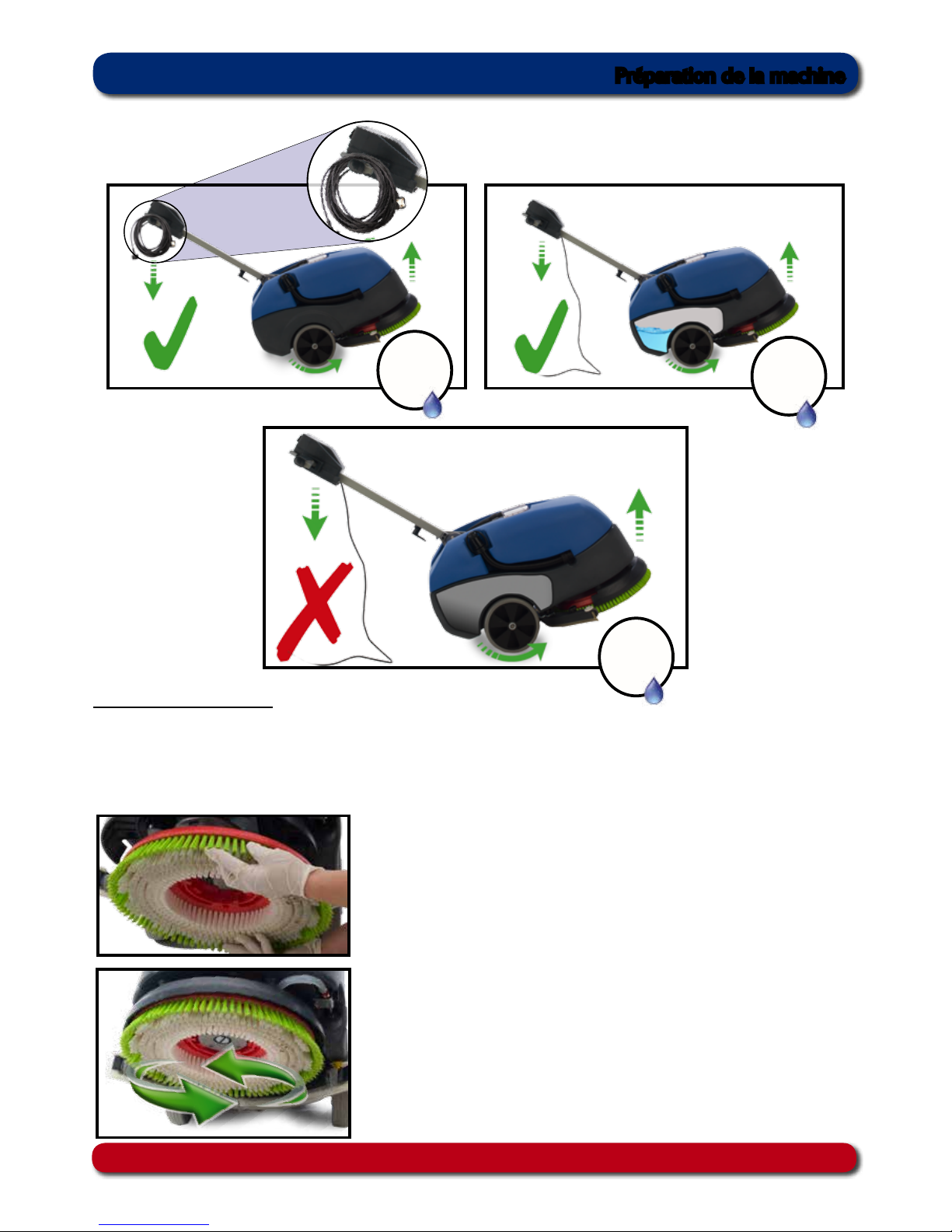

Préparation de la machine
Montage des brosses
Glissez la brosse / le disque sous le plateau de brosse (g. 6).
Avec le système de brosse Nulock.
Pour installer la brosse, poussez-la simplement, puis faites-la pivoter an de la bloquer. Le processus de
montage et de démontage est ainsi rendu extrêmement simple.
Montez la brosse / le disque sur le mandrin d’entraînement Nulock
et faites un mouvement de torsion pour la/le bloquer (g. 7).
Utilisez uniquement des brosses fournies par le fabricant.
Cette machine s’utilise avec une brosse de 400 16” ou un disque de 16”.
Fig 6
Fig 7
Inclinaison du machine
Le port de gants de protection est recommandé lorsque vous remplacez les brosses usagées.
0Gall
0Gall
2Gall
Min

19
La TT 516 est équipée d’un grand réservoir d’eau propre d’une capacité de 18 litres pour permettre le nettoyage
de grandes surfaces en utilisant un seul remplissage.
Remplissage du réservoir d’eau propre
Pour remplir le réservoir d’eau propre, retirez le bouchon de
remplissage (g. 10).
Procédez au remplissage en utilisant un tuyau, un seau ou un
récipient adapté (g. 11).
Remarque :
Veillez particulièrement à ce qu’aucun contaminant (feuilles, cheveux, poussière, etc.) ne pénètre à l’intérieur du réservoir
d’eau propre pendant le processus de remplissage.
Si vous utilisez un seau ou quelque chose de similaire, veillez à ce qu’il soit toujours parfaitement propre et qu’il ne contienne
pas de débris.
Fig 10
Fig 11
Préparation de la machine
Montage du suceur
Le suceur a été conçu pour un montage rapide, ce qui permet de remplacer facilement les lamelles, et dispose d’une
fonction de débrayage au cas où le suceur rencontrerait un obstacle en cours d’utilisation.
Le support de l’embouchure
d’aspiration peut être relevé et
bloqué à l’aide du levier, la
position haute et basse de ce
levier se situe en partie basse du
timon.
Déverrouiller et pivoter le
support de suceur sur le côté de
la machine (Fig 8).
Fixez le suceur sur son support à
l’aide des deux boutons prévus à
cet effet (g. 9) – (g. 9a).
Ne serrez pas excessivement les
boutons de retenue.
Fig 9
Fig 9a
Remarque : Le suceur est plus facile à monter si le poids de la machine repose sur la brosse.
Vériez que la brosse est installée au préalable.
Fig 8
Remarque
Pour bloquer le suceur en position relevée, soulevez le levier, puis tirez-le vers l’arrière.

20
Réglage du débit d’eau
Le robinet marche-arrêt de l’eau est situé sur la gauche de
la machine (g. 14).
Idéalement, réglez le robinet à un angle de 45, (g. 15).å
Pre-cleaning advice.
Conseils de pré-nettoyage
Avant d’effectuer l’opération de nettoyage, placez les panneaux
d’avertissement appropriés et balayez ou dépoussiérez le sol (g. 16).
Préparation de la machine
MANIPULATION ET MÉLANGE DES PRODUITS CHIMIQUES.
Assurez-Vous Toujours Que Les Consignes De Sécurité Des Fabricants De Produits Chimiques Sont Respectées.
Utilisez Uniquement Des Produits Chimiques Recommandés Pour Une Utilisation Dans Les Autolaveuses.
!
Fig 14 Fig 15
Fig 16
Numatic part (629044) Panneau de signalisation au sol
Préparation de la machine
Remplissez le réservoir d’eau propre. Sa capacité maximale est de 5 gall, produits chimiques de nettoyage compris le
cas échéant.
Suivez les indications du fabricant de produits chimiques.
Cela permet de faire basculer la machine vers l’arrière et de la déplacer sans déversement.
Témoin indiquant que le réservoir d’eau propre est plein (g. 13a).
Utilisez l’indicateur de remplissage
(g. 12).
Témoin indiquant que le réservoir d’eau propre est
plein (g. 13a).
Fig 12 Fig 13 Fig 13a
Témoin indiquant que le réservoir d’eau propre est
vide (g. 13).
Indicateur du niveau de remplissage
CONTRÔLE DES SUBSTANCES DANGEREUSES POUR LA SANTÉ (COSHH)
Pour obtenir des résultats optimums, utilisez des produits chimiques non moussants, dilués
conformément aux
indications du fabricant.
Pour plus de précisions sur les substances dangereuses, veuillez vous référer aux instructions
sur la santé et la sécurité en ligne.
