Nakamichi NA355iBT User manual

Car Audio System Player
NA355iBT
INSTRUCTION MANUAL
CD MP3 WMA USB SD
AUX-IN BT iPod/iPhone

To prevent a short circuit, never put or leave any metallic objects
(such as coins or metal tools) inside the unit.
Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or
soft cloth. Failure to observe this precaution may result in damage to
the monitor or unit.
Cleaning the connector: Wipe off dirt on the connector of the unit and
faceplate. Use a cotton swab or cloth.
WARNING
How to reset your unit
Important to know...
Maintenance
Caution: Adjust the volume so that you can hear sounds
outside the car. Driving with the volume too high may cause an
accident.
Condensation: When the car is air-conditioned, moisture may
collect on the laser lens. This may cause disc read errors. In this case,
remove the disc and wait for the moisture to evaporate.
The illustrations in this manual are examples used to explain more
clearly how the controls are used. Therefore, what appears on the
illustrations may differ from what appears on the actual
equipment.
If you experience problems during installation, consult your
Nakamichi dealer.
When you purchase external components, check with your
Nakamichi dealer to make sure that they work with your model and
in your area.
Stop the car before operating the unit.
Safety
3
Reset
2
To prevent deterioration, do not touch the terminals of the unit and
faceplate with your fingers.
1
If this unit fails to operate properly, press the reset button.
The unit return to factory setting when the reset button is pressed.
1
2
1
2
Do not expose the faceplate to direct sunlight, excessive heat, or
humidity. Also avoid places with too much dust or the possibility of
water splashing.
What’s in the box
Main unit
(with sleeve)
Carrying case
(for front panel)
Disassembly tool
(2pcs)
Screw x 4pcs
Front panel
Remote
control
User manual
Trim plate
ISO male
connector
2 EN
Check and identify the contents of your package:
Keep the faceplate in its casing while detached.
The faceplate is a precision piece of equipment and can be
damaged by shocks or jolts.
How to attach/detach the faceplate
Preparation
Attach Detach

SR C
AU X IN
MENU
BAN D
DBS S
SUB -W
EQ
2 3 4 5 61
VRD
XB ASS
Highlight Features
EN 3
This unit is equipped with
varable color display/illumination.
This unit is allowed to connect the 5V preout for Rear
and Front RCA Line Out.
SRC
AUX IN
MENU
BAND
DBSS
SUB-W
EQ
2 3 4 5 61
VRD
XBAS S
This unit is allowed to connect the 5V preout
for Subwoofer.
SRC
AUX IN
MENU
BAND
DBSS
SUB-W
EQ
2 3 4 5 61
VRD
XBAS S
SRC
AUX IN
MENU
BAND
DBSS
MOS FET 4x5 0W
SUB-W
EQ
2 3 4 5 61
VRD
XBA SS
5
Under Disc/USB/SD/iPod/iPhone playback mode,
press buttons first, and then press and
hold buttons within one second, it is
can be access into quick music file access track
or file up/down browse feature.
/
/

Installation / Connection
Basic Procedure
1 Remove the key from the ignition switch, then disconnect
the terminal of the car battery.
2 Make proper input and output wire connections.
3 Install the unit to your car.
4 Reconnect the terminal of the car battery.
5 Reset the unit.
W arning
The unit can only be installed in a car with a 12 V DC power supply, negative
ground.
If you connect the ignition wire (red) and the battery wire (yellow) to the car
chassis (ground), you may cause a short circuit, that in turn may start a fire.
Always connect those wires to the power source running through the fuse box.
Disconnect the battery’s negative terminal and make all electrical
connections before installing the unit.
Insulate unconnected wires with vinyl tape or other similar material. To
prevent a short circuit, do not remove the caps on the ends of the
unconnected wires or the terminals.
Be sure to ground this unit to the car’s chassis again after installation.
If the power is not turned ON, the speaker wire may have a short-circuit or
touched the chassis of the vehicle and the protection function may have
been activated. Therefore, the speaker wire should be checked.
Caution
If your car’s ignition does not have an ACC position, connect the ignition
wires to a power source that can be turned on and off with the ignition key. If
you connect the ignition wire to a power source with a constant voltage
supply, as with battery wires, the battery may die.
Install this unit in the console of your vehicle. Make sure the faceplate will
not hit the lid of the console (if any) when closing and opening.
After the unit is installed, check whether the brake lamps, blinkers, wipers,
etc. on the car are working properly.
Mount the unit so that the mounting angle is 30° or less.
If the fuse blows, first make sure the wires are not touching to cause a short
circuit, then replace the old fuse with one that has the same rating.
When only two speakers are being connected to the system, connect the
connectors either to both the front output terminals or to both the rear
output terminals (do not mix front and rear).
Mounting and wiring this product requires skills and experience. For
safety’s sake, leave this work to professionals.
If you experience problems during installation, consult your Nakamichi
dealer.
Connect the speaker wires correctly to the terminals to which they
correspond. The unit may be damaged or fail to work if you share
the wires or ground them to any metal part in the car.
4 EN

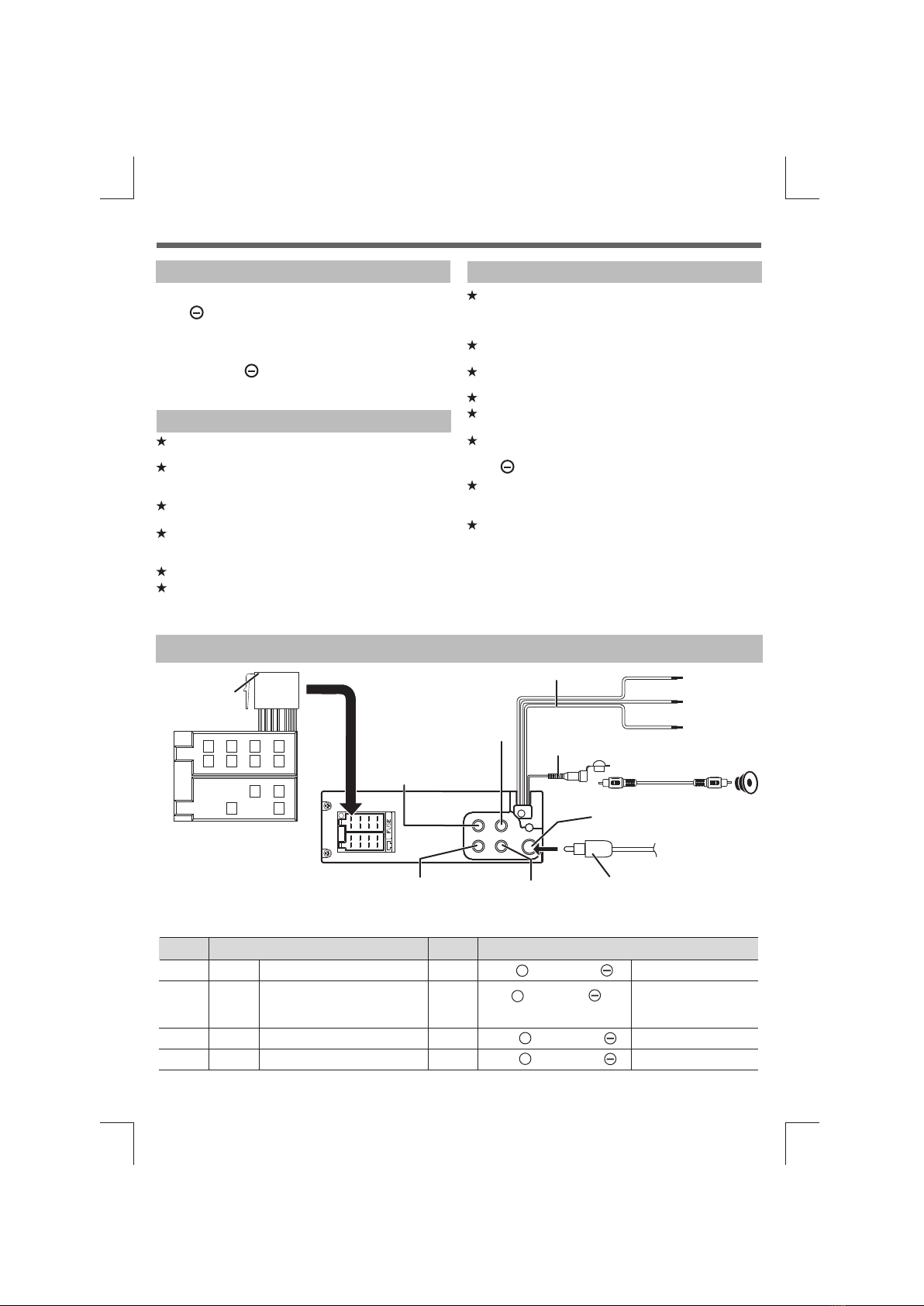

ISO Connector Wiring Chart
Pin Color and function Pin Color and function
A5
A4
A8
A7
Yellow
Black
Red
Blue
Connect to system control
of the power AMP or auto antenna
relaycontrol terminal(Max 150MA 12VDC)
terminal
Battery(+)
Ignition(ACC)
Ground
B1/B2
B3/B4
/ Violet/Black
Violet +
/ Grey/Black
Grey +
/ White/Black
/ Green/Black
White
Green
+
+
B5/B6
B7/B8
Right rear speaker
Right front speaker
Left front speaker
Left rear speaker
REAR
L
R
FRONT
Subwoofer Output
RCA to RCA Cable (not included)
FM/AM Antenna Socket
Antenna Jack n(ot included)
Front RCA Output (Left)
Rear RCA
Output (Left)
Front RCA Output (Right)Rear RCA Output (Right)
ISO Connector
W iring Connection
1
2
3
4
5
6
7
8
4
5 7
8
A
B
OE Remote wire White
Gray(GND)
White

2
3
4
Control panel
Trim plate
mm
182
53mm
1
3
Trim plate
Sleeve
Control panel
1
2
1

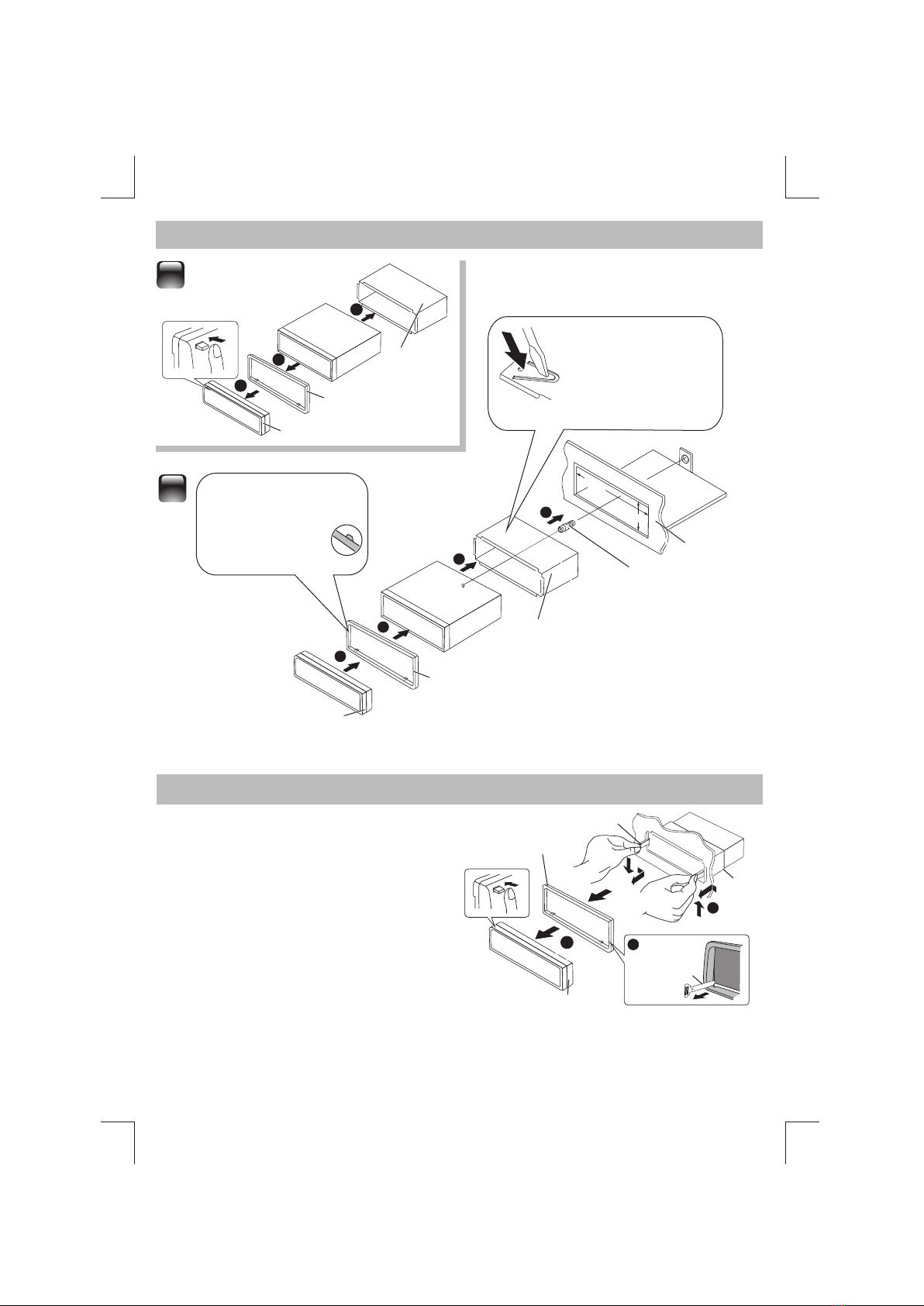

Removing the unit
Bend the appropriate
tabs to hold the sleeve
firmly in place.
2Before attaching, make
sure the direction of the
escutcheon is correct.
(Wider hooks on the
bottom side.)
1 Detach the control panel.
2 Engage the catch pin on the removal tools into the holes on
both sides of the escutcheon, then pull it out.
3 Insert the disassembly tools deeply into the slots on each
side, then follow the arrows instructions as shown on the
right.
Disassembly
Sleeve
Disassembly
Trim plate
Control panel
12
3
Installing the unit
EN 5
Screw
Dashboard
Sleeve
( not included in this packing )

SR C
AU X IN
MENU
BA ND
DB SS
SUB -W
EQ
2 3 4 5 61
Rotatory Volume Knob
USB terminal
Aux-In jack
Push open the cover
Loading slot Eject the disc
Display window
Power / Mute
Detache the
control panel
When you press or hold the following button(s)...
Main unit General operation
SRC
■
■
■
■
■
■
■
■
■
■
■
■
Select the available sources (Radio, Disc, USB (USB-iPod/iPhone), SD, BT AUDIO or Aux-In ), if the
power is turned on.
Rotatory
Volume knob
Rotate it to increase or decrease the volume.
Select items.
Power / Mute Confirms selection.
Under Media playback mode to view play informations.
BAND
■Select the FM bands (FM1/ FM2/ FM3) or AM1 (MW1) / AM2 (MW2).
■Under media playback to access into search mode.
Pause/resumes playback of a Disc, USB / SD device, iPod/iPhone.
■Under Radio mode to enter into the Auto Seek mode, press and hold to enter into the Manual Seek mode.
■Under Media playback mode to skip track / file, press and hold to fast forward / backward.
MENU
To access into the Audio Menu mode, press and hold to enter into the System Menu mode.
To enter into iPod/iPhone control mode, press and hold to turn On or Off dynamic bass boost sound.
Turn On or Off the Xbass bosster function.
During the talking, press and hold to transfer the call.
DBSS
Turn mute or restore volume.
Turn the unit on. Press and hold again to turn the unit off.
Press and hold access into the VRD display color setting mode.
1
SUB-W
To view the Clock, press and hold turn On or Off the subwoofer function.
Returns to the previous item.
To reject / end the call.
EQ / XBASS
Basic Operation
VRD
XB ASS
To adjust the EQ (Preset Equalizer) setting.
To answer / accept the call.
/ / VRD
6 EN
Press and hold to activate the Auto Store function.
■

Function Settings
1 Press to access into the [AUDIO MENU] mode, press and hold to enter into the [MENU] mode.
2 Press repeatedly to select the item to be adjusted.
3 Turn the encoder volume knob to select a value / option.
MENU
[AUDIO MENU]...
[MENU]...
Item Selectable Setting
Item Selectable Setting
BASS ADJUST
CLOCK
MIDDLE ADJUST
SUBWOOFER ADJUST
TREBLE ADJUST
BASS LEVEL
CLOCK SET
MIDDLE LEVEL
SUBWOOFER
TREBLE LEVEL
BASS CFQ
CLOCK FORMAT
MIDDLE CFQ
SUBWOOFER LPF
RESUME
BEEP TONE
DIMMER
VRD DISPPLAY COLOR
DEMO
TREBLE CFQ
BALANCE
FADER
Adjust the level -7 to +7.
Adjust the Hours and Minutes
Adjust the level -7 to +7.
Adjust the level 0 to 12.
Adjust the level -7 to +7.
Select the center frequency: 60 / 80 / 100 / 200
Select the time format 12H or 24H
Select the center frequency: 0.5K / 1.0K / 1.5K / 2.5K
Subwoofer low pass filter range: 80 / 120 / 160
Resume the preset EQ value to factory default value.
Turn On or Off this beep sound
Adjust the LCD display backlight level between Hight or Low
This unit is equipped with variable color display. Once into the DISPLAY COLOR mode, rotating
encoder volue knob to selected the LCD color.
To automatically demo this unit’s major features cyclic on LCD display.
Select the center frequency: 10.0K / 12.5K / 15.0K / 17.5K
Adjust the balance between the right and left speakers from 12R (full right) to 12L (full left).
Adjust the fader between the front and rear speakers from 12R (full rear) to 12L (full front).
■COLOR SCAN (default setting); WHITE; GREEN 1; GREEN 2; GREEN 3; AMBER; PINK 1; PINK 2;
PURPLE 1; PURPLE 2; BLUE 1; BLUE 2; USER COLOR; ORANGE
EN 7
SWC SET If you car is equipped with the steering wheel remote controller, you can operate this unit using
the controller.
■
■
Press the to access into SWC SET mode.
Rotate encoder volume knob to select the function you want the steering remote to learn, then press
and hold the same function button on the steering wheel remote until “SUCCEED” is displayed.

Listening to the Radio
1 Press repeatedly to a band ( FM1, FM2, FM3,
AM1(MW1) or AM2 (MW2) .
2 Press to search for a station.
Adjust [MENU] mode setting
While listening to the radio...
Item Selectable Setting
AREA
LOCAL SEEK
Press the to access into Auto Store mode, the six strongest stations of the selected band
are saved in preset channel automatically: FM1, FM2, FM3(1-6), AM1, AM2.
Select suitable country region of the radio: USA; LATIN; EUROPE; RUSSIA(Oirt); M-EAST; ASIA; JAPAN;
AUST (Australia)
To receive more radio stations or only stations with strong signal, you can adjust the radio
sensitivity.
SR C
AU X IN
MENU
BA ND
DB SS
SUB -W
EQ
2 3 4 5 61
Hold for about 2 seconds to memorize the current station .
Press briefly to recall memorized station.
■
■
BAND
1 Press and hold to enter into the [MENU] mode.
2 Press repeatedly to select the item to be adjusted.
3 Turn the encoder volume knob to select a value / option.
MENU
VRD
XB ASS
8 EN
AUTO STORE

SR C
AUX I N
MENU
BAN D
DBS S
MO SFE T 4x5 0W
SUB -W
EQ
2 3 4 5 61
Listening to a Disc/ USB/SD device
Listening to the other external components
SR C
AU X IN
MENU
BA ND
DB SS
SUB -W
EQ
2 3 4 5 61
Ejects
the disc
Press to repeat one track, press again to repeat all tracks.
Press and hold repeat a folder.
Detaches the
control panel
Press to select a track / file.
Press and hold for fast forward / backward.
■■
■■
Press to pause. Press again to resume playback.Press into search mode
USB
terminal
Playing a disc
Playing a USB device
Insert the disc into the Disc Slot with label side facing up, the
unit will play starts automatically.
1 Slide the USB socket cover market to the left.
2 Insert the USB device into the USB socket. The unit starts
playing from the USB device automatically.
Playing a SD memory card
1 Press the Panel (Release) button.
3 Insert the card into the card slot.
2 Push the left side of the panel rightward
4 Close the front panel, then the unit starts playing from the card
automatically.
1 Press the SRC to select AUX-IN mode.
2 Turn on the external component and start playing.
Auxiliary input jack
3.5 mm Cable
(not included)
VRD
XB ASS
VRD
XB ASS
EN 9
Press to start random play, press again to cancel random play.
Press to move next/previous folder.
■
■Press and hold random a folder.

Listening to the iPod / iPhone
Compatible iPod/iPhone
Apple iPod and iPhone models with a 30-pin dock connector:
- iPod nano (2nd generation)
- iPod nano (3rd generation, 4GB only)
- iPod nano (3rd generation, 8GB only)
- iPod nano (4th generation)
- iPod nano (5th generation)
- iPod classic (1st generation)
- iPod classic (2nd generation)
- iPod touch (1st generation)
- iPod touch (2nd generation)
- iPod touch (3rd generation)
- iPod video (30GB, 80GB only)
- iPhone
- iPhone 3G
- iPhone 3GS
- iPhone 4
10 EN
Playing a iPod / iPhone
1 Slide the USB socket cover market to the left.
2 Insert the USB adaptor on one end of iPod/iPhone cable into
the USB socket. The unit starts playing from the USB device
automatically.
iPod/iPhone Cable (not included)
Remark:
Please make sure the iPod / iPhone cable is connected correctly.
And please only use original iPod / iPhone cable (not supplied) .
Search for music on unit
Search for music on iPod / iPhone
1 Press BAND to browse iPod/iPhone menu.
2 Roate Encoder Volume knob to select the Artist search mode,
and press to confirm.
4 Roate Encoder Volume knob to select the Album, then press
to confirm.
5 Roate Encoder Volume knob to select desired song in the
current album, press to confirm start play.
3 Press BAND to search alphabetically.
Remark:
To go back to upper level of a folder, press .
1 Press on front panel to switch the iPod/iPhoe control mode.
2 Use the iPod / iPhone to search / operates music control.
SR C
AU X IN
MENU
BA ND
DB SS
SUB -W
EQ
2 3 4 5 61
Ejects
the disc
Press to repeat one track, press again to repeat all tracks.
Press and hold repeat a folder.
Detaches the
control panel
Press to select a track / file.
Press and hold for fast forward / backward.
■■
■■
Press to pause. Press again to resume playback.Press into search mode
USB
terminal
VRD
XB ASS
Press to start random play, press again to cancel random play.
Press to move next/previous folder.
■
■Press and hold random a folder.

Operation of Bluetooth Hands-Free
SR C
AU X IN
MENU
BA ND
DB SS
SUB -W
EQ
2 3 4 5 61
Press to answer / accept the call.
Press and hold to transfer the call.
■
■
Press to reject / end the call.
Getting Started
You can make or receive phone calls with Bluetooth-enabled
phones through the unit. You can also listen to music from a
Bluetooth-enabled device.
Before use the Bluetooth device, you need to pair the device to
the unit. Pairing needs only to be done once.
1 Open your mobile phone and switch bluetooth on.
1 Press and hold to enter into the [MENU] mode.
1 Press and hold to enter into the [MENU] mode.
2 Search for other bluetooth device with your device.
2 Once the [BT DISCONN] is displayed, press to activate
the manual Disconnect mode.
2 Once the [BT CONNECT] is displayed, press to activate
the manual Re-connect mode.
4 Input the password “0000”
5 [Pairing OK] will be displayed on the panel if pairing is
successful, and the paired device will connect to the car audio
system automatically.
3 Select “NAKAMICHI” in the pairing list.
Making a Call
Receiving a Call
Call Transfer
Bluetooth Audio Streaming A2DP
You can dial number through the mobile phone.
VRD
XB ASS
Pairing the Bluetooth devices
Disconnect the bluetooth
Re-connect the bluetooth
MENU
1 Use the Mobile Phone to dial and make an outgoing call.
1 Press on front panel to redial.
2 Press , unit will display [CALLING], and the unit starts
dialing the number dialed last time.
2 Once completed the dialing, [CALLING] is displayed.
To redial number
1 If there is incoming call, the phone number is displayed. if the
incoming call has no phone number, [PHONE IN] is displayed.
2 Press to answer / accept the call.
3 When conversation ends, press to terminate the call.
You can transfer voice from loudspeaker to mobile phones during
call.
If the connected Bluetooth device supports Advanced Audio
Distribution Profile (A2DP), you can listen to the music stored on
the device through the unit. If the device also supports Audio
Video Remote Control Profile (AVRCP) profile, you can use the
control on the unit or its remote control to play music stored on
the device.
During talking, press and hold voice transfers from
loudspeaker to mobile phone.
1 Press SRC repeatedly to select [BT AUDIO].
2 Press to start play, press it again to pause.
3 To track up/down, press / .
EN 11
MENU
To make an outgoing call on this unit, the bluetooth
connection between the unit and the phone must be active.
Remark:
Press to change to "BT AUDIO" mode

When you press or hold the following button(s)...
Main unit General operation
Press increase the volume.
Press decrease the volume.
■Under Radio mode to enter into the Auto Seek mode, press and hold to enter into the Manual Seek
mode.
■Under Media playback mode to skip track / file, press and hold to fast forward / backward.
Turn mute or restore volume.
Press turn the unit on or off.
Remote Control Operation
AUDIO
SRC
SRC
AUDIO
Select the available sources (Radio, Disc, USB (USB-iPod/iPhone), SD, BT AUDIO or Aux-In ), if the
power is turned on.
Press to access into the Audio Menu mode.
12 EN

Product Information
Power Supply: 12V DC (10.5-14.4V), negative ground
Fuse: 15A
Suitable Speaker Impedance: 4 -8
General
Aux-In level: 500mV
Audio Section
Maximum Power Output: Mosfet 50W x 4 Channels
Pre-AMP Output Voltage: 5 V
Subwoofer Output Voltage: 5 V
FM tuner section
AM tuner section
Frequency Range: 87.5 - 108MHz
Frequency Range: 522 - 1620KHz
Usable Sensitivity: Better than 45dB at S/N 26dB
Usable Sensitivity: Better than 15dB at S/N 30dB
USB devices
Memory Card
USB Flash Memory: USB 1.1 & 2.0 Compatible
Support type of memory card: SD/SDHC
About Audio file
MP3/WMA bit rate: 32-320kbps and varible bit rate
MP3 sampling frequencies: 8-48kHz
WMA sampling frequencies: 32kHz, 44.1kHz, 48kHz
ID3 tag v1.0 or later
USB or memory file system: FAT16, FAT32
■
Bluetooth
Output power: 0dBm (Class II)
Frequency band: 2.4000GHz-2.4835GHz ISM Band
Range: 3 meters (free space)
Standard: Bluetooth 2.0 specification
EN 13
Continous Power Output: 24W x 4 RMS
■
■
■
■
(Subwoof Vol Max=12)

www.nakamichiasia.com
