Nakamichi NQ811B User manual
CD Receiver
User Manual
NQ811B
www.nakamichicaraudio.com
1 EN

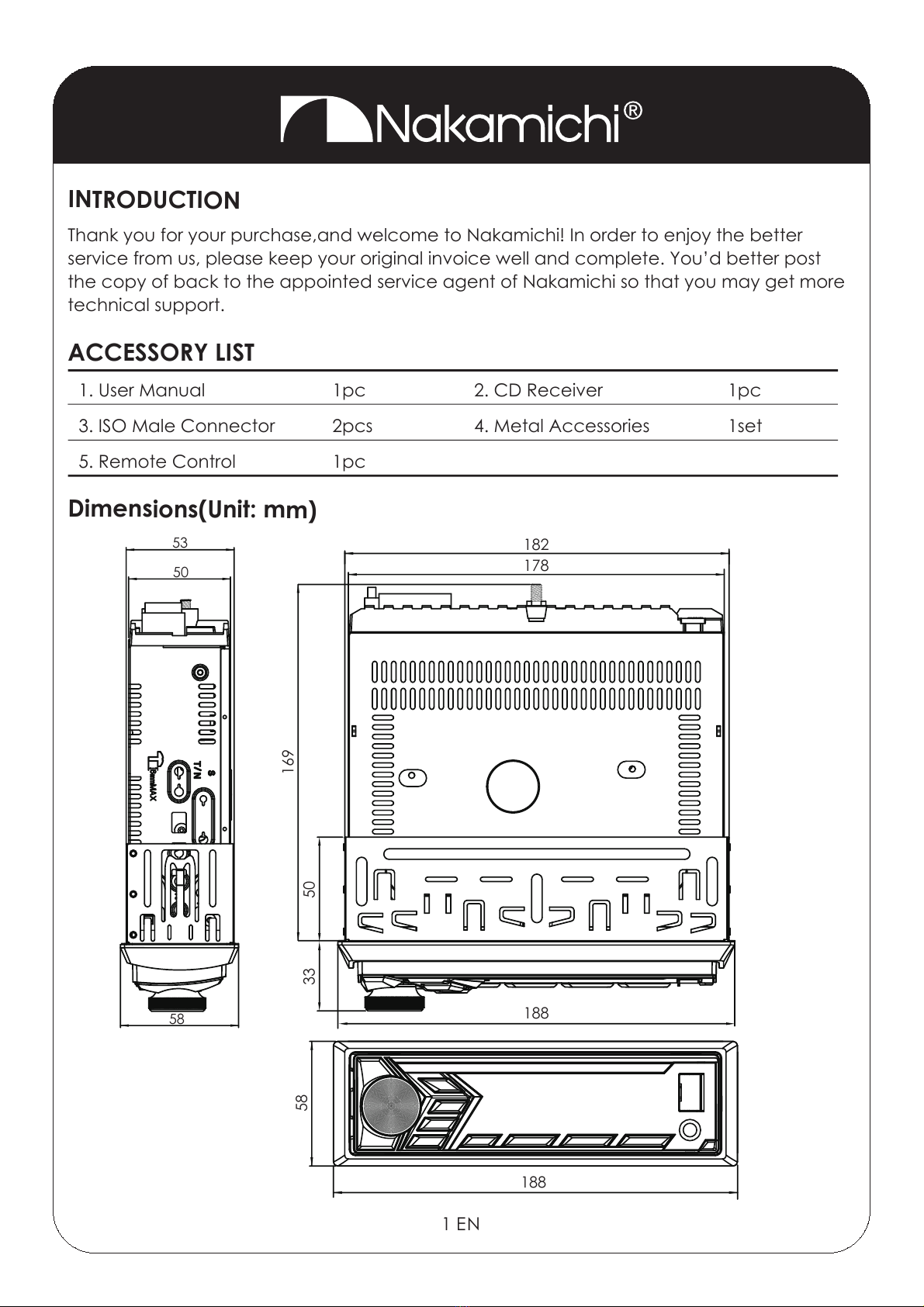

INTRODUCTION
Thank you for your purchase,and welcome to Nakamichi! In order to enjoy the better
service from us, please keep your original invoice well and complete. You’d better post
the copy of back to the appointed service agent of Nakamichi so that you may get more
technical support.
ACCESSORY LIST
1. User Manual
3. ISO Male Connector
5. Remote Control
1pc
2pcs
1pc
2. CD Receiver
4. Metal Accessories
1pc
1set
Dimensions(Unit: mm)
188
182
178
33 50
169
50
53
58
188
58
2 EN

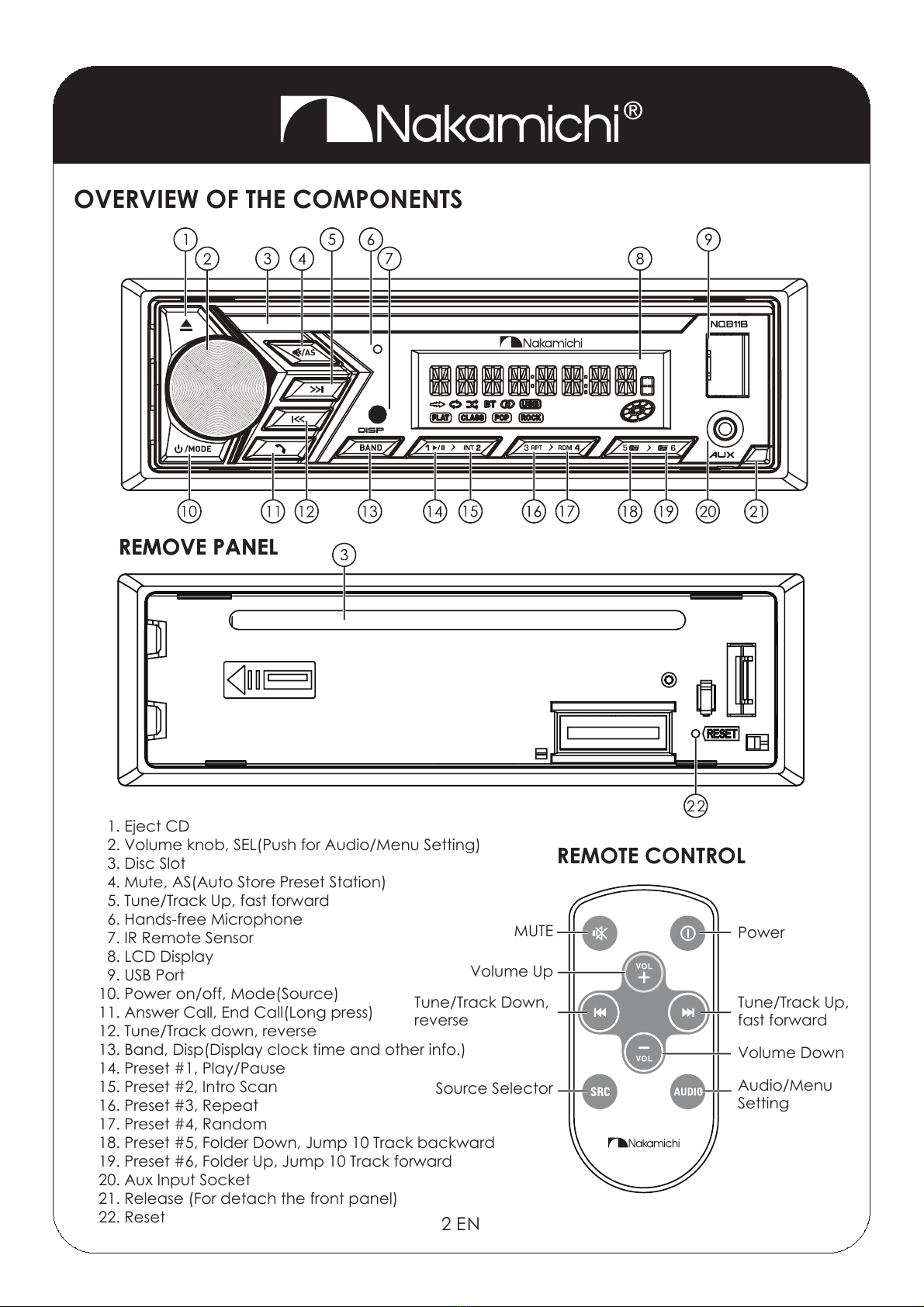

OVERVIEW OF THE COMPONENTS
REMOVE PANEL
REMOTE CONTROL
MUTE Power
Source Selector
Volume Up
Tune/Track Up,
fast forward
Tune/Track Down,
reverse
Volume Down
Audio/Menu
Setting
REMOVE PANEL
1. Eject CD
2. Volume knob, SEL(Push for Audio/Menu Setting)
3. Disc Slot
4. Mute, AS(Auto Store Preset Station)
5. Tune/Track Up, fast forward
6. Hands-free Microphone
7. IR Remote Sensor
8. LCD Display
9. USB Port
10. Power on/off, Mode(Source)
11. Answer Call, End Call(Long press)
12. Tune/Track down, reverse
13. Band, Disp(Display clock time and other info.)
14. Preset #1, Play/Pause
15. Preset #2, Intro Scan
16. Preset #3, Repeat
17. Preset #4, Random
18. Preset #5, Folder Down, Jump 10 Track backward
19. Preset #6, Folder Up, Jump 10 Track forward
20. Aux Input Socket
21. Release (For detach the front panel)
22. Reset
3 EN
Power On/Off
• Press the any button to turn the unit on.
• Press and hold the /MODE button to turn the unit off.
Removing The Front Panel
Press the RELEASE button to detach the front panel.
Volume Up And Down
Rotate the Volume knob to adjust the volume level.
Mute On/Off
Briefly press the button to toggle mute on or off.
Changing The Modes
Press the /MODE to select between Radio, Disc, USB(with USB device
inserted), AUX-IN(auxiliary input) and BT(Bluetooth) modes.
Setting The Audio/Menu
• Press Volume(SEL) button momentarily to select between the audio/
menu functions: BASS, TREBLE, BALANCE, FADER, EQ USER/FLAT/
CLASSIC/ROCK/POP, LOUD OFF/ON, BEEP OFF/ON, CLOCK 24/12,
CLOCK SETTING, BT MENU/AUTO, DISTANT/LOCAL, STEREO/MONO,
AREA EU/US/AS/RU.
• Rotate the Volume knob to adjust or activate your desired function
/audio.
Display
• With the unit on, press and hold DISP to display clock time.
• Press and hold DISP to toggle display between various displayed
information.
Auxiliary Input Jack
Using a 3.5mm cable to connect a external device such as MP3
players, CD players etc. to the auxiliary input jack on front panel.
Then you can hear the sound of other playback devices such as
MP3 players, CD players etc. through your car speakers.
Reset
Push the RESET button(behind the front panel) with a thin
object with a pointed end to reset the unit back to the
factory default settings.
GENERAL OPERATION

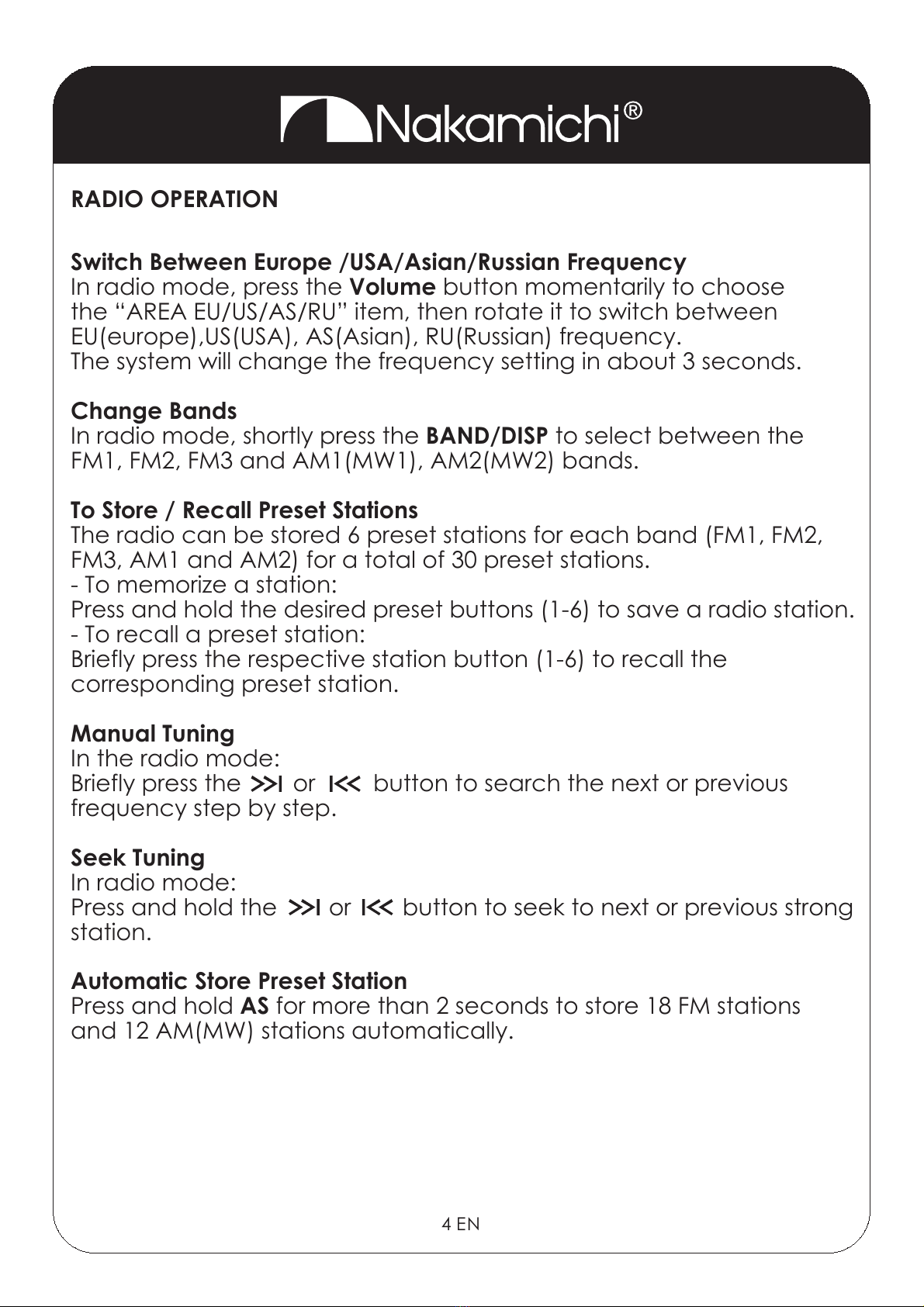

RADIO OPERATION
4 EN
Switch Between Europe /USA/Asian/Russian Frequency
In radio mode, press the Volume button momentarily to choose
the “AREA EU/US/AS/RU” item, then rotate it to switch between
EU(europe),US(USA), AS(Asian), RU(Russian) frequency.
The system will change the frequency setting in about 3 seconds.
Change Bands
In radio mode, shortly press the BAND/DISP to select between the
FM1, FM2, FM3 and AM1(MW1), AM2(MW2) bands.
To Store / Recall Preset Stations
The radio can be stored 6 preset stations for each band (FM1, FM2,
FM3, AM1 and AM2) for a total of 30 preset stations.
- To memorize a station:
Press and hold the desired preset buttons (1-6) to save a radio station.
- To recall a preset station:
Briefly press the respective station button (1-6) to recall the
corresponding preset station.
Manual Tuning
In the radio mode:
Briefly press the or button to search the next or previous
frequency step by step.
Seek Tuning
In radio mode:
Press and hold the or button to seek to next or previous strong
station.
Automatic Store Preset Station
Press and hold AS for more than 2 seconds to store 18 FM stations
and 12 AM(MW) stations automatically.
5 EN
CD/USB OPERATION
Insert CD
With the label facing up, insert a standard size CD into the CD slot.
Playback will begin automatically.
Eject CD
Press (Eject button) to eject the CD.
USB Connection
If you would like to playback files contained in a USB stick, please
insert the stick into the USB port. The MP3/WMA and other music files
will be played automatically.
Note: The USB port of this car radio is also designed for charging for
iPhone/andriod mobile phone. The charging current consumption is 1
ampere.
Select Next Track Or Previous Track
In the CD/USB mode, briefly press the or button to play the
next or previou track.
Fast Forward/Reverse
Press and hold the or button to fast forward or reverse a track.
Play / Pause
Press the button to interrupt the CD/USB playback (pause function).
Press this button again to continue the playback.
Introduction Scan
Press INT to plays first 10 seconds of each track on CD/USB.
Press again to cancel the INT function.
•
•
Repeating The Track
Press RPT
•
•
•
Playing All Tracks In Random
Press RDM to play songs in random order, press again to cancel
the RDM function.
CD/USB OPERATION
6 EN
•
•
Folder/Track Navigation
•
Folder access is only available on devices with more than one folder.
•
or forward. It is required that over 10 tracks be available on the
storage medium.
BLUETOOTH OPERATION
7 EN
Pair And Connect
Before using the Bluetooth device as a handsfree system for a
Bluetooth enabled mobile phone for the first time, you must pair and
connect the two devices as follows:
1. In any mode, prior to pairing and connecting, the BT logo on the
LCD indicating that no device is connected. The head unit broad-
casts the pairing signal constantly when no devices are connected.
Activate the Bluetooth on your device before beginning the pairing
process.
2. When your phone finds the car audio system, the “NAKAMICHI”
name will be displayed on your phone screen.
3. Choose the “NAKAMICHI” from your mobile phone list to pair and
connect with the car audio system. Upon confirming, the BT logo
will stop flashing.
4. When pairing is complete, the mobile phone audio will auto-
matically transfer to the car audio system whenever a call is made
or received, or when the mobile phone plays music.
Note:
For more deatails of bluetooth pairing, please refer to the owner’s
manual for your mobile phone.
Make A Call
•
Redial Last Dialed Number
Press and hold the button to redial the last dialed phone number.
Answer A Call
• r
displays on the LCD display, press the button to answer the
incoming call.
Reject Or End A Call
Press the button to reject, press and hold the to end the call.
Switch Audio Between Car Audio And Mobile Phone
During a call, press the button to switch the audio source from
BLUETOOTH OPERATION
8 EN
Adjust Call Volume
• Volume knob or VOL+/VOL- button to adjust the
call volume level.
• MUTE button to mute sound.
Audio Streaming (A2DP)
The head unit supports A2DP wireless streaming audio from a
Bluetooth mobile device directly to your head unit.
The following functions can be used to control the music:
•
•
• button to toggle between play and pause during
music playback.
APP OPERATION
Using the application from NAKAMICHI, you can wireless remote
control the car audio of NQ811B head unit with Apple & Android
devices.
Please go to the APPLE APP Store or Google Play Store and search
NAKAMICHI app, after downloading the APP, install it on your Apple
& Android devices.
Connect your smartphone to NQ811B through bluetooth,then tap the
APP and turn on it on your smartphone.
Now you can control the audio and the RDS function (Optional) of
NQ811B head unit by your smartphone.

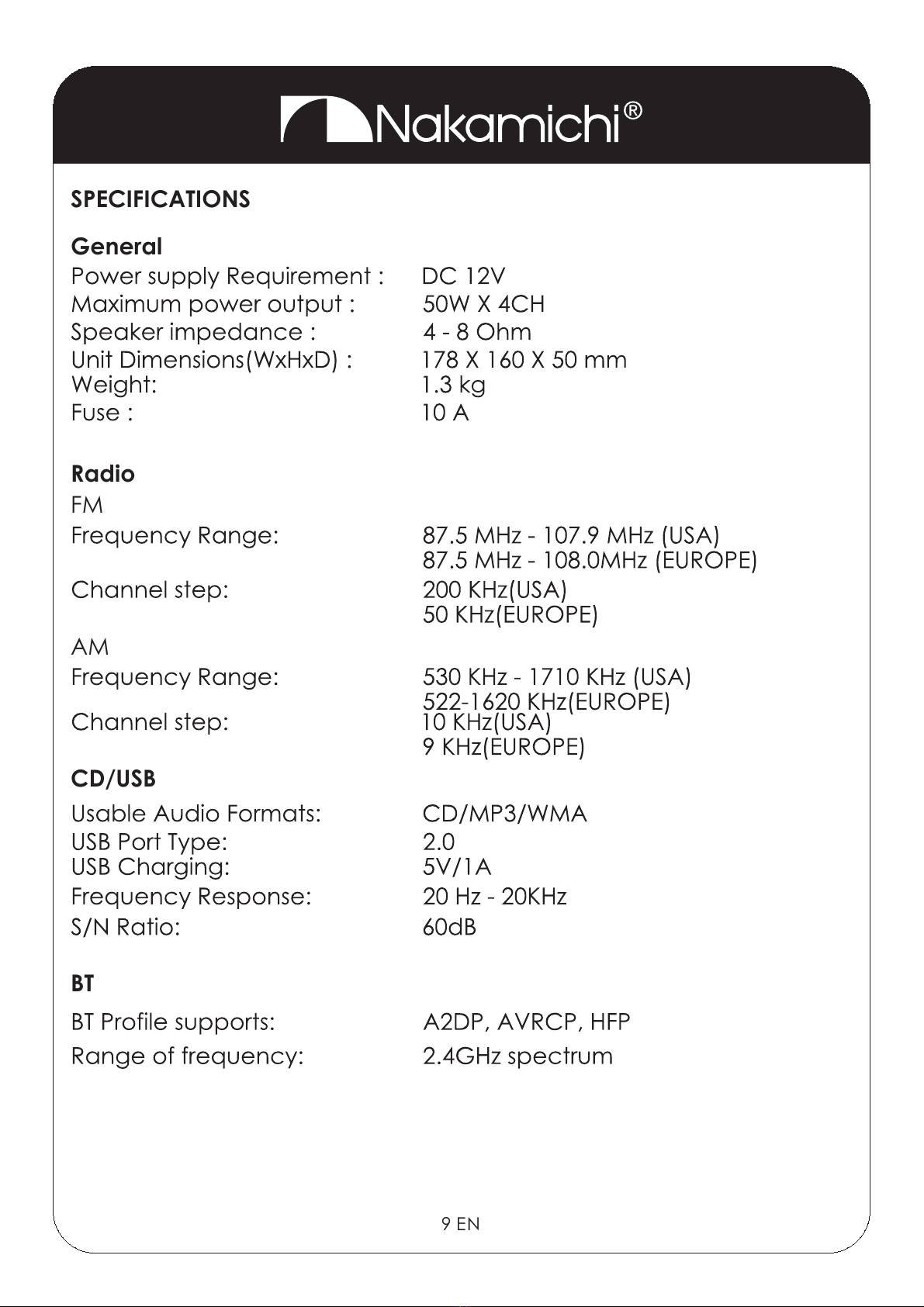

SPECIFICATIONS
9 EN
General
FM
AM
CD/USB
Radio
BT
