USER MANUAL
Forza 200

1
LED Daylight Spot Light
Product Diagram
LED total power：200W
Rated power: 220W
Input voltage/current：24V/10.4A power adapter,
14.4V - 14.8 V/12A(120W output)
26V/12A Sony V-mount battery (Not Included)
Color Temperature: 3200K/5600K
CRI: 98
TLCI: 97
Technical Data
Forza 200

2
1.Connection between the light fixture and power adapter.
Connection Way of the Power

3

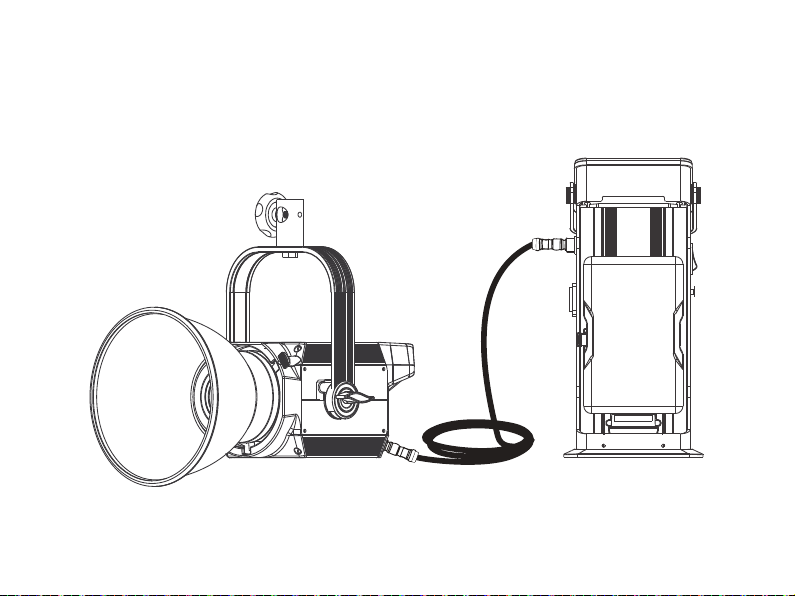

2.Connection between the light fixture and battery.

4
18. USB port
19. Host output socket 20. DC power socket
11. Lamp body handle
13. Lamp body
input socket
15. Bracket fixing knob
8. Lock catch
12. Umbrella hole
10. Angle fixing knob
9. Reflector 14. Yoke
2. Handle
3. Power indicator
4. Power switch
5. DMX OUT
6. DMX IN
7. Battery holder
1. Control
operation panel
17. AC power input socket
16. DC power input

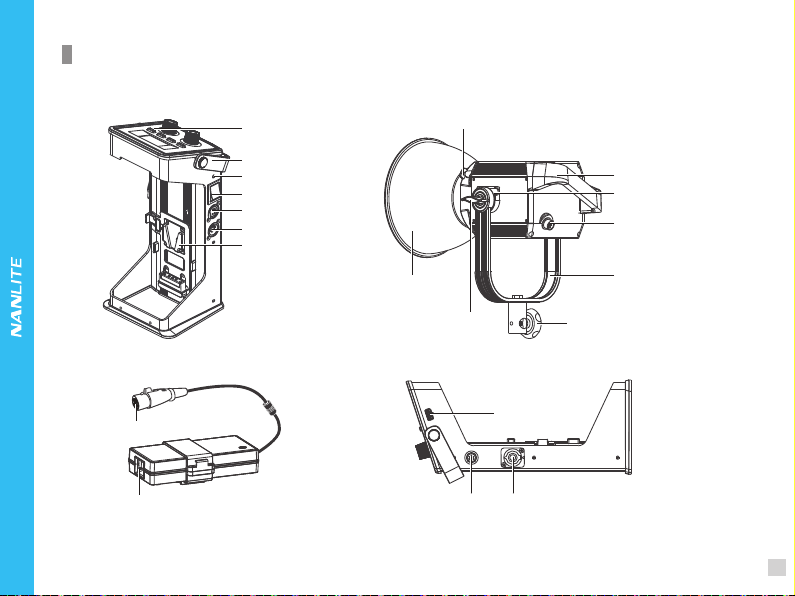

Product Details

5

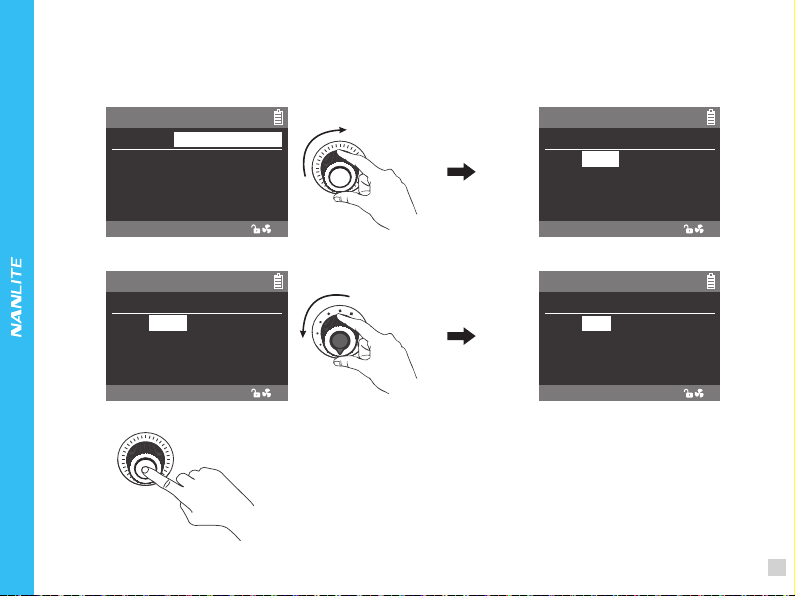

1. Control operation panel: For displaying various function operations and data.
2. Handle: It is convenient for users to carry the host.
3. Power indicator: For determining the status of power input. Being on, power supply is normal.
Flashing or being off, power supply is abnormal or no power input.
4. Power switch: For on/off the fixture.
5. DMX OUT: DMX signal output interface.
6. DMX IN: DMX signal input interface.
7. Battery holder: For installing the battery with 14.4 26V/12A Sony V-mount battery or power adapter.

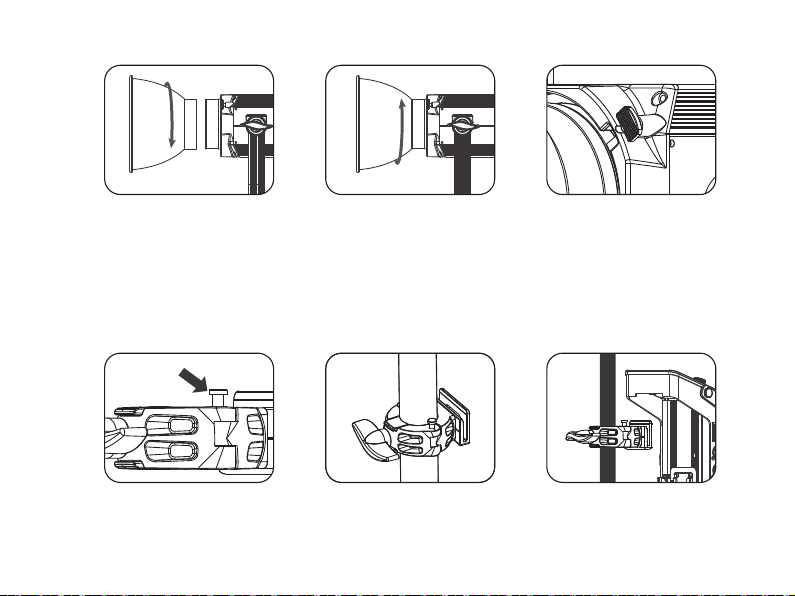

8. Lock catch: For installing and disassembling reflector and other accessories with Bowens mount.
9. Reflector: For gathering light to improve central illumination.
10. Angle fixing knob: Allows for vertical adjustments and fixing of the lamp.
11. Lamp body handle: Be convenient for users to lift the lamps and adjust the direction of the light.
12. Umbrella hole: For installing/removing an umbrella.
13. Lamp body input socket:For connecting the lamp with power adapter.
14. Yoke: Designed for connecting the lamp to the light stand and adjusting the beam angle.
15. Bracket fixing knob: For connenting the spot light and camera equipment , and adjusting the horizontal
illumination direction of fixture.
16. DC power input: For connecting DC power to the lamp.
17. AC power input socket: For connecting the AC power cable to supply power to the adapter.
18. USB port: For updating the firmware.
19. Host output socket: To connect a DC cable for connecting between the lamp body and the controller
20. DC power socket: DC power output.
Detailed description

6
DC IN
1. Power Connection
①When connect the power supply, please make sure the power , voltage and frequency should be consistent with
the provided power supply.
②When use the V mount battery, please make sure turn off the fixture and then plug in or pull out the battery or
DC cable. If using 14.8V battery, the output power is 120W. If using 26V battery, it allows full power output.
NOTE:（1） Make sure to use the provided power cable and power adapter.
（2）Make sure the plug of power supply and the cable to the socket of the fixture should be connected
as following.
2. Connection with the controller
Usage
1-
2-
4+
3+
4+
3+
1-
2-
DMX IN
DATA+ 3
GND 1
DATA- 2
DMX OUT
3 DATA+
1 GND
2 DATA-
NC
NC
NC
NC

7
1
3
2
120Ω PIN 2 PIN 3

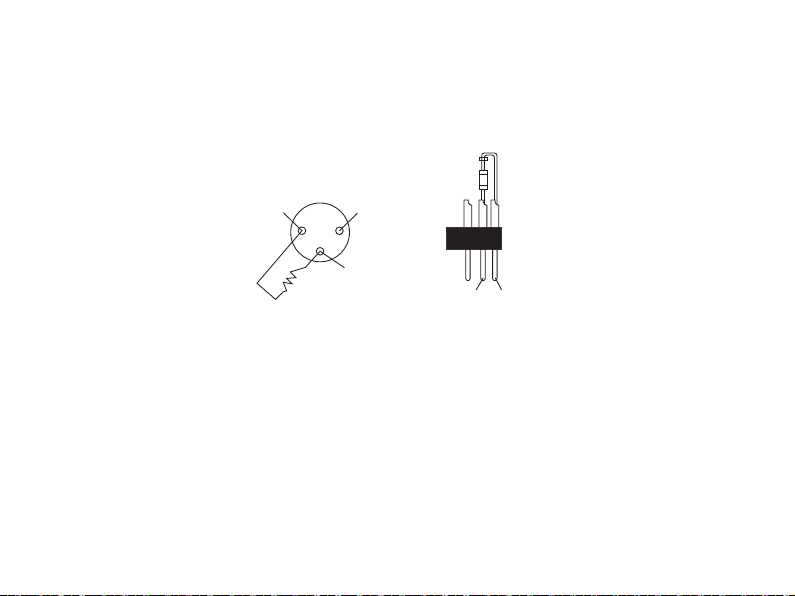

3. DMX Circuit
In DMX mode, make sure the last light is the only light with a cable connected to the DMX output. There is a
resistance about 120(OHM) between the second pin and third pin of this plug (as shown). Make sure this plug
can be installed into the output interface of the last fixture, this will help avoid noise and reflection phenomenon
caused by the DMX signal during the transmitting process.
4. DMX Channel Control

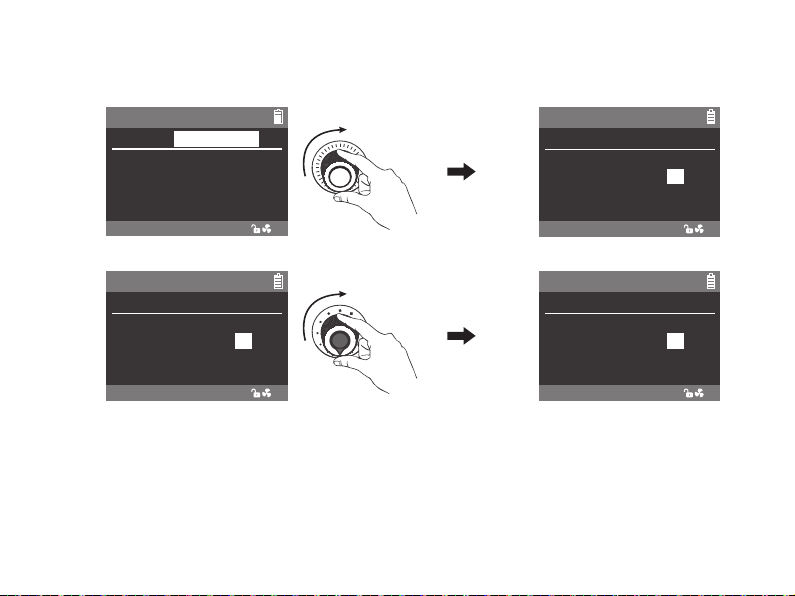

When using a DMX console to control the fixture, each one must be set to its own DMX address, to receive the
dimmer signal and response correctly. The fixture has a total of 5 channels, set the first fixture's DMX start address
to 001, 006 for the second one displays, 012 for the third one and so on.

8
The Forza 200 has a total of 5 DMX channels
Channel Lighting Modes Detail DMX Value Description
DMX Channel Detail
DIMDaylight Mode 000 - 255
1Effect Mode
INT Loop 000 - 255
Flash
000 - 255
Pulse
Storm Auto
Storm Manual
TV 000 - 255
Paparazzi 000 - 255
Candle/Fire
000 - 255
Bad Bulb
Firework
Explosion Auto
Explosion Manual
Welding 000 - 255
DIMH
DIM
DIMH
000 - 255DIMH
DIM
DIM
DIMH
Daylight Mode
INT Loop
Flash
Pulse
Storm Auto
Daylight Mode 0 - 17
18 - 35
36 - 53
54 - 71
72 - 89
2Effect Mode

9
Channel Lighting Modes Detail DMX Value Description
DIML
TV
Storm Manual
Paparazzi
Candle/Fire
Bad Bulb
90 - 107
108 - 125
126 - 143
144 - 161
162 - 179
180 - 197
198 - 215
216 - 233
234 - 255
2 Effect Mode
Firework
Explosion Auto
Explosion Manual
Welding
Flash
INT Loop
INTERVALS
PULSES/MIN
INTVLRANGEL
TRIGGER
DIML
SPEED
DIML
INTENSITY
Pulse
Storm Auto
Storm Manual
000 - 255
000 - 255
000 - 255
000 - 255
000 - 255
000 - 255
000 - 255
000-255
000 - 255
3 Effect Mode
TV
Paparazzi
Candle/Fire
Bad Bulb
SPEED
SPEED
DECAY
DIML
000 - 255
000 - 255
000 - 255
000 - 255
Firework
Explosion Auto
Explosion Manual
Welding
