Napoleon NPS45 User manual

W415-0702 / B / 04.04.12
1
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.12D
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
SAFETY INFORMATION
!WARNING
PLEASE READ ENTIRE MANUAL
BEFORE YOU INSTALL OR USE THIS
PELLET BURNING HEATER.
If the heater is not properly installed, a
house fire may result causing personal
injury or loss of life.
- Authorities having jurisdiction (such as
municipal building department, fire department,
fire prevention bureau, etc.) should be consulted
before installation to determine the need to obtain
a permit.
- Contact local building or fire officials about
restrictions and installation inspection
requirements in your area.
- This heater is hot while in operation. Keep
children, clothing and furniture away. Contact may
cause skin burns.
- Do not start a fire with chemicals or fluids such
as gasoline, engine oil, etc...
CERTIFIED FOR CANADAAND UNITED STATES USING ANSI/CSAMETHODS.
$10.00
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
This appliance has been tested to ASTM E 1509, UL 1482, ULC S627 AND ULC S628.
NPS45
PELLET STOVE
NPI45
PELLET INSERT

W415-0702 / B / 04.04.12
2
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
1.1 STOVE 3
1.2 INSERT 4
2.0 INTRODUCTION 5
2.1 DIMENSIONS 6
2.1.1 STOVE 6
2.1.2 NPI45 COMPLETE WITH NI800 FLASHING 6
2.1.3 NPI45 COMPLETE WITH AK8 ADAPTERAND GICSK FLASHING 7
2.1.4 NPI45 COMPLETE WITH AK9 ADAPTERAND CISK FLASHING 8
2.2 SPECIFICATIONS 9
2.2.1 HEATING SPECIFICATIONS 9
2.3 GENERAL INSTRUCTIONS 9
2.4 GENERAL INFORMATION 10
2.4.1 PELLET SPECIFICATIONS 10
2.4.2 SAFETY FEATURES 11
2.4.3 EPA COMPLIANCE 11

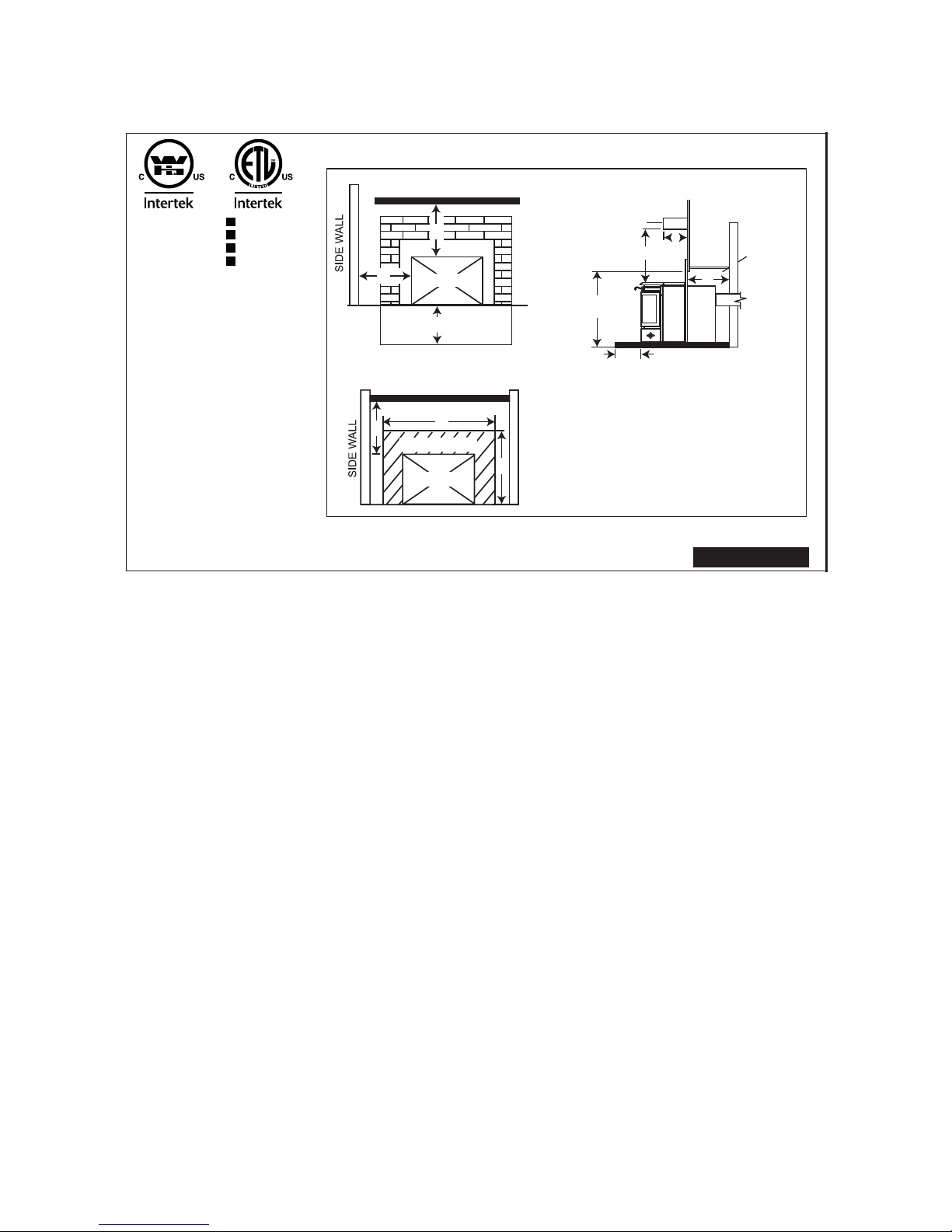

2.5 RATING PLATE INFORMATION 12
3.0 INSTALLATION PLANNING 13
3.1 APPLIANCE PLACEMENT 13
3.2 INSTALLATION OPTIONS 13
3.3 STOVE MINIMUM CLEARANCE TO COMBUSTIBLES 14
3.3.1 STRAIGHT INSTALLATION 14
3.3.2 CORNER INSTALLATION 14
3.3.3 ALCOVE INSTALLATION REQUIREMENTS (MINIMUM) 15
3.4 FLOOR PROTECTION REQUIREMENTS INSTALLATION 16
3.5 OUTSIDE AIR 17
3.6 MOBILE HOME 17
4.0 VENTING 18
4.1 TYPE OF VENT 18
4.2 INSTALLING THE PELLET VENT 18
4.3 VENTING THE PELLET APPLIANCE 18
4.4 PELLET VENT TERMINATION 19
4.5 VENT TERMINAL CLEARANCES 19
4.5.1 HORIZONTAL EXHAUST THROUGH WALL INSTALLATION 20
4.5.2 THROUGH THE WALL WITH VERTICAL RISE / HORIZONTAL TERMINATION 20
4.5.3 MINIMUM INSIDE VERTICAL CLEARANCES 21
4.5.4 CLASS A CHIMNEY RETROFIT 21
4.5.5 HEARTH MOUNT INSTALLATION 22
4.6 INSERT VENTING INSTALLATION EXAMPLES 23
4.6.1 TYPICAL EXISTING MASONRY INSTALLATION 23
4.6.2 FACTORY BUILT FIREPLACE 24
5.0 FRAMING (INSERT ONLY) 25
5.1 INSTALLATION INTO A COMBUSTIBLE ENCLOSURE 26
5.2 MINIMUM ENCLOSURE CLEARANCES 27
5.3 MINIMUM CLEARANCE TO COMBUSTIBLES 27
5.4 MINIMUM MANTEL CLEARANCES 28
5.5 REAR TO TOP VENT CONVERSION INSTRUCTIONS 29
6.0 FINISHING 29
6.1 INSTALLING VIEWING DOOR 29
6.2 FLASHING INSTALLATION 30
6.3 TRIVET INSTALLATION 30
7.0 WIRING DIAGRAM 31
8.0 OPERATING INSTRUCTIONS 32
8.1 PROPER PELLET LOADING 32
8.2 START UP CYCLE 32
8.3 LIGHTING APPLIANCE MANUALLY 32
8.4 LIGHTING INSTRUCTIONS 33
8.5 CONTROLS 33
8.6 CONTROLADJUSTMENT 34
8.7 INSTALLING A THERMOSTAT OR REMOTE CONTROL 35
8.8 SHUTDOWN INSTRUCTIONS 35
9.0 NORMAL OPERATING SOUNDS 36
10.0 MAINTENANCE 37
10.1 DAILY (WHENEVER USING THE APPLIANCE) 37
10.1.1 OPENING MAIN DOOR 37
10.1.2 DISPOSAL OF ASHES 37
10.1.3 INSPECT THE BURN POT 37
10.1.4 CARE OF PLATED PARTS 37
10.1.5 CARE OF GLASS 38
10.1.6 CLEANING THE HEAT EXCHANGER TUBES 38
10.1.7 MAKE SURE PELLETS ARE NOT PILING UP 38
10.1.8 CLEANING THE BURN POT 39
10.2 BI-WEEKLY (OR EVERY 10 BAGS OF PELLETS) 39

W415-0702 / B / 04.04.12
3
1.0 INSTALLATION OVERVIEW
Rating Plate, see
“RATING PLATE
INFORMATION”
section.
Venting, see “VENTING”
and “INSTALLATION
PLANNING” sections.
Floor, see “INSTALLATION
PLANNING - FLOOR
PROTECTION REQUIREMENTS”
section.
See “OUTSIDE
AIR” section.
Door, see
“INSTALLING
VIEWING DOOR”
section.
1.1 STOVE
10.2.1 VACUUM FIREBOX 39
10.3 SEMI-ANNUALLY (OR EVERY TWO TONS OF PELLET) 40
10.3.1 VACUUM HOPPER 40
10.3.2 SOOTAND FLY ASH FORMATION 40
10.3.3 CLEAN THE VERTICAL EXHAUST DUCT 40
10.3.4 CLEAN EXHAUST HOUSING (INSERT ONLY) 41
10.3.5 CLEAN THE EXHAUST BLOWER 41
10.3.6 CHECK ALL SEALS 41
10.3.7 CLEAN THE VENT 42
10.4 IN THE EVENT OF A JAMMED AUGER 42
11.0 REPLACEMENTS 43
11.1 COMMON REPLACEMENT PARTS 46
11.2 NPS45 REPLACEMENT PARTS 47
11.3 NPI45 REPLACEMENT PARTS 48
11.4 COMMON ACCESSORY PARTS 49
11.5 NPI45 ACCESSORY PARTS 49
12.0 TROUBLESHOOTING 50
13.0 WARRANTY 53
14.0 SERVICE HISTORY 54

W415-0702 / B / 04.04.12
4
1.2 INSERT
See the section
MINIMUM MANTEL
CLEARANCES”
Drywall
(or other
combustible
material)
See the sections
“VENTING”
and “INSTALLATION PLANNING”
See the section
“ENCLOSURE
CLEARANCES”
Side
Wall
See the section
“MINIMUM
CLEARANCES TO
COMBUSTIBLES”
See the section
“INSTALLATION
INTO A BUILT-IN
ENCLOSURE”
Rating Plate, see
“RATING PLATE
INFORMATION”
section.
Door, see
“INSTALLING
VIEWING DOOR”
section.

W415-0702 / B / 04.04.12
5
2.0 INTRODUCTION
3.8B
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to
operating instructions could cause fire or injury. Contact the local building or fire authority and follow their guidelines. Notify
your insurance company of this appliance as well.
• Never try to repair or replace any part of the appliance unless instructions are given in this manual. All other work should be
done by a trained technician.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not operate without fully assembling all components.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges may be sharp.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or
clothing ignition. Toddlers, young children and others may be susceptible to accidental contact burns. Aphysical barrier is
recommended if there are at risk individuals in the house. To restrict access to an appliance or stove, install an adjustable
safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot surfaces.
These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the appliance and venting
system are kept clean. The appliance and its venting system should be inspected before use and at least annually by a
qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc.
The appliance area must be kept clear and free from combustible materials, gasoline and other flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any gas control which has been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be done by a
licensed or qualified service person. The viewing door and ashpan must be closed and latched during operation.
• Do not strike or slam shut the appliance glass door.
• Only doors / optional fronts certified with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all plastic bags,
these are not toys and should be kept away from children and infants.
• If the appliance is not properly installed, a house fire may result. Do not expose the appliance to the elements (ex. rain, etc.)
and keep the appliance dry at all times. Wet insulation will produce an odour when the appliance is used.
• The chimney must be sound and free of cracks. Clean your chimney a minimum of twice a year and as required.
• The heater is designed and approved for pelletized wood fuel only. Any other type of fuel burned in this heater will void the
warranty and safety listing.
• Do not start a fire with chemicals or fluids such as gasoline, engine oil, etc.
• Ashes must be disposed in a metal container with a tight lid and placed on a non-combustible surface well away from the
home or structure.
• Your appliance requires periodic maintenance and cleaning. Failure to maintain your appliance may lead to smoke spillage in
your home.
• The exhaust system must be completely straight and properly installed. It is recommended that the pellet vent joints be sealed
with a minimum 500°F (260°C) silicone sealant. Install according to the vent manufacturer’s instructions.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance. Elevated
temperatures on the wall or in the air above the appliance can cause melting, discolouration or damage to decorations, a T.V.
or other electronic components.
• During a power outage this appliance will not operate. If a power outage does occur, check the appliance for smoke spillage
and open a window if any smoke spills into the room.
• Keep foreign objects out of the hopper.
• Disconnect the power cord before performing any maintenance. NOTE: Turning the pellet feed to “OFF” does not
disconnect all power to the heater.
• Do not throw this manual away. This manual has important operating and maintenance instructions that you will need at a
later time. Always follow the instructions in this manual.
• At no point should you use firewood or firelogs in this appliance. The use of which could cause a house fire.
• This appliance must be connected to a standard 115 V, 50Hz grounded electrical outlet. Do not use an adapter plug or sever
the grounding prong. Do not route the electrical cord underneath, in front of, or over the appliance.
• When installed in a mobile home, the appliance must be bolted to the floor, have outside air, and NOT BE INSTALLED IN THE
BEDROOM (per H.U.D. requirements). Check with local building officials.
• The exhaust system should be checked and cleaned once a year minimum for any build-up of soot or creosote.
• This heater becomes very hot, you MUST wear heat resistant gloves when cleaning or handling this heater.

W415-0702 / B / 04.04.12
6

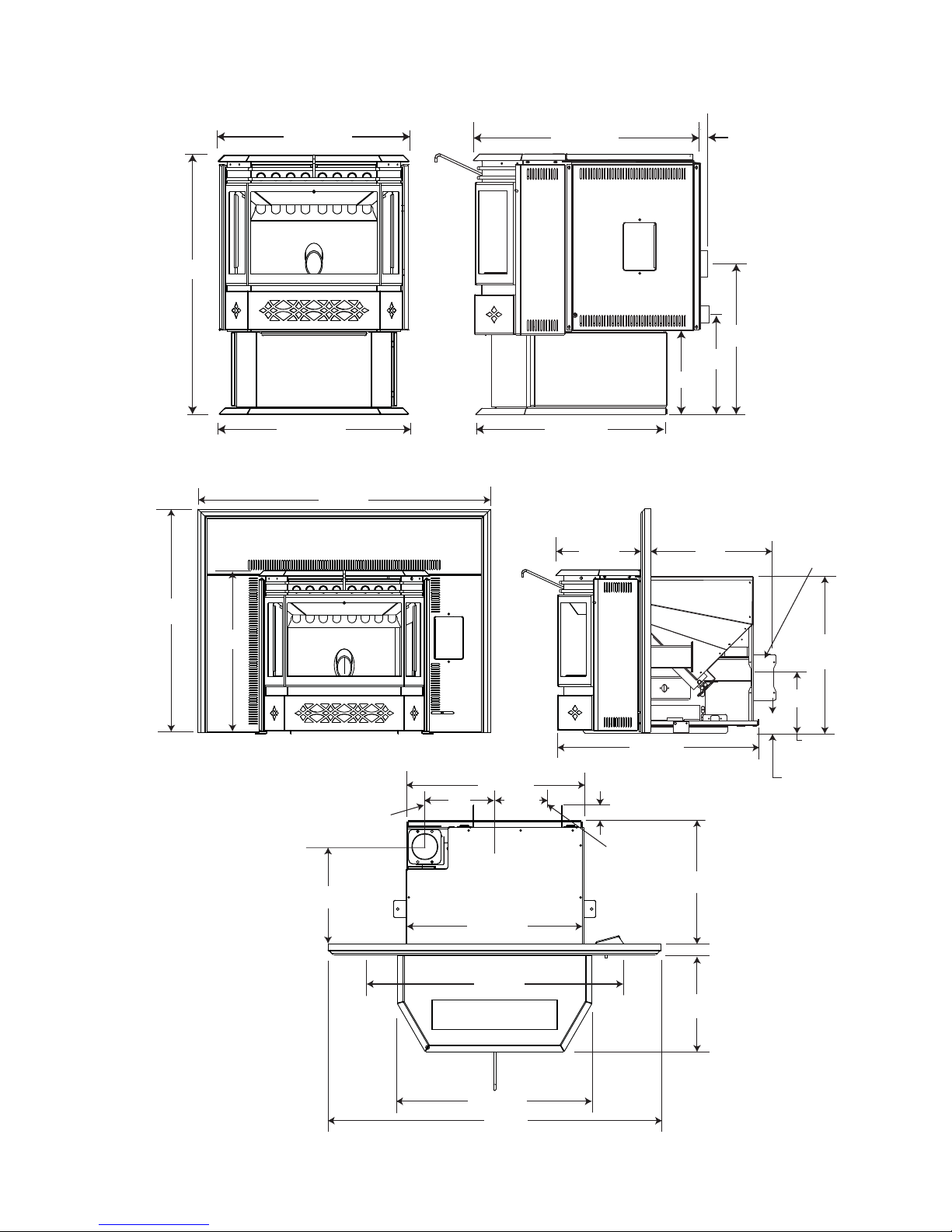

2.1 DIMENSIONS
22 3/8”
30 1/2”
22 3/8”
9 7/8”
11 3/4”
17 3/8”
1 1/8”
22 1/2” 26 5/8”
2.1.1 STOVE
2.1.2 NPI45 COMPLETE WITH NI800 FLASHING
26 1/2”
12 1/2”
38 3/8”
29 5/16”
7 5/8”
20 3/8”
8”
12 3/4”
12 1/2”
22 1/2”
38 3/8”
*32 5/8”
20 5/8”
2 1/4”
11 3/16”
20 5/8”
21 1/2”
2 3/4”
4 1/4”
Center line
of exhaust
Center line
of air intake
*In order to install flashing flush to a finished wall and centered within the
opening the front opening of the fireplace or enclosure must be this wide.
15” Stand-off’s
Center line
of air intake
Center
line of
exhaust
Center line
of insert
1 1/4”

W415-0702 / B / 04.04.12
7
26 1/2”
10 5/16”
7 5/8”
20 5/8”
2 3/4”
20 3/8”
8”
13 3/8”
10 5/16”
22 1/2”
46 7/16”
*30 3/4”
20 5/8”
2 1/4”
10 1/2”
4 1/4”
Center line
of exhaust Center line
of air intake
*In order to install flashing flush to a finished wall and centered within the
opening the front opening of the fireplace or enclosure must be this wide.
29 3/16”
46 7/16”
2 3/16”
15 5/8”
Center line
of air intake
Center
line of
exhaust
Center line
of insert
Stand-offs

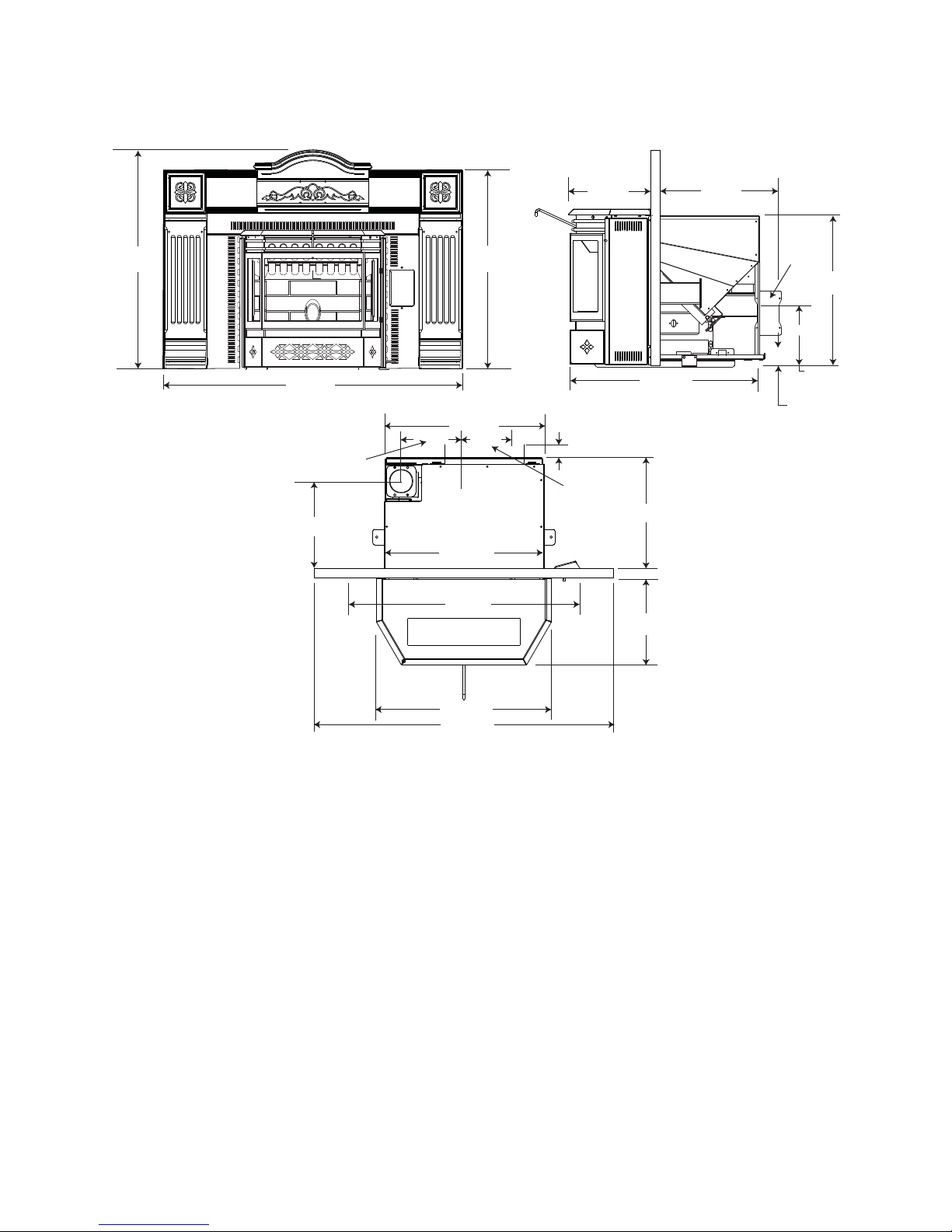

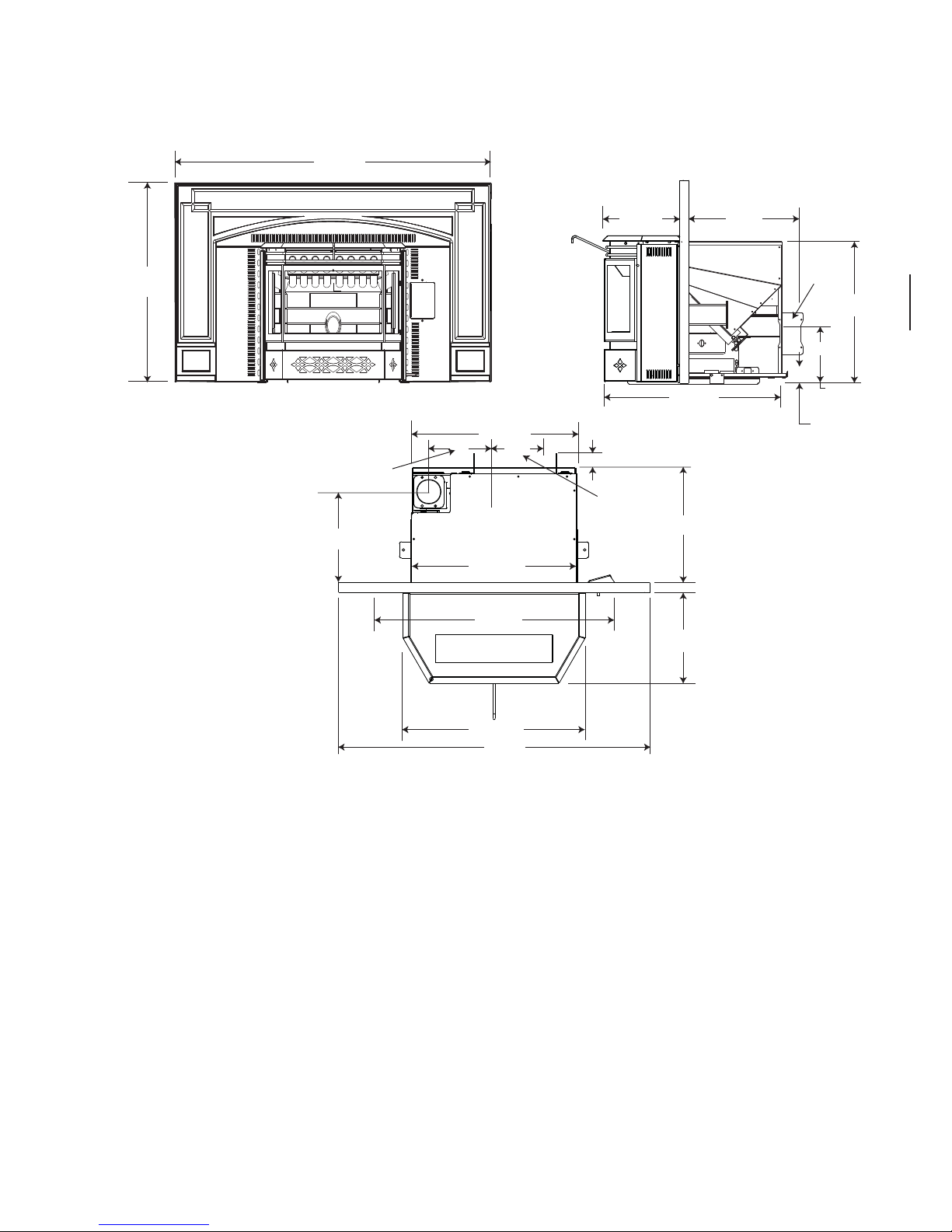

2.1.3 NPI45 COMPLETE WITH AK8 ADAPTER AND GICSK FLASHING

W415-0702 / B / 04.04.12
8
26 1/2”
10 5/8”
7 5/8”
20 5/8”
2 3/4”
46 7/16”
31”
20 3/8”
8”
22 1/2”
46 7/16”
*32 5/8”
20 5/8”
2 1/4”
11 3/16”
4 1/4”
Center line
of exhaust Center line
of air intake
*In order to install flashing flush to a finished wall and centered within the
opening the front opening of the fireplace or enclosure must be this wide.
28 1/8”
Center line
of insert
16 1/2”
Center line
of air intake
Center
line of
exhaust
1 5/8”
14 1/4”
10 5/8”
Stand-offs
2.1.4 NPI45 COMPLETE WITH AK9 ADAPTER AND CISK FLASHING

W415-0702 / B / 04.04.12
9
2.2 SPECIFICATIONS
ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE
WITH LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA C22.1
CANADIAN ELECTRIC CODE (IN CANADA) OR THE ANSI/NFPA NO. 70 NATIONAL ELECTRIC CODE
IN THE UNITED STATES.
DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. DO
NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” FROM THE
FRONT FACE OF THE APPLIANCE.
!
WARNING
Electrical Rating 115 Volts, 3.6 Amps, 60Hz
Watts During Start-Up Sequence 400 (approximately)
Watts During Operation 180 (approximately)
NPS45 Width 22 3/8"
NPS45 Height 30 1/2"
NPS45 Depth 26 5/8"
Weight 210 Pounds
Exhaust Collar 3"
Intake Collar 2"
NPS45 Hopper Capacity 55 Pounds
NPI45 Hopper Capacity 45 Pounds
EPA Exempt
Minimum Appliance Opening Size Front: 32.5/8"* W x 20 5/8 H x 14 1/4 D Back: 20 3/8 W
Approximate Maximum Heating Capacity (in square feet)* 800 to 2000 Sq. Feet
Burn Rate (Pounds per Hour)** 1.0 to 5.0
BTU/h** 8500 to 42500
Maximum Burn Time on Low Burn** 55 Hours (NPS45), 45 Hours (NPI45)
Hopper Capacity 55 Pounds (NPS45), 45 Pounds (NPI45)
* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside temperature. It is
also affected by the fuel size, quality, and moisture level.
** Small pellets will increase or decrease the stated burn rates and burn times. Differences of plus or minus 20% depend-
ing on fuel quality may occur.
2.2.1 HEATING SPECIFICATIONS
2.3 GENERAL INSTRUCTIONS
* In order to install flashing flush to finished wall and centered within the opening the front opening of the appliance or
enclosure must be 32 5/8" wide.

W415-0702 / B / 04.04.12
10
2.4 GENERAL INFORMATION
Thank you for purchasing a Wolf Steel Ltd. PelletAppliance. This appliance is designed for use with Pelletized
Wood Only.
Please read this entire manual before installation and use of this pellet fuel-burning room appliance. Failure to
follow these instructions could result in property damage, bodily injury or even death.
Keep this manual handy for future reference.
This Pellet Appliance, when installed, must be electrically grounded in accordance with the local codes, or in
the absence of local codes, use the current CSA C22.1 Canadian Electrical Code in Canada or the ANSI/NFPA
70 National Electrical Code in the United States.
This appliance will not operate using natural draft or without a power source for the blower systems and fuel
feed system.
The protective wrap on plated parts is best removed when the assembly is at room temperature but this can be
improved if the assembly is warmed, using a hair dryer or similar heat source.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
4.5
If the fuel does not comply to
this standard the appliance may
not operate as designed.
We recommend the use of pre-
mium grade (1% ash content)
for longer appliance life and less
frequent cleaning.
Fines (fine particles) 1% maximum through a 1/8" screen
Bulk Density 40 pound per cubic foot minimum
Size 1/4" to 5/16" diameter, 1/2" - 1 1/2" long maximum
Ash Content 1% maximum (Premium grade)
3% maximum (Standard grade)
Moisture Content 8% maximum
Heat Content Approximately 8200 BTU per pound minimum
P.F.I. PELLET STANDARDS:
Pellet quality is important, please read the following:
Your Wolf Steel Ltd. Pellet Appliance has been designed to burn premium hard or soft wood pellets only. Do
not use any other type of fuel such as fire logs or fire starting pellets, as this will void the warranties stated in
this manual.
The performance and heat output of the pellet appliance is directly related to the quality and moisture of the
pellets. Store pellets in a cool dry area to prevent moisture absorption. 64.1
!
WARNING
IT IS IMPORTANT TO SELECT AND USE ONLY PELLETS THAT ARE DRY AND FREE OF DIRT OR ANY
IMPURITIES SUCH AS HIGH SALT CONTENT. DIRTY FUEL WILL ADVERSELY AFFECT THE OPERA-
TION AND PERFORMANCE OF THE APPLIANCE AND WILL VOID THE WARRANTY. THE PELLET
FUEL INSTITUTE (P.F.I.) HAS ESTABLISHED STANDARDS FOR WOOD PELLET MANUFACTURERS.
WE RECOMMEND THE USE OF PELLETS THAT MEET OR EXCEED THESE STANDARDS. ASK YOUR
DEALER FOR A RECOMMENDED PELLET TYPE.
2.4.1 PELLET SPECIFICATIONS

W415-0702 / B / 04.04.12
11
HIGH LIMIT SWITCH: Your appliance is equipped with a high limit switch. In the event that the temperature of
the appliance approaches an unsafe operating temperature, this switch will shut down the pellet feed, which
will eventually shut down the unit. If this happens, it is important to find out why the unit overheated. Contact
your local dealer.
LOW LIMIT SWITCH: This switch will automatically shut down the appliance if the fire goes out or fails to light
within 15 minutes.
HOPPER DOOR INTERLOCK: Your appliance is equipped with a micro switch in the hopper assembly that
shuts-off the auger when the hopper door is opened. Closing the door switches the auger back on, allowing
pellets to feed again.
VACUUM SWITCH: This switch will sense lack of air flow through the appliance and shut down the pellet feed.
This lack of flow could be caused by a blocked vent.
POWER FAILURE: In the event of a power failure, the appliance will shut down. Once power is restored, the
appliance will re-start, unless the convection air temperature has gone above the high limit switch setting. If
this happens, contact your local dealer.
2.4.2 SAFETY FEATURES
2.4.3 EPA COMPLIANCE
This appliance is EPA exempt from Phase II
prerequisites, but complies with Oregon /
Washington emissions requirements.
We suggest that our pellet hearth
products be installed and serviced by
professionals who are certified in the U.S.
by the National Fireplace Institute
®
(NFI)
as NFI Pellet Specialists or who are
certified in Canada by
Wood Energy Technical
Training (WETT).
www.nficertified.org
66.1A

W415-0702 / B / 04.04.12
12
2.5 RATING PLATE INFORMATION
For rating plate location, see “INSTALLATION OVERVIEW” section.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
SAMPLE
- INSTALL AND USE ONLY IN ACCORDANCE WITH
THE MANUFACTURER’S INSTRUCTIONS AND
LOCAL BUILDING CODES. MINIMUM CEILING
HEIGHT: 7FT (2.13M) HEARTH EXTENSION /
COMBUSTIBLE FLOOR PROTECTION: IF
INSTALLED ON ACOMBUSTIBLE FLOOR, UNIT
MUST BE PLACED ONA NON-COMBUSTIBLE
FLOOR PROTECTOR EXTENDING 6” IN FRONT.
- DO NOT CONNECT THIS UNIT TOACHIMNEY
FLUE SERVING ANOTHER APPLIANCE.
- REPLACE GLASS WITH ONLY CERAMIC GLASS.
DANGER: RISK OF ELECTRICAL SHOCK.
DISCONNECT POWER BEFORE SERVICING
UNIT.
- KEEP VIEWING DOOR TIGHTLY CLOSED
DURING OPERATION.
- CONTACT LOCAL BUILDINGAND FIRE
OFFICIALS ABOUT RESTRICTIONS AND
INSTALLATION INSPECTION IN YOUR LOCAL
AREA.
- SUITABLE FOR USE IN MOBILE HOMES WHEN
USED WITH OUTSIDE AIR INSTALLATION KIT.
- REFER TO INSTALLATION INSTRUCTIONS OR
LOCAL BUILDING CODES WHEN PASSING
EXHAUST SYSTEM THROUGH COMBUSTIBLE
WALL OR CEILING.
LISTED PELLET FUEL BURNING ROOM HEATER
TESTED TO:ASTM E 1509, UL1482, ULC S628
MODEL NPI45
CAUTION: HOT WHILE IN OPERATION. DO NOT TOUCH. KEEP CHILDREN, CLOTHINGAND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS.
U.S. ENVIROMENTAL PROTECTIONAGENCY Certified to comply with July 1992 Particulate Emission Standards
WOLF STEEL LTD.
24NAPOLEON ROAD.BARRIE, ONTARIO L4M0G8 CANADA
NPI45
MINIMUM CLEARANCES TO COMBUSTIBLE
Sidewall A 8”
Mantel B 8”
Floor Protector C 6”
Recess Width D 31 1/2”
Recess Height E 26 1/2”
Recess Depth F 16”
Mantel Depth G 10”
INPUT RATING
MIN 1 LB/HR
MAX 5 LB/HR
ELECTRICAL RATING
120V 3.6A 60HZ
MASONRY FIREPLACE INSTALLATION
BUILT-IN FIREPLACE INSTALLATION
(FRONT VIEW)
BUILT-IN FIREPLACE INSTALLATION
(SIDE VIEW)
WOOD MANTEL
ENCLOSURE
INSERT
BD
E
MANTEL
ENCLOSURE
MANTEL
INSERT
B
A
HEARTH EXTENSION
C
E
C
BG
F
9700539 (WSL)
4001657 (NGZ)
4001658 (NAC)
4001659 (WUSA)
REFERENCE #
W/N 16064

W415-0702 / B / 04.04.12
13
3.0 INSTALLATION PLANNING
Check with local building officials for any permits required for installation of this pellet appliance and notify your
insurance company before proceeding with installation.
Before installing we recommend placing the appliance outside and load 5 pounds of pellets inside the hopper.
Plug the appliance in and let it run on HIGH until the pellets run out. This will cure the paint and burn off most
of the oils on the steel, thereby minimizing any smell inside the home. 68.1
READ ENTIRE MANUAL BEFORE YOU INSTALL OR USE THIS APPLIANCE. FAILURE TO FOLLOW THE
INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES AND REPLACEMENT PARTS (BLOWERS,
DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENT COMPONENTS, ETC.) COULD RESULT IN A
SAFETY HAZARD AND WILL VOID THE LIMITED LIFETIME WARRANTY.
!
WARNING
3.1 APPLIANCE PLACEMENT
NPS45:
To install in a Residential or Mobile Home see "MOBILE HOME INSTALLATION" section. For alcove instal-
lations see "ALCOVE INSTALLATION REQUIREMENTS" section. For horizontal vent or vertical vent see
"VENTING" section. Outside air, see "OUTSIDE AIR" section.
NPI45:
To install as an insert into an existing masonry appliance or factory built appliance see "VENTING" section. To
install into a combustible enclosure, see "INSTALLATION INTO A COMBUSTIBLE ENCLOSURE" section.
Have an authorized dealer install the appliance. If you install the appliance yourself, have your dealer review
your installation plans and/or installation.
Draw out a detailed plan of the installation including dimensions and verify the dimensions with the require-
ments listed in this manual.
You may wish to adjust the appliance position slightly to ensure the vent does not intersect with a framing
member. Appliance must be positioned so that no combustibles are within, or can swing within (e.g. drapes,
doors), 48” of the front of the appliance. 67.1A
3.2 INSTALLATION OPTIONS

W415-0702 / B / 04.04.12
14
3.3 STOVE MINIMUM CLEARANCE TO COMBUSTIBLES
Through the Wall Installations complete
with outside air Interior Vertical Vents
3.3.1 STRAIGHT INSTALLATION
DO NOT INSTALL INTO ANY AREA HAVING LESS THAN 48" (CEILING TO APPLIANCE BOTTOM,
EXCLUDING HEARTH HEIGHT).
!
WARNING
Through the Wall Vents complete with outside air Interior Vertical Vents
NOTE: If interior vertical pellet vent is used, the clearance to the back wall is determined by the up-
ward-turning elbow or "Tee". It will vary in depth depending on the brand of pellet vent used (it is ap-
proximately 5"). Before placing the appliance, connect the elbow or "Tee" and allow for the minimum
3" clearance to the combustible wall.
3.3.2 CORNER INSTALLATION
2”
6”
Floor Protection
45°
2”
2”
6”
6”

W415-0702 / B / 04.04.12
15

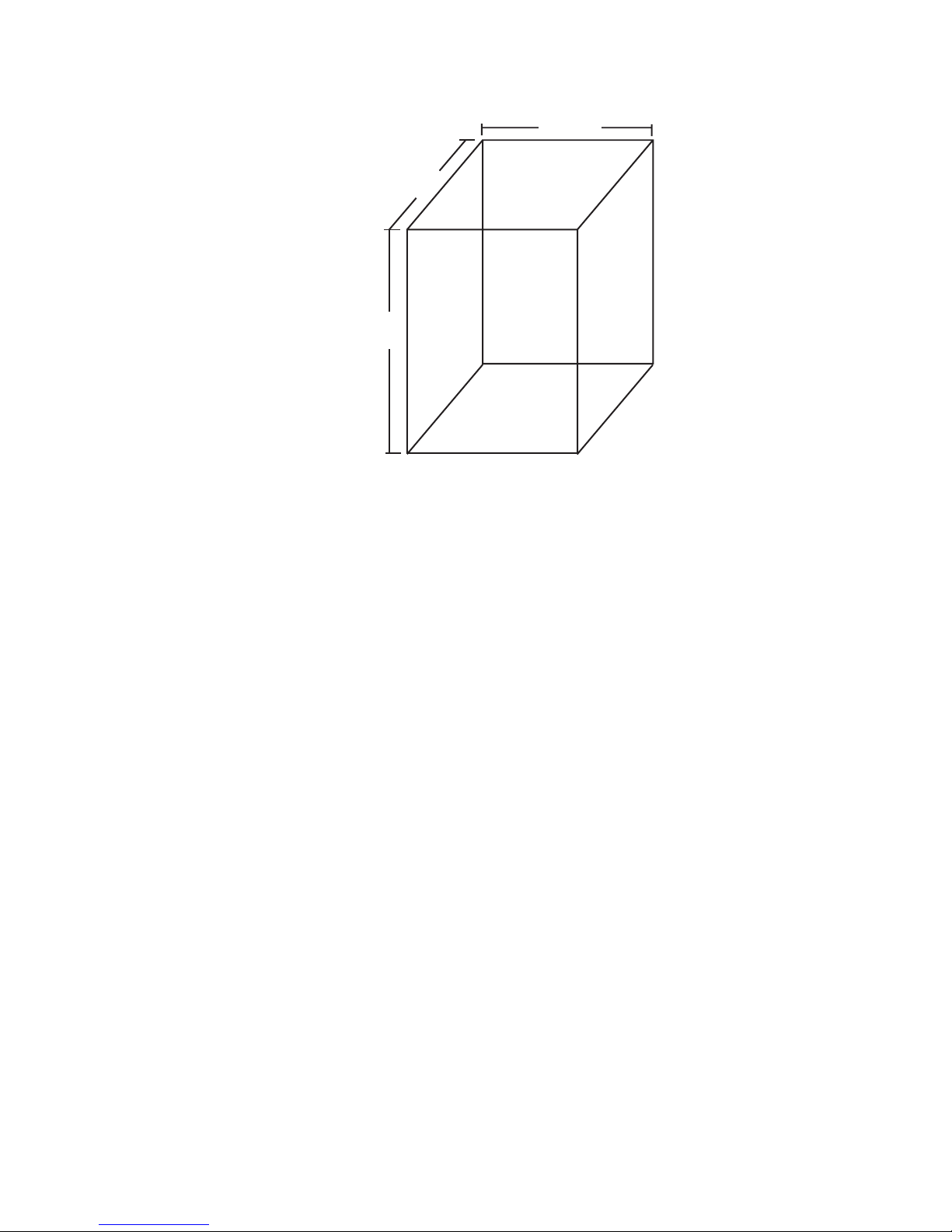

3.3.3 ALCOVE INSTALLATION REQUIREMENTS (MINIMUM)
Minimum Alcove Dimensions
30”
48”
35”
STOVE

W415-0702 / B / 04.04.12
16
99.2B
THERMAL PROTECTOR:
This appliance must be installed on a non-combustible thermal protector that extends to the front, sides
and back of the appliance as per the minimum requirements below.
NOTE: Floor protection is required for spark and ash shielding, and for limiting floor
temperatures from the radiant heat of the appliance.
J
J
I
L
The thermal protector must have an overall R-Value of 1.0. For multiple layers,
add R-Values for each layer to determine the overall R-Value.
CONVERTING MATERIAL SPECIFICATIONS TO R OR K VALUES
R = Thickness / K-Value
K = Thickness / R-Value
MINIMUM FLOOR PROTECTION
FRONT (I) SIDES (J) VENT (L)
6” 6” 2”
COMMON K and R VALUES CHART
MATERIAL K-VALUE R-VALUE
Per inch Per inch
Micore 300 0.43 2.33
Wonderboard (cement board) 1.92 0.52
Common Brick 5.00 0.20
Cement Mortar 5.00 0.20
Ceramic Tile 12.50 0.08
Marble 11.00 0.09
Air Space (ventilated) 0.70 1.43
Sand and Gravel 1.70 0.59
Drywall (gypsum) 1.00 1.00
Rockwool or Fiberglass Batts 0.30 3.33
With K values, the lower value is a better insulator. With R values, the highest number is better.
K-Value Example:
A wood stove may call for thermal protection which has a K factor of 1 or less. A product
such as Micore 300 Board from USG has a K-Value of approximately .43 per inch.
Therefore, a 1/2” thickness of this board would have a K-Value of .86, which meets the
requirement of our example stove.
R-Value Example:
A stove or fireplace may call for thermal protection with an R-Value of 1.5. This same
board above is rated as having an R-Value of 2.33 for a 1” thickness. Therefore, 3/4” of
the Micore 300 Board would meet the specifications for this stove.
3.4 FLOOR PROTECTION REQUIREMENTS INSTALLATION

W415-0702 / B / 04.04.12
17
29.4A
Installation into a manufactured home or mobile home should be installed in
accordance with the Manufactured Home Construction and Safety Standard,
Title 24 CFR, Part 3280, in the United States or the Mobile Home Standard,
CAN/CSA Z240 MH Series, in Canada.
The appliance must be grounded to the steel chassis of the mobile home
(Some states do not require this; check with your local building department).
!
WARNING
DO NOT INSTALL IN A SLEEPING ROOM.
THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL, AND CEILING ROOF
MUST BE MAINTAINED.
3.5 OUTSIDE AIR
Available from yourAuthorized Dealer (114KT)
Outside air must not be drawn from an enclosed space (garage, unventilated crawl space).
NOTE: Wolf Steel Ltd. strongly suggests using outside air for all residential installations, especially for
those that are energy efficient, air-tight homes.
Outside air supply must not be over 15' long.
Outside air vents must be made with 1 3/4" diameter or larger metal or aluminum duct with a metal screen at-
tached to the end to keep out rodents (P.V.C. or other materials may not be used).
The outside air inlet must not be above or within 12" of the chimney termination, must have a rain cap or down-
turned elbow to prevent the water from entering and be located so that it will not become plugged by snow or
other material.
Outside air is required for all combustible built-in enclosure installations.
STOVE
ILLUSTRATED
3.6 MOBILE HOME

W415-0702 / B / 04.04.12
18
4.0 VENTING
4.1 TYPE OF VENT
4.2 INSTALLING THE PELLET VENT
4.3 VENTING THE PELLET APPLIANCE
Must be an approved 3" or 4" diameter Type "L" or "PL" vent, vented to the outside or connect the vent to a
factory built type "A" chimney using an adaptor; and/or stainless steel chimney liner for masonry appliance in-
stallations. Use 4" diameter vent if vent or liner height is over 15' or if installation is over 4,000' above sea level.
Use an approved wall thimble when passing the vent through walls and a ceiling support / firestop spacer when
passing the vent through ceilings (maintain a 3" clearance to any combustibles).
7.5C
The vent must have a support bracket every 5’ when on
the exterior wall. To achieve optimum performance, keep
vent runs as short as possible, especially on horizontal
installations.
MAXIMUM VENTING: Maximum venting height is 33’.
Maximum horizontal without vertical rise is 5’ straight
off the back of the appliance. Use no more than 180° of
elbows (two 90° elbows, or two 45° elbows and one 90°
elbow, etc), excluding the tee and the termination.
VENT INSTALLATION: Termination must exhaust above
the air inlet elevation, and parallel or above the exhaust
output of the pellet appliance. It is recommended that at
least 3’ of vertical pipe be installed to create some natural
draft. This is to help prevent the possibility of smoke or
odour entering the home during the appliance shut down
or in the event of a power outage. Horizontal sections
must have a 1/4” rise every 12” of travel if longer than 3’.
The pellet vent connections must be sealed with HI-Temp
RTV Silicone and screwed together with at least 3 3/8”
long stainless steel screws. Seal each vent section by
injecting a liberal amount of 500°F (260°C) RTV silicone
sealant into the gap. We recommend sealing the outside
of the vent connections to permit easier access when
servicing.
5’
10’
15’
20’
33’
30’
25’
0’
5’ 10’
0’
Use 4” diameter
“L” vent if
venting in this
shaded region.
Use 3” or 4”
diameter “L”
vent if venting
in this shaded
region.
!
WARNING
PELLET VENT MUST MAINTAIN A MINIMUM 3" CLEARANCE TO ANY COMBUSTIBLE (INSTALL VENT
AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER, CHIMNEY LINER EXCLUDED).
DO NOT CONNECT THE PELLET VENT TO A VENT OR CHIMNEY SERVING ANY OTHER APPLIANCE
OR HEATER.
DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM OF THIS UNIT.

W415-0702 / B / 04.04.12
19
4.4 PELLET VENT TERMINATION
The vent termination must have an approved cap (to prevent water from entering) or a 45° downturn.
If the termination is located on a windy side of the house, a shield is recommended to prevent soot from build-
ing up on the side of the house.
Horizontal terminations must protrude 12" from the wall, vertical terminations require a minimum 24" above the
highest point that it penetrates through the roof.
Depending on pellet quality, vent configuration and air settings, black soot may occur on the terminal wall.
4.5 VENT TERMINAL CLEARANCES
CLEARANCES
A12” Clearance above grade, veranda porch, deck or balcony. (Including vegetation and mulch)
B9” Clearance beside or below any windows or doors that open.
12” * Clearance above any window or door that opens.
C18” Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet
from the center line of the terminal.
D0” Clearance to an outside corner wall.
E3” Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase,
etc.)
F9” Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.
G3’ Clearance to a mechanical air supply inlet.
H7’ ** Clearance above a paved sidewalk or paved driveway located on public property.
I12” ** Clearance under a veranda, porch, deck or balcony.
J24” Clearance above the roof.
K2’ Clearance from an adjacent wall including neighbouring buildings.
L
3’ within a
height of 15 feet
above the meter
/ regulator as-
sembly
Clearance to each side of center line extended above natural gas or propane meter / regulator assembly
or mechanical vent.
* Recommended to prevent condensation on windows and thermal breakage
** This is a recommended distance. For additional requirements check local codes.
A
J
D
K
I
H
E
C
B
G
F
E
B
L
12.7B
NOTE: Illustration dimensions are to the center of
the exhaust exit point of the vent.

W415-0702 / B / 04.04.12
20
4.5.1 HORIZONTAL EXHAUST THROUGH WALL INSTALLATION
4.5.2 THROUGH THE WALL WITH VERTICAL RISE / HORIZONTAL TERMINATION
Floor
Protection
12” Minimum
Outside Air
(Recommended)
6”
Minimum
3” Minimum
Wall
Thimble
11 5/8” 5’Maximum
17”
Wall Thimble
Outside Air
(Recommended)
3”
2”
Floor
Protection
6”
Minimum
11 5/8” 17”
