Introduction
This manual contains detailed instructions on the operation and maintenance of this machine. To get
maximum versatility from this machine all operators should carefully read and follow the instructions in
this manual. Please keep this manual in a handy place near the machine.
Please read the Safety Information before using this machine. It contains important information related
to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS.
Notes:
Some illustrations may be slightly different from your machine.
Certain options may not be available in some countries. For details, please contact your local dealer.
Operator Safety:
This machine is considered a class 1 laser device, safe for office/ EDP use. The machine contains a 5-
milliwat, 760 - 800 nanometer wavelength, GaAIAs laser diode. Direct (or indirect reflected) eye contact
with the laser beam might cause serious eye damage. Safety precautions and interlock mechanisms
have been designed to prevent any possible laser beam exposure to the operator.
The following label is attached on the back side of the machine.
Laser Safety:
The optical housing unit can only be repaired in a factory or at a location with the requisite equipment.
The laser subsystem is replaceable in the field by a qualified Customer Engineer. The laser chassis is
not repairable in thefield. Customerengineers aretherefore directedto return all chassisand laser sub-
systems to the factory or service depot when replacement of the optical subsystem is required.
Warning:
Use of controls or adjustment or performance of procedures other than those specified in this manual
might result in hazardous radiation exposure.
Notes:
Two kinds of size notation are employed in this manual. With this machine refer to the metric version.
For good copy quality, Ricoh recommends that you use genuine Ricoh toner.
Ricoh shall not be responsible for any damage or expense that might result from the use of parts other
than genuine Ricoh parts in your Ricoh office product.
Power Source:
220 – 240V, 50/60Hz, 6A or more
Please be sure to connect the power cord to a power source as above. For details about power source,
see ⇒P.87
“Power Connection” .

Declaration of Conformity
“The Product complies with the requirements of the EMC Directive 89/336/EEC and the Low Voltage
Directive 73/23/EEC.”
In accordance with IEC 60417, this machine uses the following symbols for the main power switch:
a
aa
ameans POWER ON.
c
cc
cmeans STAND BY.
Copyright © 1999 Ricoh Co., Ltd.

i
Safety Information
When using your machine, the following safety precautions should be always
followed.
Safety During Operation
In this manual, the following important symbols are used:
Examples Of Indications
R
WARNING:
Ignoring this warning could cause serious injury or even death.
R
CAUTION:
Ignoring this caution could cause injury or damage to property.
Symbols Rmean a situation that requires you take care.
Symbols vmean “Hot surface”.
Do NOT carry out the operation represented by this symbol m.
This example means “Do not take apart”.
Symbols $mean you MUST perform this operation.
This example means “You must remove the wall plug”.

ii
R WARNING:
•
Only connect the machine to the power source described on
the inside front cover of this manual.
•
Avoid multi-wiring.
•
Do not damage, break or make any modifications tothe pow-
er cord. Do not place heavy objects on it, pull it hard or bend
it more than necessary. These actions could cause an elec-
tric shock or fire.
•
Do not plug or unplug the power cord with your hands wet.
Otherwise, an electric shock might occur.
•
Make sure the wall outlet is near the machine and freely ac-
cessible so that in event of an emergency it can be un-
plugged easily.
•
Do not remove any covers or screws other than those spec-
ified in this manual. Some parts of the machine are at a high
voltage and could give you an electric shock. Also, if the ma-
chine has laser systems, direct (or indirect) reflected eye
contact with the laser beam may cause serious eye damage.
When the machine needs to be checked, adjusted, or re-
paired, contact your service representative.
•
Do not take apart or attempt any modifications to this ma-
chine. There is a risk of fire, electric shock, explosion or loss
of sight. If the machine has laser systems, there is a risk of
serious eye damage.
•
If the machine looks damaged or breaks down, smoke is
coming out, there is a strange smell or anything looks unu-
sual, immediately turn off the operation and main power
switches then unplug the power cord from the wall. Do not
continue using the machine in this condition. Contact your
service representative.
•
If metal, liquid or foreign matter falls into the machine, turn
off the operation and main power switches, and unplug the
main power cord. Contact your service representative. Do
not keep using the machine with a fault or defect.
•
Do not put any metal objects or containers holding water
(e.g. vases, flowerpots, glasses) on the machine. If the con-
tents fall inside the machine, a fire or electric shock could
occur.

iii
• Do not incinerate used toner or toner containers. Toner dust
might ignite when exposed to an open flame. Dispose of the
used toner containers according to local regulations for
plastics.

iv
R CAUTION:
•
Keep the machine away from humidity and dust. A fire or an elec-
tric shock might occur.
• Do not place the machine on an unstable or tilted surface. If it top-
ples over, it could cause injury.
• After you move the machine, fix it with the caster fixture. Other-
wise,the machinemightmoveor come down to cause apersonal
injury.
• Before moving the machine, be sure to pull all four handles fully
out. Not doing this may result in an injury, such as getting your
fingers pinched. After moving the machine, return the four han-
dles to their original positions.
• When the optional paper tray unit is installed, do not push the up-
per part of the main unit horizontally. If the paper tray unit be-
comes detached from the main unit, this could cause an injury.
• When you move the machine, unplug the power cord from the
wall outlet to avoid fire or electric shock.
• When the machine will not be used for a long time, unplug the
power cord.
• When you pull out the plug from the socket, grip the plug to avoid
damaging the cord and causing fire or electric shock.
• If you use the machine in a confined space, make sure there is a
continuous air turnover.
• Do not reuse stapled paper. Do not use aluminum foil, carbon-
containing paper or other conductive paper. Otherwise, a fire
might occur.
• When removing misfed paper, do not touch the fusing section be-
cause it could be very hot.
• This machine has been tested for safety using this supplier's
parts and consumables. We recommend you only use these
specified supplies.

v
• Do not eat or swallow toner.
• Keep toner (used or unused) and toner containers out of reach of
children.
• This equipment is only to be installed by a qualified service per-
sonnel.
• Deliver to collection point for waste products. Do not be disposed
of via domestic refuse collection.

vi
ENERGY STAR Program
• Low-power Mode
This product automatically lowers its power consumption 1 minutes after the
last copying or printing. To exit Low-power mode, press the {
Energy Saver }key.
For how to change the default interval before entering Low-power mode, see
“Energy Saver Timer” of the “System Settings”.
• Sleep Mode (Machines with fax or printer option.)
This product automatically lowers its power consumption 15 minutes after the
last copying or printing even further. Printing a received fax and printing are
available in this mode, but If you use the copier, press the operation switch.
For how to change the default interval before entering Sleep mode, see “Auto
Off Timer” of the “System Settings”.
• Auto Off Mode (Machines with copier feature only.)
To conserve energy, this copier automatically turns off 30 minutes after the last
copying job has been completed. To exit the Auto Off Mode, turn on the main
switch. For how to change the default interval before entering Auto Off mode,
see “Auto Off Timer” of the “System Settings”.
As an ENERGY STAR Partner, we have deter-
mined that this machine model meets the ENER-
GY STAR Guidelines for energy efficiency.
The ENERGY STAR Guidelines intend to establish an international energy-saving sys-
tem for developing and introducing energy-efficient office equipment to deal with en-
vironmental issues, such as global warming.
When a product meets the ENERGY STAR Guidelines for energy efficiency, the Part-
ner shall place the ENERGY STAR logo onto the machine model.
This product was designed to reduce the environmental impact associated with office
equipment by means of energy-saving features, such as Low-power mode.

vii
❖
❖❖
❖ Specification
*1 Fax or Printer function in addition to standard Copier function.
*2 Only for Copier function.
*3 Based on Energy Star measurements.
-
--
-Recycled Paper
Please contact your sales or service representative for recommended recycled
paper types that may be used in this machine.
Copier only Fax or Printer is in-
stalled.
Level 1 Level 2 Level 1 Level 2
Low-power Mode Power consump-
tion about 60W about 30W about 75W about 50W
Default interval 1min.
Recovery time 10 sec. 20 sec. 10 sec. 20 sec.
Sleep Mode *1 Power consump-
tion Not Available
less than 38W *3
Default interval 30 min.
Auto Off Mode *2 Power consump-
tion 0W *3
Not Available
Default interval 30 min.

viii
How to Read this Manual
Symbols
In this manual, the following symbols are used:
R
WARNING:
This symbol indicates a potentially hazardous situation that might result in
death or serious injury when you misuse the machine without following the in-
structions under this symbol. Be sure to read the instructions, all of which are de-
scribed in the Safety Information section.
R
CAUTION:
This symbol indicates a potentially hazardous situation that might result in mi-
nor or moderate injury or property damage that does not involve personal injury
when you misuse the machine without following the instructions under this
symbol. Be sure to read the instructions, all of which are described in the Safety
Information section.
* The statements above are notes for your safety.
Important
If this instruction is not followed, paper might be misfed, originals might be
damaged, or data might be lost. Be sure to read this.
Preparation
This symbol indicates the prior knowledge or preparations required before op-
erating.
Note
This symbol indicates precautions for operation, or actions to take after misop-
eration.
Limitation
This symbol indicates numerical limits, functions that cannot be used together,
or conditions in which a particular function cannot be used.
Reference
This symbol indicates a reference.
[]
Keys that appear on the machine's panel display.
{}
Keys built into the machine's operation panel.

ix
What You Can do with this Machine (Copy
Mode)
1 2 12
1 2
34
4
3
2
1
2 Originals →1Copy
4 Originals →1Copy
1234
5678
2
1
8
7
8 Originals →1Copy
Combine ⇒Page 54
Sort ⇒Page 37
12
12
Series Copy ⇒Page 57
2
13
2
132 132 13
2
13
2
132 132 13
Sort
Auto Reducel/Enlarge
⇒Page 35
Zoom ⇒Page 53
Rotate Sort *1
THYSA310E.eps
Reduce/Eularge ⇒Page 51
Selecting Copy Paper ⇒Page 33
*1 The optional paper tray unit is required
to use this function
Adjusting Copy Image Density
⇒Page 31
Selecting Original Type Setting
⇒Page 32

x
TABLE OF CONTENTS
Guide to Components............................................................................... 1
Options....................................................................................................... 3
Operation Panel......................................................................................... 4
Panel Display............................................................................................. 6
Displays and Key Operations........................................................................ 6
1.Basics
Starting the Machine................................................................................. 9
When the Machine Only with Copy Feature.................................................. 9
When the Machine with Fax or Printer Option ............................................ 11
Changing Modes..................................................................................... 13
Originals................................................................................................... 14
Sizes and Weights of Recommended Originals.......................................... 14
Sizes Difficult to Detect............................................................................... 15
Original Sizes and Scanning Area/Missing Image Area.............................. 16
Copy Paper............................................................................................... 17
Recommended Paper Sizes and Types...................................................... 17
Envelopes ................................................................................................... 20
Non-recommended Paper........................................................................... 21
Paper Storage............................................................................................. 22
Toner Cartridge........................................................................................ 23
Handling Toner............................................................................................ 23
Toner Storage............................................................................................. 23
2.Copying
Basic Procedure...................................................................................... 25
Setting Originals...................................................................................... 27
Setting Originals on the Exposure Glass .................................................... 27
Setting Originals in the Document Feeder .................................................. 28
Setting Originals When Auto Paper Select Cannot Recognize the Size..... 29
Basic Functions....................................................................................... 31
Adjusting Copy Image Density.................................................................... 31
Selecting Original Type Setting................................................................... 32
Selecting Copy Paper ................................................................................. 33
Auto Reduce/Enlarge—Having the Machine Choose the Reproduction Ratios... 35
Sort ........................................................................................................... 37
Copying from the Bypass Tray .............................................................. 39
When Copying onto Envelopes................................................................... 43
Program—Storing Your Copy Settings in Memory.............................. 47
Storing Your Settings.................................................................................. 47

xi
Deleting a Program..................................................................................... 48
Recalling a Program.................................................................................... 48
Other Functions....................................................................................... 49
Energy Saver Mode—Saving Energy ......................................................... 49
Interrupt—Temporarily Stopping One Job to Copy Something Else........... 49
User Codes ................................................................................................. 50
Auto Start—Entering Copy Job Settings During the Warm-up Period ........ 50
Original Tone............................................................................................... 50
Preset Reduce/Enlarge—Reducing and Enlarging Using Preset Ratios ... 51
Zoom—Reducing and Enlarging in 1% Steps....................................... 53
Combine—Combining Originals into One Copy................................... 54
Series Copies—Making Two-sheets Copies from Book Originals ..... 57
Combination Chart.................................................................................. 59
3.What to do If Something Goes Wrong
If Your Machine does not Operate as You Want................................... 61
Message...................................................................................................... 61
Display ........................................................................................................ 62
If You Cannot Make Clear Copies.......................................................... 63
If You Cannot Make Copies as You Want.............................................. 65
BLoading Paper..................................................................................... 66
DReplacing the Toner Cartridge.......................................................... 67
xClearing Misfeeds............................................................................... 70
Changing the Paper Size........................................................................ 72
4.User Tools (Copy Features)
Accessing the User Tools (Copy Features).......................................... 75
Exiting from User Tools............................................................................... 76
User Tools Menu (Copy Features)......................................................... 77
Settings You Can Change with the User Tools .................................... 78
1. General Features 1/4............................................................................... 78
1. General Features 2/4............................................................................... 79
1. General Features 3/4............................................................................... 80
1. General Features 4/4............................................................................... 81
2. Input/Output ............................................................................................ 82
5.Remarks
Do's and Don'ts ....................................................................................... 85

xii
Where to Put Your Machine.................................................................... 86
Machine Environment ................................................................................. 86
Power Connection....................................................................................... 87
Access to Machine...................................................................................... 88
Maintaining Your Machine...................................................................... 89
Cleaning the Exposure Glass...................................................................... 89
Cleaning the Platen Cover.......................................................................... 89
Cleaning the Document Feeder.................................................................. 89
6.Specification
Mainframe................................................................................................. 91
Document Feeder (Option)..................................................................... 94
500 - Sheet Tray Unit (Option)................................................................ 95
1000 - Sheet Tray Unit (Option).............................................................. 96
Internal Tray 2 (1bin tray) (Option)......................................................... 97
48MB Copier Memory Unit (Option)....................................................... 98
INDEX........................................................................................................ 99

1

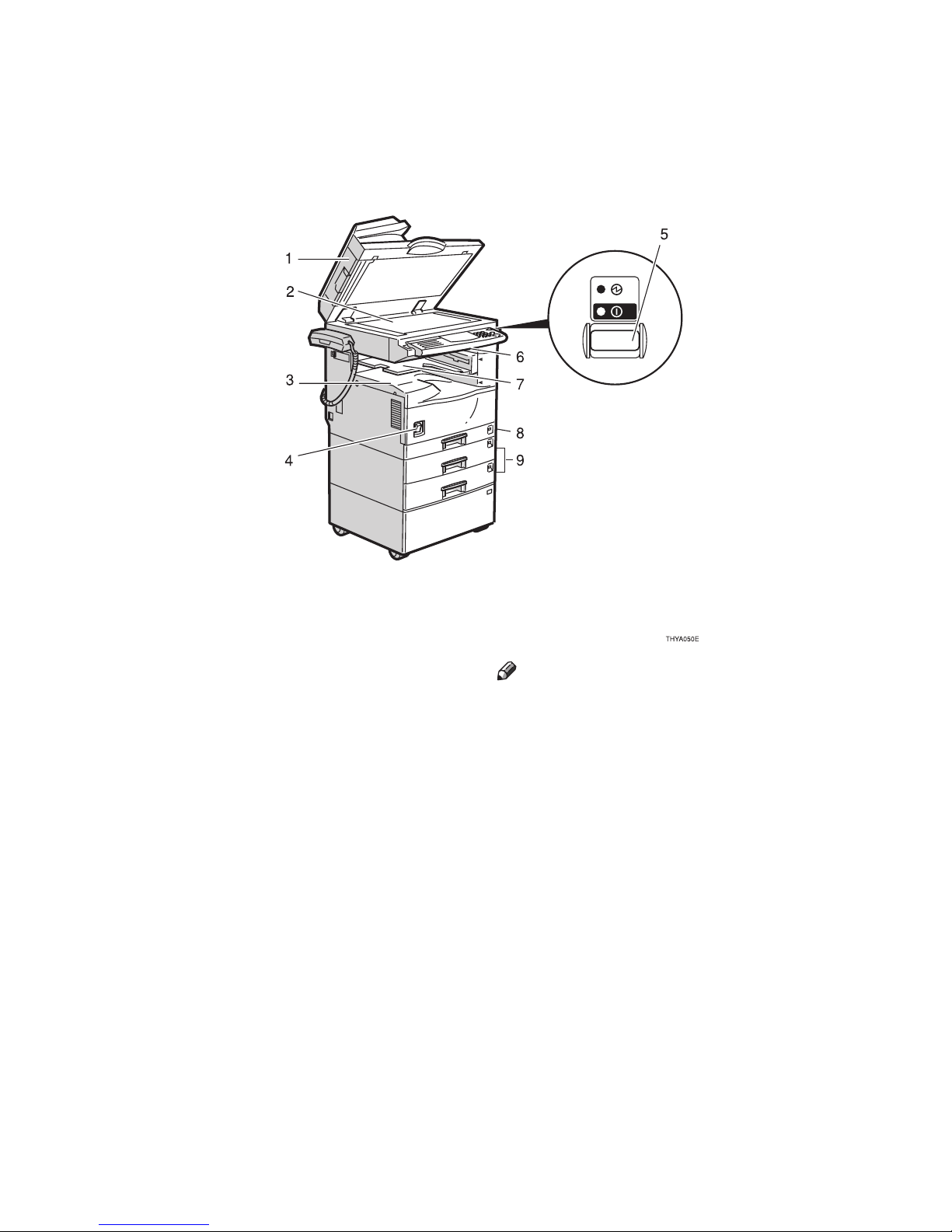

Guide to Components
1. Platen cover (option) or Document
Feeder (ADF) (option)
Lower the platen cover over originals
placed on the exposure glass for copying. If
you have the document feeder, insert a
stack of originals here. They will be fed au-
tomatically.
(The illustration shows the document feeder.)
2. Exposure glass
Position originals here face down for copy-
ing. See ⇒P.14 “Originals”.
3. Internal tray
Copied paper is delivered here face down.
4. Main power switch
The Machine with copy feature only:
Turn on this switch to activate the machine.
Turn off this switch to shut off.
The Machine with fax or printer option:
Do not touch this switch. This switch is
used only by a service representative when
the optional fax unit is installed.
Note
❒If the machine does not operate after
turning on the operation switch, check if
the main power switch is turned on. If it
is off, turn it on.
5. Operation switch
The Machine with fax or priner option:
Press this switch to turn the power on (the
On indicator lights up). To turn the power
off, press this switch again (the On indica-
tor goes off).
6. Operation panel
See ⇒P.4 “Operation Panel”.
7. Internal tray 2 (option)
You can specify a tray to which documents
are delivered for each mode (copy, facsimi-
le, and printer.)
8. Paper tray (Tray 1)
Set paper here. See ⇒ P.66 “ B Loading Paper”.
9. Paper tray unit (Tray 2, 3) (option)

2
1. Bypass tray
Use to copy onto OHP transparencies,
adhesive labels, translucent paper, post
cards, envelopes and non-standard size
paper. See ⇒P.39 “Copying from the By-
pass Tray”.
2. Side cover
Open to remove jammed paper fed from the
paper tray, or to replace the toner cartridge.
3. Paper tray side cover
Open this cover to remove jammed
paper which fed from the paper tray
unit.
4. Optional paper tray side cover
Open this cover to remove jammed paper
which fed from the optional paper tray
unit.
1. Ventilation hole
Prevents overheating. Do not obstruct
the ventilation hole by placing or leaning an object near it. If the machine over- heats, a fault might occur.

3
Options
1. Internal tray 2 (1 bin tray)
If you selected this as the output tray,
copied paper is delivered here face
down. See “14. Output Tray Prio.” in the
“System Settings”.
2. Platen cover
Lower this cover over originals for copy-
ing.
3. Document feeder (ADF)
Insert a stack of originals here.
They will be fed automatically.
4. Paper tray unit
Consists of two paper trays.
5. Paper tray unit
Consist of one paper tray.
Other options:
• 48MB copier memory unit

4
Operation Panel
1. {
{{
{ User Tools/Counter }
}}
}key
• User Tools
Press to change the default settings
and conditions to meet your require-
ments.
• Counter
Press to check or print the total
number of copies made.
See ⇒P.75 “User Tools (Copy Features)”.
2. Operation panel for facsimile
mode (for machine with optional fax
function)
See the “Facsimile Reference”.
3. Indicators
These indicators show errors or the status
of the machine.
See ⇒P.61 “What to do If Something Goes
Wrong”.
4. Panel display
Shows operation status, error messages,
and function menus. See ⇒P.6 “Panel
Display”.
5. {
{{
{ Program }
}}
}key
Press to select the program mode. See ⇒
P.47 “Program—Storing Your Copy Set-
tings in Memory”.
6. {
{{
{ Clear Modes }
}}
}key
Press to clear the previously entered copy
job settings.
7. {
{{
{ Energy Saver }
}}
}key
Use to switch to and from Energy Saver
mode. See ⇒P.49 “Energy Saver Mode—
Saving Energy”
8. {
{{
{ Interrupt }
}}
}key
Press to make interrupt copies during a
copy run. See ⇒P.49 “Interrupt—Tempo-
rarily Stopping One Job to Copy Something
Else”.
9. Operation switch
Press this switch to turn the power on
(the On indicator lights up). To turn the
power off, press this switch again (the On
indicator goes off).
10. {
{{
{ Auto Reduce/Enlarge }
}}
}key
Enlarges or reduces the image automati-
cally according to the specified paper
size.
11. {
{{
{ Zoom }
}}
}key
Changes the reproduction ratio in 1%
steps.

5
12. {
{{
{ Sort }
}}
}key
Sort/Rotate Sort: automatically sorts
copies.
13. {
{{
{ Combine/Series Copy }
}}
}key
Press to select “Combine” or “Series
Copy”.
14. {
{{
{ Original Type }
}}
}key
Press to select the type of your originals.
15. {
{{
{ Lighter }
}}
}and {
{{
{ Darker }
}}
}keys and
{
{{
{
Auto Image Density }
}}
}key
Adjusts the copy image density.
16. Selection keys
Press the key under the item you wish to
select.
17. 0
00
01
11
1keys (Cursor keys)
Press to select an item on the panel dis-
play.
18. Operation panel for facsimile
mode (for machines with optional
fax function)
See the “Facsimile Reference”.
19. {
{{
{ Number }
}}
}keys
Use to enter the desired number of copies
and data for selected modes.
Use the {
#
}key to enter data in selected
modes.
20. {
{{
{ Clear/Stop }
}}
}key
While entering numbers, press to cancel a
number to have entered. While copying,
press to stop copying.
21. {
{{
{ Start }
}}
}key
Press to start copying. Use to set the Auto
Start. See ⇒P.50 “Auto Start—Entering
Copy Job Settings During the Warm-up Peri-
od”.
22. Function keys
Press to change modes. To use copy func-
tions, press the {
Copy
}key.
23. Indicators (with the printer op-
tion)
These indicators show the status of the
printer.
See the “Printer Reference”.

6
Panel Display
The panel display shows operational status, error messages, and function men-
us.
Important
❒Do not apply a strong shock or force of about 30N (about 3kgf) or more to the
panel display. Otherwise, the display might be damaged.
Note
❒When you select or specify an item on the panel display, it is highlighted like
.
❒Keys appearing as cannot be used.
❒By default, the machine is in Copy mode when you switch on. This can be
changed. See “Settings You Can Change With The User Tools” of the System
Settings.
Displays and Key Operations
❖
❖❖
❖
Copy initial display
1. The machine status and messages
appear here.
2. Items which can be selected or
specified.
3. These four keys correspond to the
keys that are in the bottom line of
the display (e.g.[
Reduce
], [
Enlarge
],
and [
100%
]in the above display).
Press the relevant key to select a key
in the display.
4. Number of copies set.
5. Setting for this function.
6. Press these keys to select an item
on the display.
• To move the selection to the left, press
the 0key.
• To move the selection to the right,
press the 1key.
Auto OK
