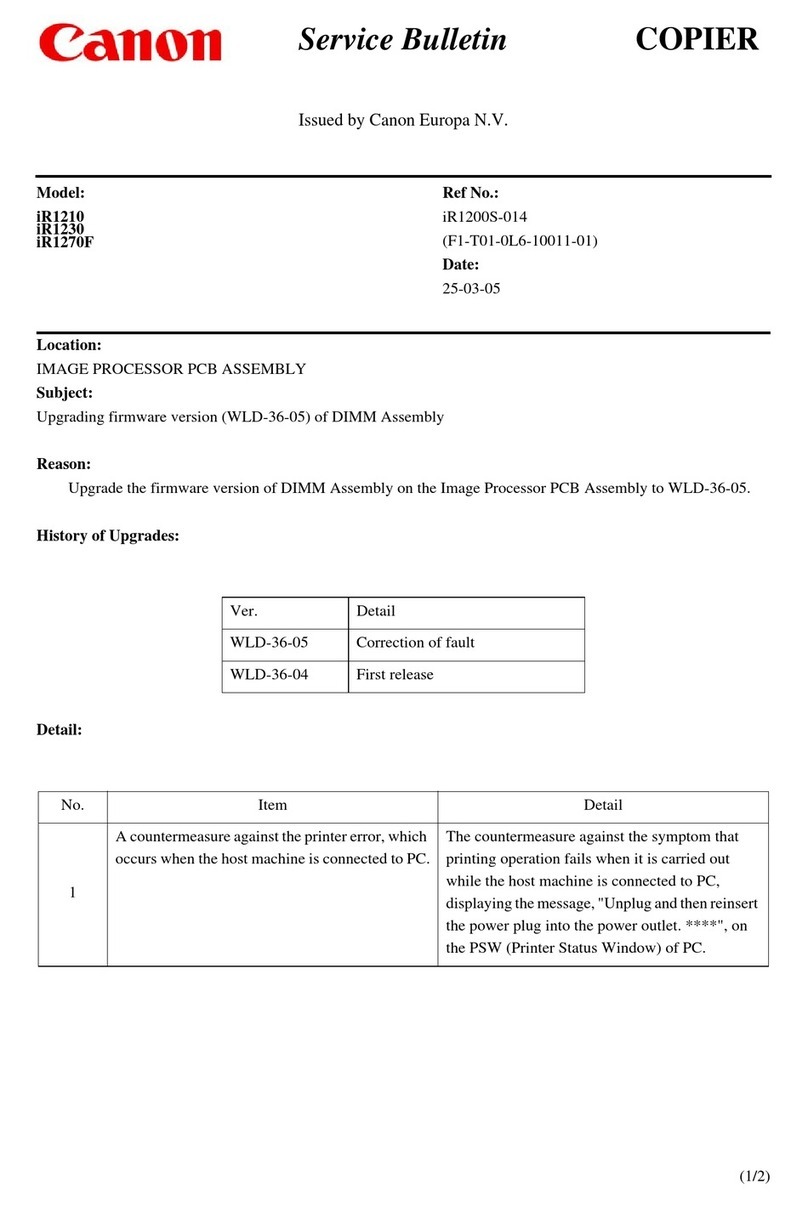

SERVICE BULLETIN COPIER
Issued by Canon Europa N.V.
MODEL: iR1210, iR1230, iR1270F No.: iR1200S-001
(FF-T01-L6-000043-01)
Date: 27.09.02
LOCATION: READER DRIVE ASSEMBLY
SUBJECT: CHANGE OF SHAPES OF MEMBER PARTS
Reason :
Measure for noise
Outline :
The gear pulley overlapping the idler gear has a depression on the flange due to
molding. If the shaft leans, and consequently the idler gear is lifted, the idler gear
might come into contact with the depression on the flange, resulting in noise. As
a measure for it, round ribs are added to the top and under surfaces of the 45T
gear (FU3-0076) and to the under surface of the 37T pulley/16T gear
(FU3-0075).
Rib of FU3-0075-020 Ribs of FU3-0076-020
Be sure to replace the 45T gear (FU3-0076) and the 37T pulley/16T gear
(FU3-0075) at the same time. Upon replacement of these member parts, if you
find the countermeasure mylar, which was a temporary measure, be sure to
remove it.

COPIER - 2 - iR1200S-001
Parts
Part Name Part No. UNIT No. Qty IC Location
Old READER DRIVE
ASSEMBLY
FG6-7933-000 1 NY
New READER DRIVE
ASSEMBLY
FG6-7933-020 1
Old PULLEY,37T/GEAR,16T FU3-0075-000 1 NN
New PULLEY,37T/GEAR,16T FU3-0075-020 1
Old GEAR,45T FU3-0076-000 1 NN
New GEAR,45T FU3-0076-020 1

SERVICE BULLETIN COPIER
Issued by Canon Europa N.V.
MODEL: iR1210, iR1230, iR1270F No.: iR1200S-002 Rev. 1
(FF-T01-L6-000048-01)
Date: 20.12.02
LOCATION: READER ASSEMBLY
SUBJECT: COUNTERMEASURE AGAINST BLACK LINES
Outline
To avoid dirt attaching on the copy board glass, the glass has been changed.
Parts
DESCRIPTION PART NO UNIT NO. Q’TY IC LOCATION
O GLASS, COPYBOARD FF6-1435-000 1 NY
N GLASS, COPYBOARD FF6-1435-020 1
Serial Number
IR1230 EUR UUP-00001

SERVICE BULLETIN COPIER
Issued by Canon Europa N.V.
MODEL: iR1210, iR1230, iR1270F No.: iR1200S-003
(FF-T01-L6-000053-01)
Date: 25.10.02
Destination : iR1210: F14-2279 EC, F14-2291 EC
iR1230: F14-2289 EC, F14-2292 EC
iR1270F: F14-2299 EC
LOCATION: iR1200/iR1300 Series Service Manual (Rev. 0) (FY8-13HU-000)
SUBJECT: CORRECTION OF “MAXIMUM POWER CONSUMPTION”
Reason : Maximum power consumption of the 230V models are changed.
Outline : 1.The description is corrected shown in 1.4 "Others" in Chapter 1 of the Service Manual
as follows.
<Before correction>
iR1200/iR1300 Series Service manual (p.1-4):
Power consumption
Maximum 780 W or less
<After correction>
iR1200/iR1300 Series Service manual (p.1-4):
Power consumption
Maximum 780 W or less (120V model), 890 W or less (230V model)

COPIER - 2 - iR1200S-003
CHAPTER 1 PRODUCT OUTLINE
1.4 Others
Item Specifications
Operating environment
Temperature range 0° to 35°C / 32° to 95°F
Humidity range 35% to 85%
Atmospheric pressure 0.61 to 1.01 hPa (0.6 to 1 atm)
range
Power supply 120V (50/60Hz), 230V (50/60Hz)
Serial number MTCxxxx MTDxxxx MTExxxx MTFxxxx
MTGxxxx PVZxxxx QTLxxxx QTMxxxx
UMAxxxx UNAxxxx UPAxxxx UVBxxxx
UVCxxxx UVDxxxx UVExxxx UVFxxxx
UVGxxxx UVHxxxx UVJxxxx ZTWxxxx
ZTYxxxx ZTZxxxx ZUBxxxx
Power consumption
Maximum 780 W or less (120V model), 890W or less (230V model)
Standby 16 Wh (approx.; reference only)
Operation 280 Wh (approx.; reference only)
Energy save standby 2 W or less (approx.; reference only)
Noise Standby Copyboard type: 40 dB or less (impulse mode)
ADF type: 40 dB or less (impulse mode: reference)
Copying Copyboard type: 66 dB or less (fast mode)
ADF type: 69 dB or less (fast mode: reference)
Ozone 0.05 ppm (Ave.)
(after 50000 pages)
Dimensions
Width Copyboard type: 475 mm (18.7"), ADF type: 475 mm (18.7")
Depth Copyboard type: 442 mm (17.4"), ADF type: 442 mm (17.4")
Height
250-Sheet cassette Copyboard type: 295 mm (11.6"), ADF type: 352 mm (13.9")
500-Sheet cassette Copyboard type: 327 mm (12.9"), ADF type: 384 mm (15.1")
Weight
250-Sheet cassette Copyboard type: 20.5 kg, ADF type: 22.6 kg
500-Sheet cassette Copyboard type: 21.9 kg, ADF type: 24.0 kg
Consumables storage
Paper Keep wrapped to avoid humidity.
Toner Avoid direct sunshine, and store between 0° and 35°C / 32°
and 95°F, between 35% and 85%.

SERVICE BULLETIN COPIER
Issued by Canon Europa N.V.
MODEL: iR1230, iR1270F No.: iR1200S-004 Rev. 1
(FF-T01-L6-000056-01)
Date: 22.11.02
LOCATION: ADF ASSEMBLY (2/2)
SUBJECT: THE SHAPE OF MEMBER PART CHANGED
Reason :
For manufacturing reasons
Outline :
XD2-1100-242 (RING, E; See 507 in the attachment) prevented coming off of
FC5-0054-000 (SHAFT, REGIST PRESSURE ARM; See 37 in the attachment).
However, the shape of the base part attached to FC5-0054-000 is changed this time,
to prevent FC5-0054-000's coming off instead.
Therefore, XD2-1100-242 is not used with this change.
In addition, the groove of FC5-0054-000 to attach XD2-1100-242 is not used.
Service Parts
FC5-0054-000 with groove is stored.
For the products manufactured before this change, XD2-1100-242 is stored.
NOTE)
In the case that FC5-0054-000 cannot be attached to the base part, remove
XD2-1100-242.
Figure 161 of the Parts Catalog (partial)

COPIER - 2 - iR1200S-004 Rev. 1
AFFECTED MACHINES
Model Starting Serial No.
iR1230 EUR UUP-00001

SERVICE BULLETIN COPIER
Issued by Canon Europa N.V.
MODEL: iR1210, iR1230, iR1270F No.: iR1200S-005
(FF-T01-L6-000057-01)
Date: 25.10.02
LOCATION: EXTERNAL COVER
SUBJECT: PANEL, PAPER, DELIVERY, UPPER CHANGED
Reason :
Countermeasure against accordion-shaped paper jam occurred at the delivery exit.
Outline :
PANEL, PAPER, DELIVERY, UPPER is changed from FB6-0125-000 to
FF6-1457-000
Details
During double-sided copy operation, delivered copies are curly, blocking at
the delivery exit. Because of this, the following copies form into accordion-
shape, resulting in jam.
As a countermeasure against accordion-shaped paper jam, a lever is attached to
the delivery cover to retain curly copies.
PARTS
Part Name Part No. UNIT No. Qty IC Location
Old PANEL,PAPER
DELIVERY,UPPER
FB6-0125-000 1 NY
New PANEL,PAPER
DELIVERY,UPPER
FF6-1457-000 1

COPIER - 2 - iR1200S-005
FF6-1457-000

- 1 / 1 -
Service Bulletin
Issued by Canon Europa N.V.
Model: iR1210/iR1230/iR1270F No.: iR1200S-006
(FF-T01-L6-000060-01)
DATE: 22.11.02
Location: New Models introduced
Subject: Introduction of iR1210/iR1230/iR1270F (new versions)
Reason: With releasing new models, the differences from the existing iR1200/iR1300 Series are informed.
Details:
1. New Model Name / Product Code / Serial Number / Power Supply
For Europe
iR1210: F14-2279-000 / UMA00001 and later / 230V
iR1230: F14-2289-000 / UNA00001 and later / 230V
iR1270F: F14-2299-000 / UPA00001 and later / 230V
2. Differences in Specifications
The differences in specifications have already been stated on the Service Manual (FY8-13HU-000) for the
iR1200/iR1300 Series. See the manual for details.
3. Points to Note for Servicing
For information on servicing, see the Service Manual (FY8-13HU-000) for the iR1200/iR1300 Series.
4. Service Parts
For the differences in service parts, see the attachment “Difference in Service Parts”.
New Model Base Model
iR1210 (F14-2279-000): iR1210 (F14-2291-000)
iR1230 (F14-2289-000): iR1230 (F14-2292-000)
iR1270F (F14-2299-000): iR1270F (F14-2243-000)
Changed locations of the Parts Catalog, which includes the differences, are written in the attachment with
red-letter.
Replacement data of the Parts Catalog (red-letter in above attachment is converted to black) is attached too.
For other service parts, see the Parts Catalog (FY8-31FX-000) of the iR1200/iR1300 Series.
