User’s Guide
VersionA1
July 2003
11-Mbps
Wireless Outdoor Bridge

11-Mbps Wireless Outdoor Bridge
TRADEMARKS
All names mentioned in this document are trademarks or registered trademarks of their
respective owners.
The manufacturer provides this document “as is,” without warranty of any kind, neither
expressed nor implied, including, but not limited to, warranty of fitness for the particular
purpose for which it is intended. The manufacturer may make improvements and/or changes
in this manual or in the product(s) and/or the program(s) described in this manual at any time.
This document may include technical inaccuracies and/or typographical errors.
FCC WARNING
This equipment has been tested and found to comply with the limits for a Class B Digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection .
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for
compliance could void user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation
FCC RF Radiation Exposure Statement
This equipment is an outdoor fixed antenna use radiator. In order to avoid the
possibility of exceeding the FCC radio frequency exposure limits, human proximity
to the antenna shall not be less than 0.1986 meters during normal operation..

11-Mbps Wireless Outdoor Bridge
Packing List
Your 11-Mbps Wireless Outdoor Bridge package should contain the following
items:
• One 11-Mbps Wireless Outdoor Bridge
• One DC injector with RJ-45 LAN and ODU (outdoor unit) jacks
• One power adapter for the DC injector
• One mounting kit
• One 25-meter Category 5 waterproof cable with RJ-45 plug and ODU
connector
• WLAN Management System software and wireless outdoor bridge user’s
guide in electronic form (one CD-ROM or three floppy disks)
Your 11-Mbps Wireless Outdoor Bridge Solution package should contain the
following items:
• One 11-Mbps Wireless Outdoor Bridge Solution assembly made up of one
11-Mbps Wireless Outdoor Bridge and one 8-dBi (or 18-dBi ) directional
antenna
• One DC injector with RJ-45 LAN and ODU (outdoor unit) jacks
• One power adapter for the DC injector
• One mounting kit
• One 25-meter Category 5 waterproof cable with RJ-45 plug and ODU
connector
• One 30-cm N(M)-N(M) RG400 cable
• WLAN Management System software and wireless outdoor bridge user’s
guide in electronic form (one CD-ROM or three floppy disks)

11-Mbps Wireless Outdoor Bridge
Contents
INTRODUCTION..................................................................................................1
RELATED PRODUCTS........................................................................................2
WLAN MANAGEMENT SYSTEM ...........................................................................3
AUTOMATIC DISCOVERY OF COMPATIBLE DEVICES .............................................3
WLAN MANAGEMENT SYSTEM HARDWARE AND SOFTWARE REQUIREMENTS....5
TERMINOLOGY USED IN THIS GUIDE.....................................................................6
HOW TO USE THIS GUIDE................................................................................7
PLANNING THE NETWORK.............................................................................8
HARDWARE DESCRIPTION.............................................................................9
HARDWARE CONFIGURATION....................................................................10
11-MBPS WIRELESS PRODUCT PLACEMENT GUIDELINES....................................12
ANTENNA ALIGNMENT........................................................................................12
INSTALLING THE WLAN MANAGEMENT SYSTEM................................13
USING THE WLAN MANAGEMENT SYSTEM............................................16
AUTO-DISCOVERY ..............................................................................................16
KICK START FUNCTION.......................................................................................17
CONFIGURATION .................................................................................................18
IP....................................................................................................................19
Filter...............................................................................................................20
Wireless..........................................................................................................21
Bridge Mode...................................................................................................22
Encryption......................................................................................................24
SNMP Access Control....................................................................................25
Trap Server.....................................................................................................26
Trap View.......................................................................................................28
Advanced........................................................................................................28
MONITOR ............................................................................................................30
Identity Information........................................................................................30
Statistics .........................................................................................................31
RESTART.............................................................................................................31
FACTORY RESET .................................................................................................32
UPGRADE FIRMWARE..........................................................................................32
ANTENNA ALIGNMENT UTILITY..........................................................................33
Features..........................................................................................................33

11-Mbps Wireless Outdoor Bridge
ADVANCED MANAGEMENT..........................................................................41
BATCH MODE OPERATION ...................................................................................41
MANAGE WLAN MANAGEMENT SYSTEM HOST TABLE.....................................41
Exporting a Configuration Profile to a File...................................................43
Importing a Configuration Profile from a File...............................................43
FAQS.....................................................................................................................46
TROUBLESHOOTING.......................................................................................48
TECHNICAL SUPPORT....................................................................................49
LIMITED WARRANTY.....................................................................................50
REGULATORY DOMAINS AND CHANNELS ..............................................53
INDEX...................................................................................................................54

11-Mbps Wireless Outdoor Bridge
Figures
FIGURE 1. TYPICALAPPLICATION SCENARIO...........................................................8
FIGURE 2. CONNECTION TO LAN OR LAN/WLAN................................................8

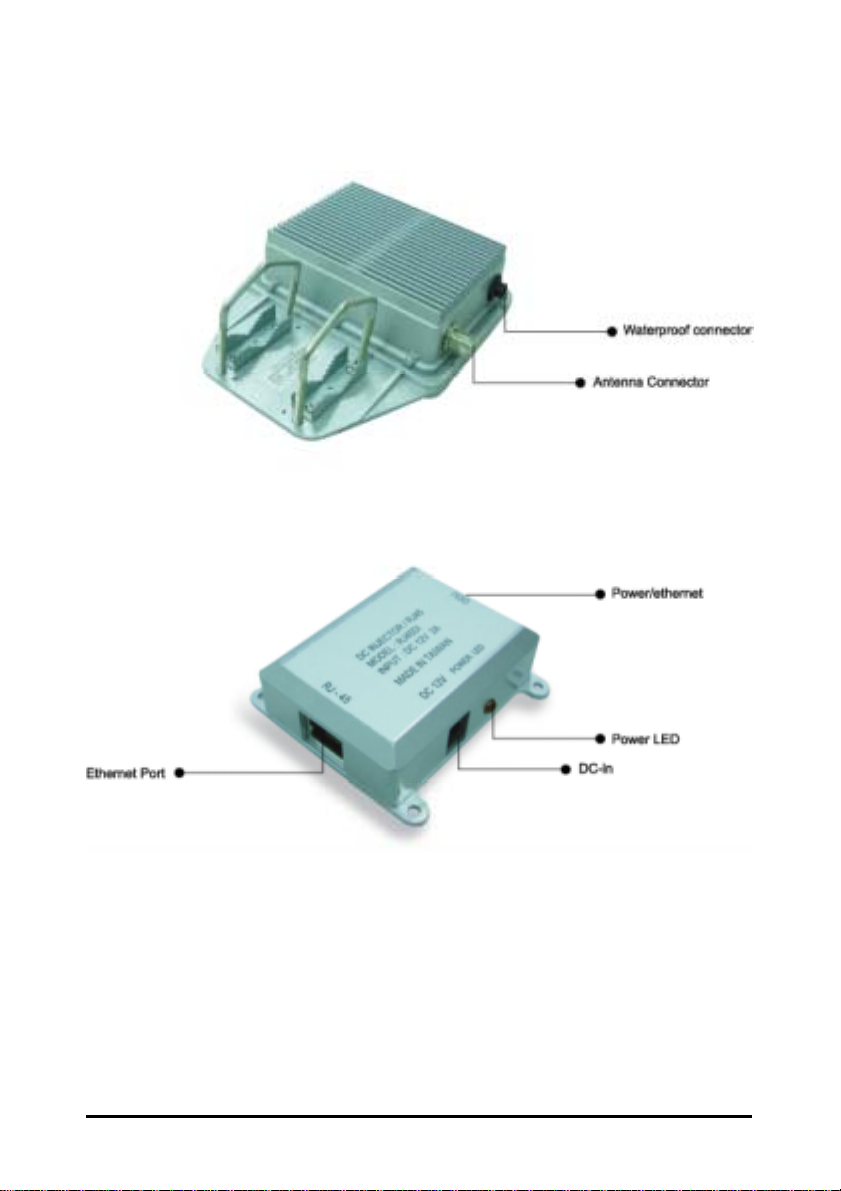

FIGURE 3. WIRELESS OUTDOOE BRIDGE AND DC INJECTOR ..................................9

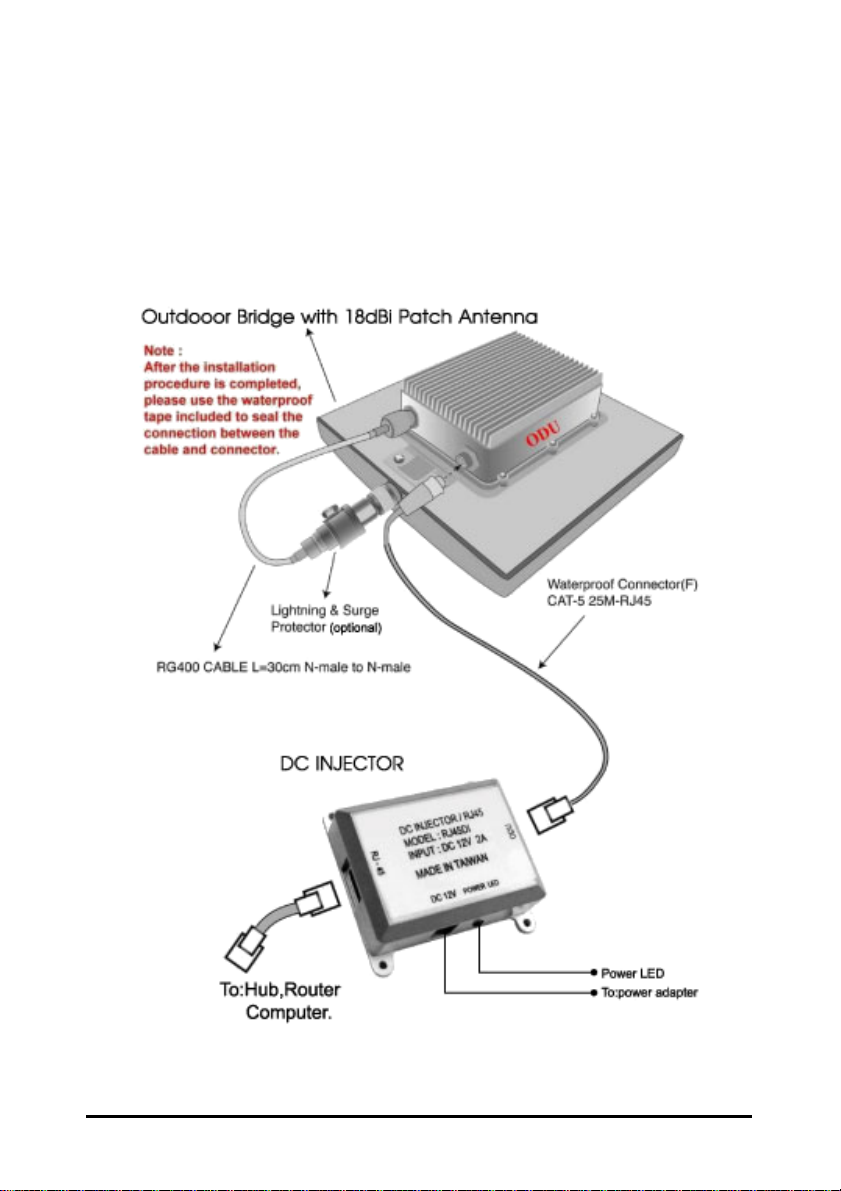

FIGURE 4. WIRELESS OUTDOOR BRIDGE SOLUTION INSTALLATION .....................10
FIGURE 5. WIRELESS OUTDOOR BRIDGE INSTALLATION ...................................... 11
FIGURE 6. WELCOME SCREEN ..............................................................................13
FIGURE 7. IMPORTANT ISSUES WINDOW ...............................................................14
FIGURE 8. CHOOSE DESTINATION LOCATION WINDOW.........................................14
FIGURE 9. SELECT PROGRAM FOLDER WINDOW...................................................15
FIGURE 10. SETUP COMPLETE WINDOW .................................................................15
FIGURE 11. MAIN AND HOSTS VIEW WINDOWS ......................................................17
FIGURE 12. WLAN KICK START WINDOW .............................................................18
FIGURE 13. CONFIGURATION WINDOW — IP PANEL ...............................................19
FIGURE 14. CONFIGURATION WINDOW — FILTER PANEL........................................20
FIGURE 15. CONFIGURATION WINDOW — WIRELESS PANEL ..................................21
FIGURE 16. BRIDGE MODE – POINT TO POINT........................................................22
FIGURE 17. BRIDGE MODE – POINT TO MULTIPOINT..............................................23
FIGURE 18. CONFIGURATION WINDOW — ENCRYPTION PANEL ..............................24
FIGURE 19. CONFIGURATION WINDOW — SNMPACCESS CONTROL PANEL ..........25
FIGURE 20. NEW/EDITADDRESS DIALOG BOX .......................................................25
FIGURE 21. CONFIGURATION WINDOW — TRAP SERVER PANEL .............................27
FIGURE 22. CONFIGURATION WINDOW — CLEAR ALL ADDRESS FUNCTION ...........27
FIGURE 23. TRAP VIEW WINDOW ...........................................................................28
FIGURE 24. CONFIGURATION WINDOW — ADVANCED PANEL.................................29
FIGURE 25. WARNING BEFORE BRIDGE RESET ........................................................29
FIGURE 26. MONITOR WINDOW — IDENTITY PANEL...............................................30
FIGURE 27. MONITOR WINDOW — STATISTICS PANEL ............................................31
FIGURE 28. WARNING BEFORE BRIDGE RESTART ....................................................31
FIGURE 29. WARNING BEFORE FACTORY DEFAULTS ARE LOADED ...........................32
FIGURE 30. UPGRADE FIRMWARE DIALOG BOX ......................................................32
FIGURE 31. ANTENNAALIGNMENT FOR BRIDGES....................................................34
FIGURE 32. ANTENNAALIGNMENT TOOL...............................................................35
FIGURE 33. THROUGHPUT PRESENTED AS A 3D GRAPHIC .......................................36
FIGURE 34. 3D VIEW OF DATA RATE DISTRIBUTION.................................................36
FIGURE 35. SAVING THE TEST RESULTS TO A FILE ...................................................37
FIGURE 36. 3D VIEW OF PAST AND LATEST TEST RESULTS.......................................37
FIGURE 37. ZOOMING IN FOR A MAGNIFIED VIEW ...................................................38
FIGURE 38. ZOOMING OUT FOR A WIDER VIEW .......................................................39
FIGURE 39. ENHANCED 3D EFFECT........................................................................39
FIGURE 40. ROTATION AND ELEVATION EFFECTS ....................................................40
FIGURE 41. EXPORTING THE CHART TO A FILE ........................................................40
FIGURE 42. BATCH MODE OPERATION LIST.............................................................41

11-Mbps Wireless Outdoor Bridge
FIGURE 43. NEW/EDITADDRESS DIALOG BOX .......................................................43
FIGURE 44. EXPORTING A CONFIGURATION PROFILE TO A FILE................................43
FIGURE 45. IMPORTING A CONFIGURATION PROFILE FROM A FILE (1)......................44
FIGURE 46. IMPORTING A CONFIGURATION PROFILE FROM A FILE (2)......................44
FIGURE 47. ENCRYPTION DIALOG WHEN IMPORTING A CONFIGURATION PROFILE ...45
FIGURE 48. IMPORTING A CONFIGURATION PROFILE FROM A FILE (3)......................45

11-Mbps Wireless Outdoor Bridge
1
Introduction
Congratulations on choosing an outstanding wireless product. This guide gives
comprehensive instructions on installing and using the 11-Mbps Wireless Outdoor
Bridge, and also explains how to install and use the WLAN Management System
software.

11-Mbps Wireless Outdoor Bridge
2
Related Products
11-Mbps Wireless Outdoor Bridge is part of a family of wireless networking
products that can provide an integrated solution for your wireless networking needs.
• For indoor applications: Access points, wireless workgroup bridges, wireless
Ethernet clients, and wireless adapters with various bus interfaces (PCMCIA,
USB, and PCI).
• For outdoor applications: The 11-Mbps Wireless Outdoor Bridge connects
two independent Ethernet LANs via a radio link, making expensive outdoor
cabling unnecessary. High-gain directional antennas provide the greatest
possible transmission range.
• Management tools: 11-Mbps wireless products support the industry-standard
Simple Network Management Protocol (SNMP) and the SNMP-based
WLAN Management System, a powerful set of utilities for managing not
only devices but whole networks and inter-networks.

11-Mbps Wireless Outdoor Bridge
3
WLAN Management System
WLAN Management System is a powerful network management system that is fully
compatible with the industry-standard Simple Network Management Protocol
(SNMP). It features:
• Automatic discovery of all compatible devices that are configured within the
same subnet.
• Individual and batch-mode remote management of compatible devices,
including Multi-Monitor, Batch-Upgrade, Batch-Reset, and Batch-Load
Default functions. Batch-mode operation is ideal when deploying multiple
compatible products.
• A friendly end-user interface with a consistent look and feel.
Automatic Discovery of Compatible Devices
A powerful auto-discovery algorithm is built into WLAN Management System.
With a simple click on the Auto Discovery icon, all compatible devices within the
subnet will be discovered. This discovery feature is based on the following
techniques:
• DHCP client and IP recovery: The Outdoor Bridge has a built-in DHCP
client, and will request an IP address from a DHCP server so that SNMP
management can be carried out. Should there be a failureof the DHCPserver,
the Outdoor Bridge will auto-assign itself an IP address (see next) and then
automatically negotiate for a new IP address when the server recovers.
• Auto-IP: When the Outdoor Bridge cannot get an IP address from a DHCP
server, it will auto-assign itself an IP address of 169.254.x.x and a subnet
mask of 255.255.0.0. A Windows-based system configured as a DHCP client
will use the same algorithm to assign itself an IP address in the same subnet.
When the DHCP server comes back on line, users may need to renew their
stations’IP settings as described below; otherwise, Windows may continue
to use the previous IP address instead of executing the auto-IP procedure.

11-Mbps Wireless Outdoor Bridge
4
Windows 95/98
step 1. Click Start/Run, type winipcfg, and click OK. The IP
Configuration dialog box will open.
step 2. Select the network adapter you use to connect to the Outdoor
Bridge. Click Release.
step 3. Click Renew to retrieve new information (IP address, subnet
mask, and default gateway address) from the DHCP server.
Click OK to save the changes and exit the program.
Windows NT 4.0
step 1. Click Start/Programs/Command Prompt. Type ipconfig
/release (with a space after ipconfig) and press Enter.
step 2. Type ipconfig /renew (with a space after ipconfig) and press
Enter to retrieve new information (IP address, subnet mask,
and default gateway address) from the DHCP server.
step 3. Type exit and press Enter.
Windows 2000/XP
step 1. Click Start/Programs/Accessories/Command Prompt. Type
ipconfig /release (with a space after ipconfig) and press Enter.
step 2. Type ipconfig /renew (with a space after ipconfig) and press
Enter to retrieve new information (IP address, subnet mask,
and default gateway address) from the DHCP server.
step 3. Type exit and press Enter.

11-Mbps Wireless Outdoor Bridge
5
WLAN Management System Hardware and Software
Requirements
System requirements for installing and operating the WLAN Management System
are:
• An x86-based microcomputer running Microsoft Windows 95, 98, Me, NT
4.0, 2000, or XP
• Microsoft Internet Explorer 4.01 or later
• A connection to an Ethernet network
Particular versions of Windows have the following additional requirements:
1. On Windows 95, Microsoft DCOM95 must be installed. You can obtain
DCOM95 from the following Microsoft Web page:
http://www.microsoft.com/com/dcom/dcom95/download.asp
DCOM95 can also be found on the Microsoft Visual Basic 5.0 CD-ROM
(Enterprise, Professional, or Standard edition), in the directory
\Pro\Tools\DCOM95.
2. On Windows 98 (with the exception of Windows 98SE, which already
includes this component), Microsoft DCOM98 must be installed. You can use
the following link to download it:
http://www.microsoft.com/com/dcom/dcom98/download.asp
3. On Windows NT 4.0, Service Pack 4 or later must be installed.

11-Mbps Wireless Outdoor Bridge
6
Terminology Used in this Guide
BSSID, MAC ID
The BSSID (Basic Service Set ID) is a factory-set ID unique to each wireless
networking product. It is identical to the MAC ID (Media Access Control ID). It
allows each device to be identified on the wireless network.
ESSID
An Extended Service Set ID (often referred to as Service Set ID, or SSID) identifies
the wireless LAN domain that a bridge is in. A domain is generally composed of
wireless bridges in communication with each other via radio links. You can type an
existing domain name or create a new one that contains up to 32 characters. The
SSID is case-sensitive.
Regulatory Domain
11-Mbps wireless products use the license-free ISM (Industrial, Scientific, and
Medical) band to communicate through radio waves. Different countries offer
different radio frequencies to be used as the ISM band. There are four frequency
bands defined by IEEE 802.11: Japan (2.471 to 2.497 GHz), USA, Extended Japan,
Canada, and Europe (2.4 to 2.4835 GHz), Spain (2.445 to 2.475 GHz), and France
(2.4465 to 2.4835 GHz). To use 11-Mbps wireless products in a country not listed
above, check with your government’s regulating body to find the correct frequency
band to use. All 11-Mbps wireless products are supplied preset to the country of
sale’s frequency band.
WEP
WEP stands for Wired Equivalent Privacy. It is an encryption scheme that provides
secure wireless data communications. WEP uses a 40-bit or 128-bit key to encrypt
data. In order to decode the data transmission, all wireless clients on the network
must use identical keys.

11-Mbps Wireless Outdoor Bridge
7
How to Use this Guide
This user’s guide gives complete instructions for installation and use of the 11-Mbps
Wireless Outdoor Bridge.
Wireless Outdoor Bridge is supplied with factory set default network settings. Use
the WLAN Management System tool to change the default settings before
introducing a new bridge to an already-established wireless network.
The WLAN Management System is a simple-to-use, yet extremely powerful,
SNMP-based utility for online central configuration and network management from
a remote station on the same subnet. A trap management program is also provided to
monitor/diagnose the Outdoor Bridge.
Read through the next section ‘Planning the Network’, in order to get the best
possible performance from the 11-Mbps wireless network.
Step 1: Plan the wireless network See “Planning the Network,” for details.
Step 2: Pre-configure the bridge
before installing it into
an existing Ethernet
network
See “Hardware Configuration,” for details.
Step 3: Install the bridge into the
Ethernet network See “Installing the WLAN Management
System,” for details.
Step 4: Make online
configuration and
manage the bridge via
the WLAN Management
System utility
See “Using the WLAN Management System,”
for details.

11-Mbps Wireless Outdoor Bridge
8
Planning the Network
The Wireless Outdoor Bridge is used to connect two separate networks via radio
waves. A typical application is shown below.
Figure 1. Typical application scenario
The bridge connects to your existing wired or wired/wireless local area network as
shown below (Figure 2).
Figure 2. Connection to LAN or LAN/WLAN

11-Mbps Wireless Outdoor Bridge
9
Hardware Description
Figure 3. Wireless Outdoor Bridge and DC injector

11-Mbps Wireless Outdoor Bridge
10
Hardware Configuration
Before adding a Wireless Outdoor Bridge to an existing Ethernet network, you need
to carry out basic configuration, e.g., set the SSID, security (WEP) parameters,
bridge mode (including the peer bridge’s MAC address), channel number, and IP
address in order to make the bridge compatible with the existing network.
Figure 4. Wireless Outdoor Bridge Solution Installation

11-Mbps Wireless Outdoor Bridge
11
Pre-configuration can be carried out through WLAN Management System. As long
as the outdoor bridge and the management station are on the same physical Ethernet
LAN, WLAN Management System’s Kick Start function will find the outdoor
bridge and let you set basic parameters. Make connections as follows:
step 1. Using the supplied Category 5 waterproof cable, connect the waterproof
connector port of the outdoor bridge to the ODU port of DC injector.
step 2. Using Category 3 or higher UTP or STP cable, connect the RJ-45 port of
DC injector to a 10- or 10/100-Mbps Ethernet hub or switch, and connect
the management station to a hub or switch on the same LAN.
step 3. Connect the output cord of the power adapter to the DC injector’s DC
input jack, and plug power adapter into an AC outlet to power up the
outdoor bridge (see Figure 4 and Figure 5).
Figure 5. Wireless Outdoor Bridge Installation

11-Mbps Wireless Outdoor Bridge
12
11-Mbps Wireless Product Placement Guidelines
A few tips to mention that are particularly significant in a radio wave
communications system:
1. Radio waves reflect or refract from buildings, walls, metal furniture, or other
objects. This could result in performance degradation due to the fluctuation of
the received signal.
2. Microwave ovens use the 2.45 GHz frequency band. 11-Mbps wireless devices
also functions in the 2.4 ~ 2.5 GHz band, and therefore shares some of the band
with microwave ovens. This means that when a nearby microwave oven is in
use, it may interfere with 11-Mbps wireless signals, resulting in performance
degradation on the wireless network.
Antenna Alignment
For the best performance, adjust the position of the antenna until an optimal signal
quality results (see Antenna Alignment Utility for details).
