National Geographic 70/350MM GOTO User manual

70/350MM GOTO
Automatic Tracking Telescope
Instruction Manual
80-10171
1
AGES
10
+
Visit us at: nationalgeographic.com
SUN HAZARD — Never look directly at the sun
with this device.
WARNING:
CHOKING HAZARD — Small parts.
Not for children under 3 years.
WARNING:
Optical design
Magnification
Front lens (clear aperture)
Focal length, focal ratio
Standard eyepieces
Accepts eyepiece barrel
Mounting
Total weight (without packaging)
Achromatic refractor
18x-88x
60 mm
700 mm
Kellner 20 mm and 10 mm
31.7 mm (1.25”)
Slow motion alt-azimuth
2.45 kg / 5.39 lbs
NOT INCLUDED
X6
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc),
or rechargeable (ni-cad, ni-mh, etc.) batteries.

2
WARNING: NEVER ATTEMPT TO OBSERVE THE SUN WITH THIS DEVICE!
OBSERVING THE SUN  EVEN FOR A MOMENT  WILL CAUSE INSTANT AND
IRREVERSIBLE DAMAGE TO YOUR EYE OR EVEN BLINDNESS. Eye damage is often
painless, so there is no warning to the observer that the damage has occurred until it
is too late. Do not point the device at or near the Sun. Do not look through the device
as it is moving. Children should always have adult supervision while observing.
SUN WARNING
Customer Service: Call 1-866-252-3811
National Geographic’s net proceeds
support vital exploration, conservation,
research, and education programs.
Instruction Manual, &
Downloadable Planisphere Visit:
www.exploreone.com/pages/product-manuals
SAFETY WARNINGS
• Respect privacy: When using
this device, respect the
privacy of other people. For
example, do not use them to
look into people’s homes.
• Choking hazard: Children
should only use device
under adult supervision.
Keep packaging materials
like plastic bags and rubber
bands out of the reach of
children as these materials
pose a choking hazard.
• Risk of blindness: Never
use this device to look
directly at the Sun or in the
direct proximity of the Sun.
Doing so may result in a
permanent loss of vision.
• Risk of fire: Do not place
device, particularly the
lenses, in direct sunlight.
The concentration of light
rays could cause a fire.
• Do not disassemble this
device. In the event of a
defect, please contact
your dealer. The dealer
will contact the Customer
Service Department and
can send the device in to
be repaired if necessary.
• Do not subject the
device to temperatures
exceeding 60° C (140° F).
• Disposal: Keep packaging
materials, like plastic bags
and rubber bands, away
from children as they a
pose a risk of suffocation.
Dispose of packaging
materials as legally
required. Consult the local
authority on the matter
if necessary and recycle
materials when possible.
Read and follow the instructions, safety rules, and first aid information.

3
Visit us at: nationalgeographic.com
Note: We recommend assembling your telescope for the first time in the daylight or in a lit room so that you can familiarize
yourself with assembly steps and all components.
12
3
3
4
5
6
7
8
6
6
7
8
9
10
11
12
12
13
Parts Overview
1. Telescope tube
2. Tube opening
3. Eyepiece connection
4. Focus wheel
5. Handbox
6. Eyepiece holder
7. Handbox tray
8. Azimuthal lock
9. Tripod
10. Battery compartment (6 AA Batteries)
11. Locking screw
12. Accessory tray
13. Altitude locking knob
14. Dust cover
15. Eyepieces
16. Moon filter
17. Compass

4
National Geographic’s net proceeds
support vital exploration, conservation,
research, and education programs.
13
3
2
9
15 16
18
19
20
21
22
23
24
25
26 27
17
14
Controller Overview
18. Red light source
19. Handbox display
20. Plus/minus key
21. Illumination
22. Center key
23. Arrow keys
24. Number pad
25. Mini-USB port
26. RJ-45 port
27. RJ-22 port

5
Visit us at: nationalgeographic.com
Telescope Terms To Know:
Diagonal: A mirror that deflects the ray of light 90 degrees.
With a horizontal telescope tube, this device deflects the light upwards so
that you can comfortably observe by looking downwards into the eyepiece.
The image in a diagonal mirror appears upright, but rotated around its
vertical axis (mirror image).
Focal length: Everything that magnifies an object via an optic lens has a certain focal length. The focal length is the
length of the path the light travels from the surface of the lens to its focal point. The focal point is also referred to as the
focus. In focus, the image is clear. In the case of a telescope, the focal length of the telescope tube and the eyepieces
are used to determine magnification.
Lens: The lens turns the light that falls on it around in such a way so that the light gives a clear image in the focal point
after it has traveled a certain distance (focal length).
Part I: Assembly
Before you begin assembly, choose a suitable location for your telescope. It is best to build the telescope in a place
where you have a clear view of the skies, a stable footing and sufficient space around you. Remove all the parts from
the packaging, and, using the diagram, check to make sure no parts are missing.
1. Tripod
Take the tripod (9) out of the box. Carefully open the legs and place the tripod on a level surface.
To secure the legs, place the accessory tray (12) in the center of the leg supports and rotate it until it locks into
position (No. 3).
Note: Please do not forget to remove the accessory tray before collapsing the tripod.
2. Telescope
Loosen the screw (12) in the dovetail mount so that it is completely retract-ed (No. 4). Place the telescope with the
dovetail in the mount and tighten the screw. Make sure that the National Geographic logo is upright.
3. Altitude knob
Loosen the vertical knob by rotating it anticlockwise, align the optical telescope tube (1) horizontally and re-tighten
the knob (No. 5).
4. Mount
Place the mount base’s mounting holes on the tripod’s mounting screws and tighten them (No. 6).
5. Dust cover
Remove the dust cover (14) that protects the objective lens of the optical tube opening (2).
6. Eyepiece
Remove one eyepiece from its eyepiece holder (6) and slide it into the eyepiece connection (3). Tighten the holding
screws (No. 5). Start with the lowest magnification eyepiece, which has the highest focal length printed on it (e.g. 20
mm or 25 mm, depending on your model) to locate objects and find the correct focus. If you have the object you want
to view centered in the field of view, switch to a higher magnification by using an eyepiece with shorter focal length.
After changing the eyepiece, it might be necessary to adjust the focus again (see section 8).
7. Focus wheel
To get objects into focus, your telescope is equipped with a precise focus control. When you use the telescope for the
first time, you might need to turn the focus wheel (4) multiple times to achieve a focused image. To try it out, pick a
landmark or a building far away in daylight or bright twilight, and turn the focus wheel until the object comes into
focus. Remember, objects to be observed cannot be closer than 20 meters away.

6
National Geographic’s net proceeds
support vital exploration, conservation,
research, and education programs.
Part II: Handbox
1. Batteries
Remove the cover of the battery compartment (10), located on the top side of the mount’s base, and insert the batteries
in the battery holder (No. 2). Use 6 AA batteries and make sure the polarities are aligned correctly. Place the holder
into the compartment and cover it. Do not use rechargeable batteries.
2. Handbox
Ensure that the on/off switch is in the off position (No. 8). Remove the handbox from the handbox tray (7), and plug one
end of the cable into the port labeled with “HBX” and the other one into the RJ-45 port of the hand-box. Flip the switch
to the on position. The handbox display should light up, accompanied by a sound.
3. Setup
Time and Date
After turning on the handbox, you will be prompted to enter the date and time. Do so by navigating with the arrow
keys and entering the numbers with the number pad (7) on the handbox. When done, press the center key (5),
located between the arrow keys.
Daylight saving time
If the daylight saving time is in effect, select status:on. If daylight saving time is not in effect, select status:off.
Location
When asked for your location, you can either choose a city near you by selecting the ‘Country & City’ option or enter
your GPS coordinates by selecting ‘Custom Site’.
a) Country & City
Select the country where you are by using the up and down arrow keys. Then select the city by using the left
and right arrow keys. When done, use the center key (22) to select the location.
b) Custom Site
Enter the details of your location as follows:
Name: Enter a custom name for your location.
Lon: Enter the longitudinal coordinate of your location.
Lat: Enter the latitudinal coordinate of your location.
Zone: Enter the time zone of your location.
OTA (Optical Tube Assembly) Zero
Here you will be asked to provide the orientation of the telescope.
In the ‘Azi:’ field, enter ‘000’.
In the ‘Alt:’ field, enter ‘00’.
Open the Altitude and Azimuthal locking knobs. Adjust the telescope so that the tube opening (2) is pointing directly
north and is level. It is recommended that you use the included compass (17) and bubble level to make sure the
device is positioned accurately. You can put the compass into the eyepiece connection (3). Then retighten the locking
knobs.
4. Alignment
In order to use your telescope’s Go To mode, you must align the telescope properly so it knows where it is pointing
when it is turned on. There are three ways to align your telescope: one-, two- and three-star alignment.
Step 1: To start the alignment, press the center key (22) on the handbox and select the first menu option,
‘Telescope Align’. There you will be able to choose between one-, two- and three-star alignment.
The more stars you use for the alignment the higher the slewing precision of your telescope will be.

7
Visit us at: nationalgeographic.com
One-Star Alignment:
Step 2: After you select this option, you will be prompted to select a target star. The software will select a star that
is very visible in the night sky. If you happen to know of a star you can see with the naked eye, you can choose it by
pressing the up and down arrow keys and then selecting it with the center key (22). In most cases, you will want to
select the first option presented to you. Do so by pressing the center key (22).
Step 3: The telescope will now slew to that star and will prompt you to center it in the field of view, which you can do
by using the arrow keys. The star you’re focusing on is the brightest star in the region your telescope is pointing at.
When the star is centered, confirm the position with the center key (22). The telescope is now aligned.
Two- and Three-Star Alignment:
The procedure is similar to one-star alignment. The only difference is that you’ll have to repeat steps 2 and 3 twice
or thrice depending on the type of alignment you’ve chosen.
Note: If you have aligned the telescope, don’t move it manually. Use the arrow keys on the handbox to make
adjustments. If you do move it manually or change the tripod orientation, the telescope has to be realigned.
5. Further Adjustment:
Target Sync:
With this method, you can further improve the alignment of the telescope. After slewing to a star target you know,
you can center the object precisely in the field of view. Press the center key (22) and select ‘Telescope Align’, then
‘Target Sync’. The telescope will align to that target and have more precise positioning for further targets you want
to observe.
Backlash Correction:
You can improve the precision of the telescope by training the backlash correction of the axis. This must be done
separately for each axis and is not necessary for most cases.
Simply go to the main menu by pressing the center key (5) and select ‘Telescope Align’ and then ‘RA BKlash Corr.’
to adjust the right ascension axis (horizontal axis) or ‘DEC BKlash Corr.’ to adjust the declination axis (vertical axis).
Then follow the on-screen instructions.
Part III: Menus
Initial Start:
Welcome screen
Date and Time
Daylight saving
Status: off
Status: on
Custom site
Name:
Lon:
Lat:
Zone:
Country & City
Country: up and down
City: left and right
OTA Zero
Main Menu Overview
1. Telescope Align
One Star Align Align the telescope with a single star
Two Star Align Align the telescope with a two stars
Three Star Align Align the telescope with a three stars
Target Sync Further improves the alignment of the telescope
RA BKlash Corr. Calibrate RA axis backlash
DEC BKlash Corr. Calibrate DEC axis backlash

National Geographic’s net proceeds
support vital exploration, conservation,
research, and education programs.
8
2. Navigation
Solar system Object catalog of the solar system
Constellation Catalog with the stellar constellations
Famous Star Famous star catalog
Messier Catal. Catalog with bright deep-sky objects
NGC Catalog. Extensive catalog with broad variety
IC Catalogue Catalog with faint objects
Sh2 Catalog. Catalog with faint objects
Bright Star Cat Catalog with bright stars
SAO Star Catal. Extensive star catalog
Customer Objects Allows you to store your own objects
Input RA and DEC Insert a custom point in the sky
Custom Land Goal Insert a custom land target
3. Utilities
Current Objects Currently visible objects
Object Rise/Set Rising and setting time of an object
Curr. Lunar Phase The current lunar phase
Timer Timer function
Alarm Set up an alarm
Eyepiece FOV Field of view of the eyepiece
Eyepiece Magn. Magnification of the eyepiece
Display Illumin. Display brightness
Parkposition Slew to park position
4. Setup
Time and Date Enter time and date
Daylight Saving Enable/disable daylight saving
Site Setting Set the current location
Country & City Set the current location according to a city
Custom Site Set the current location by using GPS coordinates
Sky/Land Switch between sky and land targets
Sky Target Setting for sky observation
Land Target Setting for land target observation
AZ / EQ Switch between Azimuthal and equatorial mounting
Alt Telescope Alt./AZ mount type
Equ Telescope EQ mount type
Telescope Mount Configure telescope mount settings
Tracking Rate Set the tracking rate
Star Speed
Solar Speed
Moon Speed
Customize Speed
Language Change the language
Telescope Model
Reset Reset to factory settings
Part IV – Observation
After aligning the telescope, the motors in the mount will begin to move the telescope so that the Earth’s rotation is
compensated for and the objects stay in the field of view of the telescope.
Note: If you have aligned the telescope, don’t move it manually. Use the arrow keys on the handbox to make
adjustments. If you do move it manually or change the tripod position, the telescope has to be realigned.
Once you have aligned the telescope, you can slew to every object in the night sky. This is done by pressing the center
key (22) on the handbox and selecting the ‘Navigation’ option from the menu.
Select the object catalog you prefer from the menu by using the arrow keys. Press the center key (22) to confirm your
selection.

Visit us at: nationalgeographic.com
9
When you select an object catalog, the first object of the catalog will be displayed. You can change the currently
displayed object by pressing the up and down arrow keys.
Select the object you want to view with the telescope by pressing the center key (22). The telescope will then slew to
that position.
Example: Let’s observe Jupiter.
Jupiter is visible in different parts of the world at different times depending on location, time of year
and local conditions.
If it is visible from your location and the telescope is aligned, you can navigate to Jupiter by following these steps.
Press the center key (22) on your handbox and select the ‘Navigation’ option. Move the selection bar with the arrow
keys, then press the center key (22) for confirmation.
Next, select the ‘Solar System’ menu option and scroll with the arrow keys to find Jupiter. Select Jupiter by pressing
the center key (22).
Once you select Jupiter, your telescope will automatically slew towards Jupiter. When the telescope reaches Jupiter’s
position, a loud beeping noise will let you know that the telescope is done moving. You may then begin your observation.
Formula for calculating magnification:
Focal length (Telescope) ÷ Focal length (Eyepiece) = Magnification
Examples:
350 mm ÷20 mm =17.5x
350 mm ÷10 mm =35x
1250 mm ÷25 mm =50x
1250 mm ÷12.5 mm =100x

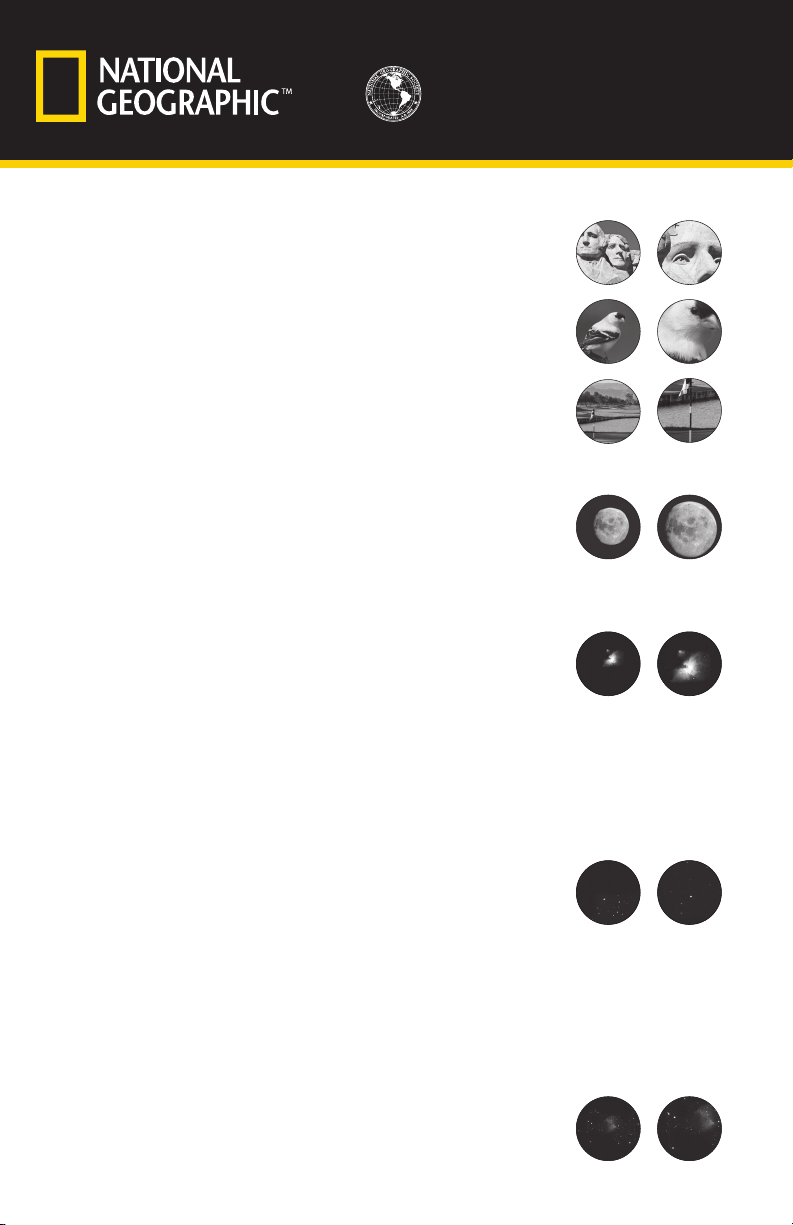

f=20 mm f=10 mm
The Moon
f=20 mm f=10 mm
Terrestrial Images
Possible Objects for Observation:
Terrestrial objects
Take note of the examples below, including Mount Rushmore and the golf course.
Start with the 20 mm eyepiece and focus until the image is clear. After mastering the
20 mm eyepiece, switch to the 10 mm eyepiece and practice scanning and focusing
until the image is clear. Choose several terrestrial objects to practice focusing
on, but never point your telescope at or near the sun, or you risk blindness.
The Moon
Diameter: 3,476 km
Distance: Approximately 384,401 km
The Moon is the Earth’s only natural satellite, and it is the second brightest object in
the sky (after the Sun). Although it is our closest neighbor, a lot of people have never
really taken a good long like at the Moon. With your telescope, you should be able to
see several interesting lunar features. These include lunar maria, which appear as
vast plains, and some of the larger craters. The best views will be found along the
terminator, which is the edge where the visible and cloaked portions of the Moon meet.
Orion Nebula (M 42)
M 42 in the Orion constellation
Right ascension: 05:35 (Hours: Minutes)
Declination: -5:22 (Degrees: Minutes)
Distance from Earth: 1,500 light years
Located about 1,500 light years from Earth, the Orion Nebula (Messier 42,
abbreviation: M 42) is the brightest diffuse nebula in the sky – visible with the naked
eye, and a worthwhile object for telescopes of all types and sizes, from the smallest
field glass to the largest earthbound observatories and the Hubble Space Telescope.
When talking about Orion, we‘re actually referring to the main part of a much larger
cloud of hydrogen gas and dust, which spreads out over half of the Orion constellation.
The expanse of this enormous cloud stretches several hundred light years.
Ring Nebula (M 57)
M 57 in the Lyra constellation
Right ascension: 18:53 (Hours: Minutes)
Declination: -33:02 (Degrees: Minutes)
Distance from Earth: 2,400 light years
The famous Ring Nebula M 57 in the constellation of Lyra is often viewed as the
prototype of a planetary nebula; it is one of the magnificent features of the Northern
Hemisphere’s summer sky. Recent studies have shown that it is probably comprised
of a ring (torus) of brightly shining material that surrounds the central star (only
visible with larger telescopes), and not of a gas structure in the form of a sphere or
an ellipsis. If you were to look at the Ring Nebula from the side, it would look like the
Dumbbell Nebula (M27). When viewed from Earth, we are looking directly at the pole
of the nebula.
Dumbbell Nebula (M 27)
M 27 in the Fox constellation
Right ascension: 19:59.6 (Hours: Minutes)
Declination: -+22:43 (Degrees: Minutes)
Distance from Earth: 1,360 light years
The Dumbbell Nebula (M 27) in Fox was the first planetary nebula ever discovered.
On July 12, 1764, Charles Messier discovered this new and fascinating class of
objects. We see this nebula almost directly from its equatorial plane. If we could see
the Dumbbell Nebula from one of its poles, we would see the shape of a ring, and
we would see something very similar to what we know as the Ring Nebula (M 57). In
reasonably good weather, we can see this object well even with low magnifications.
f=20 mm f=10 mm
Orion Nebula M 42
f=20 mm f=10 mm
Ring Nebula in Lyra
Constellation M 57
f=20 mm f=10 mm
Dumbbell Nebula in Fox
Constellation M 27
National Geographic’s net proceeds
support vital exploration, conservation,
research, and education programs.
10

Visit us at: nationalgeographic.com
11
Cleaning:
Before cleaning the device, disconnect it from the power supply by removing the plug or batteries.
Clean the eyepieces and lenses only with a soft, lint-free cloth, like a micro-fibre cloth. Do not apply excess pressure to
the cloth to avoid scratching the lenses.
Protect the device from dust and moisture. Store it in the supplied bag or transportation packaging. The batteries
should be removed from the unit if it has not been used for a long time.

12
© 2017 Explore Scientific®, LLC.
1010 S 48th Street, Springdale, AR 72762
exploreone.com | 866.252.3811
All rights reserved. Made in China.
CONFORMS TO THE SAFETY
REQUIREMENTS OF ASTM F963
© 2017 National Geographic Partners LLC.
All rights reserved. NATIONAL GEOGRAPHIC
and Yellow Border Design are trademarks of the
National Geographic Society, used under license.
Visit us at: nationalgeographic.com
National Geographic’s net proceeds
support vital exploration, conservation,
research, and education programs.
