Nauticam 32215 User manual

Current as of 2022-05-10
Spare Sealing O-rings (2x)
Instruction Manual for Viewfinder Collar
Adaptor for 32211/2/3/4 to use with MIL
Housings
P.N. 32215
FOREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognise the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easyoperation
of all important functions of the camera.
Each product is individually inspected and water pressure tested to ensure
optimum quality.
Please read this manual carefully before using the product, this will maximise
its performance as well as its lifetime.
WARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorised
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorised modifications and/or repairs of our products will automatically
invalidate the warranty.

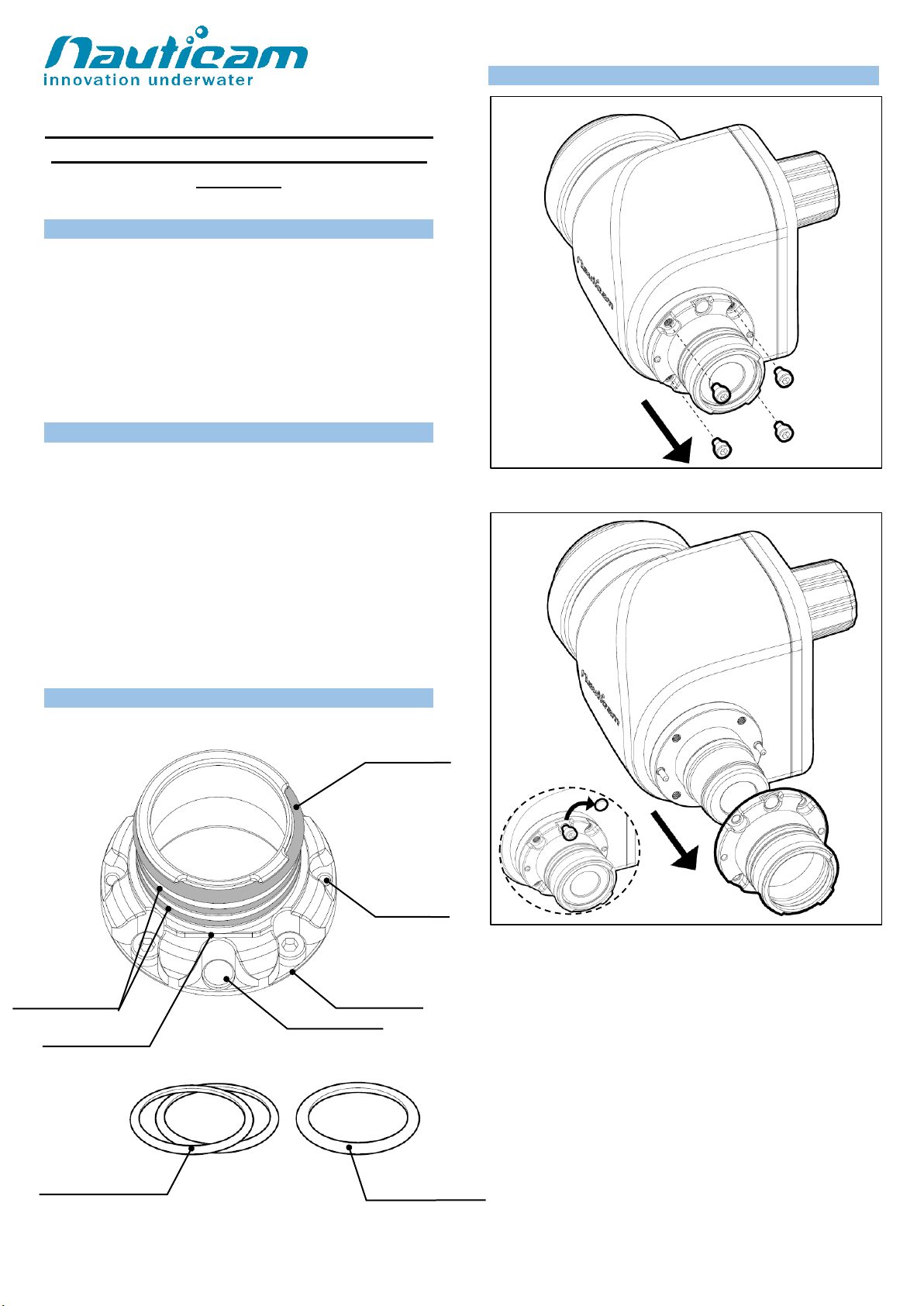

IDENTIFICATION OF PARTS
REMOVE THE OLD COLLAR FROM 32211/2/3/4
Unlock and remove the four S.S. screws from viewfinder body as shown.
Remove the two screw cap covers, and install one of the existing screws to
push and separate the collar from the viewfinder body.
Retainer O-ring
M3 Screws (4x)
Screw Caps (2x)
Alignment Groove
Sealing O-rings (2x)
Guiding Pin
Points (2x)
Spare Retainer O-ring

Current as of 2022-05-10
Verify that the sealing O-ring is in good condition, lightly coat it with Nauticam
lubricant. Make sure the O-ring groove is free from any foreign material; the
groove can be cleaned with the aid of a microfiber cloth. Then place the O-ring
into the groove.
Align the adaptor groove as shown above, make sure it is facing downwards
while installing the adaptor into the viewfinder.
Align the two pins on the viewfinder body, and install the collar adaptor by
tightening four S.S. screws provided.
To change back the old collar, reverse the above steps.
MOUNT THE VIEWFINDER TO THE HOUSING
Remove the retainer O-ring of the viewfinder, and align the viewfinder groove
with the sleeve in the display window as shown.
Push the viewfinder from the outside of the housing until it cannot go in any
further. Then place the retainer O-ring of the viewfinder back from inside of
the housing.
For detail steps, please follow the housing manual.
BOX CONTENTS
Viewfinder Collar Adaptor
M3 Screw x 4
Screw cover x 2
Spare Sealing O-ring x 2
Spare Retainer O-ring
SPECIFICATIONS
Diameters:
DIA 40 x 23 mm
Material:
Titanium
Compatible
Housing:
1). All MIL housings, except NA-
Z50/XT3/XT4/EM1X
2). NA-A7C
Compatible VF:
32211 Nauticam Full Frame Straight Viewfinder
32°/ 1:1
32212 Nauticam Full Frame Straight Viewfinder
40°/ 0.8:1
32213 Nauticam Full Frame Angle Viefwinder 32°/
1:1
32214 Nauticam Full Frame Angle Viewfinder 40°/
0.8:1
Remark: Nauticam supports only e-manuals. Please download corresponding
product manuals on Nauticam.com website, or contact us for e-manuals.
INSTALL THE COLLAR ADAPTOR TO 32211/2/3/4
