NAUTICAST X-Pack DS User manual

Please read this first!
Warning:
Although Nauticast strives for accuracy in all its publications; this material may contain errors or omissions,
and is subject to change without prior notice. Nauticast shall not be made liable for any specific, indirect,
incidental or consequential damages as a result of its use. Nauticast components may only be used in safety
of life devices or systems, with the express written approval of Raytheon, as the failure of such components
could cause the failure of the Nauticast device or system. If these fail, it is reasonable to assume that the
safety of the user or other persons may be endangered.
X-Pack DS User Manual Version 1.0
Page 2 of 74 Printed on 02.04.2003

X-Pack DS AIS Transponder
User Manual
Index Page Number
History of Changes.......................................................................................................................................... 4
1. X-PACK DS User Interface..................................................................................................................... 5
2. X-PACK DS Keyboard............................................................................................................................. 6
2.1. Explanation of the “Cursor Cross”................................................................................................... 6
2.2. Explanation of the Num-Locked and [NUM] Functions................................................................... 6
2.3. Explanation of the Soft Keys ........................................................................................................... 7
2.4. Safety Keys...................................................................................................................................... 7
3. X-PACK DS Screens............................................................................................................................... 8
3.1. Navigation Screen........................................................................................................................... 8
3.1.1. Short Header.......................................................................................................................... 10
3.1.2. Other Vessel Details............................................................................................................... 10
3.2. Menu Structure.............................................................................................................................. 12
3.3. Main Menu..................................................................................................................................... 13
3.4. Sub-Menus Overview.................................................................................................................... 14
3.4.1. Messages............................................................................................................................... 14
3.4.2. AIS Status .............................................................................................................................. 14
3.4.3. Voyage Settings – (User Password Protected)...................................................................... 15
3.4.4. Ship Settings – (User Password Protected)........................................................................... 15
3.4.5. Configuration – (User Password Protected)........................................................................... 15
3.4.6. Service Configuration – (Service Password Protected)......................................................... 16
3.4.7. Display Settings...................................................................................................................... 17
3.5. Sub-Menus Detailed...................................................................................................................... 18
3.5.1. Messages............................................................................................................................... 18
3.5.2. AIS Status .............................................................................................................................. 32
3.5.3. Voyage Settings (User Password Protected)......................................................................... 37
3.5.4. Ship Settings (User Password Protected).............................................................................. 40
3.5.5. Transponder Configuration (User Password Protected)........................................................ 43
3.5.6. Service Configuration (Service Password Protected)............................................................ 54
3.5.7. Display Settings...................................................................................................................... 60
4. Safety Functions................................................................................................................................... 61
4.1. MOB Person over Board ...................................................................................................................... 61
4.2. Activating the SRM Safety Related Message Button ........................................................................ 63
5. ANNEX.................................................................................................................................................... 68
5.1. Explanation of commonly used Abbreviations............................................................................... 68
5.2. BSH Type Approval Certificate...................................................................................................... 70
X-Pack DS User Manual Version 1.0
Page 3 of 74 Printed on 02.04.2003

History of Changes
Date Version Status Comments Responsible
2002-12-04 1.0 Released Latest release amendments A. Lesch
2003-03-18 1.0 Released
Updated EC-Conformity Document
inserted. C. Moore
2003-03-27 1.0 Released B553 picture update F. Gruber
2003-03-31 1.0 Released
New front cover.
Insertion of Wheelmark Certificate C. Moore
2003-04-02 1.0 Released
Insertion of higher-resolution Wheelmark
Certificate C. Moore
X-Pack DS User Manual Version 1.0
Page 4 of 74 Printed on 02.04.2003

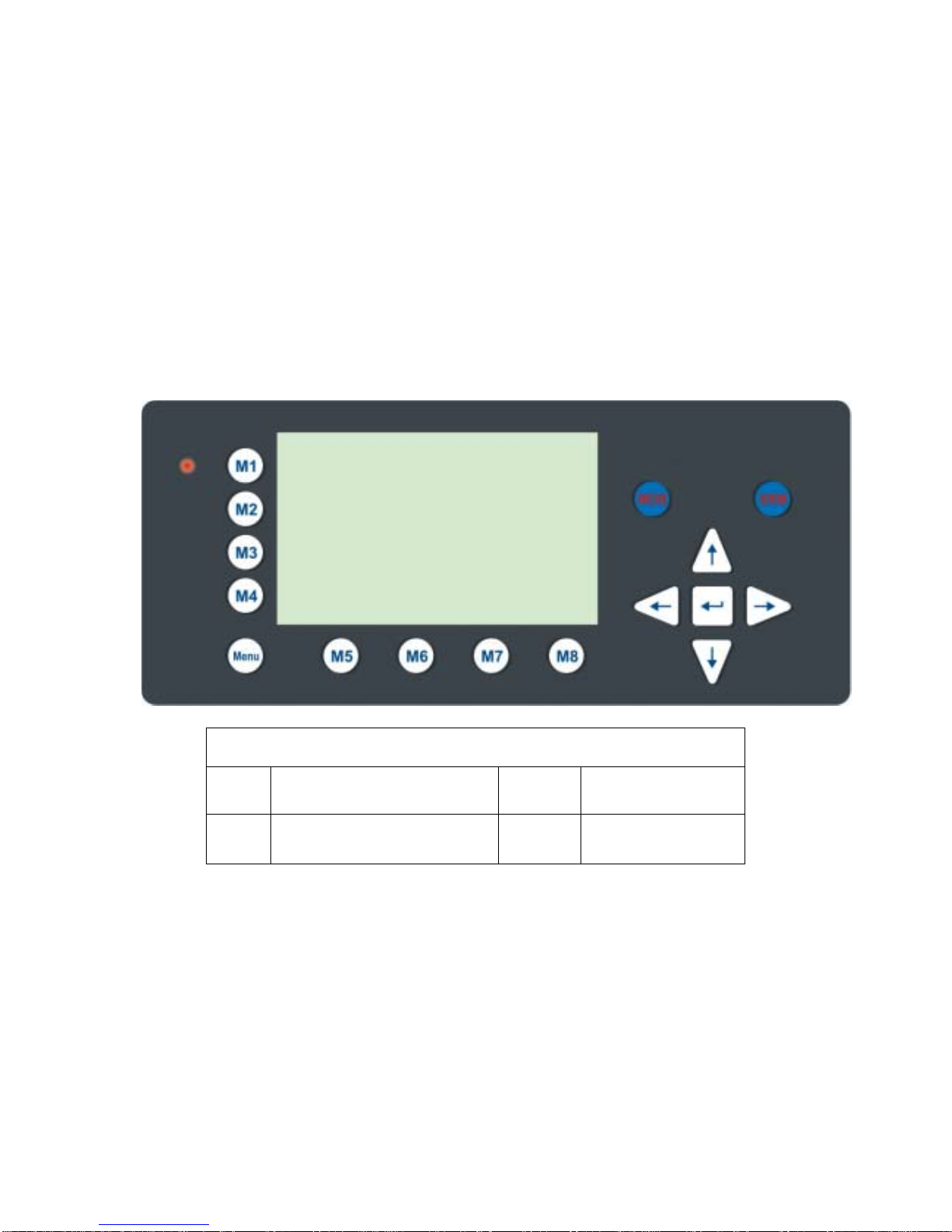

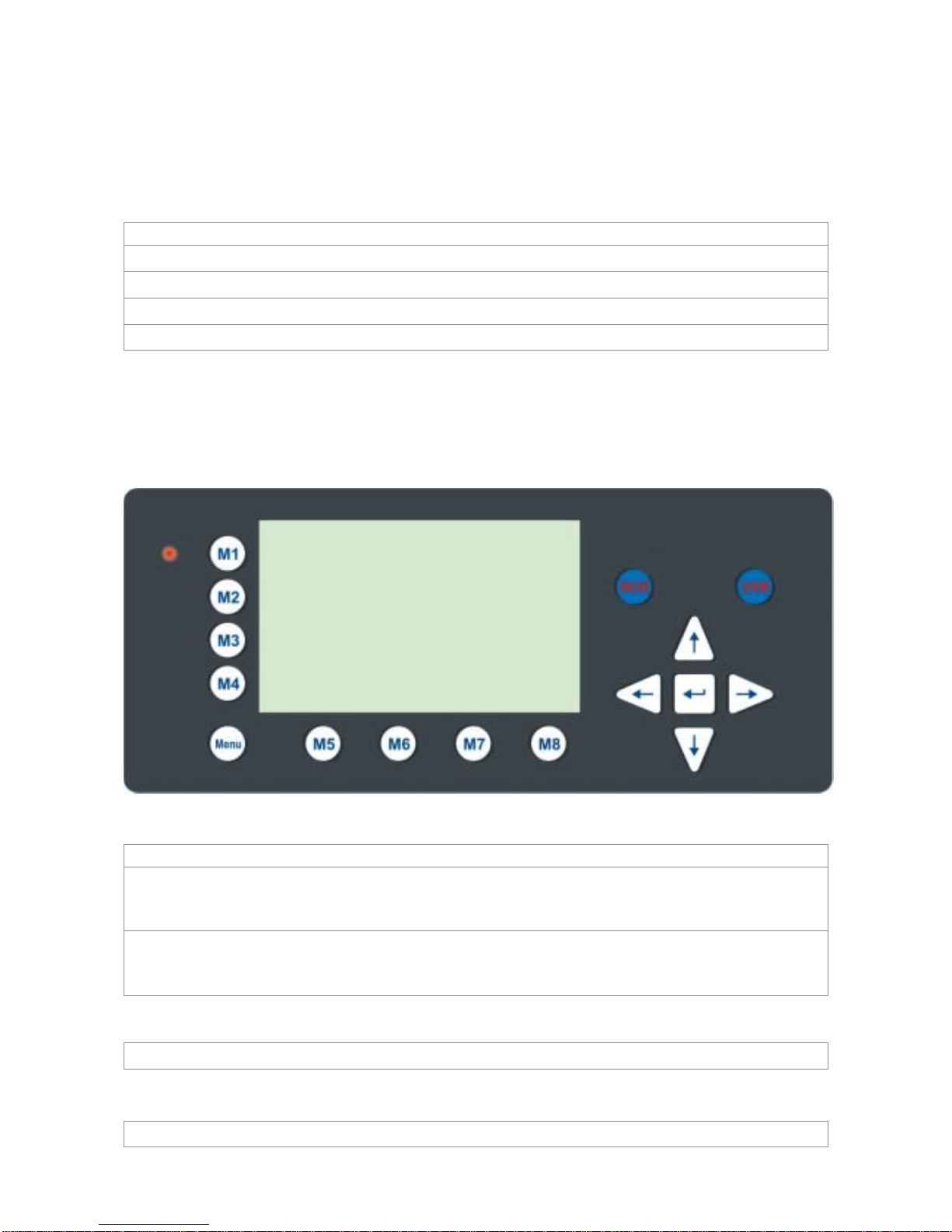

1. X-Pack DS User Interface
DisplaySoft Keys [M1] – [M8]
Navigation Screen
Header (max. 3 lines)
______________________________
Navigation Screen or
MENU - Structure
(Content 13 lines)
Safety Keys
Cursor
Cross
Enter Key
Keyboard
X-Pack DS User Manual Version 1.0
Page 5 of 74 Printed on 02.04.2003

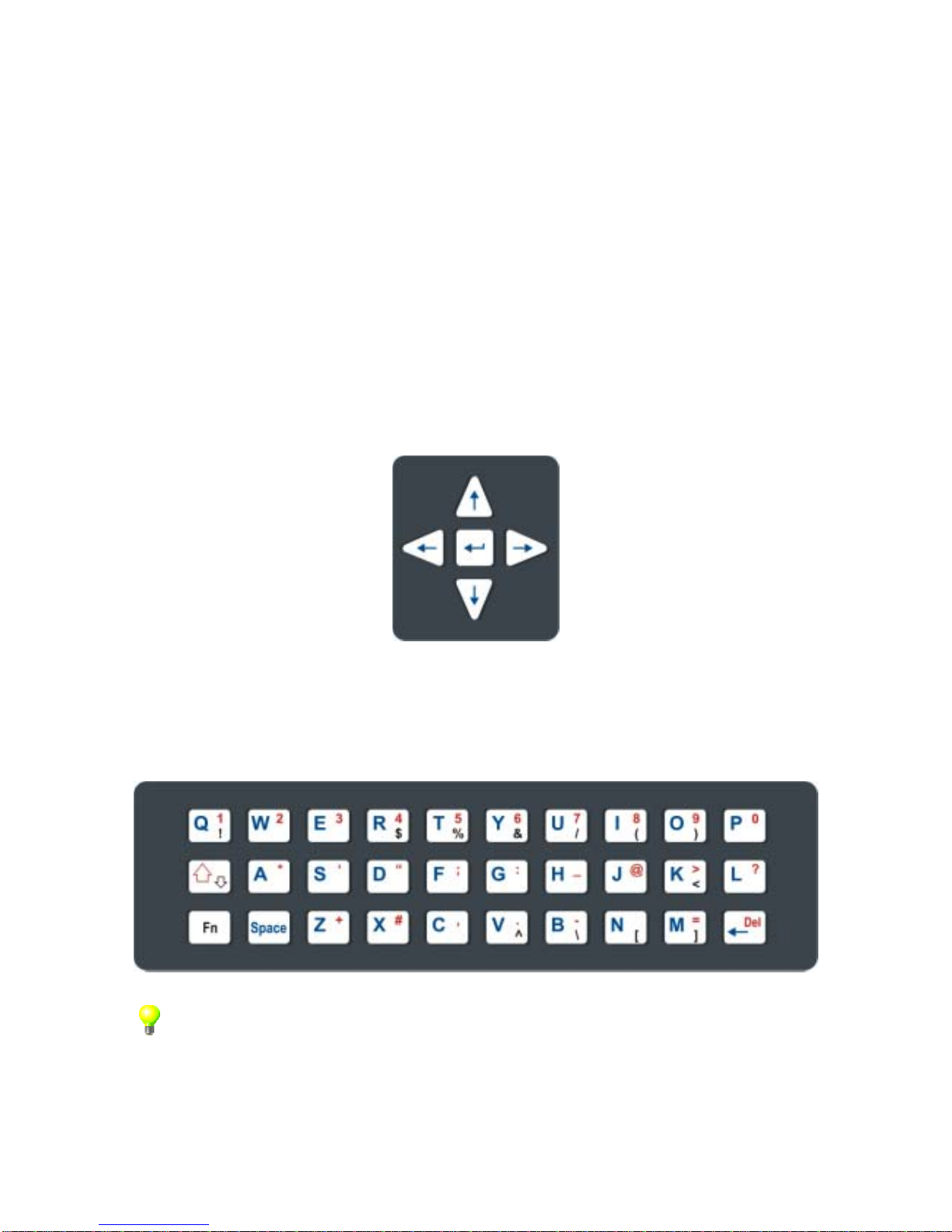

2. X-Pack DS Keyboard
The X-Pack DS is fitted with a full alphanumeric keyboard, with the following functions:
By pressing any key on the keyboard the blue letters are addressed.
Number symbols and special characters (red) are addressed by holding down the
shift [!]key and simultaneously pressing the chosen key.
The black characters can be reached by holding down the Function [Fn] key and pressing the chosen key.
2.1.Explanation of the “Cursor Cross”
The Cursor Cross allows navigation within the current screen [Up] [Down] [Left] [Right].
In addition to the actually displayed [Enter] button, the centre of the cursor cross always has the Enter
functionality.
2.2.Explanation of the Num-Locked and [NUM] Functions
The NUM-Locked function is enabled after pressing the Function [Fn] Key and the Shift [!]Key.
It is possible to disable the Num-Lock Function by pressing the Function [Fn] Key and the Shift [!]Key.
Tip: The X-Pack DS automatically changes the keys “Q” through to “P” to numerical input when the
current application requires numbers, rather than letters to be input. This feature is enabled when [NUM]
appears on the bottom left hand side of the screen.
X-Pack DS User Manual Version 1.0
Page 6 of 74 Printed on 02.04.2003

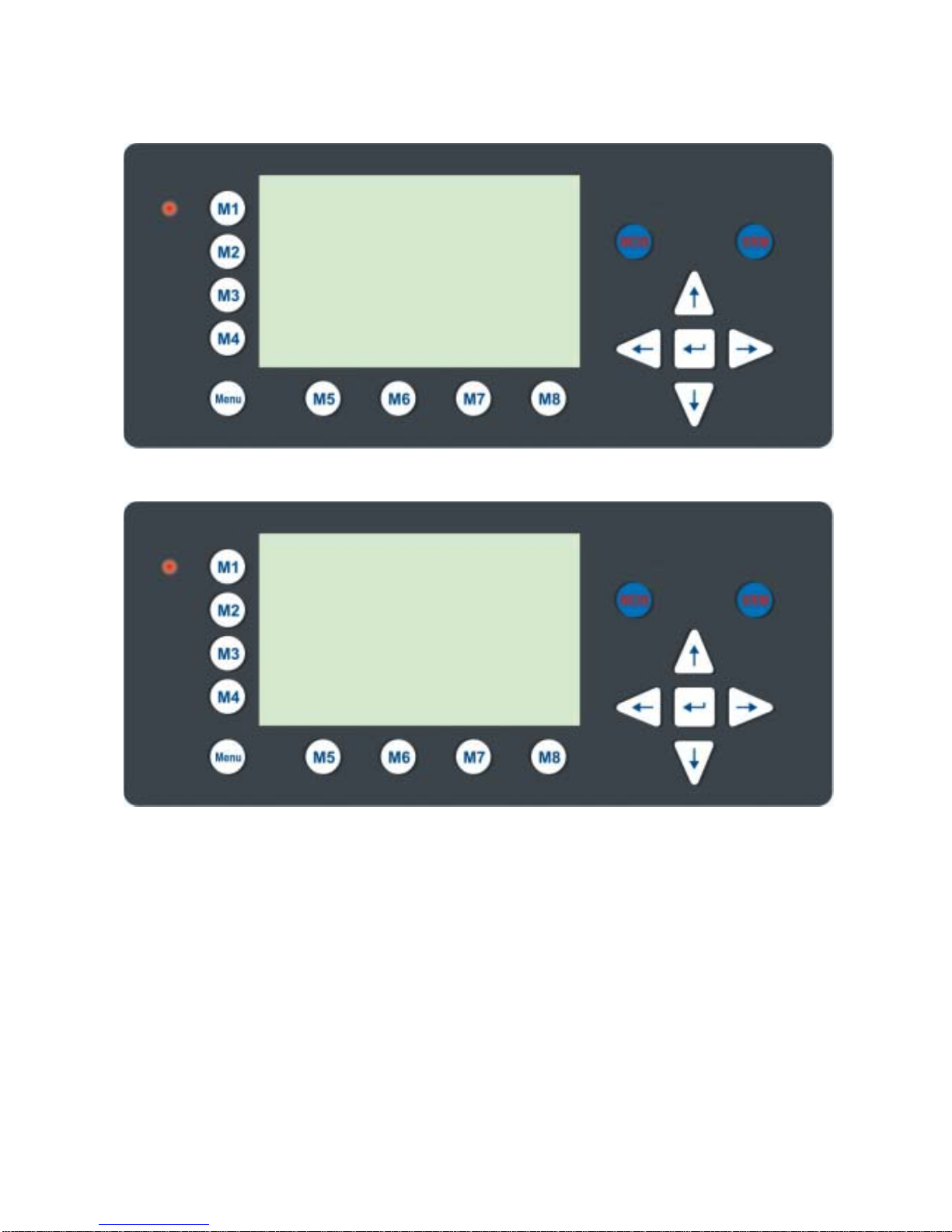

2.3.Explanation of the Soft Keys
The Soft Keys are divided into vertical static keys [M1-M4] and
horizontal dynamic keys [M5-M8], which differ in function according to the current application.
Soft Key Definition
[M1] Reserved for future use
[M2] Reserved for future use
[M3]: Safety Message
This Soft Key allows direct Message Writing. Both broadcast or addressed messages
can be sent in this mode.
[M4]: Display Settings - Brightness and Contrast Regulator This Soft Key allows the Display Settings to be changed between Daytime,
and Nightime Modes.
[Menu]: Go to Main Menu or return to the Navigation View Screen.
[M5] – [M8]: These Soft Keys are described in individual screens

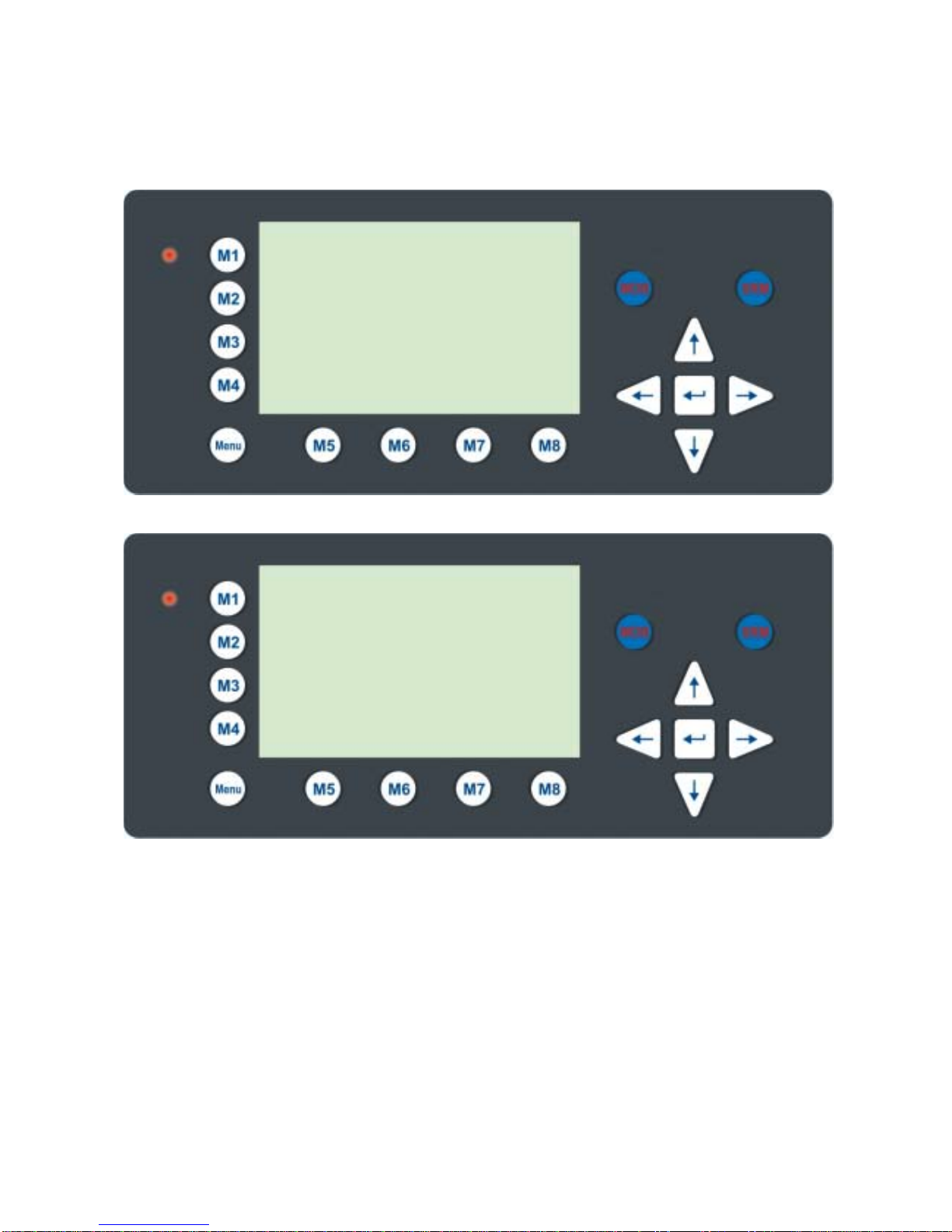

2.4.Safety Keys
The X-Pack DS is fitted with Safety Keys, which allow the user to automatically send urgent messages
without the necessity of navigating the Menus.
[MOB] The MOB Button sends out precise position of an MOB incident to Addressed Vessels,
therefore allowing the message to be sent to a vessel closest to accident location.
[SRM] The SRM Button sends out emergency Broadcast Safety Related Messages to all ships
in the Vessel Listing.
Note:
For detailed description of the Safety Functions see Chapter 4.
X-Pack DS User Manual Version 1.0
Page 7 of 74 Printed on 02.04.2003

3. X-Pack DS Screens
The Display is divided into two different modes.
Navigation Screen - Standard Screen, automatically visible
Menu Structure - visible after pressing the [Menu] Soft Key

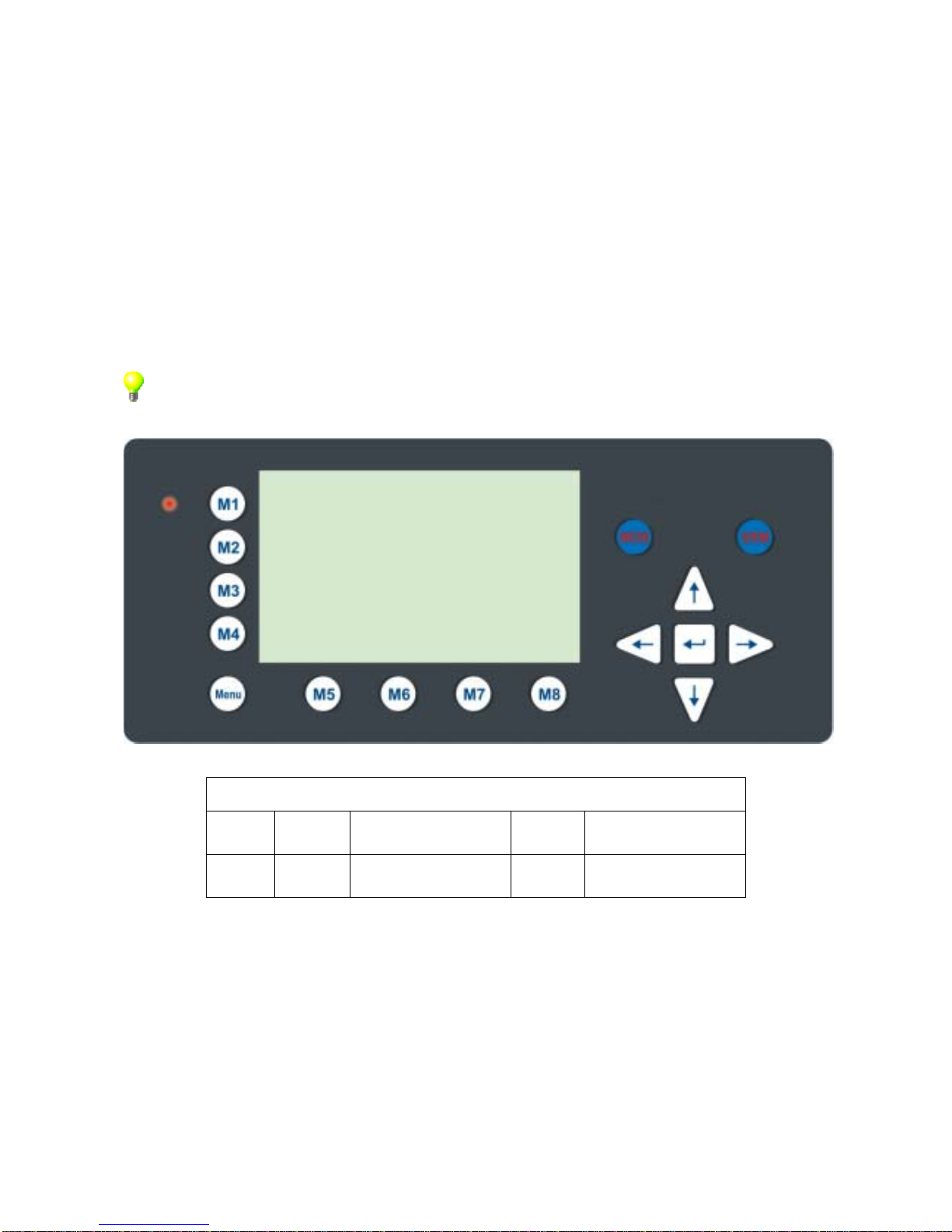

3.1.Navigation Screen
This screen provides the user with Navigation Data from the own vessel and lists all other vessels within
receiving range. This screen automatically appears after a period of 60 seconds of user inactivity on the
Transponder. The Navigation Screen can also be reached manually by pressing the [M2] button once from
the Main Menu Screen.
LAT:N 1^27.845'ExtSOG:34.6kn 11/26/2002
LON:E 0^21.289'IntCOG:173.0^ 10:52:26
IntGPS: 3D ExtHDT:222^ Reg6 A/
001/021..ShipName....RNG.BRG..SOG..COG..
1>DOREEN-----------> N/A 120 22.2 301.5
2>FINE EAGLE------->0.00 N/A 13.1 359.9
3>SYLVAEPSILON----->0.10 23 32.1 203.2
4>ESSOTOKYO-------->0.43 99 10.0 120.3
5>OLYMPIAHIGHWAY FE>0.59 342 21.2 50.0
6>SANEI------------>0.80 272 32.1 270.1
7>KATOO------------>1.00 321 21.2 200.8
8>OLYMPIA PALACE--->1.34 277 [BASESTAT]
9>MINILOG---------->1.96 201 21.7 102.2
10>ALIBRAHIMYA----->2.66 340 22.1 30.3
11>TITANIC--------->2.75 121 N/A N/A
12>BWRTZ123--------
>
3.36 66 24.1 2.9>

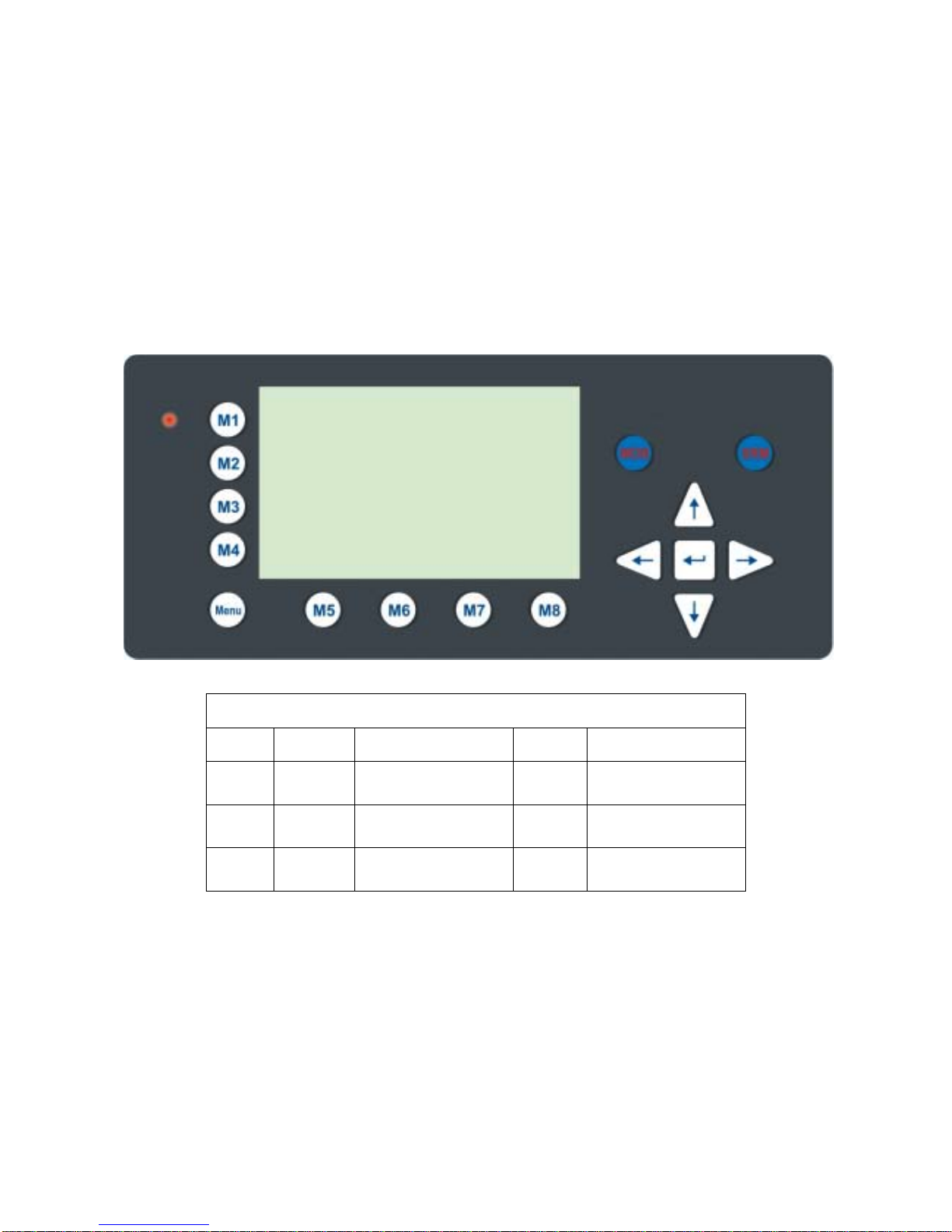

Dynamic Keys: Navigation Screen
[M5] Select desired vessel
for Vessel Details [Up] /
[Down] Scroll Vessel Listing
Pages
[Enter] Select desired vessel for Vessel
Details [Left] /
[Right] Scroll Vessel Listing
Pages
Lines 1 – 3 of the Navigation Screen refer to own vessel, and display Latitude and Longitude, Speed Over
Ground, Course Over Ground, Heading, Date and the UTC.
After line 4, all data refers to Other Vessels within receiving range.
X-Pack DS User Manual Version 1.0
Page 8 of 74 Printed on 02.04.2003

Own Vessel Data
LAT:N 1^27.845'ExtSOG:34.6kn 11/26/2002
LON:E 0^21.289'IntCOG:173.0^ 10:52:26
LAT: Latitude
LON: Longitude
Date: The actual UTC - date (mm.dd.yyyy) and time (hh.mm.ss) are displayed on the top right
hand corner of this view.
IntGPS: 3D ExtHDT:222^ Reg6 A/
IntGPS Indicates normal or differential mode of GPS position.
2D or 3D: Indicates the precision of the GPS result.
Indicates the used position source:
(int) ext:
int. = X-Pack DS
GPS ext = vessel sensors
ExtHDT True Heading
Reg: Indicates the actual region of own vessel’s position. If no region number is displayed, then
the vessel is travelling on high sea and is outside a predefined region.
A/B: (A or B) Indicates the last transmitting channel in use.
Message (SRM) and Alarm (ALR) Indication
LAT:N 1^27.845'ExtSOG:34.6kn *3S2A
Queued alarms or messages, e.g. *3S2A are displayed in the date field (instead of the date) – in the above
example 3 Safety Related (3S) Messages, and 2 (2A) Alarms are in queue, and await viewing and handling
(acknowledgement or rejection) in the Message Inbox History.
Other Vessel Data
001/021..ShipName....RNG.BRG..SOG..COG..
001/021 (E:G: Vessel 01 of 021) current or selected Vessel/ Total number of Vessels
ShipName: Name of the Ship
RNG Vessel Range
Note: The vessel closest to own ship, or where position data is unknown (N/A), is listed first.
BRG Vessel True Bearing
SOG Speed Over Ground
COG Course Over Ground
A maximum of 12 vessels are displayed on the screen. If more than 12 vessels are currently being received,
the symbol [>] on the right bottom appears, indicating that there are further vessels to be seen in the Vessel
Listing. By pressing the [Right] key, it is possible to scroll to the next page for further Vessel Listing, by
pressing the [Left], the user scrolls back to the previous page.
Further details on any individual vessel can be obtained by scrolling down and selecting the desired vessel
by pressing [Enter]. A full explanation of the Vessel Details is given in the following section.
X-Pack DS User Manual Version 1.0
Page 9 of 74 Printed on 02.04.2003

3.1.1. Short Header
A constant overview of the most important AIS navigation details, including own position and distance of the
three closest vessels is always displayed the first line. This information appears in every Submenu and is
called the “Short Header”.
N 1^21 E 0^14' |1>0.10|2>1.30|3>1.80nm
Own Vessel Position: N 1^21' E 0^14'
1> Closest vessel situated 0.10 nm away
2> Second closest vessel situated 1.30nm away
3> Third closest vessel situated 1.80nm away

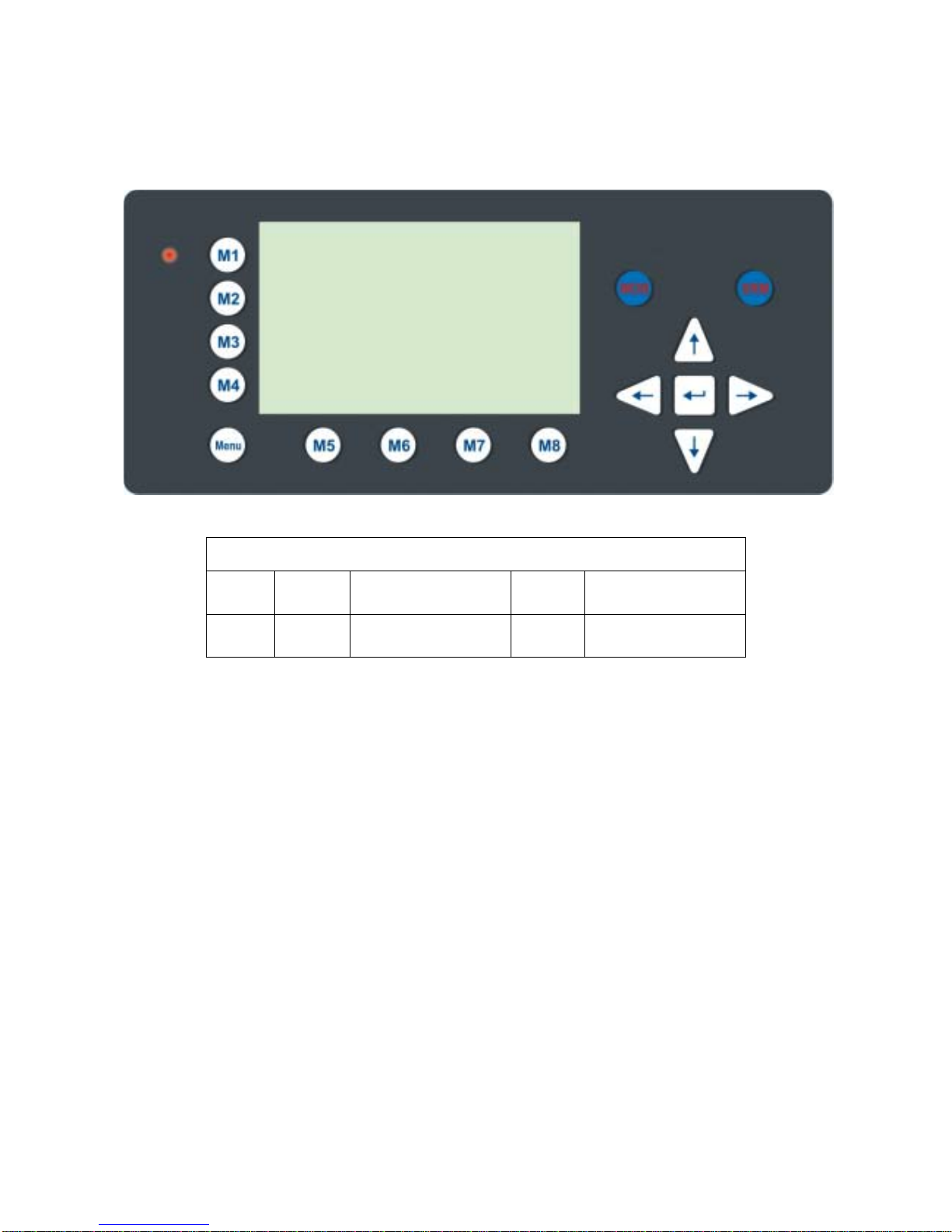

3.1.2. Other Vessel Details
This screen shows the Dynamic, Voyage and Vessel Related Data, which is currently being transmitted by a
previously selected vessel.
N 1^21' E 0^14' |1>0,10|2>1.30|3>1.80nm
Time 2:07 ------------------ POS:001/021
LAT : S 74-50'23 LON : W 9-34'19
Heading :77^ ROT :-0.2^/min l
IMO No. :90733283 MMSI:5004
ShipName:DOREEN CS:DORET6W
ShipType:Passenger ship
Length :310m Beam:73m
RefPoint:A190 B120 C10 D>=63m
Cargo :N/A or harmless
Draught :3.3m
Dest. :HAWAI
ETA :10/15 12:31
NavStat.:Moored
EPFDType:GPS
PosAcc :High<10m DTE :Available
Current Time and Selected Vessel Number in Vessel Listing:
Time 2:07 ---------------- POS: 0001/0021
Time:
The period of time which has elapsed since the last update is shown in minutes and seconds. The update
rate differs according to the respective vessels speed.
POS:
Indicates the number of the selected vessel (e.g. vessel 02 of 21) from the Vessel Listing and the total
number of vessels being received.
Position of the selected vessel:
LAT :S 74-50'23" LON :W 9-34'19"
Heading and Rotation of the selected vessel:
Heading :77^ ROT :-0.2^/min l
X-Pack DS User Manual Version 1.0
Page 10 of 74 Printed on 02.04.2003

IMO-Number and MMSI of the selected vessel:
IMO No. : 90733283 MMSI: 5004
Name and CallSign of the selected vessel:
ShipName:DOREEN CS:DORET6W
Vessel Type
Passenger ship
Length and Beam of the selected vessel:
Length:310m Beam:73m
Reference Point (in meters):
This information indicates the Reference Point of the used GPS Antenna onboard the vessel.
RefPoint:A190 B120 C10 D<63m
A: 190m
B: 120m
C: 10m
D: <63m (means more than 63m in the case of a very large vessel)
Vessels Cargo:
Indicates the type of cargo on board.
N/A or harmless
Further Vessel Details:
Draught : 3.3m
Dest : HAWAII
ETA : 10/15 12:31
NavSt : Moored
Information on the vessel’s Equipment Position Finding Device:
EPFDType: GPS
Position Accuracy and Data Terminal Equipment (DTE):
PosAcc :High <10m
DTE :Available
This information indicates that the vessels Transponder is connected with a user interface and can show AIS
Data. This function basically ensures, that the current Transponder being used is fitted with a display and
can therefore send and receive messages. As the X-Pack DS is fitted with an integrated display unit, it will
always show “DTE: Available”.
X-Pack DS User Manual Version 1.0
Page 11 of 74 Printed on 02.04.2003

3.2.Menu Structure
To call up the Main Menu, press the [Menu] button once, and all Submenus are displayed. The cursor
position indicates the selected submenu.
Menu navigation is achieved by pressing the [Up] or [Down] keys to select, and then by pressing [Enter] to
confirm the desired Submenu selection.
To escape from any Submenu and returning to the Navigation Screen, press the [M2] button at any time.
The own vessel’s current Navigation Information is continuously displayed on the first line. It contains the
own position and the first three vessels, which are located within closest range of the own ship.
Tip: Fast Menu Selection is achieved by simply pressing the desired Submenu Number on the keyboard.
X-Pack DS User Manual Version 1.0
Page 12 of 74 Printed on 02.04.2003

3.3.Main Menu
N 1^46' E 0^39' |1>0.10|2>1.30|3>1.80nm
|----------------------------------
| Menu
-----| |
| +- 1. Messages
View | +- 2. AIS Status
| +- 3. Voyage Settings
-----| +- 4. Ship Settings
| +- 5. Transponder Configuration
Msg. | +- 6. Service Configuration
| +- 7. Display Settings
-----|
|
Displ|
----------------------------------------
NUM |Select->| | <-Back
Dynamic Keys: Main Menu Screen
[M5] [Select] Select chosen
Submenu
[Enter]
or
[Right]
Confirm Submenu
Selection
[M8] [Back] Return to Navigation
Screen [Up] /
[Down] Navigate Submenu for
selection
Note:
The Navigation Screen automatically appears after some seconds of user inactivity on the Transponder, or
immediately by pressing the [Menu] button in the Main Menu.
X-Pack DS User Manual Version 1.0
Page 13 of 74 Printed on 02.04.2003

3.4.Sub-Menus Overview
3.4.1. Messages
N 1^19' E 0^12' |1>0.10|2>1.30|3>1.80nm
| 1. Messages
-----| |
| +- 1. Write Addressed SRM
View | +- 2. Write Broadcast SRM
| +- 3. Inbox History
-----| +- 4. Inbox SRM
| +- 5. Inbox ALR (valid only)
Msg. | +- 6. Inbox LRI
|
-----|
|
Displ|
----------------------------------------
NUM|Select->| | | <-Back
3.4.2. AIS Status
N 1^20' E 0^13' |1>0.10|2>1.30|3>1.80nm
|----------------------------------
| 2. AIS Status
-----| |
| +- 1. State / Conditions
View | +- 2. Own Ship Data
| +- 3. Version Info
-----| +- 4. Security Log
|
Msg. |
|
-----|
|
Displ|
----------------------------------------
NUM|Select->| | |<-Back
X-Pack DS User Manual Version 1.0
Page 14 of 74 Printed on 02.04.2003

3.4.3. Voyage Settings – (User Password Protected)
N 1^20' E 0^14' |1>0.10|2>1.30|3>1.80nm
*********** Voyage Settings ************
Cargo :<N/A or harmless>
Draught :24.8m
PoB :1
Dest. :CASABLANCA
ETA :10/13 12:31
NavStat.: Engaged in fishing
----------------------------------------
| Save | | | Back
3.4.4. Ship Settings – (User Password Protected)
N 1^20' E 0^14' |1>0.10|2>1.30|3>1.80nm
************ Ship Settings *************
/\ +
CallSign:D11233 / \|
ShipName:ANDREA DORIA | |
Length :220m | A
Beam :43m | x--+
RefPtExt:A200 B20 C10 D33m | | B
RefPtInt:A190 B30 C20 D23m +-C-+D-+
ShipType: Pilot vessel
----------------------------------------
| Save | | | Back
3.4.5. Configuration – (User Password Protected)
X-Pack DS User Manual Version 1.0
Page 15 of 74 Printed on 02.04.2003

N 1^21' E 0^14' |1>0.10|2>1.30|3>1.80nm
|----------------------------------
| 5. Transponder Configuration
-----| |
| +- 1. Change User Password
View | +- 2. Region Settings
| +- 3. Alarm Settings
-----| +- 4. Interrogation Settings
| +- 5. Sensor Settings
Msg. |
|
-----|
|
Displ|
----------------------------------------
NUM| Select->| | | <-Back
3.4.6. Service Configuration – (Service Password Protected)
N 1^21' E 0^14' |1>0.10|2>1.30|3>1.80nm
|----------------------------------
| 6. Service Configuration
-----| |
| +- 1. Change Service Password
View | +- 2. User Password Settings
| +- 3. Change MMSI / IMO
-----| +- 4. Restore Factory Settings
|
Msg. |
|
-----|
|
Displ|
----------------------------------------
NUM| Select->| | |<-Back
X-Pack DS User Manual Version 1.0
Page 16 of 74 Printed on 02.04.2003

3.4.7. Display Settings
N 1^21' E 0^15' |1>0.10|2>1.30|3>1.80nm
*********** Display Settings ***********
Mode
|
+-[*] Day Min Max
| +---- Brightness:<9> [*********]
| +---- Contrast : 6 [****** ]
|
|
+-[ ] Night Min Max
+---- Brightness: 3 [*** ]
+---- Contrast : 2 [** ]
-------------------------------------- --
NUM|DayNight| | | Back
X-Pack DS User Manual Version 1.0
Page 17 of 74 Printed on 02.04.2003

3.5.Sub-Menus Detailed
3.5.1. Messages
N 1^26' E 0^19' |1>0.10|2>1.30|3>1.80nm
|----------------------------------
| 1. Messages
-----| |
| +- 1. Write Addressed SRM
View | +- 2. Write Broadcast SRM
| +- 3. Inbox History
-----| +- 4. Inbox SRM
| +- 5. Inbox ALR (valid only)
Msg. | +- 6. Inbox LRI
|
-----|
|
Displ|
- ---------------------------------------
NUM| Select->| | | <-Back
Dynamic Keys: Messages
[M5] [Select] Select chosen
Submenu [Enter] Confirm Message
Submenu Selection
[M8] [Back] Return to Main Menu
Screen [Up] /
[Down] Navigate Submenu for
Selection
Writing Messages:
This screen provides a means to write and send messages.
It is possible to select between an Addressed Message to a single selected vessel, and a Broadcast
Message, which is sent out to all vessels in the current Vessel Listing.
Message Inboxes:
The Inbox History gives an overview of all incoming messages. The Inboxes are further divided into 3
sections, allowing the user to see, and act upon specific Message Types.
1.3 Inbox History: Overview of all Messages, Alarms and LRI Interrogations
1.4 Inbox SRM: Listing all Safety Related Messages (SRM)
1.5 Inbox ALR: Listing of all valid Alarms (ALR)
1.6 Inbox LRI: Listing of all Long Range Interrogations (LRI)
X-Pack DS User Manual Version 1.0
Page 18 of 74 Printed on 02.04.2003

Message Storage Capacity:
The Inbox History has the capacity to store a total of 60 messages. The older messages are automatically
deleted, when the respective Inbox has reached its maximum storage capacity.
Message Type: Maximum Storage Capacity:
Addressed or Broadcast Messages (SRM): Latest 30 Messages stored
Alarms (ALR): Latest 20 stored
Long Range Interrogation (LRI): Latest 10 stored
3.5.1.1. Writing an Addressed Message
To write a Safety Related Message first select an addressee from the Vessel Listing. This is possible by
using the cursor buttons [Up] and [Down], and confirming the selection with [Enter] or [Select].
Tip: For fast Vessel Selection press the Vessel Number on the keyboard and the selected vessel is
immediately displayed.
N 1^26' E 0^20' |1>0.10|2>1.30|3>1.80nm
************ Write Message *************
..ShipName......Dist..SOG..COG..CallSign
1>DOREEN-------> N/A 22.2 301.5 DORET6W
2>FINE EAGLE--->0.00 13.1 359.9 OEX1538
3>SYLVAEPSILON->0.10 32.1 203.2 ND4RX
4>ESSOTOKYO---->0.43 10.0 120.3 ZA9A
5>OLYMPIAHIGHWA>0.59 21.2 50.0 3FSH4
6>SANEI-------->0.80 32.1 270.1 YJQX9
7>KATOO-------->1.00 21.2 200.8 A4F317
8>OLYMPIA PALAC>1.34 [BASESTAT] 4DSW
9>MINILOG------>1.96 21.7 102.2 FOR6
10>ALIBRAHIMYA->2.66 22.1 30.3 DEZ42
11>TITANIC----->2.75 N/A N/A FSG >
----------------------------------------
NUM| Select | | | Back
Dynamic Keys: Messages
[M5] [Select] Write Message to
Selected Vessel [Enter] Write Message to
Selected Vessel
[M8] [Back] Return to Messages
Menu
X-Pack DS User Manual Version 1.0
Page 19 of 74 Printed on 02.04.2003

3.5.1.2. Using the X-Pack DS Message Editor
After selecting a vessel, the Message Editor is automatically displayed.
Messages containing a maximum of 156 characters are allowed. Longer texts require a second message.
After text input completion, transmission to the selected addressee is facilitated by pressing the [Send]
button. The [<Back] button leads to the Message Editor for writing a second message to the same
addressee. A second activation of the [<Back] button leads to the Vessel Listing and allows selection of
another addressee.
It is possible to select the desired channel by pressing the [<Channel>] buttons.
The default setting for Addressed Messages is (auto) in contrast to Broadcasted Messages, where the
default setting is set at Channels A+B (AIS1 + AIS2).
N 1^20' E 0^13' |1>0.10|2>1.30|3>1.80nm
************ Write Message *************
Addressed SRM 129
SendTo:5004 (DOREEN)
ext:TEXT INPUT IS POSSIBLE HERET
----------------------------------------
auto/ A / B /A+B
Channel: [*]/[ ]/[ ]/[ ]
----------------------------------------
| Send |<Channel |Channel> | Back
Dynamic Keys: Addressed Message Editor
[M5] [Send] Send Message [Enter] Send Message
[M6] [Channel] Select Transmission
Channel
[M7] [Channel] Select Transmission
Channel
[M8] [Back] Return to Vessel
Listing
X-Pack DS User Manual Version 1.0
Page 20 of 74 Printed on 02.04.2003
