Nav TV NTV-KIT585 User manual

NNG-Ford V2
Navigation interface for FORD vehicles equipped with 8.4”MyTouch
NTV-KIT585
3950 NW 120th Ave, Coral Springs, FL 33065 TEL [phone] FAX [phone]
NTV-DOC223

SoftTouch Navigation System
2011-2013 Ford Escape Installation Instructions
INSTALLATION PERFORMED ON ESCAPE FOR REFERENCE ONLY.
Parts Identification Page 1
Vehicle Preparation Page 2
2egaPsgnitteShctiwSgnimmargorP
Installation Page 3

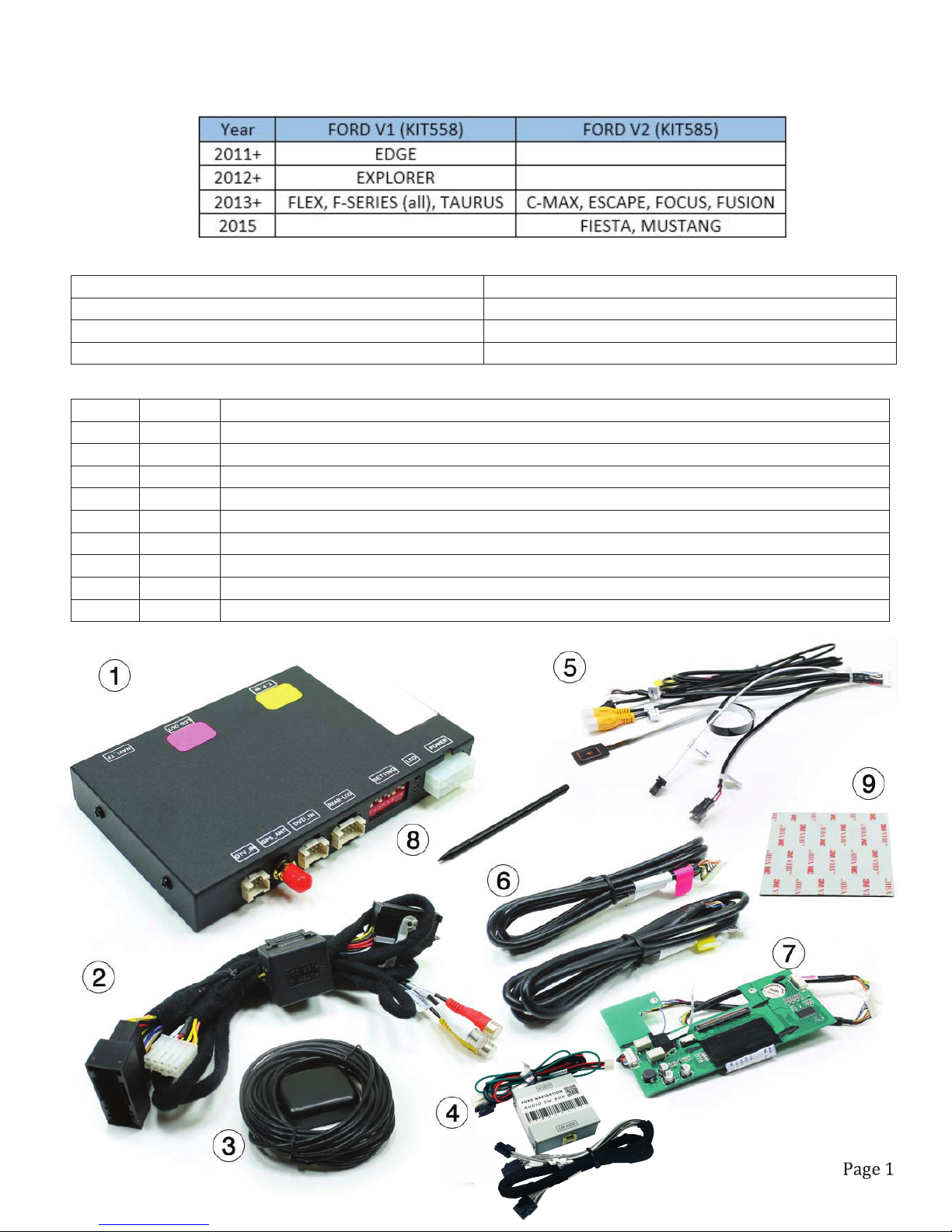

Parts Identification
Item Qty. Description
1 1 Navigation interface module
2 1 Vehicle interface harness
3 1 GPS antenna
4 1 Audio Break-Open Module, with harnesses
5 1 Membrane switch and audio/video input/output harness
6 1 TP-IN and LCD IN harnesses
7 1 GPS interface board
8 1 Stylus
9 1 VHB tape
NTV-KIT558: FORD V1
NTV-KIT585: FORD V2
Compatibility
NTV-DOC223

STOP – Install At Your Own Risk
YOU MUST READ THESE WARNINGS AND NOTICE BEFORE PRODUCT
HANDLING AND INSTALLATION!
PRODUCT AND VEHICLE APPLICATION WARRANTY DISCLAIMER
WARNING ! The Navigation Electronic Components are sensitive to Electro-
Static Discharge (ESD). DO NOT HANDLE THE NAVIGATION ELECTRONIC
COMPONENTS WITHOUT PROPER ESD GROUNDING DURING
INSTALLATION. FAILURE TO USE PROPER ESD PROTECTION WHEN
HANDLING THE NAVIGATION COMPONENTS WILL VOID THE PRODUCT
WARRANTY.
WARNING! Installation of this Navigation Electronics product in the vehicle radio
head unit must be performed by a professional technician that is experienced with
proper work methods, ESD handling requirements, and knowledgeable of specific
procedures for radio disassembly, Navigation Electronics installation, and re-
assembly of the vehicle Radio Head Unit as well as proper handling requirements of
all components involved. FAILURE TO FOLLOW PROPER DISASSEMBLY,
INSTALLATION, AND REASSEMBLY PROCEDURES AND PROPER
COMPONENT HANDLING REQUIREMENTS MAY RESULT IN
IRREVERSIBLE DAMAGE TO THE VEHICLE RADIO HEAD UNIT AND/OR
THE NAVIGATION ELECTRONICS AND WILL VOID THE PRODUCT
WARRANTY!
WARRANTY DISCLAIMER NOTICE! Radio removal, disassembly, installation
of Navigation Electronics, and Radio re-assembly/re-installation is the
responsibility of the installer. It is recommended
that you contract a professional installer that is experienced with proper work
methods involving electronics and knowledgeable of specific procedures for radio
disassembly, Navigation Electronics installation, and re-assembly/re-installation of
the Radio Head Unit in the vehicle. INSTALLATION DAMAGE TO THE
VEHICLE RADIO HEAD UNIT IS NOT THE RESPONSIBILITY OF ROSTRA
PRECISION CONTROLS, INC. AND IS EXPRESSLY NOT COVERED UNDER
THE PRODUCT WARRANTY.
NTV-DOC223

WARNING
To avoid dangerous distractions that may lead to an accident, the driver should never operate
the system while the vehicle is in motion. Before installing this product, the seller should
inform the end-user of proper use and compliance with the proper instructions and all state and
federal laws.
Vehicle Preparation
Before beginning your installation, familiarize yourself with the installation instructions and the
SoftTouch Navigation system components.
To ensure your safety, (A) apply the emergency brake and (B) read this entire manual before
beginning.
CAUTION: It is advisable to disconnect the negative battery cable for 3 minutes before
beginning installation, to avoid unintended air bag deployment. Note and record any anti-theft
radio codes prior to disconnecting.
Default Programming Switch (Dip Switch) Settings
Default Programming Switch Settings
1 – Off 2 – Off 3 – On 4 – Off 5 – On 6 – On 7 – Off 8 – On
Factory or Aftermarket Camera Settings
To use an aftermarket camera – Place switch #1 in OFF position.
To use the vehicle’s factory camera – Place switch #1 in ON position.
NTV-DOC223

Installation
Using even pressure, gently remove the upper
dashboard trim sliding it out of the way just enough to
access the upper radio mounting screws.
Remove the two screws from the upper radio mounts.
Remove the dashboard trim surrounding the touch
screen unit using an automotive trim tool.
Tilt the dashboard trim forward and detach the air
conditioning control harnesses.
NTV-DOC223

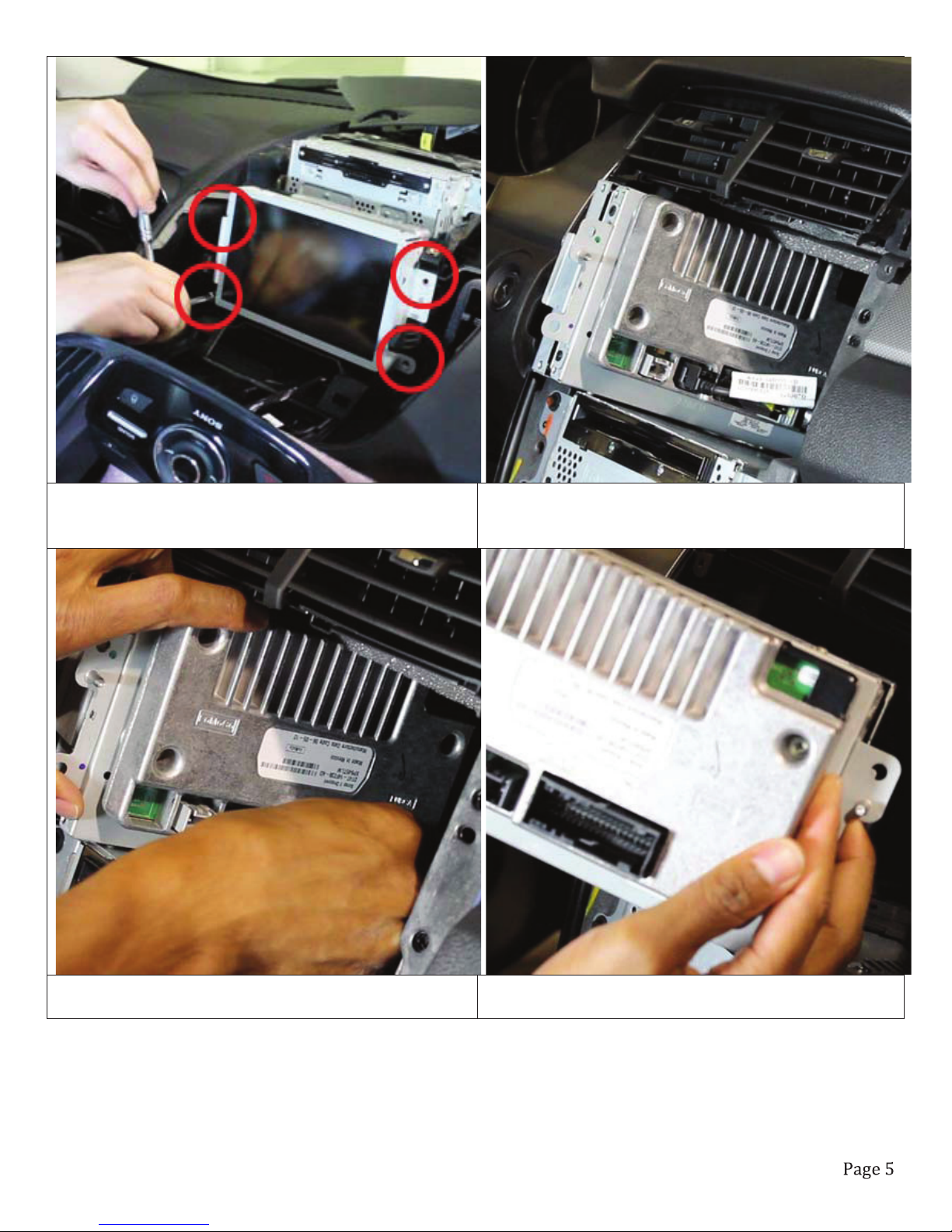

Remove the four screws securing the touch screen unit
to the dashboard.
Gently turn the touch screen unit towards the driver’s
side of the vehicle to easily access the factory wiring
harnesses.
Gently remove these harnesses (Note: the large factory
harness includes a locking retainer clip.)
Gently lift the touch screen unit from the vehicle’s
dashboard.
NTV-DOC223

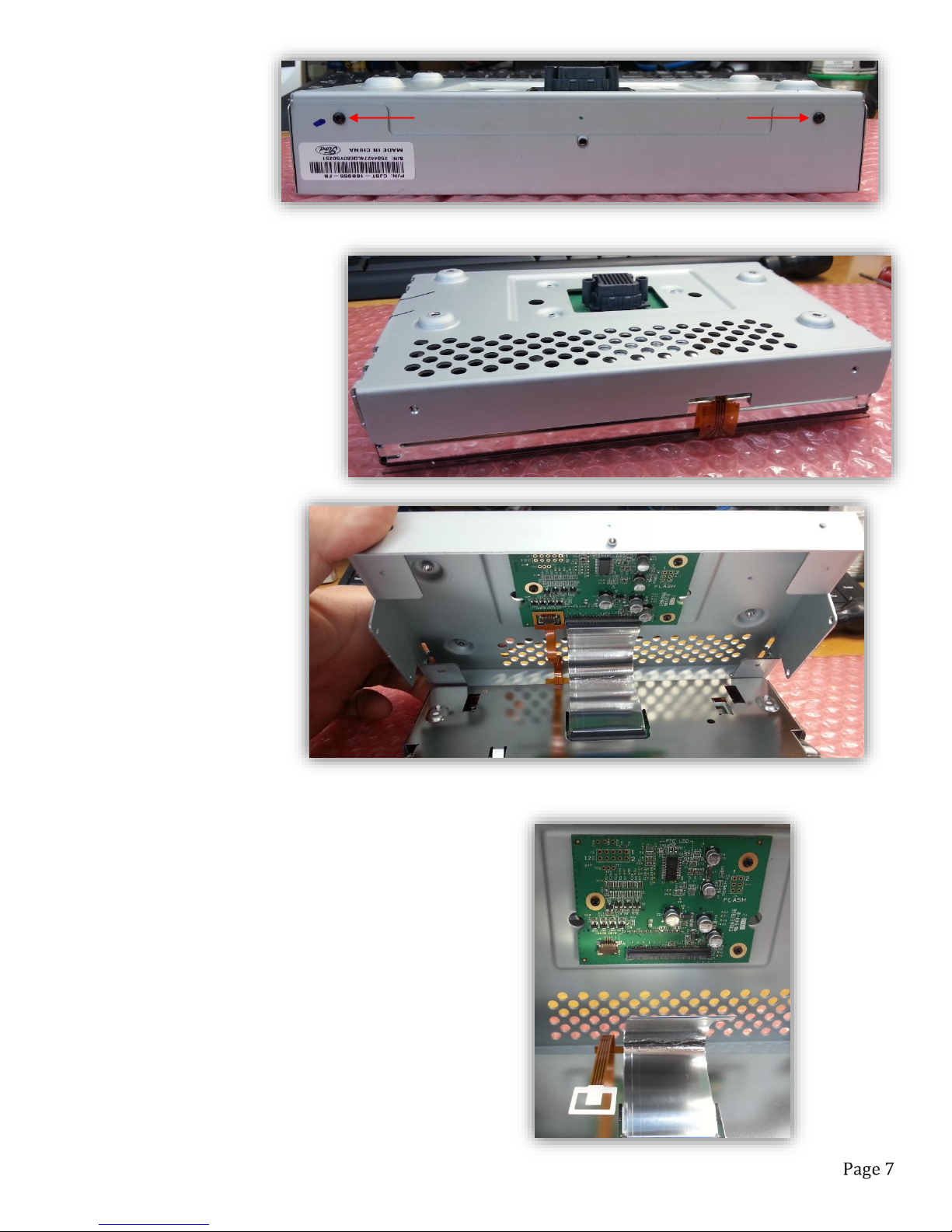

1. To begin, place the LCD assembly face
down on a soft surface (ESD mat would be best)
so as not to scratch the screen. Remove (4x)
Phillips head screws:
2. Separate the two halves of the assembly by pulling
straight up after the screws have been removed. Set the
back half of this LCD assembly aside. Note that the center
connector is keyed and the halves can only be replaced in
one direction:
3. On the LCD panel housing, mark across the brackets
and the housing to make replacing later a breeze:
4. On each side (left and right) of the LCD
housing, remove (2x) Torx T8 screws, and
(2x) Phillips head screws:
NTV-DOC223

5. Next, remove (2x)
Phillips head screws on
the top and bottom of the
LCD housing:
6. Caref lly separate the metal
bracket from the LCD housing,
this will expose the touch panel
ribbon cable and allow the LCD
screen to be separated from the
back half of the housing:
7. ow separate the metal
housing from the LCD
panel. Lifting the opposite
side of the touch panel
ribbon will give you easy
access to remove the
ribbon connectors:
8. isconnect the ribbons carefully with a small flat head
screwdriver from the circuit board side. Set the LCD panel
aside for now, it is not needed for this modification:
NTV-DOC223

9. ay the back metal housing down with the circuit board facing up in the orientation shown, and
remove (3x) Phillips head screws:
10. F om the NTX54-Ford kit, gather the sub-board with ribbons attached. Fold the main, bigger ribbon
underneath the board like shown below. You should see blue on both ends of this ribbon with this
orientation.
11. G ther the two, short harnesses
labeled ‘TP-IN’ and ‘LCD-OUT’ from the
NTX-54 Ford kit. Take note that the white
connectors on one end of each of these are
different sizes.
Touch
panel
ribbon
Main
LCD
ribbon
NTV-DOC223

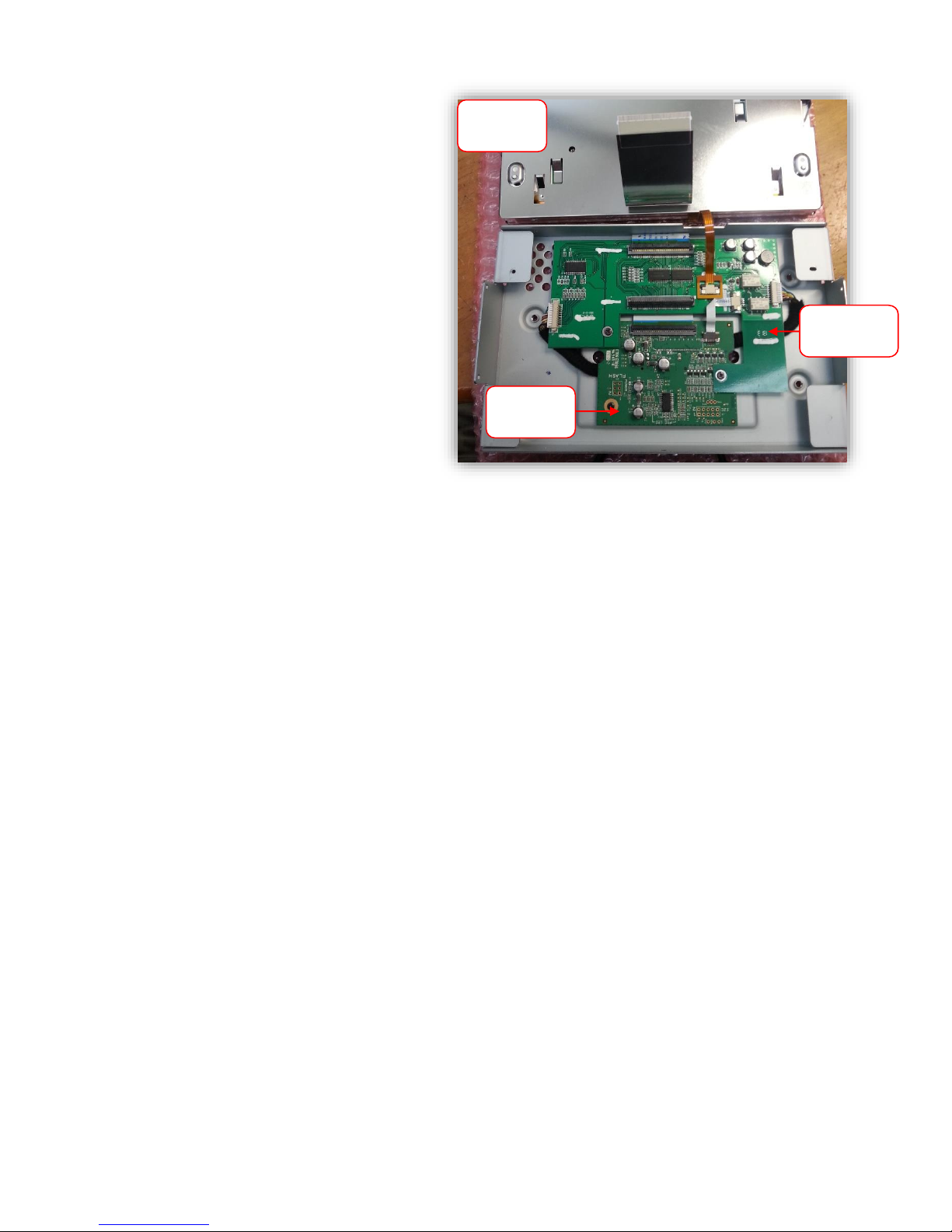

12. Place the sub-board in the rear LCD housing like shown. This is how the sub-board will be installed
into the LCD housing, with the OEM Ford circuit board beneath the NTX54-Ford circuit board. The
harnesses from step 11 will be ran through the center square and connected to their prospective
connectors:
13. Ru the harnesses from step 11
through the center square hole like
shown. When connecting the white plugs
to the circuit board, they can only be
inserted one way for proper operation.
Note the blocks on only one side of each
connector –this side faces down.
NTV-DOC223

14. Replace the factory Ford circuit board. The NTX54-Ford circuit board needs to be palced on top.
Connect the wider ribbon that was tucked underneath the board from step 10 and the touch panel
ribbon to the factory Ford circuit board like shown below. Use the extended screws provided with the
V2 NTX54-Ford kit to secure both PCB’s down to the metal chassis.
This hole
must remain
clear
This hole
must remain
clear
Be certain that the ribbons are seated fully and squarely.
Failure to do so may result in hardware damage. 
Note Alignment!
Page 10
NTV-DOC223

15. F ip the modified LCD housing upside
down, and place the LCD panel just above the
housing. This will make reconnecting the
factory ribbons to the new NTX54-Ford PCB
easier:
OEM
Ford LCD
NNG-FORD
PCB
OEM
Ford PCB
Page 11
NTV-DOC223

Remove the protective layer from the adhesive backing
on the GPS speaker and attach it to the interior
dashboard frame behind the touch screen.
Mount the GPS antenna to the top-rear of the vehicle
allowing it to attach using its magnetic base.
Route the GPS antenna extensions harness to the front
of the vehicle above the headliner, down the
passenger-side A-pillar, and behind the glovebox.
Connect the TP-IN and LCD-IN harness to the PINK
and YELLOW ports on the navigation control module.
Page 12
NTV-DOC223

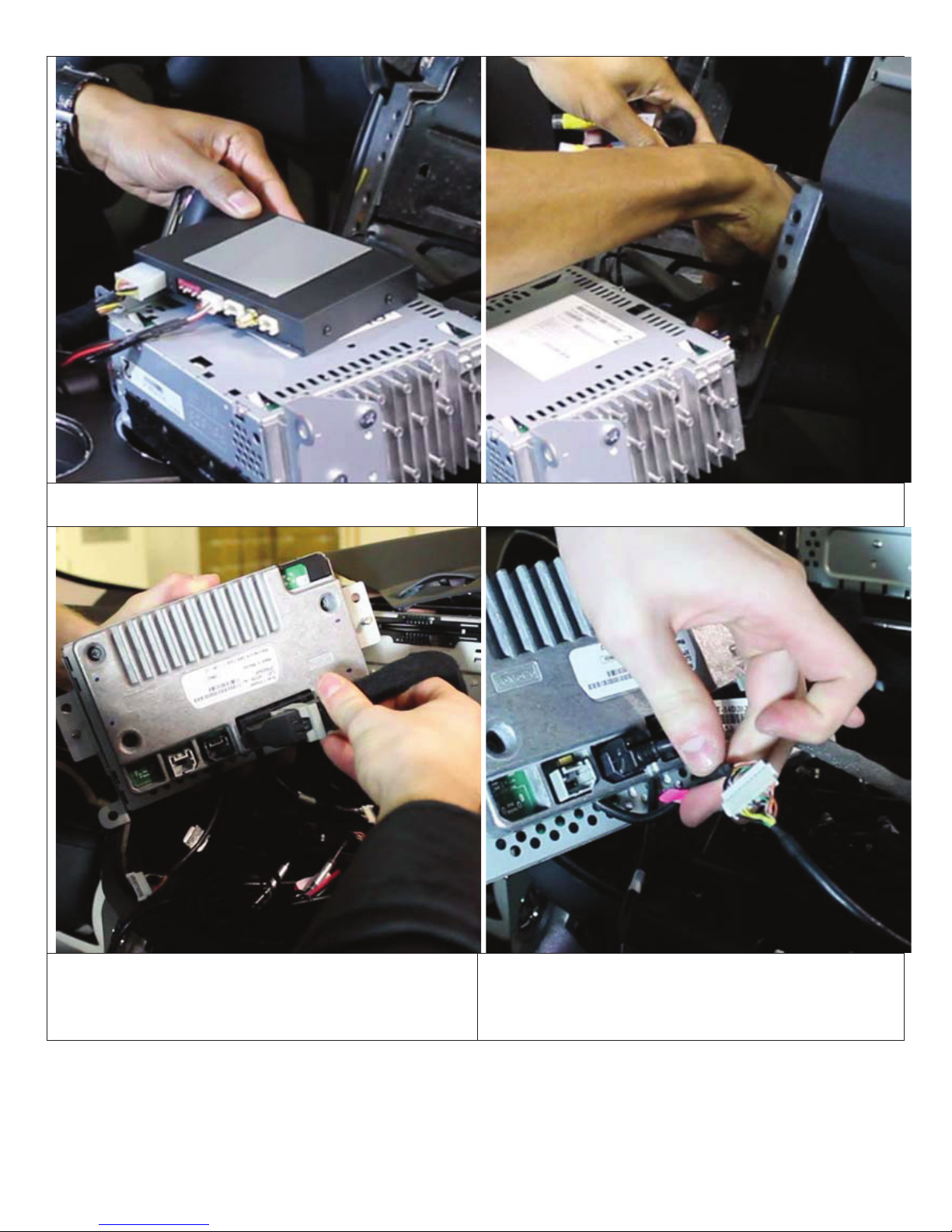

Connect the power harness from the vehicle interface
harness to the navigation control module.
Connect the speaker interface harness to the
navigation control module.
Find the threaded end of the GPS antenna and connect
it to the navigation control module.
Connect the vehicle interface harness to the factory
wiring harness on the car. (Note: the large factory
harness includes a locking retainer clip.)
Page 13
NTV-DOC223

Apply the included VHB tape to the bottom side of the
navigation control module.
Attach the navigation control module to the dashboard
in the open cavity below the touch screen unit.
Attach the vehicle interface harness to the backside of
the touch screen unit.
Connect the TP-IN and LCD-IN harnesses previously
routed through the backside of the touch screen unit’s
casing to the TP-IN and LCD-IN harnesses from the
navigation interface module.
Page 14
NTV-DOC223

Replace the touch screen unit. Make sure no wires are
pinched in the process.
Mount the supplied membrane switch to the radio
control panel.
Replace the dashboard trim pieces. If indoors, start the vehicle and move it outside so that the
GPS antenna has a clear view of the sky. Press the recently
installed membrane switch to change from the factory
interface to the iGo Navigation interface.
Page 15
NTV-DOC223

Reassembly
1. Reinstall all trim pieces taking special care to ensure harnesses and wiring connections are properly secured.
2. Make sure no harnesses are bent or pinched by trim pieces.
3. Reconnect all disconnected bulbs and check for function.
Installation Tips
tConfirm proper cable extension connector orientation and always verify proper ends are routed in correct direction.
tIt is a good idea to dry-fit all pieces in this kit before permanently attaching them to ensure proper orientation and
operation before beginning installation for familiarization with components.
tAlways treat any metal exposed during installation with a rust preventative compound to prevent system failure due to
rust and/or corrosion.
tAlways seal any holes drilled with the provided sealing putty to prevent water infiltration through unprotected areas.
tConfirm integrity of mechanical and electrical connections before moving to next installation sequence.
Installation Notes
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
Page 16
NTV-DOC223

Ford Audio Integration Supplementary Manual
This is a supplementary installation manual for FORD Navigation
system with factory speaker integration. Please carefully refer to
the main installation instruction for navigation system.
WARRANTY DISCLAIMER NOTICE!Radio removal, disassembly, installation of
Navigation Electronics, and Radio re-assembly / re-installation is the responsibility of the
installer. It is recommended that you contact a professional installer that is experienced with
proper work methods involving electronics and knowledgeable of specific proceduresfor radio
disassembly, Navigation Electronicsinstallation, and re-assembly / re-installation of the Radio
Head Unit in the vehicle. INSTALLATION DAMAGE TO THE VEHICLE RADIO
HEAD UNIT IS EXPRESSLY NOT COVERED UNDER THE PRODUCT
WARRANTY.
To avoid dangerousdistractions that may lead to an accident, the driver should never operate
the system while thevehicle is in motion. Before installing the product, the seller should
informtheend-user of proper use and compliance with the proper instructions and all states and
federal laws.
Before beginning your installation, familiarize yourself with the installation instructions andthe
Navigation system components.
CAUTION:It is advisable to disconnect the negative battery cable for 3 minutes before
beginning installation, to avoid unintended air bag deployment. Note and record any anti-theft
radio codes prior to disconnecting.
Overall connection diagram
main harness
FD-AUDSPK-02
AUD-6PIN-01
to REAR-LCD
to main harness
power
to dash speakerto GPS module
Audio BOX

Ford Audio Integration Supplementary Manual (cont.)
Components for audio integration:
1. GPS Audio Box
2. Wiring (FD-AUDSPK-02)
3. Wiring (AUD-6PIN-01)
4. Main Harness (same harness used in main install)
5. Rear-LCD (connected to GPS box from main install)
Steps:
1. Connect both FD-AUDSPK-02 and AUD-6PIN-01 to GPS Audio Box
2. Connect white power plug to Main Harness
3. Insert green wire with pin to Main Harness (See figure 1)
Figure 1 Figure 1a
4. Connect 2-pin speaker plug to Rear-LCD speaker plug
5. Locate the dash center speaker
6. AUD-6PIN-01 has (4) wires labelled as SPK IN+, SPK IN-, SPK OUT+ and SPK OUT-
7. Cut the dash center speaker wire and connect radio side wires to SPK IN+ and SPK IN-
8. Connect speaker side wires to SPK OUT+ and SPK OUT-
** Normally, radio audio will by-pass audio box. When GPS talks, audio box
will mute factory audio output and provide GPS audio to the dash speaker. **
insert pin here
green wire from
FD_AUDSPK-02
If center dash top speaker is not available, connect
supplied external speaker to REAR-LCD for gps audio.
(Alternatively, use 2-1/4” speaker with gps audio box)

IGOPRIMOMAPPATHSETTING
1. PressSetup‐>NavigateSetup
2. PressontheFolderIcon
3. SelectthefollowingpathinStorageCard‐>cyb_navi.exe
4. PressHOMEbuttononthetopleftcornerandpress
NAVIGATION
5. Systemshouldabletoruninto“IGOPRIMO”
