Navilock NL-442U User manual

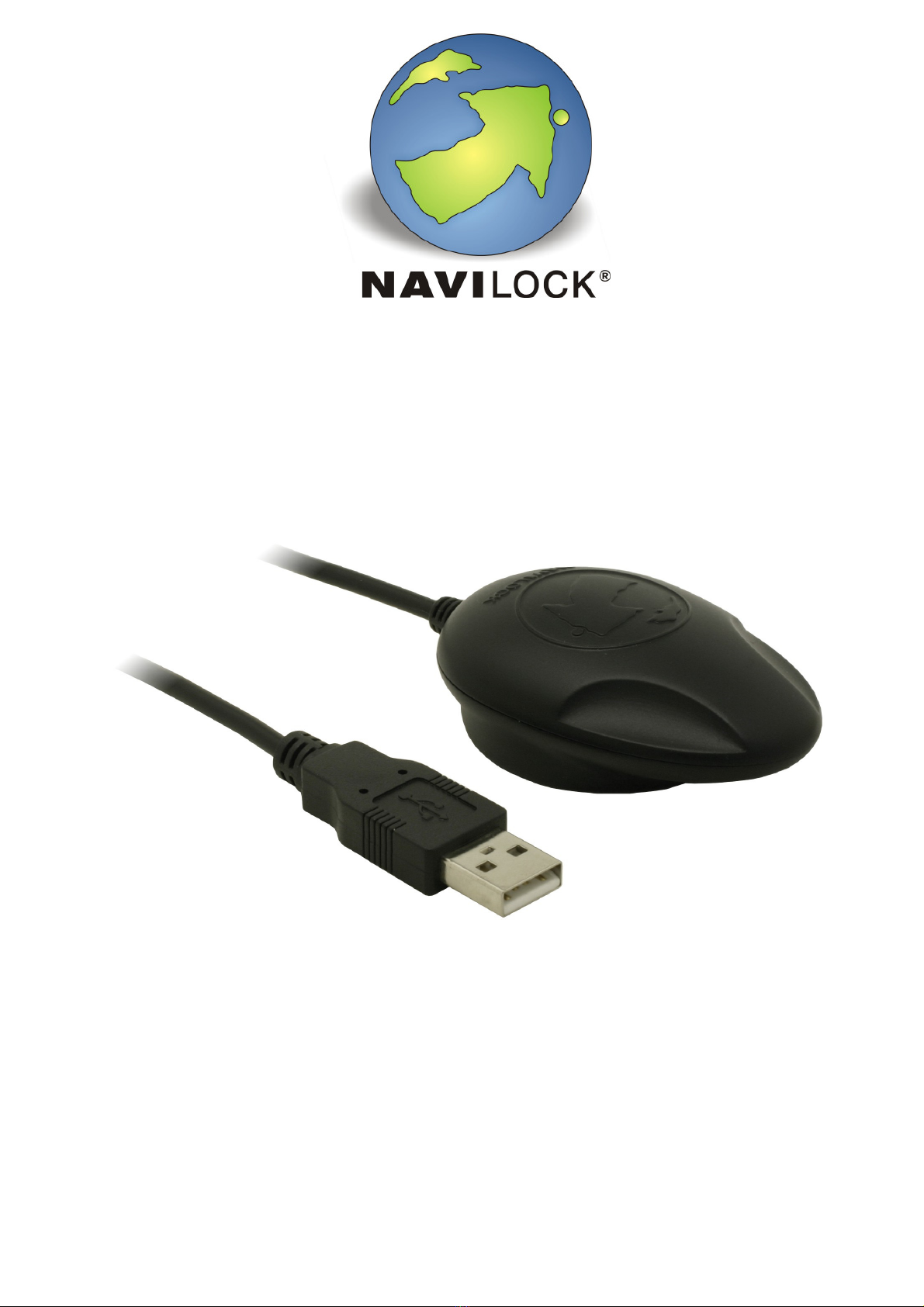

Navilock NL-442U Sirf Star IV GPS USB Receiver
User Manual (61994)

1. Introduction
The NL-442U is a USB GPS receiver with internal antenna and a 48 channel Sirf Star IV GPS
chipset. The USB interface enables the connection to a notebook, UMPC, Tablet- or Car PC.
Due to its extreme compact design it acts as ideal companion on every tour.
1.1. Package content*
1x Navilock NL-442U
1x 8cm CD ROM (incl. manual)
*Make sure that the product package contains all items before operation. If any item is
missing or damaged, then please contact your dealer immediately.
Important health- and security information
If you use this product you should take precautions to avoid damages and legal consequences. Follow precisely all security- and
handling advice and keep it carefully. Pay attention to all warning notices in the manual and on the device. To avoid injury, electric
shock, fire and damages on the device, please pay attention to the following notices.
Electrical Security
This product is intended for operation with power via USB connection. Any other application can be dangerous and lead to loss of any
warranty claim for this product.
NOTE: RECYCLE OR DISPOSE THE DEVICE ACCORDING TO THE APPLICABLE
REGULATIONS.
SECURITY ADVICE REGARDING DIRECT SUNLIGHT
Make sure the device is not exposed to over humidity and extreme temperature. Don't let the device for too long in a vehicle or other places where
the temperature can rise up to 60°C (140°F), e.g. on the dashboard, windowsill or behind a glas panel, which is exposed to high UV-Light or the
sun. In this case the device or the vehicle can be damaged.
Damages, which require a repairing
Disconnect in the following cases the device from the USB port and contact an authorized repairing specialist or the dealer:
• Liquidity or any item came into the product.
• The product was exposed to rain or liquidity.
• The product fell down and is damaged.
• There are visible signs of overheating.
• The product does not work properly despite of correct operation.
Avoid using the device right after high thermal fluctuation. Condensation in the device might occur if you expose the device to high
thermal or humidity fluctuation. In order to avoid damages wait until the humidity is evaporated, before using it.
NOTE: If you bring the device from a cold into a warm or from a warm into a cold environment,
let the device take over the temperature before switching it on.

2. Operation
Connect the USB receiver to a free USB port of your notebook etc.. The NL-442U will be
recognized by your Windows OS and a your system will try to install a driver. Cancel this
operation and start the respective installation from the CD ROM under the menu driver. Follow
the instructions of the installation. After the installation is finished please re-start your system.
Afterwards the GPS COM port will be available under ports in the device manager. Please set
this port in your navigation- or routeplanner software. Please do not use any other program at
the same time, which accesses this port.
3. LED indication
•Flash, with Satfix
•Light, without Satfix
4. Operating area
The NL-442U can be used as GPS receiver in Windows 2000/XP/Vista/7/8, Linux Kernel 2.4 and
all MAC OS. A respective driver can be found on the CD ROM.
5. Functiontest with GPS Info
1. Install the GPS Info software on your device. Choose the respective version for your system.
On the CD you can find versions for Windows 98Se, Me, 2000, XP, Vista, 7 and 8.
2. GPS Info is only a Test program and cannot be used for navigation or orientation. After testing
it has to be closed! Please make sure on a Pocket PC that it is really closed and not still active in
the background. It blocks the Com-Port and doesn't give access to a navigation- or routing
software on the Com-Port.

If you have the NMEA data inside the protocol window, but not data in your GPS software, you a
have wrong GPS setup in it. Please setup the right baud rate and com port. Close GPS Info
before you open a GPS software. It is not possible to use two GPS tools on one GPS Com port
at the same time.

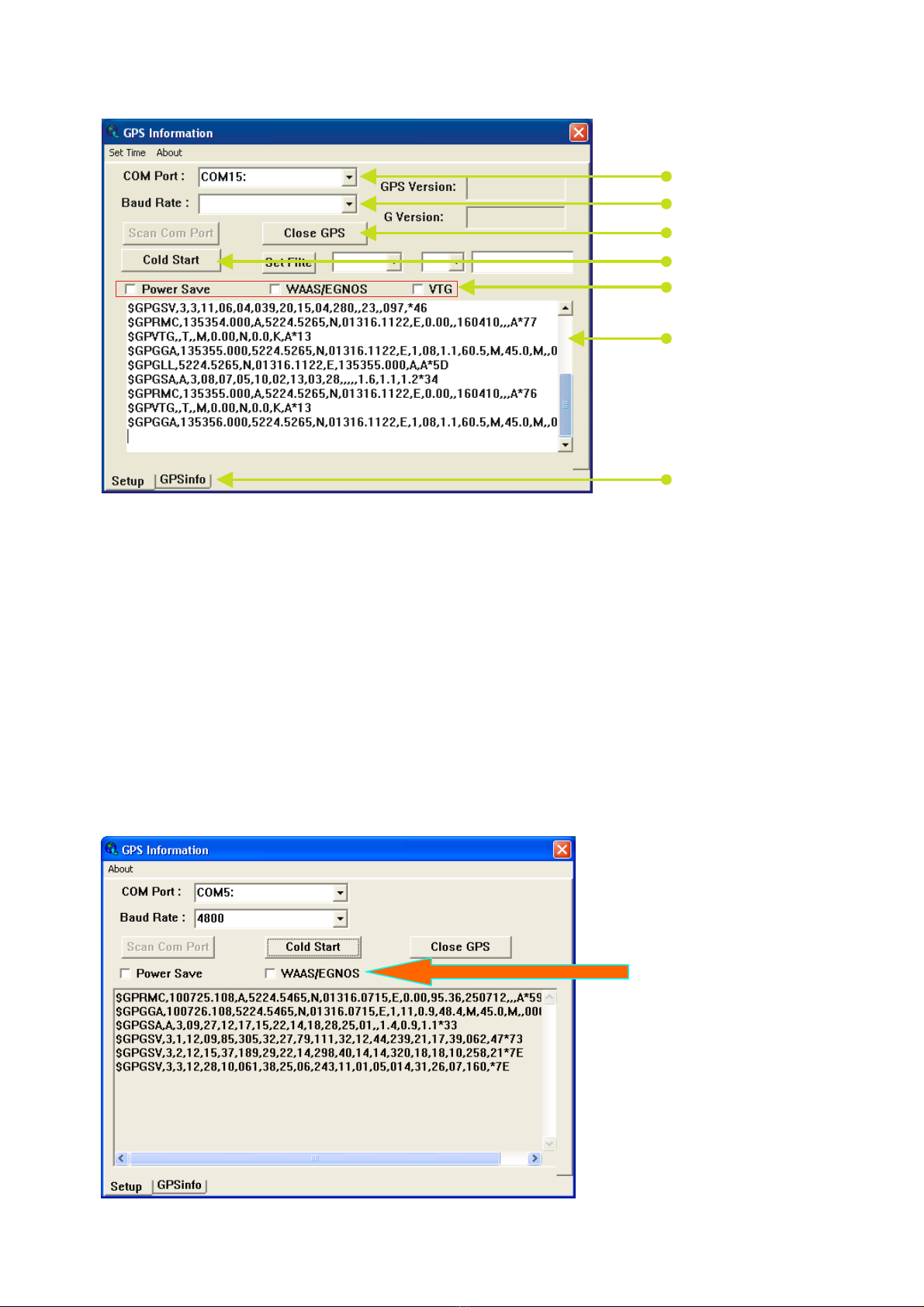

6. EGNOS Konfiguration with GPS Info
To switch over the NL-442U to WASS/EGNOS turn on, please switch over to the Setup mode,
and set the hook selection with WAAS / EGNOS.
4800
COM Port Setup
Baudrate setup
Switch on/off the GPSreception
Switch on/off additional functions
NMEA protokol window
Choise between the info and
satellite over head view
Switch to c old start function

Risk of explosion when exposed to fire !
Explosion hazard upon exposure to fire! Don't expose the receiver to permanent
temperature above 65°C/140°F!
7. Possible Sources of Malfunction and Troubleshooting
7.1. The blue LED does not light up after connecting it to the USB port. Make sure that the
PC or notebook is switched on. When indicated you might test the USB port with another
USB device. If another USB device works, please contact the support.
7.2. The blue LED does not light even after a long time of waiting, but you still don’t receive
any Satfix. The NL-442U needs up to 30 min. on a different continent for its first Satfix.
Therefor you need a free view to the sky. Choose a position for NL-442U which is far
away from a house wall. Your can also use the included USB extension cable. A house
wall causes high reflection and adds to time delay of the Satfix. Also the notebook can
effect the reception. Therefor a short extension cable is included in the package.
7.3. Your PC does not support the auto-start function and does not start the CD ROM
automatically. Please read under http://msdn2.microsoft.com/en-
us/library/Aa969329.aspx
7.4. The NL-442U got in contact with water jet (water jet like e.g. under the shower or heavy
rain with installation on the roof). Do not connect the receiver to the notebook etc.. It will
be completely destroyed and cannot be repaired anymore. Please send the receiver with
the description „water damage“ to our support. The support will disassemble, dry and test
the function of the receiver.
The Navilock repair center aims to be as fair as possible. Therefor we kindly ask you to give us
the true reason for a defect. During the fault analysis, the support needs to find out if a third
party, a water damage, a downfall damage, over voltage or wrong handling might be the reason
for that.
Often malfunctions are caused by minor errors. It is not always necessary to immediately replace
a product, because this will not correct a malfunction that is not caused by the GPS hardware.
Before contacting your dealer, please contact Navilock support. This will provide you with help in
a fast and easy manner, and help avoid unnecessary replacement.
In such cases, describe the malfunction as accurately as possible in writing, add the details for
your device and the used software as well as operating environment (operating system,
servicepack version, CPU size and type, memory size, HDD type and interface, etc. and send an
email to [e-mail].
A member of the support team will take care of your problem and work on a solution.
We hope you enjoy your Navilock product!

8. Technical Data
Chipset manufacturer/type Sirf Star IV GSD4e GPS
Channels 48
Sensitivity -163 dBm
Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz Chip Rate
Target accuracy:
Horizontal Position 2,5m 2D RMS SBAS enable
Time 1 micro-second. synced with GPS time
Speed 0.1m/sec. 95% (SA off)
Date: WGS-84
Protocol: NMEA-0183 (secondary: Sirf binary), GGA, GSA, GSV, RMC,
VTG, V 2.2 (VTG + GLL optional)
Detection rates:
Hot start 8 s on average (with ephemeris and almanac)
Warm start 35 s on average (with ephemeris but no almanac)
Cold start 35 s on average (neither almanac nor ephemeris)
Re-acquisition 0.1 s average (interruption recovery time)
Update rate: 1 Hz
Baud rate: 4800
Dynamic conditions:
Acceleration limit Less than 4g
Height limit 18000 meter (60000 Feet) max
Speed limit 515 meter/sec. (1000 Knots) max
Power:
Power connection 5V DC over USB connector
Current consumption average 60 mA
Connection type : USB
Operating temperature: -20 °C ~ 65 °C
Dimensions: 65 mm x 45 mm x 22 mm
OS Systems: Windows 2000/XP/Vista/7/8, Linux Kernel 2.4 and all MAC OSX
Certifications CE
FC
ROHS

9. Warranty period
Your GPS receiver will be repaired free of charge during the legal warranty period, provided the
damage was not caused by external impact, moisture, fall or improper use. Your dealer will
help you with words and deeds. Repairing goods can be send directly to
Navilock Repair Center
Beeskowdamm 13/15
D-14167 Berlin-Zehlendorf
Please send only parcels which are franked.
Please include a proof of purchase and a detailed error description. “doesn't work” or
“defect” is not detailed. Please point out also how often a defect occurs. Transmittals which
are not franked cannot be accepted, due to logistic reasons.
10. Support
If you have further questions, please contact our customer support:
[email protected] / www.navilock.com
You can find current product information on our homepage: www.navilock.com
11. Final clause
Information and data contained in this manual are subject to change without notice in
advance. Errors and misprints excepted.
12. Copyright
No part of this user's manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically, without
explicit written approval of Navilock.
Navilock is a registered trademark and cannot be used without the written permission of
its trademark owner. In no case shall it be modified or amended.
13. Third party trademarks
Marks, trademarks, products names and logos of third parties that are shown in this
documentation are marks or trademarks of their respective owners.

Declaration of conformity
The CE declaration of conformity can be found under http://www.navilock.de/support/ in the section of declaration of conformity.
