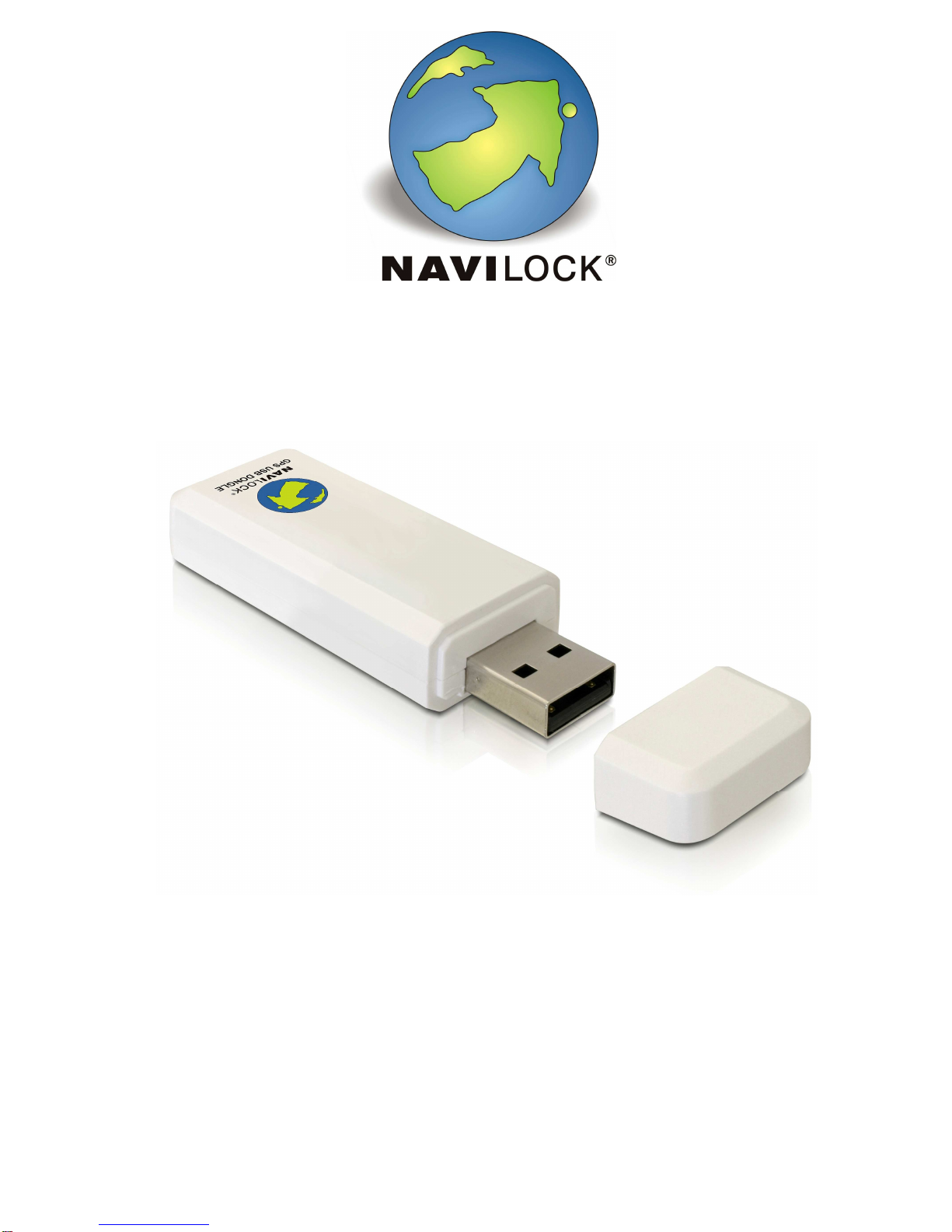

Navilock NL-464US User manual

NL-464US
User Manual (60122)

1. Introduction
The NL-464US is a USB GPS receiver with internal antenna and a 20 channel Sirf3 GPS chipset.
The USB interface enables the connection to a notebook, UMPC, tablet- or Car PC. Due to its
extreme compact design it acts as ideal companion on every tour.
1.1. Package content*
1x Navilock NL-464US
1x USB extension cable
1x 8cm CD ROM (incl. manual)
*Make sure that the product package contains all items before operation. If any item is
missing or damaged, then please contact your dealer immediately.
Important health- and security information
If you use this product you should take precautions to avoid damages and legal consequences. Follow precisely all security- and
handling advice and keep it carefully. Pay attention to all warning notices in the manual and on the device. To avoid injury, electric
shock, fire and damages on the device, please pay attention to the following notices.
Electrical Security
This product is intended for operation with power via USB connection. Any other application can be dangerous and lead to loss of any
warranty claim for this product.
NOTE: RECYCLE OR DISPOSE THE DEVICE ACCORDING TO THE APPLICABLE
REGULATIONS.
SECURITY ADVICE REGARDING DIRECT SUNLIGHT
Make sure the device is not exposed to over humidity and extreme temperature. Don't let the device for too long in a vehicle or other
places where the temperature can rise up to 60°C (140°F), e.g. on the dashboard, windowsill or behind a glas panel, which is
exposed to high UV-Light or the sun. In this case the device or the vehicle can be damaged.
Damages, which require a repairing
Disconnect in the following cases the device from the USB port and contact an authorized repairing specialist or the dealer:
• Liquidity or any item came into the product.
• The product was exposed to rain or liquidity.
• The product fell down and is damaged.
• There are visible signs of overheating.
• The product does not work properly despite of correct operation.
Avoid using the device right after high thermal fluctuation. Condensation in the device might occur if you expose the device to high
thermal or humidity fluctuation. In order to avoid damages wait until the humidity is evaporated, before using it.
NOTE: If you bring the device from a cold into a warm or from a warm into a cold environment,
let the device take over the temperature before switching it on.

2. Operation
Connect the USB receiver to a free USB port of your notebook etc.. The NL-464US will be
recognized by your Windows OS and a your system will try to install a driver. Cancel this
operation and start the respective installation from the CD ROM under the menu driver. Follow
the instructions of the installation. After the installation is finished please re-start your system.

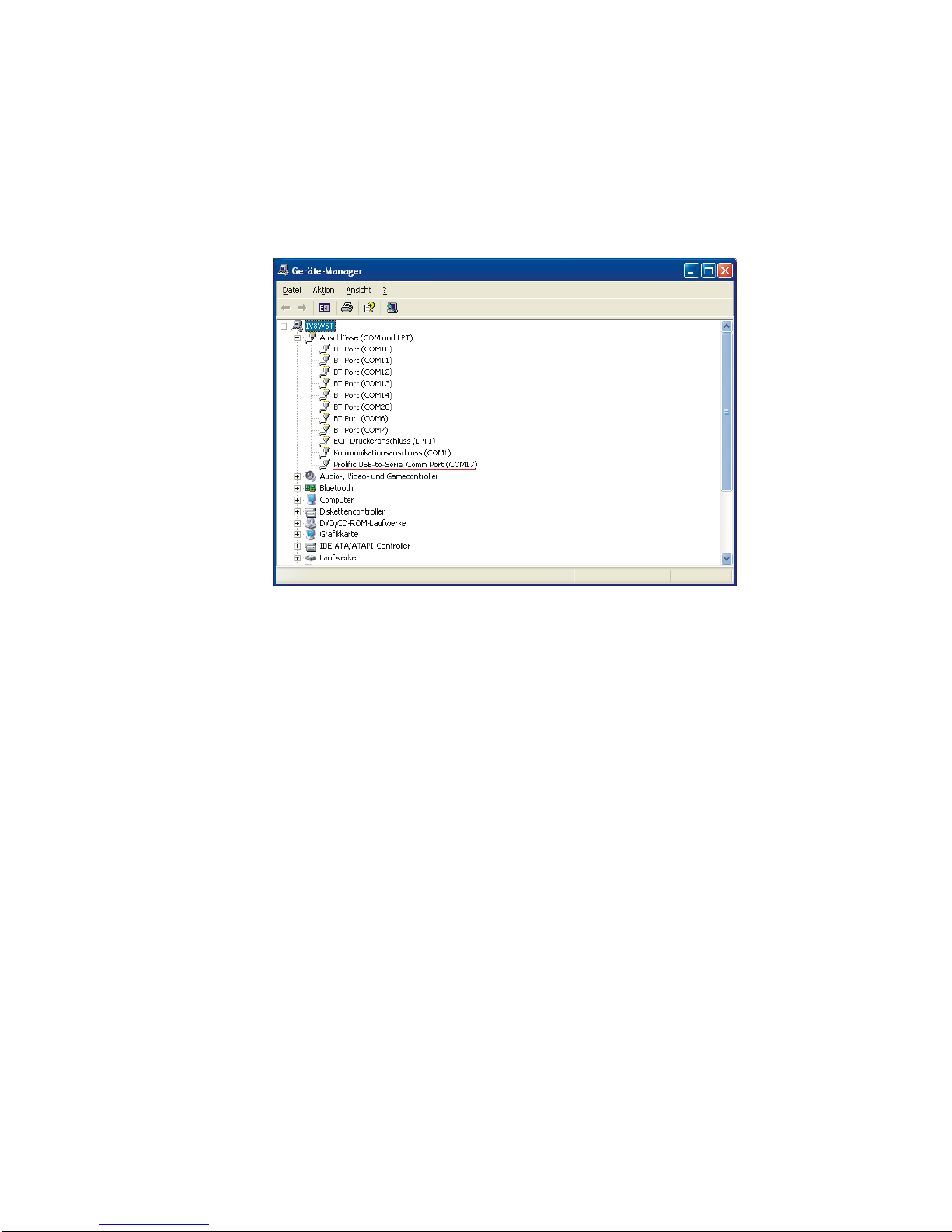

Afterwards the GPS COM port will be available under ports in the device manager. Please set
this port in your navigation- or routeplanner software. Please do not use any other program at
the same time, which accesses this port.
3. LED indication
•Flash, with Satfix
•Light, without Satfix
4. Operating area
The NL-464US can be used as GPS receiver under Windows 2000/XP/Vista/7, Linux RedHat
7.3, 8, 9, MacOS 8, 9 and 10. A respective driver can be found on the CD ROM.
5. Functiontest with GPS Info
1. Install the GPS Info software on your device. Choose the respective version for your system.
On the CD you can find versions for Windows 98SE, Me, W2K, XP, Vista, 7 and WM5 – also
usable for WM6.
2. GPS Info is only a Testprogram and cannot be used for navigation or orientation. After testing
it has to be closed! Please make sure on a Pocket PC that it is really closed and not still
active in the background. It blocks the Com-Port and doesn´t give access to a navigation- or
routing software on the Com-Port.
3. The PC version differs basicly only in its appearance from the Pocket PC version. The
amount of function remains the same.

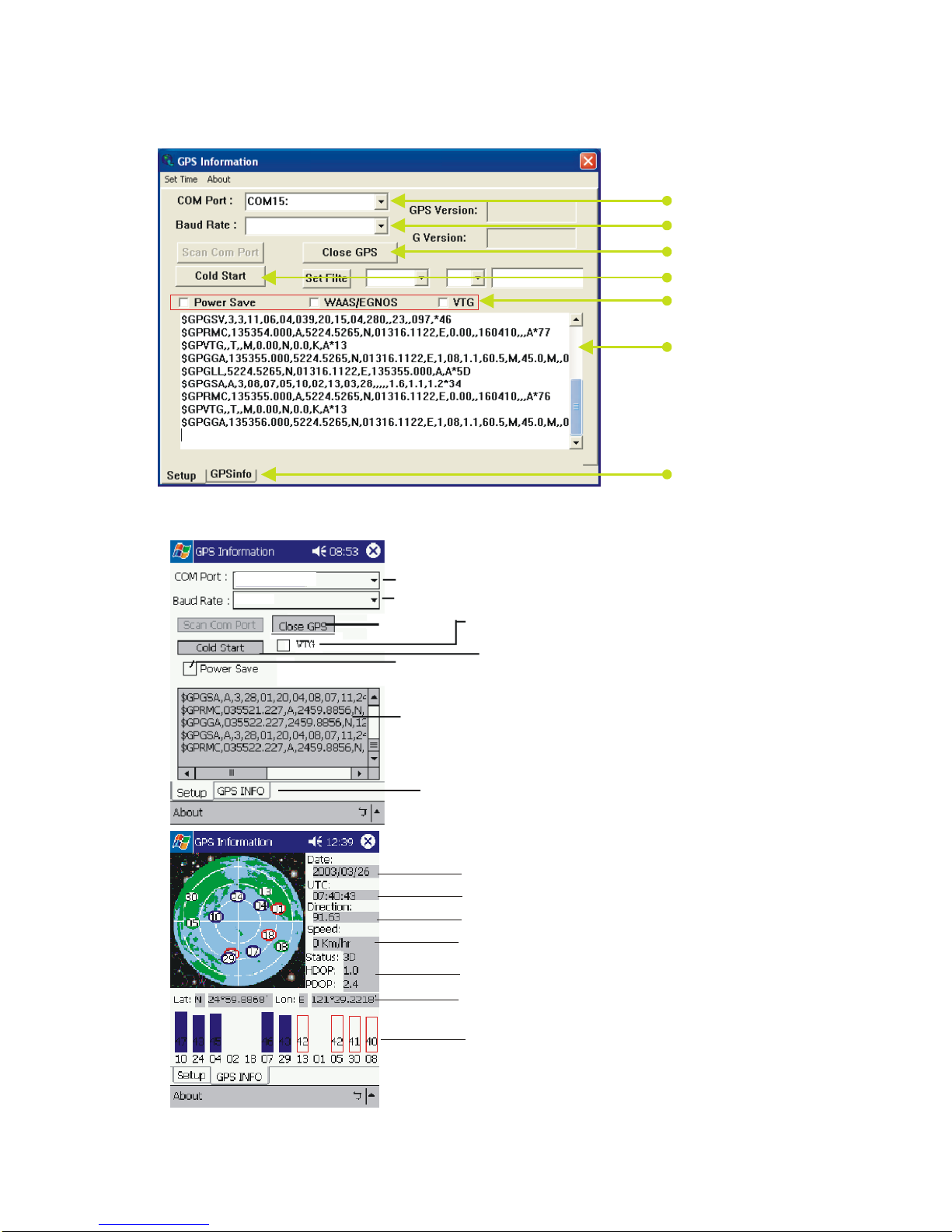

4. PC Version
5. Pocket PC/CE Version
Üö Example:
9 satellites located
5 of it are active
velocity
please se below
Direction
Date
Time
COM6l
9600
HDOP - Horizontal Dilution Of Position
COM Port choice
Baudrate choice
On/Off GPS
reception On/Off VTG support
Newstart (cold start)
power save mode, not usable for all receiver
NMEAsata monitor
Latitude & longitude
switch from the info window to the
below window
38400
COM Port choice
Baud rate choice
Turns on/off the GPS
switch on additional functions
NMEAProtocol window
Switching between this window
and the visual representation of the
NMEARecord
Cold start of the GPS receiver

Risk of explosion when exposed to fire !
Explosion hazard upon exposure to fire! Don't expose the receiver to permanent
temperature above 60°C/140°F!
6. Possible Sources of Malfunction and Troubleshooting
6.1 The blue LED does not light up after connecting it to the USB port. Make sure that the PC
or notebook is switched on. When indicated you might test the USB port with another
USB device. If another USB device works, please contact the support.
6.2 The blue LED does not light even after a long time of waiting, but you still don’t receive
any Satfix. The NL-464US needs up to 30min. on a different continent for its first Satfix.
Therefor you need a free view to the sky. Choose a position for NL-464US which is far
away from a house wall. Your can also use the included USB extension cable. A house
wall causes high reflection and adds to time delay of the Satfix. Also the notebook can
effect the reception. Therefor a short extension cable is included in the package.
6.3 Your PC does not support the auto-start function and does not start the CD ROM
automatically. Please read under http://msdn2.microsoft.com/en-
us/library/Aa969329.aspx
6.4. The NL-464US got in contact with water jet (water jet like e.g. under the shower or heavy
rain with installation on the roof). Do not connect the receiver to the notebook etc.. It will
be completely destroyed and cannot be repaired anymore. Please send the receiver with
the description „water damage“ to our support. The support will disassemble, dry and test
the function of the receiver.
The Navilock repair center aims to be as fair as possible. Therefor we kindly ask you to give us
the true reason for a defect. During the fault analysis, the support needs to find out if a third
party, a water damage, a downfall damage, over voltage or wrong handling might be the reason
for that.
Often malfunctions are caused by minor errors. It is not always necessary to immediately replace
a product, because this will not correct a malfunction that is not caused by the GPS hardware.
Before contacting your dealer, please contact Navilock support. This will provide you with help in
a fast and easy manner, and help avoid unnecessary replacement.
In such cases, describe the malfunction as accurately as possible in writing, add the details for
your device and the used software as well as operating environment (operating system,
servicepack version, CPU size and type, memory size, HDD type and interface, etc. and send an
email to [e-mail].
A member of the support team will take care of your problem and work on a solution.
We hope you enjoy your Navilock product!

7. Specification
GPS Chipset SiRF Star III e/LP
Frequency L1, 1575.42 MHZ
C/A Code 1.023 MHz chip rate
Channels 20 all-in-view tracking
Sensitivity -159 dBm
Accuracy
Position Horizontal 5m 2D RMS WAAS enabled
10m 2D RMS WAAS disabled
Velocity 0.1m/sec 95% (SA off),
Time 1 micro-second synchronized to GPS time
Datum
Datum WGS-84
Acquisition Rate
Hot start 1 sec., average (with ephemeris and almanac valid)
Warm start 38 sec., average (with almanac but not ephemeris)
Cold start 42 sec., average (neither almanac nor ephemeris)
Reacquisition 0.1 sec. average (interruption recovery time)
Protocol
GPS Protocol Default: NMEA 0183 (Secondary: SiRF binary)
GPS Output Data NMEA 0183 MEA0183 V2.2 protocol, and supports command:
GGA, GSA, GSV, RMC, VTG, GLL v2.2
GPS transfer rate Software command setting (Default : 38400,n,8,1 for NMEA )
Dynamic Condition
Acceleration Limit Less than 4g
Altitude Limit 18,000 meters (60,000 feet) max.
Velocity Limit 515 meters/sec. (1,000 knots) max.
Jerk Limit 20 m/sec**3
Temperature
Operating -20°~ 70°C
Storage -20°~ 80°C
Humidity Up to 95% non-condensing
Power
Voltage 5 Volt DC by USB Host input
Current 80mA typical
Physical Characteristics
Dimension 2.6”L x 0.9”W x 0.4”H (65.5L x 23W x 11H mm)
Unit Weight 0.04 lbs (20g)
Certifications
FCC USA (Covers requirements for CANADA ICES-003)
CE Europe
ROHS Europe

8. Warranty period
Your GPS receiver will be repaired free of charge during the legal warranty period, provided the
damage was not caused by external impact, moisture, fall or improper use. Your dealer will
help you with words and deeds. Repairing goods can be send directly to
Navilock Repair Center
Beeskowdamm 13/15
D-14167 Berlin-Zehlendorf
Please send only parcels which are franked.
Please include a proof of purchase and a detailed error description. “doesn´t work” or
“defect” is not detailed. Please point out also how often a defect occurs. Transmittals which
are not franked cannot be accepted, due to logistic reasons.
9. Support
If you have further questions, please contact our customer support:
[email protected] / www.navilock.com
You can find current product information on our homepage: www.navilock.com
10. Final clause
Information and data contained in this manual are subject to change without notice in
advance. Errors and misprints excepted.
11. Copyright
No part of this user's manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically, without
explicit written approval of Navilock.
Navilock is a registered trademark and cannot be used without the written permission of
its trademark owner. In no case shall it be modified or amended.
12. Third party trademarks
Marks, trademarks, products names and logos of third parties that are shown in this
documentation are marks or trademarks of their respective owners.

Declaration of conformity
The CE declaration of conformity can be found under http://www.navilock.de/support/ in the section of declaration of conformity.
Die
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became effective as European law on February 13
th
2003,
resulted in an all out change in the disposal of disused electro devices. The primarily purpose of this directive is the avoidance of
electrical waste (WEEE) and at the same time the support of recycling and other forms of recycling in order to reduce waste. The
WEEE-logo on the device and the package indicates that the device should not be disposed in the normal household garbage. You
are responsible for taking the disused electrical and electronical devices to a respective collecting point. A separated collection and
reasonable recycling of your electrical waste helps handling the natural resources more economical. Furthermore recycling of
electrical waste is a contribution to keep the environment and thus also the health of men. Further information about disposal of
electrical and electronical waste, recycling and the collection points are available in local organizations, waste management
enterprises, in specialized trade and the producer of the device.
Compliance with RoHS
This product complies with the directive 2002/95/EC of the European parliament and the council from January 27
th
2003 concerning
the restricted use of dangerous substances in electrical and electronical devices (RoHS) as well as its modification.
Edition: 05/2010
