NavRoad NR411 User manual

NR411
User’s manual

NOTICE:
Because of still development, specifications and
functions are subject to change without notice.
We do not take responsibility for misprints.

Warnings and Notices
For your safety, do not operate the controls of the
product while driving.
GPS satellite signals cannot typically pass through solid
materials (except glass). GPS location information is not
typically available inside buildings, tunnels, or
underground parking lots.
A minimum of GPS satellite signals is needed to
calculate your GPS position. Signal reception can be
affected by weather events or overhead obstacles (e.g.
dense foliage and tall buildings).
Other wireless devices in the vehicle may interfere with
the reception of satellite signals and cause the reception
to be unstable.
Charger
Do not attempt to service the unit. There are no
serviceable parts inside. Replace the unit if it is damaged
or exposed to excess moisture.
Do not use the adapter if the cord becomes damaged.
Connect the adapter to the proper power source. The
voltage requirements are found on the product case
and/or packaging.
Battery
This unit contains a non-replaceable internal Li-polymer
battery. The battery could be bursting or exploding and
releasing hazardous chemicals in case of over battery
specification and using in an abnormal conditions;
disassemble, crush, puncture, or dispose of the battery in
fire or water.
Abnormal operation could be dangerous to your human
body. Please be aware.
Use only the specified charger approved by the
manufacturer.
NOTICE: The battery in the device must be recycled or
disposed of properly.

ackage contents
NR 11 device
Windshield mount
Car holder
Car charger
Quick Guide
SD card (Option)
CD Companion

Hardware
Front / Back views
No Icon Component Description
1 Touch screen Displays the output of your
device. Tap with the top of
your finger on the screen to
select menu commands or to
enter information.
2 Charge Indicator
Glows orange
to indicate that
the battery is charging, and
turns green when the battery
is fully charged.
3 Speaker Emits system sounds.
Rear Label Area
Area for labeling device label
2
1
3
4

Top / Bottom / Left / Right views
No
Icon
Component
Description
1
Power Switch
Turns on and off the
device.
2
10.
11.
Reset Button
12.
Used to do a hard reset
of the device.
3
1 .
15.
Mini-USB port
16.
Connects to the charger
or USB cable
18.
19.
SD Card reader
20.
Accepts SD, SDHC and
MMC storage cards.
2
3
1
4

Using the mounting bracket.
Warning: Some countries prohibit the mounting of any
electronic device on the vehicle dashboard. Be sure to check
your local laws for acceptable mounting areas before
installing the car mount bracket.
Clean the mounting surface with a glass cleaner and a
clean cotton cloth.
If the ambient temperature is below +15°C (60°F), you
can warm the mounting area and the suction cup (e.g.
with a hair dryer) to ensure a strong suction bond.
1. Insert SD card (see Photo 1)
1.1 Insert your SD card into the SD slot of NavRoad before
you mount the device Holder to your NR 11.
Photo 1
2. Mounting the device holder and car mount with NR 11.
(see Photo 2)
2.1 Fit NavRoad in the device holder first, and then firmly
dock the NR 11 with device
holder on the car mount.
2.2 Press the suction cup of the car mount firmly against
to the windshield.
Photo 2
2.3 Press down the lever to fix the suction cup in place.
2. Adjust the angles of the arms to your proper viewing
position.

3. Charging your NR 11 device (see Photo 3)
3.1 Plug the car charger to the 12 V outlet of your car and
then connect the charger cable to the bottom of the
NR 11.
3.2 Your now can let your NR 11 have the continuous
power by the car charger.
Photo 3
NOTE: Your car may be required to switch the vehicle ignition
into the accessories position to power the cigarette lighter.
Your device will not charge with the ignition off.
Starting your device
Press the power button to turn on your device, then the main
menu screen appears.
Please be noted, the first time turning on your device may
take some time to obtain a valid GPS fix.
Resetting NR411
You should less than seldom need to reset your NR 11
under normal circumstances. However, in the event that a
problem cannot be corrected, you may reset the device by
the following way,
-- Soft reset by pushing the soft reset button on the
bottom right. (see Photo )

Using the device
To turn on the device
Turn on your device by pressing the power button on the
top right panel of the device.
Main menu

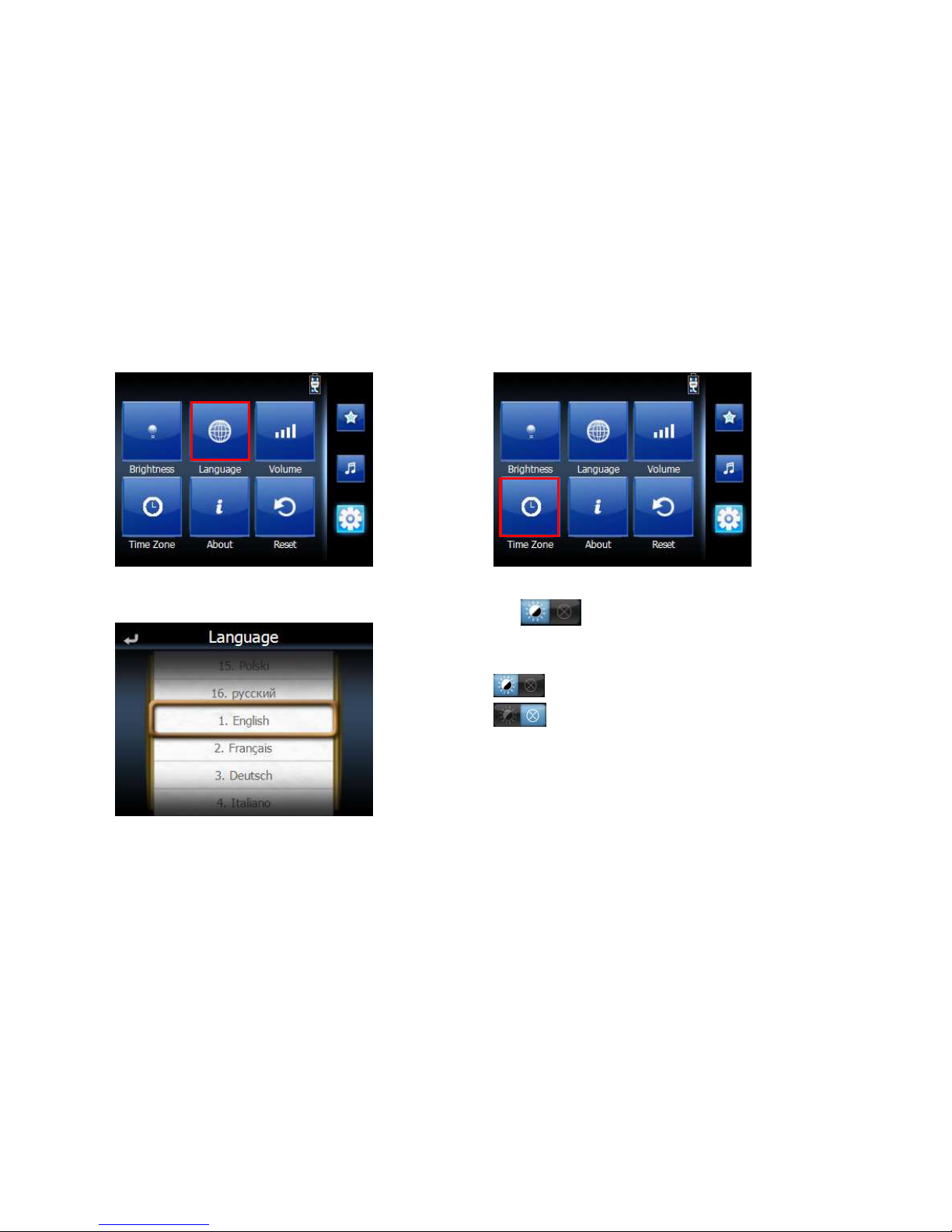

Settings:
Before first use it’s recommended to set the language and
timezone.
Tap “System” button
.

Tap “Language” button
It will display current language in central area
To drag, wheel scroll language tags.
To set the system time zone, tap “Time Zone” in System
Menu
Tap to set up the function of daylight savings
time.
Daylight savings time enabled.
Daylight savings time disabled.

Drag the Map to adjust the time zone.
Additional System settings

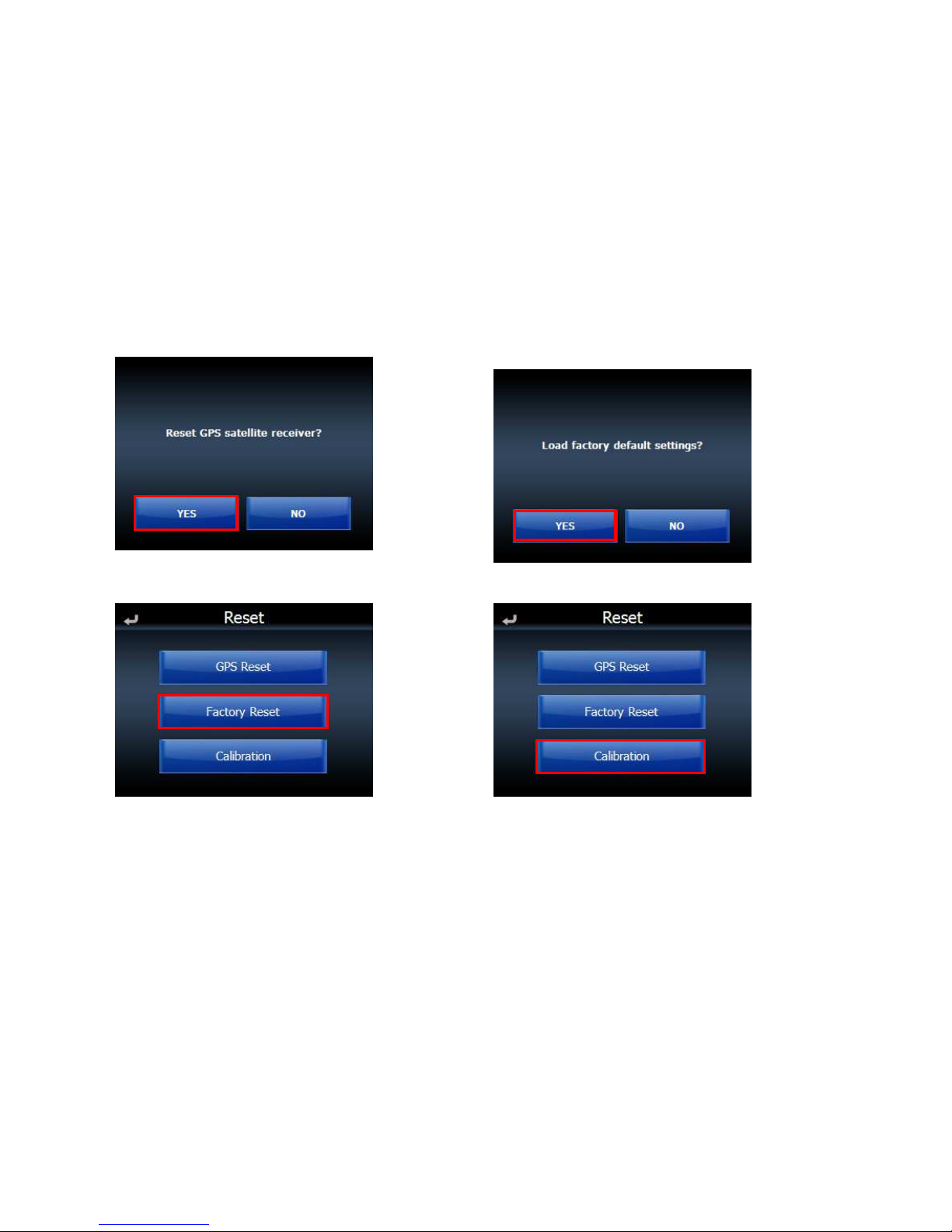

Reset
Tap “Reset”.
Tap “Reset GPS” icon
.

Tap “YES” button to reset GPS.
Tap “Factory Reset” icon in the Reset Menu.
Tap “YES” to do the Factory Reset

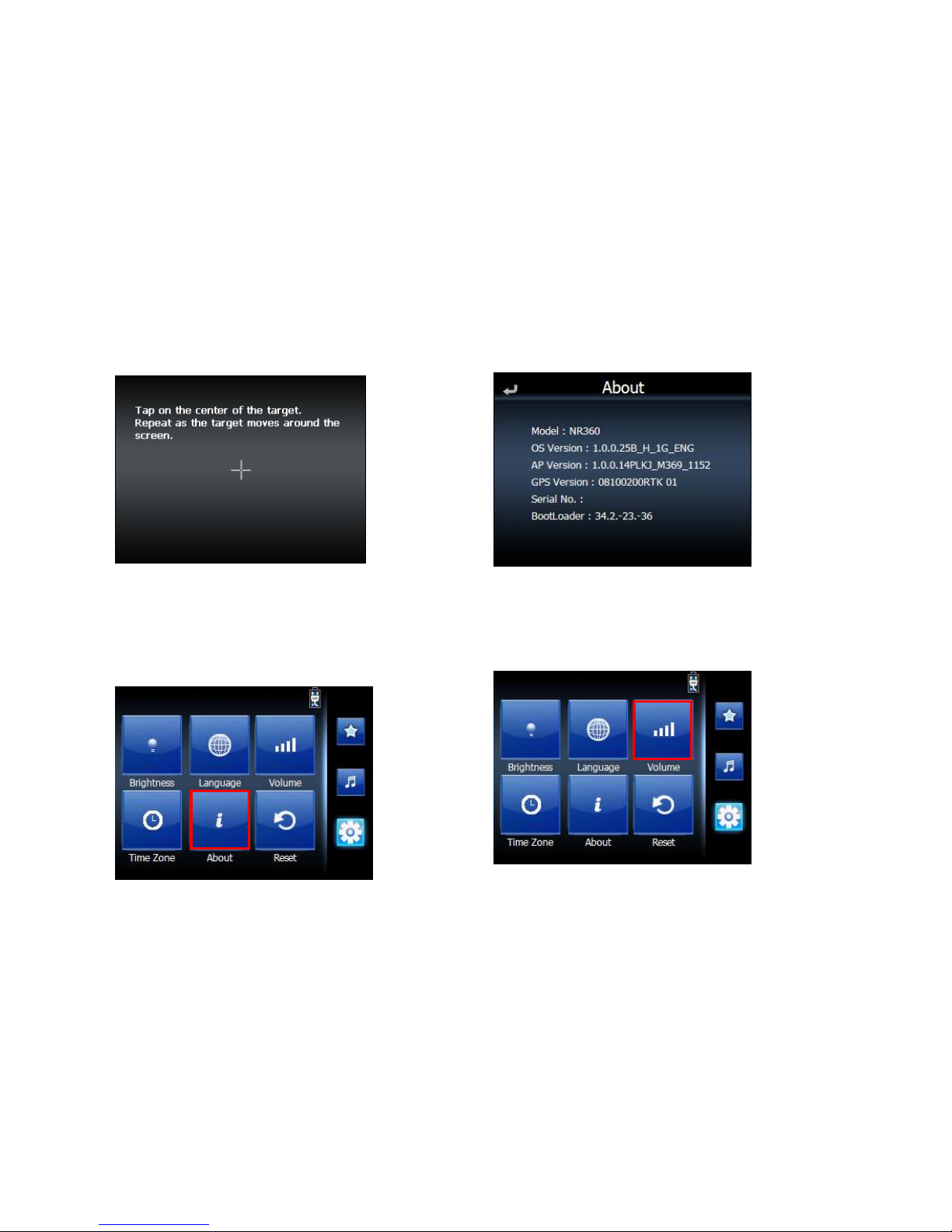

Tap “Calibration” icon in the Reset Menu.

Tap on the center of the target. Repeat as the target
moves around the screen.
System Information
Tap “About” icon in the System Menu.
You can view the OS version, GPS firmware version and
other system information.

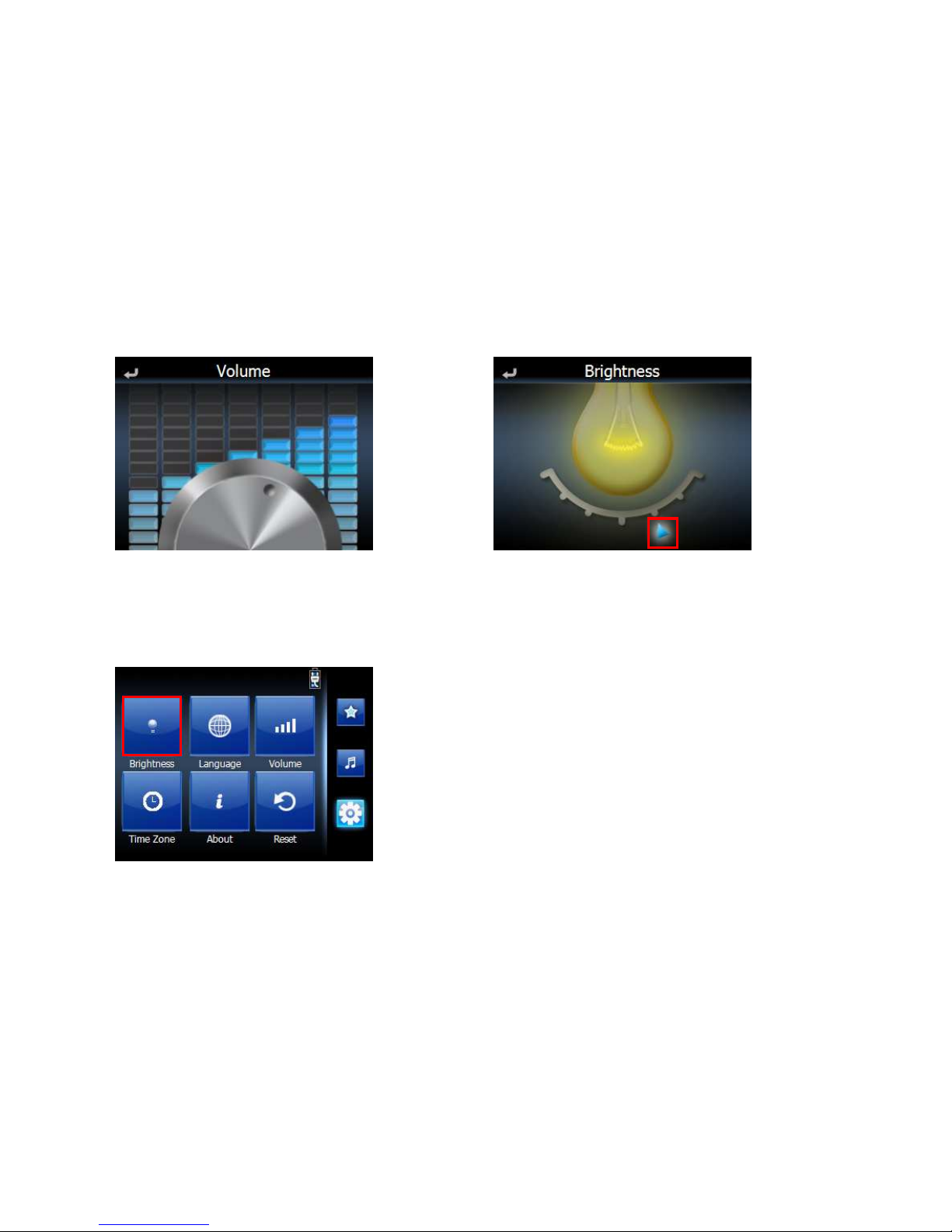

Volume
Tap “Volume” icon in the System Menu

To adjust the volume, drag the wheel.
Backlight brightness
Tap the Brightness icon in the System Menu
Adjust the Backlight brightness by dragging triangle icon.

Setting the favorite application
category
Add icon to the favorite page
Drag the icon to the category bar of favorite
That will show the icon in favorite page.
Delete icon to the favorite page
Drag the icon from Favorite page to category bar and drop
it.
Confirm dialog will pop up, just tap “YES” to delete.

M 3 layer
Tap “Music” icon in the Main Menu.
NOTE: You can also enter the music player by right category
bar

M 3 player functions
No Function
1 Return Return to list page
2 Songs List all song by alphabet
3 Album List all albums by alphabet.
Artist List all Artists by alphabet
5 Search Current play list
1
2
3
5

Tap the song on the music list
Tap bottom information bar will switch to song’s progress.

No Function
1 Play/Pause Play/Pause song
2 Forward Forward to next song.
3 Previous Reword to previous
song
Stop Stop music play.
5
Repeat Repeat play songs.
6 Random Random play songs.
7 Sound bar To adjust the sound.
8 Bottom info.
bar
No even: This place will
scroll song’s name and
total play time.
Tap: Tap this bar. Will
switch to song’s
progress.
9 Return Return to list page.
1
2
3
5
6
7
8
9

hoto Viewer
Support for JPEG files (Support Max. 500 photos).
Auto-scanning of supported files in the device’s SD card
Three viewing modes: Thumbnail, Full Screen, and Slide
Show.
Album support based on sub-directory contents.
Each subdirectory can hold multiple images and be used
as an individual album. For a more organized file search, it
is advisable to sort image files into sub directories based
on meaningful name or date. An example could be
“summer vacation pictures” or “New baby” or “2005 Best.”
Slide-show
Images are adjusted to fit the entire display area and are
shown in a 5-second interval.
Using the hoto Album
Tap “Photo” icon in the Main Menu.
Will list all thumbnails in SD card and store in PND mass
storage & SD folder.
