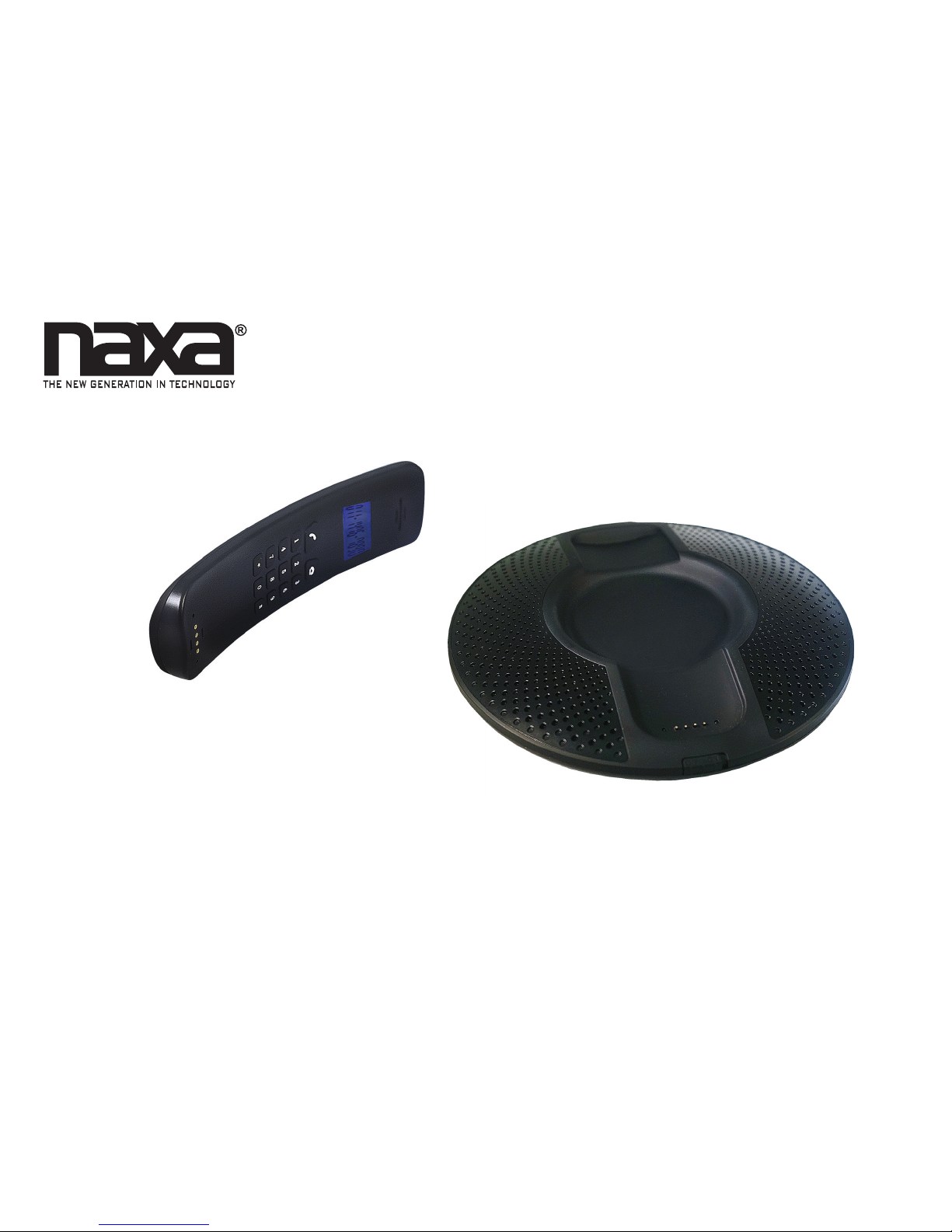

Naxa NAT-500 User manual
Portable Bluetooth®Handset and Speakerphone
NAT-500
Instruction Manual
Please read carefully before use and keep for future reference.
Page 2 Naxa Electronics
Thank You
We know you have many choices when it comes to
technology; thank you for choosing us here at Naxa
Electronics. Established in 2001 in Los Angeles, Califor-
nia, we are dedicated to delivering products that en-
tertain and delight.
We trust that you will be happy with your purchase.
Please read this manual carefully and save it for refer-
ence. You may also nd the latest FAQ, documentation,
and other product material at our website. Come visit
us on the web at www.naxa.com and see all that we
have to offer!
In the Box
Please take a moment to make sure that you have ev-
erything in the list below. Although we make every ef-
fort to ensure that each Naxa device is securely packed
and sealed, we know a lot can happen in between us
and you. If anything is missing, check back with your
local retailer to get immediate assistance. If they can-
not help you, please contact our Naxa Support team at
www.naxa.com/naxa_support.
•NAT-500 speakerphone/handset
•USB charge cable
•AUX cable
•AC power adapter
www.naxa.com Page 3

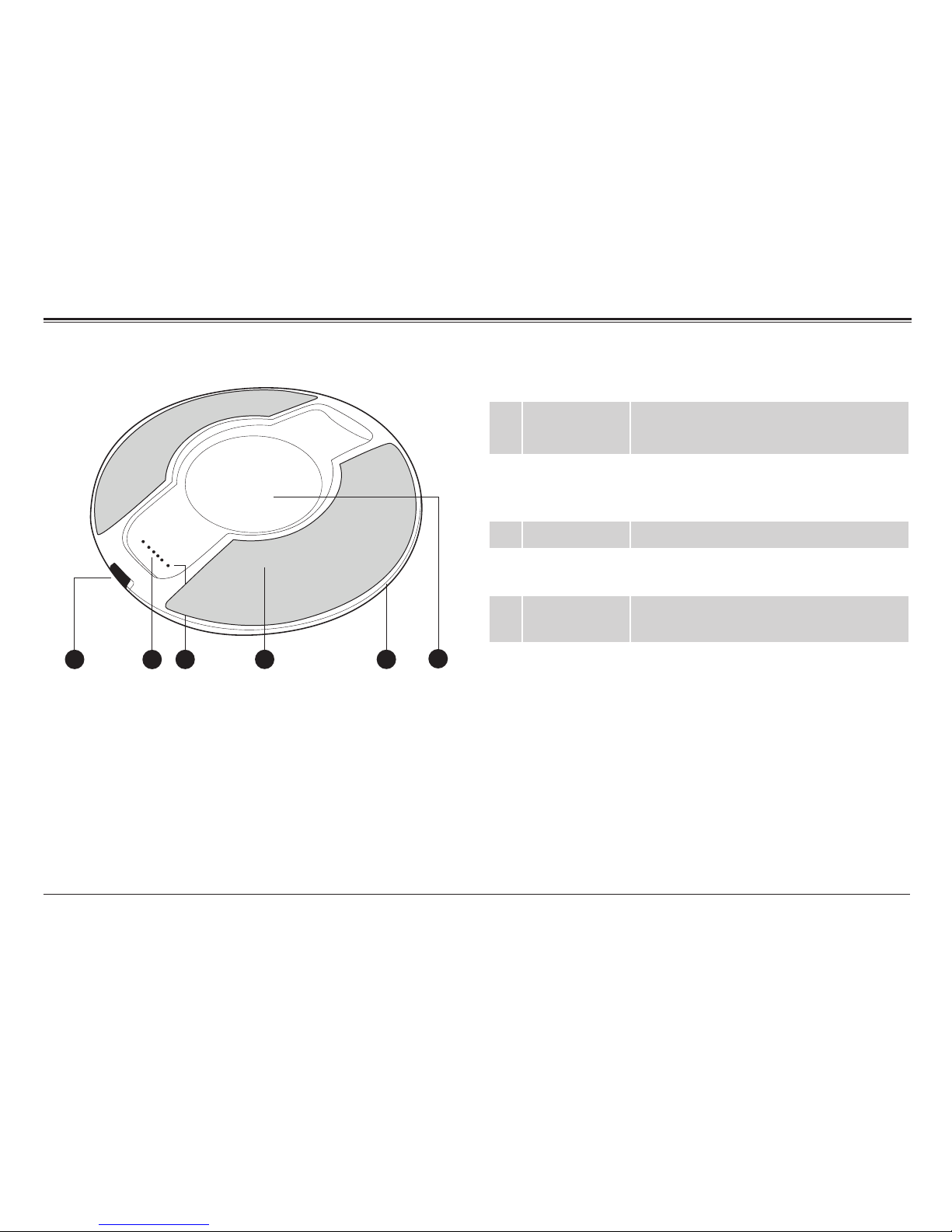

At a Glance
OFF ON
123
45
6
Part Description
1 Power switch Set to ON to turn the unit on.
Set to OFF to turn the unit off.
2 Hand-
set charge
connector
Charge contact for the handset when it is
placed in the cradle.
3 IR receiver IR connection to the handset.
4 Speaker High-performance speaker delivers
clear, dynamic sound.
5 Speaker base Bluetooth®speaker system and cradle
for the handset.
6 Handset
cradle
Place the handset in the cradle to store
it and to charge it.
Page 4 Naxa Electronics
711
8
9
10
Part Description
7 Memory card
slot
Play compatible MP3 les from a mi-
croSD or microSDHC memory card.
8 Charge LED Lights up to indicate the charge status.
9 Power In jack
(Micro USB)
Use the included AC power adapter to
connect the speaker base to a power
supply.
10 AUX jack 3.5 mm line-in connection to play audio
devices without Bluetooth®
11 USB/Charge
Port
Charge USB devices (such as a cellphone)
or play compatible MP3 les from a USB
ash memory drive.
www.naxa.com Page 5

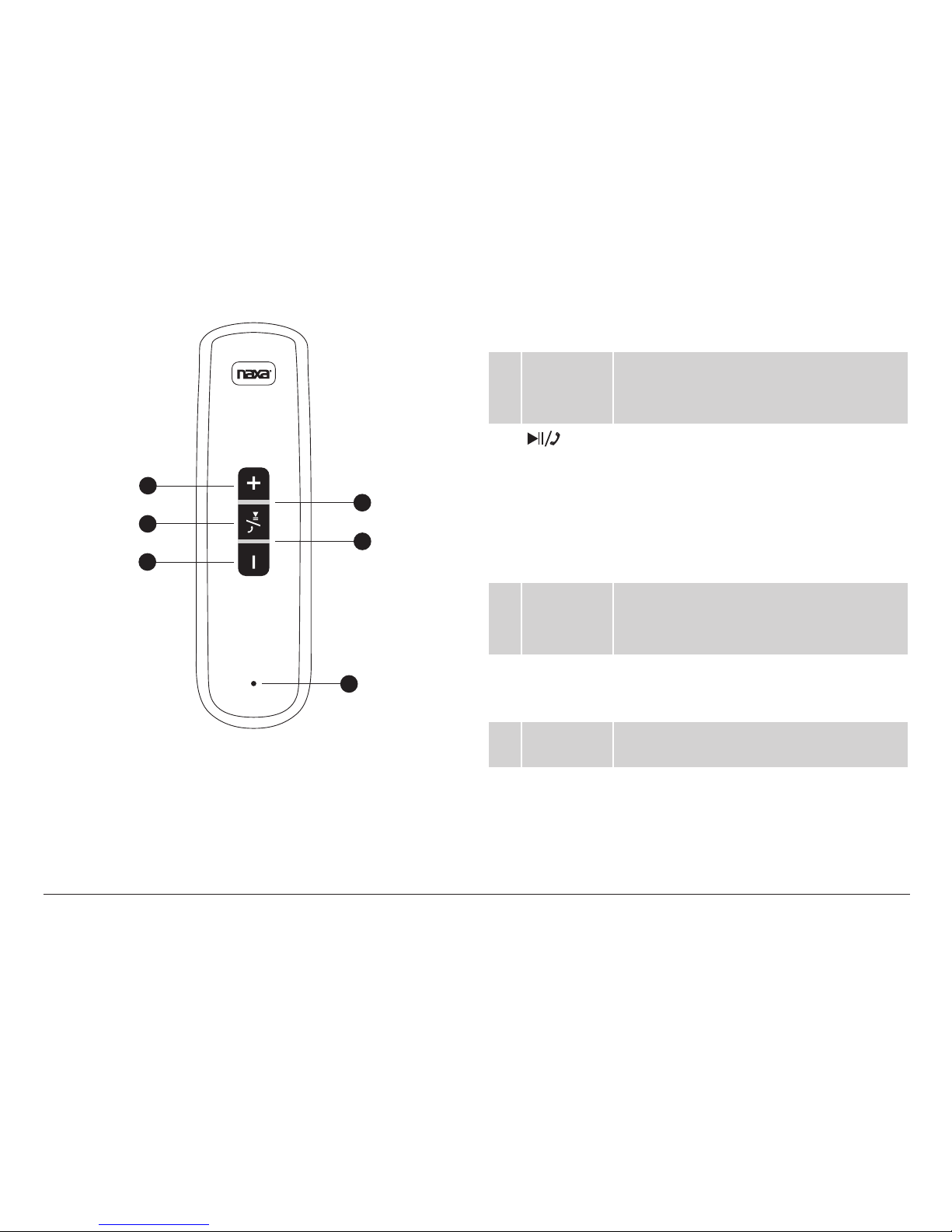

12
15
16
17
13
14
Part Description
12 + Next: Press to skip to the next track.
Volume up: Press and hold to increase the
volume.
13 Mode: Press and hold to switch between
Bluetooth®, Music Play and AUX modes.
Play/pause: Press to start, pause, or re-
sume playback.
Phone: Control the call functions when the
speakerphone is connected to a Bluetooth
enabled phone.
14 – Previous: Press to skip to the previous track.
Volume down: Press and hold to decrease
the volume.
15 Mode LED Blue: Bluetooth mode.
Green: Music Play mode.
Orange: AUX mode.
16 Status LED Flashing blue: Ready to pair.
Steady blue: Connected.
17 Microphone Built-in microphone for hands-free speak-
erphone functions.
Page 6 Naxa Electronics
18
19
20
23
24
21
22
25
18 Handset
speaker
Listen to phone calls on the handset.
19 Screen Displays call and status information.
20 Press to dial a number or to answer an
incoming call.
21 Press to end a call.
Press and hold to turn the handset on or
off.
22 Keypad Use the keypad to dial a number.
23 IR transmitter IR connection with the speaker base.
24 Hand-
set charge
connector
Charge contact for the handset when it is
placed in the cradle of the speaker base.
25 Handset
microphone
Speak into the microphone when making
phone calls with the handset.
www.naxa.com Page 7
Connecting Power
Your speakerphone has an integrated rechargeable
battery. Upon initial use, the battery should be charged
fully to ensure optimal performance and battery life.
Use the included USB power adapter to connect the
speaker to an AC 100-240V power source to charge the
battery.
•Connect the small end of the included USB power
adapter cable to the Power In jack of the speaker-
phone [9].
•Connect the two-pronged adapter to an AC 100-
240 V power supply.
The Charge LED [8] will light red when the
speakerphone is charging.
⚠To optimize the performance and longevity
of the battery, please charge it fully before
using the speakerphone for the rst time.
⚠The battery used in this device may present
a re or chemical burn if mistreated. Do not
disassemble, incinerate, or heat the battery.
Do not leave the battery in a place subject
to direct sunlight, or in a car with its win-
dows closed.
Do not connect the unit to a power source
other than that which is indicated here or on
the label as this may result in the risk of re
or electric shock.
To turn the speakerphone on, set the Power switch [1]
to the ON position.
To turn the speakerphone off, set the Power switch [1]
to the OFF position.
Page 8 Naxa Electronics
Charging a USB Device
When the speaker base is connected to power, you can
use it to charge another USB device such as a mobile
phone. Instead of using your mobile phone at home,
leave it charging and use the NAT-500 speakerphone/
handset instead!
To charge your phone or other USB device:
1. Using the USB cable that was included with your
phone or device, connect the large end to the USB/
Charge port of the speakerphone [11].
2. Connect the smaller end to your USB device.
The USB/Charge port power output is DC
5 V, 1 A. Devices with larger screens may
require more current and take longer to
charge.
Using Bluetooth®Mode
Pairing a Device with Bluetooth®
A device must be paired with the speakerphone before
using them together for the rst time.
Make sure Bluetooth is enabled on your device before
attempting to pair it.
Set your speakerphone to Bluetooth mode (press and
hold until the Mode LED [15] is blue). The speaker-
phone will automatically search for a paired device. If it
nds a paired device, it will connect to it automatically.
If it does not detect a paired device, it will switch to
Pairing mode (the Status LED [16] will ash blue). When
the speakerphone is in Pairing Mode, it will announce
itself to nearby Bluetooth devices and accept pairing
requests from them.
1. The speakerphone will announce itself as the NAXA
NAT-500. To nd it, use your device to search for
nearby Bluetooth devices. (This function is usually
in the Bluetooth settings menu; refer to your de-
www.naxa.com Page 9
vice’s instruction manual to learn more.)
2. Select the NAXA NAT-500 from the list of found
devices.
3. If your device asks for a passcode, use “0000” to
complete the pairing process.
When the speakerphone is paired and connected to a
device, the Status LED [16] will light a steady blue.
If the pairing process fails, turn the speak-
erphone off and then back on, set the
speakerphone to Bluetooth mode, and then
repeat steps 1-3.
Make sure that the volume of your device is
set to its maximum level; use the speaker-
phone to adjust the volume to a comfort-
able level.
Bluetooth®Phone Controls
When the speakerphone is connected to a Bluetooth®
enabled phone:
To do this... ...do this
Answer a call Press [13].
Press [20] if the handset
is not on the cradle.
End a call Press [13].
Press [21] if the handset
is not on the cradle.
Reject an incoming call Press and hold [13].
Call back the last number Press [20] twice quickly.
Page 10 Naxa Electronics
Bluetooth®Speaker Controls
When the speakerphone is connected to a Bluetooth®
device:
To do this... ...do this
Start, pause, or resume audio
playback
Press [13].
Skip to the next track Press +[12].
Skip to the previous track Press –[14].
Increase the volume level Hold +[12].
Decrease the volume level Hold –[14].
Your Bluetooth device must support re-
mote functions in order to use the speaker
controls.
Using the Music Player
(MP3)
Your speakerphone can play MP3 les from microSD/
microSDHC memory cards as well as USB ash memory
devices. Load memory cards in the memory card slot
[7]; USB ash drives should be plugged in to the USB
port [11]. The speakerphone will switch to Music Player
mode automatically when it detects a USB ash drive
or memory card; the Mode LED [15] will turn green.
The memory card and USB reader cannot
be used at the same time. Please connect
only one type of memory device at a time.
www.naxa.com Page 11
When the speakerphone is in MP3 Music Player mode:
To do this... ...do this
Start, pause, or resume audio
playback
Press [13].
Skip to the next track Press +[12].
Skip to the previous track Press –[14].
Increase the volume level Hold +[12].
Decrease the volume level Hold –[14].
⚠Do not remove memory cards from the
speakerphone while it is on. Doing so may
damage the speakerphone system or
memory card.
Using AUX Input Mode
Play devices without Bluetooth®by using the AUX con-
nection. The included 3.5mm AUX cable is required to
make this connection.
1. Connect the 3.5mm plug of the included AUX adapt-
er to the device’s headphone or line-out jack.
2. Connect the other 3.5mm plug to the AUX jack of the
speakerphone [10].
3. Press and hold to switch the speakerphone to
AUX Input mode; the Mode LED [15] will turn orange.
4. Turn on the device. Lower the volume on both the
device and speakerphone.
5. Set the device volume to 80% of its maximum and
then start playback.
6. Press and hold +[12] to gradually increase the vol-
ume of the speakerphone to a comfortable level.
Use the connected AUX device to control all
functions in AUX mode. The speakerphone
can only be used to adjust the volume.
Page 12 Naxa Electronics
Warnings and Precautions
The lightning ash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of unin-
sulated “dangerous voltage” within the product’s enclosure that
may be of signicant magnitude to constitute risk of electric
shock
The exclamation point within an equilateral triangle is intended
to alert the userto the presence ofimportant operation and ser-
vicing instructions in the literature accompanying the appliance.
CAUTION
• Do not block the ventilation openings or holes.
• Do not place any naked ames (such as lighted candles) on the ap-
paratus.
• When discarding batteries, follow all local rules and laws governing the
disposal of batteries. Consider the environmental impact of your actions!
• To prevent re or shock hazard, do not expose this appliance to rain
or moisture.
Important Safety Information
1. Read Instructions: All the safety and operating instructions should be
read before the product is operated.
2. Retain Instructions: The safety and operating instruction should be
retained for future reference.
3. Heed Warnings: All warnings on the product and in the operating in-
structions should be adhered to.
4. Follow Instructions: All operating and usage instructions should be
followed.
5. Cleaning: Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments: Use only attachments recommended by the manufac-
turer. Use of other attachments may be hazardous.
7. Water and Moisture: Do not use this product near water (e.g., near a
bathtub, washbowl, kitchen sink, laundry tub, in wet basements, or
near a swimming pool and the like).
8. Accessories: Do not place this product on an unstable
cart, stand, tripod, bracket, or table. Use only with
carts, stands, tripods, brackets, or tables recom-
mended by the manufacturer or sold with the
product. Any mounting of the product should fol-
low the manufacturer’s instructions and should use
a mounting accessory recommended by the manu-
facturer. A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the
product and cart combination to overturn.
www.naxa.com Page 13
9. Ventilation: Slots and openings in the cabinet are provided for ven-
tilation to ensure reliable operation of the product and to protect it
from overheating. These openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufacturer in-
structions have been adhered to.
10. Power Sources: This product should be operated only from the type of
power source indicated on the rating label. If you are not sure of the
type of power supply to your home, consult your product dealer or
local power company. For products intended to operate from battery
power or other sources, refer to the operating instructions.
11. Grounding or Polarization: This product may be equipped with a po-
larized alternating-current line plug that has one blade wider than
the other. This plug will only t into the power outlet in one direction.
This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the direction of the plug. If the plug should
still fail to t, contact an electrician to replace the obsolete outlet. Do
not defeat the safety purpose of the polarized plug.
12. Power-Cord Protection: Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords at plugs, conve-
nience receptacles, and at the point which they exit from the product.
13. Protective Attachment Plug: The product may be equipped with an at-
tachment plug with overload protection. This is a safety feature. See
the operating instructions for replacement or directions to reset the
protective device. If replacement of the plug is required, be sure the
service technician has used a replacement plug that has the same over-
load protection as the original plug as specied by the manufacturer.
14. Lightning: For added protection for this product, unplug it from the
wall outlet during a lightning storm or when it is left unattended and
unused for long periods oftime. This will prevent damage to the prod-
uct due to lightning or power-line surges.
15. Overloading: Do not overload wall outlets, extension cords, or inte-
gral convenience receptacles as this can result in a risk of re or elec-
tric shock.
16. Object and Liquid Entry: Never push objects of any kind into this prod-
uct through openings as they may touch dangerous voltage points or
short-out parts that could result in a re or electric shock. Never spill
liquid of any kind on the product.
17. Servicing: Do not attempt to service this product yourself as open-
ing or removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualied service personnel.
18. Damage Requiring Service: Unplug this product from the wall outlet
and refer servicing to qualied service personnel under the follow-
ing conditions: a) when the power-supply or plug is damaged; b) if
liquid has been spilled or if objects have fallen into the product; c) if
the product has been exposed to rain or water; d) if the product does
not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as
improper adjustment of other controls may result in damage and will
often require extensive work by a qualied technician to restore the
product to its normal operation; e) if the product has been dropped or
damaged in any way; f) when the product exhibits a distinct change in
performance—this indicates a need for service.
19. Replacement Parts: When replacement parts are required, be sure
that your service technician has used replacement parts specied
by the manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in re, electric shock, or
other hazards.
Page 14 Naxa Electronics
20. Safety Check: Upon completion of any service or repairs to this
product,ask the service technician to perform safety checks to ensure
that the product is in proper operating condition.
21. Wall or Ceiling Mounting: The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
22. Heat: The product should be situated away from heat sources such as
radiators,heat registers, stoves, or other products (including ampli-
ers) that produce heat.
WARNING:
This product contains lead, a chemical known to the State of California to
cause cancer and birth defects or other reproductive harm. Wash hands
after handling.
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the lim-
its for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful in-
terference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to ra-
dio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION ON MODIFICATIONS
Any changes or modications not expressly approved by the grantee of
this device may void the authority granted by the FCC to operate the
equipment.
Trademark & Regulatory Statements
Bluetooth®is a registered trademark of Bluetooth SIG, Inc. Other trade-
marks and names are those of their respective owners.
microSD and microSDHC are trademarks or registered trademarks of SD-
3C, LLC in the United States, other countries or both.
www.naxa.com Page 15
Troubleshooting Guide
This guide lists common problems and their solutions. Please refer to this guide before requesting service. If you
need further assistance, please contact Naxa Technical Support (www.naxa.com/naxa_support/).
Symptom Possible Cause Possible Solution
There is no
power.
The battery is
exhausted.
Connect the unit to a
power source to charge it.
The speaker hasn’t
been turned on.
Set the Power switch to ON
to turn the speaker on.
The handset hasn’t
been turned on.
Press and hold [21] to
turn the handset on.
The device
is unable to
connect to the
speaker.
The speaker is not in
pairing mode.
Reset the speaker (turn
it off and then on again.)
Switch to Bluetooth mode.
The Status LED [16] will
ash blue to indicate that
it is ready to pair.
Bluetooth may be
disabled on your
device.
Make sure Bluetooth is
enabled on your device.
Turn it on if it isn’t.
Symptom Possible Cause Possible Solution
The device is
connected but
there is no
sound.
The AUX connector
may be in use.
Disconnect all cables from
the AUX jack [10].
Your device may be
beyond the effective
range of the speaker.
Move closer to the speaker.
Range may be affected
adversely by environmen-
tal conditions.
Your device may not
be in playback mode.
Ensure that your device is
operating correctly. Start
playback on your device.
Page 16 Naxa Electronics
Specications
Speaker Output 3 W x 2 RMS
Frequency
Response
150-18,000 Hz
Removable Memo-
ry Support
microSD, microSDHC, USB (max 32 GB)
Playable Media
Formats
MP3
Input Bluetooth® 3.0 + EDR
3.5mm AUX audio
Built-in microphone
Power Rechargeable battery, speaker (1500 mAh)
Rechargeable battery, handset (200 mAh)
AC 100-240 V power adapter
USB charge port (DC 5V, 1 A)
Play Time* 5 hours
* Play time will vary depending on use and environmental conditions.
Note: Products are improved continuously. We reserve the right to modify
the product and specications without prior notice.
Support
If you have problems with your device, please consult
the instructions in this manual. Please also visit us
on the web at www.naxa.com to get up to the minute
news, alerts, and documentation for your device. For
additional assistance, please contact Naxa Technical
Support.
NAXA Technical Support
2320 East 49th St.
Vernon, CA 90058
http://www.naxa.com/naxa_support/
www.naxa.com Page 17
Table of contents
