NEC DV-5500A User manual

Internal DVD-ROM Reader
DV-5500A
User's Manual
EDV5500A.PM5 99.4.26, 5:32 PM1

Laser Safety Information
This drive employs a laser. Do not remove the cover or attempt to service this device when
connected due to the possibility of eye damage.
CAUTION
Use of control of adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.

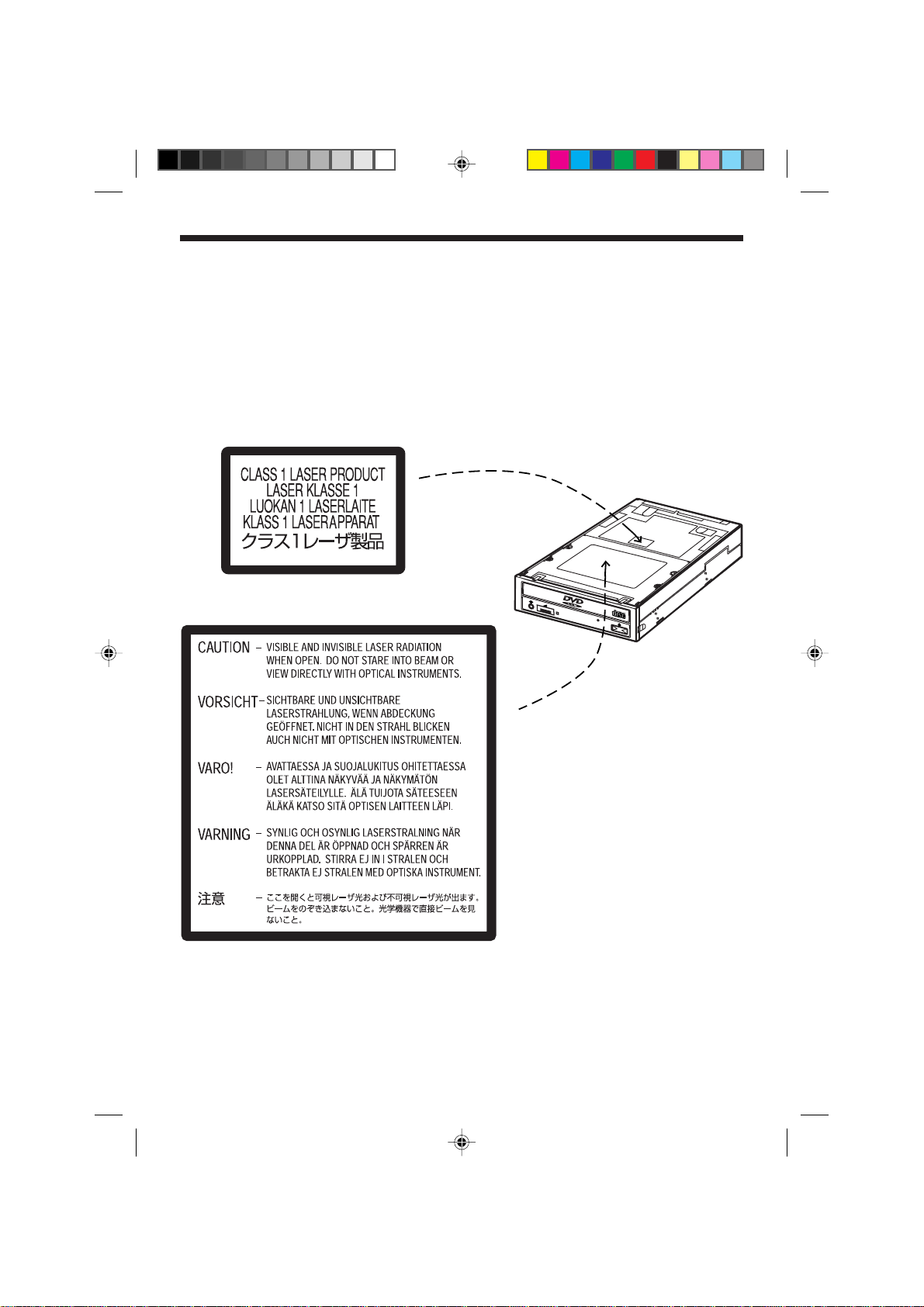

These labels are located on upper enclosure of this drive.
Laser Specification
(for CD)
Type : Semiconductor laser GaAIAs
Wave length : 770 - 810 nm (at 25˚C)
Output : 5 mW
(for DVD)
Type : Semiconductor laser InGaAIP
Wave length : 635 - 665 nm (at 25˚C)
Output : 5 mW
EDV5500A.PM5 99.4.26, 5:32 PM2

2
NOTICE
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnot
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
— Consult the dealer or an experienced radio/TV technician for help.
Thisdigital apparatusdoes notexceed theClass Blimits forradio noiseemissions fromdigital
apparatus as set out in the Radio Interference Regulations of the Canadian Department of
Communications.
LE PRÉSENT APPAREIL NUMÉRIQUE N’ÉMET PAS DE BRUITS RADIOÉLECTRIQUES
DÉPASSANT LES LIMITES APPLICABLES AUX APPAREILS NUMÉRIQUES DE CLASSE
B PRESCRITES DANS LE RÈGLEMENT SUR LE BROUILLAGE RADIOÉLECTRIQUE
ÉDICTÉ PAR LE MINISTÈRE DES COMMUNICATIONS DU CANADA.
CAUTION
The user who makes changes or modifications to the unit without the express approval by the
manufacturer will void user authority to operate the equipment.
ACHTUNG
Der arbeitsplatzbezogene Geräuschemissionswert dieses Gerätes beträgt ≤70dB(A) nach
EN 27779/1991.
Notice
Only DVD-ROM discs and CD-ROM discs carrying the label below can be used with this
DVD-ROM reader.
EDV5500A.PM5 99.4.26, 5:32 PM3

3
HEED THE FOLLOWING
Read the operating instructions carefully before using the unit and be
sure to use it properly. After reading the instructions, store them in an
easily accessible place so they can be consulted whenever necessary.
WARNING
• Continued use should there be an irregularity (smoke, abnormal
smell or sound, etc.) will lead to fires or electric shocks. If there
should be an irregularity, immediately turn off the power of the
computer on which the unit is installed and request servicing.
• Do not disassemble or modify the unit in any way. Doing so will
lead to fires or electric shocks.
• Make sure that no foreign objects get in the unit, as this will lead
to fires or electric shocks. If a foreign object should get in the
unit, immediately turn off the power of the computer on which
the unit is installed and request servicing.
• Do not let fluids get in the unit or let the unit get wet, as this will
lead to fires or electric shocks. If fluid should get in the unit,
immediately turn off the power of the computer on which the unit
is installed and request servicing.
• Do not use with any power voltage other than the indicated
voltage. Doing so will lead to fires or electric shocks.
• Do not store or use the unit in places where it may be subject to
shocks or strong vibrations. Doing so will lead to fires or electric
shocks.
• Do not store or use the unit in places where it may be exposed
to chemicals or chemical vapors. Doing so will lead to fires or
electric shocks.
EDV5500A.PM5 99.4.26, 5:32 PM4

4
CAUTION
• When connecting computer equipment, audio equipment,
speakers, etc., be sure to read the respective manuals carefully,
turn of the power, and follow the connection instructions. Using
cords other than the specified cords or extending cords could
generate heat and result in burns, etc.
• Set the volume to the minimum before turning on the power.
Sudden bursts of loud sound could result in hearing impairment.
• Do not store or use the unit in extremely hot places or places
where the humidity fluctuates greatly. Doing so could lead to
fires or electric shocks.
• Do not store or use the unit in places exposed to direct sunlight
or near equipment that generates heat. Doing so could lead to
fires.
• Do not place the unit on unsteady tables, slanted surfaces or
other unstable surfaces. The unit could fall or tip over, resulting
in injury.
• Do not store or use the unit in humid or dusty places . Doing so
could lead to fires or electric shocks.
• Do not store or use the unit with heavy objects or objects that
stick out passed the frame on top of it. The object or unit may
lose its balance and tip over or fall, resulting in injury.
• Do not let stick your hands into the disc insertion slot, as this
could cause injury.
• Do not use cracked or misshapen discs or discs that have been
repaired with adhesives, etc. Discs rotate at high speeds inside
the unit. If such discs are used, they may break and fly out,
resulting in injury.
• Do not look directly at the laser source. Exposing the eyes to the
laser beam could result in vision impairment.
• When used near a radio or TV, the unit may generate noise in
the radio or TV. Also, if there is equipment generating strong
magnetic forces nearby, this may generate noise in the unit.
• Keep the disc tray closed except when inserting or removing
discs in order to prevent injury from bumping into the disc tray.
EDV5500A.PM5 99.4.26, 5:32 PM5

Cautions
Cleaning

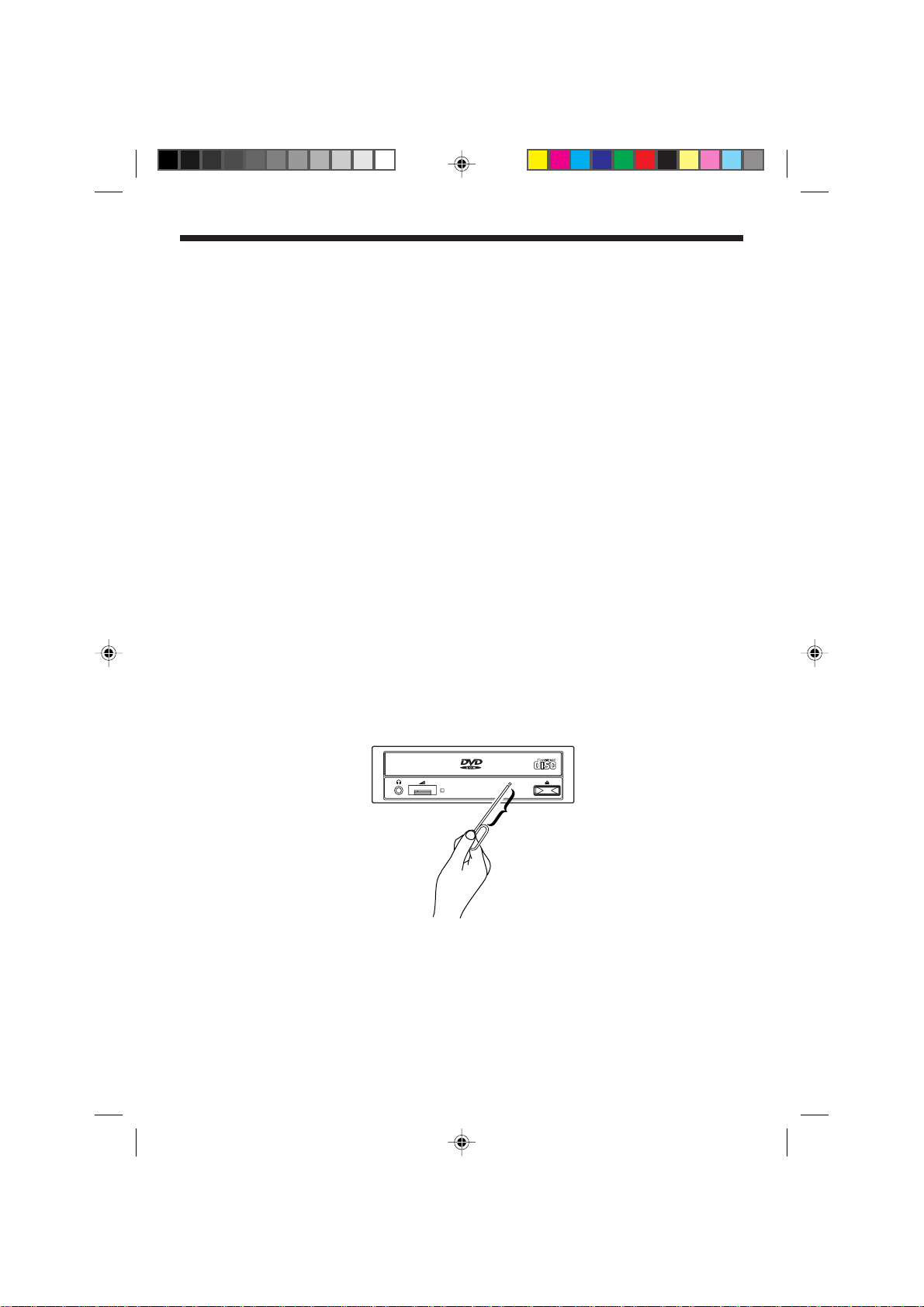

To clean the DVD-ROM reader, wipe it with a soft, damp cloth, using mild
detergent if necessary. Please avoid using solvents such as benzine or
paint thinner. This can cause color changes or deformation of the DVD-
ROM reader.
Handling the Disc

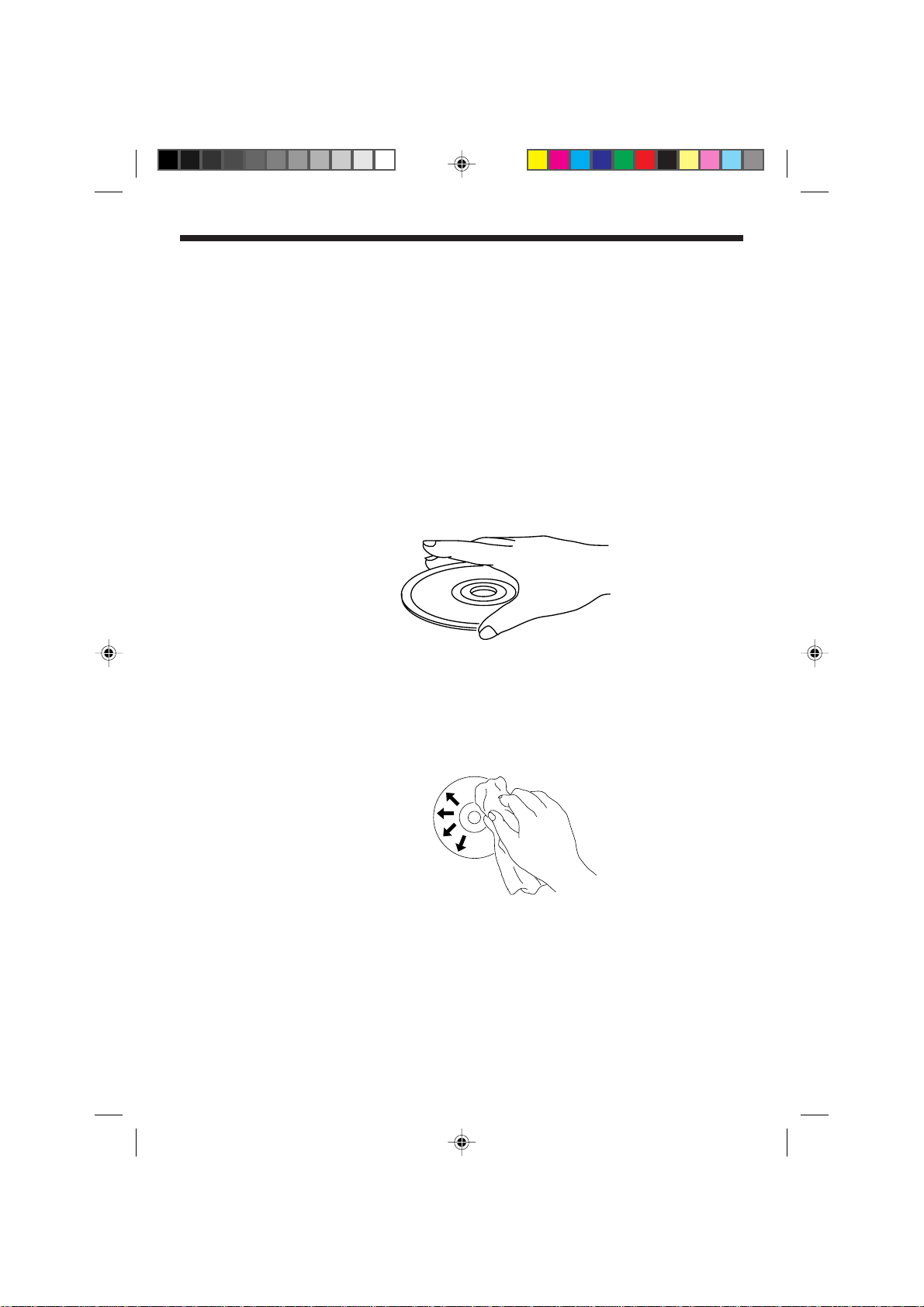

• Do not touch the data side of the disc (the side of the disc with no label
or printing).
• Do not apply paper labels or write on any part of the disc, data side or
label side. Do not use the disc leaved a mark strip paper labels.
• If dust or fingerprints get on the disc, wipe it with a soft cloth from the
center to the edge.
• Do not use benzine, paint thinner, record cleaner, or static repellent.
This can damage the disc.
• Do not place the disc in any place where it will be subjected to direct
sunlight or high temperatures.
5
EDV5500A.PM5 99.4.26, 5:32 PM6

6
Table of Contents
Heed the following
Warning ............................................................................. 3
Caution .............................................................................. 4
Cautions
Cleaning............................................................................. 5
Handling the Disc............................................................... 5
Part Names and Functions
Front View.......................................................................... 7
Rear View .......................................................................... 8
Installation
Jumper Setting................................................................... 9
Installing the DVD-ROM reader in a host PC .................... 10
Inserting/Removing a Disc
Using the DVD-ROM Drive Installed Vertically .................. 13
Inserting a Disc .................................................................. 14
Removing a Disc................................................................ 14
Emergency Eject................................................................ 14
Specifications
DVD-ROM Section............................................................. 15
CD-ROM Section ............................................................... 15
Audio Section..................................................................... 15
Environment....................................................................... 15
General .............................................................................. 15
EDV5500A.PM5 99.4.26, 5:32 PM7

7
123 4 5 6
Part Names and Functions

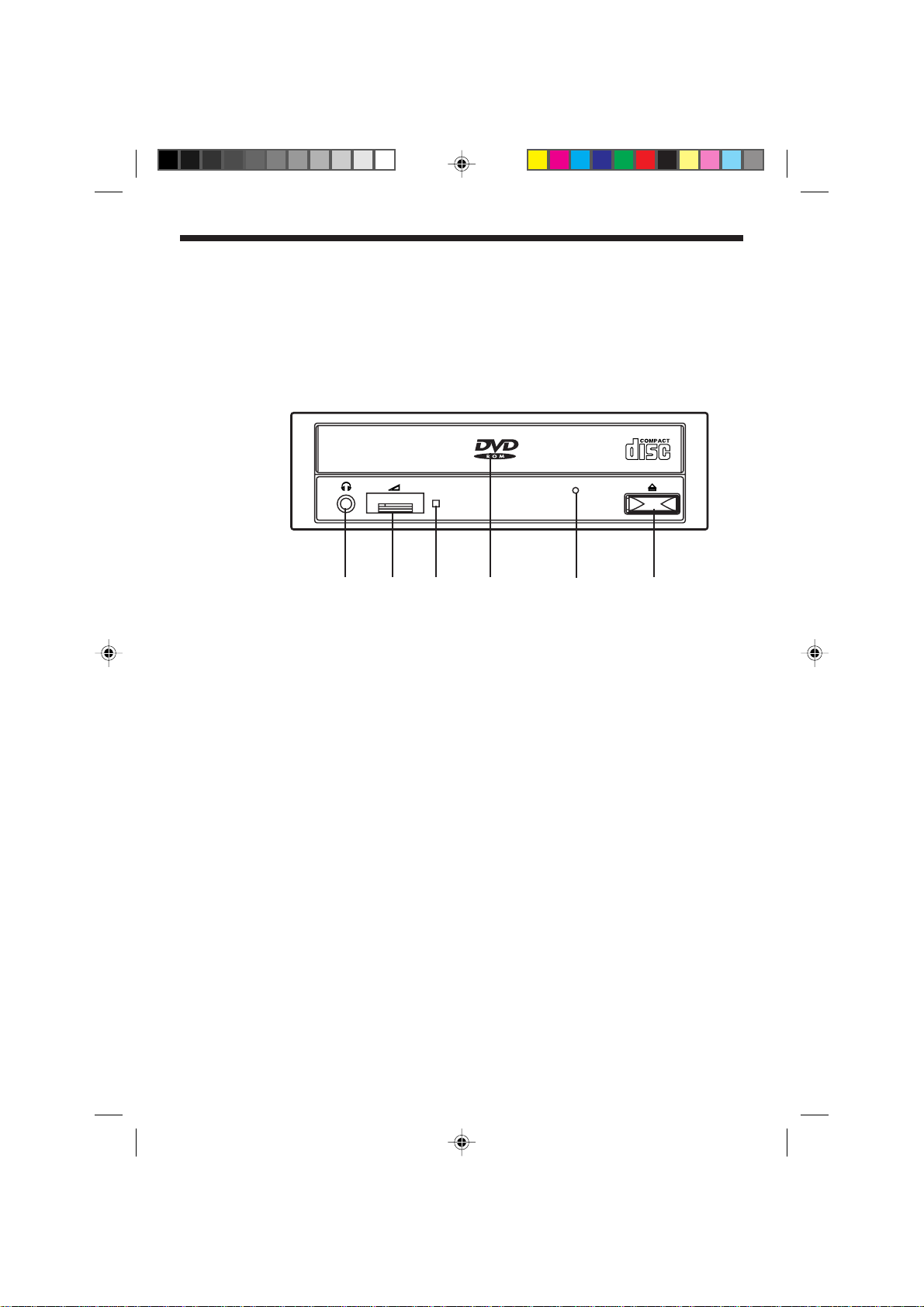

Front View
1 Phones Jack
This jack is used to connect a set of headphones. Please use
headphones with a stereo mini-jack plug.
2 Volume Control
This control is used to adjust the headphone volume.
NOTE: This control has no effect on the audio output from the LINE
OUT connector on the back of the DVD-ROM reader.
3 BUSY Indicator
This indicator lights umber while data is being read.
4 Tray Panel
This panel prevents dust from entering the DVD-ROM reader.
The disc tray will be ejected when the Load/Eject button is pushed.
5 Emergency Eject Hole
Use to remove the disc from the DVD-ROM reader if the electrical
eject is disabled by software or if power failure occurs. (See page 14
“Emergency Eject” for details.)
6 Load/Eject
This button is pressed to eject or retract the disc tray when the power
is on.
EDV5500A.PM5 99.4.26, 5:32 PM8

Rear View

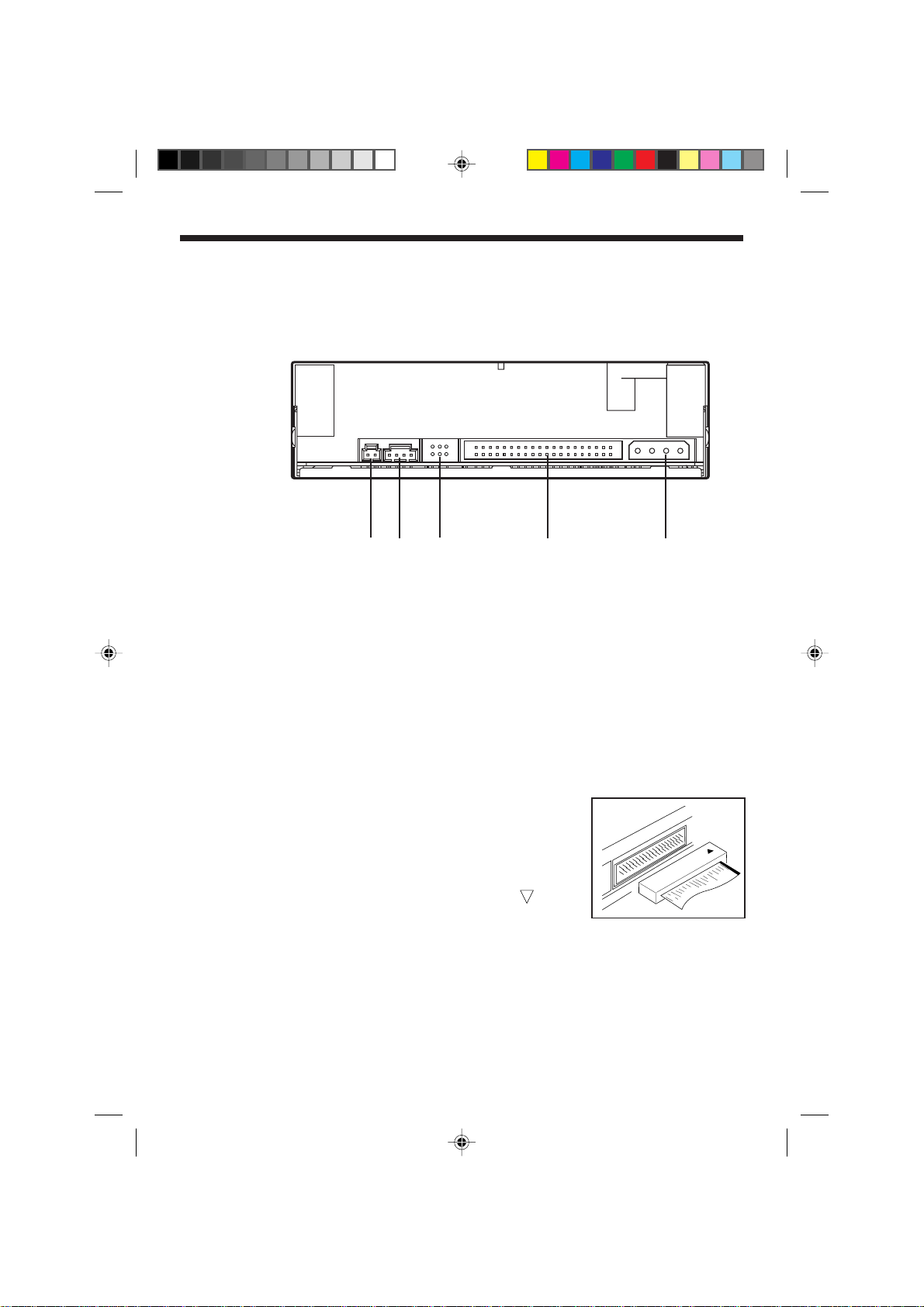

7 Jumper Blocks
These blocks of jumper locations set the configuration for the DVD-
ROM reader. (See page 9, “Jumper Setting” for details.)
8 DIGITAL OUT Connector
This connector is used to connect CD Digital Audio to an audio board.
9 Line Out Connector
This connector is used to connect CD-Audio to an audio board.
10 I/O BUS Connector
This BUS connector is used to control the
DVD-ROM reader and sent data. Use a flat
ribbon cable to connect your computer to
the DVD-ROM reader.
Connect the colored side of the ribbon cable
to the side marked with the arrow ( ).
(See page 12 for details of this connection.)
11 Power Connector
Use this to provide operating power from the host computer. (See
Page 11 for details of this connection.)
8
89 7 10 11
EDV5500A.PM5 99.4.26, 5:32 PM9

9
Installation
Jumper Setting
A jumper consists of a pair of pins and a connector which fits over the
pins. When the connector is in place it establishes an electronic link
between the pins, which enables the function being controlled by the
jumper. If the connector is removed, the electronic link is broken and the
function is disabled.

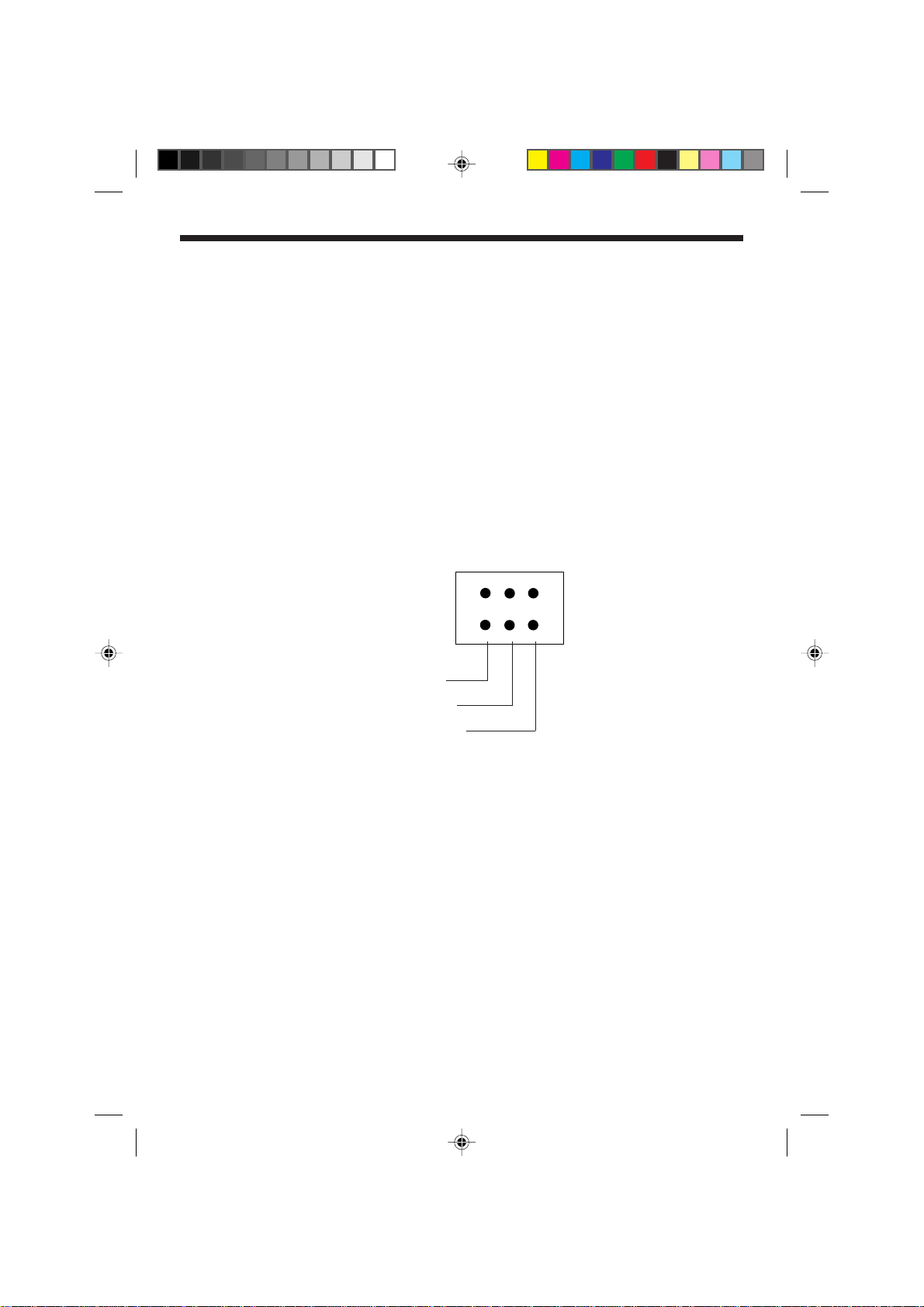

Jumpers are used to set the DVD-ROM reader mode on the IDE
interface.
JUMPER
BLOCK
1 2 3
CSEL
SLAVE
MASTER
EDV5500A.PM5 99.4.26, 5:32 PM10

10
Installing the DVD-ROM reader in a host PC
Note
Refer to the guidebook included with your personal computer for instruc-
tions on installing the DVD-ROM reader. This chapter gives one example
of installation.

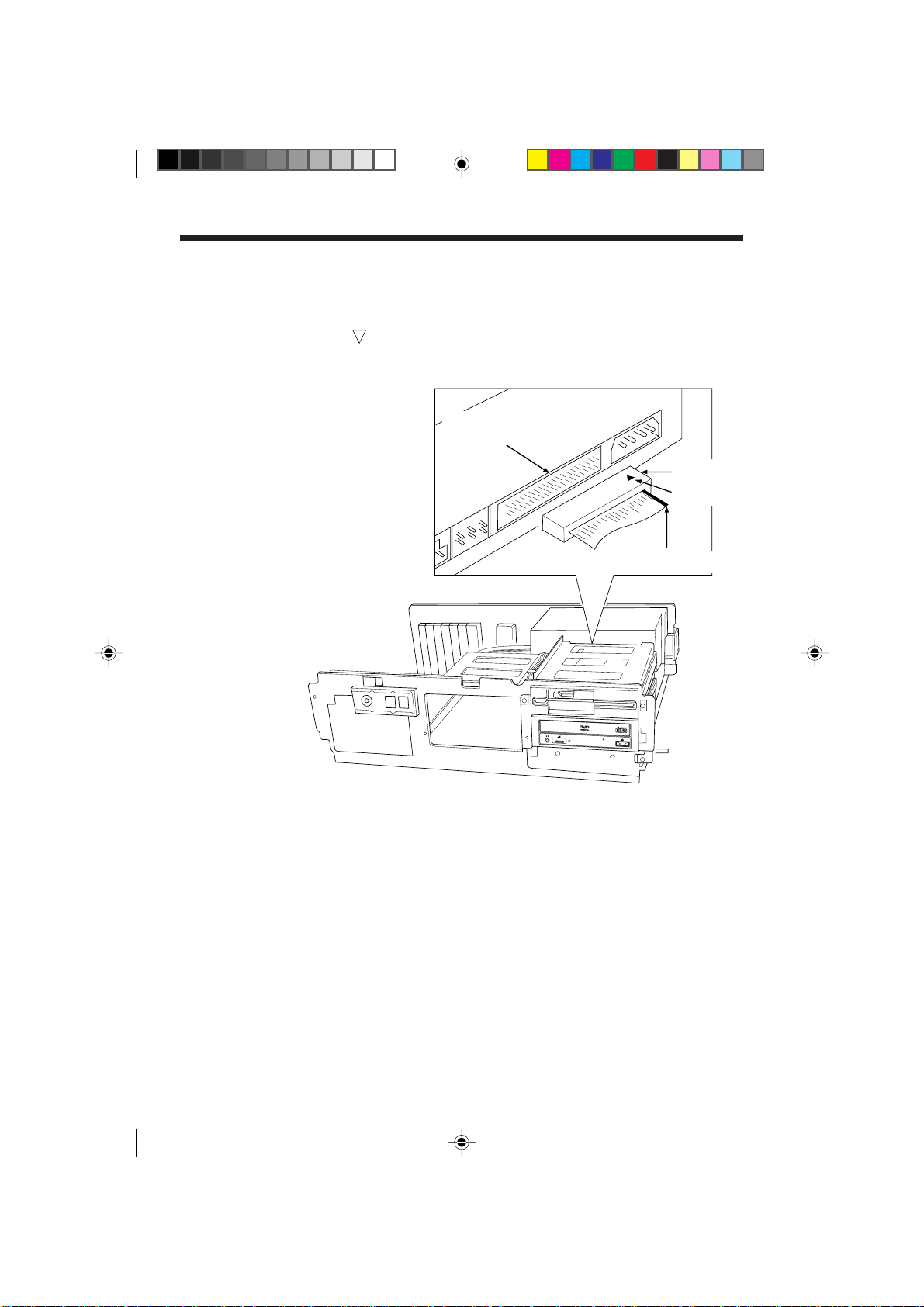

1. Attach the mounting rails to both the left and right sides of the DVD-
ROM reader.
2. Turn off the computer, other peripherals and unplug all the cords and
cables. Then remove the computer cover, face plate, mounting clips,
and keeper bracket. Refer to the Guide to Operations that came with
your computer for help with this step.
3. Slide the disk drive out approximately 50 ~ 70mm (2 ~ 3 in.), but do
not disconnect the cables.
4. Slide the DVD-ROM reader into the computer until it is even with the
disk drive.
DVD-ROM
READER WITH
MOUNTING RAILS
DISK DRIVE
EDV5500A.PM5 99.4.26, 5:32 PM11

11
POWER
CABLE
POWER
CONNECTOR
DVD-ROM READER
5. Locate a spare power cable in your computer.
6. Connect that power cable to the power connector on the back of the
DVD-ROM reader.
EDV5500A.PM5 99.4.26, 5:32 PM12

7. Connect the I/O BUS connector on the DVD-ROM reader and the IDE
connector.
Connect the colored stripe side of the cable to the side marked with the
arrow ( ).
8. Slide the disk drive and DVD-ROM reader into the computer.
9. Replace the mounting clips, keeper bracket, and computer cover.
12
I/O BUS
CONNECTOR
BUS CABLE
COLORED STRIPE (Pin 1)
ARROW
EDV5500A.PM5 99.4.26, 5:32 PM13

13
Inserting/Removing a Disc
Using the DVD-ROM Reader Installed Vertically
When using the DVD-ROM reader, in the vertical position, load and
unload discs as shown on the diagram below.
Caution
Only 12cm discs can be used when the DVD-ROM reader is installed
vertically. Do not place 8cm discs in the tray when using the DVD-ROM
reader installed in this way.

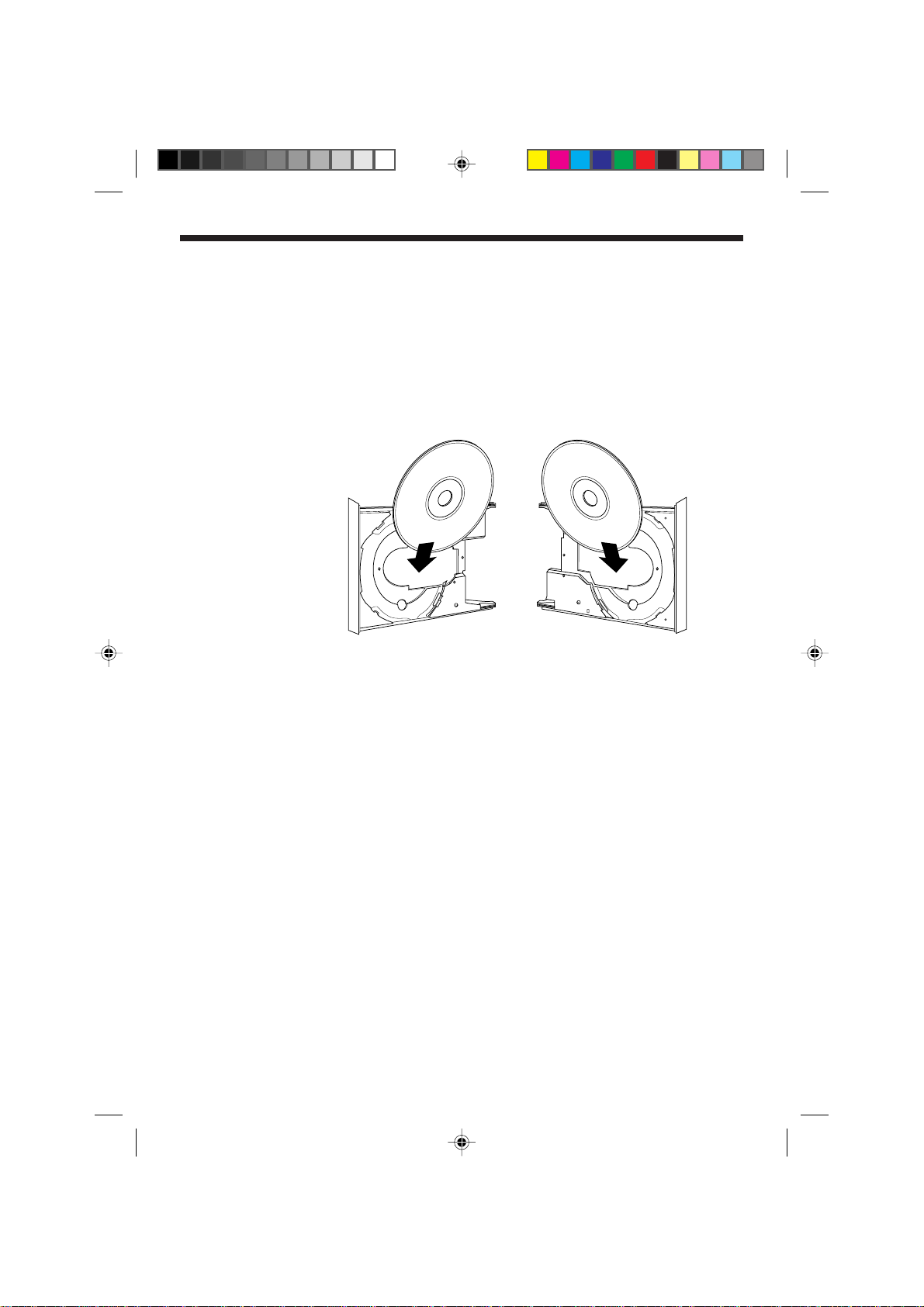

DVD-ROM reader installed vertically
(left side)
DVD-ROM reader installed vertically
(right side)
EDV5500A.PM5 99.4.26, 5:32 PM14

14
Inserting a Disc
1. Press the Load/Eject button. The disc tray will be ejected.
2. Place the disc in the center of the tray with the label side facing up.
3. Press the Load/Eject button. The disc tray will be retracted.
Removing a Disc
1. Press the Load/Eject button. The disc tray will be ejected.
2. Remove the disc.
3. Press the Load/Eject button. The disc tray will be retracted.
WARNING:
Do notforcibly push thedisc tray inby hand. Doingso may resultin damage.
Note:
If an eject prohibit command has been received from the computer, the
disc tray will not be ejected even if the Load/Eject button is pressed.
Emergency Eject
The procedure described below can be used to remove a disc from the
DVD-ROM reader if the Load/Eject button is disabled by software or a
power failure occurs.
1. Turn off the power to the computer installed the DVD-ROM reader.
2. Insert a steel rod (about 1.3mm in diameter) into the emergency eject
hole and push hard. The disc tray is ejected by about 10mm. Pull it all
the way open by hand.
A stiff paper clip may be used as a steel rod.
65mm
(AT LEAST 45mm IN LENGTH)
EDV5500A.PM5 99.4.26, 5:32 PM15

15
Specifications
DVD-ROM Section
User Data Capacity........................................ 4.7G bytes (Single layer,12cm)
8.54G bytes (Dual layer,12cm)
1.46G bytes (Single layer,8cm)
2.66G bytes (Dual layer,8cm)
User Data Blocks ........................................... 2048 Bytes/block
Data Transfer Rate ........................................ 10.8M bytes/sec
(Maximum)
Burst Transfer Rate ....................................... PIO mode 4
DMA Single Word mode 2
DMA Multi Word mode 2
Ultra DMA 33 mode 2
Access Time .................................................. 120msec (1/3 Stroke read, average)
Hard Error Rate ............................................. Below 10-12 (After error correction)
CD-ROM Section
User Data Capacity........................................ 656M bytes (Mode 1)
748M bytes (Mode 2)
User Data Blocks ........................................... 2048 Bytes/block
(Mode 1 and Mode 2, Form 1)
2336 Bytes/block (Mode 2)
2328 Bytes/block (Mode 2 Form 2)
Data Transfer Rate ........................................ 6000K bytes/sec
( Mode 1 and Mode 2 Form 1,Maximum )
6820K bytes/sec
( Mode 2 and Mode 2 Form 1,Maximum )
Burst Transfer Rate ....................................... PIO mode 4
DMA Single Word mode 2
DMA Multi Word mode 2
Ultra DMA 33 mode 2
Access Time .................................................. 100msec (1/3 Stroke read, average)
Hard Error Rate ............................................. Below 10-12 (After error correction)
Memory Buffer ............................................... 256K bytes
Photo CDTM Compatibility............................... Multi session Photo CDTM
Single session Photo CDTM
CD-Audio Section
Frequency Response..................................... 20Hz ~ 20kHz +1
–5dB
S/N Ratio ....................................................... 80dB (1kHz)
Total Harmonic Distortion .............................. 0.09% (1kHz)
Wow & Flutter ................................................ Below measurable limits
Output ............................................................ 0.75 V
Environment
Ambient conditions for use
Temperature ........................................... 5 to 45°C
Humidity ................................................. 30 to 70% (no condensation)
Ambient conditions for storage
Temperature ........................................... -20 to 60°C
Humidity ................................................. 30 to 90% (no condensation)
GeneralPower Supply................................................. 5V 1.5A, 12V 1.5A
Dimensions(W x H x D) ................................. 14.8 x 4.2 x 20.8cm
....................................................................... (5 13/16 x 1 5/8x 8 1/4in.)
Weight............................................................ 0.91kg
....................................................................... (2.01 lbs)
Note: Above specifications are subject to change.
Photo CD is a trademark of Kodak used under license.
EDV5500A.PM5 99.4.26, 5:32 PM16
