User’s Manual
DLP Cinema®Projector
NP-NC1503L
Model No.
NP-NC1503L

2
Important Information
Precautions: Please read this manual carefully before
using your NP-NC1503L and keep the manual handy for
future reference.
The NP-NC1503L is called the “projector”, and the IMB
(integrated media server) is called the “media block” or
“IMB” in this manual.
• DLP (Digital Light Processing), DLP Cinema and DLP
Cinema logo are trademarks of Texas Instruments.
• Microsoft and Windows are either registered trademarks
or trademarks of Microsoft Corporation in the United
States and/or other countries.
• Oracle and Java are registered trademarks of Oracle
and/or its affiliates.
• Linux is a registered trademark of Linus Torvalds in the
United States and/or other countries.
• Other product names and logos mentioned in the user’s
manual may be the trademarks or registered trademarks
of their respective holders.
• The display screens and illustrations shown in this man-
ual may differ slightly from the actual ones.
• GPL/LGPL Software Licenses
• The product includes software licensed under GNU
• General Public License (GPL), GNU Lesser General
Public License (LGPL), and others.
• For more information on each software, see “readme.pdf”
inside the “about GPL&LGPL” folder on the web site.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT OPEN TOP
COVER. NO USER SERVICEABLE PARTS INSIDE.
This symbol warns the user that uninsu-
lated voltage within the unit may have suf-
ficient magnitude to cause electric shock.
Therefore, it is dangerous to make any kind
of contact with any part inside of this unit.
This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in order
to avoid any problems.
Laser Safety Caution
This product is classified as Class 1 of IEC 60825-1 Third
edition 2014. This product is classified as RG3 of IEC/EN
62471-5 First edition 2015.
• This product complies with performance standards for
laser products under 21 CFR Part 1040 except with
respect to those characteristics authorized by Variance
Number 2015-V-3435 effective on April 7 2016.
Obey the laws and regulations of your country in relation to
the installation and management of the device.
• Outline of laser emitted from the built-in light module:
Wave length: Red 635-647 nm, Blue 449-471 nm
Maximum power: Red 43 W, Blue 636 W
CAUTION
CLASS 1 LASER PRODUCT
Use of controls or adjustments of procedures other
than those specified herein may lead to hazardous laser
radiation exposure.
• No direct exposure to the beam shall be permitted, RG3
IEC/EN 62471-5:2015.
Operators shall control access to the beam within the
hazard distance or install the product at the height that
will prevent spectators’ eyes from being in the hazard
distance.
• Do not look into the lens while the projector is on.
Serious damage to your eyes could result.
• Do not look at operating light source. Eye injury may
result.
• Not for household use. (for USA)
• This projector must be installed high enough to provide
clearance for people who may walk beneath the beam
path or hazard distance. (for USA)
• Direct exposure of human eyes to beam is prohibited.

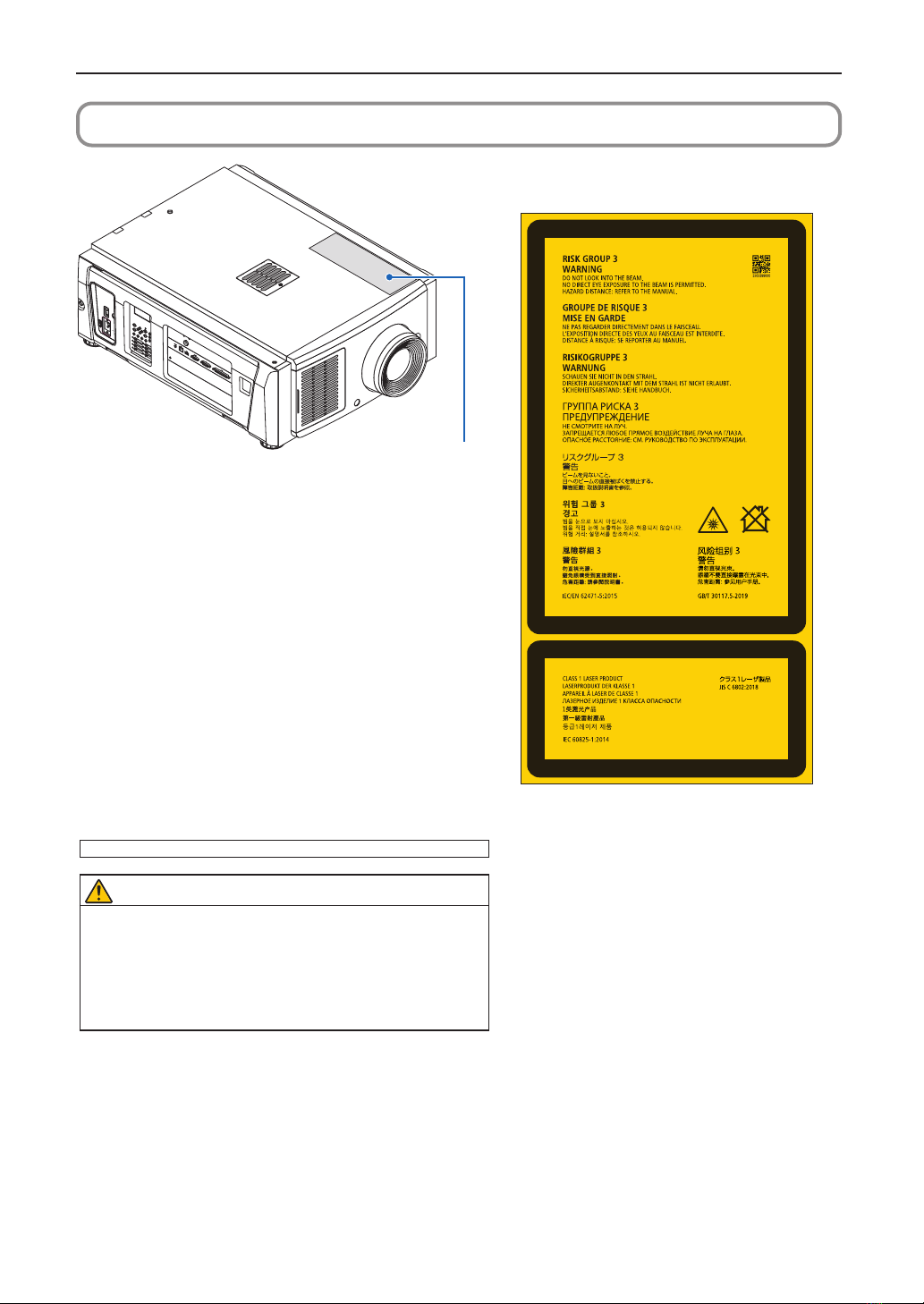

• The following graphic symbol indicating that looking into
the projector is prohibited is displayed on the projector
cabinet.
• Do not allow to look into the projector beam at any dis-
tance from the projector. An adult should supervise the
children to prevent exposure risks.
• Check that there is no one looking at the lens, when
using the remote control for starting the projector.
• Do not look at the projected light using optical devices
(binoculars, telescopes, magnifying glasses, reflectors,
etc). Doing so could result in vision impairment.
• When performing the lens shift adjustment, make sure
that you are behind or beside the projector. Doing so
from the front of the projector may cause intense light to
enter into your eyes, resulting in damage to them.
• [WARNING: MOUNT ABOVE THE HEADS OF CHILDREN.]
The use of a ceiling mount is recommended with this
product to place it above the eyes of children.
• This projector, which is an RG3 product, is for business
use and must be installed in location where safety is
assured. For this reason, installation of the projector and
mounting and removal of the lens unit must be per-
formed by professional service personnel. To do the
works, be sure to consult your dealer. NEVER install the
projector by end users. Doing so may cause visual
impairment and other injuries.
• Keep any items such as magnifying glass out of the light
path of the projector. The light being projected from the
lens is extensive, therefore any kind of abnormal objects
that can redirect light coming out of the lens, can cause
unpredictable outcome such as fire or injury to the eyes.
• When turning on the projector, ensure that nobody is
facing towards the lens in the path of the light emitted
from the laser.

3
Important Information
• This product can only be operated in theaters by speci-
fied personnel. Customers should not operate this
product.
Machine Noise Information Regulation - 3. GPSGV,
The highest sound pressure level is less than 70 dB (A) in
accordance with EN ISO 7779.
WARNING
Operation of this equipment in a residential environ-
ment could cause radio interference.
FCC Information (for USA only)
WARNING
• The Federal Communications Commission does not allow
any modifications or changes to the unit EXCEPT those
specified by Sharp NEC Display Solutions of America, Inc. in
this manual. Failure to comply with this government regula-
tion could void your right to operate this equipment.
• This equipment has been tested and found to comply with
the limits for a class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to cor-
rect the interference at his own expense.
Supplier’s declaration of conformity
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions.
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
U.S.Responsible Party: Sharp NEC Display Solutions
of America, Inc.
Address: 3250 Lacey Rd, Ste 500
Downers Grove, IL 60515
Telephone Number: 630-467-3000
Type of Product: Projector
Equipment Classification: Class A Peripheral
Model Number: NP-NC1503L
WARNING
THE END USER IS NOT ALLOWED TO OPEN OR
MODIFY THE PRODUCT.
NO USER SERVICEABLE PARTS.
MAINTAIN AND SERVICE OF THE PRODUCT IS ONLY
TO BE HANDLED BY Sharp NEC Display Solutions
AUTHORIZED TECHNICIANS.
Important Safeguards
These safety instructions are to ensure the long life of your
projector and to prevent fire and shock. Please read them
carefully and heed all warnings.
Installation
1. Do not point the projection beam toward other people
or reflective objects.
2. Consult your dealer for information about transporting
and installing the projector. Do not attempt to transport
and install the projector yourself.
The projector must be installed by qualified technicians
in order to ensure proper operation and reduce the risk
of bodily injury.
3. Place the projector on a flat, level surface in a dry area
away from dust and moisture. Tilting the front of the
projector up or down from level could reduce laser life.
Do not put the projector on its side when the laser is on.
Doing so may cause damage to the projector.
4. Do not place the projector in direct sunlight, near heat-
ers or heat radiating appliances.
5. Exposure to direct sunlight, smoke or steam could
harm internal components.
6. Handle your projector carefully. Dropping or jarring your
projector could damage internal components.
7. When moving the projector, be sure to remove the lens
from the projector before moving it.
8. To carry the projector, a minimum of four persons are
required.
9. Do not hold the lens part with your hand. Otherwise the
projector may tumble or drop, causing personal injury.
10.Do not place heavy objects on top of the projector.
11.Turn off the projector, and disconnect the power cable
before moving the projector.
12.The cooling fan settings need to be configured when
using the projector in a location at an altitude of approx-
imately 5500 feet/1600 meters or higher. Consult your
dealer in advance.
13.Turn off the projector when removing and installing
lenses. Failure to do so can cause loss of vision.
For mounting or replacing the lens, please contact your
dealer.
14.Do not install and store the projector in the below
circumstances.
Failure to do so may cause of malfunction.
• In powerful magnetic fields
• In corrosive gas environment
• Outdoors
15.If you wish to have the projector installed on the
ceiling;
• Do not attempt to install the projector yourself.
• The projector must be installed by qualified techni-
cians in order to ensure proper operation and
reduce the risk of bodily injury.
• In addition, the ceiling must be strong enough to
support the projector and the installation must be in
accordance with any local building codes.
• Please consult your dealer for more information.
16.When moving the projector, check the following:
• That the projector is turned off, the power plug is
disconnected from the outlet
• That the connector cable that connects the device
to the projector is unplugged

4
Important Information
WARNING
1. Do not cover the lens with the supplied lens cap or
equivalent while the projector is on. Doing so can
lead to distorting or melting of the cap and burning
your hands due to the heat emitted from the light
output.
2. Do not place any objects, which are easily affected
by heat, in front of the projector lens. Doing so could
lead to the object melting from the heat that is emit-
ted from the light output.
The following graphic symbol is shown on the pro-
jector cabinet.
When using the projector tilted in the forward or backward
direction, use it in the range of (+15° to -15°) from horizon-
tal. If you tilt it outside of this range or tilt it to the left or
right, it may become damaged.
+15
°
–15
°
When installed on a floor or a desktop

Power Supply
1. The projector is so designed that it operates with the
power supply voltage described below.
• Projector
AC200–240V single phase 50/60Hz
Ensure that your power supply fits this requirement
before attempting to use your projector.
2. The power cable is not included with the projector. Ask
your dealer for the power cable to select and purchase.
Use a power cable that meets the standards and power
supply voltage of the country where you are using the
projector.
Refer to “2-2. Connecting the Power Cable” (page
22) for details on connecting the power cable.
3. Handle the power cable carefully. A damaged or frayed
power cable can cause electric shock or fire.
• Do not bend or tug the power cable excessively.
• Do not place the power cable under the projector, or
any heavy object.
• Do not cover the power cable with other soft materi-
als such as rugs.
• Do not heat the power cable.
• Do not change the arrangement of the installed
power cable.
4. If the projector will not be used for an extended period
of time, turn off the projector, and disconnect the power
plug from the outlet.
5. Placing the power cable and the signal cable closely to
each other can cause beat noise. If this happens, keep
the two separated so that beat noise is not generated.
Beat noise is corruption of the picture often seen as a
rolling band moving through the image.
6. Do not touch the projector during a thunder storm.
Doing so can cause electrical shock or fire.
7. When installed on the ceiling, install the breaker in a
location that is easy to reach by hand.
Fire and Shock Precautions
1. Ensure that there is sufficient ventilation and that vents
are unobstructed to prevent potentially dangerous con-
centrations of ozone and the build-up of heat inside
your projector. Allow at least 19.7 inches (50cm) of
space between your projector and a wall. In particular,
clear a space of 27.6 inches (70 cm) or more in front of
the air outlet on the rear surface and 12 inches (30 cm)
or more on the upper part of the projecter body.
2. Prevent foreign objects such as paper clips and bits of
paper from falling into your projector. Do not attempt to
retrieve any objects that might fall into your projector.
Do not insert any metal objects such as a wire or screw-
driver into your projector. If something should fall into
your projector, turn off the projector, disconnect the
power plug from the outlet and have the object removed
by a qualified service person.
3. Turn off the projector, unplug the power cable and have
the projector serviced by a qualified service personnel
under the following conditions:
• When the power cable or plug is damaged or frayed.
• If liquid has been spilled into the projector, or if it
has been exposed to rain or water.
• If the projector does not operate normally when you
follow the instructions described in this user’s
manual.
• If the projector has been dropped or the cabinet has
been damaged.
• If the projector exhibits a distinct change in perfor-
mance, indicating a need for service.
4. Keep any items such as magnifying glass out of the light
path of the projector. The light being projected from the
lens is extensive, therefore any kind of abnormal objects
that can redirect light coming out of the lens, can cause
unpredictable outcome such as fire or injury to the eyes.
5. Never remove or open the projector cabinet and never
modify the projector. Otherwise, fire, electric shock, or
leakage of laser light may cause visual impairment or
burn injuries.
6. When using a LAN cable:
For safety, do not connect to the connector for periph-
eral device wiring that might have excessive Voltage.
7. Do not try to touch the air outlets on the projector dur-
ing normal projector operation as it is hot.
Cleaning
1. Turn off the projector and unplug the power cable
before cleaning the cabinet or replacing the laser.
2. During cleaning, turn off the projector, and disconnect
the power plug from the outlet.

5
3. Clean the cabinet periodically with a cloth. If heavily
soiled, use a mild detergent. Never use strong deter-
gents or solvents such as alcohol or thinner.
4. Use a blower or lens paper to clean the lens, and be
careful not to scratch or mar the lens.
5. Do not touch the projector or the power plug with wet
hand. Doing so can cause electrical shock or fire.
CAUTION
1. Do not unplug the power cable from the wall outlet
or projector when the projector is powered on.
Doing so can damage the projector.
• While projecting images
• While cooling after the projector has been turned
off.
(The POWER button LED blinks in green while the
fan is rotating, and “cooling...” is displayed on the
LCD screen.)
2. Do not turn of the AC power for 90 seconds after the
laser is turned on and while the POWER indicator is
blinking green. Doing so could cause premature
laser failure.
3. Use of a wall outlet with a 20 A or more circuit
breaker is recommended.
4. Keep hands away from the lens mounting portion
while the lens shift is in operation. Failure to do so
could result in fingers being pinched between the
cabinet and lens cover.
Caution on Carrying the Projector/Handling the
Optional Lens
The projector should always be carried by at least 4 peo-
ple, holding the handles on the bottom. Remove the lens
unit from the projector body when moving the projector.
When installing / removing a lens, shut down the AC power
to the projector.
When shipping the projector with the lens, remove the lens
before shipping the projector. Always attach the dust cap
to the lens whenever it is not mounted on the projector. The
lens and the lens shift mechanism may encounter damage
caused by improper handling during transportation.
Light Module
1. A light module containing multiple laser diodes is
included in the product as the light source.
2. These laser diodes are sealed in the light module. No
maintenance or service is required for the performance
of the light module.
3. End user is not allowed to replace the light module.
4. Contact qualified distributor for light module replace-
ment and further information.
Cable information
Use shielded cables or cables attached ferrite cores so as
not to interfere with radio and television reception.
For details, please refer to “2. Installation and Connection”
in this user’s manual.
Important Information
Installing the Projector
This projector is an RG3 product. The projector is for
professional use and must be installed in location where
safety is assured. For this reason, be sure to consult your
dealer as installation and attachment/detachment of the
lens unit must be performed by a professional service per-
sonnel. Never try to install the projector by yourself. This
may result in visual impairment etc.
Connecting the power cord to earth
This equipment is designed to be used in the condition of
the power cord connected to earth. If the power cord is not
connected to the earth, it may cause electric shock. Please
make sure the power cord is connected to the wall outlet
directly and earthed properly.
Do not use a 2-core plug converter adapter.
Handling the power cord
• When connecting the power cord to the projector’s AC
IN terminal, make sure the connector is fully and firmly
inserted. Be sure to fix the power cord using the power
cord stopper. Loose connection of the power cord could
lead to fire or electric shock.
• Do not connect or disconnect the power cord with wet
hands. Doing so could result in electric shock.
Lens shift, focus and zoom operations
• When shifting the lens or adjusting the focus or zoom,
do so from either behind or to the side of the projector.
If adjustments are performed from the front, your eyes
could be exposed to strong light and get injured.
• Keep your hands away from the lens area when perform-
ing the lens shift operation. If not, your fingers could get
caught in the gap between the cabinet and the lens.
(For Customers in U.K.)
IMPORTANT
• The wires in this mains lead are coloured in accor-
dance with the following code:
GREEN-AND-YELLOW: “Earth”
BLUE: “Neutral”
BROWN: “Live”
• As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug pro-
ceed as follows:
• The wire which is coloured GREEN-AND-YELLOW
must be connected to the terminal in the plug which
is marked by the letter E or by the safety earth symbol
or coloured green or green-and-yellow.
• The wire which is coloured BLUE must be connected
to the terminal which is marked with the letter N or
coloured black.
• The wire which is coloured BROWN must be con-
nected to the terminal which is marked with the letter
L or coloured red.
• Ensure that your equipment is connected correctly. If
you are in any doubt consult a qualified electrician.
“WARNING: THIS APPARATUS MUST BE
EARTHED.”

6
Important Information
Disposing of your used product
EU-wide legislation as implemented in each
Member State requires that used electrical
and electronic products carrying the mark
(left) must be disposed of separately from nor-
mal household waste.
This includes projectors and their electrical
accessories. When you dispose of such prod-
ucts, please follow the guidance of your local
authority and/or ask the shop where you pur-
chased the product.
After collecting the used products, they are
reused and recycled in a proper way. This
effort will help us reduce the wastes as well as
the negative impact to the human health and
the environment at the minimum level.
The mark on the electrical and electronic
products only applies to the current European
Union Member States.
Outside the European Union
If you wish to dispose of used electrical and
electronic products outside the European
union, please contact your local authority and
ask for the correct method of disposal.
For EU: The crossed-out wheeled bin implies
that used batteries should not be put to the
general household waste! There is a separate
collection system for used batteries, to allow
proper treatment and recycling in accordance
with legislation.
According the EU directive 2006/66/EC, the
battery can’t be disposed improperly. The
battery shall be separated to collect by
local service.
For questions relating to unclear points or repairs
Contact your dealer or the following support branch for
questions relating to unclear points, malfunctions and
repairs of the product.
In Europe
Company Name: Sharp NEC Display Solutions Europe
GmbH
Address: Landshuter Allee 12-14, D-80637 Munich, Germany
Telephone: [phone]
Fax Line: [phone]
Email Address: [email protected]
WEB Address: https://www.sharpnecdisplays.eu
In North America
Company Name: Sharp NEC Display Solutions of
America, Inc.
Address: 3250 Lacey Rd, Ste 500
Downers Grove, IL 60515 U.S.A.
Telephone: [phone]
Email: [email protected]
WEB Address: https://www.sharpnecdisplays.us
In China
Company Name: Sharp NEC Display Solutions (China), Ltd.
Address: 1F-North, A2 Building, Foxconn Technology Group,
No. 2, 2nd Donghuan Road, Longhua District,
Shenzhen City, P.R.C.
Telephone: [phone]
Email Address: [email protected]
In Hong Kong and Taiwan
Company Name: Strong Westrex, Inc.
Address: Room 4108 China Resources Building, No. 26
Harbour Road, Wanchai, Hong Kong
Telephone: [phone]
Fax Line: [phone]
Email Address: [email protected]
In South Korea
Company Name: Hyosung ITX Co., Ltd.
Address: 1F, Ire Building, 2, Yangpyeong-dong 4-ga,
Yeongdeungpo-gu, Seoul, Korea 150-967
Telephone: [phone]
Fax Line: [phone]
Email Address: [email protected]
WEB Address: http://www.hyosungitx.com
In Australia and New Zealand
Company Name: NEC Australia Pty Ltd
Address: 26 Rodborough Road Frenchs Forest NSW 2086
Telephone: 131 632 (from anywhere in Australia)
Email Address: [email protected]
WEB Address: http://www.nec.com.au
In Thailand, Singapore, Malaysia, Indonesia and
Philippines
Company Name: Goldenduck International Co., Ltd.
Address: 65 Soi Phutthamothon Sai 1, 21 Bangramad,
Talingchan, Bangkok, Thailand 10170
Telephone: [phone]
Fax Line: [phone]
Email Address: [e-mail]

7
Important Information
Label Information
Label A
About the laser module used in the light source
• This product has a built-in laser module. Control and adjust-
ment procedures other than those described in this document
may result in exposure to hazardous laser radiation.
• This product is classified as a Class 1 of Laser Product Safety
Standard JIS C 6802: 2018, IEC 60825-1 3rd Edition: 2014.
This product is classified as Risk Group 3 of IEC/EN 62471-5
1st Edition: 2015.
• This product complies with performance standards for laser
products under 21 CFR Part 1040 except with respect to those
characteristics authorized by Variance Number 2015-V-3435
effective on April 7 2016.
[Overview of the built-in laser]
Wave length: Red 635-647 nm, Blue 449-471 nm
Maximum power: Red 43 W, Blue 636 W
The explanatory label of the laser product is put on the top of the
projector.
CLASS 1 LASER PRODUCT
WARNING RG3 PRODUCT
• No direct exposure to the beam shall be permitted.
• Do not look into the projector’s lens. Serious damage to your
eyes could result.
• Not for household use.
• Operators shall control access to the beam within the hazard
distance and install the product at the height that will prevent
exposures of spectators’ eyes within the hazard distance.
Label A: Laser Explanatory and Risk Group / Lamp
Safety Label

8
Important Information
Label B
Label CLabel D
Label B
Label C
Label D

9
Important Information
Laser radiation range/No entry range (HD: Hazard distance)
• The below table describes the radiation range of emitted light by the projector that is classified as Risk Group 3 (RG3)
of IEC/EN 62471-5 First edition 2015.
• Please keep within bounds for installing the projector.
• Install a barrier for preventing human eyes from entering the RG3 area. For the barrier installation position, keep hori-
zontal safety zone over 1 m from the RG3 area. In case to install the projector over head, keep at least 2 m (2.5 m for
USA) distance between the floor surface and the RG3 area.
• This projector must be installed at a height that will prevent your eyes from being exposed within the RG3 zone.
The equipment administrator (operator) must control the entry of viewers into the RG3 zone.
NP-NC1503L (IEC/EN 62471-5 First edition 2015)
Lens RG3 HD(m) Screen size(m)
H V
NP-9LS12ZM1 Wide 1.3 1.09 0.57
Tele 1.8 1.08 0.57
NP-9LS13ZM1 Wide 1.4 1.09 0.57
Tele 2.2 1.09 0.57
NP-9LS16ZM1 Wide 1.7 1.09 0.57
Tele 2.9 1.09 0.57
NP-9LS20ZM1 Wide 2.2 1.03 0.54
Tele 4.2 1.06 0.56
NP-9LS08ZM1 Wide 0.8 1.06 0.56
Tele 1.3 1.02 0.54
RG3 region when not using the “NFK” attachment.
NP-NC1503L (IEC/EN 62471-5 First edition 2015)
Lens RG3 HD(m) Screen size(m)
H V
NP-9LS12ZM1 Wide 1.1 0.92 0.49
Tele 1.6 0.92 0.49
NP-9LS13ZM1 Wide 1.2 0.92 0.49
Tele 1.9 0.92 0.49
NP-9LS16ZM1 Wide 1.4 0.93 0.49
Tele 2.5 0.93 0.49
NP-9LS20ZM1 Wide 1.9 0.86 0.46
Tele 3.6 0.89 0.47
NP-9LS08ZM1 Wide 0.7 0.90 0.47
Tele 1.1 0.87 0.46

10
Important Information
When installed on a floor or a desktop
HD
H
V
Horizontal safety zone: over 1m
RG3 range
RG3 range
Vertical safety zone: over 2m (2.5m for USA)
floor
Horizontal safety zone: over 1m
[Plan view]
[Side view]
When installed on a ceiling
* If lens shift is utilized, please consider the shift of projected image according to the volume of lens shift.
CAUTION
Please heed all precaution for safety.
To install the projector
• For planning the layout of the projector, make sure to take safety measures instructed on the installation manual.
• In order to refuse danger, install either a wall outlet within easy reach for pulling out the power plug in emergency or a device
as a breaker to shut down the power supply to the projector.
• Take safety measures preventing human eyes from entering the RG3 area.
• Considering the installation place, select an appropriate lens and secure safety zone that is determined for each lens. For
operation on the powered projector as light adjustment, make sure appropriate safety measures have been taken.
• Check the validity of taken security measures if appropriate safety zone based on the installed lens is secured. Periodically
check the validity and keep these results.
• Educate the administrator of the projector (operators) about safety before starting to operate the projector.
• This projector is an RG3 product. The projector is for professional use and must be installed in location where safety is
assured. For this reason, be sure to consult your dealer as installation and attachment/detachment of the lens unit must be
performed by a professional service personnel. Never try to install the projector by yourself. This may result in visual impair-
ment etc.
To use the projector
• Instruct the administrator of the projector (operators) to perform inspections before powering on the projector. (Including the
safety check against emitted light by the projector)
• Instruct the administrator of the projector (operators) to be in circumstances able to control the projector whenever the projec-
tor is powered on for an emergency.
• Instruct the administrator of the projector (operators) to keep the installation manual, user’s manual and inspection records to
a place where they can take these documents out easily.
• Instruct them to clarify if the projector is conformed to standards of each country and region.

11
Table of Contents
Important Information ..................................................................... 2
1. What’s in the Box? and the Names of the Projector Parts.......... 12
1-1. Features.................................................................................................................................................................... 12
1-2. What’s in the Box? ................................................................................................................................................... 14
1-3. Names of the Projector Parts ................................................................................................................................... 15
2. Installation and Connection....................................................... 21
2-1. Steps for setting up and connecting ........................................................................................................................ 21
2-2. Connecting the Power Cable ................................................................................................................................... 22
2-3. Connecting the image input terminals ..................................................................................................................... 26
2-4. Connecting the various control terminal ................................................................................................................. 26
3. Projection of Images (Basic Operation)...................................... 27
3-1. Steps of projecting images....................................................................................................................................... 27
3-2. Turning your projector on ......................................................................................................................................... 28
3-3. Selecting the title of input signal .............................................................................................................................. 30
3-4. Adjusting the position and the size of projected screen .......................................................................................... 31
3-5. Preventing misoperations......................................................................................................................................... 35
3-6. Turning on/off the light with the projector turned on ....................................................................................................... 36
3-7. Turning your projector off ......................................................................................................................................... 37
4. Using Menus ............................................................................. 38
4-1. Basic operation with adjustment menus .................................................................................................................. 38
4-2. Table of adjustment menus ...................................................................................................................................... 43
4-3. Title Select................................................................................................................................................................ 44
4-4. Configuration............................................................................................................................................................ 45
4-5. Title Setup ................................................................................................................................................................ 47
4-6. Information ............................................................................................................................................................... 47
5. Maintenance of Your Projector .................................................. 51
5-1. Cleaning the Cabinet................................................................................................................................................ 51
5-2. Cleaning the Lens..................................................................................................................................................... 52
5-3. Cleaning the Air Filters ............................................................................................................................................. 52
6. Appendix ................................................................................... 58
6-1. Troubleshooting........................................................................................................................................................ 58
6-2. Indicator display list.................................................................................................................................................. 59
6-3. Operation using an HTTP browser ........................................................................................................................... 62
6-4. Writing of the log file (Save Information)...................................................................................................................64
6-5. Outline Drawing........................................................................................................................................................ 67
6-6. Specifications........................................................................................................................................................... 68
6-7. Power Cable............................................................................................................................................................. 69
6-8. Pin Assignment and Functions of Terminal .............................................................................................................. 71
6-9. Related products list ................................................................................................................................................ 78

12
1.
What’s in the Box? and the
Names of the
Projector Parts
1-1. Features
• DLP Cinema®projector
Complies with the strict projection standards defined by the Digital Cinema Initiatives (DCI) industry group in the United States using
leading imaging technology. It also supports 3D projection and high frame rates (HFR).
• Employs a long life laser light source
The projector employs a newly developed laser light source offering excellent reliability and redundancy. Since the laser light source
has a long life, this delivers low cost operation by removing the need for maintenance such as replacing and adjusting the light
module over extended periods of time. Furthermore, it reduces the risk of the light source suddenly shutting off and leaving a black
screen.
• Delivers reduced installation space and increased freedom through a more compact and lightweight body
The use of a 0.69" DLP cinema chip together with integration of the light module into the projector main unit both delivers a reduced
installation area as well as improving the degree of freedom of installation, such as removing the need to connect to external ventila-
tion ducting and supporting both pedestal-mounted and ceiling-suspended installation. A wide variety of optional lenses (sold sepa-
rately) are also available for the projector in order to support a wide variety of installation methods (a lens is not mounted when the
projector is shipped from the factory).
• Equipped with easy to use functions
(1) Lens memory function and light memory function that can be operated with one touch.
The projector is equipped with a lens memory function that can save the zoom position and shift position of the lens and a light
memory function that can save the brightness setting separately for each input signal. This makes it possible to project using
preconfigured settings simply by selecting the signal when projecting multiple different input signals each with different screen
size and brightness settings (Refer to “6-9. Related products list” (page 78) for details on the lenses that support the lens
memory function).
(2) Built-in automatic adjustment function that makes the brightness and color of the light source uniform
Degradation of brightness and variations in color that occur as the light source is used for longer periods of time are kept to a
minimum (the period over which variations in brightness can be limited varies depending on the brightness setting).

13
1. What’s in the Box? and the Names of the Projector Parts
(3) Frequently used titles can be registered in preset buttons
The projector has been equipped with 8 preset buttons that make it easy to select registered title (input signal). To this projector,
100 titles at most can be registered (input signal registration). Among the registered titles, any 16 titles can be assigned to the
preset buttons.
(4) You can operate and configure the projector via a network from a PC
You can operate and configure the projector via a network from a PC by using the separately supplied software Digital Cinema
Communicator (DCC) V2.
• Advanced Dust Protection
A dust control shield is arranged between each DMD chip of R, G and B, and the spectroscopic/condenser prism. It prevents
dust and dirt in the air, and oily particles in smoke associated with event halls from coming into contact with the face of the
DMD and causing operating problems.
• Reduced running cost thanks to the use of metal filters
The filters are made of metal, so they can be used repeatedly and do not have to be replaced when performing periodic
cleaning.
This not only reduces running costs, but also contributes to preserving the environment since no spent filters are discarded.

14
1. What’s in the Box? and the Names of the Projector Parts
1-2. What’s in the Box?
Check the content of the accessories.
1-2-1. Projector
Projector
Service door key x 2
Power cable stopper
Important Information
NFK
TIP
In the event that you did not receive all of the accessories outlined above, or some are damaged, contact your dealer/
distributor.
Differs slightly from the drawings in this manual, but there is no problem in actual use.

15
1. What’s in the Box? and the Names of the Projector Parts
1-3. Names of the Projector Parts
1-3-1. Front of the projector
1
3
4
2
67 8910
5
1. LIGHT status indicator
Displays the status of the light source. The indicators turn on when the light source is on and turn off when the light source is off
(See page 61).
2. SYSTEM status indicator
These indicate the status of the projector. When the projector is operating normally, these light/blink in green or orange. When
an error occurs, they light/blink in red. When an error occurs, check the contents of the display on the LCD screen. (See page
61)
3. Main power switch
While AC power is being supplied, set the main power switch to ON position (1), then your projector will enter a standby state.
4. Power cable stopper
Prevents the power plug from falling out from the projector.
5. AC input
Connects to the AC power cable. The AC power cable is not an accessory. Consult with your dealer/distributor about the AC
power cable.
6. Control panel
On the control panel, power to your projector is turned on or off, titles are selected, and various adjustments are made of pro-
jected screen. (See page 19)
7. Connection terminals
Various image signal cable are to be connected here. (See page 18)
You can expand signal input terminals by installing the optional board.
Contact your dealer/distributor for more information on separately sold optional products.
8. Air inlet
The air inlet for cooling inside the projector. Do not cover. An air filter is attached over the air inlet to prevent dust.
9. Remote interlock connector (inside front of projector)
This port is for safely using the laser in this device. It is used to externally control the laser illumination in the projector. Consult
with your dealer/distributor about using this.
10 .Lens (optional)
Images are projected from the lens. Request your dealer/distributor to install or replace the lens.
NOTE
Do not cover the air inlets and outlet while the projector is in operation. Insufficient ventilation leads to a rise of the
internal temperature and may cause a fire or malfunction.

16
1. What’s in the Box? and the Names of the Projector Parts
1-3-2. Rear of the projector
1
2
1
3
1. Air inlet
The air inlet for cooling inside the projector. Do not cover. Air filters are attached over the air inlet to prevent dust.
2. Buzzer (inside rear of projector)
The buzzer rings when the power is turned on or an error has occurred.
3. Air outlet
The air outlet to exhaust heat inside the projector. Do not cover.
NOTE
Do not cover the air inlets and outlet while the projector is in operation. Insufficient ventilation leads to a rise of the
internal temperature and may cause a fire or malfunction.

17
1. What’s in the Box? and the Names of the Projector Parts
1-3-3. Bottom of the projector
2
2
1
1
1. Handle (4 locations)
Handles for moving the projector.
2. Level adjusters (in 4 positions)
In the ordinary installation, you can adjust the projector inclination at 4 positions.

18
1. What’s in the Box? and the Names of the Projector Parts
1-3-4. Connection terminals
1 2 3 4 5 6
7
1. Service terminal (REMOTE) (Stereo mini)
This terminal is used for service purpose only.
2. Ethernet port (LAN) (RJ-45)
The port for interfacing with an image signal server or controlling the projector from a PC via a network. Connect the projector
and the PC with a commercially available Ethernet cable (10/100Base-T).
3. USB port (USB) (type A)
The port for the projector maintenance.
4. PC control terminal (RS-232) (D-sub 9P)
The terminal for operating the projector from a PC via an RS-232C or for service personnel to set data for the projector. Connect
the projector and the PC with a commercially available RS-232C straight cable.
5. 3D terminal (3D) (D-sub 15P)
The terminal for connecting a 3D image system to the projector. (See page 77)
6. External control terminal (GP I/O) (D-sub 37P)
The terminal for externally controlling the projector or connecting a 3D image system to the projector. (See page 72)
7. Slot
The slot is used for an image media block (IMB). Contact your dealer/distributor for an installation of IMB.
Refer to the IMB instruction manual for details on IMB.

19
1. What’s in the Box? and the Names of the Projector Parts
1-3-5. Control panel
1
2
3
4
5
10
11
14
9
13
12
6
7
8
1. LCD screen
The LCD screen displays menus and setting values for the projector operations.
2. ///(UP/DOWN/LEFT/RIGHT) buttons
Press these buttons to select a menu item while a menu is displayed.
3. MENU button
Press this button to display the menu for various settings and adjustments. (See page 43)
4. ENTER button
Press this button to select the menu item.
5. EXIT button
Press this button to return to the previous menu item.
6. KEY LOCK button
Press this button to lock (KEY LOCK) the buttons on the control panel. Buttons on the control panel do not function while KEY
LOCK is on.
Pressing the KEY LOCK button for one second or longer while KEY LOCK is off locks the buttons.
Pressing the KEY LOCK button for one second or longer while KEY LOCK is on unlocks the buttons. (See page 35)
NOTE
KEY LOCK becomes automatically on if no control panel operation takes place in the standby state for 30 seconds
by default. (See page 35)
7. button (POWER button)
Press this button for more than three seconds to turn on or off (standby) the projector. (See page 60)
In order to start up the projector, turn on the main power switch for the projector to set the projector in the standby state. (See
page 28)
8. DOUSER button
Press this button to open and close the douser. (See page 60)
9. button (LIGHT ON/OFF button)
Press this button for five seconds or longer to turn on or off the light source while the projector is on. (See page 36)
10 .LIGHT button
Press this button to display the light source adjustment menu. (See page 34)

20
1. What’s in the Box? and the Names of the Projector Parts
11 .IMB button (planned to be supported in a future update)
This button is operable when the media block is installed in the projector.
Press this button to display the operation menu of the media block.
12 .Play/pause button (planned to be supported in a future update)
This button is operable when the media block is installed in the projector.
Press this button to play or pause the image contents.
13 .Stop button (planned to be supported in a future update)
This button is operable when the media block is installed in the projector.
Press this button to stop playing the image contents.
14 .Preset buttons
Press the preset button to select a title (input signal) assigned to each button. Up to 100 titles (input signals) can be registered
to this projector, and any 16 titles from them can be assigned to the preset button. Please request your dealer to register and
change the titles of the buttons as required.
The preset button indicators show their assigned title or selection status. (See page 59)
TIP
To select a title allocated to one of the preset buttons, use the following procedure.
• To select a title allocated to one of “Preset Button1” to “Preset Button8”
Press the button which corresponds to the number of the preset button (button <1> to <8>).
- Press the <1> button to select the “Preset Button1”.
- Press the <8> button to select the “Preset Button8”.
• To select a title allocated to one of “Preset Button9” to “Preset Button16”
Press the preset button (button <1> to <8>) while holding down the UP button.
- Press the <1> button while holding down the UP button to select the “Preset Button9”.
- Press the <8> button while holding down the UP button to select the “Preset Button16”.
