NEC NEAX2400 ICS Quick start guide

NEC America Inc.
CNG Product Development Division (PDD)
Page 1 ETI-152A
Volume 5, Issue 3
September, 1997
ETI-152A
NEAX2400 ICS ISDN PRI
Installation Notes
ENGINEERING TECHNICAL INFORMATION
E T I
DESCRIPTION
This Engineering Technical Information (ETI) bulletin describes installation procedures for NEAX2400
ICS ISDN Primary Rate Interface (PRI). For additional information sources, refer to the documents listed
in the References section of this ETI.
CONTENTS PAGE
1. GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. ISDN OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.1 Layer 1 Physical Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.2 ISDN PRI Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.3 ISDN PRI Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. HARDWARE/SOFTWARE REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4. CIRCUIT CARD (PA-24PRT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
5. DATA ASSIGNMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.1 ISDN PRI Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.2 ASYD Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.3 ARTD Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.3.1 ARTD Assignment for “B” Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.3.2 ARTD Assignment for “D” Channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.4 Examples of Office Data Assignment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.4.1 Example 1: ADPC, ACSC and ACIC Commands. . . . . . . . . . . . . . . . . . . 15
5.4.2 Example 2: ADPC, ACSC and ACIC Commands (PA-24PRTB-A) . . . . 18
5.4.3 External Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.5 ACBC Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5.1 Floppy Disk Name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5.2 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5.3 Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5.4 Related Reference Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5.5 Entry Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6. TEST METHOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7. REFERENCES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

NEAX2400 ICS ISDN PRI Installation Notes
ETI-152A Page 2
1. GENERAL DESCRIPTION
This ETI describes the installation procedures and office data assignment for connecting ISDN
lines to NEAX2400 ICS. The ISDN PRI (Primary Rate Interface 23B + D) allows a station user to
gain access to a variety of services, associated with the ISDN, based on the office data assigned.
This ETI, which is not intended as a general ISDN training document, assumes the craft person is
fully trained in the programming and installation of the NEAX2400 and has the necessary ISDN
knowledge.
2. ISDN OVERVIEW
2.1 Layer 1 Physical Interface
ISDN PRI is a T1 interface which should be configured to ESF B8ZS rather than to D4
AMI. Configuration to ESF B8ZS will avoid falls framing and yellow alarm emulation
problems that can occur when digital data is transported with a D4 format. If ESF with B8ZS
is unavailable, the D channel speed should be set for 56Kbpps instead of 64Kbpps. This
speed setting also applies to data transmitted over the B channels. See Table 2 for 24PRT
Switch Settings.
ISDN PRI uses out-of-band message oriented signaling, carried in a separate digital (or “D”)
channel. The D channel in any PRI interface must be in time slots 24 of the DS1. The
remainder of the 23 bearer (or “B”) channels carry voice or data.
When multiple DS1s for ISDN PRI are provided to a given customer location, two methods
of using D channels are used. The first method uses a D channel for each interface. The
second method uses one D channel for several interfaces; this is called Non-Facility
Associated Signaling (NFAS). A D channel backup may be provided in the case of NFAS.
This channel is in stand-by mode and will take over in case of primary D channel failure.
Please note that there are two assignments in ATRK for any ISDN D channel. One
assignment represents the Physical channel on the 24PRT; the second assignment represents
the D channel handler (DCH) part of the 24PRT.
2.2 ISDN PRI Protocol
ISDN protocol depends on the switch type used by the central office. You should have this
information prior to installation since switch settings and data assignment are different for
each protocol.
The NEAX2400 supports AT&T 4ESS and 5ESS protocol, as well as NT DMS100/
DMS250. Currently, the NEAX2400 does not support the National ISDN protocol for PRI.
Arrangements should be made with the central office to configure the protocol for custom
and not for National ISDN PRI. The National ISDN PRI is mostly used in AT&T 5ESS and
NT DMS100/250. AT&T 4ESS only supports AT&T protocol at this time.
ISDN PRI protocol can be broken into two types of protocol. The first type, User to Network
Protocol, allows connection of a PBX to a network. The second type, Symmetrical Protocol,
allows PBX to PBX connection via private lines.

Page 3 ETI-152A
NEAX2400 ICS ISDN PRI Installation Notes
The PBX supports User to Network protocol; however, provision has been made for the
PBX to be configured as a network for test purposes. In applications where two PBXs are
connected via private lines, one PBX may be configured as a network (however, NEC does
not guaranty this type of operation).
2.3 ISDN PRI Services
ISDN PRI offers a number of features and services. It is important to know the type of
services the customer has ordered with the ISDN PRI at the time of installation. This
information will help you to configure the PBX correctly.
The services may be provided by the carrier through Servicing Provisioning (or Fix) or as
Call-by-Call (CBC) Service Selection. Servicing Provisioning is a type of service dedicated
to specific ISDN interfaces or channels. CBC is a service where channels are not dedicated
to a specific service and are, therefore, not channel dependent.
CBC is also distinguished by its use of the Network Specific Facility (NSF). The NSF uses
various information elements in the setup message for each given call and allows for the
identification of the type of service requested when a call is placed. In the case of CBC, the
NSF needs to be sent by the PBX to the network with each call. The ACBC command is
used for setting CBC. This command also allows you to program the type of numbering plan
(examples include national, international, or private; type of network (AT&T or NT); and
type of service or feature). When the NSF is not sent when requested or is not recognized by
the network, the call will be rejected. The customer should provide information regarding
the types of subscribed services. In the case of Local CO where the services subscribed to
are DOD and DID on a same ISDN interface without the NSF, the programming of the NSF
is unnecessary.
The ACBC command is also used to indicate to the network the long distance carrier
selection code. An example of this would be when the ISDN is provided by the local carrier
and long distance is provided by AT&T, MCI, or Sprint. This is called Transmit Network
Selection (TNS).
The number provided by the user to the network or PBX is the Calling Party Number (CPN).
The CPN is programmed with ACNP and ACND commands. These commands add the area
code number and office code numbers to the extension number from where the call
originated. If multiple CPNs are required, the AANDE command should be used; this
command will allow the assignment of one CPN per individual tenant. The AANDE
command will override the ACNP and ACND commands. The CPN can be privacy optioned
with the feature class of service using the ASFC SFI 94. The privacy option service notifies
the network and called party to restrict the presentation of the CPN. If SFI 94 was set to 1,
the network will deliver the CPN to the called user with “Presentation Restricted” in the
indicator field. It is the responsibility of the user to restrict the CPN when the CPN and the
“Presentation Restricted” message are received at the same time.
The ISDN network can deliver two types of caller ID - Billing Number (BN) or Calling
Party Number (CPN). Two additional SFIs - 97 and 98 - are used to indicate which caller ID
is preferred to be received from the network.

NEAX2400 ICS ISDN PRI Installation Notes
ETI-152A Page 4
3. HARDWARE/SOFTWARE REQUIREMENTS
The following minimum requirements are necessary for this installation.
1. Required software:
•ICS IMG must be version B5.1 or higher.
•ICS MMG must be version B6.4 or higher.
2. Required firmware:
•24-PRT SP-3029 (minimum revision) Rev. 4A
4. CIRCUIT CARD (PA-24PRT)
The diagram below shows the face layout of lamps, switches and connectors for this circuit card.
SW2
MB
OPE
N-OPE
SW3
SW1
SW0
SW4 SW5
PCM
BER
AIS
FRM
RMT
DOPE
PKT LYR
MODE
BL23
BL00
3
2
1
0LB

Page 5 ETI-152A
NEAX2400 ICS ISDN PRI Installation Notes

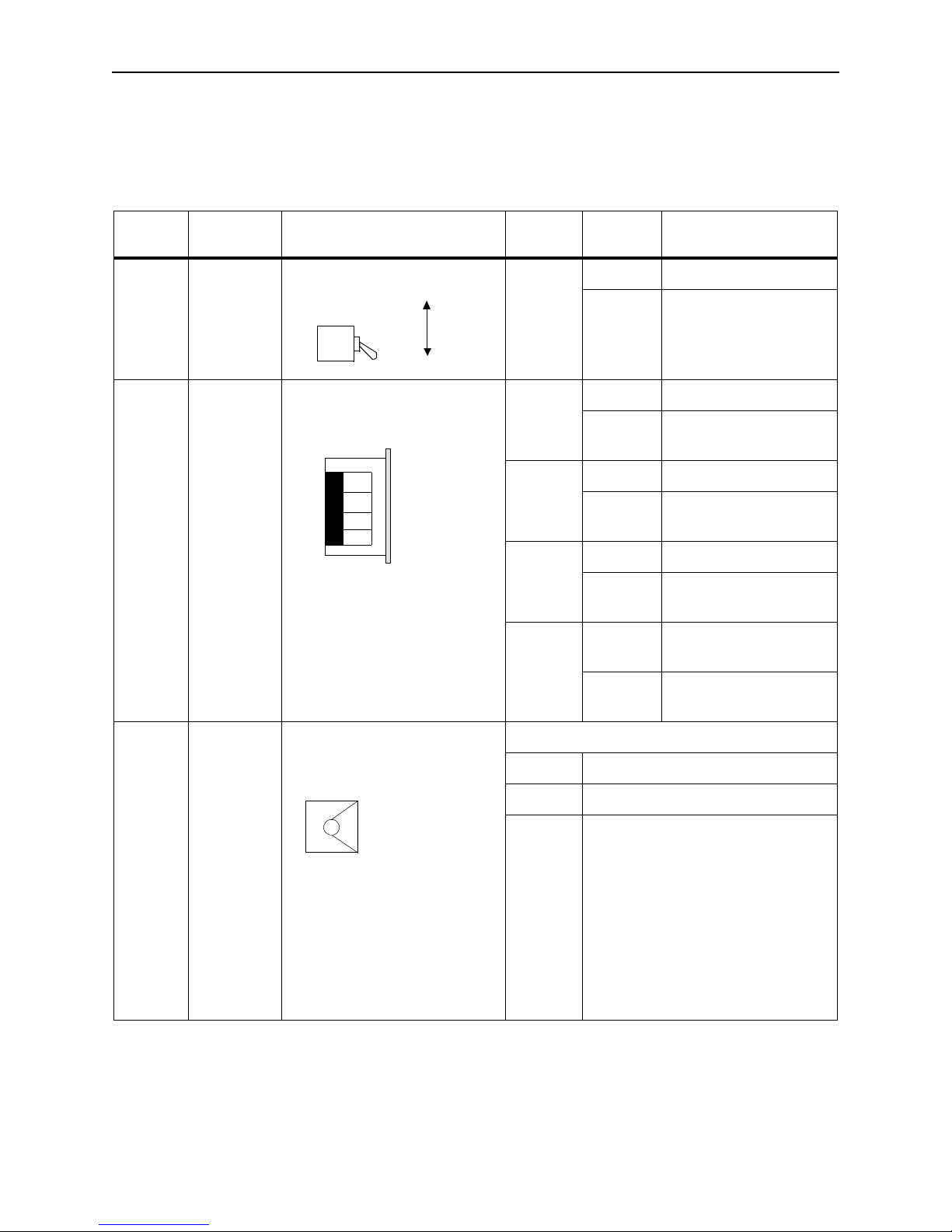

Table 1 contains ISDN switch names and descriptions.
Table 1 ISDN PRI Switch Descriptions
SWITCH
NAME SWITCH LOCATION KIND OF SWITCH SWITCH NO. SWITCH SETTING MEANING
MB Front UP Circuit card make busy
DOWN Circuit card make busy
cancel
LB Front 0ON Internal Loop Back Set
OFF Internal Loop Back
Cancel
1ON External Loop Back Set
OFF External Loop Back
Cancel
2ON Payload Loop Back Set
OFF Payload Loop Back
Cancel
3ON D Channel Control
Block MBR Set
OFF D Channel Control
Block MBR Cancel
MODE Front Setting of Communication Mode
0-4 Not Used
5AT&T (Note)
6-F
7Not Used NT (Note)
Note: The same value should be
used in ARTD CDN 65 for
B and D route.
CDN 65 = 5 for AT&T
#4ESS and #5ESS
CDN 65 = 7 for NT
DMS100 and DMS250
DOWN
Toggle Switch UP
Piano-Key Switch
0
1
2
3
OFF ON
Rotary
Switch
5

NEAX2400 ICS ISDN PRI Installation Notes
ETI-152A Page 6
SW0 Parts
Mounted
Face
Dip Switch
(Standard Setting)
1
ON Impedance Setting:
100Ω
OFF Impedance Setting:
110Ω
2
ON Setting of Transmission
Transformer Middle
Point: Ground
OFF Setting of Transmission
Transformer Middle
Point: Open
3
ON Setting of Receiving
Transformer Middle
Point: Ground
OFF Setting of Receiving
Transformer Middle
Point: Open
4ON Not Used (Fixed to ON)
SW1 Parts
Mounted
Face
Dip Switch
(Standard Setting)
1
ON Digital PAD ROM
Selection: Special
Specification (PROM
Spec.)
OFF Digital PAD ROM
Selection: Standard
Specification (MASK
ROM Spec.)
2ON Not Used (Fixed to ON)
3
ON Interface Structure: 24B
DTR Ts
OFF Interface Structure:
23B+D ISDN
4
ON D-Channel Packet
Service: To be provided
OFF D-Channel Packet
Service: Not to be
provided
Table 1 ISDN PRI Switch Descriptions (Continued)
SWITCH
NAME SWITCH LOCATION KIND OF SWITCH SWITCH NO. SWITCH SETTING MEANING
ON 1 2 3 4
ON 1 2 3 4

Page 7 ETI-152A
NEAX2400 ICS ISDN PRI Installation Notes

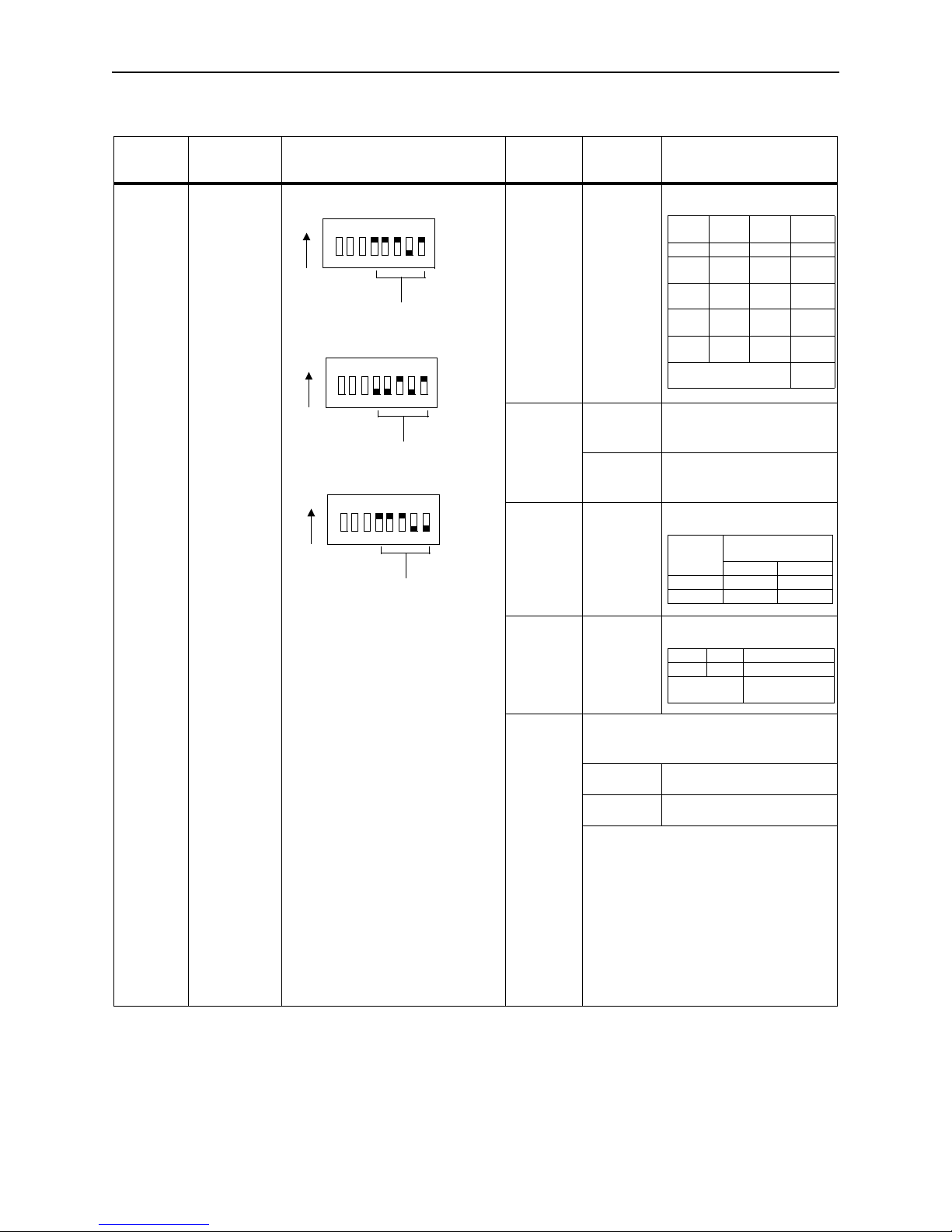

SW2 Parts
Mounted
Face
Dip Switch 1 ~ 3 Equalizer Setting
4
ON Multiframe Selection:
24-Multiframe
OFF Multiframe Selection:
12-Multiframe
5
Zero Suppress Selection
6, 7
4K Data Link Control
8
Notification to the Upper CPU on
occurrence of a line fault
ON To be notified
OFF Not to be notified
Note: SW2-8 is to be set “OFF”
because the PBX side
does not detect a line
failure if the power to the
terminal which has the
Primary Rate Interface is
turned off with this card
being used at the station
line side.
Table 1 ISDN PRI Switch Descriptions (Continued)
SWITCH
NAME SWITCH LOCATION KIND OF SWITCH SWITCH NO. SWITCH SETTING MEANING
ON 1 2 3 4 5 6 7 8
(24-Multiframe Standard
Setting)
ON 1 2 3 4 5 6 7 8
(12-Multiframe Standard
Setting)
ON 1 2 3 4 5 6 7 8
(When H0, H11 terminals
are connected)
SW2-1 ~ 3 is dependent
on the distance.
SW2-1 SW2-2 SW2-3 Distance
(feet)
ON ON ON 0 ~ 133
ON ON OFF 133 ~
267
ON OFF ON 267 ~
400
ON OFF OFF 400 ~
533
OFF ON ON 533 ~
667
Other Combinations Not
possible
SW2-5
Multiframe
Configuration
12 24
ON AMI B8ZS
OFF B7 B7
SW2-6 SW2-7 Data Link Control
ON OFF Standard
Other
Combinations Not possible

NEAX2400 ICS ISDN PRI Installation Notes
ETI-152A Page 8
SW3 Parts
Mounted
Face
Dip Switch
(Standard Setting)
1, 2 AlarmSendingwhenthis
circuit card is in N-OPE
state.
3OFF Fixed to OFF
When this switch is set to
OFF, Alarm Processing
is selected for North
America specification.
4
Main Signal “All 1” Supervision
ON To be supervised
OFF Not to be supervised
5 ~ 8 ON Not Used (Fixed to ON)
SW4 Parts
Mounted
Face
Dip Switch
(Standard Setting)
(When H0, H11 terminals are
connected)
1OFF Fixed to OFF
This switch is set for
Protocol Selection, but
fixed to “OFF” for the
system.
2
ON DCH Mode Selection:
User side
OFF DCH Mode Selection:
Network side
3
ON D-Channel Signal
Logic: Negative
(12-Multiframe)
OFF D-Channel Signal
Logic: Positive
(24-Multiframe)
4, 5 D-Channel Speed
Selection:.
6 ~ 8 ON Fixed to ON (Not Used)
Table 1 ISDN PRI Switch Descriptions (Continued)
SWITCH
NAME SWITCH LOCATION KIND OF SWITCH SWITCH NO. SWITCH SETTING MEANING
ON 1 2 3 4 5 6 7 8
SW3-1 SW3-2 Kind of Alarm
ON ON AIS
ON OFF RMT
OFF ON Alarm is not sent
out
OFF OFF
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
SW3-1 SW3-2 D-Channel Speed
ON ON 64Kbps
OFF ON (64Kbps)
ON OFF 56Kbps
OFF OFF
Not Used

Page 9 ETI-152A
NEAX2400 ICS ISDN PRI Installation Notes
SW5 Parts
Mounted
Face
Dip Switch
(Standard Setting)
1 ~ 3 PAD Pattern Selection
4, 5 PAD Control
6, 7 Data PAD Control
8
ON Idle code sending: To be
sent out
OFF Idle code sending: Not to
be sent out
Table 1 ISDN PRI Switch Descriptions (Continued)
SWITCH
NAME SWITCH LOCATION KIND OF SWITCH SWITCH NO. SWITCH SETTING MEANING
ON 1 2 3 4 5 6 7 8 SW5-1 SW5-2 SW5-3 PAD
Pattern
ON OFF ON PAD
Pattern
1
OFF OFF ON PAD
Pattern
2
ON ON OFF A→µ
Loss/
Bothway
OFF ON OFF A→µ
Loss/
Receive
ON OFF OFF µ→A
Loss/
Bothway
OFF OFF OFF µ→A
Loss/
Receive
Other Combinations Not
possible
SW5-4 SW5-6 PAD Control
ON ON Bothway
OFF ON Send only
(Receive 0dB)
ON OFF Receive only
(send 0dB)
OFF OFF Fixed to ARTD
command
SW5-6 SW5-7 Data PAD Value
ON ON 64Kbps
OFF ON 64Kbps INV
ON OFF 56Kbps AT&T
OFF OFF 48Kbps
PROTIMS

NEAX2400 ICS ISDN PRI Installation Notes
ETI-152A Page 10
Table 2 is an example of switch settings for ISDN with ESF and B8ZS. The configuration shown
below is recommended for ISDN PRI, and is used for ESF and B8ZS settings and connection of
the NEAX2400 ICS to network ISDN PRI.
Table 2 PA-24PRT Switch Settings for ISDN PRI
MODULE SLOT NO. SWITCH
NAME SWITCH SHAPE REMARKS
MB DOWN
SW MODE 5 = AT&T (Note)
7 = NT (Note)
SW0
SW1 If PAD EPROM chip is used,
position 1=ON. If PAD chip is
not used, position 1=OFF.
SW2
SW3
SW4 Set Position 2 OFF to simulate a
network site.
SW5
Note: The same value should be used in ARTD CDN 65 for B and D route.
CDN 65 = 5 for AT&T #4ESS and #5ESS
CDN 65 = 7 for NT DMS100 and DMS250
DOWN
ON 1 2 3 4
ON 1 2 3 4
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8
ON 1 2 3 4 5 6 7 8

Page 11 ETI-152A
NEAX2400 ICS ISDN PRI Installation Notes
Table 3 shows lamp indications for the PA-24PRT card.
Note: When the card is fully operational and communicates with the C.O. PRI, observe
these LEDs (OPE, DOPE, LYR).
5. DATA ASSIGNMENT
5.1 ISDN PRI Commands
The following list provides ISDN PRI commands. Use ISDN PRI only with LCR.
ASYD Index 186 bit 6 ON for ISDN to be turned ON.
Index 375 bit 0 ON for releasing of trunk lockup.
ARTD Assign the D channel route and the B channel. See paragraph 5.3 for more
information.
ATRK Assign the B channels and D channels. See Figure 1 and Figure 3 for more
information.
ARSC Assign restriction class.
ARRC Assign only if Route to Route connection is necessary.
Table 3 Lamp Indications
LAMP NAME COLOR STATE
OPE Note Green Remains lit while this circuit card is operating.
N-OPE Red Remains lit while this circuit card is in make-busy state.
PCM Red Lights in the case of input signal down (PCM LOSS).
FRM Red Lights in the case of frame alignment loss.
BER Red Lights when CRC error occurs frequently.
RMT Red Lights on receiving remote office alarm.
AIS Yellow Lights on detection of AIS.
DOPE Note Green Remains lit while the D Channel Controller is on.
LYR Note Green Lights when the link of the D channel is set up.
PKT Green Lights when the packet of the D channel is in use.
BL00
BL23
Green Lights when the corresponding circuit is busy.
Flash Flashes while the corresponding circuit is in make-busy
state.
OFF Remains off when the corresponding circuit is idle.
(BL23 is always on because the D Channel is in use.)
~

NEAX2400 ICS ISDN PRI Installation Notes
ETI-152A Page 12
ADPC Assign the determined point code. Same point code is used for the B and D
route of one interface. If more than one ISDN link is used and no NFAS is used,
each interface will have a different point code.
ACIC Assign the point code to a CSC without LEN.
ACSC Assign the CSC even and odd to the DCH LEN. See paragraph 5.5 for more
information.
MBTK Idle all the TK, including the D channels.
AMND Assign the necessary number of digits. Data numbers for CCIS or ISDN should
be set as Digital A/D=1.
ARNP Assign the B route access code.
AFRS Assign the necessary numbers for specific OPRs.
AOPR Assign the route of the B channels.
ACBC Assign the services associated with the specific OPR, if necessary.
ACNP Assign CNP per route used for sending the CPN to the network.
ACND Assign the area code office code for the CPN.
ACDD Assign the DNIS incoming number conversion, if necessary.
ASFC Assign the Presentation Restricted or CPN/BN Preferred.
AANDE Assign an office code and NPA combination per each tenant for multiple CPNs
(overrides ACNP and ACND).
5.2 ASYD Command
ASYD
SYSTEM INDEX DATA ASSIGNMENT
SYSTEM1 INDEX186 Bit 6 = 1 for ISDN in Service
SYSTEM1 INDEX375 Bit 0 = 1 for releasing of trunk lockup
NOTE: INDEX 187=00, Number of DCH, is not used when ISDN ICS uses the PA-24PRT
card.

Page 13 ETI-152A
NEAX2400 ICS ISDN PRI Installation Notes
5.3 ARTD Command
5.3.1 ARTD Assignment for “B” Channel
B-Channel must be assigned separately for each ISDN link.
Route 11
ISDN “B”
DATA NAME DATADATA NAME DATADATA NAME DATA
OSGS 0OC 0TPQ 0
ONSG 2R/L 0BL 0
ISGS 0RVSD 0TRKS 0
INSG 2TL 0DPLY 1
TF 3ANS 1ACD 0
TCL 1TELP 02W/4W 0
L/T 1PAD 4FAAT 0
RLP 2OGRL 1GW 0
TQ 0ICRL 1TCMA 0
SMDR 1HD 0SMDR3 0
TD 0GUARD 1HDT 0
DR 0WINK 0CD 0
AC 1VAD 0CCH 0
TNT 0CLD 0TC/EC 0
LSG 12 FA 0IRE 0
SMDR2 0BC 0SCR 0
H/M 0TCM 0LYER1 0
MC 0TDMQ 0NET 0
ANI 0TRSC 0INT 5
(Note)
D0BT 0DC 4
MSB 0PRV 0HKS 0

NEAX2400 ICS ISDN PRI Installation Notes
ETI-152A Page 14
5.3.2 ARTD Assignment for “D” Channel
D-Channel must be assigned separately for each ISDN link.
MSW 0A/D 1SCF 0
TR 0CW 0SMDR4 0
Note: The same value should be used in ARTD CDN 65 for B and D route.
CDN 65 = 5 for AT&T #4ESS and #5ESS
CDN 65 = 7 for NT DMS100 and DMS250
Route 10
ISDN “D”
DATA NAME DATADATA NAME DATADATA NAME DATA
OSGS 0OC 0TPQ 0
ONSG 2R/L 0BL 0
ISGS 0RVSD 0TRKS 0
INSG 2TL 0DPLY 0
TF 0ANS 0ACD 0
TCL 1TELP 02W/4W 0
L/T 1PAD 7
(Note 1)FAAT 0
RLP 2OGRL 0GW 0
TQ 0ICRL 0TCMA 0
SMDR 0HD 0SMDR3 0
TD 0GUARD 0HDT 0
DR 0WINK 0CD 0
AC 1VAD 0CCH 0
TNT 0CLD 0TC/EC 0
LSG 13 FA 0IRE 0
Note 1: 7 is the only valid PAD value for the D Channel.
Note 2: The same value should be used in ARTD CDN 65 for B and D route.
CDN 65 = 5 for AT&T #4ESS and #5ESS
CDN 65 = 7 for NT DMS100 and DMS250
Route 11
ISDN “B” (Continued)
DATA NAME DATADATA NAME DATADATA NAME DATA

Page 15 ETI-152A
NEAX2400 ICS ISDN PRI Installation Notes
5.4 Examples of Office Data Assignment
5.4.1 Example 1: ADPC, ACSC and ACIC Commands
SMDR2 0BC 0SCR 0
H/M 0TCM 0LYER1 0
MC 0TDMQ 0NET 0
ANI 0TRSC 0INT 5
(Note 2)
D0BT 0DC 0
MSB 0PRV 0HKS 0
MSW 0A/D 0SCF 0
TR 0CW 0SMDR4 0
Table 4 Examples of Office Data Programming for a 32 Port Slot
No. of ISDN
Links CHANNEL NAME OF ISDN LINE
ADPC ACSC ACIC
RT PC CSCG DCH
LEN CSCG PC
1D-CHANNEL 10 1130 00012 130 1
B-CHANNEL 11 1131 00012 — —
2D-CHANNEL 12 2132 00016 132 2
B-CHANNEL 13 2133 00016 — —
Route 10
ISDN “D” (Continued)
DATA NAME DATADATA NAME DATADATA NAME DATA
Note 1: 7 is the only valid PAD value for the D Channel.
Note 2: The same value should be used in ARTD CDN 65 for B and D route.
CDN 65 = 5 for AT&T #4ESS and #5ESS
CDN 65 = 7 for NT DMS100 and DMS250

NEAX2400 ICS ISDN PRI Installation Notes
ETI-152A Page 16
ADPC
RT11 (B Route) PC=1
RT10 (D Route) PC=1
ACIC
PC1 CSC=130
No LEN
Space Bar 2 times
WRT Y
ACSC
130 = LEN of the DCH D Channel (See Figure 1.)
131 = Same LEN as 130
Figure 1 shows an example of office data assignment for ATRK Command when
PA-24PRTB-A is mounted in a 32 port slot.

Page 17 ETI-152A
NEAX2400 ICS ISDN PRI Installation Notes
Figure 1 Correspondence between Route Number and LENs Trunk for PIM
LV7 D1
LV6 B23
LV5 B22
LV4 B21
LV3 B20
LV2 B19
LV1 B18
LV0 B17
LV7 B16
LV6 B15
LV5 B14
LV4 B13
LV3 B12
LV2 B11
LV1 B10
LV0 B9
LV7 B8
LV6 B7
LV5 B6
LV4 B5
LV3 B4
LV2 B3
LV1 B2
LV0 B1
LV7
LV6
LV5
LV4
LV3
LV2
LV1
LV0 D2
Group 14
Group 15
Group 13
Group 12
LEN for
CSC = Even
CSC = Odd
Note 1: Preferred mounting slots are 10, 11, 12, 21, 22 and 23.
Note 2: Each ISDN interface requires assignment of 23 B channels and 2 D channels.
B Channels
Channel 2D
Channel 1D

NEAX2400 ICS ISDN PRI Installation Notes
ETI-152A Page 18
5.4.2 Example 2: ADPC, ACSC and ACIC Commands (PA-24PRTB-A)
Figure 2 shows an example of office data assignment when PA-24PRTB-A is
mounted in a 16 port slot.
Figure 2 Example of 24PRT (PRI) Mounting
The table below shows relations of parameters assigned in ADPC, ACSC and ACIC Commands.
Table 5 Examples of Office Data Programming for a 16 Port Slot
No. of ISDN
Links CHANNEL NAME OF ISDN LINE
ADPC ACSC ACIC
RT PC CSCG DCH
LEN CSCG PC
1D-CHANNEL 10 1130 00008 130 1
B-CHANNEL 11 1131 00008 — —
2D-CHANNEL 12 2132 00004 132 2
B-CHANNEL 13 2133 00004 — —
00 01 02 03 04 05 06
P
W
R
01 03 05 07 09 11
00 02 04 06 08 10
D
T
I
Slot No.
PIM0
Group No. (G)

Page 19 ETI-152A
NEAX2400 ICS ISDN PRI Installation Notes
Figure 3 shows an example of office data assignment for ATRK Command (PA-24PRTB-A) in a 16 port slot.
Figure 3 Correspondence between Route Number and LENs Trunk for PIM
Note 1: Each ISDN interface requires assignment of 23 B channels and 2 D channels.
Note 2: There are two assignments in ATRK for any ISDN D channel. One assignment
represents the Physical channel on the 24PRT; the second assignment represents
the D channel handler (DCH) part of the 24PRT.
TK8 (B) TK1 (D)
TK7 (B) TK23 (B)
TK6 (B) TK22 (B)
TK5 (B) TK21 (B)
TK4 (B) TK20 (B)
TK3 (B) TK19 (B)
TK2 (B) TK18 (B)
TK1 (B) TK17 (B)
TK16 (B)
TK15 (B)
TK14 (B)
TK13 (B)
TK12 (B)
TK11 (B)
TK10 (B)
TK2 (D) TK9 (B)
LV7
LV4
LV5
LV6
LV7
LV0
LV1
LV2
LV3
LV4
LV5
LV6
LV2
LV1
LV0
LV3
Assign these LENs
to the trunk of the
B-Channel Route.
Assign these LENs
to the trunk of the
D-Channel Route.
D -- D-Channel Route
B -- B-Channel Route
24PRTB-A(PRI) MOUNTING SLOT
Odd-
numbered
Group
Even-
numbered
Group

NEAX2400 ICS ISDN PRI Installation Notes
ETI-152A Page 20
5.4.3 External Interface
Accommodation of the LT connector leads of this circuit card are shown in Figure 4
for PA-24PRT.
Figure 4 24PRT LT Connector Leads Accommodation
