De Lisle Amp-Speaker Selector 8x8 Stereo Deluxe User manual

Thank you for purchasing the de Lisle Amp-Speaker Selector 8x8 Stereo Deluxe! Your workflow is about to get a lot more streamlined!
Please read and understand the contents of this manual before connecting your new 8x8 Deluxe to any of your gear.Should you have
anyquestions, please contact us directly. We’re happy to help!
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the product.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from
the apparatus.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
This product should be operated only from the type of power source indicated in this manual.
SAFETY INSTRUCTIONS
WARRANTY
de Lisle Guitar Company warrants this product to be free from manufacturing defects in material and workmanship under normal use for the
life of the product. If service is required, please contact de Lisle Guitar Company directly. This warranty is void if the product has been:
a) Damaged through misuse, negligence, or abuse. b) Modified or repaired by anyone other than de Lisle Guitar Company. c) Damaged because
it is improperly connected to any other equipment.
Note: This warranty does not cover: a) Ordinary adjustments as outlined in this manual which can be performed by the customer. b) Damage to
equipment not properly connected to the product. c) Any cost incurred in shipping the product for repair. d) Damage to the product not used in
the USA.
This warranty is not transferable and only applies to the original purchase. Any implied warranties, including the warranty of merchantability, are
limited in duration to the period of this expressed warranty and no warranty whether expressed or implied shall apply to the product thereafter.
Under no circumstance shall de Lisle Guitar Company be liable for special or consequential damages arising from the use of this product, or for
any delay in the performance of this warranty due to causes beyond our control. Some states do not allow limitations on how long an implied
warranty lasts and/or do not allow the exclusion or limitation of consequential damages, so the above limitations on implied warranty and
consequential damages may not apply to you. This warranty gives you specific legal rights. You may have other rights that vary from state to
state.

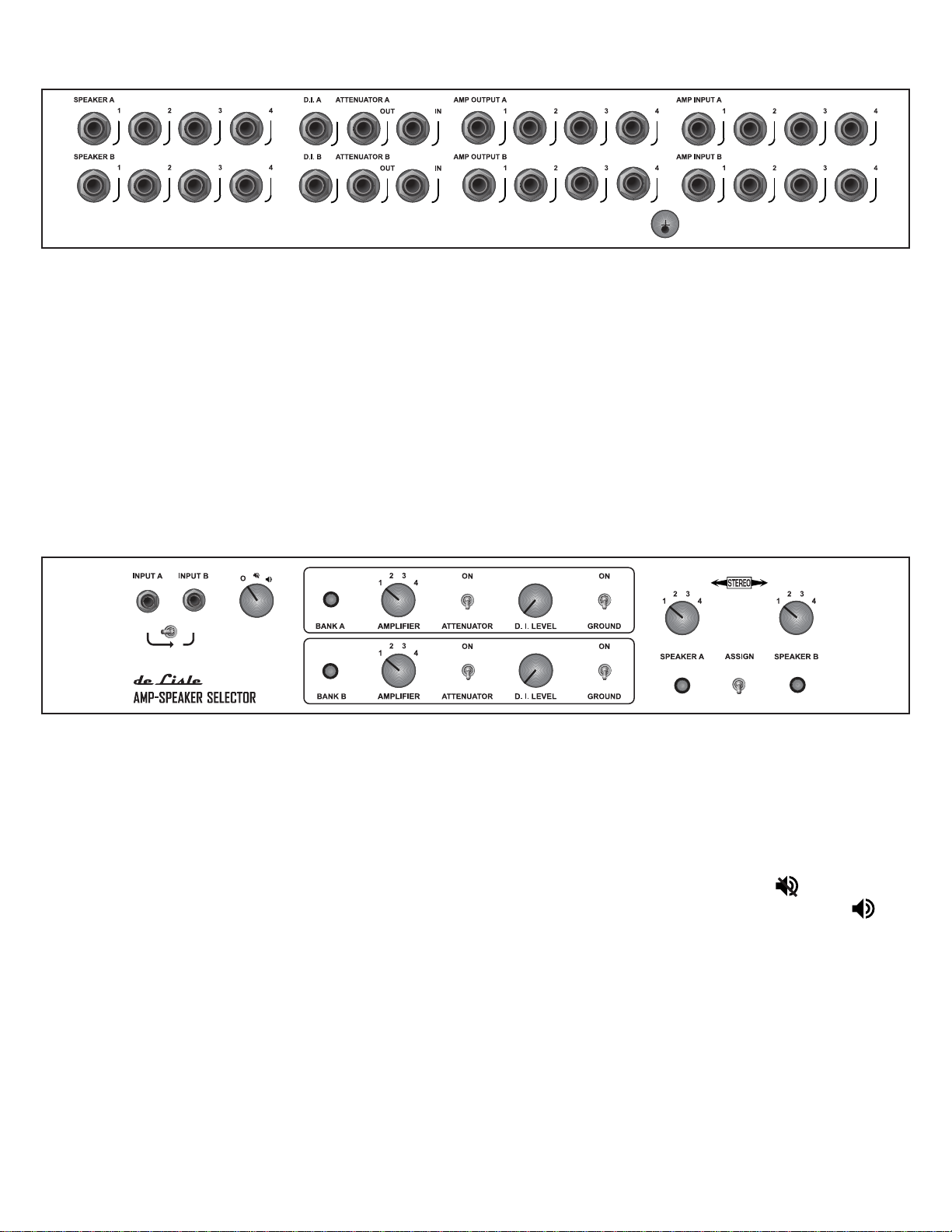

CONNECTIONS:
SWITCHING:
SPEAKER A/B
D.I. A/B
ATTENUATOR A/B OUT
ATTENUATOR IN A/B
AMP OUTPUT A/B
9VDC
AMP INPUT A/B
Connect to your speaker cabinets.
After-amp D.I. can be sent to DAW for loading IRs/cab sims.
Connect to your attenuator’s output jack (e.g. “To Speaker”).
Connect to your attenuator’s input jack (e.g. “FromAmp”).
Connect to the speaker output jacks of your amplifiers.
Use only 9VDC 750mA or higher current center negative power supplies.
Should you hear any “whining” or see dimming of the LED when functions
are switched, the power supply is not able to deliver enough current for
the 8x8 Stereo Deluxe to function properly.
Connect to the input jacks of your amplifiers.
INPUT A/B
LINK
POWER
LED
AMPLIFIER A/B
ATTENUATOR A/B
Connect your guitar or pedalboard output here. IINPUTA will be routed to the
input of the selected amplifier in Bank A. When the LINK switch is in the left
position, INPUT B will be routed to the selected amplifier in BANK B.
When the LINK switch is in the right position, INPUTA will be routed to the
selected amps in both BANK A and BANK B. INPUT B is disconnected.
The power switch has three positions. Ois off. No power is applied.Amps are
muted at their inputs, amp outputs are connected to a load. In the position,
amps are muted but power is still applied to the device. In the third position ,
all front panel controls are fully operational.
Unique LED indicators for both BANKS light up when power is applied.
Rotate to select the desired amplifier. When the LINK switch is not engaged,
the INPUT jack on the front panel will be connected to the corresponding
AMP INPUT jack on the rear panel. TheAMP OUTPUT jack will be connected to
the assigned SPEAKER or the ATTENUATOR if it is active. All unused amps are
muted at their inputs and switched to protection loads.
Flip up to bring the connected attenuator in circuit. Use the down position to
bypass the attenuator or if no attenuator is connected to the switch. Your amps
will be protected should you not have an attenuator connected and place the
switch in the active position.

SPECIFICATIONS • Input Impedance: 1 Meg
• Output Impedance: 500 Ohm
• Input Sensitivity: +15 Vp-p
• Switching Time: 4-8ms
• Contact Resistance: 0.075 Ohm
• Power Consumption: 4.5W Max
• Guitar / Pedalboard Input (2)
• Amplifier Input (4x2)
• Amplifier Output (4x2)
• D.I. (2)
• Attenuator Input (2)
• Attenuator Output(2)
• Attenuator Bypass Switch (2)
• Speaker Input (4x2)
• Transformer Isolation
• Internally Isolated DC Power Supply
• Silver Relay Contacts with Gold Overlay
• Protection Loads for Unused Amplifiers
• Auto Muting of Unused Amplifiers
• Premium 2U Rack Chassis with Laser Etched Panels
• 9VDC 1A Power Supply Included (750mA Minimum Required)
• Hand-Wired
• 150W Maximum Power Per Amp
• Lifetime Warranty
DE LISLE GUITAR CO.
49 BOONE VILLAGE
SUITE 167
ZIONSVILLE, IN 46077
http://www.delisleguitar.com
SWITCHING CONTINUED
D.I. A/B
GROUND A/B
SPEAKER A/B
ASSIGN
Adjusts the single level sent through the rear panel D.I. jack.
In most cases, this switch should be in the down position. However,
should you experience any noise that might be a grounding issue,
place the switch in the up position. For the GROUND switch to
function, the amp must be connected at both the AMP INPUT and
AMP OUTPUT jacks.
Rotate to the select the desired speaker cabinet. The LED for each
speaker will match its assigned amplifier bank.
In the down position SPEAKER A will be routed to amplifier BANK A
and SPEAKER B will be routed to amplifier BANK B. In the up
position, SPEAKER A will be routed to amplifier BANK B and
SPEAKER B will be routed to amplifier bank A.

make or break any rear panel cable connections with the 8x8 Deluxe amplifers or
attenuators powered on.
use this device as a load box. Always be sure to have a proper load connected
whether it is a speaker, load box or attenuator with a built-in load.
exceed the maximum power rating of the device.
leave cables unsupported on the back of the device.
place the device near large magnetic fields such as power transformers. Doing so
may induce a voltage in the isolation transformers which will be heard as hum.
use improper cables. Be sure to use instrument cable for all AMP INPUT, D.I. and
front panel INPUT. Use speaker cable for the AMP OUTPUT, SPEAKER,
ATTENUATOR IN, andATTENUATOR OUT jacks.
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
DO NOT
PRECAUTIONS
INITIAL SETUP PROCEDURE
We recommend starting with one amp and checking your progress. With so many
cables, it can be easy to connect things incorrectly.
Be sure all devices are powered off before making any connections. Place the front
panel ATTENUATOR switch in the down position.
Connect a speaker cabinet to SPEAKER 1
Connect an amplifier’s speaker output toAMP OUTPUT 1.
Connect the same amplifier’s input jack toAMP INPUT 1.
If you have an attenuator, connect its input to the ATTENUATOR INPUT jack and
its output to the ATTENUATOR OUTPUT jack. Note: the attenuator will be bypassed
while the front panel ATTENUATOR switch is in the down position.
Connect your guitar to the front panel INPUT jack. Rotate theAMPLIFIER dial to
position 1. Rotate the SPEAKER dial to position 1.
Power on the 8x8 Stereo Deluxe and then turn on your amplifier.
Listen for the guitar signal. If you hear it coming from the speaker, move on to 10. If
not, double check your cable connections as well as the amplifier and guitar volume
To test your attenuator, place the ATTENUATOR switch in the up position. Should the
sound disappear, check your cable connections as well as the attenuator output level.
Repeat the above steps as necessary to add the rest of your amps and cabinets.
1
2
3
4
5
6
7
8
9
10
11
