NEFF D8985N0GB Operating instructions

How to use and look after your
built-in cooker hoods
D8985
NEFF (UK) Ltd

2
mind.
650 mind.
550
Abb. 1
ELECTR.
Fig. 1
GAZ

3
Appliance description
Instructions for use:
Operating modes
Operating modes
Exhaust-air mode:
❑The extractor-hood fan extracts the
kitchen vapours and conveys them
through the grease filter into the
atmosphere.
❑The grease filter absorbs the solid
particles in the kitchen vapours.
❑The kitchen is kept almost free of grease
and odours.
DWhen the extractor hood is operated
in exhaust-air mode simultaneously with
a different burner which also makes use
of the same chimney (such as gas, oil or
coal-fired heaters, continuous-flow heaters,
hot-water boilers) care must be taken to
ensure that there is an adequate supply
of fresh air which will be needed by the
burner for combustion.
Safe operation is possible provided that the
underpressure in the room where the
burner is installed does not exceed 4 Pa
(0.04 mbar).
This can be achieved if combustion air can
flow through non-lockable openings, e.g. in
doors, windows and via the air-
intake/exhaust-air wall box or by other
technical measures, such as reciprocal
interlocking, etc.
If the air intake is inadequate, there is a
risk of poisoning from combustion gases
which are drawn back into the room.
An air-intake/exhaust-air wall box by itself is
no guarantee that the limiting value will not
be exceeded.
Note: When assessing the overall
requirement, the combined ventilation
system for the entire household must be
taken into consideration. This rule does not
apply to the use of cooking appliances,
such as hobs and ovens.
Unrestricted operation is possible if the
extractor hood is used in recirculating mode
– with activated carbon filter.
Circulating-air mode:
❑An activated carbon filter must be fitted
for this operating mode (see Filters and
maintenance).
The complete installation set and
replacement filters can be obtained from
specialist outlets.
The corresponding accessory numbers
can be found at the end of these
operating instructions.
❑The extractor-hood fan extracts the
kitchen vapours which are purified in the
grease filter and activated carbon filter
and then conveyed back into the
kitchen.
❑The grease filter absorbs the grease
particles in the kitchen vapours.
❑The activated carbon filter binds the
odorous substances.
Light / fan
switches
Filter grille
Chimney
panelling
Lighting

4
Before using for the first time
Important notes:
❑The Instructions for Use apply to several
versions of this appliance. Accordingly,
you may find descriptions of individual
features that do not apply to your
specific appliance.
❑This extractor hood complies with all
relevant safety regulations.
Repairs should only be carried out by
qualified specialists.
Improperly executed repairs can give
rise to significant hazards for the user.
Do not flambé food directly under the
extractor hood.
Risk of grease filter catching fire due
!to flames.
Restrictions apply to the use of the
extractor hood over a solid-fuel burner
(coal, wood, etc.). (See Installation
instructions).
Gas hobs / gas cookers
Always use gas hobs in a proper and
safe manner.
Important:
The flames from the gas hob must always
be covered by pots or pans.
The intense heat generated by the gas
flames could cause damage to the
!extractor hood.
❑Before using your new appliance, please
read these Instructions for Use carefully.
They contain important information
concerning your personal safety as well
as on use and care of the appliance.
❑Please keep the operating and
installation instructions in a safe place;
this important documentation may also
be of use to a possible subsequent
owner.
Do not use the appliance if it is
damaged in any way
The appliance is not intended for use
by young children or infirmed persons
without supervision.
Young children should be supervised to
ensure they do not play with the appliance.
The appliance should only be
connected up to the mains and taken into
use by a qualified specialist.
Dispose of packaging materials
properly (see Installation instructions).
Light bulbs must always be fitted when
the extractor hood is in use.
Defective bulbs should be replaced
immediately to prevent the remaining bulbs
from overloading.
Never operate the extractor hood
without a grease filter.
Overheated fat or oil can easily catch
fire.
If you are cooking with fat or oil, e.g. chips,
etc., never leave the cooker unattended.

5
Operating procedure
The most effective method of removing kitchen fumes is to:
❑switch on the extractor hood when you start cooking.
❑switch off the extractor hood a few minutes after you finishing cooking.
❑The fans in this appliance can be switched to the desired setting by hand (manual mode)
or can be controlled fully automatically with the automatic function according to your
requirements (automatic mode).
Fan
on / off
Switching on manual mode:
Press the Lor +button.
❑The fan starts at Setting }.
Switching on the fan settings/intensive
setting:
1. To increase the fan settings or switch on
the intensive setting ç, press the +
button.
❑The intensive setting operates at
maximum power which should be
used only briefly.
If the intensive setting is not switched
off manually, the fan automatically
switches back to Setting }after
10 minutes.
2. To switch off the intensive setting çor
switch back to fan settings ~–}–|and
switch off the extractor hood
completely, press the –button.
Switching over to automatic mode:
❑To switch from manual mode to
automatic mode at any time, press the Ü
button.
Fan – off –
Fan settings – lower –
Fan – on –
Fan settings – higher –
Fan run-on /
Intermittent ventilation
Light
on / off
Display:
❑Fan settings / Intensive setting
❑Saturation – grease filter (#)
❑Saturation – activated carbon filter (ã)
Automatic mode / Manual mode

6
Operating procedure
Switching on automatic mode:
Press the Übutton.
❑The fan runs at least at Setting |.
Fan settings:
❑If required, the optimum fan setting is
actuated automatically via a sensor.
❑The automatic function operates at
Settings |– ~.
Intensive setting:
1. To switch on the intensive setting ç,
press the +button.
❑Automatic mode has been switched
off.
❑The intensive setting operates at
maximum power which should be
used only briefly.
If the intensive setting is not switched
off manually, the fan automatically
switches back to the optimum fan
setting after 10 minutes.
2. To switch off the intensive setting, press
the –button.
❑Automatic mode has been switched
on again.
Switching over to manual mode:
❑To switch from automatic mode to
manual mode at any time, press the Ü
button.
Intermittent ventilation
❑Used for ventilating the kitchen at hourly
intervals at the lowest fan setting, round
the clock.
Switching on:
❑Before intermittent ventilation can be
switched on, the appliance must be
switched off.
Press the button.
❑The fan runs for 5 minutes at Setting |,
then switches off for 55 minutes. This
process is repeated every hour.
Switching off:
Press the button.

7
Operating procedure
Switching off
With fan run-on started from manual
mode:
Press the button.
❑The fan runs at the setting last selected.
❑The dot on the display flashes.
❑After 10 minutes the fan switches off and
the displays go out.
With fan run-on started from automatic
mode:
Press the button.
❑Fan run-on does not start until the
automatic function has switched the fan
back to Setting |.
❑The dot on the display flashes.
❑After 10 minutes the fan switches off and
the displays go out.
Without fan run-on:
Press the Lbutton.
Light
❑The light can be used at any time, even
when the appliance has been switched
off.
Switching on/off:
Press the abutton.
Special functions
Adjusting the sensitivity of the sensor
control:
1. Press and hold down the automatic
button.
2. To display the current sensitivity, press
the +or –button.
3. You can now change the sensitivity of
the sensor control by pressing the +or
–button.
❑Factory setting: @.
❑Lowest setting: {.
❑Highest setting: Ö.
Switching on the light automatically, e.g.
via a timer:
❑Fan and light must be switched off.
Switching on:
Simultaneously press the aand L
buttons.
❑After approx. 3 seconds the light
switches on to acknowledge the setting.
Switching off:
Repeat the process with the light switched
on.
❑After approx. 3 seconds the light
switches off to acknowledge the setting.

8
Grease filters:
Metal filters are used to trap the greasy
element of the vapours that develop
during cooking.
The filter mats are made from non-
combustible metal.
Caution:
As the filter becomes more and more
saturated with grease, not only does the
risk of it catching fire increase but the
efficiency of the extractor hood can also be
adversely affected.
Important:
By cleaning the metal grease filters at
appropriate intervals, the possibility of them
catching fire as a result of a build-up of heat
such as occurs when deep-fat frying or
roasting is taking place, is reduced.
Saturation indicator:
When the grease filters reach saturation
point, an acoustic signal is sounded for 10
seconds after the fan has switched off, and
an #appears in the display. The grease
filters should be cleaned straight away.
Cleaning the metal grease filters:
❑The filters can be cleaned in a
dishwasher. It is however possible that
they will become slightly discoloured.
Important:
Metal filters that are saturated with
grease should not be washed together
with other dishes etc.
❑When cleaning the filters by hand, soak
them in hot soapy water first of all.
Then brush the filters clean, rinse them
thoroughly and leave the water to drain off.
Removing and inserting the metal grease
filters:
Warning: The halogen bulbs must be
switched off and cool.
1. Press the catch on the grease filters
inwards and fold the filters down.
Filters and maintenance
2. Clean the filters.
3. Insert the clean filters back into the
hood.
4. Cancel the #in the display.
❑Press the Lbutton for at least
3 seconds.
The #is cancelled.

9
Activated carbon filter:
For neutralizing odours in recirculating
mode.
Saturation indicator:
When the activated carbon filter reaches
saturation point, an acoustic signal is
sounded for 10 seconds after the fan has
switched off, and a ãappears in the
display. The activated carbon filter should
be replaced straight away.
Removing the filter:
Warning: The halogen bulbs must be
switched off and cool.
1. Remove the metal filters.
2. Press the catches at both sides of the
filter inwards and lift the carbon filter
down and out.
Filters and maintenance
3. Engage the catches at both sides.
4. Insert the metal grease filters (see
"Removing and inserting the metal
grease filters").
5. Cancel the ãin the display.
❑Press the Lbutton for at least
3 seconds.
The ãis cancelled.
3. Insert the metal grease filters.
Replacing the activated carbon filter:
❑A replacement filter can be obtained
from any authorized dealer (see optional
accessories).
❑Use original filters only.
By doing so you will obtain maximum
performance from your extractor hood.
Disposing of the old activated carbon
filter:
❑There are no pollutants in the activated
carbon filters. They can therefore be
disposed of as part of your normal
domestic refuse.
Inserting the filter:
Warning: The halogen bulbs must be
switched off and cool.
1. Remove the metal filters
(see "Removing and inserting the metal
grease filters").
2. Insert the activated carbon filter.

10
Cleaning and care
Disconnect the extractor hood from the
electricity supply by pulling out the
mains plug or switching it off at the fuse
box.
❑At the same time as you clean the
grease filters, clean off any grease from
all accessible parts of the housing. This
significantly reduces the fire hazard and
ensures that the extractor hood
performs as effectively as possible.
❑Use a hot detergent solution or a mild
window cleaner to clean the canopy of
the extractor hood.
❑Do not scrape off any dirt that has dried
on but loosen it up with a damp cloth.
❑Do not use abrasive cleaning agents or
sponges that could cause scratches.
❑Note: Do not use alcohol (spirit) on
plastic parts, otherwise the surface may
become matt in appearance.
Caution: Ensure that the kitchen is ade-
quately ventilated. Avoid naked flames!
Clean the operating buttons with a mild
soapy solution and a soft, damp cloth only.
Do not use stainless-steel cleaner to clean
the operating buttons.
Stainless steel surfaces:
❑Use a mild non-abrasive stainless steel
cleaner.
❑Clean the surface in the same direction
as it has been ground and polished.
Do not use any of the following to clean
stainless steel surfaces: abrasive sponges,
cleaning agents containing sand, soda, acid
or chloride!
Aluminium and plastic surfaces:
❑Use a soft, non-linting window cloth or
micro-fibre cloth.
❑Do not use dry cloths.
❑Use a mild window cleaning agent.
❑Do not use aggressive, acidic or caustic
cleaners.
❑Do not use abrasive agents.
4. Re-insert the bulb ring.
5. Plug the appliance into the mains or
switch it on at the fuse box.
Note: If the light does not function, check
that the bulbs have been inserted correctly.
Replacing the light bulbs
1. Switch off the extractor hood and pull
out the mains plug or switch off the
electricity supply at the fuse box.
When switched on, the halogen bulbs
become very hot. Even for some time after
the bulbs have been switched off there is
still a risk of burns.

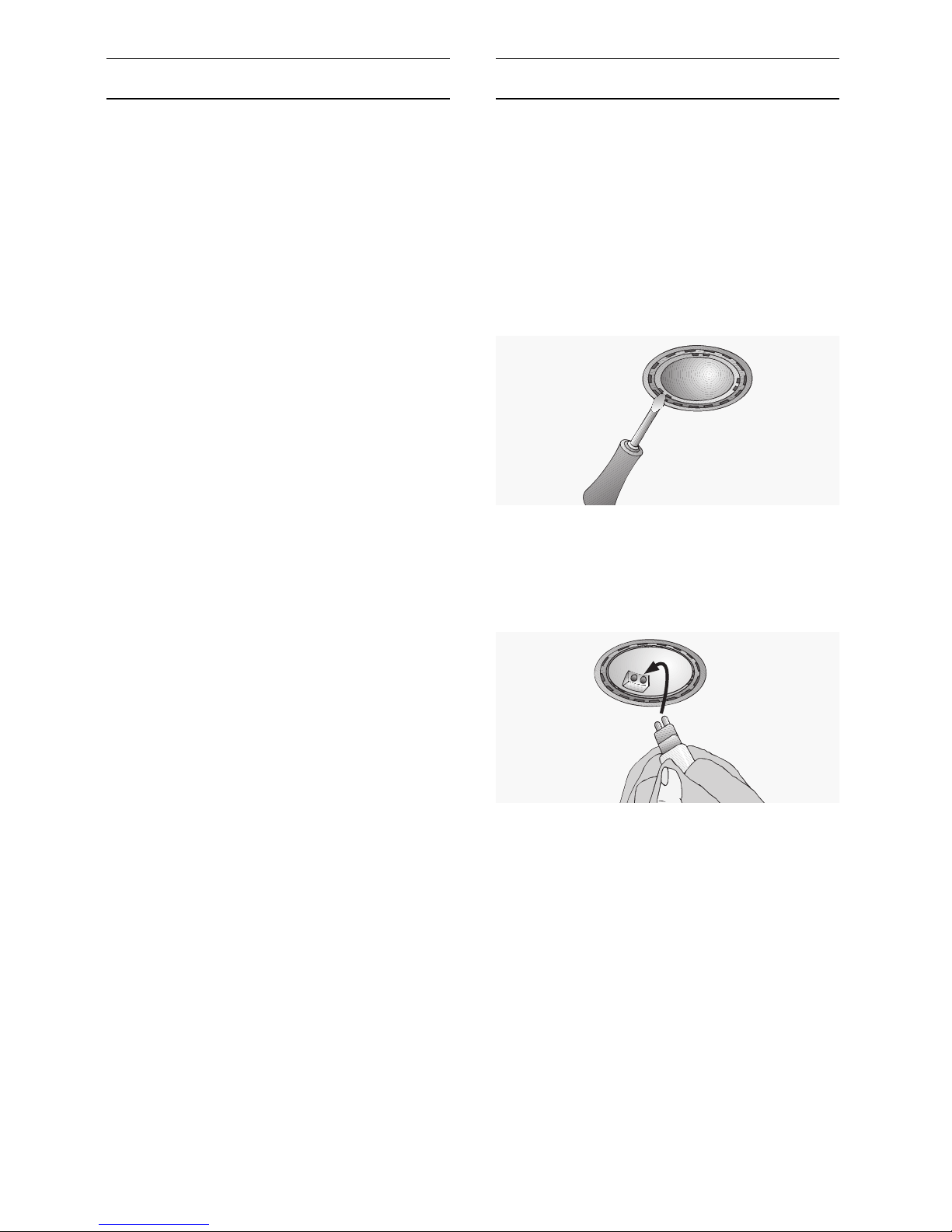

2. Remove the bulb ring with a screwdriver
or similar tool.
3. Replace the halogen light bulb
(conventional halogen bulb, 12 Volt,
max. 20 Watt, G4 cap).
Caution: Refer for plug-in lampholder.
Take hold of the bulb with a clean cloth.

11
Setting the saturation indicator
If it becomes necessary to change the
operating mode (exhaust-air/recirculating
mode), the saturation indicator for the filters
must also be altered (see Installation
Instructions).
If you encounter a problem
If an #or ãappears in the display:
❑See "Filters and maintenance" Section.
If is not possible to operate the extractor
hood:
❑Disconnect the extractor hood from the
mains electricity supply by pulling out the
plug or switching it off at the main fuse
box.
Wait for approx. 1 minute and then
switch it on again.
If you have any questions or if a fault
occurs, please call Customer Service.
(See list of Customer Service
representatives).
When you call, please quote the following:
E-Nr. FD
Enter the relevant numbers into the box
above. The E-Nr. (product no.) and FD
(production date) are shown on the
nameplate which can be seen inside the
extractor hood after the filter frame has
been detached.

12
Important information
Installation Instructions:
The installation of the extractor hood
above gas cooking devices, at a
minimum height of 650 mm – Fig. 1 – is
permitted provided that the following
nominal heat loads (Hs) are not exceeded:
❑Gas cookers
Load of one hotplate max. 03.0 kW
Load of all hotplates max. 08.3 kW
Load of the oven max. 03.9 kW
❑Gas hobs
Load of one hotplate max. 03.9 kW
Load of all hotplates max. 11.3 kW
❑Gas glass-ceramic hotplate
The data on nominal heat loads do not
apply to gas glass-ceramic hotplates.
Be sure to observe the instructions
provided by the manufacturer of the
hotplate.
❑Solid-fuel cookers
The maximum nominal heat loads and
the minimum distance are the same as
for gas cookers.
Installation of the extractor hood over a
solid-fuel burner which could constitute a
potential fire hazard (e.g. due to flying
sparks) is only permitted if the burner is
equipped with an enclosed, non-
removable cover and all country-specific
regulations are observed. This restriction
does not apply to gas cookers and gas
hobs.
The smaller the gap between extractor
hood and hob, the greater the likelihood
that rising steam will cause condensation
to form on the hood.
Old appliances are not worthless
rubbish. If they are disposed of in an
environment-friendly manner, valuable raw
materials can be recovered for use again.
Before you dispose of an old appliance,
make sure that it has been rendered
inoperative.
Your new appliance was protected on
its way to you by the packaging. None of
the materials cause pollution to the envi-
ronment and all can be recycled for use
again. Please help to protect the
environment and dispose of the packaging
in an environment-friendly manner.
You can obtain information about the best
method disposing of old appliances and
packaging from your dealer or local
municipal council.
The extractor hood can be used in
either exhaust-air or recirculating mode.
Always mount the extractor hood over
the centre of the hob.
Minimum distance between electric
hob and bottom edge of extractor hood:
550 mm, Fig. 1.
Additional notes concerning gas
cookers:
When installing gas hotplates, comply
with the relevant national statutory
regulations (e.g. in Germany: Technische
Regeln Gasinstallation TRGI).
The relevant regulations and installation
notes provided by the manufacturer of the
gas cooker must be observed in all cases.
The extractor hood may be installed
next to only one full-height cupboard or
high wall. Gap to be at least 50 mm.

13
Prior to installation
The exhaust air is discharged upwards
through a ventilation shaft or directly
through the outside wall into the open.
DExhaust air should neither be directed
into a smoke or exhaust flue that is
currently used for other purposes, nor into
a shaft that is used for ventilating rooms in
which stoves or fireplaces are also located.
Exhaust air may be discharged in
accordance with official and statutory
regulations only (e.g. national building
regulations).
Local authority regulations must be
observed when discharging air into smoke
or exhaust flues that are not otherwise in
use.
DWhen the extractor hood is operated
in exhaust-air mode simultaneously with
a different burner which also makes use
of the same chimney (such as gas, oil or
coal-fired heaters, continuous-flow heaters,
hot-water boilers) care must be taken to
ensure that there is an adequate supply
of fresh air which will be needed by the
burner for combustion.
Safe operation is possible provided that the
underpressure in the room where the
burner is installed does not exceed 4 Pa
(0.04 mbar).
This can be achieved if combustion air can
flow through non-lockable openings, e.g. in
doors, windows and via the air-
intake/exhaust-air wall box or by other
technical measures, such as reciprocal
interlocking, etc.
If the air intake is inadequate, there is a
risk of poisoning from combustion gases
which are drawn back into the room.
An air-intake/exhaust-air wall box by itself
is no guarantee that the limiting value will
not be exceeded.
Note: When assessing the overall
requirement, the combined ventilation
system for the entire household must be
taken into consideration. This rule does not
apply to the use of cooking appliances,
such as hobs and ovens.
Unrestricted operation is possible if the
extractor hood is used in recirculating
mode – with activated carbon filter.
If the exhaust air is going to be
discharged into the open, a telescopic
wall box should be fitted into the outside
wall.
Exhaust-air mode
120
150
120
150
16
mind. 45
700-1105
250
350
580
520
600/ 900
90
130
565 mind.550
mind.40
315

14
775-
1220
16
mind.
120
250
350
580
520
600/ 900
90
565 mind.550
mind.120
315
Prior to installation
For optimum extractor hood efficiency:
❑Short, smooth air exhaust pipe.
❑As few bends in the pipe as possible.
❑Diameter of pipe to be as large as
possible and no tight bends in pipe.
If long, rough exhaust-air pipes,
many pipe bends or smaller pipe
diameters are used, the air extraction
rate will no longer be at an optimum
level and there will be an increase in
noise.
❑Round pipes:
We recommend
Internal diameter: 150 mm (at least
120 mm).
❑Flat ducts must have an internal cross-
section that equates to that of round
pipes.
There should be no sharp bends.
l120 mm approx. 113 cm2
l150 mm approx. 177 cm2
❑If pipes have different diameters:
Insert sealing strip.
❑For exhaust-air mode, ensure that
there is an adequate supply of fresh air.
Circulating-air mode
❑With activated carbon filter if exhaust-air
mode is not possible. ❑Attach the exhaust-air pipe to the

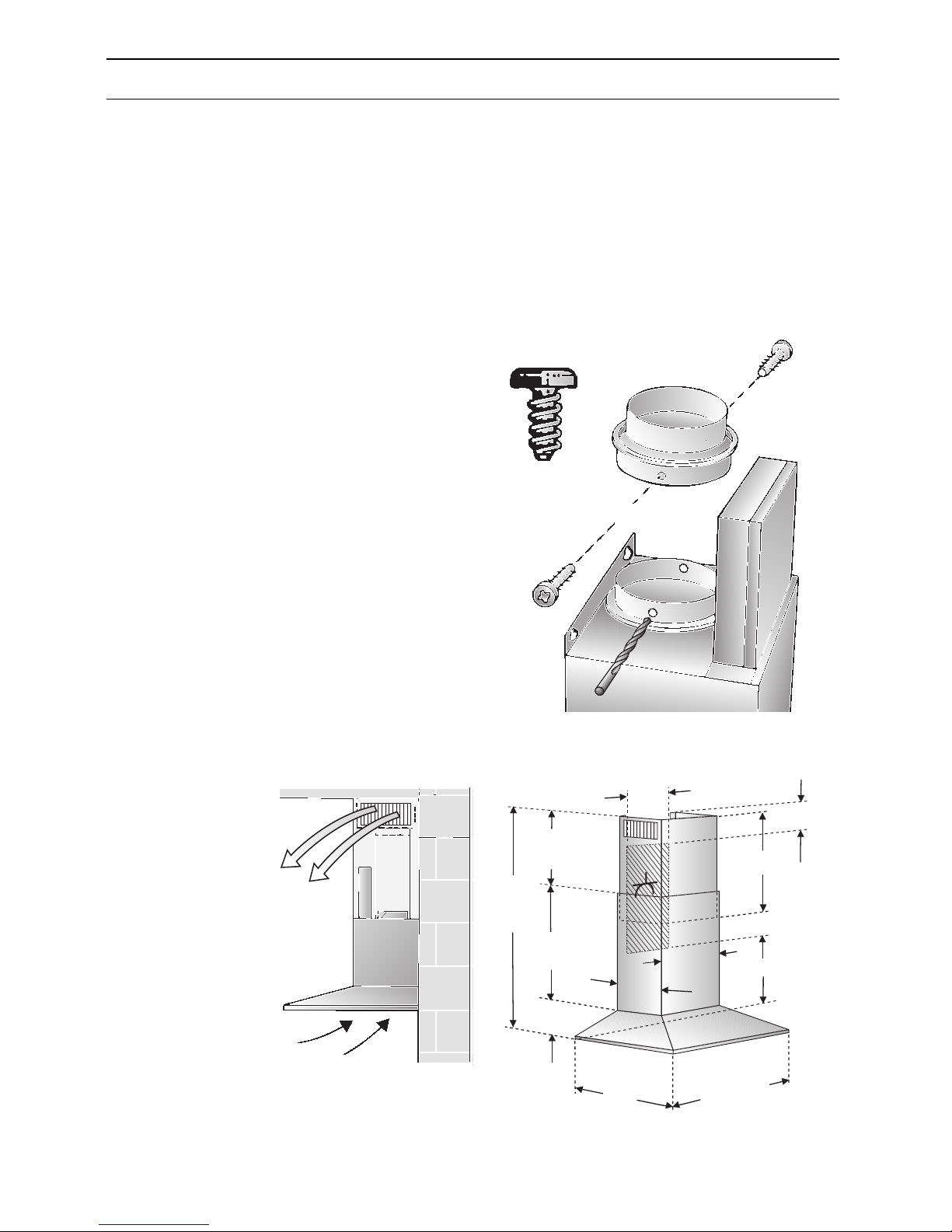

reducing connector.
Connecting a l150 mm exhaust-air
pipe:
❑Mount the pipe directly onto the air
outlet on the hood.
Connecting a l120 mm exhaust-air
pipe:
❑Insert the reducing connector into the air
connector, drill 2x l3 mm holes and
screw together.
The complete
installation set can
be obtained from
specialist outlets.
The corresponding
accessory numbers
can be found at the
end of these opera-
ting instructions.

15
Electrical connectionPrior to installation
WARNING: THIS APPLIANCE MUST BE
EARTHED
IMPORTANT: Fitting a Different Plug:
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow – Earth
Blue – Neutral
Brown – Live
If you fit your own plug, the colours of
these wires may not correspond with the
identifying marks on the plug terminals.
This is what you have to do:
1. Connect the green and yellow (Earth)
wire to the terminal in the plug marked
‘E’ or with the symbol ( ), or
coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the
terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (Live) wire to the
terminal marked ‘L’, or coloured red.
The extractor hood should only be
connected to an earthed socket that has
been installed according to relevant
regulations.
If possible, site the earthed socket directly
behind the chimney panelling.
Electrical data:
Are to be found on the name plate inside
the appliance after removal of the filter
frame.
Before undertaking any repairs,
always disconnect the extractor hood from
the electricity supply.
Length of the connecting cable: 1.30 m.
If it is necessary to wire the extractor
hood directly into the mains:
The extractor hood should only be
connected to the electricity supply by a
properly qualified electrician.
A separator must be installed in the
household circuit. A suitable separator is a
switch that has a contact gap of more than
3 mm and interrupts all poles. Such
devices include circuit breakers and
contactors.
This extractor hood corresponds to EC
regulations concerning RF interference
suppression.
Exhaust air Recircula-
ting air
20,260 cm 22,4
23,2 25,490 cm
We reserve the right to construction changes within the
context of technical development.
Preparing the wall
❑The wall must be flat and perpendicular.
❑Ensure that the wall is capable of
providing a firm hold for mounting
screws and plugs.
❑Appliances with a rear light:
A recess panel or tiles fitted to the wall
directly under the extractor hood must
not project by more than 15 mm,
otherwise the light cover may be
damaged.
Weight in kg:
Changing over from exhaust-
air to recirculating mode
Changing the electronic control system
to recirculating mode:
❑The standard factory setting is for
operation in exhaust-air mode.
❑To change the mode, the extractor hood
must have been connected up and
should be switched off.
1. Press and hold down the Lbutton.
2. Press the button for approx.
3 seconds.
❑A ãis displayed.
3. Release the buttons.
❑The display goes out shortly
afterwards.
Resetting to exhaust-air mode:
1. Repeat the procedure.
❑A #is displayed.
2. Release the buttons.
❑The display goes out shortly
afterwards.

16
Installation
Note: Take into account any special
accessories that are going to be fitted.
5. Attach the fixing bracket for the
chimney panelling using two hexagon
head cap screws.
6. Screw in the two upper hexagon head
cap screws leaving them extended by
approx. 5 mm.
7. Attach the extractor hood to the
screws.
ca.5mm
15
300
270
411
90
160
mind.550 Elektro
mind.650 Gas
This extractor hood is intended to be
mounted onto the kitchen wall.
1. Remove the grease filter (refer to
Operating Instructions).
2. Draw a line on the wall from the ceiling
to the lower edge of the hood at the
centre of the location where the hood is
going to be mounted.
3. Using the template, mark positions on
the wall for the screws.
Ensure that the minimum distance
between the hob and the extractor hood is
maintained – 550 mm for an electric hob
and 650 mm for a gas hob. The bottom
edge of the template equates to the lower
edge of the extractor hood.
4. Drill 4 x l8 mm holes for the extractor
hood and 2 x l8 mm holes for the
chimney panelling. Insert plugs into the
holes so that they are flush with the wall.

17
Installation
08. Screw in the two lower hexagon head
cap screws.
Before the 4 screws are tightened
down, align the extractor hood properly.
09. Stick protective film over the holes of
the 2 lower mounting bolts in the
protective grid.
13. Push both sections of the flue panelling
together (slots in the upper section
must be pointing downwards) and
insert into the opening in the extractor
hood.
Protect the cover panels from
scratches, for example by laying the
template used for marking the wall over
the top edge of the lower section.
10. Connect up the air outlet pipe.
11. Connect the hood to the electricity
supply.
12. Remove the protective film from the
two flue ducts.
Take care not to damage the
stainless steel surfaces which are
susceptible to scratches etc.
1.
2.
15. Insert the grease filter (refer to
Operating Instructions).
1.
2.
3.
14. Slide out the upper section and attach
it to the mounting brackets at the sides
with two screws.

18
Notes

19
Notes

20
Notes
