Neflaca NL-N41 User manual
CONTENT
IMPORTANT SAFETY INSTRUCTIONS ...............................................................................................2
CHAPTER 1 INTRODUCTION ............................................................................................................5
1.1 Packing List ........................................................................................................................5
1.2 Appearance and Components...........................................................................................6
1.3 Dimension..........................................................................................................................7
CHAPTER 2 SPECIFICATIONS ............................................................................................................8
CHAPTER 3 INSTALLATION & USAGE .............................................................................................10
3.1 Media Loading .................................................................................................................10
3.2 Power Connection ...........................................................................................................14
3.3 Peripherals Connection ...................................................................................................15
3.4 Paper Sensor....................................................................................................................16
3.5 Operation Panel...............................................................................................................20
3.6 Basic Function..................................................................................................................21
CHAPTER 4 INTERFACE ..................................................................................................................24
4.1 USB Interface ...................................................................................................................24
CHAPTER 5 MAINTENANCE & ADJUSTMENT ................................................................................25
5.1 Cleaning Print Head.........................................................................................................25
5.2 Cleaning Roller and/or Paper Path ..................................................................................25
CHAPTER 6 LABEL PRINTER UTILITY INSTRUCTIONS .....................................................................26
6.1 Installation Preparation ...................................................................................................26
6.2 Usage ...............................................................................................................................26
CHAPTER 7 WINDOWS DRIVER INSTRUCTION ..............................................................................35
7.1 Introduction.....................................................................................................................35
7.2 Installation Preparation ...................................................................................................35
7.3 Installation.......................................................................................................................36
7.4 Usage ...............................................................................................................................39
7.5 Removing.........................................................................................................................52
CHAPTER 8 Mac DRIVER INSTRUCTION.........................................................................................54
8.1 Manual Information ........................................................................................................54
8.2 Driver Preparation for macOS .........................................................................................54
8.3 Driver Installation for macOS ..........................................................................................54
CHAPTER 9 LINUX DRIVER INSTRUCTION......................................................................................60
9.1 Manual Information ........................................................................................................60
9.2 Operating System (OS) Environment...............................................................................60
9.3 Linux Driver Installation...................................................................................................61
9.4 Detailed Linux Driver Settings .........................................................................................66
NL-N41 User Manual
1
◼Statement
This manual content may be changed without permission and our company reserve the rights
to make changes in technology, spare parts, hardware and software of the products. Please
contract our company, if the user needs further information about the products. Without any
written permission from our company, any section of this manual is prohibited to be copied or
transferred in any form.
◼Warnings
This must be complied with in order to avoid damage to the human body and the
equipment.
This shows the important information and tips for the printer operation.
◼Attention
Due to continuous improvement of the products, the specifications, accessories and
procedures described in the manual are based on actual machines. And it may be changed
without prior notice.
NL-N41 User Manual
2
IMPORTANT SAFETY INSTRUCTIONS
Before using the printer, please read carefully the following safety consideration in case of
bodily injury or equipment damage.
1.Safety warning
The print head will become very hot during printing, please do not touch the printhead
and peripheral parts during printing and printing just finished.
Please do not touch the printhead and connectors, in case that static damages the
printer head.
2.Instructions
Warnings: Violating following instructions may cause serious injury or death.
1) Do not plug several products in one porous power outlet.
• This may cause over-heat and a fire.
• If the plug is wet or dirty, dry or wipe it before using.
• If the plug does not fit perfectly to the outlet, do not plug in.
• Be sure to use only standardized porous power outlet.
2) You must use the supplied adapter.
• It is dangerous to use other adapters.
3) Do not pull the cable by pulling.
• This may damage the cable or cause a fire.
4) Do not plug in or unplug with your wet hands.
• You may be electrocuted.
5) Do not bend the cable by force or leave it under any heavy object.
• A damaged cable may cause a fire.
NL-N41 User Manual
3
Note: Violating following instructions may cause slight damage of the appliance.
1) If you observe a strange smoke, odour or noise from the printer, unplug it before taking
following measures.
• Switch off the printer and unplug the set from the mains.
• After the disappearance of the smoke, call your dealer to repair it.
2) Install the printer on the stable surface.
• If the printer falls down, it may be broken and you may hurt yourself.
3) Use the approved accessories only and do not try to disassemble, repair or remodel it by
yourself.
• Call your dealer when you need these services.
• Do not touch the blade of auto cutter.
4) Do not let water or other foreign objects drop into the printer.
• If this happened, switch off and unplug the printer before calling your dealer.
5) Do not use the printer when it is out of order. This can cause a fire or an electrocution.
• Switch off and unplug the printer before calling your dealer.
6) Other considerations:
• Place the printer on a solid and even base so that it cannot fall.
• Leave enough space around printer for operation and maintenance.
• Keep all liquids away from the printer.
• Do not expose the printer to high temperatures, direct sunlight or dust.
• Ensure the printer is connected to a socket with the correct mains voltage.
• Switch off the printer POWER supply when it’s not in use for a long time.
• To ensure the printing quality and reliability, suggest use the same quality or recommend
paper supplier.
• Pls. switch off the POWER supply when connect/disconnect all the ports or it will cause
damage to the printer control circuit.
• Never carry out maintenance or repair work yourself. Always contact a qualified service
Technician.
• Keep this User Manual in a place which is always easily accessible.
NL-N41 User Manual
4
3.Other Precautions
The copyright for this user manual and various other manuals is property of our company. Any
copying or conversion into electronic form and saving of this material without the express
written permission is strictly prohibited. Use of the information contained in this manual is not
subject to any patent liability. This manual has been prepared with utmost care and attention to
detail but may contain certain errors and/or omissions. Our company is not legally liable for any
damages resulting from the use of the information in this manual. Our company and its
affiliates are not legally liable (United States excluded) for any damages, loss, costs, and/or
expenses that result from the breakdown, malfunction, and/or misuse of the product due to
violation or neglect of the operation and maintenance information and instructions provided by
our company, as well as from the unauthorized alteration, repair, and/or modification of the
product by the user and/or third party. We are not legally liable for any damages and/or issues
resulting from the use of options and/or parts that are not authentic or authorized products.
4.WEEE (Waste Electrical and Electric Equipment)
This mark shown on the product or its literature indicates that the corresponding
item should not be discarded at the end of its working life with other household
waste. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate marked items from other types of waste and
recycle them responsibly to promote the sustained reuse of material resources. Household
users should contact either the retailer where they purchased this product, or their local
government office for details of where and how they can conduct environmentally safe
recycling of such items. Commercial users should contact their suppliers and check the terms
and conditions of purchase contracts. This product should not be combined with other
commercial waste for disposal.
Caution: This is a Class A product. In a domestic environment this product may cause
radio interference in which the user may be required to take adequate measures.
NL-N41 User Manual
5
CHAPTER 1 INTRODUCTION

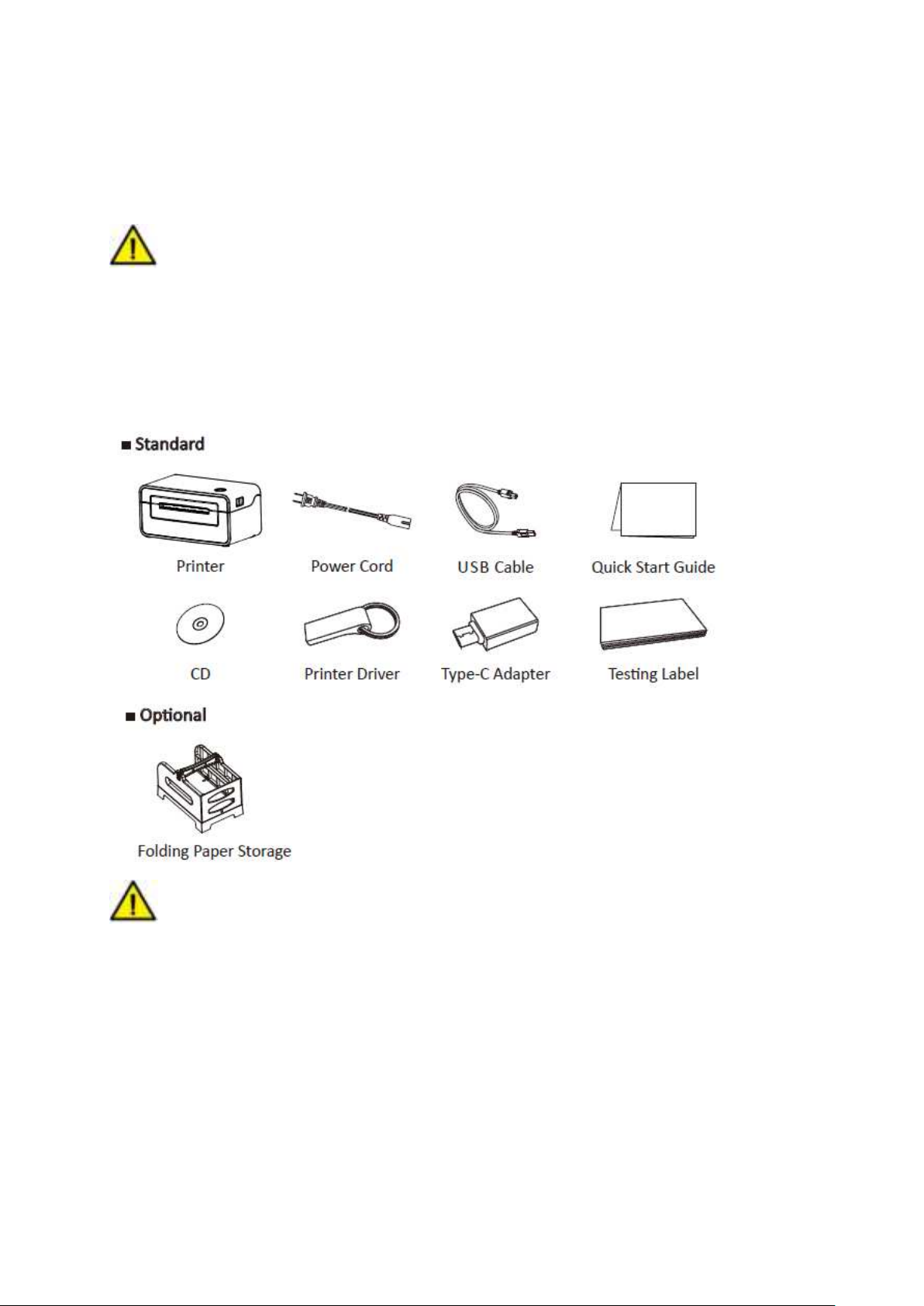

1.1 Packing List
Note:
1.Unpack the printer and keep the packing materials in case you need to ship the printer in the
future.
2.Any damages exist, please contact the local dealer.
Note：The packing materials are based on the order.
NL-N41 User Manual
6
1.2 Appearance and Components
￭Front View
￭Rear View
￭Inside View
Note：The views above are for your reference. Ports vary by your choice.
NL-N41 User Manual
7

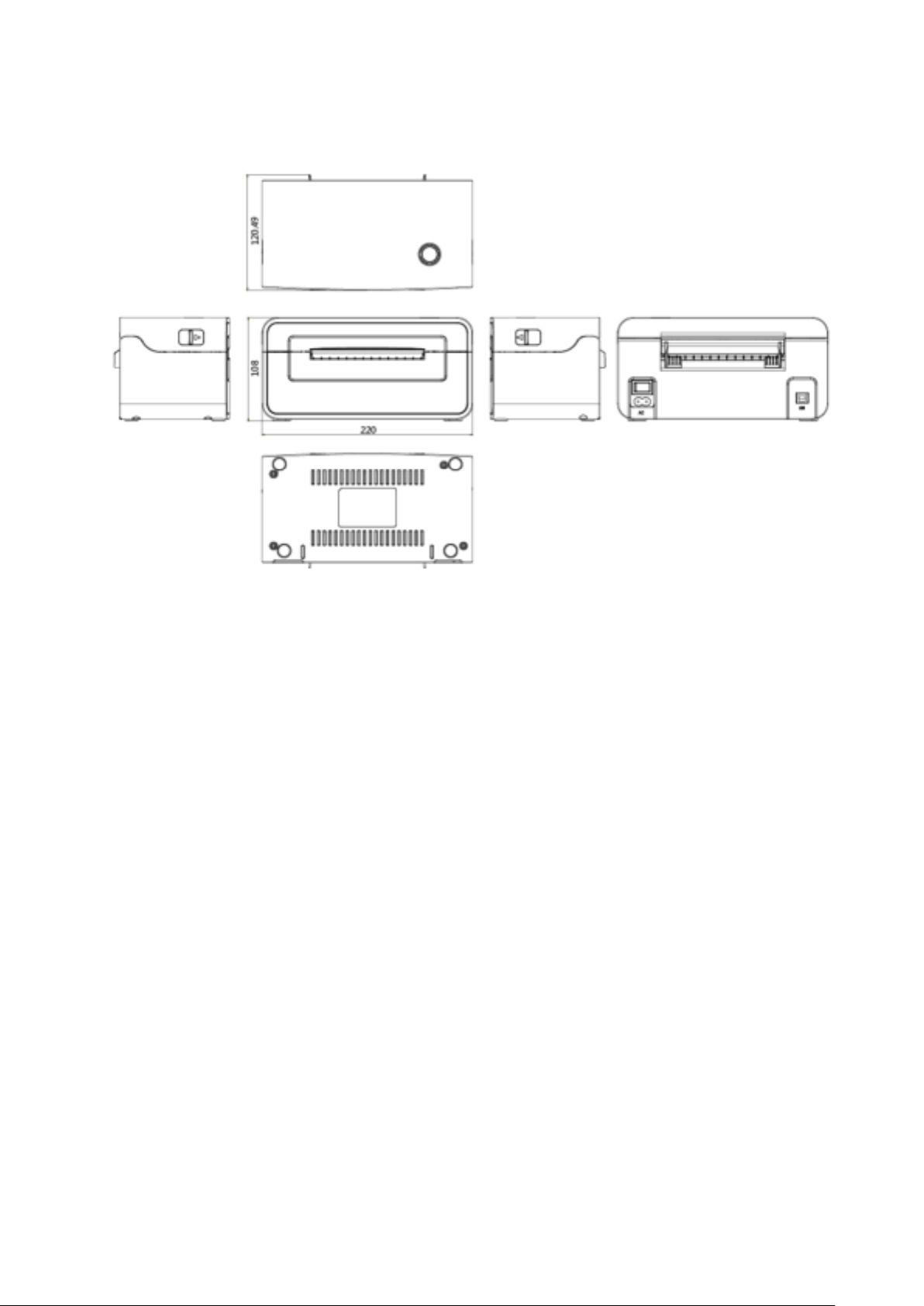

1.3 Dimension
Unit: mm
NL-N41 User Manual
8
CHAPTER 2 SPECIFICATIONS
Items
Parameter
Printing
Printing method
Direct thermal
Resolution
203dpi(8dots/mm)
Printing speed
50-127mm/s
Printing width
50-108mm
Printing length
25mm - 300mm
Processor
32 bits RISC CPU
Memory
RAM
2MB
Flash
2MB
Detection
Sensors
Paper out detection, seam label detection, black
mark detection, open detection
Media
Types
Roll-fed or Fan-fed, Die-cut or Continuous label
Width
2"(50 mm) –4.65"(118 mm)
Thickness
0.003"(80 μm) – 0.0087"(220 μm)
Label roll diameter
5’’(127mm) Max
External Folding Paper
W:100mmx L:100mm- 300mm
Programming Language
TSPL
Software
Driver
Windows 2000,Vista,7,8,10
Resident Fonts
GBK 16x16 24x24dots
ASCII 8×16, 12×24dots
NL-N41 User Manual
9
Items
Parameter
Barcode
1D
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add
on 2 & 5), I 2 of 5, Codabar, Code 128 (subset A, B, C)
2D
QR Code
Communication Interfaces
USB
HMI
FEED button with three color lights
Tear paper upwards
Movable paper guides
Back feed and positioning automatically
Movable sensor for black label
Power
IP: AC230V+/-30V, 1.5A
Environment
Operation
41℉(5℃)-104℉(40℃), 30%-85%,non-condensing
Storage
-4℉(-20℃)-122℉(50℃), 10%-90%,non-condensing
Physical
Characteristics
Dimension
112(L) x 102(W) x 217(H)mm
Weight
1.5Kg
Options & Accessories
External label roll holder
Folding carton
Agency Approvals
CCC
NL-N41 User Manual
10
CHAPTER 3 INSTALLATION & USAGE
3.1 Media Loading
3.1.1 Paper Roll Loading
■Folding Paper Loading
1.Turn the power on, adjust the paper guides to fit the width of paper.
2.Insert the paper into the entry slot.
3.The paper will be inhaled into the path automatically.
NL-N41 User Manual
11
■External Paper Roll Loading
NOTE:
1. When the printer is power on, the paper will be inhaled into the path automatically.
2. The external paper roll holders needs to be aligned with the hooks at the bottom of the
printer.
NL-N41 User Manual
12
3.1.2 Paper Jam

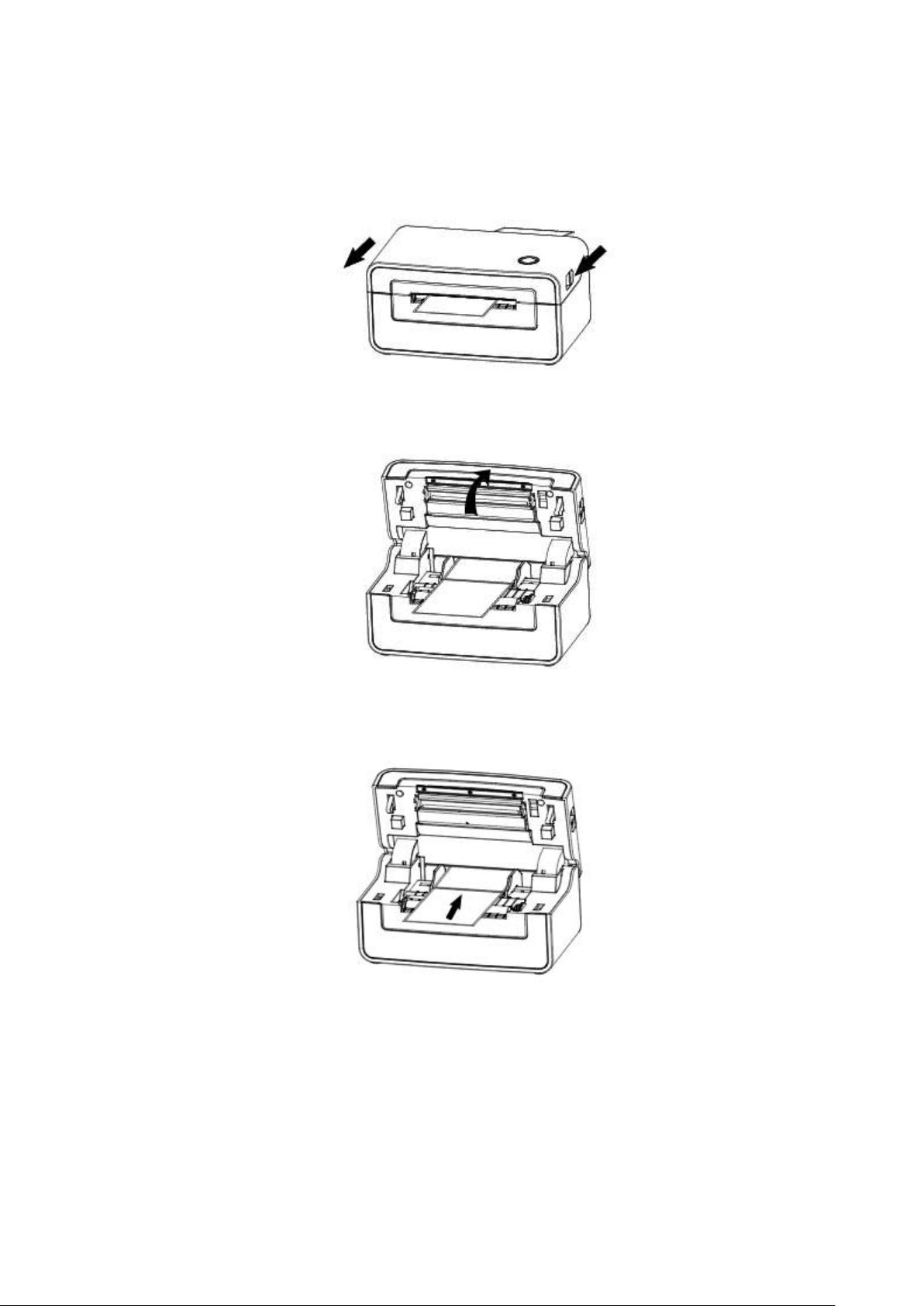

1. Press the cover open levers and hold upwards.
2. Open the printer cover.
3. Take out the jammed paper, then clean up the print head and platen.
NL-N41 User Manual
13
4.Reload a new paper.
NL-N41 User Manual
14
3.2 Power Connection
1. Make sure the printer’s power switch is in the off position.
2. Connect the power cord to printer.
3. Connect the other end of power cord to the outlet.
NOTE:
1) Use the original power adapter only, in case that the damage caused by charging
improperly.
2) Please unplug the printer power cord if it is not in use for a long time.
NL-N41 User Manual
15
3.3 Peripherals Connection
3.3.1 Interface Cable Connection
The standard for the printer’s interface cable shows in the following.
-- USB B-Type Cable
Installation steps:
1. Connect the printer to power. Refer to the "3.2 Power Connections" section for detailed
instructions.
2. Turn off the printer (O).
3. Connect the USB B-type cable to the USB port of the printer.
4. Connect the other end of the USB B-type cable to the computer.
5. Turn on the printer (—).
NL-N41 User Manual
16
3.4 Paper Sensor
When printing, the paper needs to be detected by a label detector. Using different kinds of
paper, the detector is located in a different position. If the detector is in an incorrect position
that will cause the printer to fail to detect properly, resulting in an abnormal phenomenon of
jumping paper. In order to avoid the above situation, the following is a description of different
kinds of paper and the location of printer.
3.4.1 Label
When using label paper (figure I), the detector should be aligned to the triangle below (figure II),
where the detector is in its initial position.
Figure 1
NL-N41 User Manual
17
Figure 2
Other manuals for NL-N41
1
Table of contents
Other Neflaca Label Maker manuals
