Nellcor Oxinet III User manual

Service Manual
C
M
Y
CM
MY
CY
CMY
K
10005096_A_Oxinet III_PC_ServMan_Front Cover.ai 10/6/05 10:01:53 AM10005096_A_Oxinet III_PC_ServMan_Front Cover.ai 10/6/05 10:01:53 AM

Nellcor Puritan Bennett Inc. is an affiliate of Tyco Healthcare. Nellcor and Oxinet are
trademarks of Nellcor Puritan Bennett Inc.
To obtain information about a warranty, if any, contact Nellcor’s Technical Services
Department, 1.800.635.5267, or your local Nellcor representative.
Purchase of this instrument confers no express or implied license under any Nellcor Puritan
Bennett patent to use the instrument with any sensor that is not manufactured or licensed
by Nellcor Puritan Bennett.
Covered by one or more of the following U.S. Patents and foreign equivalents: 4,653,498;
4,802,486; 4,869,692; 4,934,372; 5,078,136; 5,351,685; 5,485,847; 5,533,507; 5,577,500;
5,803,910; 5,865,736; 6,463,310; 6,708,049; Re.35, 122; and foreign equivalents.
The information in this manual applies to Oxinet III systems with the Revision E software
running on a Dell PC.

Oxinet III i
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Introduction
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Manual Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
System Overview
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Wireless Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Wired Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Pagers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Component Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Installation

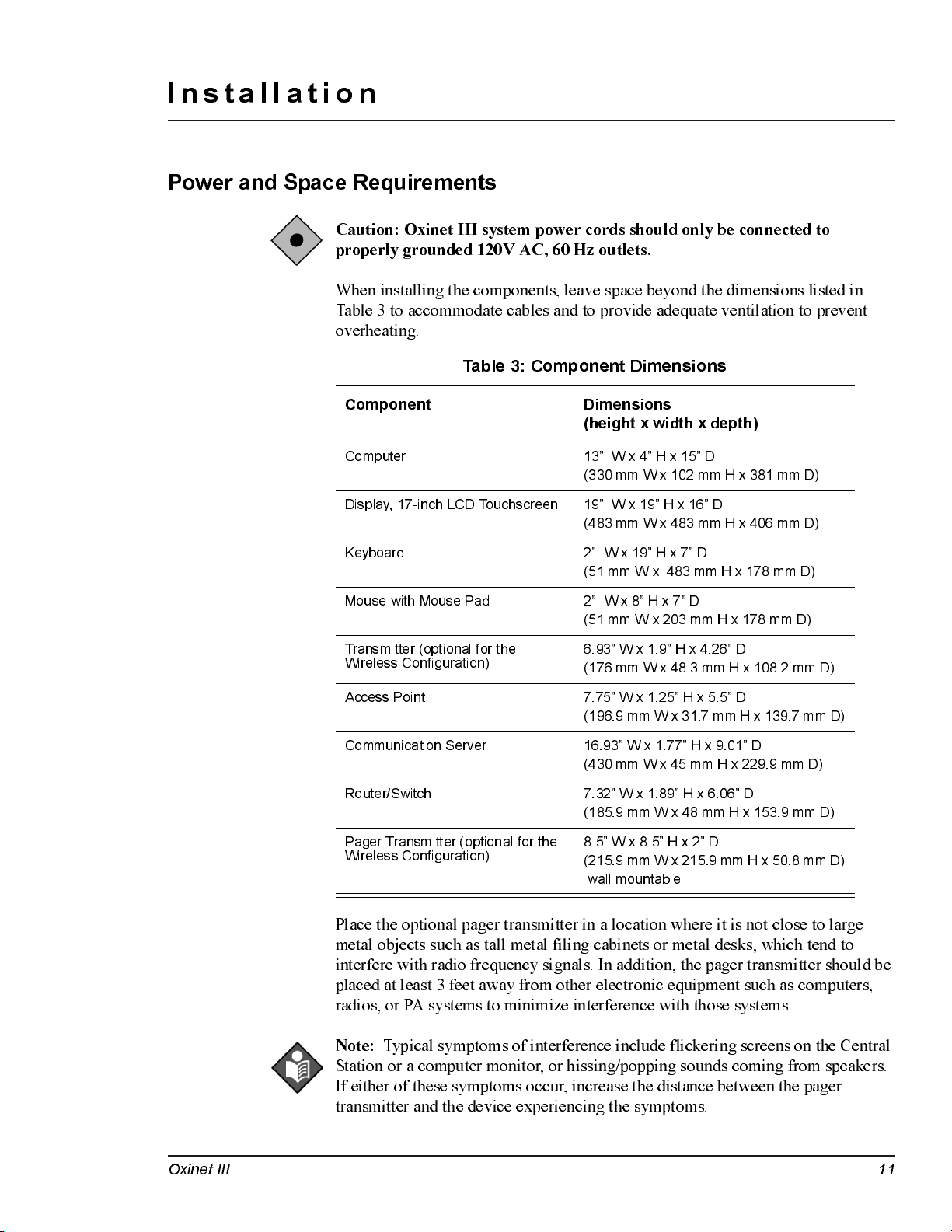

Power and Space Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Wired Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Connect the Oximeter to the Communication Server . . . . . . . . . . . . . . . . . . . . .12
Connect the Communication Server to the Router/Switch . . . . . . . . . . . . . . . . .12
Connect the Router/Switch to the Central Station . . . . . . . . . . . . . . . . . . . . . . .13
Connect the Central Station to Pager Transmitter (Optional) . . . . . . . . . . . . . . .13
Connect the Printer to the Central Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Wireless Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Connect the Oximeter to the Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Connect the Access Point to the Router/Switch . . . . . . . . . . . . . . . . . . . . . . . . .15
Connect the Router/Switch to the Central Station . . . . . . . . . . . . . . . . . . . . . . .16
Connect the Central Station to the Pager Transmitter . . . . . . . . . . . . . . . . . . . .16
Connect the Printer to the Central Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Administrative Functions
Central Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Funciton Keys Explained . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Refreshing the Screen (F5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Aligning the Touchscreen (F7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Adjusting Volume (F8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Using Backup/Restore (F9) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Contents

ii Oxinet III
Contents Service Manual
Backing up the Current System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . .22
Restoring the Most Current Backed-up Version . . . . . . . . . . . . . . . . . . . . . . . . .26
Oxinet Control Panel (F10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Alarms Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Pagers Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Rooms Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Schedule Snap Shot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Maintenance (F11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
To Manually Initiate Database Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Maintenance
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Periodic Safety Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Returning Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Troubleshooting
Troubleshooting List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Obtaining Technical Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Specifications
Physical Design Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
IEC 60601-1-1 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Oxinet III iii

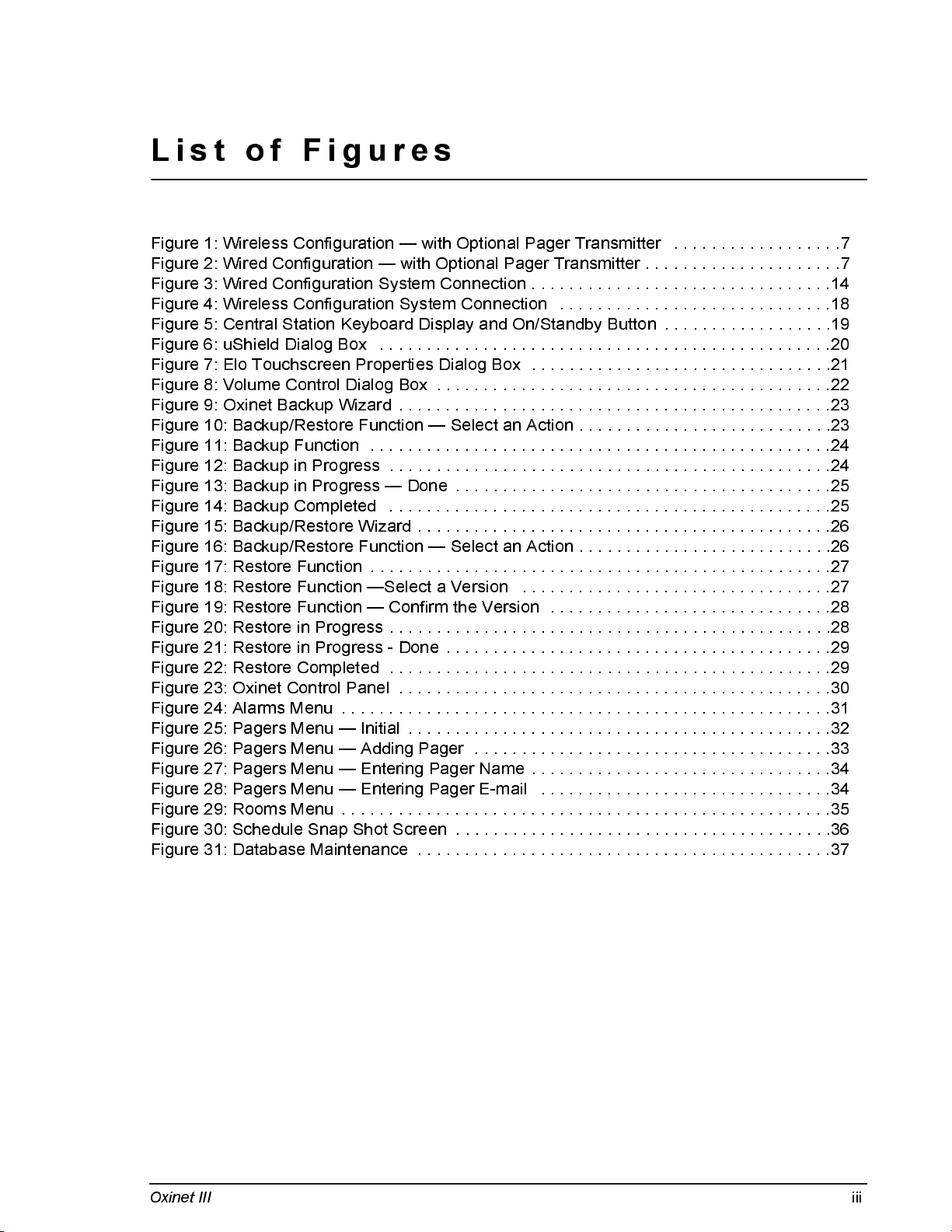

List of Figures
Figure 1: Wireless Configuration — with Optional Pager Transmitter . . . . . . . . . . . . . . . . . .7
Figure 2: Wired Configuration — with Optional Pager Transmitter . . . . . . . . . . . . . . . . . . . . .7
Figure 3: Wired Configuration System Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Figure 4: Wireless Configuration System Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Figure 5: Central Station Keyboard Display and On/Standby Button . . . . . . . . . . . . . . . . . .19
Figure 6: uShield Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Figure 7: Elo Touchscreen Properties Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Figure 8: Volume Control Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Figure 9: Oxinet Backup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Figure 10: Backup/Restore Function — Select an Action . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Figure 11: Backup Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Figure 12: Backup in Progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Figure 13: Backup in Progress — Done . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Figure 14: Backup Completed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Figure 15: Backup/Restore Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Figure 16: Backup/Restore Function — Select an Action . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Figure 17: Restore Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Figure 18: Restore Function —Select a Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Figure 19: Restore Function — Confirm the Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Figure 20: Restore in Progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Figure 21: Restore in Progress - Done . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Figure 22: Restore Completed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Figure 23: Oxinet Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Figure 24: Alarms Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Figure 25: Pagers Menu — Initial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Figure 26: Pagers Menu — Adding Pager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Figure 27: Pagers Menu — Entering Pager Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Figure 28: Pagers Menu — Entering Pager E-mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Figure 29: Rooms Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Figure 30: Schedule Snap Shot Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Figure 31: Database Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Oxinet III i v
List of Tables
Table 1: Wireless Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Table 2: Wired Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Table 3: Component Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Table 4: Function Keys Explained . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Table 5: Alarms Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Table 6: Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Table 7: Accessories List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Table 8: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Table 9: Central Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Table 10: Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Table 11: Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Table 12: Communication Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Table 13: Router/Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Table 14: Pager Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Table 15: Pager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Table 16: Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Oxinet III 1
Introduction
Warnings
Warnings are identified by the WARNING symbol shown above.
Warnings alert the user to potential, serious outcomes (death, injury, or adverse
events) to the patient or user.
WARNING: The Oxinet
®
III system is not intended to be a substitute for
clinical supervision. Patients on life-support equipment should be
appropriately monitored by competent medical personnel and suitable
monitoring devices.
WARNING: The Oxinet III system is a secondary alarm notification system.
It is intended to supplement and not to replace any part of the hospital’s
device monitoring procedures (including procedures regarding bedside pulse
oximeters and responding to beside oximeter alarms). Do not rely on the
Oxinet III system as the sole source of oximeter alarms.
WARNING: It is essential that the Central Station be visually and/or audibly
monitored at all times to assure prompt response to alarms. Do not rely on
the pagers as the sole source of Oxinet III alarms.
WARNING: Do not ignore medical device audible alarms. Alarms indicate
conditions that require immediate attention.
WARNING: Do not use medical devices, parts, accessories, or options that
are not for use with the Oxinet III system.
WARNING: Users are not notified when the pager is out of range of the
transmitter.

Introduction Service Manual
2Oxinet III

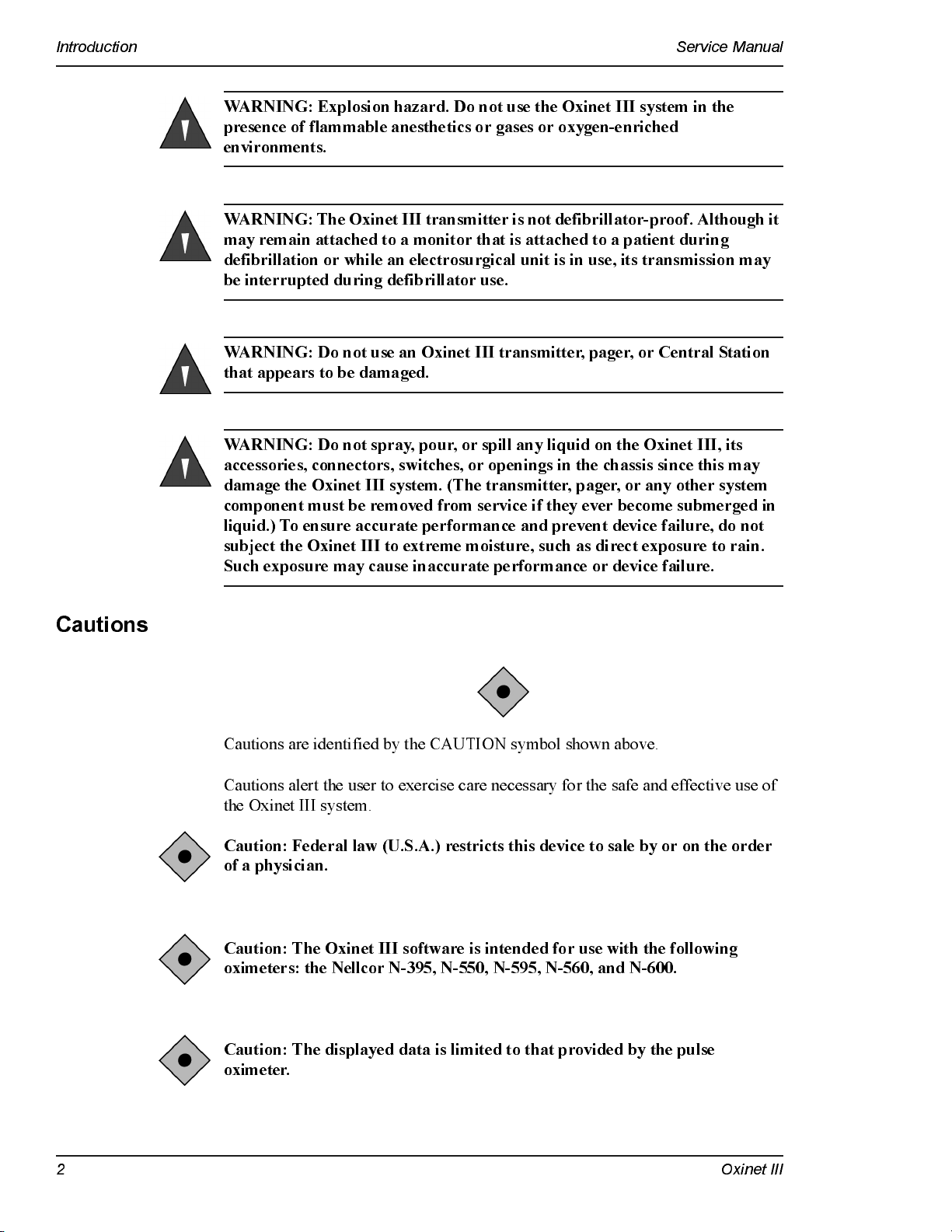

WARNING: Explosion hazard. Do not use the Oxinet III system in the
presence of flammable anesthetics or gases or oxygen-enriched
environments.
WARNING: The Oxinet III transmitter is not defibrillator-proof. Although it
may remain attached to a monitor that is attached to a patient during
defibrillation or while an electrosurgical unit is in use, its transmission may
be interrupted during defibrillator use.
WARNING: Do not use an Oxinet III transmitter, pager, or Central Station
that appears to be damaged.
WARNING: Do not spray, pour, or spill any liquid on the Oxinet III, its
accessories, connectors, switches, or openings in the chassis since this may
damage the Oxinet III system. (The transmitter, pager, or any other system
component must be removed from service if they ever become submerged in
liquid.) To ensure accurate performance and prevent device failure, do not
subject the Oxinet III to extreme moisture, such as direct exposure to rain.
Such exposure may cause inaccurate performance or device failure.
Cautions
Cautions are identified by the CAUTION symbol shown above.
Cautions alert the user to exercise care necessary for the safe and effective use of
the Oxinet III system.
Caution: Federal law (U.S.A.) restricts this device to sale by or on the order
of a physician.
Caution: The Oxinet III software is intended for use with the following
oximeters: the Nellcor N-395, N-550, N-595, N-560, and N-600.
Caution: The displayed data is limited to that provided by the pulse
oximeter.

Service Manual Introduction
Oxinet III 3

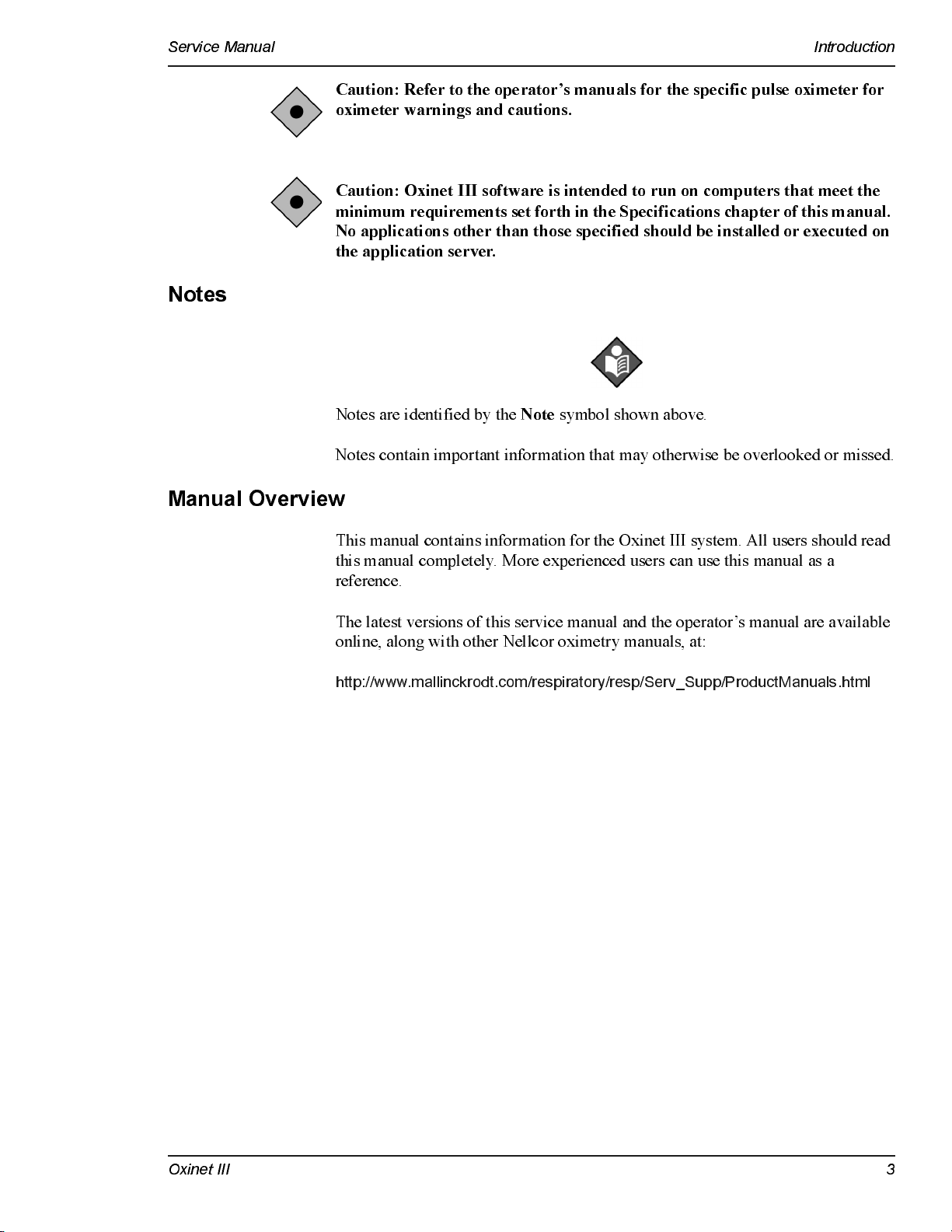

Caution: Refer to the operator’s manuals for the specific pulse oximeter for
oximeter warnings and cautions.
Caution: Oxinet III software is intended to run on computers that meet the
minimum requirements set forth in the Specifications chapter of this manual.
No applications other than those specified should be installed or executed on
the application server.
Notes
Notes are identified by the Note symbol shown above.
Notes contain important information that may otherwise be overlooked or missed.
Manual Overview
This manual contains information for the Oxinet III system. All users should read
this manual completely. More experienced users can use this manual as a
reference.
The latest versions of this service manual and the operator’s manual are available
online, along with other Nellcor oximetry manuals, at:
http://www.mallinckrodt.com/respiratory/resp/Serv_Supp/ProductManuals.html

Introduction Service Manual
4Oxinet III

Oxinet III 5
System Overview
Intended Use
The Oxinet III system transmits data from the N-395, N-550, N-595, N-560, or
N-600 pulse oximeter to the Central Station for patient monitoring, via a wired or
wireless configuration. The Central Station displays all monitored rooms, relevant
pulse oximeter data, and alarms.
WARNING: The Oxinet III system is a secondary alarm notification system.
It is intended to supplement and not to replace any part of the hospital’s
device monitoring procedures (including procedures regarding bedside pulse
oximeters and responding to beside oximeter alarms). Do not rely on the
Oxinet III system as the sole source of oximeter alarms.
The intended patient population is comprised of adult, pediatric, and neonatal
patients. The intended environments of use are hospitals and hospital-type
facilities. Hospital use typically covers such areas as general care floors, operating
rooms, special procedure areas, and intensive and critical care areas within the
hospital and hospital-type facilities, such as surgicenters, sub-acute centers,
special nursing facilities, and sleep labs, outside of the hospital. The Oxinet III
system is for use by prescription only.

System Overview Service Manual
6Oxinet III
Description
The Oxinet III software collects and distributes time-sensitive oximetry data via
wired or local network wireless technology. Making use of the Intranet’s security
and connectivity standards, the Oxinet III software enables the review and
surveillance of medical device settings and real-time patient data remotely, using
a standard HTML compatible web browser.
The components that make up the wireless and wired systems are listed below.
Wireless Configuration:
• Pulse Oximeter (suitable for use within the patient environment)
• Transmitter (suitable for use within the patient environment)
• Access Point
• Router/Switch
• Central Station (application server)
• Oxinet III Operator’s Manual
• Pager Transmitter (optional)
– Pagers, at least two, if pager option installed
Wired Configuration:
• Pulse Oximeter (suitable for use within the patient environment)
• Communication Server
• Router/Switch
• Central Station (application server)
• Oxinet III Operator’s Manual
• Pager Transmitter (optional)
– Pagers, at least two, if pager option installed
Each of these systems is discussed in more detail in the following sections.

Service Manual System Overview
Oxinet III 7
Wireless Configuration
In a wireless configuration (Figure 1), each Pulse Oximeter is connected to a
Transmitter. Each Transmitter communicates wirelessly with an Access Point,
which is connected through a Router/Switch to the Central Station (application
server), where the patient’s data may be monitored. The Central Station can be
connected to an optional Pager Transmitter: if pagers are assigned to a patient,
alarms are transmitted from the oximeter to the Central Station, then through the
Pager Transmitter to the assigned pagers.
Figure 1: Wireless Configuration — with Optional Pager Transmitter
Wired Configuration
In a wired configuration (Figure 2), all pulse oximeters are connected to a
Communication Server (generally, the pulse oximeters are connected to a port in
the wall, which connects to the Communication Server housed in a data
communications closet). The Communications Server is connected to a Router/
Switch, which is connected to the Central Station (application server), where the
patient’s data may be monitored. The Central Station can be connected to an
optional Pager Transmitter: if pagers are assigned to a patient, alarms are
transmitted from the oximeter to the Central Station, then through the Pager
Transmitter to the assigned pagers.
In either configuration, the Central Station (application server) is the computer
running the Oxinet III software. The software displays all monitored rooms,
relevant Pulse Oximeter data, and alarms.
Figure 2: Wired Configuration — with Optional Pager Transmitter

System Overview Service Manual
8Oxinet III
Alarms
Alarms are indicated both audibly and visually at the Central Station. If the
optional paging system is used, an alarm text message is transmitted to a pager,
displaying the room number, patient name, alarm message, SpO
2
value, and pulse
rate at the time of the alarm.
Note: The Oxinet III software performs database maintenance automatically: the
software temporarily closes the program, performs database file maintenance, and
relaunches the program at 10:05 am every day. This maintenance procedure
normally takes less than 45 seconds to run. During the brief period that database
maintenance is in progress, the system does not process any incoming data —
including alarms.
Reports
The Oxinet III software allows up to 72 hours of monitored data to be stored,
trended, and retrieved in a variety of printable reports. Reports can be run at any
time or periodic snapshots of oximetry data can be scheduled at intervals selected
by the clinician.
Pagers
Use of pagers with the Oxinet III system is optional, since patients are being
continuously monitored at the Central Station. If you decide to assign pagers to a
patient, you should assign both a primary and a different secondary pager. The
primary pager receives the alarm page within 10 seconds of the alarm. If no one
responds to the alarm by either silencing the alarm at the oximeter or resolving the
reason for the alarm, the system sends a notification to the secondary pager within
30 to 120 seconds of the primary page, depending on the settings for your
Oxinet III system. The range of operation from pager transmitter to pager is
150 feet with no intervening structures.
WARNING: It is essential that the Central Station be visually and/or audibly
monitored at all times to assure prompt response to alarms. Do not rely on
the pagers as the sole source of Oxinet III alarms. The Oxinet III system is a
secondary alarm notification system. It is intended to supplement and not to
replace any part of the hospital's device monitoring procedures (including
procedures regarding bedside pulse oximeters and responding to bedside
oximeter alarms).

Service Manual System Overview
Oxinet III 9
Component Descriptions
Table 1: Wireless Configuration
Component Description
Pulse Oximeter The pulse oximeter monitors and processes patient data and
sends this digital data to the transmitter via the oximeter’s serial
data port. The following Nellcor oximeters are supported: N-395,
N-550, N-595, N-560, and N-600.
Transmitter The transmitter converts serial data from the oximeter to Ethernet
data and then transmits the data to the access point.
Access Point The access point receives the wireless data from the transmitter
and forwards it to the router/switch. A number of access points
can be installed together to create a Wireless Local Area
Network (WLAN), which can cover a single care unit, a single
floor, or multiple floors. The number of access points required to
create the WLAN is determined by the size of the area to be
monitored. Because every building is unique, access point
placement must be determined by trained personnel before the
Oxinet III installation. It is not recommended that an access point
be moved after installation, since the wireless coverage area will
be affected.
Router/Switch The router/switch receives patient data from the access point via
the Ethernet network connection (or through the Cat5 Patch
cable) then forwards the data to the Central Station (application
server).
Central Station
(application server) The Central Station (application server), which includes the computer that runs the Oxinet III software, displays all monitored
rooms/beds, relevant pulse oximeter data, and alarms. Oximetry
data is received from the connected router/switch and, if the
optional paging feature is used, sends the alarm data to the
pager transmitter for transmission to the assigned pagers.
Pager Transmitter
(optional) The pager transmitter receives the alarm data through the serial RS-232 port of the Central Station and sends a text message to
the assigned pager(s) that includes: the room number, patient
name, alarm message, time and date.

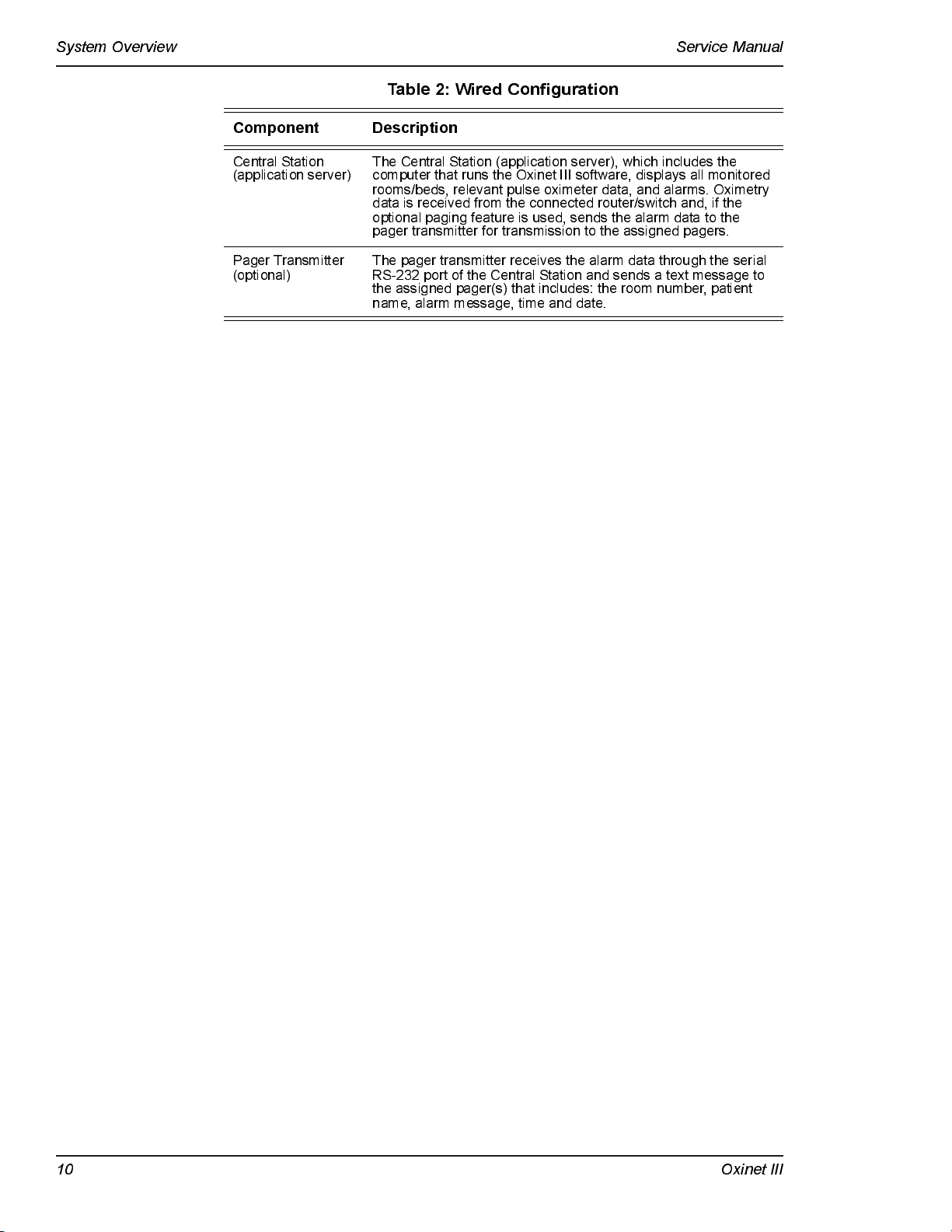

Table 2: Wired Configuration
Component Description
Pusle Oximeter The pulse oximeter monitors and processes patient data and
sends this digital data to the Communication Server via hardwire
connection to the oximeter’s serial data port. The following
Nellcor oximeters are supported: N-395, N-550, N-595, N-560,
and N-600.
Communication
Server The communication server is hard-wired to each bedside location and converts digital serial data from the serial port of the pulse
oximeter to Ethernet data, then forwards that Ethernet data to the
Ethernet router/switch.
Router/Switch The router/switch receives patient data from the communication
server via the Ethernet network (or through the Cat5 Patch cable)
and then forwards the data to the Central Station (application
server).

System Overview Service Manual
10 Oxinet III
Central Station
(application server) The Central Station (application server), which includes the computer that runs the Oxinet III software, displays all monitored
rooms/beds, relevant pulse oximeter data, and alarms. Oximetry
data is received from the connected router/switch and, if the
optional paging feature is used, sends the alarm data to the
pager transmitter for transmission to the assigned pagers.
Pager Transmitter
(optional) The pager transmitter receives the alarm data through the serial RS-232 port of the Central Station and sends a text message to
the assigned pager(s) that includes: the room number, patient
name, alarm message, time and date.
Table 2: Wired Configuration
Component Description

Oxinet III 11
Installation
Power and Space Requirements
Caution: Oxinet III system power cords should only be connected to
properly grounded 120V AC, 60 Hz outlets.
When installing the components, leave space beyond the dimensions listed in
Table 3 to accommodate cables and to provide adequate ventilation to prevent
overheating.
Place the optional pager transmitter in a location where it is not close to large
metal objects such as tall metal filing cabinets or metal desks, which tend to
interfere with radio frequency signals. In addition, the pager transmitter should be
placed at least 3 feet away from other electronic equipment such as computers,
radios, or PA systems to minimize interference with those systems.
Note: Typical symptoms of interference include flickering screens on the Central
Station or a computer monitor, or hissing/popping sounds coming from speakers.
If either of these symptoms occur, increase the distance between the pager
transmitter and the device experiencing the symptoms.
Table 3: Component Dimensions
Component Dimensions
(height x width x depth)
Computer 13” W x 4” H x 15” D
(330 mm W x 102 mm H x 381 mm D)
Display, 17-inch LCD Touchscreen 19” W x 19” H x 16” D
(483 mm W x 483 mm H x 406 mm D)
Keyboard 2” W x 19” H x 7” D
(51 mm W x 483 mm H x 178 mm D)
Mouse with Mouse Pad 2” W x 8” H x 7” D
(51 mm W x 203 mm H x 178 mm D)
Transmitter (optional for the
Wireless Configuration) 6.93” W x 1.9” H x 4.26” D
(176 mm W x 48.3 mm H x 108.2 mm D)
Access Point 7.75” W x 1.25” H x 5.5” D
(196.9 mm W x 31.7 mm H x 139.7 mm D)
Communication Server 16.93” W x 1.77” H x 9.01” D
(430 mm W x 45 mm H x 229.9 mm D)
Router/Switch 7.32” W x 1.89” H x 6.06” D
(185.9 mm W x 48 mm H x 153.9 mm D)
Pager Transmitter (optional for the
Wireless Configuration) 8.5” W x 8.5” H x 2” D
(215.9 mm W x 215.9 mm H x 50.8 mm D)
wall mountable

Installation Service Manual
12 Oxinet III
Installation
The Oxinet III system should only be installed by trained Nellcor personnel or
authorized representatives. The installation information provided in this manual
can be used to reconnect the Oxinet III system after moving it.
Wired Configuration
The following Nellcor oximeters are supported in the Oxinet III system:
• N-395
• N-550
• N-595
• N-560
• N-600
The Oximeter data output port must be configured as follows:
• communication protocol — ASCII
• baud rate — 9600
Refer to the Oximeter’service manual for details on Oximeter settings.
Connect the Oximeter to the Communication Server
1 Plug a DB15M/RJ-45 Cat5 Adapter connector into the data port of each Oximeter
(patient room/bed) as shown in Figure 3.
2 Connect a AC power cord to the power input jack on the back of each Oximeter
and plug the other end into AC power outlet.
3 Connect a Cat5 Patch cable from the DB15M/RJ-45 connector of each Oximeter
to an available serial port on the back of the Communication Server and take note
of the room sequence versus the communication serial port number (Figure 3).
Connect the Communication Server to the Router/Switch
1 Connect the Cat5 Patch cable from the 10/100 Base-T network port on the
Communication Server to any available numbered RJ-45 LAN port on the Router/
Switch as shown in Figure 3 ( DO NOT use the port labeled “WAN” ).
2 Connect a AC power cord to the power input jack on the back of the
Communication Server and plug the other end into one of the battery backed-up
AC power outlets of the UPS.
3 Connect the DC barrel connector end of the DC Adapter Power cable to the round
DC jack on the back of the Router/Switch and plug the AC end into one of the
battery backed-up AC power outlets of the UPS (Uninterruptible Power Supply).

Service Manual Installation
Oxinet III 13

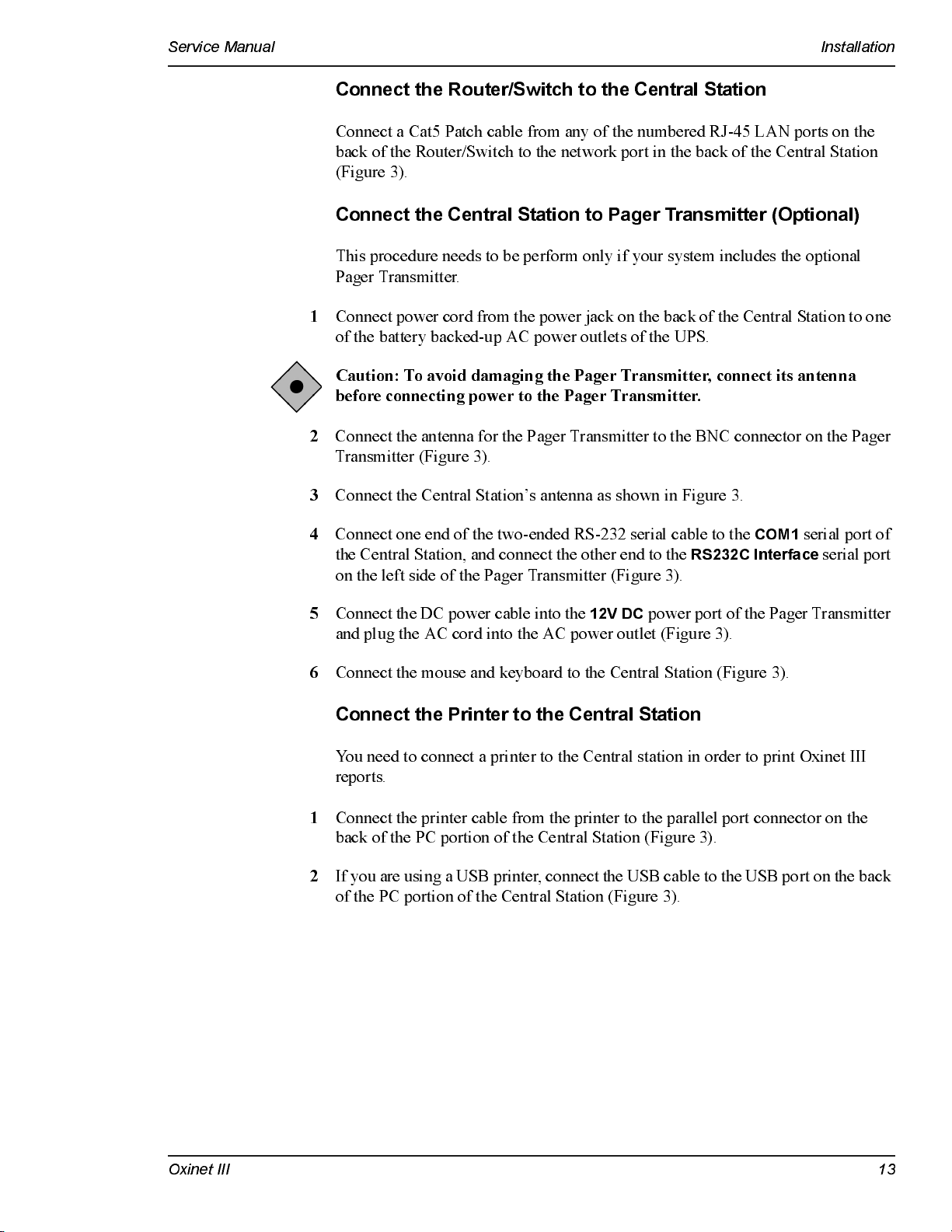

Connect the Router/Switch to the Central Station
Connect a Cat5 Patch cable from any of the numbered RJ-45 LAN ports on the
back of the Router/Switch to the network port in the back of the Central Station
(Figure 3).
Connect the Central Station to Pager Transmitter (Optional)
This procedure needs to be perform only if your system includes the optional
Pager Transmitter.
1 Connect power cord from the power jack on the back of the Central Station to one
of the battery backed-up AC power outlets of the UPS.
Caution: To avoid damaging the Pager Transmitter, connect its antenna
before connecting power to the Pager Transmitter.
2 Connect the antenna for the Pager Transmitter to the BNC connector on the Pager
Transmitter (Figure 3).
3 Connect the Central Station’s antenna as shown in Figure 3.
4 Connect one end of the two-ended RS-232 serial cable to the
COM1 serial port of
the Central Station, and connect the other end to the
RS232C Interface serial port
on the left side of the Pager Transmitter (Figure 3).
5 Connect the DC power cable into the
12V DC power port of the Pager Transmitter
and plug the AC cord into the AC power outlet (Figure 3).
6 Connect the mouse and keyboard to the Central Station (Figure 3).
Connect the Printer to the Central Station
You need to connect a printer to the Central station in order to print Oxinet III
reports.
1 Connect the printer cable from the printer to the parallel port connector on the
back of the PC portion of the Central Station (Figure 3).
2 If you are using a USB printer, connect the USB cable to the USB port on the back
of the PC portion of the Central Station (Figure 3).

Installation Service Manual
14 Oxinet III
Figure 3: Wired Configuration System Connection
