Neo Electronic NAS-WS01Z User manual

1
Installation instructions
Water sensor
Module Name: NAS-WS01Z
Thank you for your support to our products
Please carefully read the installation instructions before you used correctly
After reading, please safekeeping
Shenzhen Neo Electronic Co., LTD

2
Product introduction
Spilled water detector is a through Z - wave of intelligent security of communication network equipment.
In Z - wave network communication, excessive water detector can be any Z - wave and network control
device to connect. Z - wave network using radio frequency, is decided by each country or region. In the
overflow water detector and the main control device of communication, excessive water detector can
only send information, can't receive messages. When spilled water detector is triggered, water
detector sends a message to the main control equipment, the main control device can display the
current state of the water detector, at the same time through the Z - wave devices linkage to other work.
Water detector by the battery power, small volume, easy to install, when spilled water detector probe
detected with water, water detector is triggered, namely so, reach the role of safety protection.
Technical parameters
Power supply: CR14250 X 1
Power consumption: 0.13 W
Battery life (standby) : 37 months
Standby current: 1.3 uA
The maximum current 35 ma
Wireless protocol: Z - wave
Radio frequency: 908.42MHz
Wireless distance: 50 m
Working temperature: 0 to 40 ℃
Storage temperature: 0-60 ℃
Product size: (length X width X height) : 34 mm X 68 mm X 68 mm
Technical information
Easy installation, can use double glue and screws
Batteries
through alarm host can control other devices
can with any Z - wave network connection
timely and accurately provide the location of the water and place, reduce economic losses
caused by water

3
Product configuration
Item listing
overflowdetector 1pcs
cell 1pcs
screw 3pcs
screw stopper 3pcs
installationinstructions 1pcs
Water detector
stents
The battery
LED lights
The code button
screw
Screw stopper
Induction tentacles
The assembly mark
Induction of contact
The probe interface

4
Z - wave network added
Spilled water detection by Z - wave master equipment add water detector to the Z -
wave in the network。
1). Open water detectors, equipped with batteries, install the equipment in the main
control network within the scope of the equipment.
2.) sets the main control device to add learning model (please refer to the specific
master equipment operating instructions).
3) fast. Press the button three times to the code, LED lights flashing red light 5 times.
4). The main control device will detect water detector and add water detector to the Z -
wave in the network.
5). Waiting for the master device configuration water detectors
Deleted from the Z - wave network sensor
. Determine the power sensor has been connected.
2). Sets the main control device to remove learning model (please refer to the specific
master equipment operating instructions).
3) fast. Press the button three times to the code, LED lights flashing red light 5 times.
4). Waiting for the main control equipment removed from Z - wave network sensor.

5

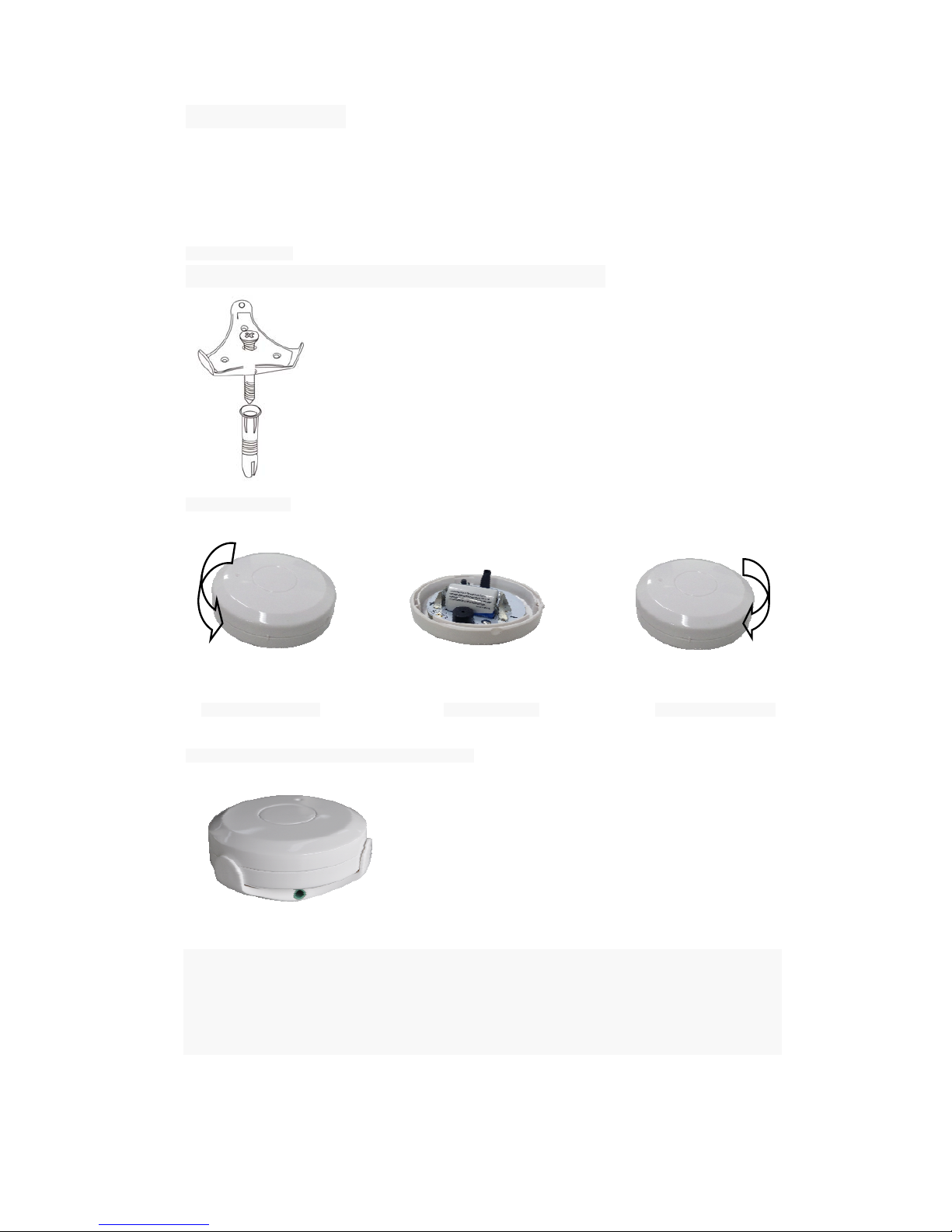

Installation steps
bracket installation
battery installation
will overflow water detectors installed on the bracket
installation sensing probe
Bracket installation
Use screw and screw glue plug fixed bracket
Battery installation
Open water detectors Install the battery Good water detectors
Water will overflow detector installed on the bracket
Note:
1. Good water detectors, please note on the assembly.
2. Water will overflow detector installed on the bracket, please aim the induction
tentacles and induction electric shock.

6
Warm prompt
progr near the easy leakage of water, water will overflow detector probe head
should be on the ground water easy to leak.
Avoid install the .lampblack, such as water vapor directly smoked the place。
avoid installed in the enclosure, such as alarm sound is not easy to place.
avoid install where water immersion.
please will overflow water detectors installed on the host network coverage range。
The LED display status
1. When the water detector is triggered, the LED flashing red light 5
times.
2. Water detector just equipped with batteries, LED lights flashing red
light 5 times.
3. When the water detector is triggered, keep normally on LED lights.
4. The normal state, the state of LED lights to keep out
Equipment linkage
When spilled water detector is triggered, all of the equipment by its linkage will receive relevant
reports. Spilled water detector by Z - wave main control device can control the Z_wave other
devices within the network, such as linkage socket, alarm equipment, dimmer, and so on.
Water detector support two sets of linkage:
The first set of linkage can be allocated equipment state - when spilled water detector is
triggered, based Settings command to be sent the linkage of the linkage device.
A second group of linkage in Z - wave shown on the main control device or alarm host water
detector current working condition.
Note: the water detector in linkage with other devices, they are direct communication through Z
- wave network, alarm host or Z - wave master equipment was not involved.
Restore the factory Settings
Restore the factory Settings will be deleted and Z Z - Wave network - Wave master all
information relating to the sensors in the device, and restore the sensor to the factory default
Settings.
1. Open water detector host.
2. Ensure the sensor power supply.
3. Long press to code button for 10 seconds.
4. Loosen the button.

7
Note: the factory default process, please do not power outages.
Battery tips
The service life of the battery was designed for two years. The actual
capacity in alarm host has showed. When the battery is too low, the phone
APP will receive alarm sent by the host "battery is too low, please
replace the battery" push information. Replace the battery, please cut
off the linkage of the overflow water detectors and other equipment,
so as not to cause error alarm or linkage error operation of the
equipment.
Note:
Water detector equipped with batteries began to work, send information
to the mainframe, triggering other devices linkage.
Spilled water detector is used by batteries, battery, please according
to the methods specified so as not to cause explosion. When handling
the battery, please refer to the environment protection law.
Advanced configuration
1. Configuration delay shut down
After the shutdown command is issued, this configuration parameter can
be used to adjust the delay shut down automatically. This parameter can
be furnished with a value of 0 to 65535, where 0 means immediately issued
a shutdown command and 65535 refers to delay closing device after 65535
seconds
Function: open/close time.
Parameter number: 1.
Specification: 2 Byte
The available Settings: 0-65535 (in seconds).
The default Settings: 30 (in seconds)
2. The infrastructure level
When spilled water detector is triggered, water detector will be sent
contains a parameter value set command, the basis of the parameters of
the receiver will follow infrastructure orders value; , for example,
if a lamp module receives the basis set command, are included in the

8
basic setup command lamp module is determined by the parameters in the
adjustable brightness levels.
Functions: basic Settings
Parameter number: 2
Specifications: 1 byte
The available Settings: 0, 1-99 or 255
0 - closed, alarm cancel or shut down power supply equipment
1-99 or 99 - open (binary switch equipment)
Light and shade levels (multilevel switch
equipment)
The default Settings: 99
The battery check command
Users can also send BATTERY_GET command query to probe the battery status
of overflowing. Once the water detector receives the command, it will
reply BATTERY_REPORT command. If water detectors send BATTERY_LEVEL =
0 XFF command to Z - Wave master equipment, said water detector battery
die, otherwise BATTERY_LEVEL value range of 0% to 100%。
Wake up the command class
The water detector will maintain in the sleep state most of the time,
reduce the water detector power consumption, extend battery life.
The smallest wake up interval of 120 s;
16777215 s largest wake up of time (about 194 days);
Allows each awaken the interval between the interval of 1 second, like
120121121...
The command class
The sensor (water detector) support command class, as follows:
* COMMAND_CLASS_ZWAVEPLUS_INFO (V2)
* COMMAND_CLASS_VERSION (V2)
* COMMAND_CLASS_MANUFACTURER_SPECIFIC (V2)
* COMMAND_CLASS_DEVICE_RESET_LOCALLY (V1)
* COMMAND_CLASS_POWERLEVEL (V1)
* COMMAND_CLASS_BATTERY（V1）
* COMMAND_CLASS_ASSOCIATION（V2）

*COMMAND_CLASS_ASSOCIATION_GRP_INFO（V1）
*COMMAND_CLASS_WAKE_UP（V2）
*
*
COMMAND_CLASS_SENSOR_BINARY（V2）
COMMAND_CLASS_CONFIGURATION（V1）
1. The product warranty will be provided by her electronic (shenzhen)
co., LTD., shenzhen her electronic co., LTD is located in baoan district
of shenzhen west township iron tsai road 44 veterans industrial city
2 6th floor on the east side, zip code 518102。
2. Customers buy our products all can enjoy a year of quality warranty
and lifetime after-sales service protection。
3. Warranty service is only applicable to equipment the original
purchasers, the original purchasers to show the purchase documents shall
prevail. The company based on the maintenance contract and effective
implementation of quality assurance, adhere to the efficient service
commitment, to provide timely stress of professional services。
4.The company is responsible for the maintenance can replace the damaged
part of the original products, the client shall retain product damaged
part and its accessories。
5.The company sold products, if quality problems because of damage, the
company responsible for repair or replacement, and afford the
transportation and installation costs。
6. Such as typhoon, flood, earthquake and other natural disasters caused
by the damage of products to be outside the scope of the company's quality
assurance。
7. Due to personal misuse or artificial damage, such as violent
collisions, missing accessories, is beyond the scope of the company's
quality assurance, maintenance, need to charge for。

10
Service hotline: [phone]
Fax: [phone]
Email: [email protected]
SHENZHEN NEO ELECTRONICS CO.,LTD
address：East6/F Building 2,Laobing industry,Baoan District,Shenzhen, China
Website: http://www.szneo.com
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR
TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS
OR CHANGE TO THIS EQUIPMENT. SUCH MODIFICATIONS OR
CHANGE COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC NOTE：
