NEO STEAM 700 RGBA User manual

P. 1
- Neo Steam 700 RGBA
USER MANUAL / MANUAL DE USUARIO
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
STEAM
700
RGBA
Professional Fog machine
with RGBA effect

P. 2
Neo Steam 700 RGBA -
1. OVERVIEW
English version
Steam 700RGBA
Professional Fog machine with RGBA eect
Steam 700RGBA is a professional fog machine 2-in-1
that has 16 RGBA 3W LEDs, adding an attractive
visual eect to its original function. Thanks to the
incorporation of amber LEDs, the xture achieves
a very complete and attractive color mix, standing
out naturally in any given situation. With an output
of 20,000 cubic feet per minute and a 2L (67 Oz.) tank
capacity, Steam 700 RGBA is itself a high perfor-
mance fog machine, beyond its attractive visual
eect. The xture has 5 DMX modes, (7 DMX chan-
nels max) and includes a wireless remote control
that allows four dierent programs to be run at a
distance.
Source & Optics
• LEDs: 16 RGBA (4R, 4G, 4B, 4A) 3W LEDs
• LEDs life: 50,000 hours
Output
• Smoke output: 20,000 cubic feet per minute
• Warm up time: 9 minutes
• Tank: 2 lts./ 67 Oz.
• Liquid consumption: 135 ml/min / 4.5 oz/min
Control
• Operational modes: DMX, IR remote control,
LED patterns & manual
• DMX channels: 1/2/3/5/7
Physical
• DMX connectors: 2 XLR connectors (XLR-3 In
&Out)
• 4-digit LED display
• Dimensions: 409x297x195 mm. / 16x11.7x7.7 in.
• Weight: 7.6 Kg. / 16.7 Lbs.

P. 3
- Neo Steam 700 RGBA
English version
Thank you for selecting our Steam 700RGBA
fog machine, you already own the high-tech,
professional Steam Fogs! Better read the manual
thoroughly before operation, follow instruction
will help you have a smooth handling with
Steam 700RGBA fog machine to achieve the most
satisfactory fog eect, it will also assist unit to
further prolong life time as a whole.

P. 4
Neo Steam 700 RGBA -
English version
2. WARNING!
Like all electronic products, Steam
700RGBA must be used with safety pre-
cautions in mind. Fill enough fog uid
before plugging in, empty uid tank
when not in use or moving.
• Products for indoor use only. Keep away from
liquids. Never operate in rain or in damp condi-
tions.
• Use only appropriate, grounded electric power
supply for your unit. See your product speci-
cation label for appropriate power supply. This
appliance must be earthed.
• Disconnect from electric mains power sup-
ply when not in use, when lling the fog uid
tank, or when changing a fuse. Keep unit dry. If
moisture or liquids enter the fog machine case,
immediately disconnect power supply. Contact
a service technician to determine safety for use.
• Keep machine in at position, never put it in
tilted place.
• Before moving fog machine, always drain fog
uid into the tank and tighten the tank cap
securely to avoid spilling.
• Without user-serviceable parts in the package,
please contact your local agent or qualied
technician for servicing.
• Without changeable structure by non-qualied
user, please do not open the up cover or have
any change at will, otherwise, it may cause
accident!
• Fog machine is for adult use. Keep out of reach
of children. Never leave the unit running unat-
tended.
• Thank you for selecting our CF-8.0 DMX fog
machine, you already own the high-tech,
professional DMX Fogs! Better read the manual
thoroughly before operation, follow instruction
will help you have a smooth handling with
CF-8.0 DMX fog machine to achieve the most
satisfactory fog eect, it will also assist unit to
further prolong life time as a whole.
• Fog machine nozzle gets hot over 200 degrees
(centigrade) during use. Don’t touch! Maintain
a safe distance over 100CM. Never aim the
nozzle directly at people.
• Keep case closed while operating. Put fog
machine in dray place. Do not insert objects
into air vents. Allow 20cm space or above
around the machine for proper ventilation.
• Keep fog machine away from ames and
ammable items. Never aim the nozzle at
open ames or sparks. Use only high quality
water-based fog uid. Never put ammable
substances into the tank.
• Machine must cool down before cleaning,
servicing or storing.
• Never put any ammable material (lipid, gas,
perfume etc.) into the tank, read the user
manual thoroughly before operation.
• Better use our high quality water-based fog
uid, random use with other fog uid may
jam the pipe, or even erode the components
inside.
• Keep suicient fog uid in tank. Operating the
unit without suicient fog uid, the pump will
stop working.
• If any abnormal running occurs, stop it imme-
diately, empty the uid, and bring the done up
unit (recommend original box) to your agent
or dealer for servicing. Make sure all uid is
empty from the tank before moving or ship-
ping.
• Never drink fog uid. If ingested, call a doctor
immediately. If uid contacts eyes or skin,
rinse skin thoroughly with water.

P. 5
- Neo Steam 700 RGBA
English version
• Read user manual instructions thoroughly
before operating. Follow the instruction. Never
remove warning or informative labels from the
unit.
Caution!
There are no user serviceable parts inside this unit.
Do not attempt any repairs yourself, doing so will
void your manufactures warranty. In the unlikely
event your unit may require service please contact
your local dealer. !
Particular Warning
Please install the product correctly according to
the instruction of the user manual. To avoid any
accident, it is not allowed to install the product
with any way not instructed on the user manual.
If accident happens because users do not install
the product according to the instruction of the
user manual, the manufacturer will not take any
responsibility. Please note: Specications and
improvements in the design of this unit and this
manual are subject to change without any prior
written notice.
Important
The wires in this mains lead are colored in accord-
ance with the following code.
EU
Green and Yellow – Earthed (E) Blue – Neutral (N)
Brown – Live (L) Warning: This appliance must be
earthed.
USA
Green and Yellow – Earthed (E) White – Neutral (N)
Black – Live (L) Warning: This appliance must be
earthed.

P. 6
Neo Steam 700 RGBA -
English version
3. FUNCTIONS
A. 16 LEDs
B. Handle
C. Fog Fluid Tank
D. Tank Fixed Cover
E. Safety Loop
F. Power Switch
G. LED display
H. Menu
I. Up
J. Down
K. Enter
L. Manual Fog
M. DMX 3 pin XLR Input
N. DMX 3 pin XLR Output
O. Control Socket Connection
P. Electric Power Cord
Q. Fuse
R. Visible Fog Fluid Level Indicator
S. M10*P1.5 C Clamp Installation

P. 7
- Neo Steam 700 RGBA
English version
4. DESCRIPTION
5. GETTING READY
• Built-in function of led lighting control allows
easy control led patterns through by LED dis-
play. Like ames, burst etc.
• When hanging Steam 700RGBA upside down,
just loosen the few screws of the tank xed
cover to change the position of the tank.
• Visible fog uid level indicator on rear.

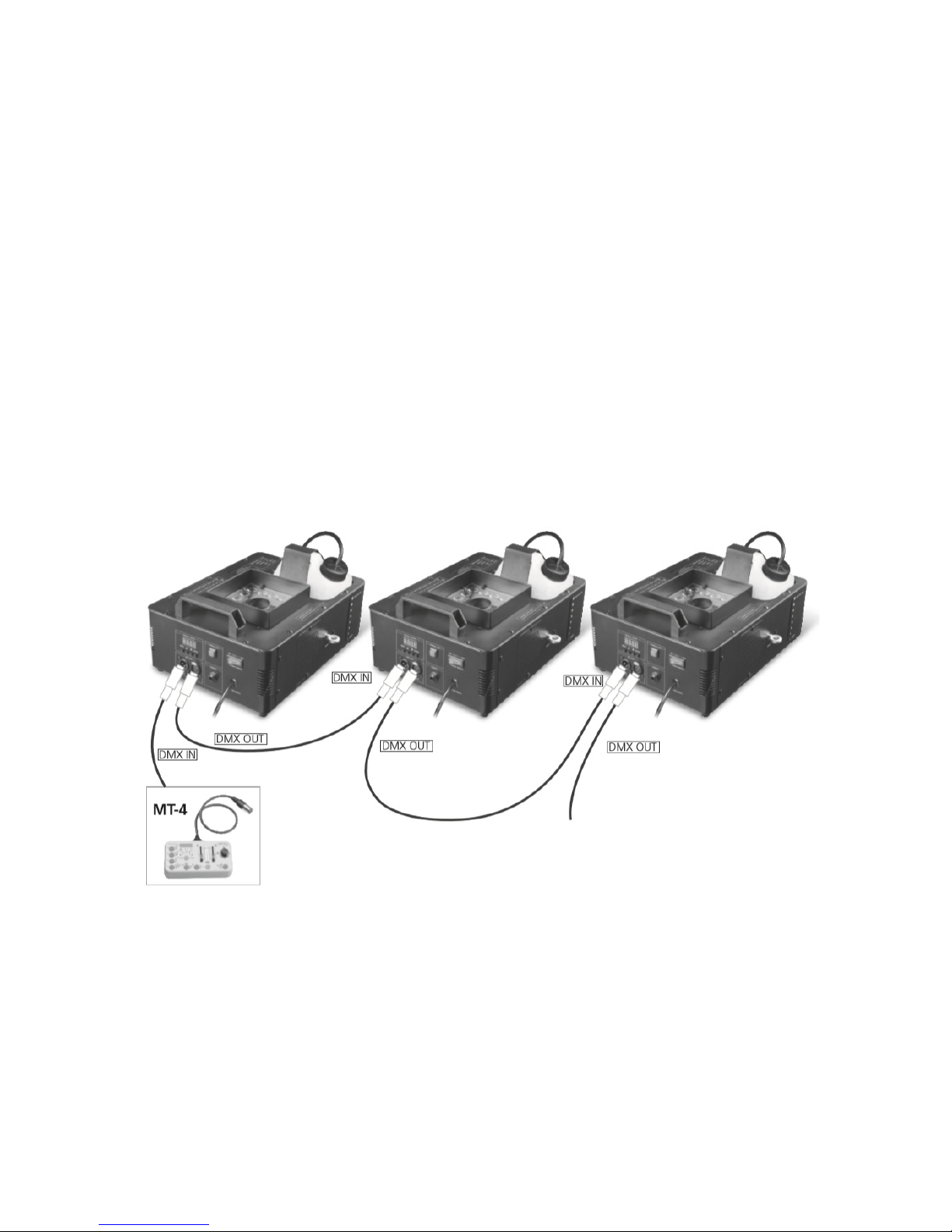

• DMX on board, 5 DMX modes for choice; 1CH,
2CH, 3CH, 5CH & 7CH, operate by any additional
DMX controller.
• Manual fogging can be operated directly from
the back panel of the machine.
• Operate by wireless controller (RC-4CA). Simple
and humanized design makes Steam 700RGBA
All products are thoroughly tested at the factory
and shipped in perfect condition. If damage has oc-
curred during shipping, or if components are miss-
ing, please contact your local dealer immediately.
Your package should include:
• One Steam 700RGBA
• One Wireless controller
• One product user manual
easier for use.
• Aluminum die-cast design functioned with
high-eective heating module prevents
clogging. Unique design that can be earthed
directly without aecting normal working of
the thermo system and DMX control circuit.
There won’t be danger of accidental human
body’s electric shock.
• High output fog machine, approx. 20,000 cu./
min output.
• Electronic Thermo Sensing (ETS) – electron-
ic heater stay hot at all times between fog
blasts.
• Direct thermal protection.

P. 8
Neo Steam 700 RGBA -
English version
6. MOUTING
Loosen the few screws of the tank xed cover,
replace the tank down to the bottom, then put the
tank x cover to the tank again, and tighten the
screws.

P. 9
- Neo Steam 700 RGBA
English version
Fasten the Steam 700RGBA onto rm trussing
(Use a 15-kg rated or stronger C-clamp bolted
onto bottom of Steam 700RGBA, enhancing safety
necessarily with safety cables). Leave at least one
meter at all sides for air circulation.
7. SET UP
1. Open the shipping carton and carefully remove
the unit from the shipping carton.
2. Be sure to remove packing material from
around the fog machine, especially near the
nozzle.
3. Set the fog machine on a dry, at surface.
4. Place the feeder tube with lter deep inside the
full fog uid tank (C of gure1). Use only high
quality, water-based fog uid.
5. Firmly attach the remote control mechanism
to socket (O of gure1) on the back of the unit.
Or use DMX control setting (H of gure1) on
the back of the unit.
6. Plug mains power cord from the fog machine
into appropriate power supply socket. Wait
about 9 minutes for heating element to heat up.

P. 1 0
Neo Steam 700 RGBA -
English version
7. Refer to your controller manual for operation
details. (Appendix A )
8. If fog is emitted continuously for a long time,
the heating element temperature may drop,
shutting o fog production. If so, please do not
activate for emission. Wait briey. When the
heating element temperature rises, fog emis-
sions can be resumed.
8. FUNCTIONS OF THE BUTTONS
MENU: Button for DMX mode selection, color
macro setting for each channel of remote control-
ler, and DMX address setting.
ENTER: Button for the rst layer and the second
layer of menu.
UP: Button for increasing numerical value
DOWN: Button for decreasing numerical value
Press ”UP” or “Down” 1.5 seconds can change
value continuously and fast.

P. 11
- Neo Steam 700 RGBA
English version
When shot down, the present function status will be
saved automatically and continue when powered
on next time
System Menu

P. 12
Neo Steam 700 RGBA -
English version
9. OPERATION
Stand-alone
Please put the Steam 700RGBA on a dry and at
surface.
1. Plug mains power cord from the fog machine
into appropriate power supply socket.
2. Primary power on, LED display (G of gure 1)
shows “8888”, and 16 LEDs (A of gure 1)around
the nozzle all light up. Please check if the LED
letters shown on the display lack of strips, and
then show the current soware version.
3. 2 seconds aer it switches to working status:
Heating up, it shows “HEAt”. Setting function
value is allowed when heating up. With no op-
eration aer 4 seconds, it goes back to “HEAt”
status.
4. Wait about 9 minutes for heating element to
heat up.
5. Push the Manual Fog button (L of gure1) to
smoke.
Manual fogging is available under any control mode
and always executing the Color Macro of CHA.
Remote Control Operation
For best result, use RC-4CA wireless controller.
1. Firmly attach the remote control to socket (O of
gure1) on the back of the unit.
2. Plug mains power cord from the fog machine
into appropriate power supply socket.
3. LED display (G of gure 1) shows “8888”, and 16
LEDs (A of gure 1) around the nozzle all light
up. Please check if the LED letters shown on the
display lack of strips, and then show the current
soware version.
4. 2 seconds aer it switches to working status:
Heating up, it shows “HEAt”. Setting function
value is allowed when heating up. With no op-
eration aer 4 seconds, it goes back to “HEAt”
DMX Control Operation
Use LED Display to set the unit to the desired
DMX512 address. Refer to DMX channel chart in
Figure 2.
1. Connect the DMX 512 controller cable to the
input socket (M of gure 1) of the fog machine
unit. Make sure the signal cable polarity is
correct.
2. Plug mains power cord from the fog machine
into appropriate power supply socket.
3. LED display (G of gure 1) shows “8888”, and
16 LEDs (A of gure 1) around the nozzle all
light up. Please check if the LED letters shown
on the display lack of strips, and then show
the current soware version.
4. 2 seconds aer it switches to working status:
Heating up, it shows “HEAt”. Setting function
value is allowed when heating up. With no op-
eration aer 4 seconds, it goes back to “HEAt”
status.
5. Wait about 9 minutes for heating element to
heat up.
6. “CH.A, CH.b, CH.c, CH.d” respectively key A, B,
C, D of remote controller. Each channel can
be individually set its Color Marco by menu
button of the machine (see “SYSTEM MENU”
instruction).
7. Except “dx” and “A.xxx”, under any other
status, wireless control is available while DMX
control is not available.
8. Refer to your controller manual for controller
operation details. (Appendix A )
Manual fogging could be work with remote control
operation at the same time.
When shot down, the present function status will be
saved automatically and continue when powered
on next time.

P. 13
- Neo Steam 700 RGBA
English version
status.
5. Wait about 9 minutes for heating element to
heat up.
6. There are 5 DMX modes for choice; 1CH, 2CH,
3CH, 5CH, & 7CH, please choose the mode by
menu: It shows”d1” to “d7”.
7. When completed heating, it shows control
mode: It shows “dx” or “A.xxx”, please set the
unit to the desired DMX512 mode and address,
and DMX control available, wireless control not
available. Your Steam 700RGBA is now ready for
operation with your DMX controller.
8. If desired, connect another fog machine: Plug
one end of another signal cable in to the
output socket (N of gure 1) on the back of the
rst CF-8.0; plug the other end of the signal
cable to the input socket on the back of the
second Steam 700RGBA. Follow the same pro-
cedure to link more fog machine, if desired;
whole link is daisy chain.
Manual fogging could be work with DMX control
operation at the same time.
When shot down, the present function status will be
saved automatically and continue when Powered
on next time.

P. 14
Neo Steam 700 RGBA -
English version
10. DMX CHART
1CH Mode
2CH Mode
3CH Mode
CH1
FOG & RANDOM COLOR CHANGE
32-255 = MAX FOG, Random Color Chang
0-31 = OFF
CH1 CH2
FOG COLOR MACROS
32-255 = MAX FOG Color Macro 1~64
(please see gure 3 - color macro list
0-31= OFF
CH1 CH2 CH3
FOG COLOR MACROS STROBE
32-255 = MAX FOG Color Macro 1~64
(please see gure 3 - color
macro list)
160-255 Random Strobe
(Slow>Fast)
0-31= OFF
96-159 Pulse-Eect in sequence
32-95 Strobe Eect (Slow > Fast)
0-31 Strobe O

P. 15
- Neo Steam 700 RGBA
English version
5CH Mode
7CH Mode
Figure 3 Color Macro List
CH1 CH2 CH3 CH4 CH5
FOG RED GREEN BLUE AMBER
32-255 MAX FOG 1-255 MIN to MAX 1-255 MIN to MAX 1-255 MIN to MAX 1-255 MIN to MAX
0-31= OFF 0= OFF 0= OFF 0= OFF 0= OFF
CH1 CH2 CH3 CH4 CH5 CH6 CH7
FOG RED GREEN BLUE AMBER STROBE MASTER
DIMMER
32-255
MAX FOG
1-255
MIN to MAX
1-255
MIN to MAX
1-255
MIN to MAX
1-255
MIN to MAX
160-255
Random
Strobe
(Slow>Fast)
1-255
MIN to MAX
0-31 OFF 0 OFF 0 OFF 0 OFF 0 OFF 96-159
Pulse-Eect
in sequence
0 OFF
32-95 Strobe
Eect (Slow >
Fast)
0-31
Strobe O
Value Color Value Color
0OFF
1-4 Red = 80
Green =255
Blue = 234
W/A = 80
129-132 Red = 255
Green = 206
Blue = 143
W/A = 0

P. 1 6
Neo Steam 700 RGBA -
5-8 Red = 80
Green =255
Blue = 164
W/A = 80
133-136 Red = 254
Green = 177
Blue = 153
W/A = 0
9-12 Red = 77
Green = 255
Blue = 112
W/A = 77
137-140 Red = 254
Green = 192
Blue = 138
W/A = 0
13-16 Red = 117
Green = 255
Blue = 83
W/A = 83
141-144 Red = 254
Green = 165
Blue = 98
W/A = 0
17-20 Red = 160
Green = 255
Blue = 77
W/A = 77
145-148 Red = 254
Green = 121
Blue = 0
W/A = 0
21-24 Red = 223
Green = 255
Blue = 83
W/A = 83
149-152 Red = 176
Green = 17
Blue = 0
W/A = 0
25-28 Red = 255
Green = 243
Blue = 77
W/A = 77
153-156 Red = 96
Green = 0
Blue = 11
W/A = 0
29-32 Red = 255
Green = 200
Blue = 74
W/A = 74
157-160 Red = 234
Green =139
Blue = 171
W/A = 0
33-36 Red = 255
Green = 166
Blue = 77
W/A = 77
161-164 Red = 224
Green = 5
Blue = 97
W/A = 0
37-40 Red = 255
Green = 125
Blue = 74
W/A = 74
165-168 Red = 175
Green =77
Blue = 173
W/A = 0
41-44 Red = 255
Green = 97
Blue = 77
W/A = 74
169-172 Red = 119
Green = 130
Blue = 199
W/A = 0
45-48 Red = 255
Green = 71
Blue = 77
W/A = 71
173-176 Red = 147
Green = 164
Blue = 212
W/A = 0
English version

P. 17
- Neo Steam 700 RGBA
49-52 Red = 255
Green = 83
Blue = 134
W/A = 83
177-180 Red = 88
Green = 2
Blue = 163
W/A = 0
53-56 Red = 255
Green = 93
Blue = 182
W/A = 93
181-184 Red = 0
Green = 38
Blue =86
W/A =0
57-60 Red = 255
Green = 96
Blue = 236
W/A = 96
185-188 Red = 0
Green = 142
Blue =208
W/A =0
61-64 Red = 238
Green = 93
Blue = 255
W/A = 93
189-192 Red = 52
Green = 148
Blue =209
W/A =0
65-68 Red = 196
Green = 87
Blue = 255
W/A = 87
193-196 Red = 1
Green = 134
Blue = 201
W/A =0
69-72 Red = 150
Green = 90
Blue = 255
W/A = 90
197-200 Red = 0
Green = 145
Blue = 212
W/A =0
73-76 Red = 100
Green = 77
Blue = 255
W/A = 77
201-204 Red = 0
Green = 121
Blue = 192
W/A =0
77-80 Red = 77
Green = 100
Blue = 255
W/A = 77
205-208 Red = 0
Green = 129
Blue = 184
W/A = 0
81-84 Red = 67
Green = 148
Blue = 255
W/A = 67
209-212 Red = 0
Green = 83
Blue = 115
W/A =0
85-88 Red = 77
Green = 195
Blue = 255
W/A = 77
213-216 Red = 8
Green = 107
Blue = 222
W/A =0
89-92 Red = 77
Green = 234
Blue = 255
W/A = 77
217-220 Red = 107
Green = 156
Blue = 231
W/A = 0
English version

P. 18
Neo Steam 700 RGBA -
93-96 Red = 158
Green = 255
Blue = 144
W/A = 144
221-224 Red = 165
Green = 198
Blue = 247
W/A =0
97-100 Red = 255
Green = 251
Blue = 153
W/A = 15
225-228 Red = 209
Green = 219
Blue = 182
W/A =0
101-104 Red = 255
Green = 175
Blue = 147
W/A = 147
229-232 Red = 42
Green = 165
Blue = 85
W/A = 0
105-108 Red = 255
Green = 138
Blue = 186
W/A = 138
233-236 Red = 0
Green = 46
Blue = 35
W/A = 0
109-112 Red = 255
Green = 147
Blue = 251
W/A = 147
237-240 Red = 255
Green = 0
Blue = 0
W/A = 0
113-116 Red = 151
Green = 138
Blue = 255
W/A = 138
241-244 Red = 0
Green = 255
Blue = 0
W/A = 0
117-120 Red = 151
Green = 138
Blue = 255
W/A = 138
245-248 Red = 0
Green = 0
Blue = 255
W/A =0
121-124 Red = 138
Green = 169
Blue = 255
W/A = 138
249-252 Red = 0
Green = 0
Blue = 0
W/A = 255
125-128 Red = 17
Green = 0
Blue = 145
W/A = 42
253-255 Red = 255
Green = 255
Blue = 255
W/A = 255
English version

P. 1 9
- Neo Steam 700 RGBA
11. TROUBLESHOOTING
12. MAINTENANCE
This troubleshooting guide is meant to help solve
simple problems. If a problem occurs, carry out the
steps below in sequence until a solution is found.
Once the unit operates properly, do not carry out
following steps. If the problem persists, refer servic-
ing to a qualied technician.
Power Connected but No Fog Is Emitted
1. Check the power supply. Plug the unit into
grounded electric power supply socket with
proper voltage.
2. Check your controller if in correct connection,
Before doing maintenance, please make sure that
the power is cut, the power cord is unplugged, and
the machine itself has cooled down. The mainte-
nance must be done by qualied person.
• The fog liquid is not allowed to get dirty. Be
sure to always clean or replace the caps on the
fog liquid vessel and tight the cover of the fog
machine liquid tank immediately aer lling.
• Periodically check the connections among
the oil tube, the pump and the heater to see
if there’s oil leaking. If positive, lock tight the
connections carefully with proper tool.
• PC board should be kept from being dirtied
with oil. In case this happened, dismantle care-
fully the PCB, and have it brushed clean both
sides with dilute alcohol. Leave it dry itself,
then install it back. Make sure all wires are well
connected.
• Clean the metal cover with dry cloth.
test the battery if power enough for wireless
controller.
3. Check your DMX address setting.
4. Disconnect fog machine from electric power
supply. Replace fuse with one of the same
type.
Other Abnormal Situations that Could Make
Heater & Pump Stop Working
• Flashing and showing ”Erro” means heater is
too hot or thermos sensor is cut.
English version

P. 2 0
Neo Steam 700 RGBA -
13. APPENDIX – A RC-4CA
Wireless Remote Control
Operation:
The Steam 700RGBA is designed with wireless re-
mote controller. Workable remote distance possi-
bly extends to 30 meters.
A. Four-channel wireless remote control
transmitter:
Key A, B, C, D respectively “CH.A, CH.b, CH.c, CH.d”.
Each channel can be individually set its Color
Marco by menu button of the machine (see “SYS-
TEM MENU” instruction). Send smoke signals when
the button is pressed, release the button to stop
smoke.
B. Receiver:
• Red LED: Power indication. Once the fog ma-
chine is plugged, the red LED on this receiver
of remote controller will light up. Unplug the
power, the red LED o.
• Green LED: Status indication.
1. Warm-up, the green LED goes out.
2. Warm-up is completed, the green LED light up.
• In the warm-up is completed, the green LED
light up period, if the receiver receives a
valid signal emitted by the transmitter, the
green LED o. If the transmitter stop signal,
then restore the green LED lights while
stopped puing smoke.
• The fog machine is o emission for about 9
minutes during warm-up and re-heating cy-
cles (about 80 seconds), and turns on when
the temperature reached again.
1. 1/4” stereo jack
2. Button
3. Green LED (fog)
4. Red LED (power)
English version
