THC-D102IR
HD-TVI Dome Camera
InsTallaTIon manual
www.balTer.De
Thank you for purchasing our product. If there are
any questions, or requests, please do not hesitate to
contact the dealer.
This manual may contain several technicalincorrect
places or printing errors, and the content is subject
to change without notice. The updates will be added
to the new version of this manual. We will readily
improve or update the products or procedures
described in the manual.
Privacy Notice
Surveillance laws vary by jurisdiction. Check all
relevant laws in your jurisdiction before using this
product for surveillance purposes to ensure that
your use of this product conforms. Please refer to
the product specication for camera parameters
and functions.
Please refer to the product specication for camera
parameters and functions.
REGULATORY INFORMATION
Fcc iNFormatioN
FCC compliance: This equipment has been tested
and found to comply with the limits for a digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment
is operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference in which case the
user will be required to correct the interference at his
own expense.
Fcc coNditioNs
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
eU coNFormity statemeNt
This product and - if applicable - the
supplied accessories too are marked
with «CE» and comply therefore with the
applicable harmonized European sstandards listed
under the Low Voltage Directive 2006/95/EC, the EMC
Directive 2004/108/EC, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive):
Products marked with this symbol cannot
be disposed of as unsorted municipal waste
in the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more
information see: www.recyclethis.info.
2006/66/EC (battery directive):
This product contains a battery that
cannot be disposed of as unsorted
municipal waste in the European Union.
See the product documentation for specic battery
information. The battery is marked with this
symbol, which may include lettering to indicate
cadmium (Cd), lead (Pb), or mercury (Hg). For proper
recycling, return the battery to your supplier or to a
designated collection point. For more information
see: www.recyclethis.info.
1. INTRODUCTION
1.1. ProdUct FeatUres
This series of camera adopts new generation sensor
with high sensitivity and advanced circuit design
technology. It features high resolution, low mage
distortion and low noise, etc., which makes it uitable
for surveillance system and image processing system.
▪High performance CMOS sensor and high
resolution bring high-quality image;
▪Low illumination;
▪OSD menu, parameters are congurable;
▪Support auto white balance, auto gain control,
▪Support image eect adjustment;
▪Unit transmission control;
▪Advanced 3-axis design meets dierent
installation requirements.

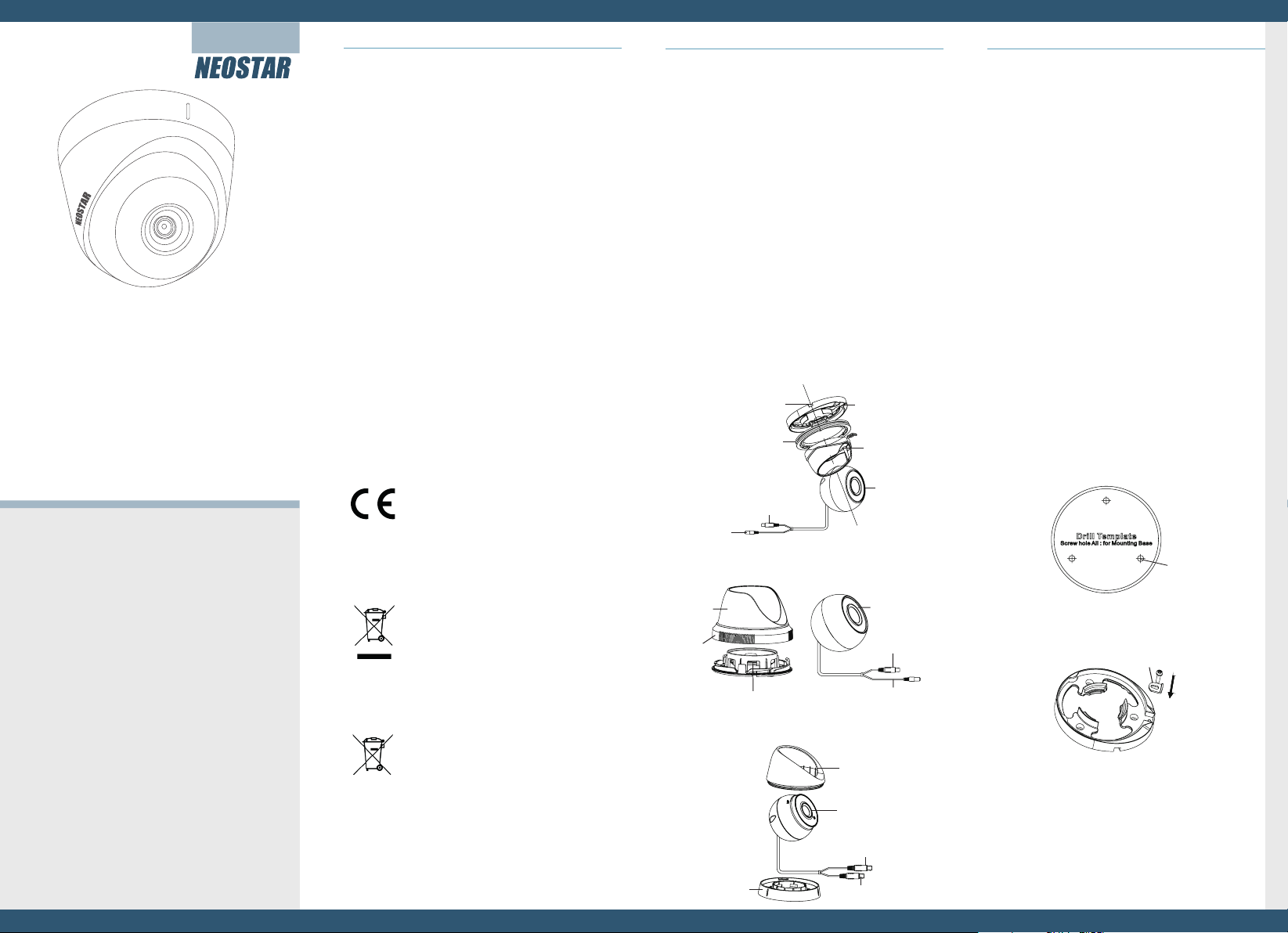

1.2. overview
1.2.1. overview oF tyPe i dome camera
1.2.2. overview oF tyPe ii dome camera
2. INSTALLATION
BeFore yoU start:
▪Please make sure that the device in the package
is in good condition and all the assembly parts
are included.
▪Make sure that all the related equipment is
power-o during the installation.
▪Check the specication of the products for the
installation environment.
▪Check whether the power supply is matched
with your power output to avoid damage.
▪Please make sure the wall is strong enough to
withstand three times the weight of the camera
and the mounting.
▪If the wall is the cement wall, you need to insert
expansion screws before you install the camera.
If the wall is the wooden wall, you can use self-
tapping screw to secure the camera.
▪If the product does not function properly,
please contact your dealer or the nearest
service center. Do not disassemble the camera
for repair or maintenance by yourself.
2.1 iNstallatioN oF tyPei dome camera
stePs:
1. Drill the screw holes according to the drill
template.
2. Screw the clip plate onto the mounting base
loosely.
Figure 2-1 The Drill Template
Figure 2-2 Screw the Clip Plate
HD Video Cable
Mounting Base
Camera
Trim Ring Enclosure
Po
wer Cable
Side Opening
Enclosu
re
HD Video Cable
Mounting Base
Power Cable
Camera
Trim Ring
Screw hole
Clip Plate
1.2.3 overview oF tyPe iii dome camera
Enclosure
Camera
HD Video Cable
Power Cable
Mounting Base
3. Fix the mounting base to the ceiling with the
supplied screws.
4. Route the cables to the cable hole and connect
the corresponding power cable and video cable.
5. Pull out the clip plate and secure the camera
with the trim ring to the mounting base.
6. Push the clip plate in and tighten the lock screw
to secure the trim ring.

www.balter.de
Figure 3-1 Main Menu
VIDEO
SETTING
DAY/NIGHT
WB RESET
BRIGHTNESS MODE
INFRARED
SMARTIR
CONTRAST
SHARPNESS
SATURATION
EXIT
AE
DNR
MIRROR
EXPOSURE MODE
AGC
SAVE/EXIT
2. Fix the mounting base to the ceiling with the
supplied screws
Figure 2-3 Fix the the Camera
Figure 2-5 The Drill Template
Figure 2-6 Fix the Mounting Base and Camera
Figure 2-9 Fix the Mounting Base and Camera
Figure 2-8 The Drill Template
Figure 2-7 3-axis Adjustment
Figure 2-10 3-axis Adjustment
Figure 3-4 DAY/NIGHT
2.2. iNstallatioN oF tyPe ii dome camera
stePs:
1. Drill the screw holes and the cable hole on the
ceiling according to the supplied drill template.
7. Adjust the camera according to the gure 2-7 to
get an optimum angle and tighten the trim ring.
2. Fix the mounting base to the ceiling with the
supplied screws.
Clip Plate
Screw Hole
Cable Hole
0~360
0~75
0~360
Screw Hole
Cable Hole
0~360
0~75
0~360
3. MENU OPERATION
3.1 Format
You can set the format as PAL/NTSC.
3.2 set UP
Move the cursor to SET UP, and press menu button to
enter the SET UP sub menu.
3.2.1 ae
Move the cursor to AE, and you can adjust the image
brightness by the BRIGHTNESS, EXPOSURE MODE, and
AGC.
Brightness: Brightness refers to the brightness of the
image.
Exposure Mode: Move the cursor to Exposure Mode,
you can select the exposure mode between Globe
and BLC. When BLC is selected as the exposure mode,
the level of BLC mode can be adjusted, as shown in
the Figure 3-2.
AWB: white balance is being adjusted automatically.
MWB: Set the R GAIN/B GAIN value from 1 to 10. As
shown in Figure 3-3.
3.2.3 day & NiGHt
Move the cursor to DAY & NIGHT, and select COLOR,
B/W, or SMART as the DAY & NIGHT mode.
COLOR: The image is colored in day mode all the time.
B/W: The image is black & white all the time, and the
IR LED turns on in the low-light conditions.
SMART: Select to turn on/o the INFRARED_LAMP
and to set the Smart IR level from 1to 16. As shown
in Figure 3-4.
3.2.4 video settiNG
Contrast: Contrast enhances the dierence in color and
lightbetween parts of an image. You can set the value
from 1 to 10.
Sharpness: Sharpness determines the amount of detail
that an imaging system can reproduce. You can set the
value from 1 to 10.
Saturation: You can set the saturation level of the
image. The value is from 0 to 10.
DNR: DNR decreases the noise eect, especially in low
light conditions and delivers more accurate and sharp
image quality.You can set the value from 0 to 7.
Mirror: You can set the Mirror status as H, V, HV, or OFF.
3.2.5 reset
Reset all the settings to the default.
3.2.6 eXit
Exit and Save & exit are selectable.
3.2.7 save/eXit
Move the cursor to SAVE & Exit, and press OK to save the
settings and exit the menu.
DAY/NIGHT
MODE SMART
INFRARED OFF
SMARTIR0-|--5
RETURN 8
AGC: AGC optimizes the clarity of image in poor light
scene. AGC level can be set as OFF, LOW, MIDDLE and
HIGH.
3.2.2 wB
Move the cursor to WB, and you can set White Balance
mode as AWB and MWB in this menu.
6. Adjust the camera according to the gure below
to get an optimum angle.
Figure 2-4 3-axis Adjustment
0~360
0~75
0~360
3. Route the cables to the cable hole and connect
corresponding power cable and video cable.
4. Secure the camera to the mounting base.
5. Fix the enclosure to camera.
6. Attach the trim ring to the camera and rotate it
clockwise to secure the camera loosely.
2.3 iNstallatioN oF tyPe iii dome camera
stePs:
1. Drill the screw holes and the cable hole on the
ceiling according to the supplied drill template.
3. Route the cables to the cable hole and connect
corresponding power cable and video cable.
4. Secure the camera to the mounting base.
5. Adjust the camera according to the gure below
to get an optimum angle.
With a coaxial camera controller (purchase separately)
or calling the preset No.95 you can select the menu
and adjust the camera parameters.
EXPOSURE
1.BRIGHTNESS
2.EXPOSURE MODE
LEVEL
3.AGC
4.RETURN
5
BLC
5
MIDDLE
WB
MODE MWB
RGIAN1-|--10
BGAIN1-|--10
RETURN 8
Figure 3-2 EXPOSURE
Figure 3-3 WB
