NEOTICS NR-LNA58 User manual

NEOTICS Co.,Ltd
5.8GHz HEMT Low-Noise Amplifier
for Receiver
NR-LNA58 Ver 7.0
Related Products : NR-AV58RM (5.8GHz Video/Audio Receive Module)
NR-AV58RU (5.8GHz Video/Audio Receive Unit)
R&D : http://www.neotics.co.kr E-Mail : neot[email protected]
Sales : http://www.logiccamp.co.kr E-Mail : [e-mail]

1
NEOTICS Co.,Ltd
1. 5.8GHz HEMT Low-Noise Receive Amplifier.
* The NR-LNA58(5.8GHz band wireless receiver low noise amplifier) is a circuit which can
amplify the receive sensitivity in the 5.8GHz band.
* It is a receive sensitivity amplifier for 5.8GHz band to communication with long range.
2. 5.8GHz HEMT Low-Noise Receive Amplifier Specification.

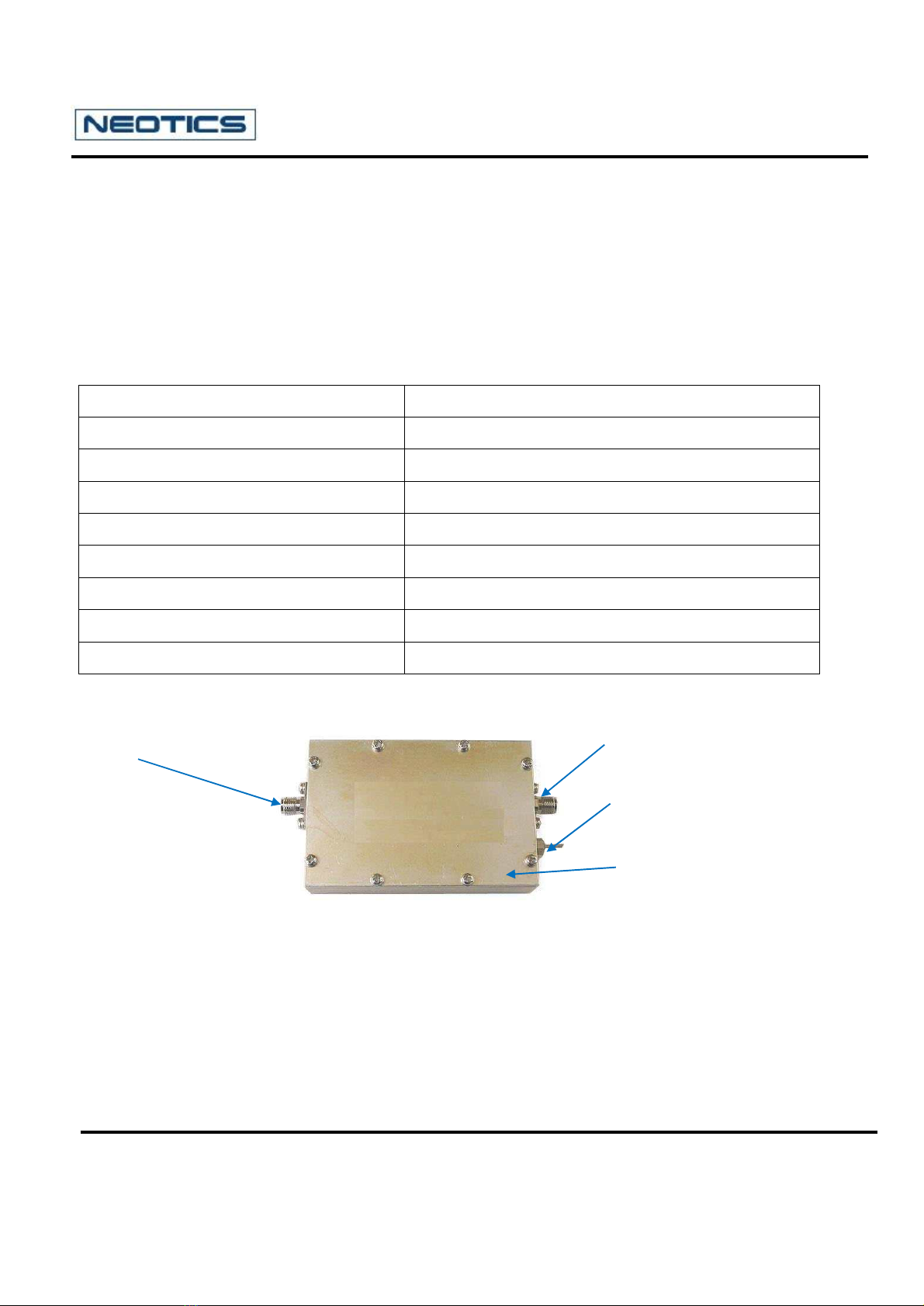

3. 5.8GHz HEMT Low-Noise Receive Amplifier Information.
INPUT(SMA) OUTPUT(SMA)
DC 12V(+)
CASE DC 12V(-)
***** Caution*****
1. Check the features first to connect with other equipment.
2. This circuit is strictly tested.
3. The developer, manufacturer or dealer is not responsible for
any malfunctioning/damage caused by connection with other equipment.
4. Appropriate permit /approval is required for some products utilizing this
module, depending on functions and usages.
l For more information and inquiry, please refer to the sites below.
R&D : http://www.neotics.co.kr E-Mail : neot[email protected]
Sales : http://www.logiccamp.co.kr E-Mail : [e-mail]
Item
Specification
Supply Voltage
DC 12V
Supply Current
Under 50mA
Frequency Band
5.0~6.0GHz
RF Gain
20~25dB
component
HEMT
NF
1dB
In / Output Impedance
50Ω
DIMENSION
73mm X 48mm X 17mm
