Starting up
•Switch ON NWC Voyager.
For location of the ON/OFF switch, see "Switch-
ing ON" in Getting Started.
•Turn ON the PC and click
Start > Programs > vtLite Mobile.
Note! VtLite can only be used on one PC at a time.
1The satellite search program is initialized.
See also "Satellite search" in Getting Started.
2 NWC Voyager starts searching for last used
satellite/elevation (Ocean Region) as default. If not
found the system searches for the 2nd last used.
3When receiving a satellite signal, a signal strength
bar will appear in the search window.
The longer the signal bar or higher the signal
strength indicator value, the better the signal quality.
The maximum marker indicates the highest signal
strength achieved during the current search.
Note! It is recommended that the signal strength
reading (S/N=Signal/Noise ratio) should be at least
535. The antenna will automatically fine-tune to the
best signal and accept it.
Clicking Seek starts the search again, see also step 5.
If required, select a specific satellite by clicking New.
See also "Selecting default Net provider" in
Getting Started.
1
2
3
OPERATION FROM PC

6
OPERATION FROM PC CONT’DUSER GUIDE
NWC Voyager
4NWC Voyager automatically searches available
spot beams and selects the strongest one.
5The system only searches for the two last used
satellites.
Clicking Seek opens the New search satellite
window, allowing the "oldest" of the two last used
satellite regions to be replaced, leaving the selected
one on top of list.
6The equipment is ready for use when the
Main window appears.
To make a connection, see "Making a call" in
Getting Started.
5
S/N=Signal/Noise ratio
6
4

7
USER MANUAL OPERATION FROM PC CONT’D USER GUIDE
NWC Voyager
Phone book
Adding and editing entries can also be done from the
handset, see OPERATION FROM HANDSET in
Getting Started.
Phone book capacity
MCU SIM card
(Data vary with card type)
Phone numbers: 100 entries 100 entries
Number length: 19 digits 19 digits
Name length: 29 characters 12 characters
Entry numbers: 0 - 99 100 and up
The SIM card entries and "MCU" entries merge when
the card is inserted. The list is sorted by name.
Abbreviated dialing (prefix 23)
1Clicking Book opens the Phone book.
2Scroll through list œ/‘to wanted entry.
Example: dialing
2 3 5
1
on the telephone or
keypad fetches and sends the telephone number
stored under short number entry 15.
Adding or editing entries
3Clicking New (window 2) opens the window used
to add an entry to the book.
Use Del to modify. Save stores the new entry.
3
2
1

8
OPERATION FROM PC CONT’DUSER GUIDE
NWC Voyager
5
4Clicking Edit (window 2on previous page) opens
the window allowing changes to be made in the
Phone book.
Use Del to modify. Remov erases the entry.
Note! The book is also used with the restriction “Dial
from book only”, see "Restricted dialing setup".
Netwk = Net provider
Another Net provider may be selected when dialing
this number from the phone book. If no selection, the
system uses the default one.
Terrestrial network
It is possible to change Terrestrial network for the
selected Net provider (00 is most common).Call your
Net provider for more information.
Saving entries to/from PC
(owner level only, see "Shifting to owner level")
5Click File to save phone book, or replace the
stored one.
4

9
USER MANUAL OPERATION FROM PC CONT’D USER GUIDE
NWC Voyager
1
2
3
4
# Tagged for printout* Calls not yet printed
Traffic Log
This function logs all outgoing and incoming calls
both with and without SIM card inserted. Incoming
calls may be logged as well.
Up to 100 calls can be logged:
Circuit switched calls (Cct) including:
•4.8 - 64 speech
•3.1 kHz Audio (e.g. G3 fax)
•64 kbps UDI data
Packet switched data calls (Mpds) including:
•Mobile Packet Data Service calls
The NWC Voyager owner may set the log output
mode as follows, (see "Traffic log settings"):
•paused
•cleared (stops logging and clears the log)
•enabled
•automatic printout to RS-232A
•automatic printout to RS-232B
Traffic log readout
1 Clicking Log opens the Traffic log window.
2The Traffic log window shows whether the logging is
enabled, whether incoming calls are logged, and the
total number of unprinted calls (MPDS and Cct calls).
Circuit switched calls:
Clicking Cct displays the list of calls.
3Scroll œ/‘to wanted call record and press ’to
display details of the selected call.
4The call details include data such as dialed
number, start of the call, duration, service and termi-
nal Id.
Quit reverts to main window.

10
OPERATION FROM PC CONT’DUSER GUIDE
NWC Voyager
Mobile Packet Data Service calls:
5Clicking Mpds displays the list of Mobile Packet
Data Service calls.
6The call list include data such as Net provider, start
of the call and duration.
Scroll œ/‘to wanted call record and press ’to
display details of the selected call.
7The call details include data such as Rx/Tx in
bytes, forward frames received, etc.
Quit reverts to main window.
#
Tagged for printout
Forward errors
in the MPDS
system
Forward
frames
received
Tx Rx in
Bytes
Peak and average
number of users on the
same channel.
Example: 4 active users.
Time adjustment
of slot due to
location on earth
Lost synchro-
nisation
Clear cause
level1 level2
(0 500=
normal clear)
MPDS network used (HomeLes)
No. of 5 and
20ms slots
used
Error in frames
Tx Rx direction
5
7
6

11
USER MANUAL OPERATION FROM PC CONT’D USER GUIDE
NWC Voyager
1
2
3
Hours:minutes:seconds
Not printed
Traffic log settings
(owner level only, see "Shifting to owner level")

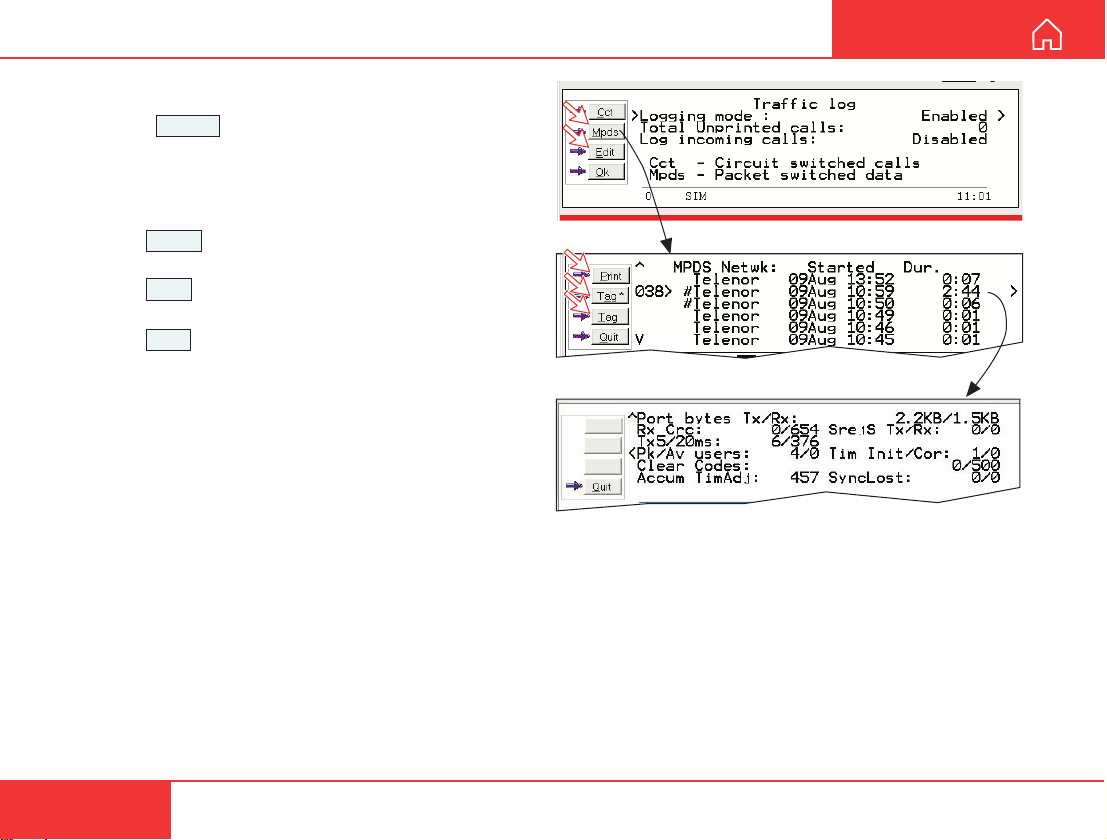

1 In the Main window, clicking Log opens the Traffic
log window, which displays the current log mode,
number of unprinted calls, and whether logging of
incoming calls is enabled/disabled.
• Click Edit or ’to open Logging mode window:
• Paused: any logging is off.
• Cleared: all log entries are deleted (incoming and outgoing).
• Enabled: outgoing logging is on.
• Automatic printing to RS-232 A: output to local printer
• Automatic printing to RS-232 B: output to local printer
Scroll œ/‘to wanted mode, and click or press ç
to select.
• Scroll down ‘to Log incoming calls and click
Edit or ’to enable or disable logging of incoming calls.
Press çto select.
Circuit switched calls:
2Clicking Cct in the Traffic log window (1) opens the
list of all call records except MPDS calls.
Print outputs all unprinted calls (marked with a star):
•Clicking Tag* marks all calls with a hash, which
adds the records to the printout file.
•Clicking Tag marks the selected call with a hash,
which adds the record to the printout file.
•Clicking Tag again untags a selected record.
3Pressing ’at a record when in window (2) dis-
plays detailed call data.

12
OPERATION FROM PC CONT’DUSER GUIDE
NWC Voyager
Mobile Packet Data Service calls:
4Clicking Mpds in the Traffic log window (1) opens
the list of Mobile Packet Data Service call records.
5Print outputs all unprinted calls (tagged with a
hash) in Printout Viewer.
•Clicking Tag* marks all calls with a hash, which
adds the records to the printout file.
•Clicking Tag marks the selected call with a hash,
which adds the record to the printout file.
•Clicking Tag again untags a selected record.
6Pressing ’at a record when in window (2) dis-
plays detailed call data.
#Tagged for printout
4
6
5

13
USER MANUAL OPERATION FROM PC CONT’D USER GUIDE
NWC Voyager

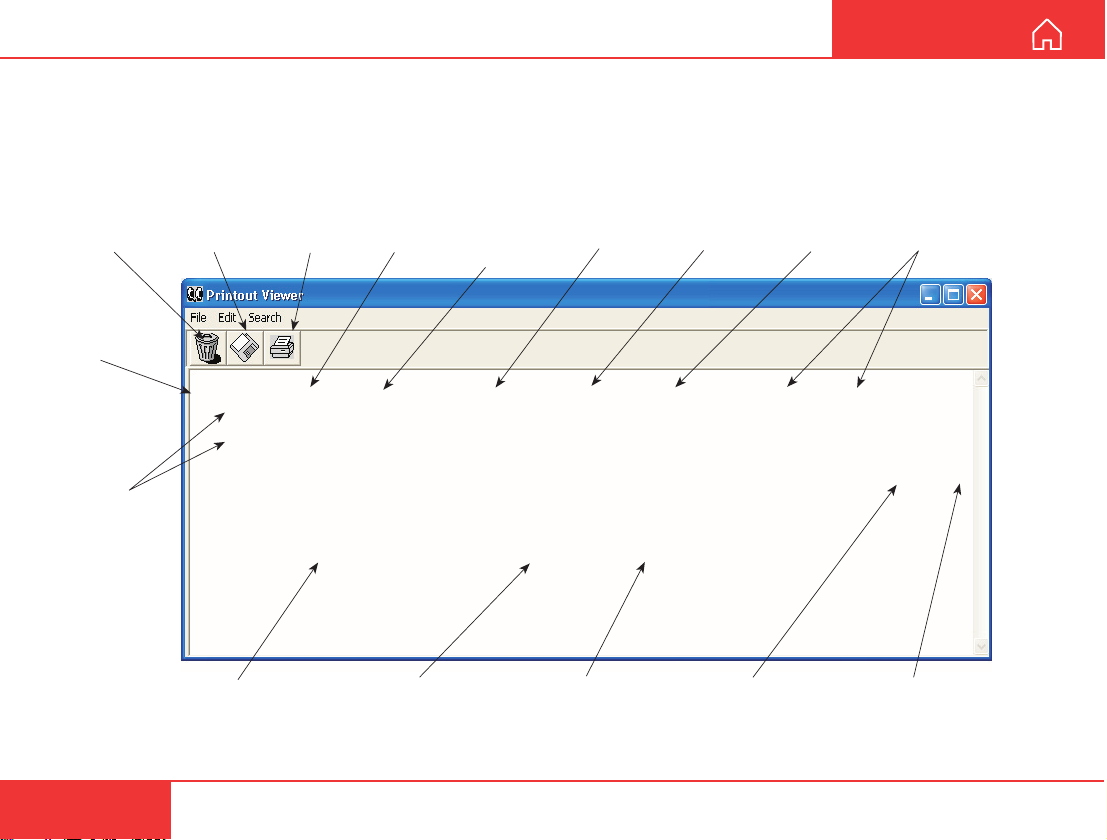

The viewer lists tagged call records.
Records that have been printed out previously are
marked with a hash.
The record file can be printed out or saved to disk.
For default setup, see "Print handling setup".
Ref. no.
Subscriber
number Start date and time Call duration in minutes
and seconds
Terminal
Id Net service
provider
Click for
printout
Click to save
record file
Click to delete
record file
Number of
records
Accumulated time in minutes
and 1 100 of a minute
Duration in seconds
per service
#: record printed
previously.
"No hash" when
printed first time.
User name if
access code
is activated
Type of
service MSN number
Traffic log printout viewer - normal calls (Cct)

14
OPERATION FROM PC CONT’DUSER GUIDE
NWC Voyager
Traffic log printout viewer -
Mobile Packet Data Service calls (MPDS)
The viewer lists tagged call records.
Records that have been printed out previously are
marked with a hash.
The record file can be printed out or saved to disk.
For default setup, see "Print handling setup".
Ref Started Dur. Net Tx Rx RxSreg TxSreg CRC Clr
002# 020813 12:26 0:44 Telenor 2.2KB 1. KB 0 0 0 000
003 020813 12:27 3:0 Telenor 4.8KB 107.9KB 0 0 0 000
013# 020813 13:02 0:16 Telenor 11 36 0 0 0 000
014 020813 14:2 0:23 Telenor 38 166 0 0 0 000
MPDS traffic summary:
Total MPDS Tx: 07KB Total MPDS Rx: 312.4 Sum MPDS:819.4KB
Ref. no.
Start date
and time Call duration
in minutes
and seconds
Transmitted
data in Bytes
Net service
provider
Click for
printout
Click to save
record file
Click to delete
record file
Total transmitted
KiloBytes
Received
data in Bytes
#: record printed
previously.
"No hash" when
printed first time.
Retransmitted
frames
Forward errors in
the MPDS system
Clear cause codes.
000=normal clearing
of connection
Total received
KiloBytes
Sum of Rx+Tx
KiloBytes

15
USER MANUAL OPERATION FROM PC CONT’D USER GUIDE
NWC Voyager
Traffic log output to serial printer
Ref Dialed number Service Started Duration Tx+Rx MSN Net User
001 004791 81198 Speech 0 0616 07: 10 0: 19 20 004Tel
002 004722225220 64K Dat 0 0616 07: 14 1:26 60 004Tel
00 004766981978 .1 Aud 0 0616 07: 2 0:52 42 004Tel captain
004 0047911 81198 Speech 0 0616 07: 26 0: 06 21 004Tel
005 Incoming call Speech 0 0616 07: 27 1:0 20 004Tel
006 MPDS MPDS 0 0616 07: 45 1407KB 004Tel
007 004722225220 64K Dat 0 0616 07:47 :14 6 004Tel
008 004766981978 .1 Aud 0 0616 09: 0 0:54 40 004Tel
009 004791 81198 64K Spe 0 0616 09: 45 0: 20 0 004Tel
010 MPDS MPDS 0 0616 11:26 112.5 004Xan
10 records printed 0 .06.16 11:26 (UTC+02:00)
Outgoing calls and MPDS traffic summary:
Speech : 8 s ( 1. 8 minutes)
64K Speech : 12 s ( 0.20 minutes)
.1KHz Audio: 62 s ( 1.06 minutes)
64K Data : 270 s ( 4.50 minutes)
Total MPDS Tx: 521.5KB
Total MPDS Rx: 997.0KB
Sum MPDS: 16 2.0KB
Reference
number Subscriber number Type of service Start date and time Call duration in minutes and
1\100 of a minute
MSN
number Net service
provider
User name if
access code is
activated
Transmitted&
received data
in kilobytes
When connected, traffic log details are
automatically output as indicated
below. One line is printed out after
each call.
To dump the traffic log, select menu
>information>Traffic log in the Nera ISDN Handset.
For setting up, see Serial printer settings in Getting
Started.
Select logging mode in vtLite Mobile Traffic log to:
Automatic printing to RS232A or RS232B,
see Traffic log settings earlier in this manual.

16
USER GUIDE
NWC Voyager
Only appears in OWNER level.
Only appears in OWNER level.
Only appears when
Diagnostics is ON
Point at icons and double-click the mouse to open menus and functions.
Menu functions
CONFIGURATION FROM PC

17
USER MANUAL CONFIGURATION FROM PC CONT’D USER GUIDE
NWC Voyager
Ref. Function Features
1Set default Net provider Allows changing Net service provider (and terrestrial network).
See "Selecting default Net service provider".
2Set access level Allows shifting between user level and owner level, changing PIN code and
owner password. See "Access level".
4Phone setup menu
42 Call duration guard Sets maximum call duration for 64 kbps calls.
43 MPDS call waiting Allows automatic disconnection of MPDS at incoming call.
44 Set time zone Sets MCU Time Zone (UTC and date are set automaticall ).
47 Message indication Switches indication of received fax and data cals on/off.
49 Set s stem clock Sets MCU time and date.
9Advanced functions menu
91 Access control menu See "Advanced functions".
911 Restrict dial
Only allows calls from Phone Book. List of barred numbers may be established.
912 Access code Sets personal codes for using the satellite terminal.
913 Restrict SIM usage Only allows calls with specific card, no card or any card.
94 Alarms and messages See information on CD
97 Configuration menu
971 ISDN configuration Chooses between ISDN protocols.
972 Net service providers Changing Net service provider data.
974 Set diagnostics Allows additional system information to be displayed.
98 Information available See "Advanced functions".
982
Misc.version Id information Displays a series of version information windows and FWD ID.
983 Transceiver status Displays max min voltages and temperatures in RF unit.
989
Net ork status information Displays various network status information.
99 Customization menu See "Advanced functions".
991 Paid functions Installs additional functions, if any.
992 Phone name setup Allows altering the factory and phone name.
Function reference list
Reference number for direct selection. Click menu in main window and then key in the number.

18
CONFIGURATION FROM PC CONT’DUSER GUIDE
NWC Voyager
Access level
The NWC Voyager user program (vtLite Mobile) is
accessible from two levels:
•USER LEVEL
•OWNER LEVEL – accessed by owner level password.
Warning! To prevent misuse, passwords other than
default must be entered before putting the NWC
Voyager in operation.
Activating/changing user PIN code
1Double-click the Set access level icon on the
Function menu.
2Click Edit to enter/modify the PIN code.
3Key in:
•Old PIN code (default: 1234)
•New PIN code (4 - 10 digits possible)
•Retype to confirm
Click Ok for each entry and to store the new code.
Note! Clicking Ok without entering any numbers for
New PIN and Retype new PIN disables the PIN code.
NB! The Old PIN code must be entered to reactivate
the previous PIN code.
If the PIN is accidentally lost, it is possible to reset the
user’s password to default (1234) by logging in as owner:
"*+ owner’s password"
(Resetting is not possible on the SIM card.)
3
2
1

19
USER MANUAL CONFIGURATION FROM PC CONT’D USER GUIDE
NWC Voyager
Functions requiring owner level
Programming of the functions below requires that the
user access is set to OWNER LEVEL:
•Phone book save/restore
•Traffic log settings/printouts
•Modifying owner password
•Net Service provider names
•Restricted dial
•Restricted SIM usage
•ISDN configuration (except data/time element)
•Access code
•Paid functions
•Phone name setup
Shifting to owner level
1Click Owner in Set access level window.
2Key in the password.
Note! The default password is: 1 2 3 4 5 6 7 8 9 0
Clicking Ok activates the Owner level.
Changing owner level password
3Click Owner in Set access level window again,
and click Edit to modify the owner password. Key in:
•Current password
•New password (10 – 12 digits)
•Retype to confirm
Click Ok for each entry and to store new password.
To revert to User level, open the "Set access level"
window and click User.
3
2
1

20
CONFIGURATION FROM PC CONT’DUSER GUIDE
NWC Voyager
Selecting default Net service
provider
The default Inmarsat Net service provider for a
satellite (Ocean Region) is automatically used if
the user does not select another one when making
a call.
Make sure that you choose the Net service pro-
vider who commissioned the equipment. You will
othervise be barred or charged additional rate.
In this menu default Net service provider can be
preprogrammed for the current Ocean Region.
When using SIM card, selection is automatically
restricted to one of the allowed Net service provid-
ers and does not need to be programmed!
Procedure:
1On the Function menu, double-click the Set
default Net provider icon to display the current
selections.
2Scroll up/down to change satellite: œ/‘.
3Clicking Selct or pressing ’opens the window
prompting you to confirm the choice of satellite with
the current default Net service provider.
To change default Net service provider for a
satellite region, see next page.
3
2
1
