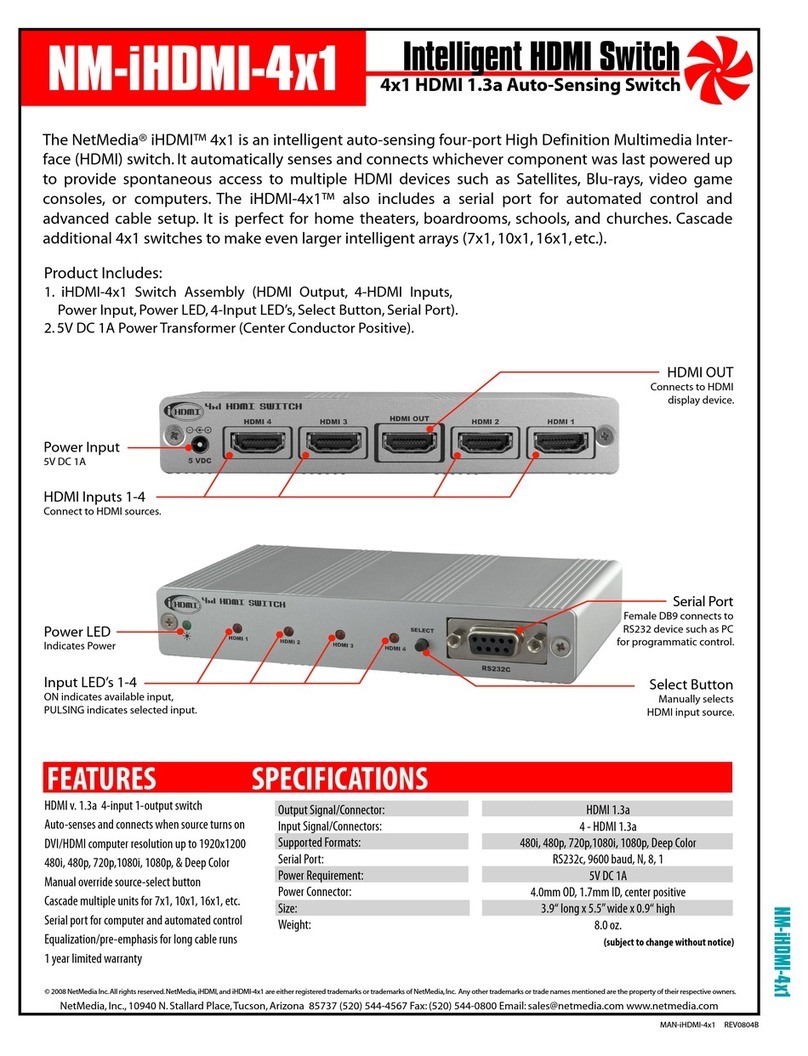

Net Media NM-iHDMI-4x1-CE User manual

NM-iHDMI-4x1-CE
NetMedia, Inc., 10940 N. Stallard Place,Tucson, Arizona 85737 [phone] Fax: [phone] Email: [email protected] www.netmedia.com
MAN-iHDMI-4x1-CE REV1003A
Intelligent HDMI Switch
NM-iHDMI-4x1-CE
4x1 HDMI Auto-Sensing Switch
HDMI v. 1.3a 4-input 1-output switch
Auto-senses and connects when source turns on
DVI/HDMI computer resolution up to 1920x1200
480i, 480p, 720p,1080i, 1080p, & Deep Color
Manual override source-select button
Cascade multiple units for 7x1, 10x1, 16x1, etc.
One year limited warranty
Product Includes:
1. iHDMI-4x1 Switch Assembly (HDMI Output, 4-HDMI Inputs,
Power Input, Power LED, 4-Input LED’s, Select Button).
2. 5V DC 1A Power Transformer (Center Conductor Positive).
The NetMedia® iHDMI™ 4x1 is an intelligent auto-sensing four-port High Definition Multimedia Inter-
face (HDMI) switch. It automatically senses and connects whichever component was last powered up
to provide spontaneous access to multiple HDMI devices such as Satellites, Blu-rays, video game
consoles, or computers. It is perfect for home theaters, boardrooms, schools, and churches. Cascade
additional 4x1 switches to make even larger intelligent arrays (7x1, 10x1, 16x1, etc.).
Power Input
5V DC 1A
HDMI Inputs 1-4
Connect to HDMI sources.
FEATURES SPECIFICATIONS
HDMI 1.3a
4 - HDMI 1.3a
480i, 480p, 720p,1080i, 1080p, Deep Color
5V DC 1A
4.0mm OD, 1.7mm ID, center positive
3.9“ long x 5.5”wide x 0.9“ high
8.0 oz.
(subject to change without notice)
HDMI OUT
Connects to HDMI
display device.
Power LED
Indicates Power
Select Button
Manually selects
HDMI input source.
Input LED’s 1-4
ON indicates available input,
PULSING indicates selected input.
Output Signal/Connector:
Input Signal/Connectors:
Supported Formats:
Power Requirement:
Power Connector:
Size:
Weight:
© 2008 NetMedia Inc.All rights reserved.NetMedia,iHDMI, and iHDMI-4x1 are either registered trademarks or trademarks of NetMedia,Inc. Any other trademarks or trade names mentioned are the property of their respective owners.

NM-iHDMI-4X1-CE
NetMedia, Inc., 10940 N. Stallard Place,Tucson, Arizona 85737 [phone] Fax: [phone] Email: [email protected] www.netmedia.com
MAN-iHDMI-4X1-CE REV1003A
Setup Procedures:
1. Connect the 5V DC 1A power transformer to the iHDMI Power Input connector. Connect the
other end of the power transformer to an AC outlet.
2.Use an HDMI cable to connect the output of each source to one of the four iHDMI Inputs. Use
another HDMI cable to connect the iHDMI Output to the display device (Figure 1).
3. Start the display device. Start one or more source devices (the corresponding Input LED will
be ON). The last source started will automatically be connected to the display (the corre-
sponding Input LED will PULSE). If desired, press the Select Button to manually change to a
different source. Note: it may take minutes for some devices to start and a few seconds for the
iHDMI and the display device to properly detect the HDMI signal.
Figure 1 - Connecting the iHDMI-4x1-CE to power,a display, and various sources such as a Satellite Receiver,Blu-ray,
video game console, and computer.
NM-iHDMI-4X1-CE
Satellite Receiver
Power
Video Game
Console
Laptop Computer
HDTV
Blu-ray Player

MAN-iHDMI-4X1-CE REV1003A
Intelligent HDMI Switch
4x1 HDMI Auto-Sensing Switch
One Year Limited Warranty
NetMedia, Inc. warrants this product to be free from defects in materials and workmanship under normal use and service for One Year
from the date of purchase or NetMedia will repair or, at its option, replace the defective product.Please keep your purchase receipt.In the
unlikely event that you need warranty service, call NetMedia at 1-520-544-4567 for a Return Material Authorization (RMA) number. Then,
return the product, with the RMA number clearly marked on the package, by a traceable method with freight pre-paid and accompanied
by a copy of the purchase receipt to:
Attn: Customer Service, NetMedia, Inc. 10940 N. Stallard Place,Tucson, AZ 85737-9527
No expressed or implied warranty is made for any defects in this product which result from accident,abuse,failure to operate the product
in accordance with relevant instructions, neglect, immersion in or exposure to chemicals or liquid, extreme climate, excessive wear and
tear and defect resulting from other extraneous causes such as unauthorized disassembly, repair and or modification. Any implied
warranty arising from the sale of this product, including implied warranties of merchantability and fitness for a particular purpose, are
limited to the warranty stated above.NetMedia shall not be responsible for any loss,damages or expenses,whether direct, consequential
or incidental that arise from the use or inability to use this product. Some states do not allow limitation of incidental or consequential
damages, so the above limitations and exclusions may not apply to you.This warranty gives you specific legal rights, and you may have
other rights, which vary from state to state.
FCC Information (U.S.A.):
Important: This product, when installed as specified below,
meets FCC requirements. Modifications not expressly
approved by NetMedia may void your authority, granted by
the FCC, to use the product. Failure to follow all installation
instructions could void your FCC authorization to use the
product in the USA.
Compliance Information Statement
(Declaration of Conformity Procedure)
We,
NetMedia, Inc.
10940 N. Stallard Pl.
Tucson, AZ 85737
(520-544-4567)
declare under our sole responsibility that the following products,
Type of Equipment: HDMI Switch
Model: NM-iHDMI-4X1-CE
to which this declaration relates are in conformity with the Title 47
of the US Code of Federal Regulations, Part 15 covering Class B digital devices.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE:This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio or television communications. However, there is no guarantee that the interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment to a different outlet on a circuit other than the one the receiver is connected to.
* Consult the dealer or an experienced radio/TV technician for help.
NM-iHDMI-4X1-CE

NetMedia, Inc., 10940 N. Stallard Place,Tucson, Arizona 85737 [phone] Fax: [phone] Email: [email protected] www.netmedia.com
Q- Automatic switching is great but how can I manually change the input?
A- Press the Select Button to manually change inputs; the unit will still
automatically switch to new inputs when detected.
Q- Is there a way to reset the switch?
A- You can reset the switch by holding the Select Button while applying power.
Q- What do the different Input LED conditions indicate?
A- The LED’s indicate various conditions as described here:
OFF means there is no powered up input connected.
ON solid means there is a powered up input connected but it is not
selected.
SLOW PULSING means there is a powered up input connected and it is
selected.
FAST PULSING means there is no powered up input connected but it has
been manually selected; select a different input.
ALL FLASHING rapidly means that the output cable is not properly
connected to the display device; reconnect it or change cables.
Q- What if I have more than 4 HDMI devices?
A- You can connect multiple iHDMI-4x1’s together to make a 7x1 (two units), a
10x1 (three units), a 13x1 (four units), a 16x1 (five units), or even larger
intelligent arrays.
Frequently Asked Questions
MAN-iHDMI-4x1-CE REV1003A
NM-iHDMI-4x1-CE
