Congratulations on your purchase of the NETGEAR®GA622T Copper Gigabit
Ethernet Card.Designed especially for high-performance systems, such as servers and
high-end workstations,it offers 2 gigabits per second (Gbps) of aggregate bandwidth
and optimized performance while minimizing network overhead on the host system.
This guide describes the installation and use of the GA622T for operation within a
Microsoft®Windows 95OSR2®,Windows 98®,Windows NT®,Windows 2000®,
Windows Me®, Novell NetWare®, or Red Hat Linux®environment.
This chapter provides information about the features of the GA622T.It connects
your PCI-compliant server or workstation to a Gigabit Ethernet network, incorporat-
ing a new technology that transfers data at a rate of 1 Gbps or 1000 megabits per
second (Mbps) over standard Category 5 cables.
Benefits
Performance is optimized and network overhead on the host system is minimized
with the use of the GA622T Copper Gigabit Ethernet Card.
The GA622T has demonstrated interoperability with all major Gigabit Ethernet
equipment on the market that is compliant with IEEE 802.3ab standards and should
work with most non-compliant Gigabit Ethernet products. In addition,because the
GA622T uses standard Ethernet frame and Media Access Control (MAC) formats,
it provides full compatibility with Fast Ethernet network equipment through network
switches from a variety of vendors, including NETGEAR.
Features
The key features of the GA622T Copper Gigabit Ethernet Card are:
•Full-duplex operation (2,000 Mbps: 1,000 Mbps each way) with DMA (Direct
Memory Access) Gigabit Ethernet interface (IEEE 802.3ab)
•RJ-45 connector for Category 5 unshielded twisted pair (UTP) cable
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 9

introduction 1-2
•Interoperability with existing Fast Ethernet equipment compliance with the
following standards and protocols:
–IEEE 802.3ab Gigabit Ethernet
–IEEE 802.3u Fast Ethernet
–IEEE 802.3u Auto Negotiation
–IEEE 802.3x Flow Control
•Standard Ethernet frame size (up to 1,518 bytes)
•Jumbo frames support
•Adaptive interrupt frequency
•Adjustable interrupt hold-off time to minimize CPU utilization,therefore
maximizing PCI bus and network throughput
•33/66 MHz,32/64-bit PCI bus master (Local Bus Revision 2.2 compliant)
with adaptive DMA channels
•Two independent DMA channels for simultaneous read and write operations;
as a bus master,the network card requests access to the PCI bus instead of
waiting to be polled
•Software driver support for Windows95OSR2,Windows 98,Windows NT,
Windows 2000,Windows Me, NetWare 4.2, 5.0,5.1,and Red Hat Linux 6.1
and 6.2
•Universal dual-voltage signaling (3.3 V and 5 V)
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 10

CHAPTER 2: HARDWARE INSTALLATION
This chapter provides information about the package contents, system requirements,
and installation of the NETGEAR GA622T Copper Gigabit Ethernet Card.
Package Contents
The product package contains:
•GA622T Copper Gigabit Ethernet Card
•
GA622T Copper Gigabit Ethernet Card Driver and Documentation CD
• GA622T Copper Gigabit Ethernet Card Installation Guide
•Warranty & Registration Card
•Support Information Card
Call your reseller or customer support in your area if there are any wrong,missing,
or damaged parts.Refer to the Support Information Card for the telephone number
of customer support in your area.
Keep the Support Information Card,along with the original packing materials.
Use the packing materials to repack the GA622T Copper Gigabit Ethernet Card
if you need to return it for repair.
To qualify for product updates and product warranty registrations,fill out the
registration information within 30 days of purchase.For priority service,register
online on the NETGEAR Web page at:
http://www.NETGEAR.com
You can also fill out and return the Warranty & Registration Card that is included in
your product package.
hardware installation 2-1
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 11

hardware installation 2-2
Requirements
Before installing the GA622T Copper Gigabit Ethernet Card,verify that your system
meets the operating system and hardware requirements outlined inTable 2-1.
Table 2-1. Software and Hardware Requirements
System Requirements
Windows 95OSR2
Hardware A Pentium-based workstation that meetsWindows 95OSR2 software requirements
One open 32-bit or 64-bit PCI slot
Operating System Windows 95OSR2
Software GA622T Copper Gigabit Ethernet Card driver software,version 1.0 (or higher)
(loaded during for Windows,which is included on the
GA622T Copper Gigabit Ethernet Card
driver installation) Driver and Documentation CD in the \Win95 directory.The necessary files are:
•GA622nd4.sys (network device driver file)
•Netga622.inf (information used by installation program)
Windows 98/98SE
Hardware A Pentium-based workstation that meetsWindows 98/98SE software requirements
One open 32-bit or 64-bit PCI slot
Operating System Windows 98,Windows 98SE
Software GA622T Copper Gigabit Ethernet Card driver software,version 1.0 (or higher)
(loaded during for Windows,which is included on the
GA622T Copper Gigabit Ethernet Card
driver installation) Driver and Documentation CD in the \Win98 directory.The necessary files are:
•GA622nd5.sys (network device driver file)
•Netga622.inf (information used by installation program)
Windows NT
Hardware A Pentium-based workstation or server that meets Windows NT 4.0
software requirements
One open 32-bit or 64-bit PCI slot
Minimum 64 MB memory
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 12

hardware installation 2-3
Table 2-1. Software and Hardware Requirements (continued)
System Requirements
Operating System Windows NT 4.0 with Service Pack 5 or above.To download the latest
Service Pack,go to the following Microsoft Web page and search for the latest
service pack:
http://www.microsoft.com/downloads/search.asp
Software GA622T Copper Gigabit Ethernet Card driver software,version 1.0 (or higher)
(loaded during for Windows NT, which is included on the
GA622T Copper Gigabit Ethernet Card
driver installation) Driver and Documentation CD in the \Winnt directory.The necessary files are:
•GA622nd4.sys (network device driver file)
•Oemsetup.inf (information used by installation program; this file is in the root
directory)
Windows 2000
Hardware A Pentium-based workstation or server that meets Windows 2000 software
requirements
One open 32-bit or 64-bit PCI slot
Minimum 64 MB memory
Operating System Windows 2000 Professional,Windows 2000 Server, or Windows 2000
Advanced Server
Software GA622T Copper Gigabit Ethernet Card driver software,version 1.0 (or higher)
(loaded during for Windows 2000,which is included on the
GA622T Copper Gigabit Ethernet Card
driver installation) Driver and Documentation CD in the \Win2000 directory.The necessary files are:
•GA622nd5.sys (network device driver file)
•Netga622.inf (information used by installation program)
Windows Me
Hardware A Pentium-based workstation that meetsWindows Me software requirements
Operating System Windows Me
Software GA622T Copper Gigabit Ethernet Card driver software for Windows Me,which is
(loaded during included on the
GA622T Copper Gigabit Ethernet Card Driver and Documentation
driver installation) CD in the \Winme directory.The necessary files are:
•GA622nd5.sys (network device driver file)
•Netga622.inf (information used by installation program)
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 13

hardware installation 2-4
Table 2-1. Software and Hardware Requirements (continued)
System Requirements
NetWare
Hardware A Pentium-based server that meets NetWare 4.2,NetWare 5.0, or NetWare 5.1
software requirements
One open 32-bit or 64-bit PCI slot
Minimum 64 MB memory
Operating System If you are using NetWare 4.2,you must have the most recent support pack
(Support Pack 8 or later).To download the latest support pack,go to the following
Novell Web page:
http://support.novell.com/products/nw42/patches.htm
For NetWare 5.0,download the most recent support pack (Support Pack 4 or
later).To download the latest support pack,go to the following Novell Web page:
http://support.novell.com/products/nw5/patches.htm
Software GA622T Copper Gigabit Ethernet Card driver software,version 1.0 (or higher)
(loaded during for NetWare,which is Included on the
GA622T Copper Gigabit Ethernet Card
driver installation) Driver and Documentation CD in the \Netware directory.The necessary files are:
•Ga622.lan (network device driver file)
•Ga622.ldi (information used by installation program)
Red Hat Linux
Hardware APentium-based server that meets Red Hat Linux6.1or 6.2 software requirements
One open 32-bit or 64-bit PCI slot
Operating System Red Hat Linux 6.1 or 6.2
Software GA622T Copper Gigabit Ethernet Card driver software,version 1.0 (or higher)
(loaded during for NetWare,which is included on the
GA622T Copper Gigabit Ethernet Card
driver installation) Driver and Documentation CD in the \Linux directory.The necessary files are:
•ga.c (Linux network OS specific module file)
•ga622t.h (Driver header file)
•gam.o (Driver object module for 2.2.17 kernel)
•hsm.c (Hardware specific module file)
•hsm.h (Hardware specific module header file)
•nsm.h (HSM related data structures)
•nsmtypes.h (Definition type define)
•sp.c (Tunable parameters)
•Makefile Rules to compile and install the driver)
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 14

hardware installation 2-5
Hardware Description
As illustrated in Figure 2-1,the GA622T Copper Gigabit Ethernet Card has an
RJ-45 connector port and three port LEDs.
Figure 2-1. Front Panel of Model GA622T Gigabit Ethernet Card
The front panel of the GA622T has three LEDs:one for each port speed option
(100 Mbps,and 1000 Mbps) to indicate which link is active,and one LED for data
transfer status. Once the hardware and its driver software are properly installed on
your system,the LEDs indicate the conditions described inTable 2-2.
DATA
1000
100
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 15

Table 2-2. GA622T LEDs
Label Activity Description
DATA Blinking Brief bursts of data detected on the port
On Streams of data detected on the port
Off No data detected on the port
1000 On Good 1000 Mbps Gigabit Ethernet link
Off No 1000 Mbps link;possible link at different speed,possible bad cable,
bad connector, or configuration mismatch
100 On Good 100 Mbps Fast Ethernet link
Off No 100 Mbps link;possible link at different speed,possible bad cable,
bad connector, or configuration mismatch
Preparing to InstallYour GA622T Copper Gigabit Ethernet Card
Follow the instructions provided in this section for installing the GA622T Copper
Gigabit Ethernet Card in your server or workstation.For additional information
about performing these tasks on your particular system, refer to the manuals
included with your system hardware.
Before installing your Gigabit Ethernet Card:
1. Make sure that your system meets the hardware and software requirements
provided inTable 2-1.
2. Make sure that your system uses the latest BIOS.
3. Turn off the power to your PC.
•If you are running Windows,close all applications and click Start from the
desktop menu, select Shut Down, and then select Shut down the computer.
•If you are running NetWare,use the following commands to shut down the
server functions and reach the DOS prompt:
server_name: down
server_name: exit
hardware installation 2-6
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 16

hardware installation 2-7
Danger:You are installing the card in a machine that operates with voltages that can be
dangerous.Follow the steps after this warning to protect yourself and to prevent damage
to the PC components.
4. Protect yourself,the card,and your server by taking these precautions:
•Shut down the server software and turn off the power to your server.
•Use only insulated or non-conducting tools.
•Hold the Gigabit Ethernet Card by the edges and place it on an antistatic
surface only.
•Check the card for visible signs of damage,particularly to the connector on
the edge of the card.Never attempt to install a damaged card.
InstallingYour GA622T Copper Gigabit Ethernet Card
To install your GA622T Copper Gigabit Ethernet Card:
1. Remove the PC cover.
2. Choose an available 32-bit or 64-bit PCI expansion slot (PCI slots are usually the
shorter slots) and remove the corresponding back plate from the PC chassis.
3. Insert the card into the PCI expansion slot.
Note:To avoid damaging any components on the card,handle it by the edges,
using your thumbs to push it securely into the PCI slot.Do not use excessive
force,but make sure the card is fully inserted into the slot to prevent the PC
operating system from freezing at startup.
The connector dock in a 32-bit PCI slot is shorter than in a 64-bit PCI slot.
When installed in a 32-bit PCI slot,part of the connector edge remains
undocked.This situation is normal.
4. Fasten the card to the rear of the computer chassis by tightening the screw that is
on the PC.
5. Replace the PC cover and reconnect the power cord to the PC.
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 17

Connecting the Network Cables
The GA622T has one RJ-45 connector used for attaching the system to an Ethernet
copper-wire segment.The card will automatically negotiate the fastest connection
speed and duplex possible.If a specific speed or duplex is desired,the card can be
placed into one of the supported modes: 1000 Mbps full duplex;100 Mbps full
duplex; 100 Mbps half duplex.
1. Prepare an appropriate cable.
Table 2-3 lists the cable characteristics for connecting to 100/1000BASE-Tports.
Table 2-3. GA622T (100/1000BASE-T) Cable Characteristics
PortType Connector Media Maximum Distance
100/1000BASE-T RJ-45 CAT 5 UTP/CAT 5e UTP 325 feet (100 meters)
Note:1000BASE-T signaling requires four twisted pairs of Category 5 balanced
cabling,as specified in ISO/IEC 11801:1995 and ANSI/EIA/TIA-568-A (1995)
and tested using procedures defined inTIA/EIATSB95.
2. Connect one end of the cable to the GA622T Copper Gigabit Ethernet Card.
3. Connect the other end of the cable to an RJ-45 Ethernet network port.
4. Turn on power to the PC and then to the connected device.
5. Verify that one of the two link speed LEDs is on,indicating that there is a good
link to the card.
Note:SeeTable 2-2 for a description of port LED operation.See Chapters 3
through 7 for driver installation and configuration instructions.
hardware installation 2-8
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 18

Windows 95OSR2/98/Me driver software 3-1
CHAPTER 3: WINDOWS 95OSR2/98/ME DRIVER SOFTWARE
This chapter provides information about the Microsoft Windows 95OSR2/98/Me
driver software.
This chapter also describes how to:
•Install the driver software in the Windows 98 environment
•Move the card to a different slot
Note:The specific steps and screen shots used in this chapter refer to a
computer with Windows 98 installed,but the information and procedures
shown here apply to computers with Windows 950SR2 andWindows Me.
Installing the Driver Software
A network driver must be installed before the card can be used with your
Windows 98 system.
Note:The Gigabit Ethernet card must be physically installed in your system
prior to installing the driver software.See Chapter 2 “Hardware Installation,”
for details.
When the Windows 98 System first boots up after installing a new hardware device,
such as a GA622T Copper Gigabit Ethernet Card,the system automatically detects
the new hardware and prompts you to install the driver software for the device.
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 19

Windows 95OSR2/98/Me driver software 3-2
To install the GA622T Copper Gigabit Ethernet Card software for Windows 98,
perform the following procedure:
1. When you boot up the Windows 98 system after installing the Gigabit
Ethernet card,a series of Found New Hardware Wizard dialog boxes opens.
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 20

Windows 95OSR2/98/Me driver software 3-3

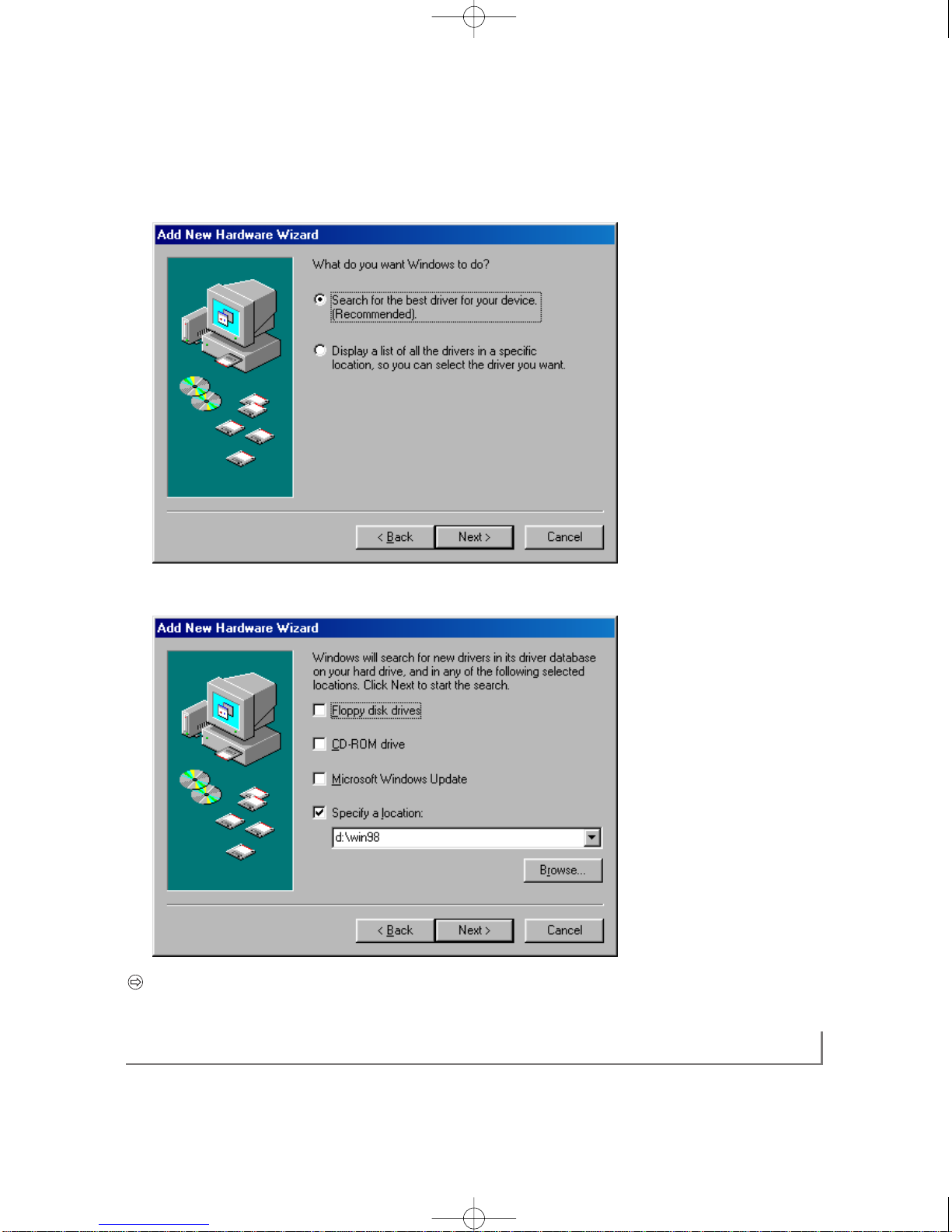

2. When the following dialog box opens,click Search for the best driver for
your device (recommended),and then click Next.
3. In the next dialog box,check the “Specify a location”box.
Note: Windows Me drivers are found at d:\winMe andWindows 95 drivers are
found at d:\win95,assuming that d:is the drive letter for the CD-ROM drive.
GA622T.Manual.FINAL 3/1/01 11:20 AM Page 21
