DATA SHEET
3DHD Wireless—Ultra-high WiFi range
and reliability capable of streaming HD
and 3DHD 1080p videos
Connects home theater devices with
network/Ethernet port to your existing
home network, Wirelessly
Connects to Internet TVs, IPTV Set-top
Boxes, AT&T U-verse®
, connected Blu-Ray
DVD players, gaming consoles, TiVo®
HD,
SlingBox®
, AppleTV, NETGEAR NeoTV™
products and more
Adds on to existing WiFi router or
gateway; power up, connect and start
streaming immediately
Provides visual feedback on the highest
WiFi bandwidth available
No need for expensive rewiring or
running of Ethernet cables throughout
the home
Connects up to 4 Ethernet-enabled
home theater devices to the home
network, wirelessly
PRODUCT OVERVIEW
PLUG AND PLAY
3DHD
WIRELESS
THE NETGEAR DIFFERENCE - WNHDB3004
3DHD Wireless – Ultra-high Performance
Jitter-free 1080p video streaming
Adds-on to existing WiFi network
Plug-and-Play – Set up in minutes
Connects 4 Home Theater Devices
Delivers ultra-high
performance and range
for video streaming
over WiFi
AV SERIES
NETGEAR AV Series products are designed with superior performance and features to enhance
your home theater experience.
3DHD Wireless Home Theater
Networking Kit
WNHDB3004
DATA SHEET
Strength of a wired connection
Reliably streams HD and 3DHD
1080p videos throughout the
home, wirelessly

DATA SHEET3DHD WIRELESS HOME THEATER NETWORKING KIT - WNHDB3004
Wireless
connection for
networked TV and
Blu-ray players
(WNHD3004)
Wireless connections
for an IPTV set top box
(WNHD3004)
Connect
WNHD3004
to existing
router/gateway
Internet
2nd WNHD3004
(Receiver)
Desktop PC
Router/gateway 1st WNHD3004
(Transmitter)
1
3rd WNHD3004
(Receiver)
Study Room
Where your Router is located
Living Room
(Connects Up to Four Devices)(Connects Up to Four Devices)
Family Room/Bedroom
Requires extra receiver for each
additional room
Gaming
console
Digital media
adapter
(EVA8000)
Digital video
recorder
Cable/
satellite/IP
set-top box
Gaming
console
Digital media
adapter
(EVA8000)
Digital video
recorder
Cable/
satellite/IP
set-top box

DATA SHEET
350 E. Plumeria Drive
San Jose, CA 95134-1911 USA
1-888-NETGEAR (638-4327)
E-mail: [email protected]
www.NETGEAR.com
24/7TECHNICAL
SUPPORT*
Package Contents
• Two (2) 3DHD Wireless Home Theater Adapters
(WNHD3004)
• Two (2) Ethernet cables
• Installation guide
• Two (2) power adapters, localized to country of sale
Warranty
• NETGEAR 1-year Warranty
Standards
• 802.11a/n, 802.11i (WPA/ WPA2–PSK ), 802.11d,
802.11e (WMM), 802.11h
• IGMP snooping
• Multicast to unicast translation
Technology and Advanced Features
• Superior WiFi video reliability using advanced
technologies
– Transmit beamforming
– Space-time block coding (STBC)
– Channel state aware WiFi link management
using real time spectrum analysis
• Industry’s highest performance
802.11a/n 5 GHz wireless capable of
carrier-grade IPTV video distribution
• Integrated DSP engine for higher layer
security acceleration
• Auto detection of access point and bridge modes
• Supports multicast point-to-multipoint
HD video streaming
• Single-touch push button with Wi-Fi Protected
Setup™ to connect additional adapters
• Wireless access control
Interfaces
• LAN ports: Four (4) 10/100 Mbps auto-sensing
• Wireless: 802.11a/n 4x4 access point or bridge –
auto rate capable up to 300 Mbps
Ease of Use
• Plug and Play installation
• WPS (WiFi Protected Setup) push button
Physical Specifications
• Dimensions: 175 x 130 x 35 mm (6.9 x 5.1 x 1.4 in)
• Weight: 0.7 kg (1.54 lb)
NETGEAR Green Features
Power On/Off Button
80% Recycled Packaging
CEC (California Efciency)
RoHS
WEEE
Energy Star Compliant Power Adapter
© 2010 NETGEAR, Inc. NETGEAR, the NETGEAR Logo, Connect with Innovation, ReadySHARE, and Smart Wizard, are trademarks and/
or registered trademarks of NETGEAR, Inc. and/or subsidiaries in the United States and/or other countries. Mac and the Mac logo are
trademarks of Apple Inc., registered in the U.S. and other countries. Other brand names mentioned herein are for identication purposes
only and may be trademarks of their respective holder(s). Information is subject to change without notice. All rights reserved.
This product is packaged with a limited warranty, the acceptance of which is a condition of sale. This product has been tested for quality
assurance and this product or its components may have been recycled.
*Basic technical support provided for 90 days from date of purchase.
†Maximum wireless signal rate derived from IEEE standard 802.11 specications. Actual data throughput and wireless coverage will vary.
Network conditions and environmental factors, including volume of network trafc, building materials and construction, and network
overhead, lower actual data throughput rate and wireless coverage. NETGEAR makes no express or implied representations or warranties
about this product’s compatibility with any future standards.
1Works with devices supporting Wi-Fi Protected Setup® (WPS).
D-WNHDB3004-1
Push ‘N’ Connect
3DHD WIRELESS HOME THEATER NETWORKING KIT - WNHDB3004

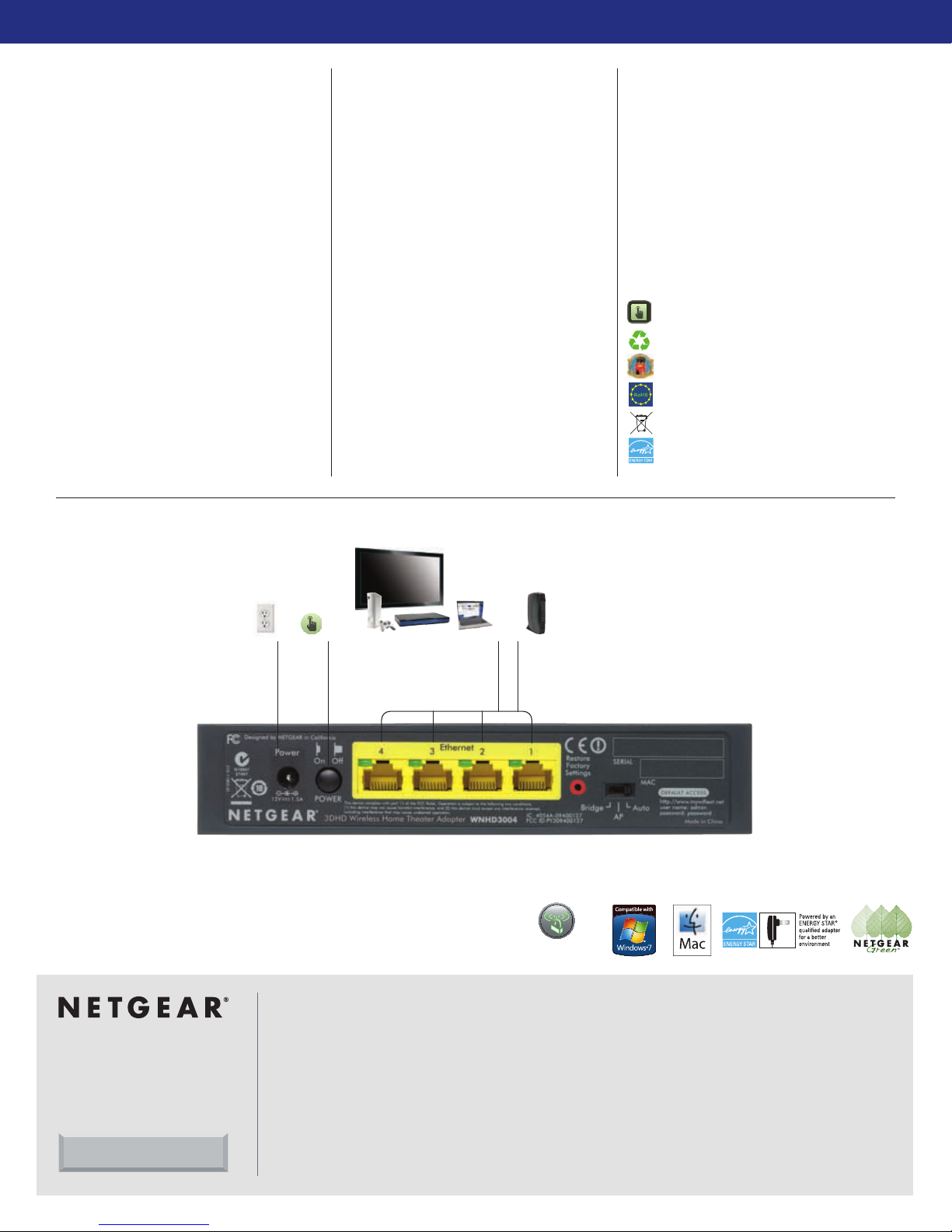

Connects to any device with
an Ethernet port such as
HDTVs, gaming consoles,
DVRs or Blu-ray players
Connects
to power
Connects to router/
gateway when set as
wireless access point
Power
on/off
switch
