netvox R718IB User manual

Wireless 0-10V ADC Sampling Interface
R718IB
Wireless 0-10V ADC Sampling Interface
R718IB
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be
maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission
of NETVOX Technology. The specifications are subject to change without prior notice.

1
Table of Content
1. Introduction........................................................................................................................................................................2
2. Appearance ........................................................................................................................................................................3
3. Main Features ....................................................................................................................................................................3
4. Set up Instruction...............................................................................................................................................................4
5. Data Report........................................................................................................................................................................5
5.1 Example of ReportDataCmd......................................................................................................................................5
5.2 Example of ConfigureCmd ........................................................................................................................................6
5.3 Example for MinTime/MaxTime logic......................................................................................................................7
6. Information about Battery Passivation..............................................................................................................................9
6.1 To determine whether a battery requires activation...................................................................................................9
6.2 How to activate the battery ........................................................................................................................................9
7. Important Maintenance Instruction .................................................................................................................................10

2
1.Introduction
R718IB is an ADC sampling interface detection device for Netvox Class A type devices based on LoRaWAN open protocol.
The device is suitable for detecting 0V to 10V, and R718IB is compatible with LoRaWAN protocol.
LoRa Wireless Technology:
LoRa is a wireless communication technology famous for its long-distance transmission and low power consumption. Compared with
other communication methods, LoRa spread spectrum modulation technique greatly extend the communication distance. It can be widely
used in any use case that requires long-distance and low-data wireless communications. For example, automatic meter reading, building
automation equipment, wireless security systems, industrial monitoring. It has features like small size, low power consumption, long
transmission distance, strong anti-interference ability and so on.
LoRaWAN:
LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and gateways
from different manufacturers.

3

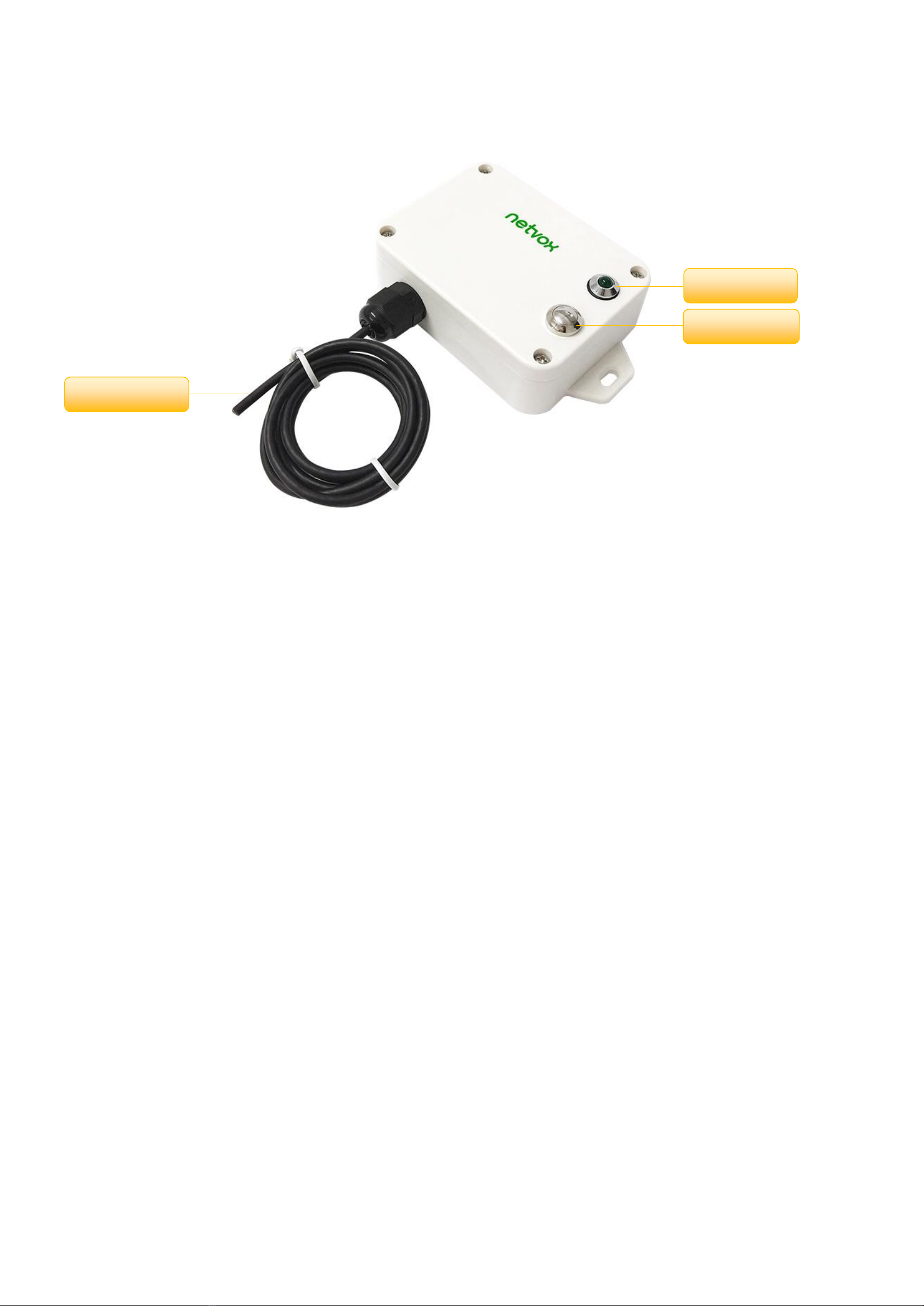

2.Appearance
3.Main Features
⚫Compatible with LoRaWAN
⚫Simple operation and setting
⚫2 ER14505 lithium batteries in parallel power supply (3.6V / section)
⚫IP Rating: IP65
⚫0 ~10V voltage detection
⚫Compatible with LoRaWANTM Class A
⚫The base is attached with a magnet that can be attached to a ferromagnetic material object
⚫Frequency hopping spread spectrum
⚫Configuration parameters can be configured via a third-party software platform, data can be read and alerts can be set via SMS text
and email (optional)
⚫Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne
⚫Low power consumption and long battery life
Battery Life:
⁻Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
⁻At this website, users can find battery life time for variety models at different configurations.
Indicator
Function Key
Key
ADC Sampling

4
4.Set up Instruction
On/Off
Power on
Insert batteries. (users may need a screwdriver to open)
Turn on
Press and hold the function key for 3 seconds till the green indicator flashes once.
Turn off (Restore to factory setting)
Press and hold the function key for 5 seconds till green indicator flashes 20 times.
Power off
Remove Batteries.
Note:
1. Remove and insert the battery; the device is at off state by default. Turn on the device to use
again.
2. On/off interval is suggested to be about 10 seconds to avoid the
interference of capacitor inductance and other energy storage components.
3. 5 seconds after power on, the device will be in engineering test mode.
Network Joining
Never joined the network
Turn on the device to search the network to join.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
Had joined the network
(not at factory setting)
Turn on the device to search the previous network to join.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
Fail to Join The Network
Suggest to check the device verification information on the gateway or consult your platform
server provider.
Function Key
Press and hold for 5 seconds
Restore to factory setting / Turn off
The green indicator flashes for 20 times: success
The green indicator remains off: fail
Press once
The device is in the network: green indicator flashes once and sends a report
The device is not in the network: green indicator remains off
Sleeping Mode
The device is on and in the network
Sleeping period: Min Interval.
When the reportchange exceeds setting value or the state changes: send a data report according to
Min Interval.
Low Voltage Warning
Low Voltage
3.2V

5
5.Data Report
Data report configuration and sending period are as following:
5.1 Example of ReportDataCmd
FPort：0x06
Bytes
1
1
1
Var(Fix=8 Bytes)
Version
DeviceType
ReportType
NetvoxPayLoadData
Version–1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version
DeviceType–1 byte –Device Type of Device
The devicetype is listed in Netvox LoRaWAN Application Devicetype doc
ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype
NetvoxPayLoadData– Fixed bytes (Fixed =8bytes)
Min. Interval
(Unit:second)
Max. Interval
(Unit:second)
Reportable Change
Current Change≥
Reportable Change
Current Change＜
Reportable Change
Any number between
1~65535
Any number between
1~65535
Can not be 0.
Report
per Min. Interval
Report
per Max. Interval
After power on, the device will immediately send a version packet report and an attribute packet report.
The device sends data according to the default configuration before any other configuring.
Default Setting:
Maximum time: 900s (15min)
Minimum time: 900s (15min)
Battery Change: 0x01 (0.1V)
ADC Raw Value Change:0x0064 (100mV)
Note:
1. The cycle of the device sending the data report is according to the default.
2. The interval between two reports must be the MinTime
Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver
http://www.netvox.com.cn:8888/page/index to resolve uplink data.

6
Device
Device
Type
Report
Type
NetvoxPayLoadData
R718IB
0x2A
0x01
Battery
(1Byte, unit:0.1V)
ADCRawValue
(2Bytes, unit:1mv)
Reserved
(5Bytes, fixed 0x00
Uplink: 012A012209C40000000000
Byte
Value
Attribute
Result
Resolution
1st
01
Version
1
-
2nd
2A
DeviceType
2A
-
3rd
01
ReportType
1
-
4th
22
Battery
3.4v
22(HEX)=34(DEC),34*0.1v=3.4v
5th~6th
09C4
ADCRawValue
2500mv
09C4(HEX)=2500(DEC),2500*1mv=2500mv
7th~11th
0000000000
Reserved
0
-
5.2 Example of ConfigureCmd
FPort：0x07
Bytes
1
1
Var (Fix =9 Bytes)
CmdID
DeviceType
NetvoxPayLoadData
CmdID–1 byte
DeviceType–1 byte –Device Type of Device
NetvoxPayLoadData– var bytes (Max=9bytes)
Description
Device
Cmd
ID
Device
Type
NetvoxPayLoadData
Config
ReportReq
R718IB
0x01
0x2A
MinTime
(2bytes Unit:s)
MaxTime
(2bytes Unit:s)
BatteryChange
(1byte Unit:0.1v)
ADCRaw
Value Change
(2byteUnit:1mV)
Reserved
(2Bytes,Fixed
0x00)
Config
ReportRsp
0x81
Status
(0x00_success)
Reserved
(8Bytes,Fixed 0x00)
ReadConfig
ReportReq
0x02
Reserved
(9Bytes,Fixed 0x00)

7
(1)Configure the device parameter MinTime = 1min, MaxTime = 1min, BatteryChange = 0.1v, ADCRawValue Change= 100mv
Downlink: 012A003C003C0100640000
Device Return:
812A000000000000000000 (configuration success)
812A010000000000000000 (configuration failure)
(2) Read the device parameter
Downlink: 022A000000000000000000
Device Return:
822A003C003C0100640000 (device current parameter)
5.3 Example for MinTime/MaxTime logic
Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V
MaxTime MaxTime
Sleeping(MinTime) Sleeping(MinTime)
Wakes up and collects data Wakes up and collects data Wakes up and collects data
REPORTS 3.6V REPORTS 3.5V REPORTS 3.6V
Note:
MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless BatteryVoltageChange value.
ReadConfig
ReportRsp
0x82
MinTime
(2bytes Unit:s)
MaxTime
(2bytes Unit:s)
BatteryChange
(1byte Unit:0.1v)
ADCRaw
Value Change
(2byteUnit:1mV
Reserved
(2Bytes,Fixed
0x00)

8

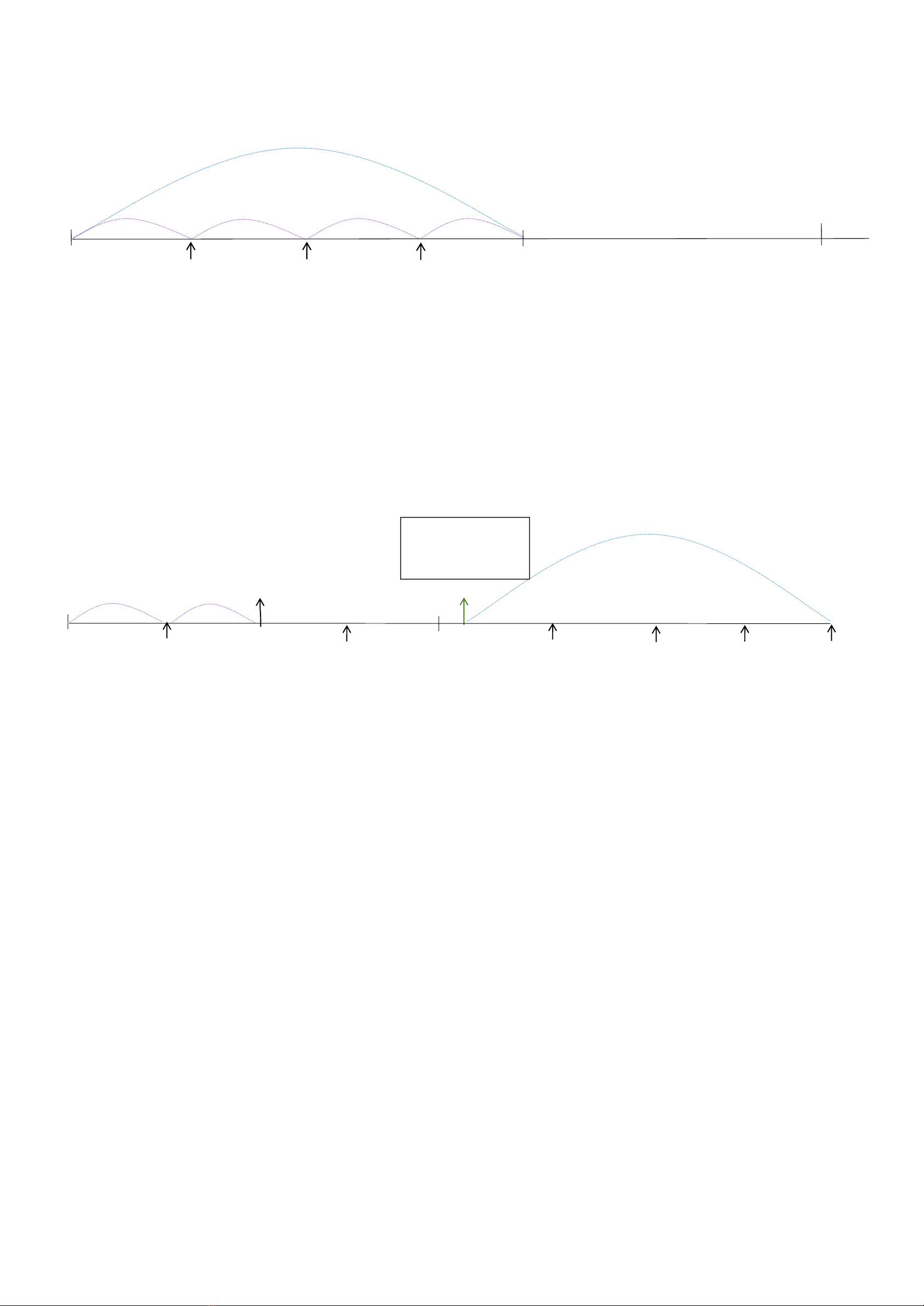

Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V
Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V
Notes:
1) The device only wakes up and performs data sampling according to MinTime Interval. When it is on sleeping mode, it does not
collect data.
2) The data collected is compared with the last data reported. If the data variation is greater than the ReportableChange value, the
device reports according to MinTime interval. If the data variation is not greater than the last data reported, the device reports
according to MaxTime interval.
3) We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is too low, the device wakes up
frequently and the battery will be drained soon.
4) Whenever the device sends a report, no matter resulting from data variation, button pushed or MaxTime interval, another cycle of
MinTime/MaxTime calculation is started.
MaxTime
Sleeping(MinTime) sleeping sleeping sleeping
0H 15th M 30 th M 45 th M 1H 2H
Wakes up and
collects data
3.6V
Does not report
Wakes up and
collects data
REPORT3.6V
Wakes up and
collects data
REPORT3.6V
Wakes up and
collects data
3.6V
Does not report
MaxTime
sleeping sleeping ...
0H 15th M 30th M 45th M 1H 1H 10th M 1H 25th M 1H 40 th M 1H 55 th M 2H 10th M
Wakes up and
collects data
REPORTS 3.6V
Wakes up and
collects data
3.5V
Does not report
Wakes up and
collects data
3.5V
Does not report
Wakes up and
collects data
3.5V
Does not report
Wakes up and
collects data
3.5V
Does not report
Wakes up and
collects data
REPORTS
3.5V
Wakes up and
collects data
3.6V
Does not report
Users push the button,
REPORTS 3.5V.
Recalculate MaxTime.
Wakes up and collects
data
3.5V |3.5-3.6|=0.1
REPORTS 3.5V
Wakes up and
collects data 3.5V
Does not report

9
6. Information about Battery Passivation
Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages
including low self-discharge rate and high energy density.
However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode
and thionyl chloride if they are in storage for a long time or if the storage temperature is too high. This lithium chloride layer prevents
rapid self-discharge caused by continuous reaction between lithium and thionyl chloride, but battery passivation may also lead to voltage
delay when the batteries are put into operation, and our devices may not work correctly in this situation.
As a result, please make sure to source batteries from reliable vendors, and it is suggested that if the storage period is more than one
month from the date of battery production, all the batteries should be activated.
If encountering the situation of battery passivation, users can activate the battery to eliminate the battery hysteresis.
ER14505 Battery Passivation:
6.1 To determine whether a battery requires activation
Connect a new ER14505 battery to a resistor in parallel, and check the voltage of the circuit.
If the voltage is below 3.3V, it means the battery requires activation.
6.2 How to activate the battery
a. Connect a battery to a resistor in parallel
b. Keep the connection for 5~8 minutes
c. The voltage of the circuit should be ≧3.3, indicating successful activation.
Brand
Load Resistance
Activation Time
Activation Current
NHTONE
165 Ω
5 minutes
20mA
RAMWAY
67 Ω
8 minutes
50mA
EVE
67 Ω
8 minutes
50mA
SAFT
67 Ω
8 minutes
50mA
Note:
If you buy batteries from other than the above four manufacturers, then the battery activation time, activation current, and required
load resistance shall be mainly subject to the announcement of each manufacturer.

10
7. Important Maintenance Instruction
Kindly pay attention to the following in order to achieve the best maintenance of the product:
• Keep the device dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits. In case the
device is wet, please dry it completely.
• Do not use or store in dusty or dirty areas. This way can damage its detachable parts and electronic components.
• Do not store in excessive heat place. High temperatures can shorten the life of electronic devices, destroy batteries, and deform or melt
some plastic parts.
• Do not store in excessive cold place. Otherwise, when the temperature rises to normal temperature, moisture will form inside which will
destroy the board.
• Do not throw, knock or shake the device. Treating equipment roughly can destroy internal circuit boards and delicate structures.
• Do not wash with strong chemicals, detergents or strong detergents.
• Do not paint the device. Smudges can make debris block detachable parts up and affect normal operation.
• Do not throw the battery into the fire to prevent the battery from exploding. Damaged batteries may also explode.
All the above suggestions apply equally to your device, batteries and accessories.
If any device is not operating properly, please take it to the nearest authorized service facility for repairing.
