NetworkTV NTV51S NDI User manual

NETWORKTV)
NTV51S'NDI'
User'Guide'
!
!"#$%&'"$&(&$)*+"$&
telephone: [phone]
email: [e-mail] web: www.networktv.tv
Release 1.0

1
NTVCAM51 User Guide 1-0
www.networktv.tv
Attention
Electric Safety
Installation and operation must be carried out in accordance with electric safety standards
Caution during transport
Avoid stress, vibration and water in transportation, storage and installation.
Polarity of power supply
The power supply of the product is ±12V, the max electrical current is 2A Polarity of the power supply.
Careful of installation
Never move the camera by seizing the camera head. Don’t rotate camera head by hand; otherwise it may cause
mechanical issues.
This camera must be installed on a smooth desk or platform and it cannot be installed on a slant;
If the camera is installed on TV or computer, the base can be fixed by four double-sided adhesive tabs.
Avoid applying corrosive cleaning liquid to the cover.
Make sure no obstacle is in the rotation range.
Never power on before installation is completed.
Don’t disassemble.
We are not responsible for any unauthorized modification or dismantling.
Attention
Electromagnetic field under certain circumstances may affect the camera image!

2
NTVCAM51 User Guide 1-0
www.networktv.tv
Contents
1. Quick Start Installation............................................................................................................................................................................4
1.1 Camera Interface Explanation ....................................................................................................................................................4
1.2 Power on initial configuration ....................................................................................................................................................4
1.3 Video Output .................................................................................................................................................................................4
2. Product overview .....................................................................................................................................................................................6
2.1 Product Introduction....................................................................................................................................................................6
2.1.1 Product Model...................................................................................................................................................................6
2.1.2 Dimension.................................................................................................................................................................7
2.1.3 Accessory ...........................................................................................................................................................................7
2.2 Main Features .................................................................................................................................................................................8
2.2.1 Camera Performance.......................................................................................................................................................8
2.2.2 Network performance.....................................................................................................................................................8
2.3 Technical Specification .................................................................................................................................................................9
2.4 Interface Instruction ...................................................................................................................................................................10
2.4.1 External Interface............................................................................................................................................................10
2.4.2 Bottom Dial Switch ........................................................................................................................................................10
2.4.3 RS-232 Interface..............................................................................................................................................................11
3. Application Instruction ..........................................................................................................................................................................13
3.1 Video Output ...............................................................................................................................................................................13
3.1.1 Power-On Initial Configuration...................................................................................................................................13
3.1.2 Video Output...................................................................................................................................................................13
3.2 Remote Controller .....................................................................................................................................................................14
3.2.1 Keys Instruction.................................................................................................................................................................................14
3.2.2 Applications......................................................................................................................................................................15
3.3 MENU SETTING .........................................................................................................................................................................16
3.3.1 Main Menu ........................................................................................................................................................................16
3.3.2 System Setting..................................................................................................................................................................17
3.3.3 Camera Setting ................................................................................................................................................................18
3.3.4 P/T/Z..................................................................................................................................................................................20
3.3.5 Video Format...................................................................................................................................................................21
3.3.6 Version ..............................................................................................................................................................................21
3.3.7 Restore Default ...............................................................................................................................................................22
4. Network Connection ...................................................................................................................................................................22
4.1 Connecting Mode...............................................................................................................................................................22
4.2 IE Log In.........................................................................................................................................................................................24
4.2.1 Web client ........................................................................................................................................................................24
2)Download/Install Plug in ......................................................................................................................................................24
4.2.2 Preview..............................................................................................................................................................................24
4.2.3 Playback.............................................................................................................................................................................24
4.2.4 Configuration ...................................................................................................................................................................24

3
NTVCAM51 User Guide 1-0
www.networktv.tv
4.2.5 Video configuration ........................................................................................................................................................25
4.2.6 Network configuration..................................................................................................................................................27
4.2.7 System configuration ......................................................................................................................................................28
4.2.8 Logout................................................................................................................................................................................29
4.2.9 Wireless network ...........................................................................................................................................................29
5. Serial Communication Control ...........................................................................................................................................................29
5.1 VISCA protocol list.....................................................................................................................................................................30
5.1.1 Camera return command .............................................................................................................................................30
5.1.2 Camera control command............................................................................................................................................30
5.1.3,Inquiry command.............................................................................................................................................................33
5.2,Pelco-D protocol command list...............................................................................................................................................34
5.3 Pelco-P protocol command list................................................................................................................................................35
6. Camera Maintenance and Troubleshooting......................................................................................................................................36
6.1 Camera Maintenance..................................................................................................................................................................36
6.2 Troubleshooting ..........................................................................................................................................................................36

4
NTVCAM51 User Guide 1-0
www.networktv.tv
1. Quick Start Installation
1.1 Camera Interface Explanation
Figure 1.1 Interface of ST (standard) Series
1. Camera Lens
2. Camera Base
3. Remote Controller Receiver Light
4. Bottom Dial Switch
5. Tripod Screw Hole
6. RS232 Control Interface (input )
7. RS232 Control Interface (output )
8. RS485 Input (left +,right-)
9. Audio Input Interface
10. 3G-SDI interface
11. HDMI Interface
12. 10/100M Network Interface
13. DC12V Input Power Supply Socket
1.2 Power on initial configuration
1) Power on: Connect DC12V power supply adapter with power supply socket.
2) Initial configuration: Power on with power indicator light on and remote control IR light blinking, camera head moves from
bottom left to the bottom, and then goes to the HOME position (intermediate position of both horizontal and vertical). When
remote control receiver light stops blinking, the self-checking is finished.
Note: If you set preset 0, when Power on self-test is completed, the camera automatically moves to the preset 0 position.
1.3 Video Output
This series has a variety of video outputs; ST models have video output from LAN, HDMI and 3G-SDI.
1) Video Output from LAN
a. Network Cable Connection Port: ST Model--No.12 in Figure1.1;
b. Webpage Login: Open your browser and enter 192.168.5.163 in the address bar (factory default); press Enter to enter into the
login page; click on the “player is not installed, please download and install!" and follow the installation steps for installation.
Then enter the user name admin and password admin (factory default); press Enter to enter into the preview page, users can
carry out PTZ control, video recording, playback, configuration and other operations.
2) HDMI Video Output
a. HDMI Video Cable Connection: ST models refer to No.11 in Figure1.1.
b. Connect the camera and the monitor via HDMII video cable; video output is available after camera self-test.
3) 3G-SDI Video Output

3
NTVCAM51 User Guide 1-0
www.networktv.tv
a. 3G-SDI video cable connection: ST models refer to No.10 in Figure1.1
b. Connect the camera and the monitor via 3G-SDI video cable; video output is available after camera self-test.
1.4 Bracket mount
Note: Bracket can only be wall mounted or upside down mounted on template and concrete wall, but cannot be installed on
plasterboard.

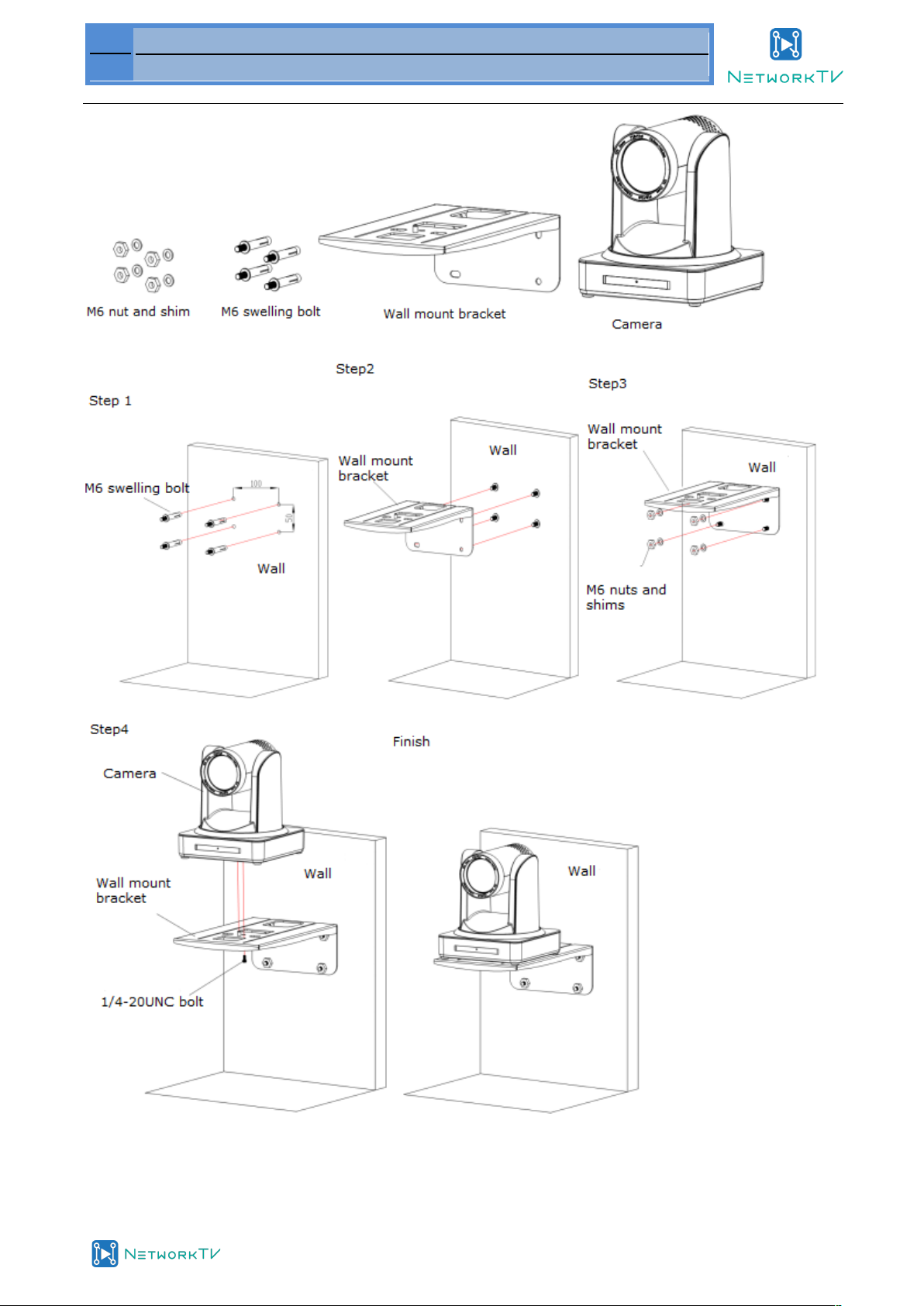

1) Wall mount step
2)

4
NTVCAM51 User Guide 1-0
www.networktv.tv

5
NTVCAM51 User Guide 1-0
www.networktv.tv

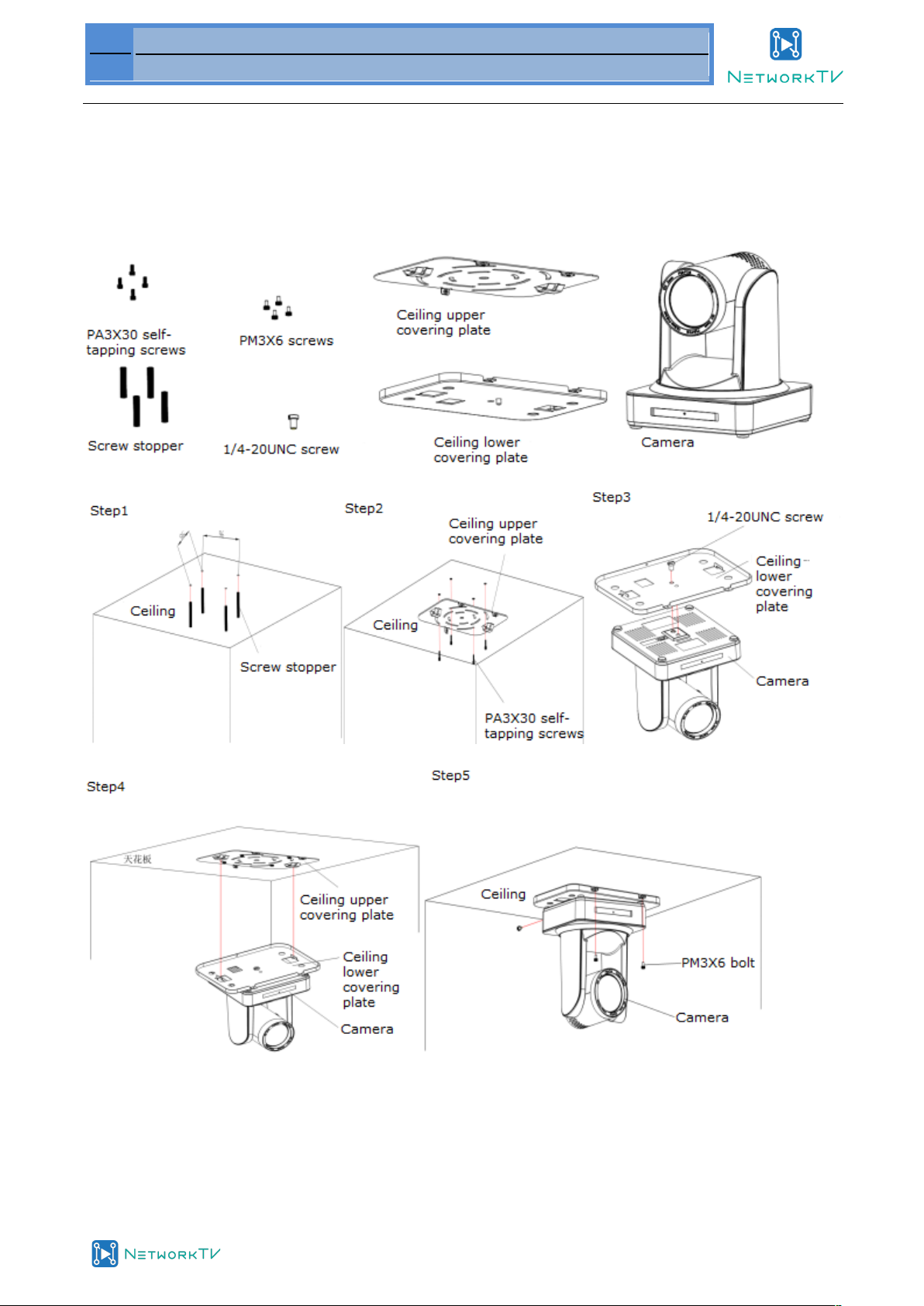

2. Upside down mount step

6
NTVCAM51 User Guide 1-0
www.networktv.tv
2. Product overview
2.1 Product Introduction
2.1.1 Product Model
There are four main series according to different video formats, lens optical zooms, output interfaces and remote control modes.
Model NO.X—XXX— XXX— XX
IR ---IR Remote Controller
WR---Wireless Remote Controller
ST---Standard Interface
20---20x Optical Zoom Lens
30--30X Optical Zoom Lens
S---1080P60 Downward Compatibility
M---1080P30 Downward Compatibility
Please refer to corresponding features in this manual.

7
NTVCAM51 User Guide 1-0
www.networktv.tv
2.1.2 Dimension
Figure 2.2 Camera dimension
2.1.3 Accessory
When you unpack, check that all the supplied accessories are included:
Model
NO.
Configur
ation
ST/HD/HM Series
Access
ory
Standard
Power adapter
1piece
RS232 cable 1
piece
User manual 1
Double-side glue
shim 4pcs
Warranty card 1
piece
Optional
IR Remote
controller 1 piece
Wireless
controller 1 piece
Wall mounting
bracket
Upside-down
mounting
bracket(optional)
Cascade cable

8
NTVCAM51 User Guide 1-0
www.networktv.tv
2.2 Main Features
2.2.1 Camera Performance
This series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing
algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic colour rendition. It supports
H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
1.Superb High-definition Image: It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up
to 60 fps.
2.Various Optical Zoom Lens: It has 20X/30X optical zoom lens for options.
3. Leading Auto Focus Technology: Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
4. Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video.
Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
5.Quiet PTZ: By adopting high accuracy step driving motor mechanism, it works extremely quiet and moves smoothly and very
quickly to designated position.
6.Multi-Format Video Outputs: support HDMI, 3G-SDI, wired LAN and wireless LAN interfaces
The 3G-SDI is available for 100m transmission at 1080p60 format.
7.Multiple Remote Controls: There is IR remoter and 2.4G wireless remote for options. The 2.4G wireless remote controller will not
be affected by angle, distance or IR interference. Support transparent transmission function.
8.Low-power Sleep Function: Support low-power sleep/wake up, the consumption is lower than 500mW under sleep mode
9.Support Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols which can also be automatically recognized.
Support VISCA control protocol through IP port.
10.RS-232 Cascade Function: ST series support RS-232 cascade function which is convenient for installing.
11.255 Presets Positions: Up to 255 presets (10 presets by remoter).
12.Wide Application: Tele-education, Lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation
and Emergency command systems.
2.2.2 Network performance
1. Audio Input Interface: Support 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio coding.
2. Multiple Audio/Video Compression: Support H.264/H.265 video compression; AAC, MP3 and PCM audio compression; Support
compression of resolution up to 1920x1080 with frame up to 60 fps and 2 channel 1920x1080p with 30 fps compression.
3. Multiple network protocol: Support ONVIF, RTSP, RTMP protocols and RTMP push mode, easy to link streaming media server
(Wowza, FMS)
4. 5G WIFI function: If the product contains 5G wifi module, you can set up a wireless wifi connection in a webpage, the specific
configuration described in detail on the page of web configuration.

9
NTVCAM51 User Guide 1-0
www.networktv.tv
2.3 Technical Specification
Model
5X
10X
12X
20X
30X
Camera Parameter
Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels
16: 9 2.07 megapixel
Video Format
HDMI/SDI video format
1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97
Optical Zoom
5X
f＝3.1～15.5mm
10X
f＝4.7～47mm
12X
f＝3.9～46.8mm
20X
f＝5.2～98mm
30X
f＝5.2～98mm
View Angle
20.0°（tele)
83.7°（wide）
6.43°（tele）
64.2°（wide）
6.3°（tele）
72.5°（wide）
3.3°（tele）
54.7°（wide）
2.34°（tele）
65.1°（wide）
AV
F1.8 – F2.8
F1.6 – F3.0
F1.8 – F2.4
F1.6 – F3.5
F1.6– F4.7
Digital Zoom
20X/30X
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Focus
Auto/Manual
Aperture
Auto/Manual
Electronic Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment
Video adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR
>55dB
Input/Output Interface
Video Interfaces
NTV51-/20/30-ST Models：HDMI, 3G-SDI, LAN, Audio-in, RS232 (In&Out), RS485
Image code stream
Double streams outputs simultaneously
Video Compression
format
H.264, H.265
Control Signal Interface
RS-232 Ring through RS232 output, RS-485
Control Protocol
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio input Interface
Double track 3.5mm linear input;
Audio Compression
Format
AAC/MP3/PMC Audio compression
HD IP Interface
100M IP port(100BASE-TX); 5G WiFi (optional), support IP Visca control protocol
Network Protocol
RTSP/RTMP, ONVIF
Power Interface
HEC3800 outlet (DC12V)
PTZ Parameter
Pan Rotation
±170°
Tilt Rotation
-30°～+90°
Pan Control Speed
0.1 -180°/sec
Tilt Control Speed
0.1-80°/sec
Preset Speed
Pan: 60°/sec, Tilt: 30°/sec
Preset Number
255 presets (10 presets by remote controller)
Other Parameter
Supply Adapter
AC110V-AC220V to DC12V/2A
Input Voltage
DC12V±10%
Input Current
1A(Max)
Consumption
12W (Max)
Store Temperature
-10℃ to +60℃
Store Humidity
20% - 95%
Working Temperature
-10℃ to +50℃
Working Humidity
20%--80%
Dimension
150mmX150mmX167.5mm

10
NTVCAM51 User Guide 1-0
www.networktv.tv
Weight
1.4KG
Working Environment
Indoor
Remote Operation (IP)
Remote Upgrade, Reboot and Reset
Accessory
Power Supply, RS232 Control Cable, Remote Control, Manual, Warranty card
Optional Accessory
Bracket
2.4 Interface Instruction
2.4.1 External Interface
1) External interface of ST models: RS232 Input /Output, RS485 Input, Audio Input,3G-SDI Output, HDMI Output, LAN, DC12V
Power Interface.
Figure 2.3 ST model external interface diagram
2.4.2 Bottom Dial Switch
ST model , U3 model and U2 model Bottom Dial Switch diagram shown in Figure 2.6 and 2.7:
Figure 2.6 Bottom Dial Switch diagram Figure 2.7 Bottom Dial Switch diagram

11
NTVCAM51 User Guide 1-0
www.networktv.tv
ST/U2/HD model: two DIP switches are set to ON or OFF to select different modes of operation as shown in Table 2.2
Table 2.2 Dial Switch setting
Note: Working mode can be applicable for web upgrade.
2.4.3 RS-232 Interface
1) ST model RS-232C interface specification as shown below
Computer or keyboard and camera connection method
Camera
WindowsDB-9
1.DTR
1.DCD
2.DSR
2.RXD
3.TXD
3.TXD
4.GND
4.DTR
5.RXD
5.GND
6.GND
6.DSR
7.IR OUT
7.RTS
8.NC
8.CTS
9.RI
2) RS-232 Mini-DIN 8-pin Port Definition
No.
SW1
SW2
Explanation
1
OFF
ON
Working mode
2
ON
OFF
Updating mode
NO.
Port
Definition
1
DTR
Data Terminal Ready
2
DSR
Data Set Ready
3
TXD
Transmit Data
4
GND
System Ground
5
RXD
Receive Data
6
GND
System Ground
7
IR OUT
IR Commander Signal
8
NC
No Connection

12
NTVCAM51 User Guide 1-0
www.networktv.tv
3) RS232 (DB9) Port Definition
2) VISCA networking as shown below:
Camera cascade connection method
Camera 1
Camera 2
1.DTR
1.DTR
2.DSR
2.DSR
3.TXD
3.TXD
4.GND
4.GND
5.RXD
5.RXD
6.GND
6.GND
7.IR OUT
7.OPEN
8. NC
8.OPEN
Note: ST model has RS232 input and output interface, so you can cascade as the above way;
It won’t work for U3 model, since U3 model only has RS232 input interface.
NO.
Port
Definition
1
DCD
Data Carrier Detect
2
RXD
Receive Data
3
TXD
Transmit Data
4
DTR
Data Terminal Ready
5
GND
System Ground
6
DSR
Data Set Ready
7
RTS
Request to Send
8
CTS
Clear to Send
9
RI
Ring Indicator

13
NTVCAM51 User Guide 1-0
www.networktv.tv
3. Application Instruction
3.1 Video Output
3.1.1 Power-On Initial Configuration
Connecting the power, camera will have initial configuration, R indicator light will be flashing. When the camera returns to the HOME
position (middle position for P/T), and lens finishes zoom in/out, the auto-testing is finished. IR led will also stop flashing. If the
preset 0 is set, camera will rotate to the 0 preset position after initial configuration.
3.1.2 Video Output
Connect the video output cable: the user selects the output mode according to the machine model.
Figure 1.4.1 is for your reference (output interface introduction for each product)
1) network output: connect this product and your computer through a network cable, then open a browser, enter the camera IP
address (factory default 192.168.5.163) in the address bar, then at the login page, input user name and password (factory
default are “admin”). Finally enter the preview page and you will get the camera view.
(Note: If you forget your user name, password, IP address, you can manually restore the default by the remote controller key
combination * #)
2) 3G-SDI output or DVI (HDMI) output: Connect the monitor with the corresponding video output interface, then the monitor
output image.

14
NTVCAM51 User Guide 1-0
www.networktv.tv
3.2 Remote Controller
3.2.1 Keys Instruction
1. Standby Key
After 3secs long press, the camera will go into standby mode. Long press 3secs again, the camera
will self-test and proceed to the HOME position. (Note: If power-on mode is turned on and Preset 0
is set, and there is no operation within 12secs, it will automatically point to the specified preset
position.
2. Camera Address Selection
Select the camera address that you to be controlled
3. Number Key
Set or run 0-9 presets
4. *, # Key (see below commands)
For Key combination use
5. Focus Control Key
Auto Focus: Enter auto focus mode.
Manual Focus: The camera focus mode is manual
Switch the camera focus mode to manual focus by pressing [focus +] or [focus -] to adjust.
6. Zoom Control Key
Zoom＋:Lens near
Zoom－:Lens far
7. Set or Clear Preset key:
Set Preset: Set preset key + 0-9 number key:
Clear Preset key: Clear preset key + 0-9 number key
8. Pan/Tilt Control Key
Press Key :Up
Press Key :Down
Press Key :Left
Press Key: Right
“HOME” Key: Return to the middle position or enter into the next level menu
9. BLC Control Key
Back Light ON / OFF: Turn on or off the back light
10. Menu Setting
Open or close the OSD menu
Enter / exit the OSD menu or return to the previous menu.
11. Camera IR Remote Control Address Setting
【*】+【＃】+【F1】:Camera Address No.1
【*】+【＃】+【F2】:Camera Address No. 2
【*】+【＃】+【F3】:Camera Address No. 3
【*】+【＃】+【F4】:Camera Address No. 4
12. Key Combination Functions
1) 【#】+【#】+【#】:Clear all presets
2) 【*】+【#】+【6】:Restore factory defaults
3) 【*】+【#】+【9】:Flip switch
4) 【*】+【#】+Auto: Enter into the aging mode
5) 【*】+【#】+【3】:Menu set to Chinese
6) 【*】+【#】+【4】:Menu set to English
7) 【*】+【#】+Manual: Restore the default user name,
password, and IP address
8) 【#】+【#】+【0】:Switch the video format to 1080P60
9)【#】+【#】+【1】: Switch the video format to 1080P50
10)【#】+【#】+【2】:Switch the video format to 1080I60
11)【#】+【#】+【3】:Switch the video format to 1080I50
12)【#】+【#】+【4】:Switch the video format to 720P60
13)【#】+【#】+【5】:Switch the video format to 720P50
14)【#】+【#】+【6】:Switch the video format to 1080P30
15)【#】+【#】+【7】:Switch the video format to 1080P25
16)【#】+【#】+【8】:Switch the video format to 720P30
17)【#】+【#】+【9】:Switch the video format to 720P25

15
NTVCAM51 User Guide 1-0
www.networktv.tv
3.2.2 Applications
When the camera has finished initialization, it can receive and execute the IR commands. Press the remote controller button, the
indicator light is flashing; release the button, the indicator light stops flashing. Users can control the pan/tilt/zoom, setting and
running preset positions via the IR remote controller.
Key Instructions:
1. In this instruction, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for
more than one second is required.
2. When a key-combination is required, do it in sequence. For example,“ 【 *】+【#】+【F1】”means press“【*】”first and
then press“【#】” and last press“【F1】”.
1) Camera Selection
Select the camera address to control.
2) Pan/Tilt Control
Up: press Down: press
Left: press Right: press
Back to middle position: press“【HOME】”
Press and hold the up/down/left/right key, the pan/tilt will keep
running, from slow to fast, until it runs to the endpoint; the
pan/tilt running stops as soon as the key is released.
3) Zoom Control
ZOOM IN: press “ZOOM “ key
ZOOM OUT: press “ZOOM ” key
Press and hold the key, the camera will keep zooming in or
zooming out and stops as soon as the key is released.
4) Focus Control
Focus (near):Press “【focus+】” key (Valid only in manual focus
mode)
Focus (far): Press “【focus-】”key (Valid only in manual focus
mode)
Auto Focus: Support
Manual Focus: Support
Press and hold the key, the action of focus will keep continue
and stops as soon as the key is released.

16
NTVCAM51 User Guide 1-0
www.networktv.tv
5) BLC Setting
BLC ON / OFF: support
6) Presets Setting, Running, Clearing
1. Preset setting: to set a preset position, the users should press
the “【SET PRESET】” key first and then press the number key 0-
9 to set a relative preset,
Note: 10 preset positions in total are available by remote
controller.
2. Preset Running: Press a number key 0-9 directly to run a
relative preset.
Note: Action in vain if a relative preset position is not existed.
3. Preset clearing: to clear a preset position, the user can press
the “【CLEAR PRESET】” key first and then press the number
key 0-9 to clear the relative preset;
Note : press the“
【
#
】
” key three times continually to cancel
all the presets.
7) Camera Remote Controller Address Setting
【*】+【＃】+【F1】:Camera Address No.1
【*】+【＃】+【F2】:Camera Address No. 2
【*】+【＃】+【F3】:Camera Address No. 3
【*】+【＃】+【F4】:Camera Address No. 4
3.3 MENU SETTING
3.3.1 Main Menu
In normal working mode, press 【MENU】key to display the menu, using scroll arrow to point at or highlight the selected items.

17
NTVCAM51 User Guide 1-0
www.networktv.tv
LANGUAGE: Language setting, Chinese / English
SETUP: System setting
CAMERA OPTION: Camera setting
PTZ OPTION: Pan tilt setting
VERSON: camera version setting
Restore Default: Reset setting
[↑↓] Select: for selecting menu
[← →] Change Value: for modifying parameters
[MENU] Back: Press [MENU] to return
[Home] OK: Press [Home] to confirm
3.3.2 System Setting
Move the pointer to the (Setup) in the Main Menu, click the【HOME】key and enter into the (System Setting) as shown below:
PROTOCOL: VISCA/Pelco-P/Pelco-D/Auto
Visca ADDR: VISCA=1~7 Pelco-P=1~255 Pelco-D = 1~255
Baud rate: 2400/4800/9600/115200
Visca Address Fix: On/Off
MENU
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Language English
(Setup)
(Camera)
(P/T/Z)
(Video Format)
(Version)
(Restore Default)
[
↑↓
]Select [
← →
]Change
Value
[Menu]Back [Home]OK
SETUP
＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝
Protocol Auto
Visca Address 1
Visca Address Fix OFF
PELCO-P Address 1
PELCO-D Address 0
Baudrate 9600
[
↑↓
]Select [
← →
]Change
Value
[Menu]Back
[
↑↓
]
选择
[
← →
]
修改
[
菜单
]
返回
