Thank you for choosing this SDI and IP HD Video Conferencing Camera.
This manual introduces the function, installation and operation of the HD camera. Prior to installation and
usage, please read the manual thoroughly.
Precautions
This product can only be used in the specified conditions in order to avoid any damage to the camera:
 Don’t subject the camera to rain or moisture.
 Don’t remove the cover. Otherwise, you may get an electric shock. In case of abnormal operation, contact
the authorized engineer.
 Never operate under unspecified temperature, humidity and power supply.
 Please use a soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted neutral
detergent; do not use any type of solvents, which may damages the surface.
Note
This is class A product. Electromagnetic radiation at the specific frequency may affect the image quality of TV
in a home environment.
Copyright Notice
All contents of this manual are copyright and belong to our company. It cannot be cloned, copied or trans-
lated without the permission of the company. Product specifications and information which are referred to in
this document are for reference only and the content may be updated at any time without prior notice.
Preface

www.networktv.tv
4 NTV71S User Guide 1-0
Notes
 Electrical Safety
Installation and operation must be in accordance with the local electric safety standards.
 Caution with handling
Avoid stress, vibration and moisture in transport, storage, installation and operation.
 Polarity of power supply
The power supply of the product is +12V, the maximum electrical current is 2A. Polarity of the power
supply plug is as per the drawing:
 Care during installation
Do not grasp the camera head when carrying the camera. Don’t turn camera head by hand. Doing so
may result in mechanical damage.
Don’t apply corrosive liquid, gas or solid environment to avoid damaging the cover which is made
of plastic material.
Make sure no obstacle is in the rotation range.
Never power off before installation is completed.
 Don’t dismantle the camera
We are not responsible for any unauthorized modification or dismantling.
CAUTION!
The specific frequency of electromagnetic field may affect the image of the camera!
What’s in the Box
When you unpack, check that all the supplied accessories are included:
Camera 1PCS
AC power adaptor 1PCS
Power cord 1PCS
RS232 cable 1PCS
Remote controller 1PCS
User manual 1PCS

www.networktv.tv
NTV71S User Guide 1-0 5
Step1: Please check connections are correct before starting
Step2: Power connected to the Camera, the front panel power lamp is lit.
Step3: Pan-Tilt will rotate to the maximum position of top right after the camera is started, then it will return
to the centre, the process of initialisation is then complete. (Note: If the position preset 0 has been stored,
the position preset 0 will be called up after initialisation).
Quick Start
SDI Cable (Not Supplied)

www.networktv.tv
6 NTV71S User Guide 1-0
Features
 Completely New Look
Designed with worm gear drive, completely new look, mini size, two colors to choose from.
 1080P Full HD
Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum
1920 x 1080 resolution image quality.
 Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
 72.5° Wide-angle Lens + 32x Digital Zoom
72.5° wide-angle high quality lens, supports 12x optical zoom, and 16x digital zoom.
 AAC Audio Encoding
Supports AAC audio encoding, better sound quality and smaller bandwidth.
 HD Interface
Supports Serial Digital Video (HD-SDI) output.
 Network Interface
Supports network multi-channel audio and video stream output.
 Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithym, effectively reduces
the noise, even under low illumination conditions, the picture will still stay clean and clear.
 Remote Control
Using RS232 and IP interface, all the parameters of the camera can be remote controlled.

www.networktv.tv
NTV71S User Guide 1-0 7
Model NTV71S
Name SDI/IP HD Video Conference Camera
Camera
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1,
6500K_2, 6500K_3, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +30°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 0.7° ~ 28°/s
Horizontal & Vertical Flip Support
Image Freeze Support
PoE Support (optional)
Local Storage Support
Number of Preset 255
Preset Accuracy 0.1°
IPC Features
Video coding standard H.265/H.264/MJEPG
Video Stream First Stream, Second Stream
Product Specification

www.networktv.tv
8 NTV71S User Guide 1-0
Product Specification (cont.)
Input/Output Interfaces
HD Output 1x3G-SDI: BNC type, 800mVp-p, 75Ω, complies with the
SMPTE 424M standard
Network interface 1xRJ45: 10/100/1000M Adaptive Ethernet ports
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
Communication Interface 1xRS232: 8pin Min DIN, Max Distance: 30m, Protocol:
VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)
Generic Specification
Input Voltage DC 12V / PoE (802.3af) (optional)
Current Consumption 1.0A (Max)
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption 12W (Max)
MTBF >30000h
Size 128.5x118x156.2mm
Net Weight 0.91K g
First Stream Resolution 1920x1080, 1280x720, 1024x576, 960x540, 640x480,
640x360
Second Stream Resolution 1280x720, 1024x576, 720x576, 720x408, 640x360,
480x270, 320x240, 320x180
Video Bit Rate 128Kbps ~ 8192Kbps
Bit Rate Type Variable rate, Fixed rate
Frame Rate 50Hz: 1fps~50fps, 60Hz: 1fps~60fps, 720p120: 120fp
(supported by S Model only), 640x480p240: 240fps
(supported by S Model only, optional)
Audio encode standard AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Supported streaming protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast

www.networktv.tv
NTV71S User Guide 1-0 9
Main Unit
1 2 3 4 5
1. Network Interface
2. SDI out
3. Audio Line in Interface
4. RS232 Interface
5. DC IN 12V jack

www.networktv.tv
10 NTV71S User Guide 1-0

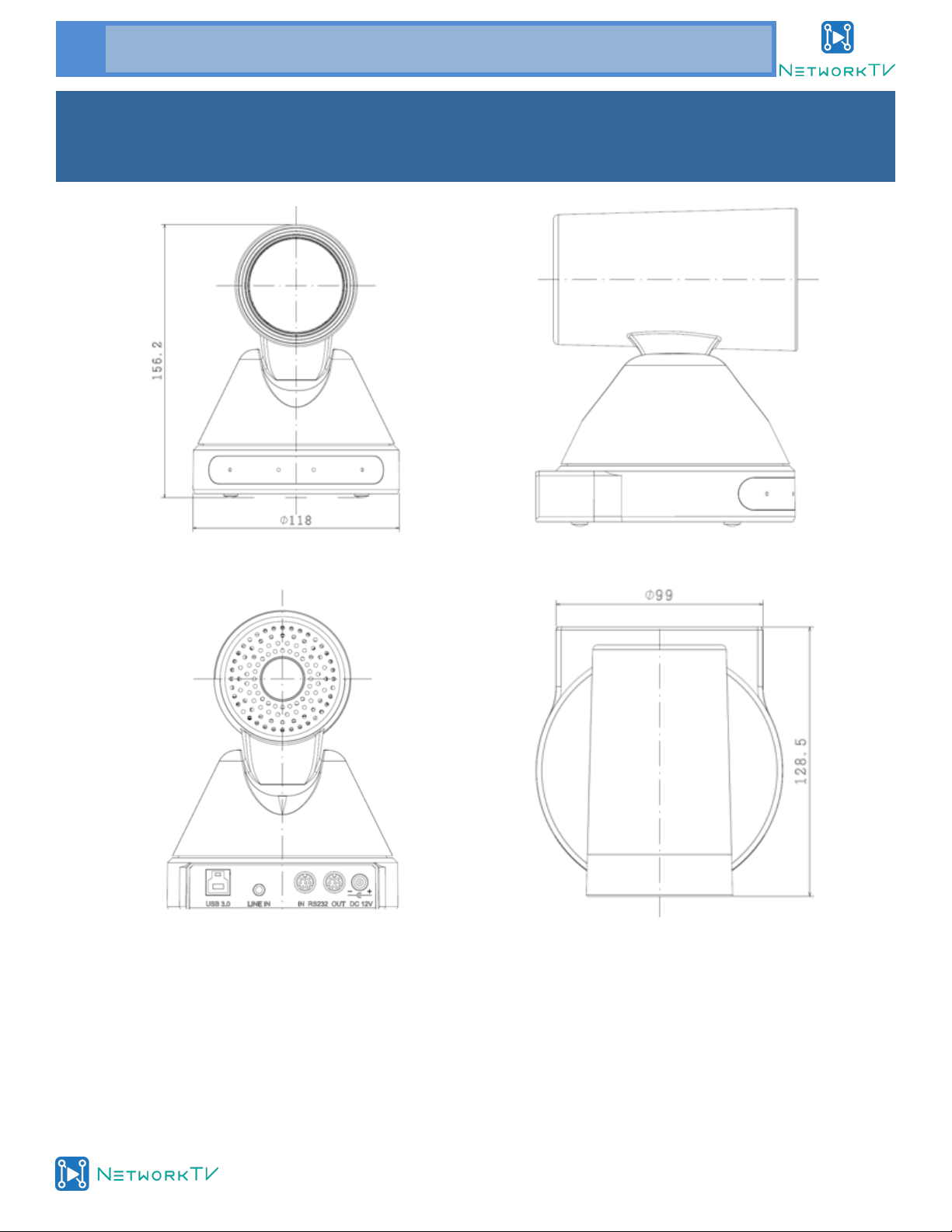

Dimensions
