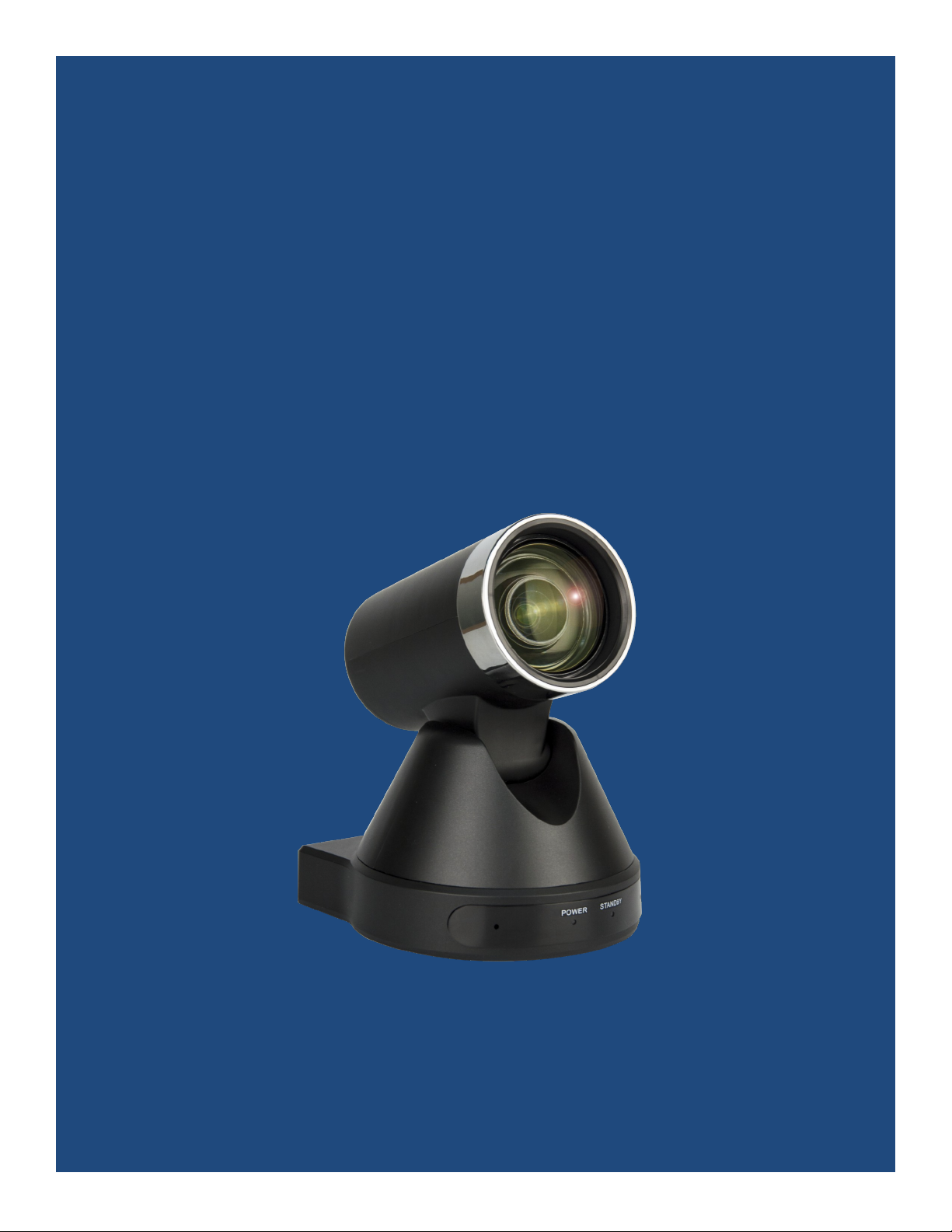

NetworkTV NTV71U User manual

N E T W O R K T V
NTV71U & NTV71C
User Guide
Phone: [phone]
E-Mail: [email protected] Web: www.networktv.tv
Release 1.0

www.networktv.tv
2 NT71U/V71C User Guide 1-0
TABLE OF CONTENTS
Preface 3
Note 4
What’s in the Box 4
Quick Start 5
Features 6
Product Specification 7
Main Unit 9
Dimensions 10

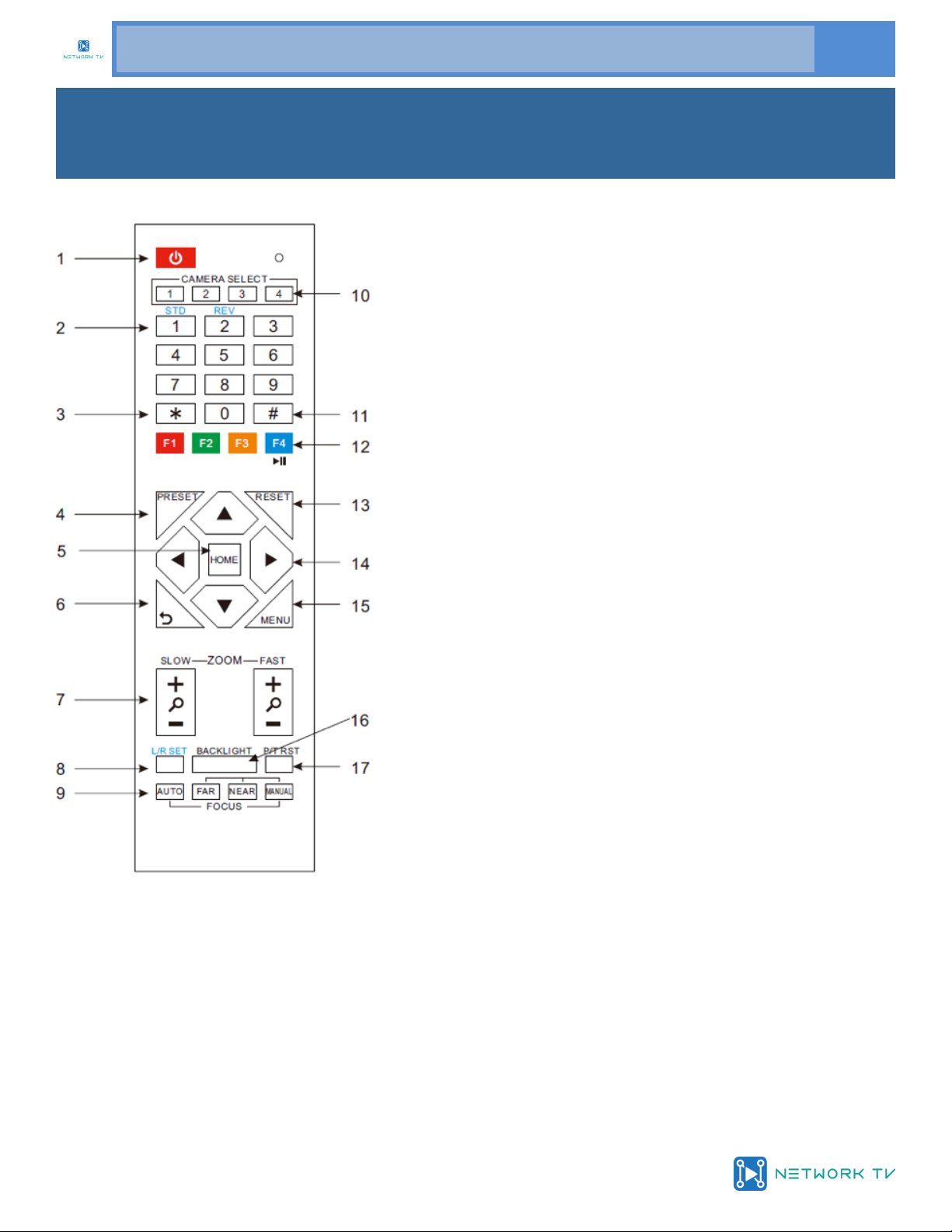

IR Remote Controller Explanation 11
RS-232 Interface 13

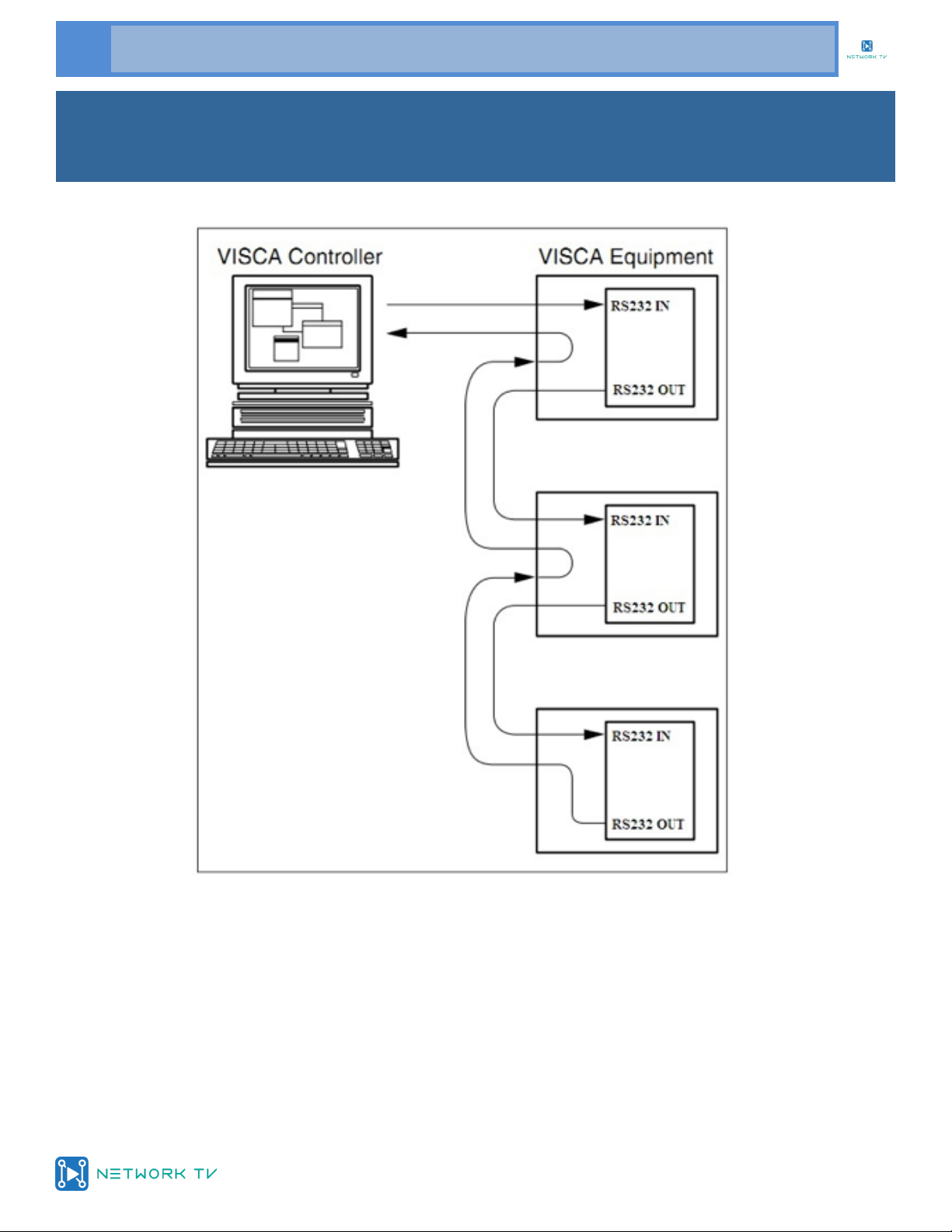

VISCA Network Configuration 14
Serial Communication Control 15
Command List 15

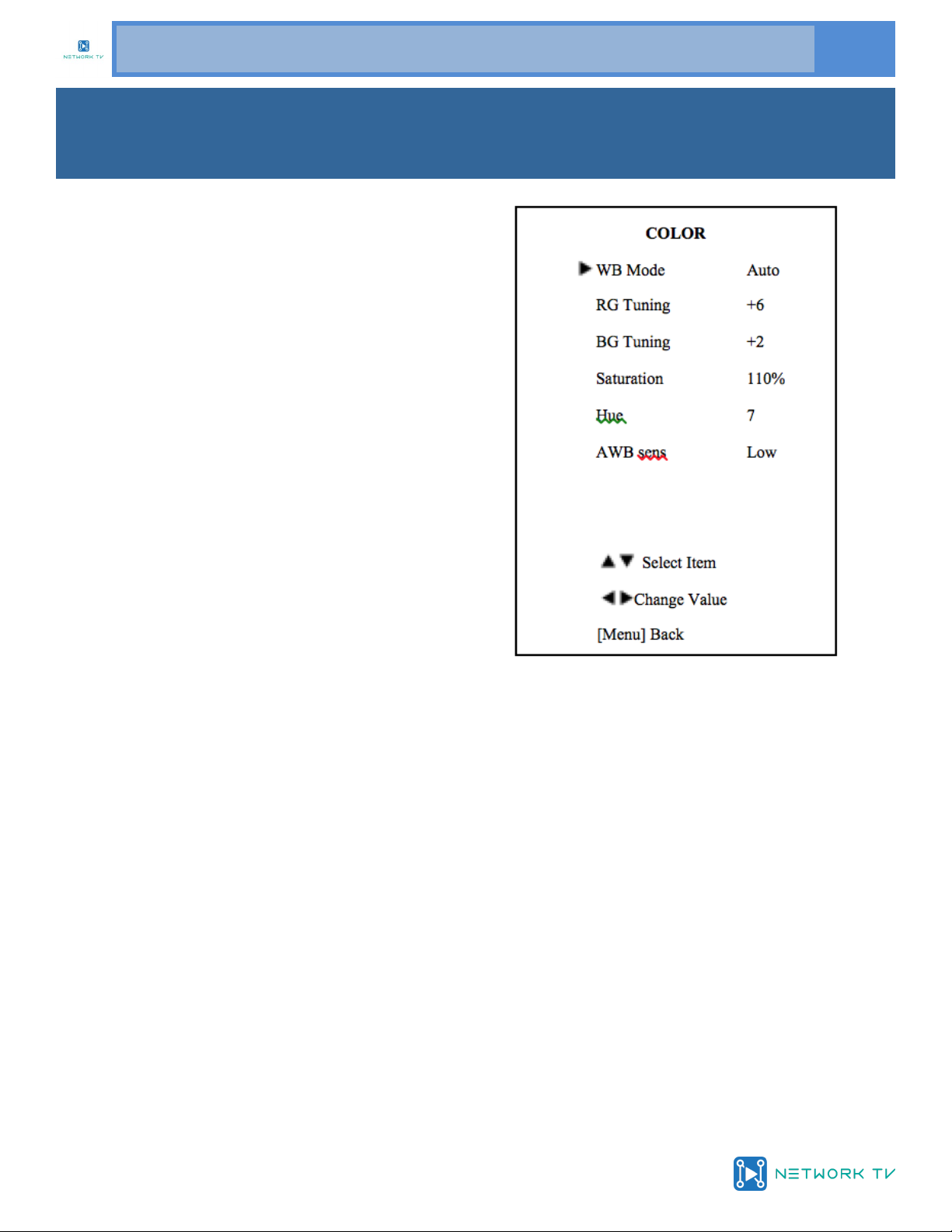

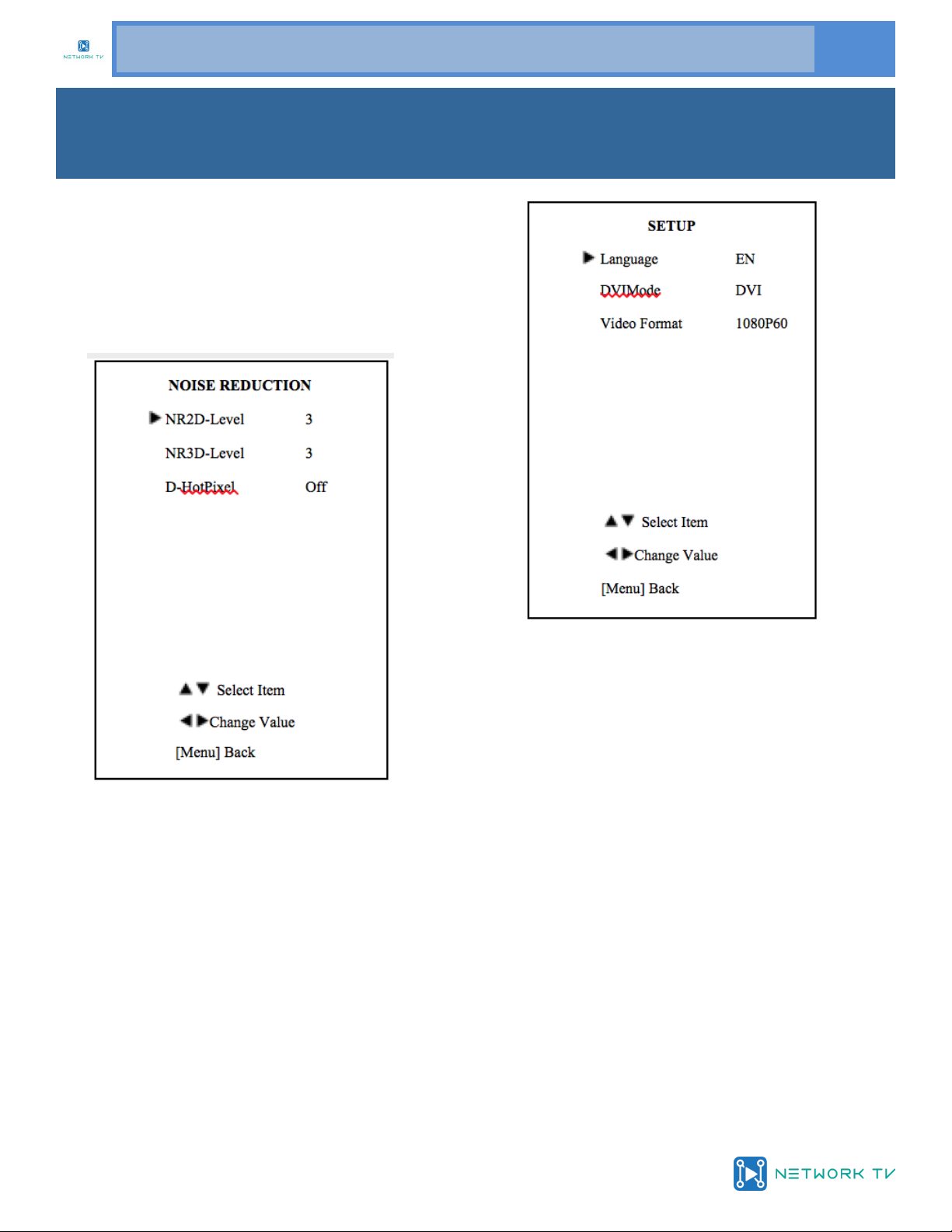

Menu Setting 16
USB3.0 21
Maintenance and Troubleshooting 22

www.networktv.tv
NTV71U/V71C User Guide 1-0 3
Thank you for choosing this USB3.0 HD Video Conferencing Camera.
This manual introduces the function, installation and operation of the HD camera. Prior to installation and
usage, please read the manual thoroughly.
Precautions
This product can only be used in the specified conditions in order to avoid any damage to the camera:
 Don’t subject the camera to rain or moisture.
 Don’t remove the cover. Otherwise, you may get an electric shock. In case of abnormal operation, contact
the authorized engineer.
 Never operating under unspecified temperature , humidity and power supply.
 Please use a soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted neutral
detergent; do not use any type of solvents, which may damages the surface.
Note
This is class A product. Electromagnetic radiation at the specific frequency may affect the image quality of TV
in a home environment
Copyright Notice
All contents of this manual is copyright and belongs to our Company. It cannot be cloned, copied or trans-
lated without the permission of the company. Product specifications and information which are referred to in
this document are for reference only and the content may be updated at any time without prior notice.
Preface

www.networktv.tv
4 NT71U/V71C User Guide 1-0
Notes
 Electrical Safety
Installation and operation must be in accordance with the local electric safety standards.
 Caution with handling
Avoid stress, vibration and moisture in transport, storage, installation and operation.

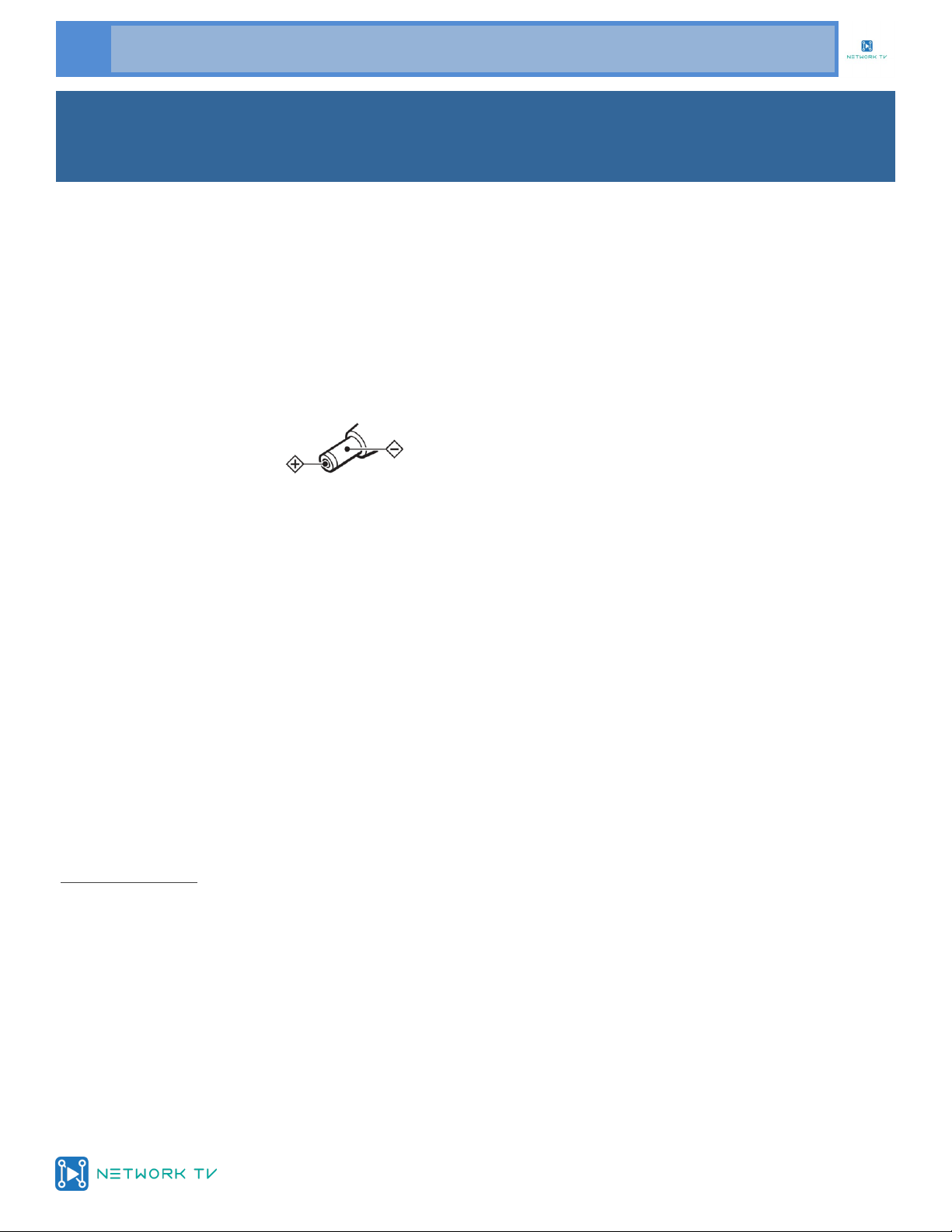

 Polarity of power supply
The power supply of the product is +12V, the maximum electrical current is 2A. Polarity of the power
supply plug is as per the drawing:
 Care during installation
Do not grasp the camera head when carrying the camera. Don’t turn camera head by hand. Doing so
may result in mechanical damage.
Don’t apply corrosive liquid, gas or solid environment to avoid damaging the cover which is made
of plastic material.
Make sure no obstacle is in the rotation range.
Never power off before installation is completed.
 Don’t dismantle the camera
We are not responsible for any unauthorized modification or dismantling.
CAUTION!
The specific frequency of electromagnetic field may affect the image of the camera!
What’s in the Box
When you unpack, check that all the supplied accessories are included:
Camera 1PCS
AC power adaptor 1PCS
Power cord 1PCS
RS232 cable 1PCS
Remote controller 1PCS
User manual 1PCS
USB3.0 1PCS

www.networktv.tv
NTV71U/V71C User Guide 1-0 5
Step1: Please check connections are correct before starting
Step2: Power connected to the Camera, the front panel power lamp is lit.
Step3: Pan-Tilt will rotate to the maximum position of top right after the camera is started, then it will return
to the centre, the process of initialization is then complete. (Note: If the position preset 0 has been stored,
the position preset 0 will be called up after initialization).
Quick Start

www.networktv.tv
6 NT71U/V71C User Guide 1-0
Features
 Completely New Look
Designed with worm gear drive, completely new look, mini size, two colors for choosing from.
 Full Function USB Interface
Full function USB interface, compatibility with USB3.0 and USB2.0, audio support, support for com-
pressed video output, support UVC, UAC protocol.
 Built-in Microphone (Optional)
Built-in microphone for optional, pickup distance up to 5 metres, high sensitivity and low base noise.
 1080P Full HD
Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum
1920 x 1080 resolution image quality.
 Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
 72.5° Wide-angle Lens + 32x Digital Zoom
72.5° wide-angle high quality lens, supports 12x optical zoom, and 32x digital zoom (optional).
 Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithym, effectively reduces
the noise, even under low illumination conditions, the picture will still stay clean and clear.
 Remote Control
Using RS232/RS485 and USB interface, all the parameters of the camera can be remote controlled.

www.networktv.tv
NTV71U/V71C User Guide 1-0 7
Model NTV71U NTV71C (in red)
Name USB3.0 HD Video Conference Camera (USB2.0)
Camera
Video System 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60,
720p/50, 720p/30, 720p/25
Sensor 1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 32x 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, Indoor, Outdoor, One Push, Manual
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -30° ~ +30° ±25°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 1.7° ~ 69.9°/s 0.7° ~ 28°/s
Horizontal & Vertical Flip Support
Image Freeze Support
Number of Preset 255
Preset Accuracy 0.1°
USB Features
Operating System Windows XP, Windows Vista, Windows 7, Windows 8,
Mac OS X, Linux
Color System/Compression YUV 4:2:2 / H.264 / MJPEG
Product Specification

www.networktv.tv
8 NT71U/V71C User Guide 1-0
Product Specification (cont.)
Video Format USB3.0: 1080p/60, 1080p/50, 1080p/30, 1080p/25,
720p/60, 720p/50, 720p/30, 720p/25
USB2.0: 1080p/30, 1080p/25, 1080p/15, 1080p/10,
720p/30, 720p/25, 960x540p/30, 960x540p/25,
640x360p/60, 640x360p/50
Audio on USB Support
USB Video Communication Protocol UVC 1.0 ~ UVC 1.5
UVC PTZ Support
Input/Output Interface
USB Interface 1xUSB3.0:Type B female jack 1xUSB2.0: Type B female
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
Communication Interface 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Proto-
col: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Proto-
col: VISCA network use only
1xRS485: Share with RS232 Out, Max Distance: 1200m,
Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)
Generic Specification
Input Voltage DC 12V
Current Consumption 1.0A (Max)
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption 12W (Max)
MTBF >30000h
Size 128.5x118x156.2mm
Net Weight 0.91K g

www.networktv.tv
NTV71U/V71C User Guide 1-0 9
1. USB3.0 4. RS232 out Interface
2. Line in Interface 5.DC IN 12V jack
3. RS232 IN Interface
Main Unit
1. USB2.0 4. RS232 out Interface
2. Line in Interface 5.DC IN 12V jack
3. RS232 IN Interface
1 2 3 4 5

www.networktv.tv
10 NT71U/V71C User Guide 1-0
Dimensions
