Neumaerker 00-70725/6 User manual

Lohstr. 13 - 58675 Hemer / Postfach 4063 - 58663 Hemer
Telefon: [phone] Fax: [phone]
DEUTSCHLAND
Operating Manual
Citrus Juice
art.-no. 00-70725/6
Citrus Press
art.-no. 00-70731/2
www.neumaerker.de

SPREMIAGRUMI
Spremiagrumi elettrico a leva professionale e spremiagrumi elettrico manuale professionale.
Come tutti gli elettrodomestici deve essere utilizzato con particolare prudenza per evitare lesioni alle
persone e danni all'apparecchio.
Leggere perciö con cura le presenti istruzioni per l'uso prima della messa in funzione ed attenersi
alle prescrizioni relative alla sicurezza.
Non utilizzare l'apparecchio se non si conoscono adeguatamente le istruzioni per
l'uso!
Pagina 4
JUICER
Commercial automatic electric juicer and commercial semi-automatic electric juicer.
Like all appliances, it should be used with particular care to avoid injury to personnel and damage
to the appliance.
It is essential to read these instructions carefully before using the appliance and to follow the safety
recommendations.
Do not use the appliance if you have not read and understood these instructions!
Page 14
PRESSE-AGRUMES
Presse-agrumes electrique automatique ä poignee professionnel et presse-agrumes electrique
semi-automatique professionnel.
Comme tous les appareils electromenagers, ils doivent etre utilises avec une prudence particuliere
pour eviter les blessures aux personnes et les dommages ä l'appareil.
Lire attentivement les presentes instructions d'utilisation avant la mise en fonction de l'appareil et
observer toutes les instructions concernant la securite.
Ne pas utiliser l'appareil sans connattre correctement les instructions d'utilisation!
C ÜI> Pa9e 24

JUICER
Main parts (Fig. 1 - Fig. 2)
Automatic model (Fig. 1)
|T| Base
jjj] Spout
||| Juice Container
H] Reamer-Strainer
\$\ Splash retainer
Splash cover handle
Splash cover
Cone
Motor shaft
ON-OFF (I-O) button

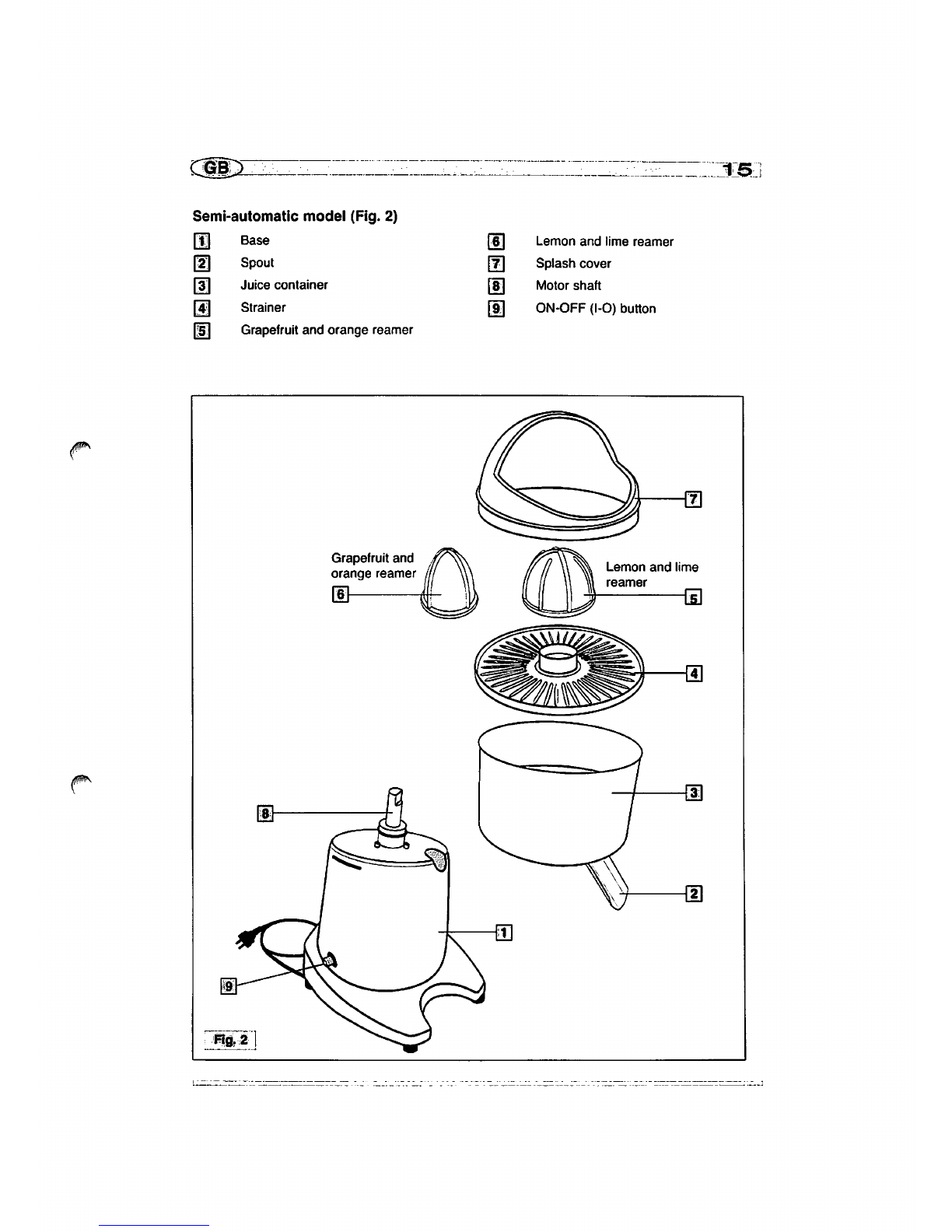

Semi-automatic model (Fig. 2)
Qj) Base
[j] Spout
[3] Juice Container
[4] Strainer
[5] Grapefruit and orange reamer
Lemon and lime reamer
Splash cover
Motor shaft
ON-OFF (I-O) button
Grapefruit and
orange reamer
Rg.2

SAFETY RECOMMENDATIONS
GENERAL INSTRUCTIONS
1. Read the following instructions carefully before using the appliance.
2. Installation and maintenance should be carried out by qualified personnel only.
3. This appliance is intended for Professional use, and should therefore be used by adults and
qualified personnel only.
CLOSE ADULT SUPERVISION IS NECESSARY WHEN CHILDREN ARE NEAR THE
APPLIANCE.
4. Never use this appliance for purposes other than reaming citrus fruits. Any other use is
dangerous.
5. Always work under safe conditions: do not use the appliance with wet hands or feet. Do not
use outdoors.
6. Keep the original package for possible future use. It is the most suitable protection against
damage during transport.
7. In case of fire use CO2 extinguishers. Do not use water or powder extinguishers.
8. Never place the appliance in water!
9. Do not disassemble the appliance or attempt to perform any repairs inside it.
10. Always unplug the appliance before performing any maintenance or cleaning and when it is not
in use.
11. Never pull the appliance by the cord to move it. Never unplug it by pulling the cord or touching
it with wet hands.
If the cord is damaged, it must be replaced by an Authorized Service Center.
12. WARNING: BE CAREFUL to never insert Utensils, metal objects or other rigid or Sharp
materials in the Juice Container as it is dangerous and could cause injury.
13. During maintenance procedures and while unpacking, do not hold or lift the appliance by the
splash cover handle.
14. Do not allow hand to came in direct contact with reamer while juicer is operating.
15. Periodically inspect cone, reamer and strainer for cracks and materials which could
contaminate juice.
16. Do not use the appliance if it is damaged or has loose parts. Immediately contact an authorized
Service Center.
SAVE THESE INSTRUCTIONS!

INSTALLATION
Comply with the safety recommendations indicated above and hereafter when installing the
appliance.
1. Make sure that the mains voltage is as indicated on the rating label of the appliance and that
the electrical System is grounded and equipped with a switch.
2. Install the appliance in a DRY, PROTECTED place, far from water sprays or splashes, heat
sources, open flames and inflammable substances.
Place the appliance on a flat, horizontal, stable surface where it cannot tip over.
3. Make sure the switch on the appliance is in the "OFF" position and plug it into a socket
protected by a suitably rated circuit breaker (MCB) or fuses.
Do not use an adaptor plug.
4. Stretch the power cable out to füll length. Do not let it pass over Sharp edges or hot surfaces.
Do not let oil Spill on it. Do not let the power cable hang loose from the counter on which the
appliance Stands.
USE
Preparing the Juicer
/l\ Before using the juicer for the first time, refer to the "Cleaning and maintenance" section to
clean all parts. Then complete the following Steps to prepare the juicer each time you use it:
/l\ NOTE: Each time you use the juicer, check to be sure that there are no cracks in the cone,
reamer, or strainer.
£T] Place the Container onto the base.
[z] Check to see that the strainer and spout are not plugged with pulp or seeds from the last use.
Then place the Container onto the base.
Ü3j] Insert the reamer-strainer into the Container over the motor shaft.
Automatic model
Ü#| Place the stainless steel reamer into the Container and over the motor shaft. Ensure that the
reamer is seated all the way down on the shaft.
[B] Make sure the cone and splash cover are attached tightly to the handle.
[jftj Place the splash retainer into the Container.

Semi-automatic model
[4] Select the proper size polycarbonate reamer. Use the large reamer for grapefruit and oranges
or the small reamer for lemons and limes. Push the reamer all the way down onto the motor
shaft.
[5] Place the splash guard onto the top of the Container.
Plug the juicer into an electric outlet.
/ß
Automatic model
Semi-automatic
model
Flg. 3
Making juice
Make sure the fruit is at room temperature.
[T] Prepare all the fruit ahead of time by cutting the fruit in half. This will make the juicing process
quicker.
[2] Place a Container under the spout to collect the juice.
[3] Push the power switch to the ON position. For the semi-automatic model, the reamer will begin
spinning.
[4l Ream the fruit halves as follows:

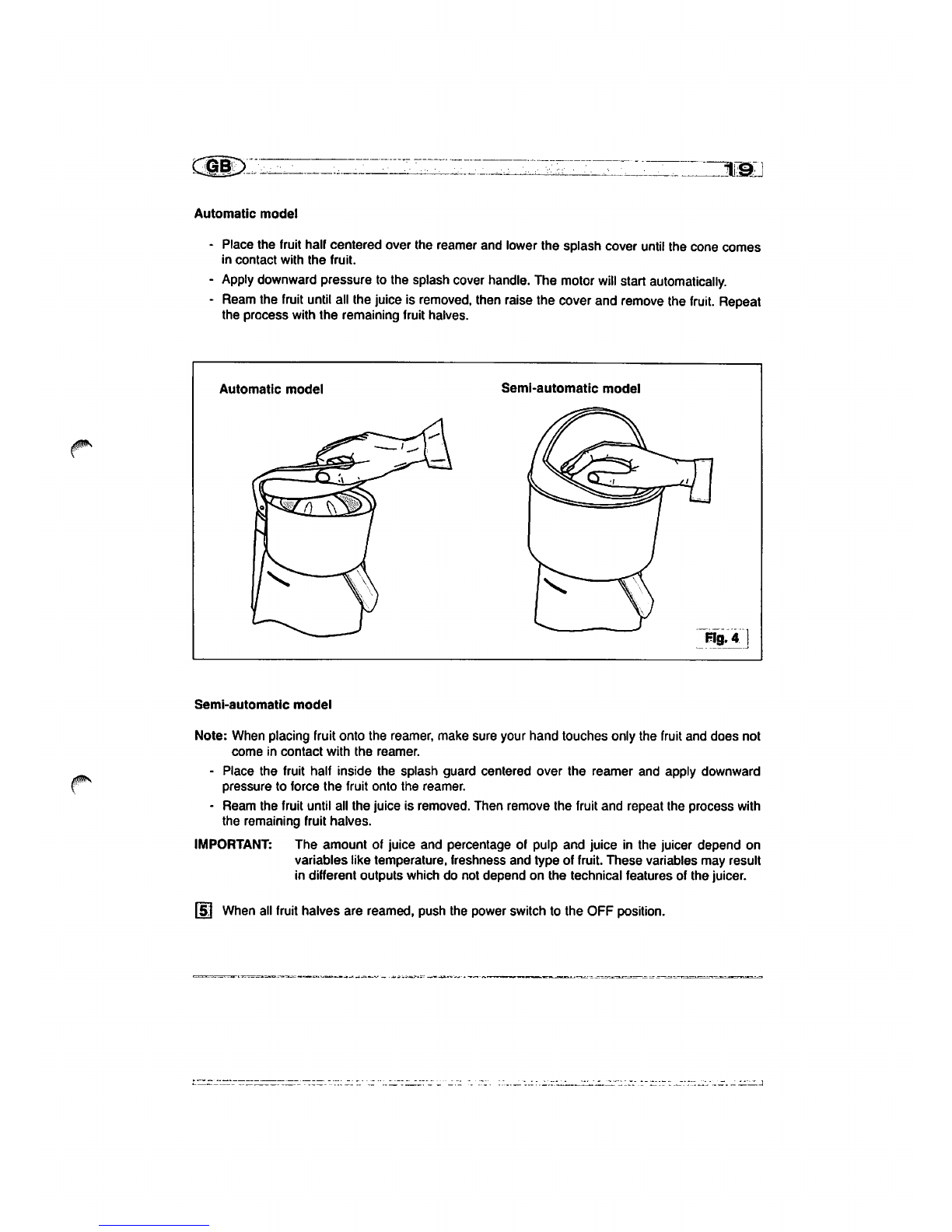

Automatic model
- Place the fruit half centered over the reamer and lower the splash cover until the cone comes
in contact with the fruit.
- Apply downward pressure to the splash cover handle. The motor will start automatically.
- Ream the fruit until all the juice is removed, then raise the cover and remove the fruit. Repeat
the process with the remaining fruit haives.
Automatic model
Semi-automatic model
Flg. 4
Semi-automatic model
Note: When placing fruit onto the reamer, make sure your hand touches only the fruit and does not
come in contact with the reamer.
- Place the fruit half inside the splash guard centered over the reamer and apply downward
pressure to force the fruit onto the reamer.
• Ream the fruit until all the juice is removed. Then remove the fruit and repeat the process with
the remaining fruit haives.
IMPORTANT: The amount of juice and percentage of pulp and juice in the juicer depend on
variables like temperature. freshness and type of fruit. These variables may result
in dilferent Outputs which do not depend on the technical features of the juicer.
When all fruit haives are reamed, push the power switch to the OFF position.

CLEANING AND MAINTENANCE
O Partial cleaning
By keeping the appliance well-cleaned and in working order you can maximize the quality of the
juice extracted and guarantee a longer life for the appliance itself. The juicer should be cleaned
frequently between operations. Do not allow juice to dry on juicer parts. To give the juicer a partial
cleaning:
[T] Unplug the juicer.
[2] Remove all pulp and seeds from the cone, splash retainer (automatic model), reamer, strainer
and Container.
For the automatic model, to obtain a higher yield of juice always control that the strainer is well-
cleaned by using a nylon brush. Put the strainer under running water and use the brush to clean
the inside of the strainer (see Fig. 5).
(3] Wipe all parts with a clean damp cloth.
O Füll cleaning
[j| Unplug the juicer.
[Ü Remove the following parts from the base:
Automatic model (Fig. 3 and Fig. 6)
Remove the cone and the splash cover by unscrewing the cone. Remove splash retainer,
reamer-strainer and Container.
Semi-automatic model (Fig. 3)
Remove the splash cover, reamer, strainer and Container.
[3] Remove all pulp and seeds from the removed parts.

[4j All the removed parts may be washed in a commercial dishwater or hand washed using warm
water and liquid detergent.
^5} Wipe the base, motor shaft and splash cover (semi-automatic model) with a clean, soft cloth
and a mild, non abrasive detergent.
Wipe with a dry cloth.
A
/!\ Never put the base under running water and never immerse in water.
[&] Reassemble the juicer in the reverse order.
/f\ Do not use abrasive products or sponges to clean.
/f\ Never use bleach or chlorine-based cleaning products.
..,.*. ~i'"■ ■;*-]

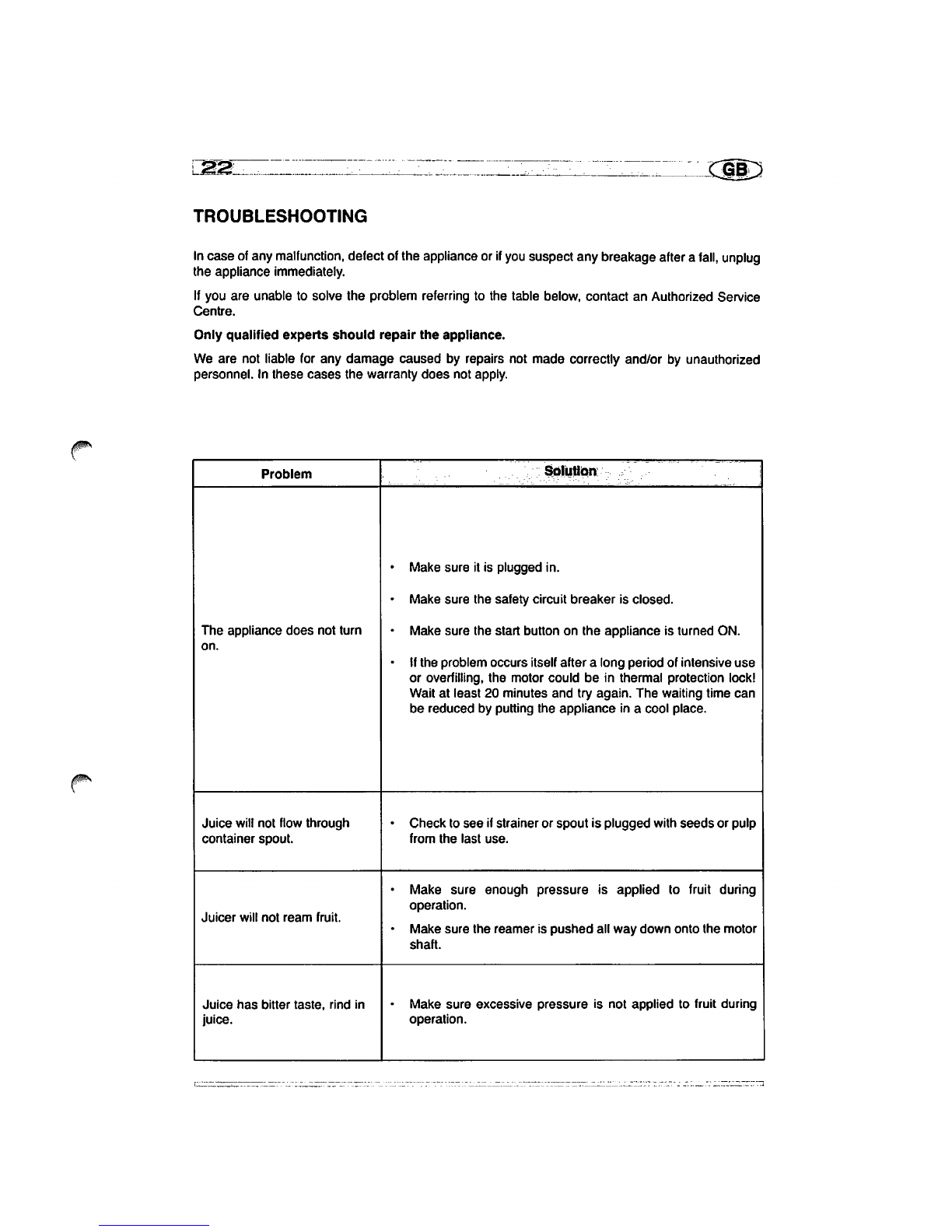

TROUBLESHOOTING
In case of any malfunction, defect of the appliance or if you suspect any breakage after a fall, unplug
the appliance immediately.
If you are unable to solve the problem referring to the table below, contact an Authorized Service
Centre.
Only qualified experts should repair the appliance.
We are not liable for any damage caused by repairs not made correctly and/or by unauthorized
personnel. In these cases the warranty does not apply.
/ß
Problem
The appliance does not turn
on.
Juice will not flow through
Container spout.
Juicer will not ream fruit.
Juice has bitter taste, rind in
juice.
Solutlon
i..._.. _-■_. _■ . ■ '-- ■-:■■- ■■■■ ■■■ _■-■:■. ■ ■.. .:■ -i- ■ .
• Make sure it is plugged in.
• Make sure the safety circuit breaker is closed.
• Make sure the Start button on the appliance is turned ON.
• If the problem occurs itself after a long period of intensive use
or overfilling, the motor could be in thermal protection lock!
Wait at least 20 minutes and try again. The waiting time can
be reduced by putting the appliance in a cool place.
• Check to see if strainer or spout is plugged with seeds or pulp
from the last use.
• Make sure enough pressure is applied to fruit during
Operation.
• Make sure the reamer is pushed all way down onto the motor
shaft.
• Make sure excessive pressure is not applied to fruit during
Operation.

DISPOSAL
Correct disposal of this product (waste electrical and electronic equipment)
(Applicable in the European Union and other countries with separate
collection Systems)
This product has been made from high-quality parts and materials, which
can be re-used and recycled.
Therefore, do not throw the product away with normal household waste
at the end of its working life. Take it to a collection point for recycling
electrical and electronic devices. This is indicated by this symbol on the
product and in the operating manual.
Please contact your local government office for information about the
exact location of the closer collection point.
WARRANTY
This product has been manufactured to a high quality Standard.
This product is guaranteed against faulty materials and workmanship for a period of two years from
the date of purchase when it is used according to the instructions in this instruction and maintenance
manual.
Please retain any receipt as proof of purchase.
During the warranty period, this product can either be repaired or replaced, at the manufacturer's
discretion, at no additional cost.
If the products needs maintenance or repairs during the warranty period, contact your retailer for
shipping instructions. The product should be shipped in its original package or other suitable
packing.
The warranty does not apply in case of neglect, misuse, abuse or unauthorized repairs. This
warranty does not apply to parts subject to deterioration through normal use such as wear to the
reamer-strainers, the strainers, etc. This warranty does not apply to damage caused by foreign
objects, substances or accident.
The warranty is Iimited to the costs of repair or replacement of the product or its defective parts, or
an amount equivalent to the price paid for its purchase. No additional requests of damages will be
available to the purchaser.
This guarantee is in addition to and does not affect your statutory rights.
The manufacturer will not accept any liability and the warranty will be invalidated if there is a
failure to follow these instructions and the technical and/or safety Standards in the country where
the appliance is to be used.
In any case these instructions cannot cover every possible event and the user is recommended to
use the appliance responsibly.
THE MANUFACTURER RESERVES THE RIGHT TO MAKE ANY ALTERATIONS TO
THE APPLIANCE WITHOUT NOTICE

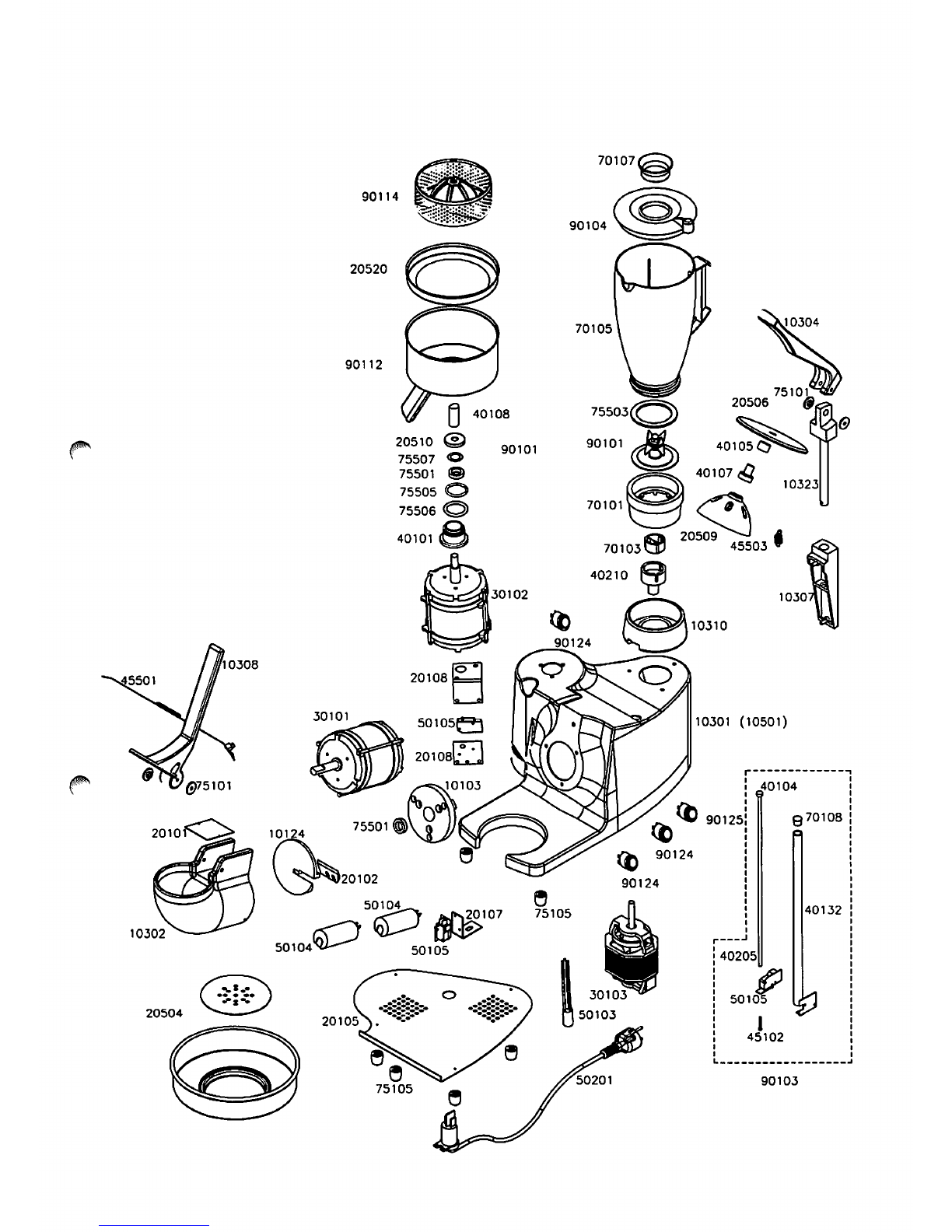

90114
20520
90112
70107
90104
70105
20510
75507 O
75501 @
75505 O
75506
J0304
40105C5
40107^
10323
70101
20509
70103 CD 45503
10310
10307
10301 (10501)
90125
10302
40104
g70108
40132
!40205
5O1Ö5
45102
90103

70110
/$
70130
70120
70109
90113
20510
75507 O
75505
75506

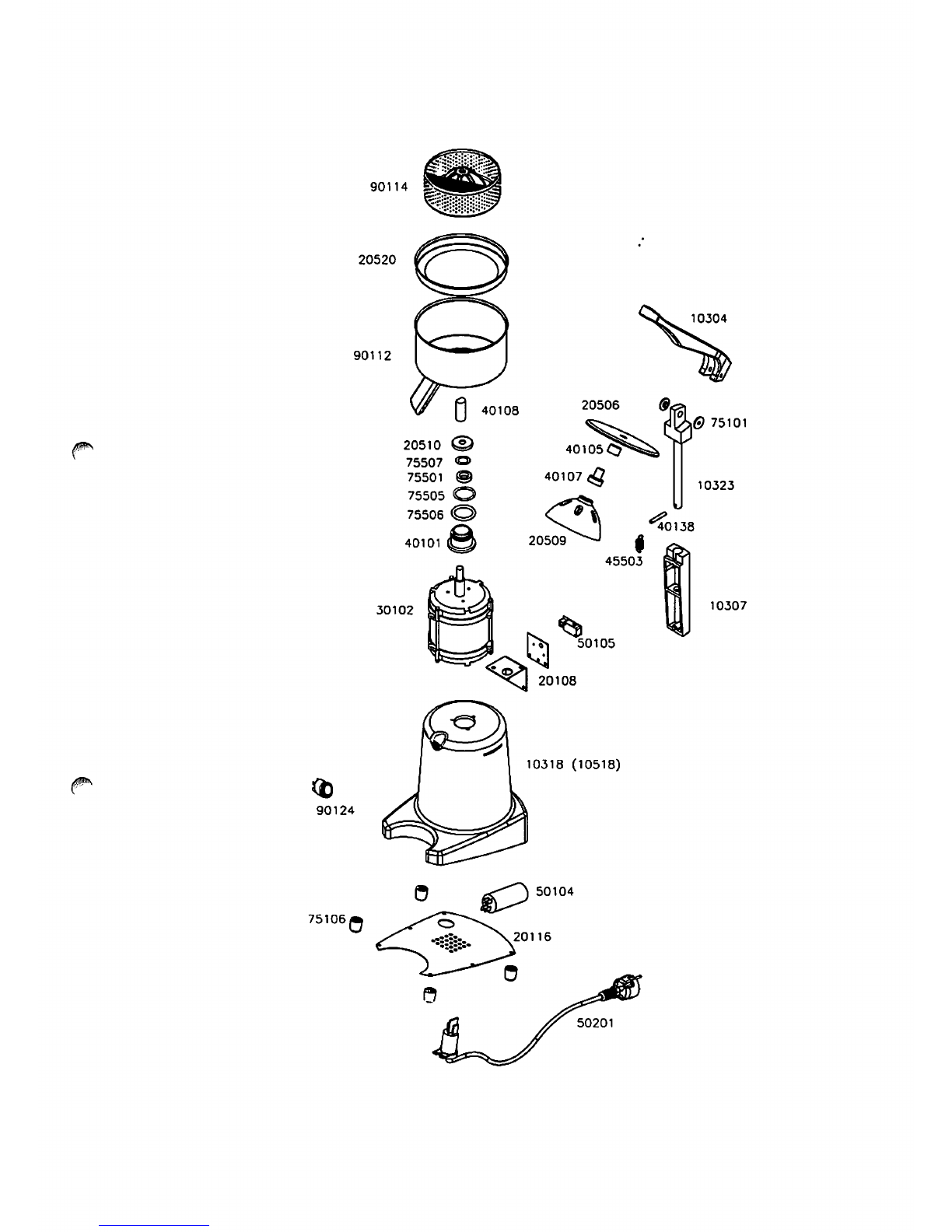

40101
30104
50107
50201

90114 §
20520
90112
10304
40108
20506
20510
75507
75501 @
75505 O
75506
40101
30102
90124
75106
Q 75101
10323
10307

70107
10319 (10519)
20148
50201

90107
90108
70107
/
90104i
20501
75503
r~~~ö~~~45VÖ3~~~l
® ! !
20103 i j
! 90101
40102
9 75502
90116
o 75102
45107
70101
i i
70107
90104i
20501
90102
| 9 75103|
;!e 45104
70106
75503
r _--__„_____,
20104
40102
9 75502
90116
<a> 75102
S) 45107
70101

90106
70107,
90104;
75103]
45104|
90102
70105
20104
70101
