New Air AB-1000 User manual

Manual v1.0
100 Can Beverage Fridge
Réfrigérateur à Boissons à Capacité de 100
Canettes
Refrigerador de Bebidas para 100 Latas
AB-1000
OWNER’S MANUAL
Manuel de L'utilisateour
Manual del Propietario

www.newair.com 2
LANGUAGE INDEX
English Manual…………………………………………………………………………………….. 3
Manuel en Français……………………………………………………………………………. 14
Manual en Español…………………………………………………………………………….. 30

www.newair.com 3
EN
A Name You Can Trust
Trust should be earned and we will earn yours. Customer happiness is the focus
of our business.
From the factory to the warehouse, from the sales floor to your home, the
whole Newair family promises to provide you with innovative products,
exceptional service, and support when you need it the most.
Count on Newair
As a proud Newair owner, welcome to our family. There are no robots here,
real people shipped your product and real people are here to help you.
Contact Us
Please reach out to our customer service team before making a return to your
store of purchase. We are happy to help with any questions or concerns!
Mon-Fri from 8-4 PST at:
Call:
1-855-963-9247
Email:
[e-mail]
Online:
www.newair.com
A team member will respond to you within 24 hours.
Follow Us
Facebook.com/newairusa Instagram.com/newairusa
YouTube.com/newairusa Twitter.com/newairusa

www.newair.com 4
EN
READ AND SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
Specifications……………………………………………………………………………………………………5
Register Your Product Online…..……………………………………………………………………….6
Safety Information & Warnings………………………………………………………………………..7
Warning……………………………………………………………………………………………………7
Parts List…………………………………………………………………………………………………………..9
Wiring Diagram…………………………………………………………………………………………9
Installation Instructions…………………………………………………………………………………. 10
Reversing the Door Swing……………………………………………………………………………….11
Operating Instructions…………………………………………………………………………………… 12
Cleaning & Maintenance.................................................................................... 13
Preparing For Long-Term Storage.............................................................. 13
Cleaning The Fridge.................................................................................... 13
Moving The Fridge ..................................................................................... 13
Troubleshooting……………………………………………………………………………………………..14
Limited Manufacturer’s Warranty…………………………………………………………………. 15

www.newair.com 5
EN
SPECIFICATIONS
MODEL NO.
AB-1000
VOLTAGE:
110V-120V
NOISE LEVEL:
42dB
FREQUENCY:
60Hz
POWER CONSUMPTION:
60W
CAN CAPACITY:
100 Cans
STORAGE CAPACITY:
2.4 cu. ft.
TEMPERATURE RANGE:
37°F - 64°F
REFRIGERANT:
R600a

www.newair.com 6
EN
REGISTER YOUR PRODUCT ONLINE
Register Your Newair Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for Newair promotions and offers
Registering your product information online is safe & secure and takes less than
2 minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, located on the manufacturer’s nameplate on
the rear of the unit. You will need this information if it becomes necessary to
contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
newair.com/register

www.newair.com 7
EN
SAFETY INFORMATION & WARNINGS
WARNING
To reduce the risk of fire, electrical shock, or injury when using your appliance,
follow these basic precautions:
Before using the appliance, please read this user manual to ensure that you
gain the maximum benefit from it.
●This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, unless under supervision by
a person responsible for their safety.
●This appliance can be used by children 8 years and above under close adult
supervision. Please ensure that children do not play with the appliance.
●Cleaning and user maintenance shall not be made by children.
●If the supply cord is damaged, it must be replaced by the manufacturer or a
qualifies technician in order to avoid a hazard.
●To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions.
●When positioning the appliance, ensure the supply cord is not tangled or
damaged.
●Do not use multiple portable socket-outlets to the appliance.
●Keep ventilation openings clear of obstruction.
●Do not use mechanical devices or other means to accelerate the defrosting
process, unless recommended in this manual.
●Do not damage the refrigerant circuit.
●Do not use electrical appliances inside the drink storage compartments of
the appliance.
●Do not store explosive substances such as aerosol cans inside this appliance.
●This appliance is intended to be used in household and similar applications
such as staff kitchen areas in shops, offices and other working or similar
residential environments.
●Children aged from 3 to 8 years are allowed to load and unload refrigerating
appliances under adult supervision.

www.newair.com 8
EN
●To avoid spoilage of drinks, please respect the following instructions:
oOpening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
oClean regularly surfaces that can come in contact with drinks and
accessible drainage systems.
oIf the refrigerating appliance is left empty for long periods, switch off,
defrost, clean, dry, and leave the door open to prevent mold developing
inside the appliance.
Note: This appliance contains flammable refrigerant R600a and foaming agent
cyclopentane. Please avoid contact fire when you transport and use it.
Please ensure a professional technician does any repairs or servicing when
needed. Please send it to your local appointed disposal station to discard.
Correct disposal of this product
This symbol on the product, or in its packaging, indicates that
this product may not be treated as household waste. Instead,
it should be taken to the appropriate waste collection point
for the recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by the inappropriate waste handling of this product.
For more detailed information about the recycling of this
product, please contact your local council, your household
waste disposal service, or the shop where you purchased the
product.
- SAVE THESE INSTRUCTIONS -

www.newair.com 9
EN

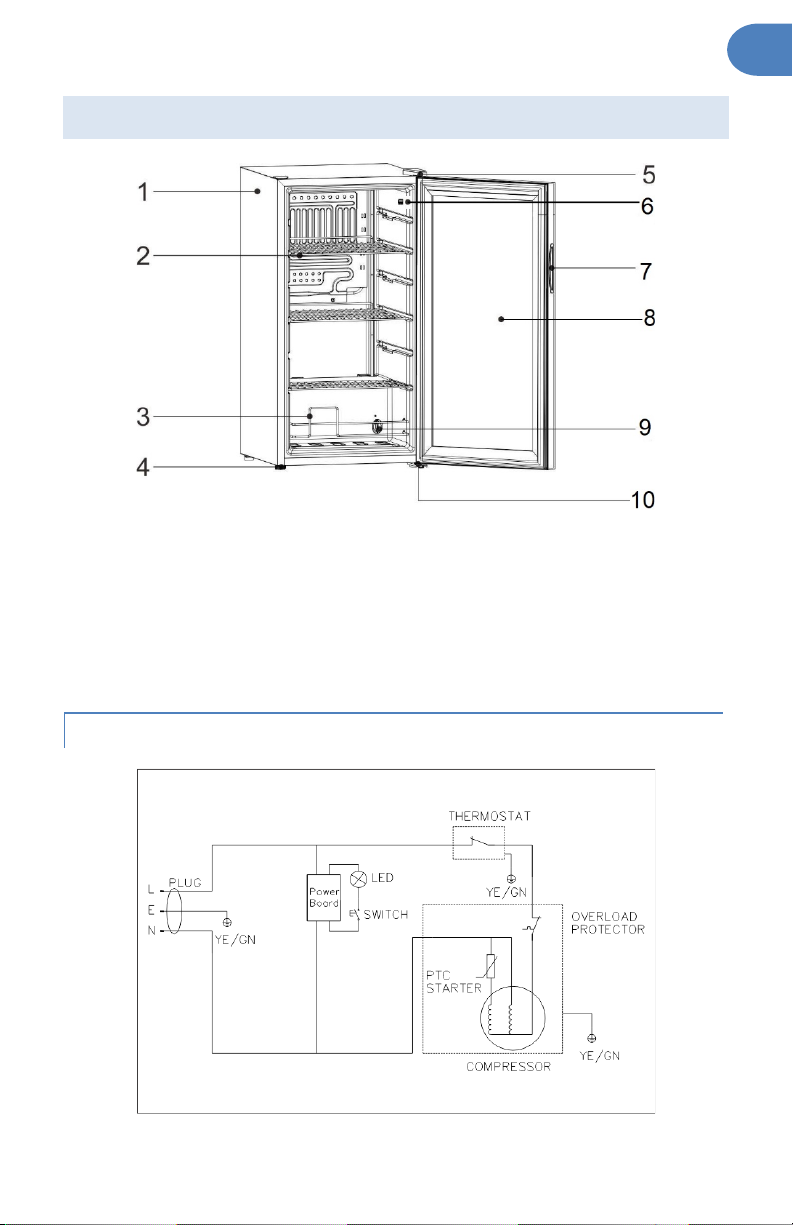

PARTS LIST
1. Cabinet
2. Shelf
3. Retainer bar
4. Levelling foot
5. Upper door hinge
6. Light switch
7. Door handle
8. Glass door
9. Temperature control
10. Bottom hinge
WIRING DIAGRAM

www.newair.com 10
EN
INSTALLATION INSTRUCTIONS
●This appliance is designed to be free standing only, and should not be
recessed or built-in.
●Place your appliance on a floor that is strong enough to support the
appliance when it is fully loaded. To level your appliance, adjust the leveling
feet at the bottom of the appliance.
●Allow at least 4 inches (10 cm) of space between the top, the back and sides
of the appliance, which allows the proper air circulation to cool the
compressor and condenser.
●Locate the appliance away from direct sunlight and sources of heat (stove,
heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat
sources may increase electrical consumption. Extreme cold ambient
temperatures may also cause the unit not to perform properly.
●Avoid locating the appliance in moist areas or where it could be in close
contact with water.
●Plug the unit into an exclusive, properly installed-grounded wall outlet. Do
not under any circumstances cut or remove the third (ground) prong from
the power cord. Any questions concerning power and/or grounding should
be directed toward a certified electrician or an authorized service center.
●After plugging the appliance into a wall outlet, allow the appliance to cool
down for 2-3 hours before placing any items in the compartment.
●To turn on internal LED lights, use the interior switch that is located inside
appliance on the right side of the device.

www.newair.com 11
EN
REVERSING THE DOOR SWING
Tools needed: flathead screwdriver, Phillips head screwdriver
CAUTION: Before you begin, unplug the fridge from power.
To remove the door:
1. Using a flathead screwdriver carefully pry the plastic hinge cover off.
2. Using a Phillips head screwdriver, remove the screws and take off the top
hinge. Keep the parts together and set them aside.
3. Lift the door off the bottom hinge and set the door aside.
4. Remove the bottom hinge by removing the screws with a Phillips head
screwdriver.
To reinstall the door:
1. Using a flathead screwdriver, remove the plugs and cover from the
opposite corner of the top front of the fridge. Set aside.
2. Install the bottom hinge at the opposite corner and fasten the screws.
3. Position the door on the bottom hinge.
4. Align the door on the bottom hinge and install the top hinge.
5. Push the plugs and covers into the corresponding holes on the original
hinge insert.
Screws
Main Fridge Body

www.newair.com 12
EN
OPERATING INSTRUCTIONS
Setting the Temperature Control
1. The marks on the temperature control knob do not represent the specific
temperature value, but the level of increased or decreased temperature.
Level 5 means the lowest temperature and Level 1 means the highest.
Users can adjust the temperature control knob according to their needs.
2. If the ambient temperature is high, and the temperature control knob is
set to "5" the compressor will work continuously.
3. Before the refrigerator is powered off, please set the gear to "0".
4. If the power supply of the refrigerator is cut off, please wait at least 5
minutes to restart. If turned on before this time, the refrigerator may not
work properly.
5. When the temperature control knob is set to "0", the compressor will stop
working, but the power supply of the refrigerator will not be cut off.

www.newair.com 13
EN
CLEANING & MAINTENANCE
PREPARING FOR LONG-TERM STORAGE
If the fridge will not be used for a long time, it will be necessary to defrost the
unit and completely dry the interior.
1. Disconnect the fridge from the power supply by removing the plug from the
wall socket.
WARNING: Do not touch the plug when your hands are wet. Never unplug
the unit by pulling the cord.
2. Leave the door open until the unit is completely dry inside. Place a towel at
the bottom of the inside of the unit to prevent leakage onto the floor.
CAUTION: Store the unit out of the reach of children. If you have children,
you may want to take additional precautions such as removing the door.
CLEANING THE FRIDGE
•Unplug from power and remove all items, including shelves.
•Wipe the interior with a warm water and baking soda solution. The solution
should be about 2 tablespoons of baking soda to one quart of water.
•Wipe down the shelves with a mild detergent solution.
•Wipe down the outside of the fridge with warm water and mild liquid
detergent.
•Do not use steel wool or a steel brush on the stainless steel. These will erode
the stainless steel and cause it to rust.
CAUTION: Failure to unplug the appliance before cleaning could result in electric
shock or personal injury.
MOVING THE FRIDGE
•Remove all items from inside the appliance.
•Leave the door open until the unit is completely dry inside. Place a towel at
the bottom of the inside of the unit to prevent leakage onto the floor.
•Securely tape down shelves inside the unit, and tape the door shut.
•Turn the adjustable legs up into the base to avoid damaging them.
•Keep upright throughout all transportation.

www.newair.com 14
EN
TROUBLESHOOTING
You may try to solve the following simple problems by yourself. If you need
further assistance, please contact customer service.
Problem
Possible Causes and Solution
The refrigerator is not
working
●Check whether the appliance is connected to
power or whether the plug is in solid contact.
●Check whether the voltage is too low.
●Check whether there is a power failure or circuits
have been tripped.
Light fails to turn on
●Check if the light switch was not pressed.
●Check to see if the power is on or connected.
Loud noises
●Check whether the floor is leveled and whether the
refrigerator is on a stable surface.
●Check if the product is in contact with external
objects or walls.
●Buzz: The compressor may produce buzzes during
operation, and the buzzes are loud particularly
upon start or stop. This is normal.
●Creak: Refrigerant flowing inside of the appliance
may produce creak, which is normal.
The internal
temperature is not
cool enough
●The door may not be closed tightly, opened
frequently, or for too long.
●The temperature setting may be inadequate, try
adjusting the temperature setting.
●The appliance may be exposed to direct sunlight or
too close to other heat sources.
●There might be poor heat dissipation, if there is not
enough cooling space around the product.

www.newair.com 15
EN
LIMITED MANUFACTURER’S WARRANTY
This appliance is covered by a limited manufacturer’s warranty. For one year
from the original date of purchase, the manufacturer will repair or replace any
parts of this appliance that prove to be defective in materials and
workmanship, provided the appliance has been used under normal operating
conditions as intended by the manufacturer.
Warranty Terms:
During the first year, any components of this appliance found to be defective
due to materials or workmanship will be repaired or replaced, at the
manufacturer’s discretion, at no charge to the original purchaser. The
purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions:
The warranty will not apply if damage is caused by any of the following:
●Power failure
●Damage in transit or when moving the appliance
●Improper power supply such as low voltage, defective household
wiring or inadequate fuses
●Accident, alteration, misuse or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures)
●Use in commercial or industrial applications
●Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
●Use of force or damage caused by external influences
●Partially or completely dismantled appliances
●Excess wear and tear by the user
Obtaining Service:
When making a warranty claim, please have the original bill of purchase with
the purchase date available. Once confirmed that your appliance is eligible for
warranty service, all repairs will be performed by a Newair™ authorized repair
facility. The purchaser will be responsible for any removal or transportation
costs. Replacement parts and/or units will be new, re-manufactured or
refurbished and is subject to the manufacturer’s discretion. For technical
support and warranty service, please email [e-mail].

www.newair.com 16
ES
Un Nom De Confiance
La confiance doit être gagnée et nous allons mériter la vôtre. La satisfaction du
client est notre priorité.
De l’usine à l’entrepôt et de la surface de vente à votre domicile, les fabricants
des produits Newair font la promesse de vous fournir des produits novateurs,
un service exceptionnel et un soutien au moment où vous en avez le plus
besoin.
Vous pouvez compter sur Newair
En votre qualité de fier propriétaire d’un produit Newair, nous vous souhaitons
la bienvenue dans notre famille. Notre entreprise n’utilise aucun robot,
uniquement de véritables personnes pour vous livrer votre produit et de
véritables personnes pour vous aider.
Contactez-nous
Veuillez contacter notre équipe du service client avant de faire un retour dans
votre magasin d'achat. Nous sommes heureux de répondre à toutes vos
questions ou préoccupations!
Contactez-nous du lundi au vendredi de 8h à 4h HNP au:
Téléphone :
1 855 963-9247
Courriel :
[e-mail]
En ligne :
www.newair.com
Un membre de l'équipe vous répondra dans les 24 heures.
Suivez-nous :
Facebook.com/newairusa
Instagram.com/newairusa
YouTube.com/newairusa
Twitter.com/newairusa

www.newair.com 17
ES
LISEZ ET CONSERVEZ CES INSTRUCTIONS
TABLE DES MATIÈRES
Caractéristiques................................................................................................. 18
Enregistrez Votre Produit En Ligne.................................................................... 19
Informations De Sécurité Et Avertissements..................................................... 20
Avertissement............................................................................................ 20
Liste Des Pièces.................................................................................................. 22
Schéma De Câblage ................................................................................... 22
Instructions d’Installation……………………………………………………………………………….23
Inversion de la Porte………………………………………………………………………………………24
Mode d’Emploi .................................................................................................. 25
Nettoyage Et Entretien ...................................................................................... 26
Préparer L’appareil Pour Le Rangement À Long Terme............................. 26
Nettoyage Du Refroidisseur....................................................................... 26
Déplacement Du Refroidisseur .................................................................. 27
Dépannage......................................................................................................... 28
Garantie Limitée Du Fabricant........................................................................... 29

www.newair.com 18
ES
CARACTÉRISTIQUES
MODÈLE NO.
AB-1000
VOLTAGE:
110V à 120V
NIVEAU DE BRUIT:
42dB
F
RÉQUENCE
:
60Hz
CONSOMMATION D'ÉNERGIE:
60W
CAPACITÉ DE CANETTES:
100 canettes
CAPACITÉ DE RANGEMENT:
2.4 pi. cu.
GAMME DE TEMPÉRATURE:
37°F à 64°F
RÉFRIGÉRANT:
R600a

www.newair.com 19
ES
ENREGISTREZ VOTRE PRODUIT EN LIGNE
Enregistrez Votre Produit Newair En Ligne Aujourd'hui!
Profitez de tous les avantages que l'enregistrement du produit a à offrir:
Service Et Assistance
Diagnostiquer les problèmes de dépannage et de service plus
rapidement et plus précisément
Notifications De Rappel
Restez à jour pour la sécurité, les mises à jour du système et les
notifications de rappel
Promotions Spéciales
Inscrivez-vous aux promotions et offres Newair
L'enregistrement de vos informations produit en ligne est sûr et sécurisé et
prend moins de 2 minutes:
Alternativement, nous vous recommandons de joindre une copie de votre reçu
de vente ci-dessous et de noter les informations suivantes, situées sur la plaque
signalétique du fabricant à l'arrière de l'appareil. Vous aurez besoin de ces
informations pour contacter le fabricant pour des demandes de service.
Date d’Achat: ____________________________________________
Numéro De Série: ____________________________________________
Numéro De Modèle: ____________________________________________
newair.com/enregistrer

www.newair.com 20
ES
INFORMATIONS DE SÉCURITÉ ET AVERTISSEMENTS
AVERTISSEMENT
Pour réduire le risque d'incendie, d'électrocution ou de blessure lors de
l'utilisation de votre appareil, suivez ces précautions de base:
Avant d'utiliser l'appareil, veuillez lire ce manuel de l'utilisateur pour vous
assurer d'en tirer le maximum d'avantages.
•Cet appareil n'est pas destiné à être utilisé par des personnes (y compris des
enfants) ayant des capacités physiques, sensorielles ou mentales réduites,
sauf sous la surveillance d'une personne responsable de leur sécurité.
•Cet appareil peut être utilisé par des enfants de 8 ans et plus sous la
surveillance étroite d'un adulte. Veuillez vous assurer que les enfants ne
jouent pas avec l'appareil.
•Le nettoyage et l'entretien par l'utilisateur ne doivent pas être effectués par
des enfants.
•Si le cordon d'alimentation est endommagé, il doit être remplacé par le
fabricant ou un technicien qualifié afin d'éviter tout danger.
•Pour éviter un danger dû à l'instabilité de l'appareil, celui-ci doit être fixé
conformément aux instructions.
•Lors du positionnement de l'appareil, assurez-vous que le cordon
d'alimentation n'est pas emmêlé ou endommagé.
•N'utilisez pas de multiprises portables avec l'appareil.
•Gardez les ouvertures de ventilation libres de toute obstruction.
•N'utilisez pas de dispositifs mécaniques ou d'autres moyens pour accélérer le
processus de dégivrage, sauf si recommandé dans ce manuel.
•N'endommagez pas le circuit frigorifique.
•N'utilisez pas d'appareils électriques à l'intérieur des compartiments de
rangement de boissons de l'appareil.
•Ne rangez pas de substances explosives telles que des bombes aérosols à
l'intérieur de cet appareil.
•Cet appareil est destiné à être utilisé dans des applications domestiques et
similaires telles que les cuisines du personnel dans les magasins, les bureaux
et autres environnements de travail ou résidentiels similaires.
•Les enfants âgés de 3 à 8 ans sont autorisés à charger et décharger les
appareils frigorifiques sous la surveillance d'un adulte.
