New Air NBC224SS00 User manual

24” 224-Can Beverage Fridge
Built-in or Freestanding Design
SKU: NBC224SS00
OWNERS MANUAL
Read and save these instructions.
Manual v1.0

2
newair.com
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Register Your Product Online............................................................................... 3
Safety Information & Warnings ...........................................................................4
Parts List............................................................................................................ 7
Assembly & Installation ....................................................................................... 8
Operating Instructions.......................................................................................17
Cleaning & Maintenance....................................................................................19
Troubleshooting.................................................................................................21
Limited Manufacturer’s Warranty.....................................................................23
SPECIFICATIONS
MODEL NO.
NBC224SS00
VOLTAGE:
120V
CURRENT:
1.3A
FREQUENCY:
60Hz
POWER CONSUMPTION:
100W
CAN CAPACITY:
224 cans
STORAGE CAPACITY:
5.72 cubic feet
TEMPERATURE RANGE:
37°F - 65°F
REFRIGERANT:
R600a

3
newair.com
REGISTER YOUR PRODUCT ONLINE
Register Your NewAir Product Online Today!
Take advantage of all the benefits product registration has to offer:
Service and Support
Diagnose troubleshooting and service issues faster and more
accurately
Recall Notifications
Stay up to date for safety, system updates and recall notifications
Special Promotions
Opt-in for NewAir promotions and offers
Registering your product information online is safe & secure and takes less
than 2 minutes to complete:
Alternatively, we recommend you attach a copy of your sales receipt below and
record the following information, located on the manufacturer’s nameplate on
the rear of the unit. You will need this information if it becomes necessary to
contact the manufacturer for service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
newair.com/register

4
newair.com
SAFETY INFORMATION & WARNINGS
Your safety and the safety of others are very important to us.
Always read and follow all safety messages.
All safety messages will follow the Safety Alert Symbol and
either the words “DANGER”, “WARNING” or “CAUTION”.
DANGER: Danger means that failure to heed this safety statement may result in
severe injury or death.
WARNING: Warning means that failure to heed this safety statement may
result in extensive product damage, serious injury, or death.
CAUTION: Caution means that failure to heed this safety statement may result
in minor or moderate personal injury, or property or equipment damage.
All safety messages will alert you to know what the potential hazard is, tell you
how to reduce the chance of injury, and let you know what can happen if the
instructions are not followed.
IMPORTANT SAFEGUIDES
Before the appliance is used, it must be properly positioned and installed as
described in this manual, please read the manual carefully. To reduce the risk
of fire, electrical shock or injury when using the appliance, follow basic
precaution, including the following:
•Plug into a grounded 3-prong outlet, do not remove grounding prong, do not
use an adapter or extension cord.
•It is recommended that a separate circuit serving only your appliance be
used. Do not use outlets that can be turned off by a switch or pull chain.
•Never clean appliance parts with flammable fluids or use them in the vicinity
of this appliance, since the fumes can create a fire hazard or explosion.
•Before proceeding with cleaning and maintenance operations, make sure
the power line of the unit is disconnected. Failure to do so can result in
electrical shock or death.

5
newair.com
•Do not connect or disconnect the plug when your hands are wet.
•Do not attempt to repair or replace any part of your appliance unless it is
specifically recommended in this manual. It is hazardous for anyone other
than an authorized Service Person to carry out servicing or repairs to this
appliance.
•This appliance is CFC- and HFC-free and contains small quantities of
Isobutane (R600a) which is environmentally friendly, but flammable. It does
not damage the ozone layer, nor does it increase the greenhouse effect.
Care must be taken during transportation and setting up of the appliance
that no parts of the cooling system are damaged. Leaking coolant can ignite
and may damage the eyes.
•In the event of any damage:
oAvoid open flames and anything that creates a spark,
oDisconnect from the electrical power line,
oAir the room in which the appliance is located for several minutes, and
oContact the Service Department for advice.
•The more coolant there is in an appliance, the larger the room it should be
installed in. In the event of a leakage, if the appliance is in a small room,
there is the danger of combustible gases building up. For every ounce of
coolant, at least 325 cubic feet of room space is required. The amount of
coolant in the appliance is stated on the data plate on the back of the
appliance.
•Take serious care when handling, moving, and using the appliance to avoid
either damaging the refrigerant tubing or increasing the risk of a leak.

6
newair.com
FOLLOW WARNING CALL OUTS BELOW ONLY WHEN
APPLICABLE TO YOUR MODEL
•Use two or more people to move and install the appliance. Failure to do so
can result in injury.
•To ensure proper ventilation for your appliance, the front of the appliance
must be completely unobstructed.
•Choose a well-ventilated area with temperatures above 60°F (16°C) and
below 90°F (32°C).
•The appliance should not be located next to ovens, grills or other sources of
high heat.
•The appliance must be installed with all electrical, water and drain
connections in accordance with state and local codes. A standard electrical
supply (115 V AC only, 60 Hz), properly grounded in accordance with the
National Electrical Code and local codes and ordinances is required.
•Do not bend, twist or pinch the power supply cord of appliance.
•The fuse (or circuit breaker) size should be 15 amperes.
•It is important for the appliance to be leveled in order to work properly. You
may need to make several adjustments to level it.
•Never allow children to operate, play with or crawl inside the appliance.
•Do not use solvent-based cleaning agents or abrasives on the interior. These
cleaners may damage or discolor the interior.
•Do not use this appliance for other than its intended purpose.
Risk of child entrapment!
To prevent entrapment and suffocation hazard, do not leave children
unattended when in the vicinity of the appliance.
Before discarding your old refrigerator:
•take off the doors.
•leave the shelves in place so that children may not easily climb inside.
- SAVE THESE INSTRUCTIONS -

7
newair.com

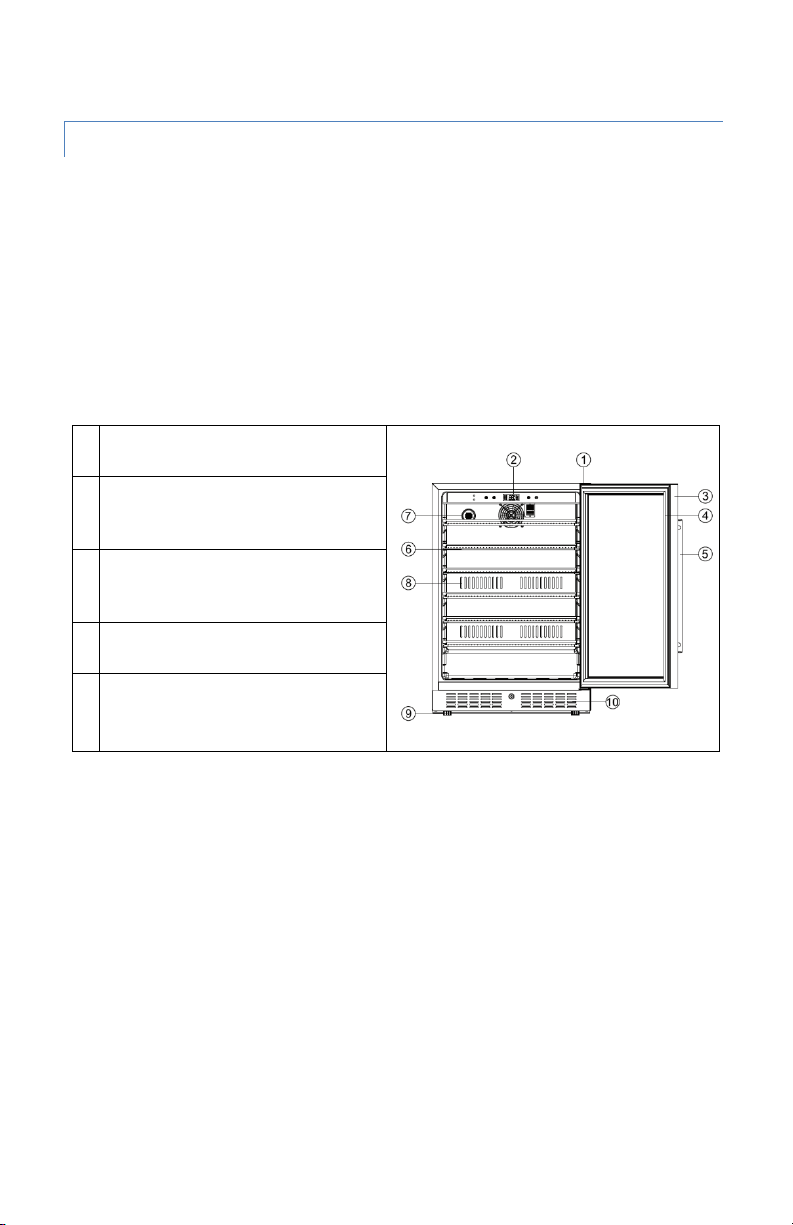

PARTS LIST
NBC224SS00 –24" Built-in Premium 224-Can Beverage Fridge
1
Upper Hinge
2
Control Panel
3
Door
4
Door Seal
5
Door Handle
6
Black Wire Shelf
7
Carbon Filters
8
Air Channel Plate
9
Adjustable Feet
10
Vent Kick Plate

8
newair.com
ASSEMBLY & INSTALLATION
ELECTRICAL CONNECTION
WARNING
This appliance should be properly grounded for your safety. The power cord of
this appliance is equipped with a three-prong plug which mates with standard
three prong wall outlets to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the
power cord supplied. For personal safety, this appliance must be properly
grounded.
This appliance requires a standard three-prong 115/120 Volt AC ~/60Hz
electrical ground wall outlet. Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is properly grounded. When a
standard 2-prong wall outlet is encountered, it is your responsibility and
obligation to have it replaced with a properly grounded 3-prong wall outlet.
The cord should be secured behind the appliance and not left exposed or
dangling to prevent accidental injury.
The appliance should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating label on the appliance. This
provides the best performance and also prevents overloading house wiring
circuits that could be a fire hazard from overheating. Never unplug the
appliance by pulling the power cord. Always grip the plug firmly and pull
straight out from the receptacle. Repair or replace immediately all power cords
that have become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length or at either end. When moving the
appliance, be careful not to damage the power cord.
Improper use of the grounded plug can result in the risk of electrical shock. If
the power cord is damaged, have it replaced by a service center authorized by
NewAir, LLC.

9
newair.com
EXTENSION CORD
Because of potential safety hazards under certain conditions, it is strongly
recommended that you do not use an extension cord with this appliance.
However, if you must use an extension cord it is absolutely necessary that it be
a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a
grounding type plug and outlet and that the electrical rating of the cord be 115
volts and at least 10 amperes.
BEFORE USING YOUR APPLIANCE
Remove the exterior and interior packing; check to be sure you have all the
following parts:
Model NBC224SS00
1
Instruction Manual
6
Black Wire Shelves
1
Door Handle
•Before connecting this appliance to the power source, let it stand upright
for approximately 24 hours. This will reduce the possibility of a
malfunction in the cooling system from handling during transportation.
•Clean the interior surface with lukewarm water using a soft cloth.
•The appliance is specially designed for wine and/or beverage storage;
please do not put in other types of food or perishable goods.
INSTALLATION OF YOUR APPLIANCE
•This appliance is designed for freestanding or built-in (fully recessed)
installation.
•Place your appliance on a floor that is strong enough to support it when it
is fully loaded. To level your appliance, adjust the front leveling legs at the
bottom of the appliance.
•Locate the appliance away from direct sunlight and sources of heat (stove,
heater, radiator, etc.). Direct sunlight may affect the acrylic coating and
heat sources may increase electrical consumption. Extremely cold ambient
temperatures may also cause the unit not to perform properly.
•Avoid locating the unit in moist areas.

10
newair.com
BUILT–IN CABINET INSTRUCTIONS
This unit is designed for both built-in and freestanding installation. If you plan
to use this unit in a built-in application, please follow the requirements shown
below. Be sure that airflow under the appliance is not blocked.

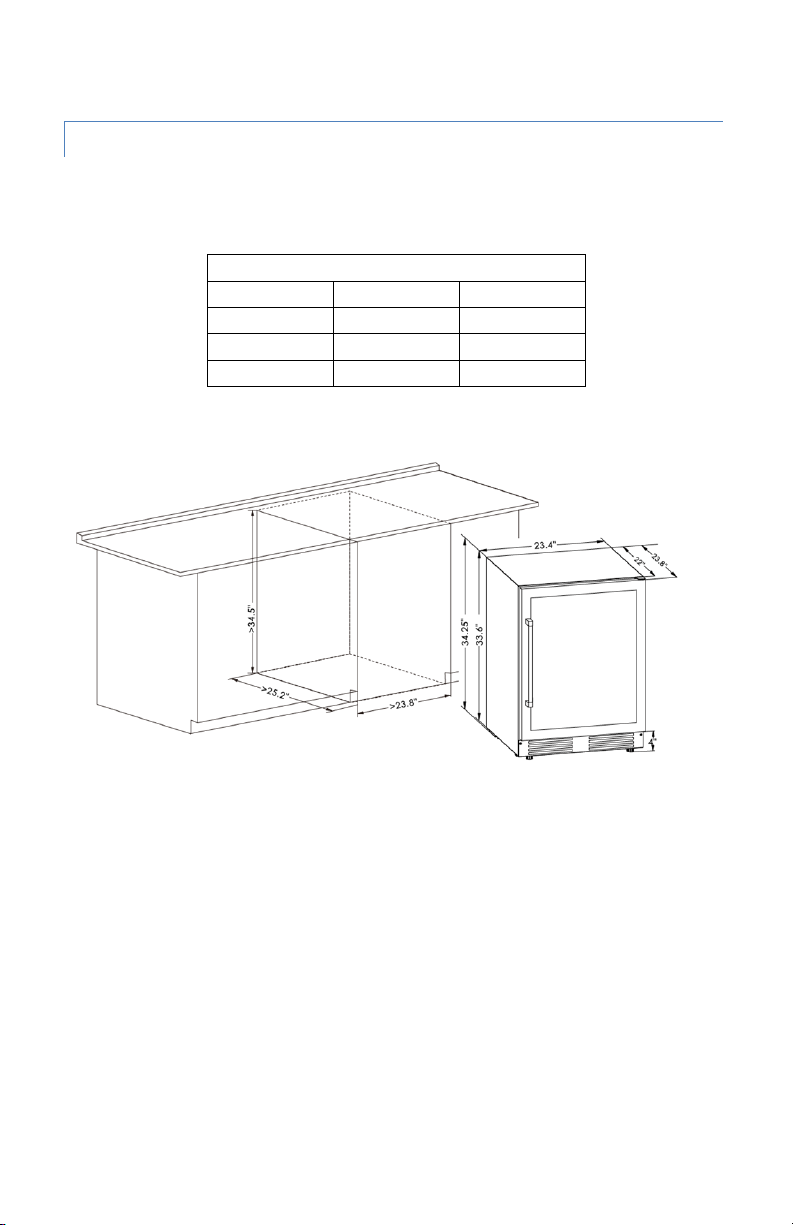

Cabinet Opening Dimensions
IN (min)
CM (min)
Width
23.8”
60.5 cm
Depth
25.2”
64.0 cm
Height
34.5”
87.6 cm

11
newair.com
INSTALLING STAINLESS STEEL HANDLE
This fridge includes two stainless steel handles that are not installed by the
factory. To install the handle please follow these instructions:
1. Pull away the door gasket in the area where the handle is to be installed, as
shown in the first illustration below. The gasket is easily displaced by hand,
no tools are necessary.
2. Align the handle with the screws pre-installed on the backside of the door.
Tighten the screws using a Phillips head screwdriver until the handle sets
both flush and secured tightly against the door frame. (DO NOT over-
tighten as this will cause damage to the handle assembly).
3. Replace the door gasket to its original position.

12
newair.com

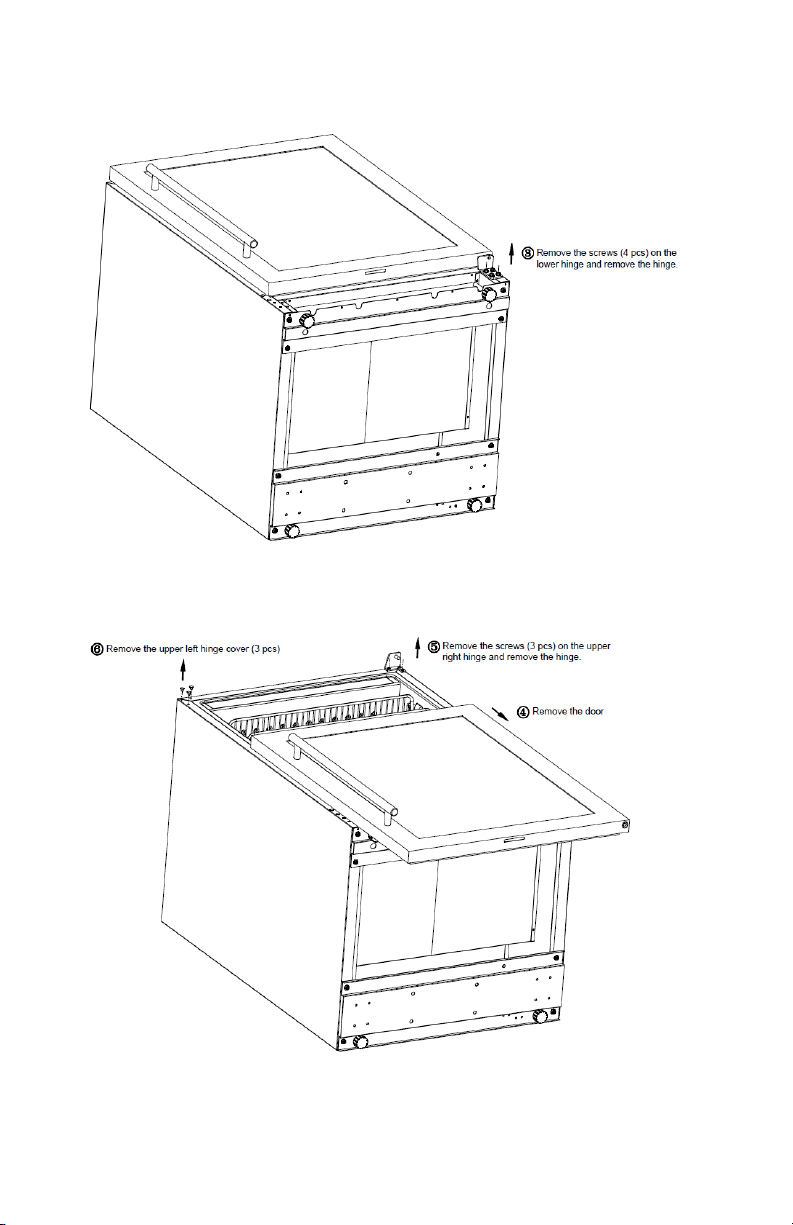

REVERSING STAINLESS STEEL DOOR

13
newair.com

14
newair.com

15
newair.com

16
newair.com

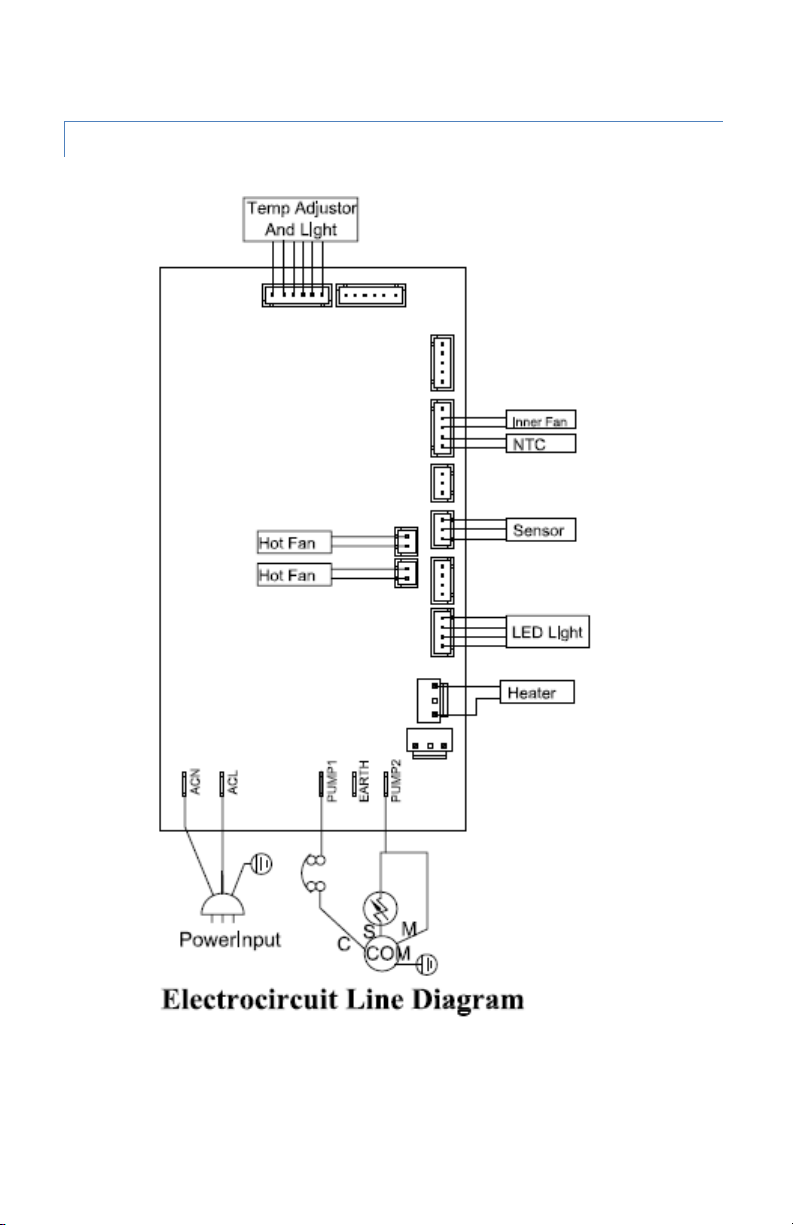

WIRINGDIAGRAM

17
newair.com
OPERATING INSTRUCTIONS
It is recommended that you install the appliance in a place where the ambient
temperature is between 61º- 100º F (16º-38º C). If the ambient temperature is
higher or lower than recommended temperatures, the performance of the unit
may be affected. For example, placing your unit in extremely cold or hot
conditions may cause interior temperatures to fluctuate and the stated range
of 37º-65ºF (5º-18º C) may not be reached.
CONTROL PANEL
ON/OFF POWER
Press and hold for 3 seconds on control panel to turn on or turn off
the fridge. When turned off, the appliance will stop working and completely
shut down.
LIGHT SETTING
There are 3 color for the light (white, blue and amber). Press to change
the color. Also, there are 3 light modes. Press and hold for 3 seconds to select
a light mode.
1. Light on and off mode: The default light setting is controlled by a sensor and
the LCD screen will show . When the door is opened, the light will turn
on automatically, when door is closed, the light will be turned off.
2. Light on model: Press and hold for 3 seconds to enter light on
LCD screen will display and themode. When in this mode, the
light will always be on.

18
newair.com
3. Multi-color LED with auto color change mode: press and hold for 3
seconds to enter light on mode. When in this mode, the LCD
screen will not display or ，and the lights will automatically change
colors constatntly.
TEMPERATURESETTING
Press or to adjust the temperature of the appliance. Each
press on the button will alter the temperature by 1°F or 1°C.
Press and together and hold for 3 seconds to change
temperature display from Celsius to Fahrenheit or from Fahrenheit to Celsius.
WARNING SYSTEM
1. Door open alarm: When door has been open for over 5 minutes, door open
alarm will be on and the LCD screen will display and beep 3 times every
5 seconds. Press any key or close the door to stop the alarm.
2. Low temperature alarm: When inside temperature is below 35.6°F (2°C) for
over 3 hours, it will beep to alarm and LCD screen will display .
Press any key to stop the beeping alarm.
3. High temperature alarm: When inside temperature is above 77°F (25°C) for
over 6 hours, it will beep to alarm and LCD screen will display .
Press any key to stop the beeping alarm.

19
newair.com
CLEANING & MAINTENANCE
CLEANING YOUR APPLIANCE
•Turn off the power, unplug the appliance, and remove all items including
shelves.
•Wash the inside surfaces with a warm water and baking soda solution. The
solution should be about 2 tablespoons of baking soda to a quart of water.
•Wash the shelves with a mild detergent solution.
•Wring excess water out of the sponge or cloth when cleaning area of the
controls, or any electrical parts.
•Wash the outside cabinet with warm water and mild liquid detergent. Rinse
well and wipe dry with a clean soft cloth.
•Do not use steel wool or steel brush on the stainless steel. These will
contaminate the stainless steel with steel particles and rusting may occur.
MOVING YOUR APPLIANCE
•Remove all items.
•Securely tape down all loose items (shelves) inside your appliance.
•Tape the door shut.
•Be sure the appliance stays secure in the upright position during
transportation. To avoid denting or scratching protect the appliance with a
cover if possible.
ENERGY-SAVING TIPS
•The appliance should be located in the coolest area of the room, away from
heat producing appliances, and out of direct sunlight.

20
newair.com
CARBON FILTRATION SYSTEM
Your wine is a living object that breathes through the cork of its bottle. In order
to preserve the quality and taste of your fine wines, they must be stored at the
ideal temperature and ambient conditions.
Your cellar is equipped with an active carbon filtration system to ensure air
purity and cooling efficiency, and to maintain an odor-free cabinet for the
storage of your wine. The filter assembly is located at the rear panel inside your
fridge.
Keep in mind, that this filter must be changed every 12 months.
To replace your filter:
1
Remove the cans stored on the
shelves in front of the filter.
2
Remove the shelves and set aside to
be replaced once you have changed
the filter.
3
Hold the filter and turn it at 90
degrees in a counterclockwise
direction and then pull it out.
4
Remove the existing filter and replace
with a new one.
5
Put the new filter into the hole and
then turn the filter 90 degrees in a
clockwise direction.
