Instruction manual
60cm Dual Fuel Freestanding Cooker
NWMC60DFB
NWMC60DFSS
NWMC60DFC

You’ll soon be enjoying your new Freestanding Cooker
It all begins here, with your instructions. Don’t worry, there’s
nothing too technical coming up. Just simple, step-by-step
guidance to get you up and running quickly. Sound good? Then
let’s get started.
Help and Guidance
We’re here to help you get the most from your Freestanding Cooker. Should you require any guidance, a
simple solution can often be found online at:
www.newworldassist.co.uk
If you still require further assistance, call one of our experts on 0333 305 2263

Contents
30
29
25
24
22
21
20
17
16
15
10
4
9
8
31
31
Product support
32
Safety information
Getting to know your
Freestanding Cooker
Installing your Freestanding
Cooker
1
2
3
4
5
6
25
Using your Freestanding
Cooker
Care and Maintenance
26
Energy fiche
Circuit Diagram
27
28

Safety information
Important - Please read these instructions fully before installing
or operating
4
INSTALLATION WARNINGS
IMPORTANT: This product MUST be installed
by a qualified Gas Safe registered installer in
accordance with local regulations. Particular
attention should be given to the ventilation
requirements.
CAUTION: Do not allow children in the
kitchen when cooking or while cooker parts
may still be hot. Many parts of the cooker will
become hot and present a considerable
hazard to children.

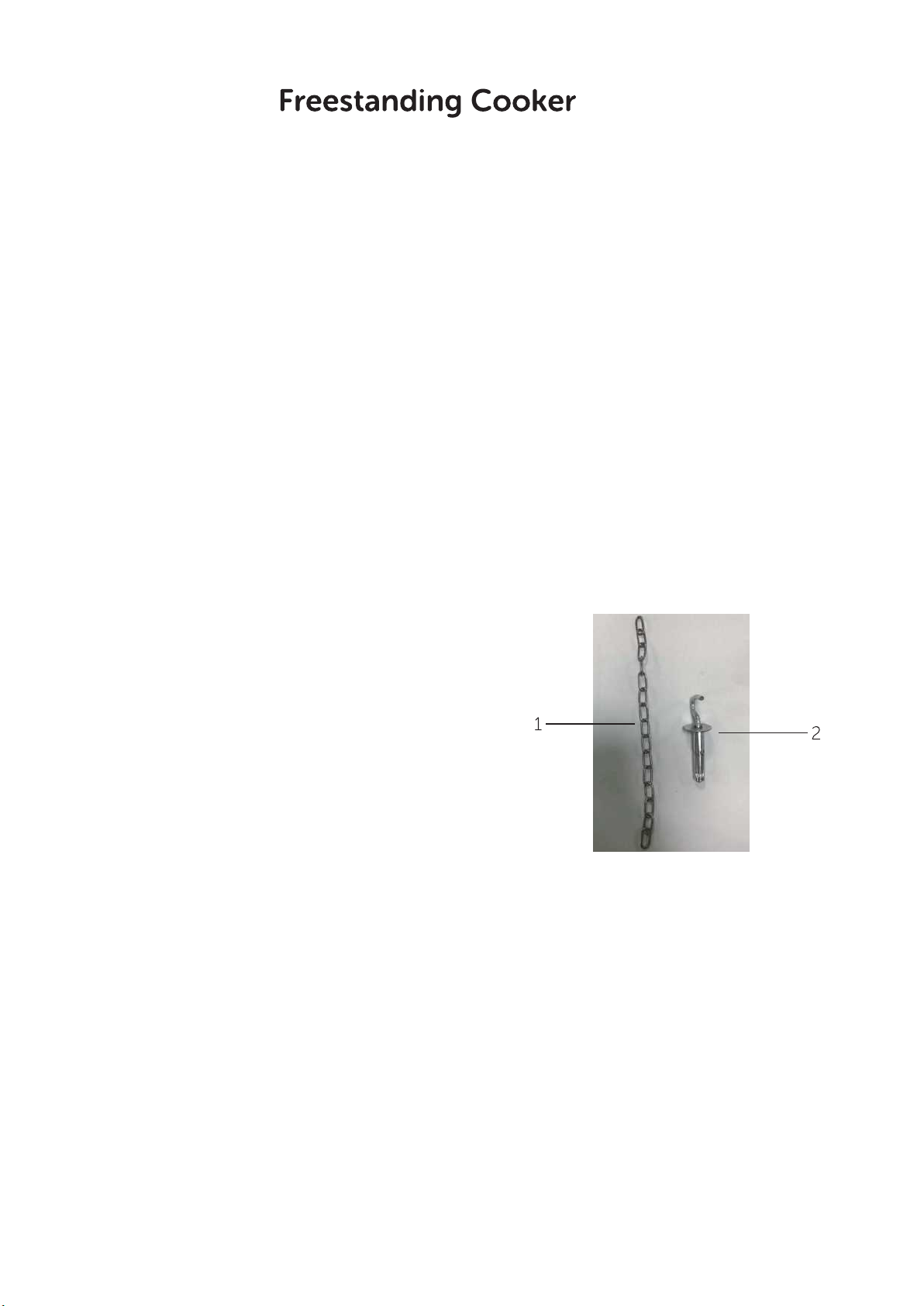

CAUTION: Cookers may topple forward if a
child climbs onto the cooker door. Children
should be supervised in the kitchen at all
times and this cooker must be secured to the
wall using the fixing kit (included) to prevent
accidents.
WARNING: NEVER try to extinguish a cooking
fire with water. Instead switch o the
appliance and cover flame e.g. with a lid or a
fire blanket.
WARNING: Cooking on a hob with fat or oil
can be dangerous and should not be left
unattended.
WARNING: The appliance and its accessible
parts become hot during use. Care should be
taken to avoid touching heating elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
IMPORTANT: Protect your cooker against
atmospheric eects. Do not expose your
cooker to eects such as sun, rain, snow etc.
IMPORTANT: In the event that the cable
connecting your cooker becomes damaged,
it must be replaced by a suitably qualified
person. This cable must not be replaced by
an unauthorised person.
IMPORTANT: Ensure that the electric supply
cable is not trapped or damaged during
installation.
IMPORTANT: Keep the electrical cable (not
supplied) of your cooker away from the hot
areas of your cooker; do not let the cable
touch the appliance. Keep the cable away
from sharp edges and heated surfaces.
IMPORTANT: Carefully unpack and examine
the appliance for any damage. If you think
there is a defect, do not use the appliance
and contact NEW WORLD Product Support
on 0333 305 2263. Packaging materials
should be collected together and disposed
of immediately as they may be harmful to
children.
IMPORTANT: Prior to Installation ensure that
the local supply conditions (gas type and
pressure, electricity voltage and frequency)
are compatible with the requirements of
your cooker.
DURING USAGE
IMPORTANT: This appliance can be used by
children aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not play
with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.

Safety information
Important - Please read these instructions fully before installing
or operating
5
IMPORTANT: The materials surrounding the
appliance (cabinets) must be able to
withstand a minimum temperature of 100°C.
CAUTION: Using gas cooking appliances
results in the production of heat, moisture
and the products of combustion. Ensure that
the room where your cooker is installed is
well ventilated particularly while the cooker
is in use. Keep natural ventilation holes open
or install a mechanical ventilation device
(extractor hood) Prolonged intensive use of
your cooker may call for additional
ventilation (by opening a window) or by
increasing the level of mechanical ventilation
where present.
IMPORTANT: If you do not intend to use
your cooker for a long period of time turn o
the gas and electric supply to the cooker.
IMPORTANT: Make sure the cooker control
knobs are all in the o position when not in
use.
IMPORTANT: Position pans over the centre
of the burners and turn handles to a safe
position where they can not be knocked or
grabbed.
WARNING: Before obtaining access to
terminals, all supply circuits must be
disconnected.
IMPORTANT: When using your oven for the
first time your cooker may give o smoke or
an unusual odour from the heating elements
and insulation materials. This is normal for
new cookers. To eliminate this odour run the
oven at 250 degrees for 40-60 mins with the
oven empty.
IMPORTANT: Do not hang towels, dishcloths
or clothes from the cooker or its handles.
IMPORTANT: When the door of the oven is
open, do not hang or lean anything on it. You
may unbalance your appliance or damage
the door or door hinges.
IMPORTANT: When using the grill the oven
door must be kept closed.
CAUTION: Take care when closing the oven
door that there is nothing obstructing it from
closing as this may break the glass door.
CAUTION: Before starting to use your
appliance, ensure curtains, paper or
flammable items are kept away from your
appliance. Do not keep flammable materials
inside of or around your cooker.
CAUTION: When the oven is hot never touch
the oven glass by hand or with tools.

Safety information
Important - Please read these instructions fully before installing
or operating
6
IMPORTANT: Maintenance and repair work
must only be performed by authorised
service technicians. Installation and repair
work that is carried out by unauthorised
technicians is dangerous and could invalidate
your guarantee.
IMPORTANT: Your appliance is produced in
accordance with all applicable local and
international standards and regulations.
WARNING: Ensure that the appliance is
switched o before replacing the lamp to
avoid the possibility of electric shock.
IMPORTANT: Do not try to lift or move this
appliance by pulling on the door handle.
WARNING: Danger of fire: do not store
flammable items on or near the cooking
surfaces or inside the oven.
IMPORTANT: This appliance has been
designed for non-professional, domestic
use only. Do not use this oven for
commercial use or any other application
e.g room heating.
GENERAL SAFETY WARNINGS
TO MAINTAIN THE EFFICIENCY AND
SAFETY OF YOUR APPLIANCE, WE
RECOMMEND YOU ALWAYS USE OUR
AUTHORISED SERVICE AGENTS AND
ORIGINAL SPARE PARTS.
FOR ASSISTANCE CALL NEW WORLD
PRODUCT SUPPORT 0333 305 2263.
WARNING: Do not use harsh abrasive
cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the
surface, which may result in shattering of the
glass.
WARNING: Do not clean your oven with a
steam cleaner.
IMPORTANT: Do not remove the control
knobs to clean the control panel.
IMPORTANT: Always turn the appliance o
before operations such as cleaning or
maintenance. You can do this by switching
the freestanding cooker o using the cooker
isolation switch
CLEANING AND MAINTENANCE

Getting to know your Freestanding Cooker
You’ll be up and running in no time
Ready? Let’s begin...
Please read these instructions carefully. They contain
important information which will help you get the best
from your freestanding cooker and ensure safe and
correct installation and operation.
If you require any further assistance, our technical
experts are happy to help. For full details, refer to
the product support section at the end of these
instructions.
7

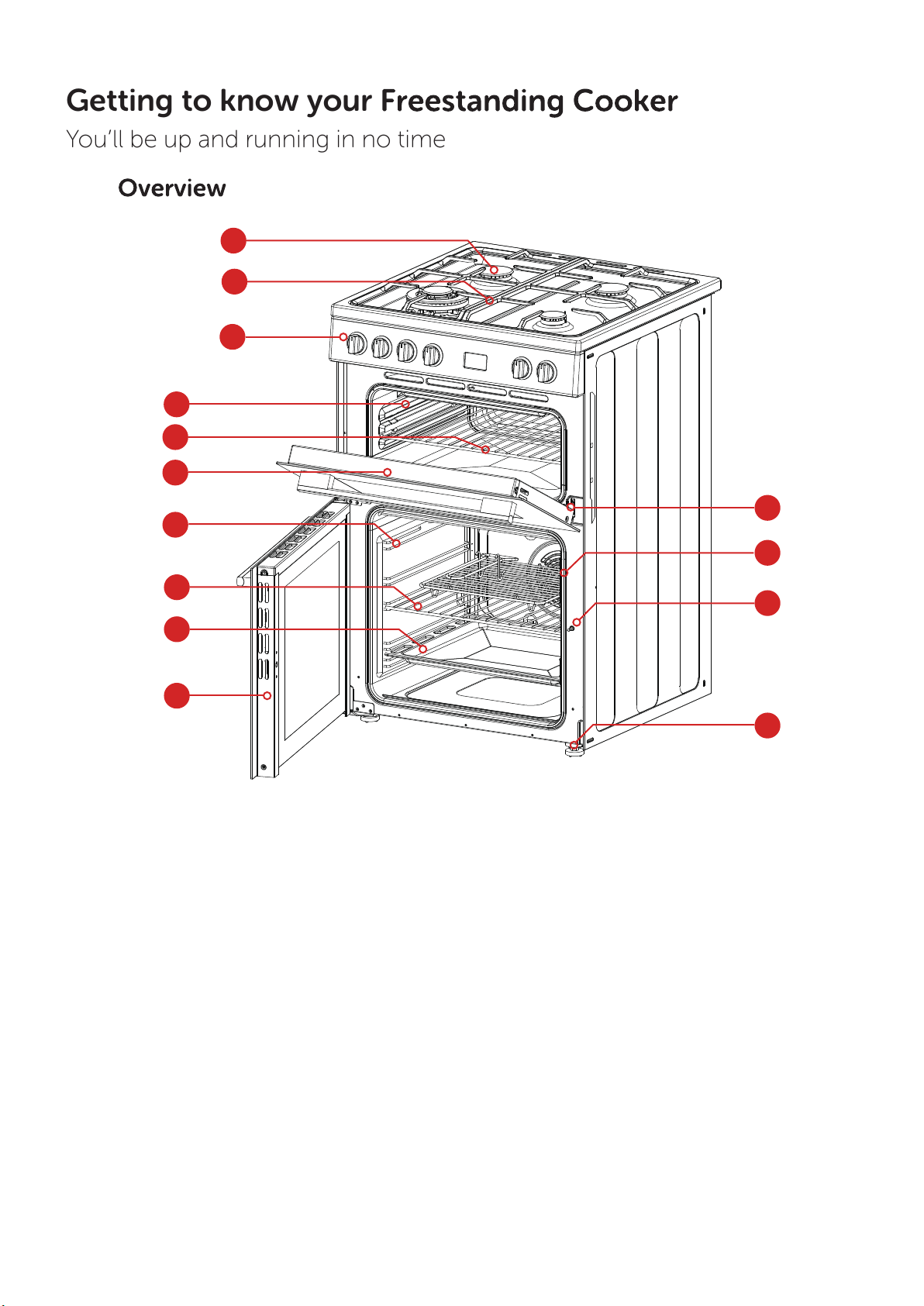

Getting to know your
You’ll be up and running in no time
8
1. Gas burners
2. Cast Iron Trivets
3. Control Panel
4. Shelf positions
5.
6.
Wire Shelf
Top Oven Door
Guide Bracket
Wire Shelf
Baking tray
7.
8.
9.
10. Bottom Oven Door
Hinge11.
12. Door Seal
Door lock13.
14. Anti slip feet
1
2
4
5
6
7
8
9
10
14
13
11
12
3

Getting to know your
You’ll be up and running in no time
Accessories
1.
2.
3.
4.
1 x Baking tray
1 x Grill insert
1 x Grill pan handle
2 x Chrome shelves 3
1
2
4
9

Installing your Freestanding Cooker
Bringing it all together
Installation requireme nts
THIS COOKER MUST BE INSTALLED
ACCORDING TO BS 6172: 2010 BY A SUITABLY
QUALIFIED GAS SAFE REGISTERED INSTALLER
IMPORTANT: CONTACT AN
AUTHORISED SERVICE AGENT FOR
INSTALLATION OF YOUR OVEN!
Data Label
The Data Label is located on the rear of the
appliance.This appliance is suitable for Natural
Gas and Universal LPG; ensure that the available
gas supply matches the Data Label and the gas
type label.
First Use
IMPORTANT: When using your oven for the first time
your cooker may give off smoke or an unusual
odour from the heating elements and insulation
materials. This is normal for new cookers. To
eliminate this odour run the oven at 250 degrees for
40-60 mins with the oven empty.
Unpacking
Carefully unpack and examine the appliance for
any damage. If you think there is a defect, do not
use the appliance and contact Product Support on
0333 305 2263.
Packaging materials should be collected
together and disposed of immediately as they
may be harmful to children.
10

Freestanding Cooker
Installation of Cooker
Gas
ot
lo
CONTACT AN AUTHORISED SERVICE AGENT FOR
INSTALLATION OF YOUR OVEN!

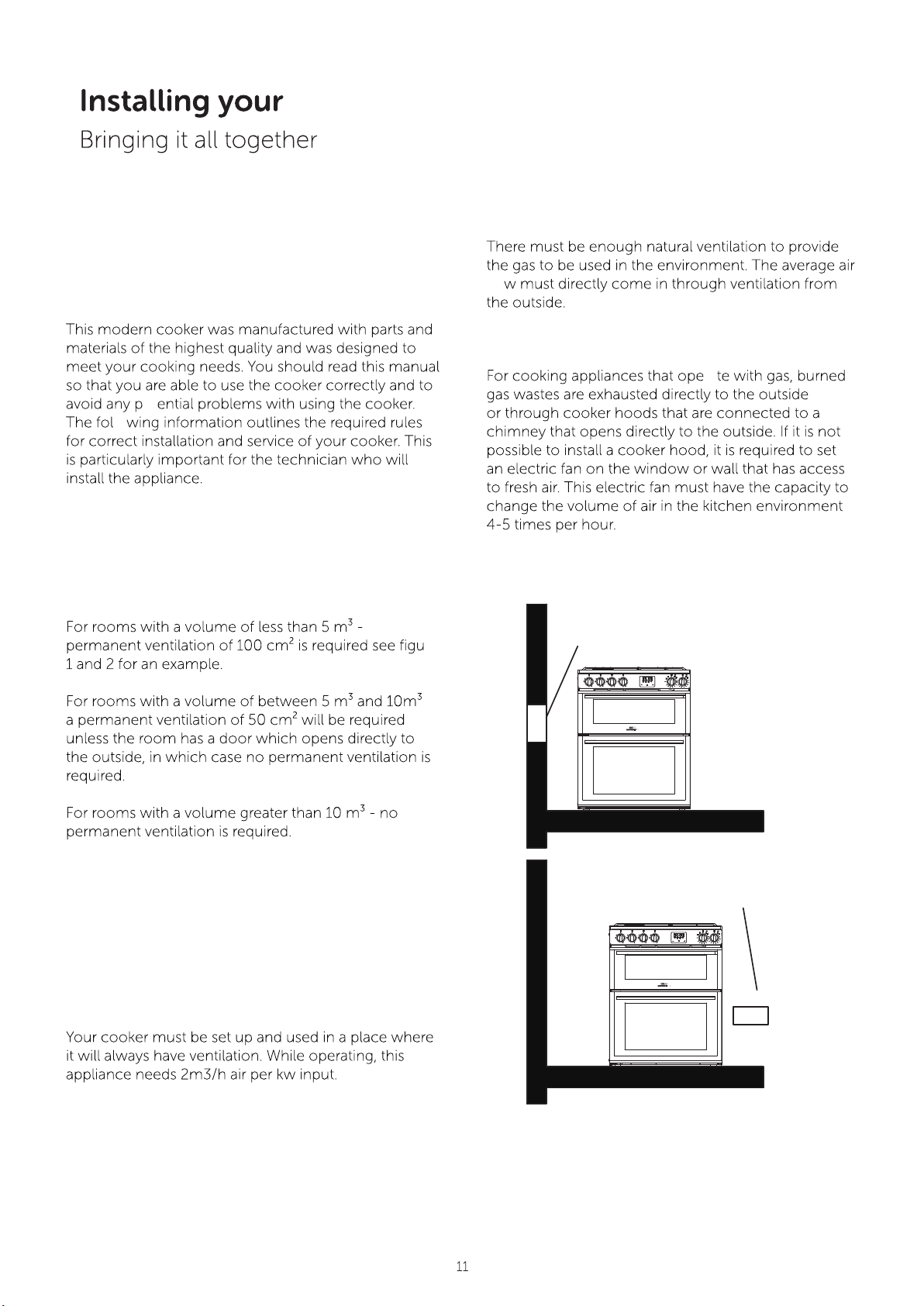

VENTILATION REQUIREMENTS
re
Attention: Regardless of room size, all rooms
containing the appliance must have direct access to
the outside air via an openable window or equivalent.
The room containing the cooker should have an air
supply in accordance with BS 5440: Part 2.
Environment where your appliance will be installed
flo
Emptying of the Burned Gases from Environment
ra
Air inlet section min 100cm2
Air inlet section
min 100cm2

Installing your Freestanding Cooker
Bringing it all together
Gas Connection
IMPORTANT - All Gas installations must be carried
out by a suitably qualified person. For information
on choosing a gas installer contact the ‘Gas Safe
Register’.
www.gassaferegister.co.uk
The appliance can be placed close to other furniture
on condition that the furniture’s height does not
exceed the height of the cooker panel. Make sure that
there are no combustible or flammable materials,
such as curtains, in the vicinity of the installation.
There must be at least 2cm of free space between the
back wall and the rear of the appliance to allow for
ventilation and air circulation.
Positioning
The furniture close to the cooker must be
manufactured resistant to temperatures up to 100°C.
If the kitchen furniture are higher than the hob plate
of the cooker, it must be at least 10cm away from the
cooker’s side.
Surrounding furniture, cabinets and extractor fans
should be positioned in accordance with the diagram
shown. If fited, the extractor fan must be at least
65cm above the hob.
If no fan is fitted the minimum distance between the
hob and any cabinet or other structure must be 70cm.
12

Installing your Freestanding Cooker
Bringing it all together
Gas Conversion (NG to U-LPG)
CONVERSION TO A DIFFERENT GAS TYPE MUST BE
CARRIED OUT BY A SUITABLY QUALIFIED GAS SAFE
REGISTERED INSTALLER
Changing the jets
1. Remove pan supports, burner heads and caps.
2. Use a size 7 socket wrench to unscrew and remove
the jets, replacing them with those supplied in the
conversion kit. Ensure you use the correct jet for the
corresponding burner.
3. Reassemble the burner heads, caps and pan
supports.
4. Fit the Gas type label supplied in the conversion kit
next to the gas connection point and remove the
existing label.
Setting the minimum level
1. Light one of the burners and turn the tap to
minimum flame
2. Remove the control knob which controls the ignited
burner.
3.U se a thin blade screwdriver to turn the by-pass
screw located above left of the gas valve shaft as
shown below. Turn the by-pass screw fully
clockwise. The result should be a small, stable flam
which is uniform around the entire burner ring. If not,
turn the by-pass screw anti-clockwise until satisfie
with the flame
4. Check that the burner does not go out when the tap
is turned quickly from the maximum to the minimum
position.
5. Repeat for each burner.
13

Installing your
Bringing it all together
Levellingfeet
The height and level of the appliance can be adjusted by rotating the feet located
underneath the appliance at each corner. Rotate the feet to decrease or increase
the height.
Figure 1.
Safety chain
The appliance must be secured against the possibility of tipping forward by
using the supplied safety chains attached to the rear of your oven.
Fasten the stability hook provided by inserting a wall plug into the kitchen wall
and then connect the safety chain to the hook via the locking mechanism.
1 Safety chain (supplied and mounted to oven)
Stability hook
Chain attachment for the rear of the cooker
Rear of the cooker
Kitchen wall
2
3
4
5
14

15
Installing your Freestanding Cooker
Bringing it all together
Electrical connection
IMPORTANT: Electrical connections must be carried out by a suitably qualified person and in accordance with
all relevant local building and installation regulations.
Fitting on a Power Supply Cable
Connecting appropriate power supply terminal board/ connector block:
Using a screwdriver, prize open tabs of the Terminal board cover.
Remove the wire clamp screw.
Fasten the wires beneath the corresponding screw heads, using brass ‘bridge’ for single phase supply.
Fasten cable clamp and close the cover of the terminal board.
The ac power supply should be 220-240 V, 50/60 Hz. For electric cookers, the minimum 45A fuse, or at
least 45A a distribution circuit breaker.
Connecting the supply cable to the mains
Install an approved circuit breaker with a minimum contact opening of 3 mm, between the appliance and the
mains fuse box .The circuit breaker should be sized according to the load and should comply with current
regulations (the earth wire should not be interrupted by the circuit breaker).
The supply cable should be positioned so that it does not reach a temperature of more than 50℃ with respect
to the room temperature, anywhere along its length. Before switching fuse ON in meter-box check:
Earth continuity. The electrical safety of this appliance can only be guaranteed if the cooker is correctly
installed and earthed, in compliance with regulations on electrical installations.
The electrical capacity of the system and sockets will support the maximum power of the appliance, as
indicated on the data plate
Warning: Connect the power cord in accordance with the instructions listed in the table below
Wire cross-sectional area(mm2)
Connection mode
LNE
1N~ Min4 Min4 Min4

Using your Freestanding Cooker

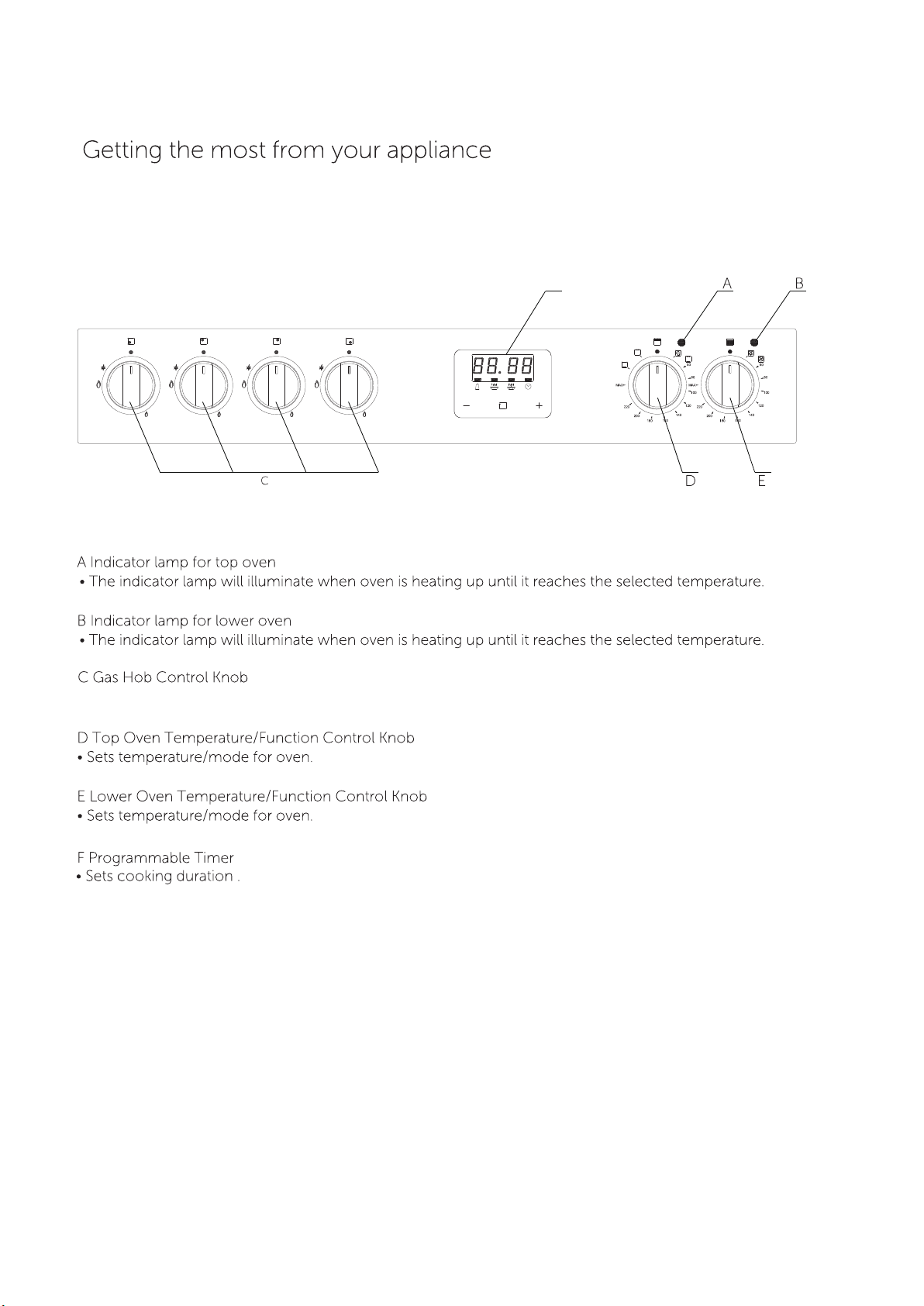

Control panel
F
•
16
Adjusts the flame of the hobs

Using your Freestanding Cooker
Getting the most from your appliance
Oven functions
17
Grill -The top central heating elements comes on .The extremely high and direct temperature of the grill makes it
possible to brown the surface of meats and roasts while locking the juices in to keep them tender. The grill is also
highly recommended for dishes that require a high temperature on the surface: beef steaks, veal, rib steak, fillets,
hamburgers etc.
Top & Bottom Element - Hot air comes from the upper and lower element in the oven. This is called
Conventional cooking and is ideal for joints of meat.
Bottom Element - Bottom element cooking is used for foods that typically need cooking with heat from
underneath - Cakes and Bread are examples of where this function would be useful.
Defrost mode - When set to ‘Defrost’ mode, the fan located at the back of the oven circulates room temperature
air around the food. This is recommended for the defrosting of all types of food, but in particular for delicate types
of food which do not require heat, for example: ice cream cakes, cream or custard desserts, fruit cakes, etc. By
using ‘Defrost’ mode, the defrosting time is approximately halved.
Fan Baking - When set to Baking mode, the fan element and the fan operate providing a delicate heat distributed
uniformly throughout the oven. This mode is ideal for baking and cooking delicate foods on multiple shelves,
especially cakes that need to rise such as cream puffs and for certain tartlets, sweet or savory biscuits, savory puffs,
swiss rolls and small portions of vegetables, etc.
Oven light -The oven light will operate on all oven functions
Using your appliance for the first time
The first time you use your appliance, we recommend that you set the temperature setting to the
highest mark. Set the function switch control knob to a cooking mode and leave the oven on for about
40-60 minutes with nothing in it and the oven door shut. Then, open the oven door and allow the oven to cool.
Any odour that may be detected during this initial use is due to the evaporation of substances used
to protect the oven during storage.
Grill
Top & Bottom Element
Bottom Element
Defrost mode
Fan Baking
Oven light

Using your Freestanding Cooker
Getting the most from your appliance
18
This model has a digital display, 24hr clock with 3
control buttons. When the power is connected, the
screen displays ‘AUTO’.
Adjusting the digital clock
For first use of cooker, the time must be set by
using the digital timer. The time must be set every
time the cooker has been reset by the mains. To
set the correct time, press the button to remove
'AUTO' first, then + or - button to advance forward
or backward until the correct time is displayed.
Manual operation setting
If ‘AUTO’ is flashing, automatic or semi-automatic
program has been set. Press button, ‘AUTO’ will
clear from the display and the oven can be
operated manually.
Automatic setting
Automatic setting of the oven allows you to select
the end time, cooking time, temperature and
cooking mode. The oven will switch on, cook
according to the selected cooking mode and
temperature and then switch off automatically;
1. Press the function button repeatedly until
As an example: If cooking time takes 45 minutes and you
want it to finish at 14:00
1. Press the function button repeatedly until
the bar above flashes and set the cooking time
45 minutes.
2. Press the function button repeatedly until
the bar above flashes and set the finish time to
14:00.
After the above setting , the current time is
displayed and the bars above and will flash,
indicating that automatic cooking feature of the
oven is set. When the clock displays 13:15, the oven
will start cooking automatically.
While cooking the bar will flash.
the bar above flashes , then press + or – button
to set the time frame for baking.
2.Press the function button repeatedly until
the bar above flashes , then press + or – button
to set the time to switch off.
3.Set cooking temperature and cooking mode by
turning the thermostat and function knob.
After these have been set, the bars above and
will flash, indicating that automatic cooking feature
of the oven is set.
Programmable Timer
The oven starts immediately, and ‘AUTO’ will
flash. When the finish time is reached, the oven
automatically stops cooking. The alarm will ring
button and the and ‘AUTO’ will flash, press the
ringing will stop.
When the button is pressed during semi-
automatic cooking, the set cooking time is
displayed. If the button is pressed and the time
is set back to ‘O’, the semi-automatic setting will
be cancelled. When button is pressed again,
the oven will revert to the manual mode.

Using your Freestanding Cooker
Getting the most from your appliance
19
Timer
The digital countdown timer can be set up to
23 hours and 59 minutes maximum.
To set the timer, press the button and then + or
- button until the desired time is displayed. Once
the button is released, the current time and U
is displayed. When the button is pressed the
remaining time is displayed. When the set time is
reached, disappears and the alarm will ring. To
stop the alarm, press the button.
Note: After pressing the button, timer settings
should be done within 5 seconds.
In case of a power failure, all settings including
the time display will be lost. When the power is
returned, three ‘O’ and ‘AUTO’ will be displayed.
The oven light
Set cooking mode selection knob to symbol
to switch on the oven light/s. The oven light/s stay
on when the oven is operating.
