New Yorker CLASSIC CG-A SERIES Service manual

1
8141959R15-2/04
BEFORE INSTALLATION: READ THIS MANUAL
SAVE THESE INSTRUCTIONS
Installing contractor and homeowner should read and be informed as to the proper installation and operation of this boiler.
The manufacturer will not be responsible for improper installation or operation. This manual and all associated instruction
material should be conspicuously posted near the boiler.
INSTALLATION, OPERATING
AND
SERVICE INSTRUCTIONS
CLASSIC CG-A SERIES
GAS BOILER
nonoitamrofnignikeesnehW.rotcartnocgnitaehruoyllac,reliobotsriaperroecivresroF
.lebaLgnitaRnonwohssare
bmuNlaireSdnarebmuNledoMrelioBedivorp,reliob
rebmuNledoMrelioBrebmuNlaireSrelioBetaDnoitallatsnI
_____-__A0_GC_______6
rotcartnoCgnitaeH rebmuNenohP
sserddA
Price - $3.00

2
This CG-A Series boiler has been approved by the Massachusetts Board of Plumbers and Gas Fitters: Approval No. C3-1000-31B.
The Commonwealth of Massachusetts requires this product to be installed by a licensed Plumber or Gas Fitter.
The following terms are used throughout this manual to bring attention to the presence of hazards of various risk levels,
or to important information concerning product life.
Table 1: Dimensional Data
Figure 1: Dimensional Drawing
REGNAD
noitautissuodrazahyltnenimminasetacidnI ,htaednitluserlliw,dediovatonfi,hcihw ytreporplaitnatsbusroyrujnisuoires .egamad
ECITON
,noitallatsninosnoitcurtsnilaicepssetacidnI erahcihwecnanetniamro,noitarepo yrujnilanosrepotdetalertontubtnatropmi .sdrazah
relioB eziS 'A''B''C''D''E''F''G' dednemmoceR *yenmihC saG .nnoC )TPF(
retaW tnetnoC )snollaG(
.xorppA gnippihS thgieW ).bL(
dnuoRerauqS
032/1-122164 4/3-542/1-82/1-4'51x.aiD"4'51x"8x"82/12.3452
044/3-424/1-518/5-75 4/1-748/1-92/1-4'51x.aiD"5'51x"8x"82/14 892
05822/1-814/1-96 8/5-844/3-92/1-4'51x.aiD"6'51x"8x"82/17.4643
064/1-134/3-128/7-0168/5-844/3-92/1-4'51x.aiD"6'51x"8x"82/15.5804
072/1-43522/1-2178/1-058/3-014/1-5'51x.aiD"7'51x"8x"84/32.6054
084/3-734/1-828/1-4178/1-058/3-014/1-5'51x.aiD"7'51x"8x"84/37 605
yenmihCfopoTotgninepOdooHtfarDfomottoBmorfsithgieHyenmihC'51* ylnOretaW,GISP03:erusserPgnikroWmumixaM
GNINRAW
noitautissuodrazahyllaitnetopasetacidnI ,htaednitluserdluoc,dediovatonfi,hcihw ytreporplaitnatsbusroyrujnisuoires .egamad
NOITUAC
noitautissuodrazahyllaitnetopasetacidnI nitluseryam,dediovatonfi,hcihw ytreporproyrujnironimroetaredom .egamad

3
Table of Contents
I. Pre-Installation ....................................... 3
II. Unpack Boiler ......................................... 4
III. Water Piping and Trim ........................... 5
IV. Gas Piping .............................................. 6
V. Venting ................................................... 8

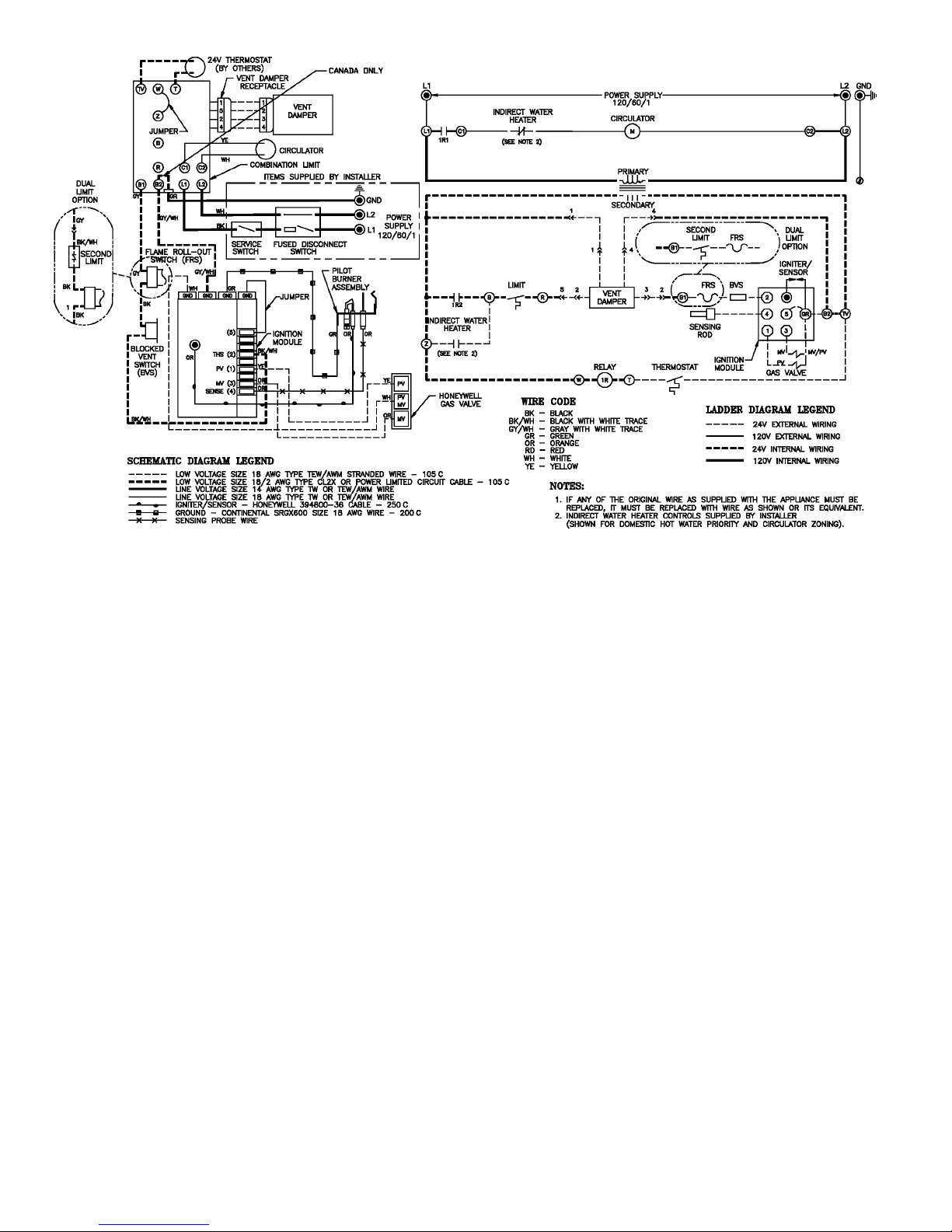

VI. Electrical ............................................... 11
VII. System Start-up .................................... 15

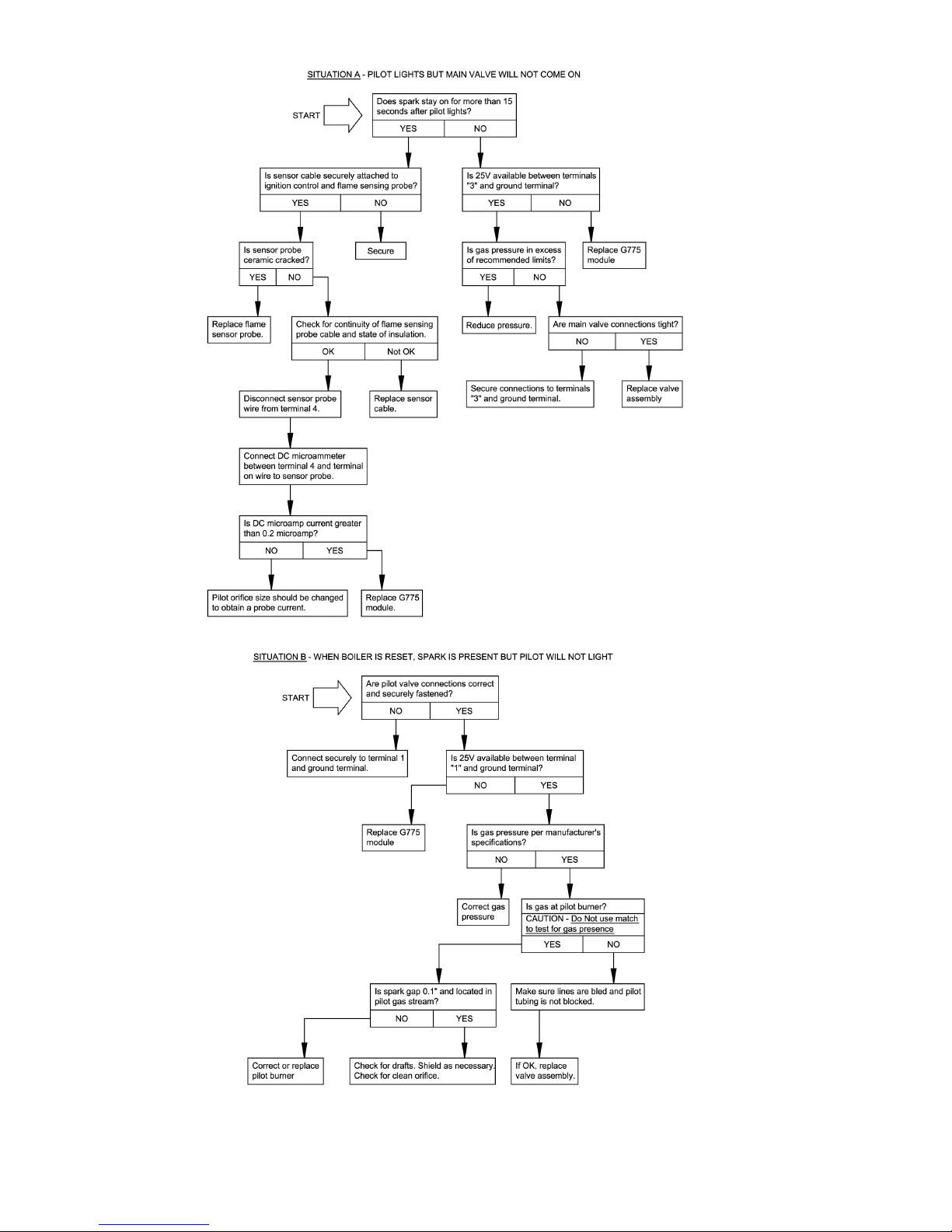

EI Trouble Shooting Guide ................... 20
VIII. Service .................................................. 22
IX. Repair Parts .......................................... 24
I. Pre-Installation
GNINRAW
erofebsnoitcurtsnilladaerylluferaC llawollofoteruliaF.reliobgnillatsni esuacnacredroreporpnisnoitcurtsni .htaedroyrujnilanosrep
A.Inspect shipment carefully for any signs of damage. All
equipment is carefully manufactured, inspected and
packed. Our responsibility ceases upon delivery of
boiler to carrier in good condition. Any claim for damage
or shortage in shipment must be filed immediately
against carrier by consignee. No claims for variances or
shortages will be allowed by Boiler Manufacturer,
unless presented within sixty (60) days after receipt of
equipment.
B. Installation must conform to the requirements of the
authority having jurisdiction. In the absence of such
requirements, installation must conform to National
Fuel Gas Code, NFPA 54/ANSI Z223.1 Where required
by the authority having jurisdiction, the installation
must conform to the Standard for Controls and Safety
Devices for Automatically Fired Boilers, ANSI/ASME
CSD-1.
C. Appliance is design certified for installation on
combustible flooring. The boiler must not be installed
on carpeting.
D. Provide clearance between boiler jacket and
combustible material in accordance with local fire
ordinance. Refer to Figure 2 for minimum clearance from
combustible material for closet installation. For alcove
or unconfined space installations height clearance
maybe reduced to 27". Subject to boiler and system
piping, left side clearance may be reduced to 1" if right
side clearance is increased to 9".
E. Provide practical service clearances. A minimum of 24"
from the left side and front jacket panels is
recommended for servicing but may be reduced to
minimums shown in Figure 2. Subject to boiler and
system piping, left side clearance may be reduced to 1"
if right side clearance is increased to 9".
F. Install on level floor. For basement installation provide
concrete base if floor is not level or if water may be
encountered on floor around boiler.
G. Protect gas ignition system components from water
(dripping, spraying, rain, etc.) during boiler operation
and service (circulator replacement, condensate trap,
control replacement, etc.).
H. Provide combustion and ventilation air in accordance
with applicable provisions of local building codes, or
National Fuel Gas Code, NFPA 54/ANSI Z223.1,
Section 5.3, Air for Combustion and Ventilation.

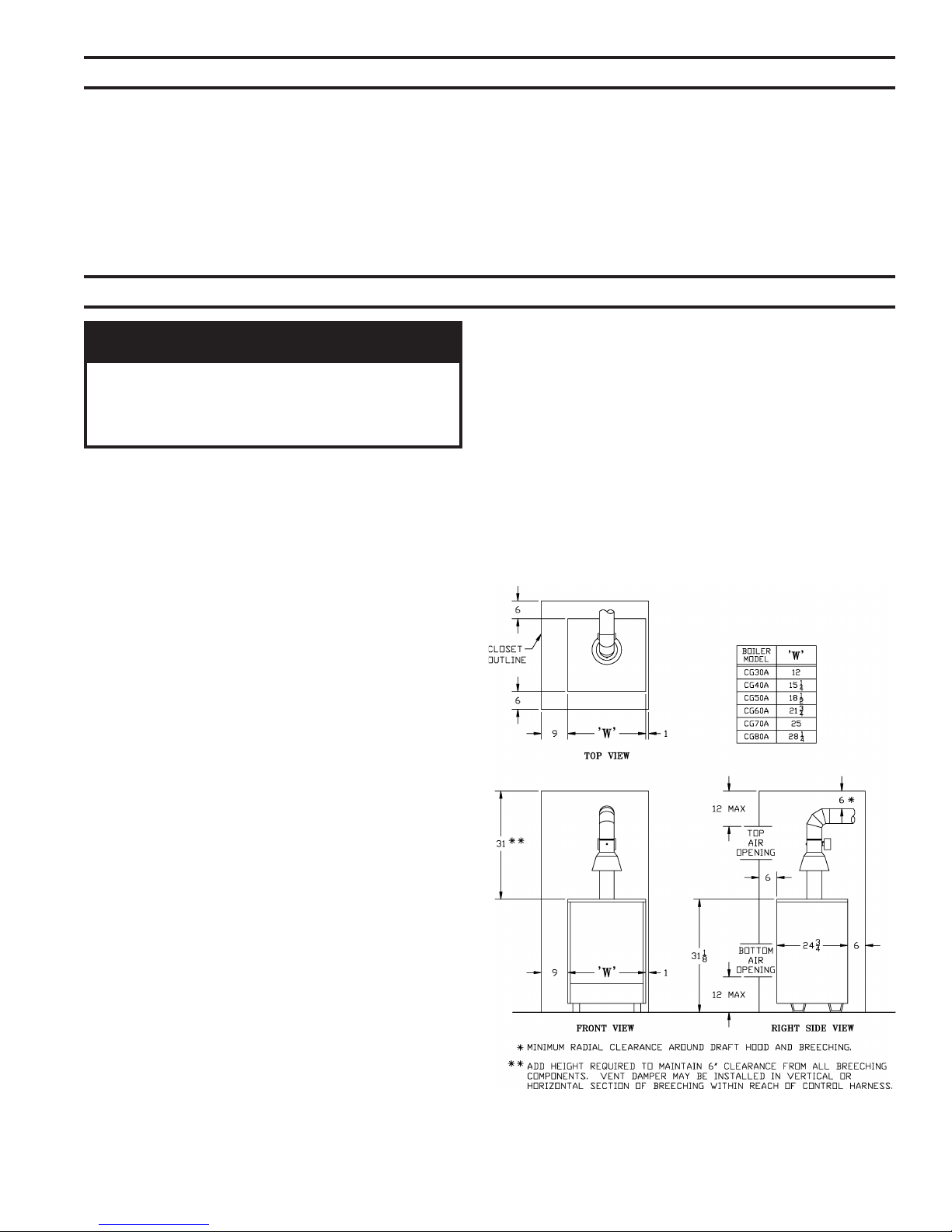

Figure 2: Minimum Clearances to Combustible
Construction for Closet Installation

4
confined space, provide outdoor air through two
permanent openings which communicate directly or
by duct with the outdoors or spaces (crawl or attic)
freely communicating with the outdoors. Locate one
opening within 12 inches of top of space. Locate
remaining opening within 12 inches of bottom of
space. Minimum dimension of air opening is 3
inches. Size each opening per following:
a. Direct communication with outdoors. Minimum
free area of 1 square inch per 4,000 Btu per hour
input of all equipment in space.
b. Vertical ducts. Minimum free area of 1 square
inch per 4,000 Btu per hour input of all equipment
in space. Duct cross-sectional area shall be same
as opening free area.
c. Horizontal ducts. Minimum free area of 1 square
inch per 2,000 Btu per hour input of all equipment
in space. Duct cross-sectional area shall be same
as opening free area.
Alternate method for boiler located within confined
space. Use indoor air if two permanent openings
communicate directly with additional space(s) of
sufficient volume such that combined volume of all
spaces meet criteria for unconfined space. Size each
opening for minimum free area of 1 square inch per
1,000 Btu per hour input of all equipment in spaces,
but not less than 100 square inches.
7. Ventilation Duct Louvers and Grilles. Equip outside
openings with louvers to prevent entrance of rain
and snow, and screens to prevent entrance of
insects and rodents. Louvers and grilles must be
fixed in open position or interlocked with equipment
to open automatically before burner operation.
Screens must not be smaller than ¼ inch mesh.
Consider the blocking effect of louvers, grilles and
screens when calculating the opening size to
provide the required free area. If free area of louver
or grille is not known, assume wood louvers have
20-25 percent free area and metal louvers and grilles
have 60-75 percent free area.
I. Do not install boiler where gasoline or other flammable
vapors or liquids, or sources of hydrocarbons (i.e.
bleaches, cleaners, chemicals, sprays, paint removers,
fabric softeners, etc.) are used or stored.
GNINRAW
rianoitalitnevdnanoitsubmocetauqedA reporperussaotdedivorpebtsum .noitsubmoc
The following guideline is based on the National Fuel
Gas Code, NFPA 54/ANSI Z223.1.
1. Determine volume of space (boiler room). Rooms
communicating directly with space (through
openings not furnished with doors) are considered
part of space.
Volume [ft³] = Length [ft] x Width [ft] x Height [ft]
2. Determine Total Input of all appliances in space.
Round result to nearest 1,000 Btu per hour (Btuh).
3. Determine type of space. Divide Volume by Total
Input.
a. If result is greater than or equal to 50 ft³ per 1,000
Btuh, space is considered an unconfined space.
b. If result is less than 50 ft³ per 1,000 Btuh, space is
considered a confined space.
4. Determine building type. A building of unusually
tight construction has the following characteristics:
a. Walls and ceiling exposed to outside atmosphere
have a continuous water vapor retarder with a
rating of 1 perm or less with openings gasketed
and sealed, and;
b. Weather-stripping has been added on openable
windows and doors, and;
c. Caulking or sealants applied in joints around
window and door frames, between sole plates
and floors, between wall-ceiling joints, between
wall panels, at plumbing and electrical
penetrations, and at other openings.
5. For boiler located in an unconfined space in a
building of other than unusually tight construction,
adequate combustion and ventilation air is normally
provided by fresh air infiltration through cracks
around windows and doors.
6. For boiler located within unconfined space in
building of unusually tight construction or within
II. Unpack Boiler
NOITUAC
reliobpmubtonoD.reliobpordtonoD .roolftsniagatekcaj
A. Move boiler to approximate installed position.
B. Remove all crate fasteners.
C. Lift outside container and remove with all other inside
protective spacers and bracing. Save two of the
wooden slats from the container sleeve for use in Steps
E and F.
D. Remove all boiler hold-down fasteners.
E. Tilt the boiler to one side and slide a wooden slat under
the two raised feet.
F. Tilt the boiler to the other side and slide another
wooden slat under the two raised feet.
G. Slide the boiler forward or backward off the skid using
the two wooden slats as runners.
H. Move boiler to its permanent location.

5
III. Water Piping and Trim
NOITUAC
nitluseryamreliobepipylreporpoteruliaF roreliobotegamaddnanoitareporeporpmi .gnidliub
A. Design and install boiler and system piping to prevent
oxygen contamination of boiler water.
Oxygen contamination sources are system leaks
requiring addition of makeup water, fittings, and oxygen
permeable materials in distribution system. Eliminate
oxygen contamination by repairing system leaks,
repairing fittings, and using nonpermeable materials in
distribution system.
B. Install circulator with flanges, gaskets and bolts
provided. Five foot long circulator harness allows
circulator to be mounted on supply or return. Connect
harness to circulator and secure any excess conduit.
Figure 3: Recommended Boiler Piping For Series -
Loop Hot Water Heating Systems
C. Install Safety Relief Valve. See Figure 1. Safety Relief
Valve must be installed with spindle in vertical position.
GNINRAW
ebtsumgnipipegrahcsidevlavfeilerytefaS folaitnetopetanimileotroolfraendepip aeraynaniepiptonoD.snrubereves llatsnitonoD.ruccodluocgnizeerferehw .sevlavffo-tuhsyna
D. Connect system supply and return piping to boiler.
Refer to Figure 3. Also consult I=B=R Installation and
Piping Guides. Maintain minimum ½ inch clearance from
hot water piping to combustible materials.
E. Space heating and domestic water heating with the New
Yorker Link indirect water heater. Install the New Yorker
Link indirect water heater as a separate heating zone.
Refer to the New Yorker Link Indirect Water Heater
Installation, Operating and Service Instructions for
additional information.

6
F. If boiler is used in connection with refrigeration
systems, boiler must be installed with chilled medium
piped in parallel with the heating boiler using
appropriate valves to prevent chilled medium from
entering boiler. See Figure 4. Also consult I=B=R
Installation and Piping Guides.
G. If boiler is connected to heating coils located in air
handling units where they may be exposed to
refrigerated air, boiler piping must be equipped with flow
control valves to prevent gravity circulation of boiler
water during operation of cooling system.
H. Use a boiler bypass if the boiler is to be operated in a
system which has a large volume or excessive radiation
where low boiler water temperatures may be
encountered (i.e. converted gravity circulation system,
etc.).
Remove circulator and install pipe tee between circulator
and boiler return along with second tee in supply piping
as shown in Figure 3. Bypass should be same size as
the supply and return lines with valves located in
bypass and supply outlet as illustrated in Figure 3 in
order to regulate water flow to maintain higher boiler
water temperatures.
Set by-pass and boiler supply valves to half throttle
position to start. Operate boiler until system water
temperature reaches normal operating range.
Adjust valves to provide 180° to 200°F supply water
temperature. Opening the boiler supply valve will raise
system temperature, while opening by-pass valve will
lower system supply temperature.
I. A hot water boiler installed above radiation level must
be provided with a low water cutoff device as part of
installation.
Figure 4: Recommended Piping for Combination Heating & Cooling (Refrigeration) Systems
A. Size gas piping. Design system to provide adequate
gas supply to boiler. Consider these factors:
1. Allowable pressure drop from point of delivery to
boiler. Maximum allowable system pressure is ½
psig. Actual point of delivery pressure may be less;
contact gas supplier for additional information.
Minimum gas valve inlet pressure is listed on
rating label.
2. Maximum gas demand. Table 2 lists boiler input
rate. Also consider existing and expected future gas
utilization equipment (i.e. water heater, cooking
equipment).
3. Length of piping and number of fittings. Refer to
Table 3 for maximum capacity of Schedule 40 pipe.
Table 4 lists equivalent pipe length for standard
fittings.
IV. Gas Piping
Table 2: Rated Input
relioB ledoM rebmuN
etaRtupnI ]ruohrepteefcibuc[ saG noitcennoC eziS
saGlarutaNenaporP/PL
0326¾42½
0469½83½
0503125½
06461½56½
07891¼97¾
08232¾29¾

7
Table 3: Maximum Capacity of Schedule 40 Pipe in CFH For Gas Pressures of 0.5 psig or Less
htgneL ]teeF[ porDerusserP.c.whcni3.0 porDerusserP.c.whcni5.0
½¾ 1 ¼1½¾1¼1
01231872025050,1571063086004,1
0229091053037021052564059
033725158209579002573077
043603154200528071023066
056551151204437151582085
060550159100466831062035
07646908107316521042094
08340907105375811022064
09044806102335011502034
001839705150305301591004
Table 4: Fitting Equivalent Lengths Table 5: Specific Gravity Correction Factors
4. All above ground gas piping upstream from manual
shut-off valve must be electrically continuous and
bonded to a grounding electrode. Do not use gas
piping as grounding electrode. Refer to National
Electrical Code, ANSI/NFPA 70.
C. Pressure test. The boiler and its gas connection must
be leak tested before placing boiler in operation.
1. Protect boiler gas control valve. For all testing over
½ psig, boiler and its individual shutoff valve must
be disconnected from gas supply piping. For testing
at ½ psig or less, isolate boiler from gas supply
piping by closing boiler's individual manual shutoff
valve.
2. Locate leaks using approved combustible gas
detector, soap and water, or similar nonflammable
solution. Do not use matches, candles, open flames,
or other ignition source.
4. Specific gravity of gas. Gas piping systems for gas
with a specific gravity of 0.70 or less can be sized
directly from Table 3, unless authority having
jurisdiction specifies a gravity factor be applied.
For specific gravity greater than 0.70, apply gravity
factor from Table 5. If exact specific gravity is not
shown choose next higher value.
For materials or conditions other than those listed
above, refer to National Fuel Gas Code, NFPA 54/
ANSI Z223.1, or size system using standard
engineering methods acceptable to authority having
jurisdiction.
B. Connect boiler gas valve to gas supply system.
1. Use methods and materials in accordance with local
plumbing codes and requirements of gas supplier.
In absence of such requirements, follow National
Fuel Gas Code, NFPA 54/ANSI Z223.1.
2. Use thread (joint) compounds (pipe dope) resistant
to action of liquefied petroleum gas.
3. Install sediment trap, ground-joint union and
manual shut-off valve upstream of boiler gas
control valve. See Figure 6 or 7.
cificepS ytivarG noitcerroC rotcaF cificepS ytivarG noitcerroC rotcaF
05.001.13.170.1
55.040.14.140.1
06.000.15.100.1
56.069.06.179.0
07.039.07.149.0
57.009.0
08.078.0
gnittiF eziSepiPlanimoN
½¾ 1 ¼1
llE°547.012.16.1
llE°096.11.26.25.3
)woblEsA(eeT1.31.42.59.6

8
Figure 6: Pilot and Gas Piping, Continuous
Ignition (Standing Pilot)
Figure 7: Pilot and Gas Piping, Intermittent
Ignition (EI)
V. Venting
A. Install vent system in accordance with local building
codes; or local authority having jurisdiction; or
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Part 7,
Venting of Equipment. Install any of the following for
this Classic CG-A Series Category I, draft hood
equipped appliance:
1. Type B or Type L gas vent. Install in accordance
with listing and manufacturer's instructions.
2. Masonry or metal chimney. Build and install in
accordance with local building codes; or local
authority having jurisdiction; or Standard for
Chimneys, Fireplaces, Vents, and Solid Fuel
Burning Appliances, ANSI/NFPA 211.
Masonry chimney must be lined with approved clay
flue lining or listed chimney lining system except as
provided in ANSI Z223.1/NFPA 54, Paragraph
7.5.4(a): Exception: Where permitted by the
authority having jurisdiction, existing chimneys
shall be permitted to have their use continued when
an appliance is replaced by an appliance of similar
type, input rating, and efficiency.
3. Single wall metal vent. Allowed by ANSI Z223.1/
NFPA 54 under very restrictive conditions.
B. Inspect chimney and remove any obstructions or
restrictions. Clean chimney if previously used for solid
or liquid fuel-burning appliances or fireplaces.
REGNAD
gnillatsnierofebyenmihcgnitsixetcepsnI detarofrepecalperronaelcoteruliaF.reliob royrujnierevesesuaclliwgninilelitroepip .htaed
C. Install Draft Hood without modification on outlet of flue
collector. See Figure 1. Secure with sheet metal screws.
GNINRAW
ynaecalprodoohtfardreliobretlatonoD ehtnirepmaddevorppa-nonronoitcurtsbo egallipssageulF.metsystnevrognihceerb emoceblliwnoitacifitrecLTE.rucconac .diov
D. Install Blocked Vent Switch. The Blocked Vent Switch
Assembly shipped taped to top of boiler includes power
cord and switch attached to mounting bracket.
1. Untape Blocked Vent Switch Assembly from top of
boiler. Uncoil power cord.
2. Position mounting bracket onto lower edge of Draft
Hood skirt. Locate center tooth (with #10 sheet
metal screw) on outside and other two teeth inside
Draft Hood skirt. See Figure 8.

9
3. Slide mounting bracket tight against lower edge of
Draft Hood skirt. Position #10 sheet metal screw
above skirt's stiffening rib.
4. Secure bracket in position by tightening #10 sheet
metal screw against outer surface of Draft Hood
skirt.
5. Verify power cord, mounting bracket and Blocked
Vent Switch are secure and located as shown in
Figure 8.
GNINRAW
sihtesudnallatsniylreporpoteruliaF ytreporpnitluseryamhctiwStneVdekcolB .efilfossolroyrujnilanosrep,egamad
E. Install Vent Damper. See Figure 9.
1. Open Vent Damper Carton and remove Installation
Instructions. Read Installation Instructions
thoroughly before proceeding.
ECITON
noitallatsni,snoitacificepsehtotreferesaelP ediuggnitoohselbuortdnasnoitcurtsni rofnotracrepmadtnevehtnidekcap .snoitcurtsninoitallatsnideliatedetelpmoc
2. Vent damper should be same size as draft hood
outlet. See Figure 1. Unpack vent damper carefully -
DO NOT FORCE CLOSED! Forcing vent damper
may damage gear train and void warranty. Vent
damper assembly includes pre-wired connection
harness with polarized plug for use on all 24V
standing pilot or EI control systems.

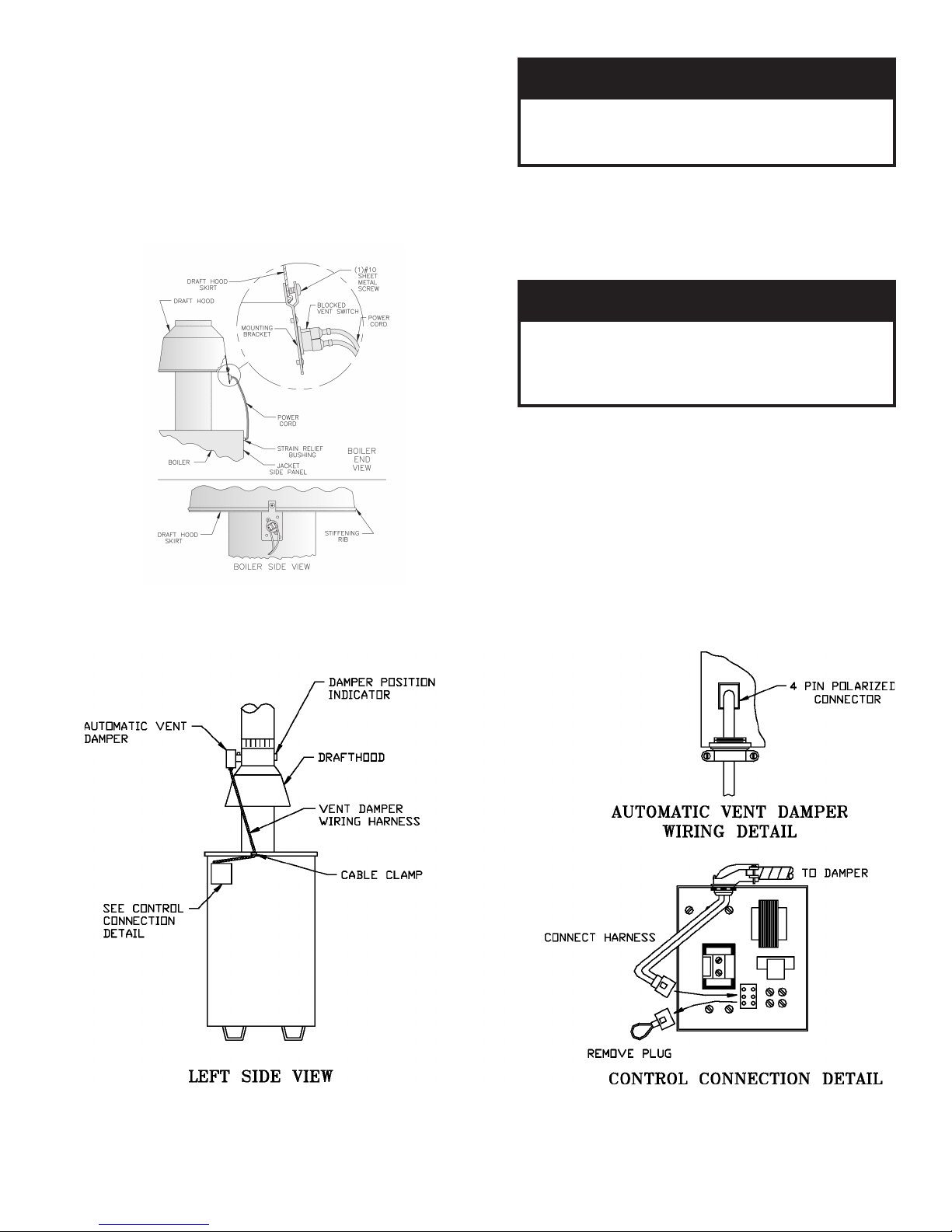

Figure 8: Blocked Vent Switch Installation
Figure 9: Vent Damper Installation

10
3. Mount vent damper assembly on draft hood without
modification to either. Refer to instructions packed
with vent damper for specific instructions. Vent
damper position indicator to be visible to users.
ECITON
.gnicivresrofecnaraelcetauqedaedivorP
GNINRAW
neewtebecnaraelcmuminim"6edivorP .noitcurtsnocelbitsubmocdnarepmad
NOITUAC
owtlortnocotrepmadtnevenoesutonoD .secnailppagnitaeh

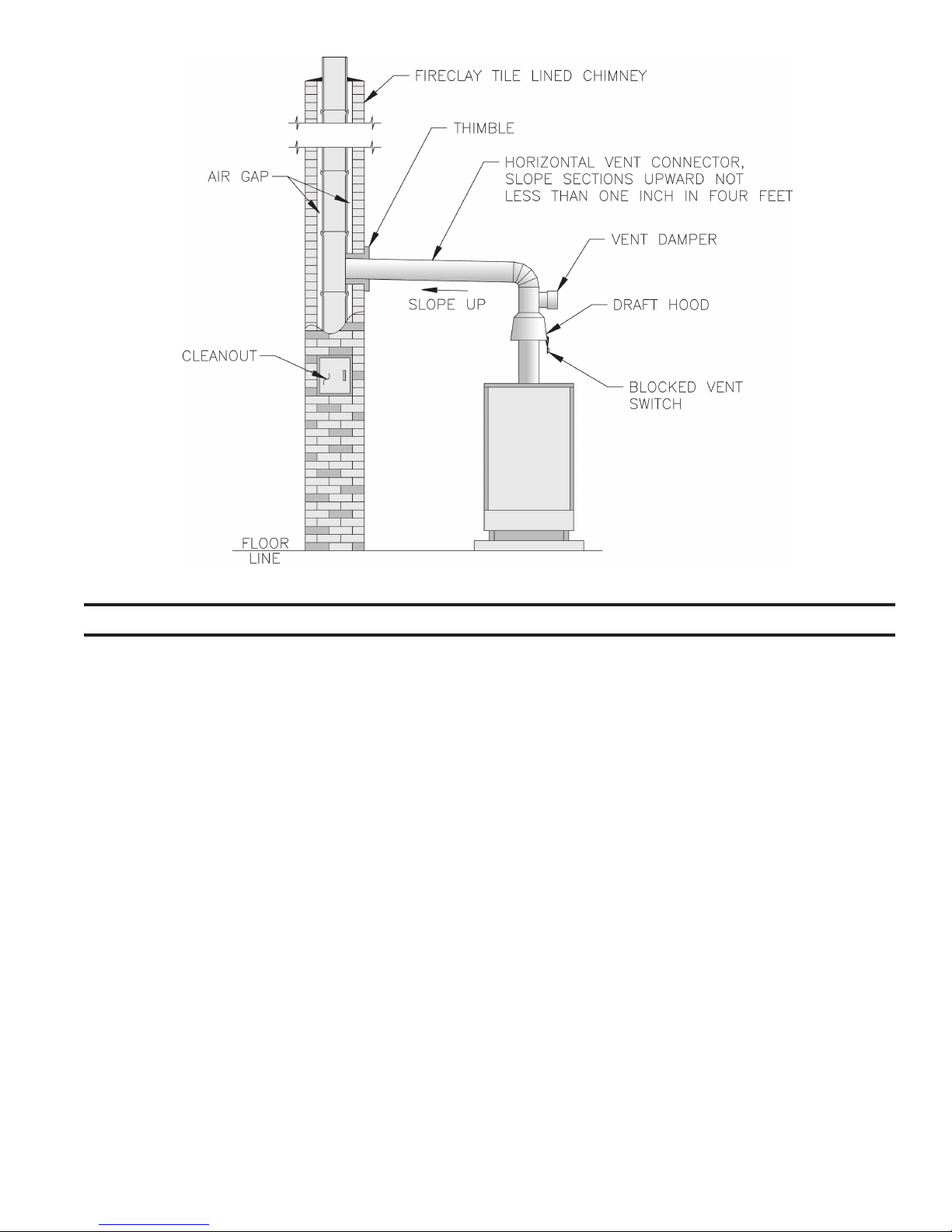

F. Install Vent Connector from vent damper to chimney or
gas vent. See Figure 10.
1. Do not connect into same leg of chimney serving an
open fireplace.
2. Vent connector must not be smaller than vent
damper outlet. Type B is recommended, but single-
wall vent pipe may be used. Arrange venting system
so only the boiler is served by vent damper device.
3. Where two or more appliances vent into a common
vent, the area of the common vent should be at least
equal to the area of the largest vent plus 50% of the
area in the additional vent(s). Do not connect the
vent of this appliance into any portion of mechanical
draft systems operating under positive pressure.
4. Vent connector should have greatest possible initial
rise above vent damper consistent with headroom
available and required clearance from adjacent
combustible building structure.
5. Vent connector should slope upward from vent
damper to chimney or gas vent not less than one
inch in four feet. No portion of vent connector
should run downward or have dips or sags. Vent
connector must be securely supported.
6. Vent connector should be installed above bottom of
chimney to prevent blockage. Inserted into but not
beyond inside wall of chimney liner. Seal tight
between vent connector and chimney.
G. If an Existing Boiler is Removed:
When an existing boiler is removed from a common
venting system, the common venting system is likely to
be too large for proper venting of the appliances
remaining connected to it.
At the time of removal of an existing boiler, the
following steps shall be followed with each appliance
remaining connected to the common venting system
placed in operation, while the other appliances
remaining connected to the common venting system are
not in operation:
a. Seal any unused openings in the common venting
system.
b. Visually inspect the venting system for proper size
and horizontal pitch and determine there is no
blockage or restriction, leakage, corrosion, and other
deficiencies which could cause an unsafe condition.
c. Insofar as is practical, close all building doors and
windows and all doors between the space in which
the appliances remaining connected to the common
venting system are located and other spaces of the
building. Turn on clothes dryers and any appliance
not connected to the common venting system. Turn
on any exhaust fans, such as range-hoods and
bathroom exhausts, so they will operate at maximum
speed. Do not operate a summer exhaust fan. Close
fireplace dampers.
d. Place in operation the appliance being inspected.
Follow the Lighting (or Operating) Instructions.
Adjust thermostat so appliance will operate
continuously.
e. Test for spillage at the draft hood relief opening after
5 minutes of main burner operation. Use the flame of
a match or candle, or smoke from a cigarette, cigar or
pipe.
f. After it has been determined that each appliance
remaining connected to the common venting system
properly vents when tested as outlined above,
return doors, windows, exhaust fans, fireplace
dampers and any other gas-burning appliance to
their previous condition of use.
g. Any improper operation of the common venting
system should be corrected so the installation
conforms with the National Fuel Gas Code, NFPA
54/ANSI Z223.1. When resizing any portion of the
common venting system, the common venting
system should be resized to approach the minimum
size as determined using the appropriate tables in
Part 11 in the National Fuel Gas Code, NFPA 54/
ANSIZ223.1.

11
Figure 10: Typical Vent System Installation
A. General. Install wiring and ground boiler in accordance
with requirements of authority having jurisdiction, or in
absence of such requirements the National Electrical
Code, ANSI/NFPA 70.
B. Connect Vent Damper. See Figure 9.
1. Remove 7/8" knockout and cover from Honeywell
L8148ELimitControl.
2. Attach Vent Damper wiring harness into top of
control.
3. Remove plug. Connect Vent Damper Wiring
Harness to Limit's vent damper receptacle.
Note: After Vent Damper is installed and operated
through one cycle, the control circuit will operate only
when Vent Damper is connected in control circuit.
C. Install thermostat. Locate on inside wall approximately
4 feet above floor. Do not install on outside wall, near
fireplace, or where influenced by drafts or restricted air
flow, hot or cold water pipes, lighting fixtures,
television, or sunlight. Allow free air movement by
avoiding placement of furniture near thermostat.
VI. Electrical
D. Wire thermostat. Provide Class II circuit between
thermostat and boiler. Set thermostat heat anticipator to
0.3 amps. See Figure 12 for continuous ignition
(standing pilot) or Figure 13 for intermittent ignition (EI).
If system tends to overheat above thermostat's
temperature setting, reduce heat anticipator setting by
0.1 or 0.2 amps. If system tends to shortcycle without
reaching desired room temperature, increase heat
anticipator setting by 0.1 or 0.2 amps.
E. New Yorker Link indirect water heater (if used). See
Figure 12 for continuous ignition (standing pilot) or
Figure 13 for intermittent ignition (EI). Also refer to the
New Yorker Link Indirect Water Heater Installation,
Operating and Service Instructions.
1. Zoning with Circulators, Domestic Hot Water
Priority. Provide DPDT relay. Connect coil to the
New Yorker Link indirect water heater thermostat.
Connect normally open contacts to Limit terminals 'Z'
and 'B'. Disconnect yellow circulator wire (Limit
terminal 'C1'). Connect normally closed contacts to
Limit terminal 'C1' and yellow circulator wire.

12
Figure 11: Vent Damper Schematic Wiring Diagram
G. For installations using zone valves provide separate
transformer for zone valve wiring. Consult zone valve
manufacturer for assistance.
H. Vent Damper Sequence of Operation. See Figure 11.
1. Vent Damper continuously powered at Terminal 1.
2. Call for heat energizes Vent Damper through
Terminal5.
3. Vent Damper reaches fully open position. Power is
sent back to Limit through Terminal 2.
4. Call for heat ends. Vent Damper closes.
2. Zoning with Circulators, Nonpriority. Connect the
New Yorker Link indirect water heater thermostat to
Limit terminals 'Z' and 'B'.
3. Zoning with Zone Valves. Connect the New Yorker
Link indirect water heater thermostat zone valve.
Connect zone valve end switch to Limit terminals 'T'
and 'TV'. See Paragraph G.
F. Wire boiler. Boiler is rated for 120 VAC, 60 hertz, less
than 12 amperes. Provide individual branch circuit with
fused disconnect. Connect to black and white wires
and green ground screw. See Figure 12 for continuous
ignition (standing pilot) or Figure 13 for intermittent
ignition(EI).
NOITUAC
yamhcihwslortnocsniatnocreliobsihT tondnanwodtuhsotreliobehtesuac oteudegamadfI.ecivrestuohtiwtratser gnitaeheht,ytilibissopasisepipnezorf nidednettanutfelebtondluohsmetsys sdraugefasetairporpparo;rehtaewdloc ehtnodellatsniebdluohssmraladna ehtfiegamadtneverpotmetsysgnitaeh .evitareponisireliob

13
I. Sequence of Operation, Continuous Ignition (Standing
Pilot).
1. Normal Operation
a. Thermostat calls for heat. Vent Damper opens.
b. Gas Valve energized allowing main gas flow and
ignition of Main Burners.
c.Call for heat ends. Gas Valve de-energized,
extinguishing main flame. Vent Damper closes.
2. Safety Shutdown
a. Limit: Automatically interrupts main burner
operation when water temperature exceeds set
point. Maximum allowable temperature is 250°F.
Circulator continues to operate with call for heat
and Vent Damper closes. Normal operation
resumes when water temperature falls below set
point.
b.Blocked Vent Switch. Automatically interrupts
main burner operation when excessive vent
system blockage occurs. Circulator continues to
operate and Vent Damper remains open with call
for heat. If blocked vent switch is activated do
not attempt to place boiler in operation. The
source of blockage must be corrected by trained
and skilled personnel from a qualified service
agency before resetting switch.
c.Flame Roll-out Switch. Automatically interrupts
boiler operation when flames or excessive heat
are present in vestibule. Circulator continues to
operate and Vent Damper remains open with call
for heat. Control is single use device. If flame roll-
out switch is activated do not attempt to place
boiler in operation. The source of blockage must
be corrected and the flame roll-out switch
replaced by trained and skilled personnel from a
qualified service agency.
d.Thermocouple: senses pilot flame and causes gas
valve to turn off main burner and pilot burner gas
flow should pilot burner flame extinguish.
Circulator continues to operate and Vent Damper
remains open with call for heat.
Figure 12: Wiring Diagram, Continuous Ignition (Standing Pilot)

14
J. Sequence of Operation, Electronic Intermittent Ignition
(EI).
1. Normal Operation
a. Thermostat calls for heat. Vent Damper opens.
b. Ignition Module energized. Pilot Valve opens.
Igniter energized to ignite Pilot Burner.
c. Sensor proves presence of pilot flame. Main
Valve opens and ignites Main Burners.
d.Call for heat ends. Ignition Module is de-
energized. Main Valve and Pilot Valve close,
extinguishing pilot and main burners. Vent
Damper closes.
2. Safety Shutdown
a. Limit: Automatically interrupts main burner
operation when water temperature exceeds set
point. Maximum allowable temperature is 250°F.
Circulator continues to operate with call for heat
and Vent Damper closes. Normal operation
resumes when water temperature falls below set
point.
b.Blocked Vent Switch. Automatically interrupts
main burner operation when excessive vent
system blockage occurs. Circulator continues to
operate and Vent Damper remains open with call
for heat. If blocked vent switch is activated do
not attempt to place boiler in operation. The
source of blockage must be corrected by trained
and skilled personnel from a qualified service
agency before resetting switch.
c.Flame Roll-out Switch. Automatically interrupts
boiler operation when flames or excessive heat
are present in vestibule. Circulator continues to
operate and Vent Damper remains open with call
for heat. Control is single use device. If flame roll-
out switch is activated do not attempt to place
boiler in operation. The source of blockage must
be corrected and the flame roll-out switch
replaced by trained and skilled personnel from a
qualified service agency.
d.Sensor: senses pilot flame and causes ignition
module to turn off main burner and pilot burner
gas flow should pilot burner flame extinguish.
Ignition module will try to relight pilot for
approximately 85 seconds after pilot burner flame
is extinguished. If pilot burner flame can not be
reestablished, Ignition Module will shutdown.
Five to six minutes after shutdown, Ignition
Module automatically restarts ignition sequence.
Sequence continues until pilot burner flame is
reestablished or call for heat ends. Ignition
Module can be manually reset by adjusting
thermostat to end call for heat for one minute.
Circulator continues to operate and Vent Damper
remains open with call for heat.
For Electronic Ignition Troubleshooting Guide,
see Page 20.
Figure 13: Wiring Diagram, Electronic Intermittent Ignition (EI)

15
VII. System Start-up
Safe lighting and other performance criteria were met with the gas manifold and control assembly provided on the boiler when
the boiler underwent tests specified in American National Standard for Gas-Fired Low-Pressure Steam and Hot Water
Boilers, ANSI Z21.13.
A. Main Burner Check - Check main burners to see that
they were not dislodged during shipment. Rear of
burners should be in the vertical slots in the rear of
burner tray and the front of the burners should be
seated completely on the orifices.
B. Initial start -
1. Fill entire heating system with water and vent air
from system. Use the following procedure on a
Series Loop System equipped with zone valves. (See
Figure 3).
a. Close isolation valve in boiler supply piping.
b. Isolate all circuits by closing zone valves or
balancing valves.
c. Attach a hose to bib cock located just below
isolation valve in boiler supply piping. (Note -
Terminate hose in five gallon bucket, at a suitable
floor drain, or outdoor area).
d. Starting with one circuit, open zone valve.
e. Open bib cock.
f. Open fill valve (Make-up water line should be
located directly above isolation valve in boiler
supply piping).
g. Allow water to overflow from bucket until
discharge from hose is bubble free for 30
seconds.
h. Open zone valve to the second zone to be
purged, then close the first. Repeat this step
until all zones have been purged, but always
have one zone open. At completion, open all
zone valves.
i. Close bib cock, continue filling the system until
the pressure gauge reads 12 psi. Close fill valve.
(Note - If make-up water line is equipped with
pressure reducing valve, system will
automatically fill to 12 psi. Leave globe valve
open).
j. Open isolation valve in boiler supply piping.
k. Remove hose from bib cock.
2. Turn ROOM THERMOSTAT to lowest setting.
3. Be sure that gas to pilot and main burners has been
off for at least five minutes and vent damper has
been in the open position.
4. Turn "OFF" the electric switch serving boiler.
5. Open valve on main gas line at meter.
6. PURGE AIR FROM GAS PIPING. This procedure will
vary with ignition system furnished but in all cases
adequateventilationmustbe provided and no
smoking or open flame permitted.
a. Standing Pilot Models, see Figure 6.
i. Keep electric switch "OFF".
ii. Open Manual Shut-off Valve upstream of
Combination Gas Valve.
iii. Disconnect Pilot Tubing at gas valve (Purge
must not be into combustion chamber).
iv. Turn Main Gas Knob on Combination Gas
Valve to "Pilot" Position. Depress and hold
in this position until purging is complete.
Turn Main Gas Knob to "off" position.
v. Reconnect pilot tubing and check pipe and
fittings from meter to combination Gas Valve
for leaks using soap solution or other
approved method.
b. Intermittent Ignition Models, see Figure 7.
i. Turn "ON" electric switch serving boiler.
ii. Open Manual Shut-off Valve upstream of
Combination Gas Valve.
iii. Loosen or remove Inlet Pressure Tap Plug in
Combination Gas Valve and when purging is
complete, tighten or replace plug. (See Figure
14).
iv. Check pipe and fittings from meter to
Combination Gas Valve using soap solution
or other approved methods.
NOITUAC
v. Test gas piping and connections between
Combination Gas Valve and manifold,
orifices, and pilot piping for leaks after boiler
is operating. Use soap solution or other
approved method.
C.Instructions to Put the Boiler in Operation. See Figure
15 for Electronic Intermittent Ignition System (EI). See
Figure 16 for Continuous Ignition System (standing
pilot).
Figure 14: Top View of Honeywell Gas Valves

16

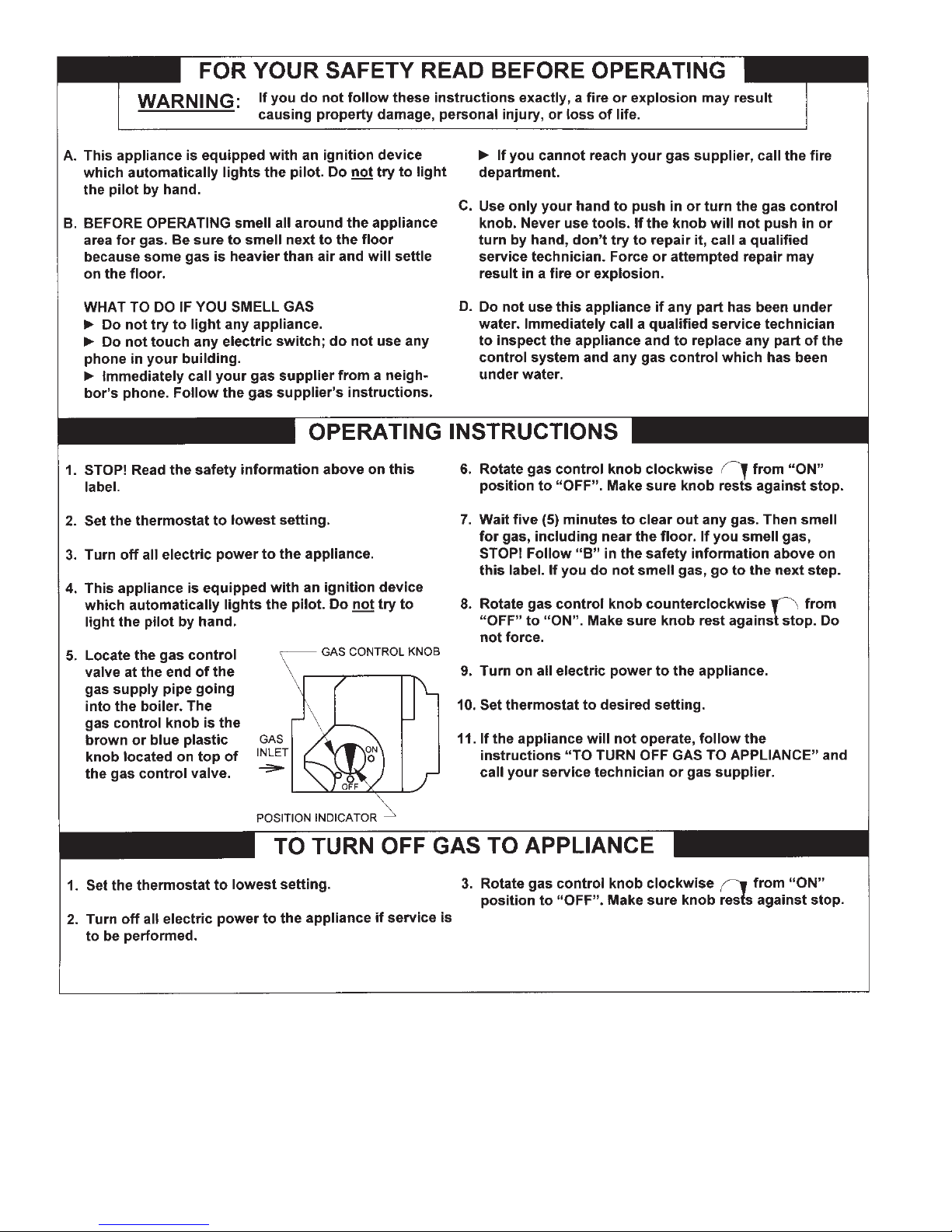

Figure 15: Operating Instructions

17
Figure 16: Lighting Instructions

18

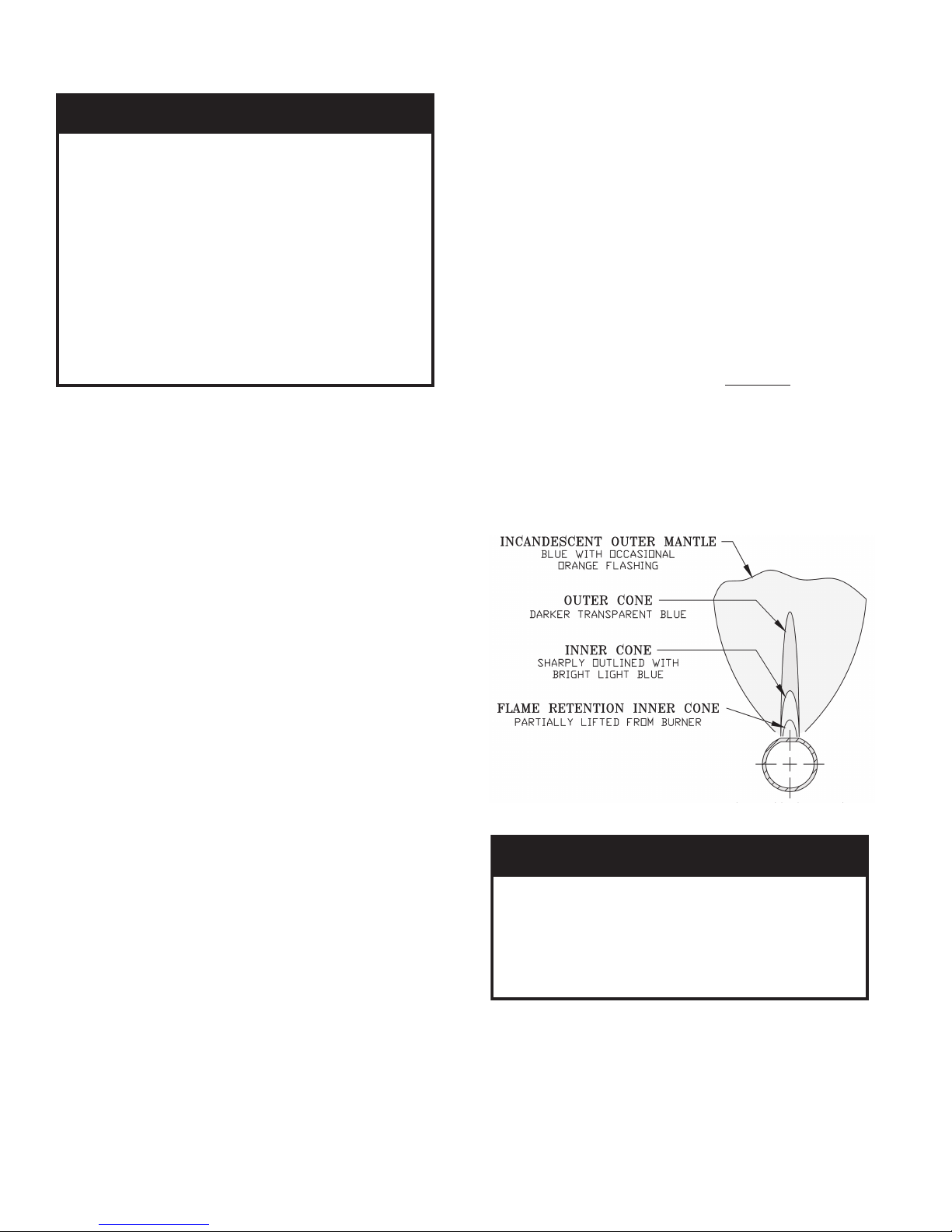

Figure 17: Main Burner Flame
D.Check Gas Input to Boiler For minor input changes readjust Regulator Gas
Valve to increase or decrease manifold pressure
to obtain corresponding increase manifold
pressure more than 0.3" of water to obtain rated
input, remove orifices and drill one size larger.
Reinstall and recheck input rate.
b. Additional Check on Input - Since input is a
function of heating value, specific gravity, and
volume of gas flow contact your utility for the
first two items in order to utilize the formula
below. The gas meter should then be clocked for
three (3) minutes with stop watch and
substituting the appropriate values in the formula
below, determine what the gas flow should be in
this 3 minute period to give the input shown on
the Rating Label:
Gas Input cu. ft. __________Btuh Input_________
per 3 min. = Heating Value Multiplier from
of Gas X Table 5
(Btu / cu. ft.)
ECITON
tanoitallatsniroftliubsreliobA-GC aesevobateef000,2nahtretaergsedutitla ecuderotdecifiroyllaicepsneebevahlevel teef000,1reptnecrep4etartupnisag saGleuFlanoitaNehtreplevelaesevoba 2.1.8noitceS,1.322ZISNA/45APFN,edoC sledomreliobedutitlahgiH.FxidneppAdna ehtnitigiddrihtehtybelbaifitnediera :lebalgnitarehtnoxiffusrebmunledom .tf0002nahtssel:2__-AO_GC noitavele .tf0005ot0002:5__-AO_GC noitavele
1. Input Rate and Maximum Inlet Pressure shown on
Rating Label must not be exceeded. Inlet pressure
must not be lower than minimum inlet pressure
shown on Rating Label.
2. All Rate checks and all adjustments are to be made
while boiler is firing - all other appliances connected
to the same meter as the boiler must be off.
3. With boiler off, water Manometer or water column
gauge should be connected to a shut-off cock
installed in the 1/8" outlet pressure tap in the gas
valve (See Figure 14). By installing gas cock
upstream of manometer, gas pressure can be
introduced gradually - without shut-off cock; surge
of pressure when boiler is turned on, could blow
liquid out of manometer. Replace plug in gas valve
when rate check is finished.
4. LP Gas Input:
Adjust Regulator on Gas Valve so that manifold
pressure is 10 inches water column. Turning
Regulator Adjusting Screw Clockwise increases
pressure. Counterclockwise rotation decreases
pressure.
5. Natural Gas Input
a. Appx. Input - Adjust regulator on Gas Valve so
that manifold pressure is three and a half (3½)
inches water column (three inches water column
for high altitude). Turning Regulator Adjusting
Screw Clockwise increases pressure,
Counterclockwise rotation decreases pressure. If
more accurate check on input is necessary see
(b) .
NOITUAC
tnemnorivnenanireliobsihtgnitarepodiovA yrd,srebifnoitalusniesool,tsudwaserehw sireliobfI.tneserpera.cte,tsudllaw renrubeht,snoitidnocesehtrednudetarepo dnadenaelcebtsumstropdnaroiretni .noitareporeporperusniotyliaddetcepsni
E. Check Main Burner Flame. See Figure 17. Flame
should have a clearly defined inner cone with no yellow
tipping. Orange-yellow streaks caused by dust should
not be confused with true yellow tipping.

19
F.Check Pilot Burner Flame.
1. Continuous Ignition (Standing Pilot), Models 30
through 70. See Figure 18. Pilot burner produces a
single flame. The flame should be steady, medium
hard blue enveloping 3/8 to 1/2 inch of
thermocouple.
2. Continuous Ignition (Standing Pilot), Model 80. See
Figure 19. Pilot burner produces three (3) flames.
The center flame should be steady, medium hard
blue enveloping 3/8 to 1/2 inch of thermocouple.
3. Intermittent Ignition (EI). See Figure 20. The pilot
burner should be lit only if thermostat is calling for
heat. The pilot burner produces three (3) flames.
The center flame should be steady, medium hard
blue enveloping 3/8 to 1/2 inch of thermocouple.
G. Check Ignition System Shutoff. Gas valve should close
and pilot and main burners should extinguish.
1. Continuous Ignition (standing pilot). Disconnect
thermocouple at gas valve.
2. Intermittent Ignition (EI). Disconnect sensor cable
from Terminal 4 SENSE on Ignition Module.
H. Check Vent Damper Operation. Vent Damper must be
in open position when main burners are ignited.
I. Check Limit.
1. Adjust thermostat to highest setting.
2. Observe temperature gauge. When temperature is
indicated, adjust limit to setting below observed
temperature. Main burners should extinguish.
3. Adjust limit to setting above observed temperature.
Ignition sequence should begin.
4. Adjust thermostat to lowest setting. Adjust limit to
desired setting.
J. Check Thermostat Operation. Raise and lower
temperature setting to start and stop boiler operation.
Adjust thermostat to normal setting.
K. CombustionChamberBurn-Off
1. The mineral wool combustion chamber panels
contain a cornstarch based binder that must be
burned out at installation to prevent odors during
subsequent boiler operation.
2. Ventilate the boiler room, set the high limit to its
maximum setting, set the thermostat to call for heat.
Allow the boiler to fire for at least an hour or until
the odor from the cornstarch has dissipated.
3. Return the high limit and thermostat to their desired
settings.
L. Review User's Information Manual and system
operation with owner or operator.
M. Post instructions near boiler for reference by owner and
service personnel.
Figure 18: Pilot Burner Flame, Continuous Ignition,
Models 30 through 70: Natural Gas
Figure 19: Typical Pilot Flame, Continuous Ignition,
Models 30 through 70: LP Gas,
Model 80: Natural and LP Gas
Figure 20: Pilot Burner Flame, Intermittent Ignition,
Models 30 through 80: Natural and LP Gas

20
