B100 – Adjustable Keyboard Tray for NB/RC Series
B104 – Adjustable Keyboard Tray w/mouse tray for NB/RC
Series
Installation:
1. Before you attach the shelf to the center mast, install the
adjustable Keyboard Tray to the shelf using the 6 wood
screws provided.
2. Place the base plate of the keyboard inside the perimeter of
the supporting shelf bracket and attach it with the 6 wood
screws on the pre-drilled holes.




B106 Keyboard Drawer for PC Series
Installation:
1. After you attached the metal shelf to the center mast, attach
the preassembled slide rails and holding brackets to the
Keyboard Drawer.
2. Use the 4 wood screws; make sure the holding brackets are
attached in the correct order (right and left side).
3. Install the keyboard to either side under the metal shelf by
aligning the 4 (10/32) screws to the holding brackets.




B109 Adjustable CPU/Inverter Holder
Installation:
1. Before you attach the CPU Holder to the back of the center
mast, adjust the straps and the width of the CPU Holder to fit
your desktop computer.
2. Attach the CPU Holder to the mast and then place the CPU
into the CPU Holder and secure with the 2 straps.




AccessoryAssemblyInstructions
QUESTIONS?CALL781‐935‐3450Pg.2

B111 Mini Tablet Holder for NB/PC/RC Series
Installation:
1. Remove the holding round bottom well base and align the 4
pre-drilled holes on the well to the surface of the workstation
shelf at desired position, (right or left).
2. Place and attach the round bottom well base to the surface
of the workstation shelf using the 4 woodscrews (10/32 X½).
3. Mount the Mini Tablet Holder to the top of the attached
round well base. Tighten and secure by hand.


B112 Laptop / Tablet Holder for NB/PC/RC Series
Installation:
1. Remove the holding round bottom well base and align the 4
pre-drilled holes on the well to the surface of the workstation
shelf at desired position, (right or left).
2. Place and attach the round bottom well base to the surface
of the workstation shelf using the 4 woodscrews (10/32 X½).
3. Mount the Laptop/Tablet Holder to the top of the attached
round well base. Tighten and secure by hand.



B114 Laptop Security Bracket for NB/RC Series
Installation:
1. Before you attach the Security Bracket to the surface of the
workstation shelf, place the security bracket around your
laptop to measure the dimension.
2. Place over the desired side of the workstation shelf surface,
and with a pencil, mark the 4 predrilled holes.
3. Secure with the 8 wood screws.


B115/B116 Flat Screen Holder for NB/PC/RC Series
Installation:
1. Remove the holding round bottom well base and align the 4
pre-drilled holes on the well to the surface of the workstation
shelf at desired position, (right or left).
2. Place and attach the round bottom well base to the surface
of the workstation shelf using the 4 woodscrews (10/32 X½).
3. Mount the Flat Screen Holder to the top of the attached
round well base. Tighten and secure by hand.

AccessoryAssemblyInstructions
QUESTIONS?CALL781‐935‐3450Pg.3


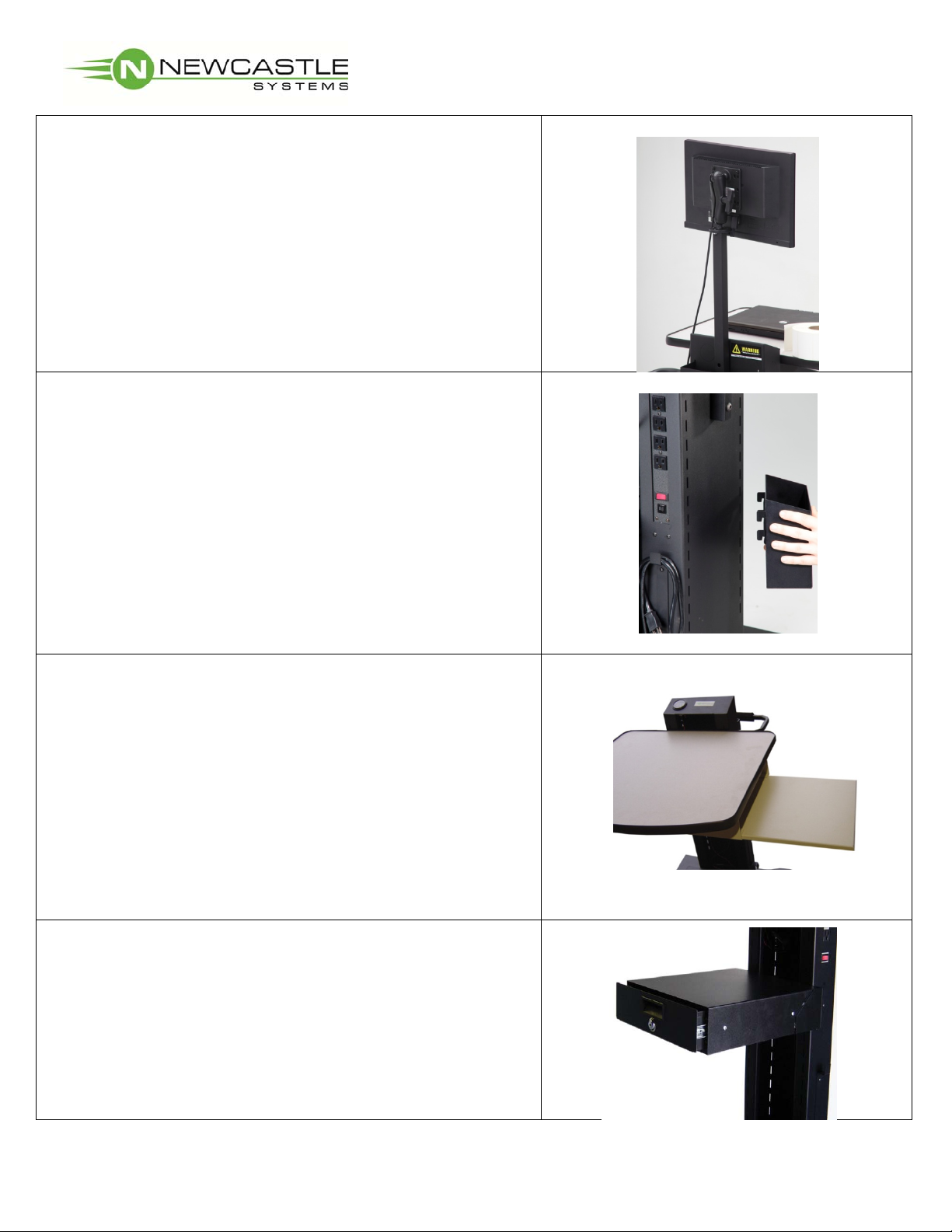

B118 Post Mounted Flat Screen Holder for NB/PC/RC Series
Installation:
1. Remove the holding round bottom well base from the
holding plate. Align the 3 pre-drilled holes to the top of the
post, using the 3 screws (10/32) and nuts.
2. Attach the assembled post to the back of the center mast.
3. Mount the Flat Screen Holder plate to the top of the attached
round base well on the post. Tighten and secure.

B122 Binder Holder for NB/PC Series
Installation:
1. Align and attach the Binder Holder to the desired position in
the back of the center mast.



B126 Slide Out Shelf for NB/RC Series
Installation:
1. Before you attach the workstation shelf to the center mast,
turn the shelf upside-down.
2. Place the Slide Out Shelf to the desired side of the
workstation.
3. Place the Slide Out Shelf between the slide brackets, right
and left,
4. Hold and mark the 4 predrilled holes on the bottom of the
shelf and attach with wood screws supplied.


B128 3” Drawer for NB Series
Installation:
1. Pre-Assembled 3” Drawer; just attach to the desired position
on the front or back of the center mast.



AccessoryAssemblyInstructions
QUESTIONS?CALL781‐935‐3450Pg.4

B130 Folding Shelf for PC Series
Installation:
1. Attach shelf to front posts of cart using the screws supplied.
2. Attach the shelf into the pre-threaded holes below the top
shelf.


B131 Slide Out Printer Shelf for PC Series
Installation:
1. Before you attach the second metal shelf to the center mast,
hold the slide out brackets and pull out the Slide Out Printer
Shelf.
2. Place and align the slide out brackets to the predrilled
matching holes on the metal shelf.
3. Use the 4 screws (10/32X 1/2) and nuts to secure the Slide
Out Printer Shelf.



B132 Scanner Holder
Installation:
1. For NB/RC Series, attach with 2 wood screws supplied.
2. For PC Series, attach with 2 screws and nuts supplied.


B135 Bubble Wrap Holder for PC Series
Installation:
1. Attach the mounting plates to both sides of the cart legs with
the (4) 3/8- 16X ½ screws.
2. Insert the holding tube into the roll, attach the round nubs
and place the Bubble Wrap Holder on the hook of the
holding brackets. Tighten and secure.

AccessoryAssemblyInstructions
QUESTIONS?CALL781‐935‐3450Pg.5


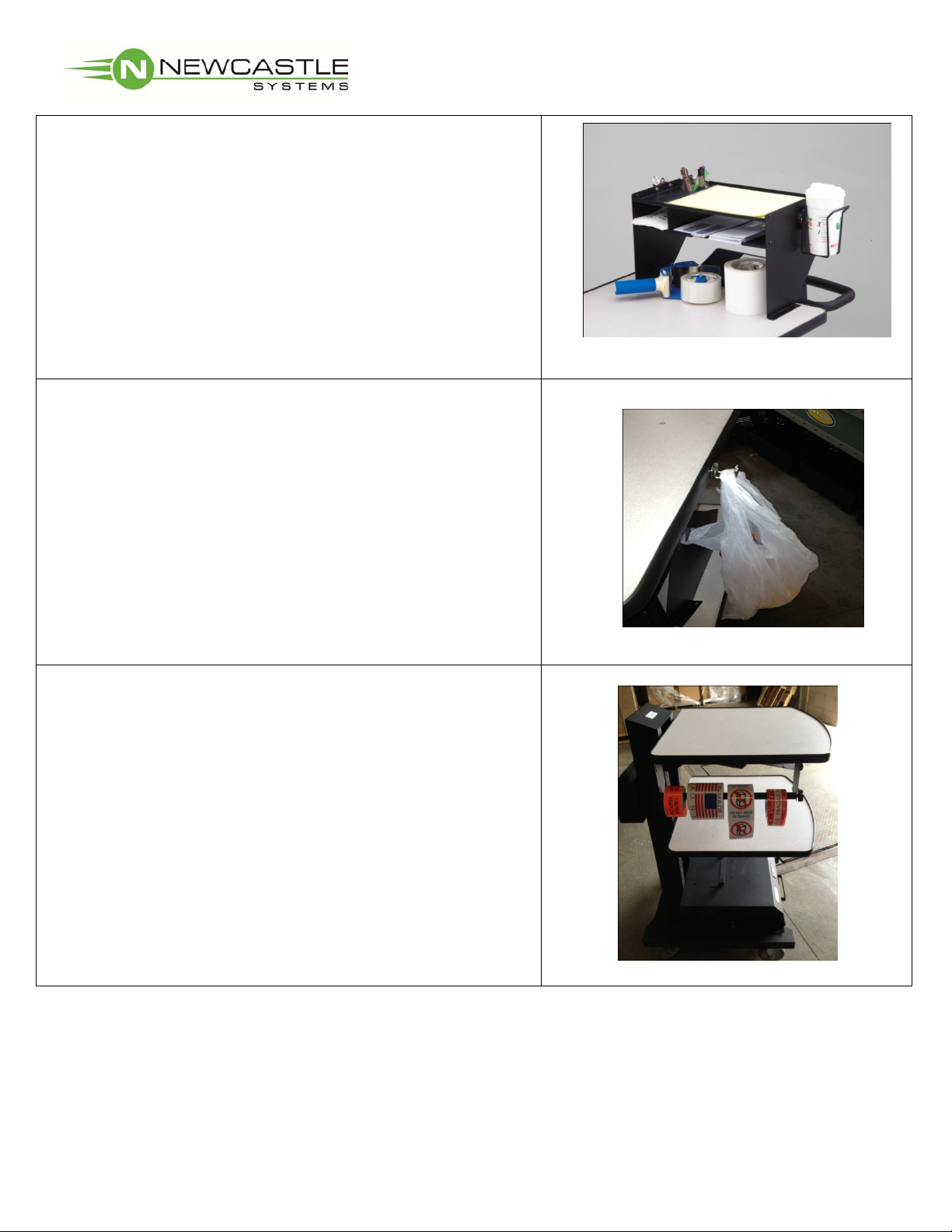

B137 Desk Organizer for NB/PC Series
Installation:
1. Place the Desk Organizer to the desired position.
2. Attach Desk Organizer with screws supplied.


B140 Bag Holder for NB Series
Installation:
1. Attach Bag Holder to the side of the shelf and attach with
supplied screw.

B141 Label Holder for NB/PC/RC Series
Installation:
1. Attach 16” pipe to brackets using the 2 threaded knobs
supplied.
2. Attach the assembly to the bottom of the shelf with either the
screws supplied for the NB Series or the screws and nuts
supplied for the PC Series.



AccessoryAssemblyInstructions
QUESTIONS?CALL781‐935‐3450Pg.6

B150 Mast Extension 5.5” for NB & PC Series
Installation:
1. Attach Mast Extension to the base and tighten with nuts
supplied.
2. Attach mast to top of Mast Extension with nuts supplied.


B170 iPad Holder with Lock
B171 iPad Holder without Lock
For NB/PC/RC Series
Installation:
1. Remove the holding round bottom well base and align the 4
pre-drilled holes on the well to the surface of the workstation
shelf at desired position, (right or left).
2. Place and attach the round bottom well base to the surface
of the workstation shelf using the 4 woodscrews (10/32 X½).
3. Mount the iPad Holder to the top of the attached round well
base. Tighten and secure by hand.


B178 Post Mounted LCD Holder up to 42” for NB/PC/RC
Series
Installation:
1. Attach the preassembled LCD Holder to the 4 matching
holes on the post. Use the 4 screws and nuts.
2. Attach the mounting bracket of the LCD Holder to the back
of the display. Use the 4 screws.
(Depending on the model of your display, you may need
spacers to level the flat surface on the back of your display).
3. Attach the Post Mounted LCD Holder to the back of the
center mast. Mount the display into the preassembled LCD
Holder plate. Adjust to the desired angle and secure.



AccessoryAssemblyInstructions
QUESTIONS?CALL781‐935‐3450Pg.7


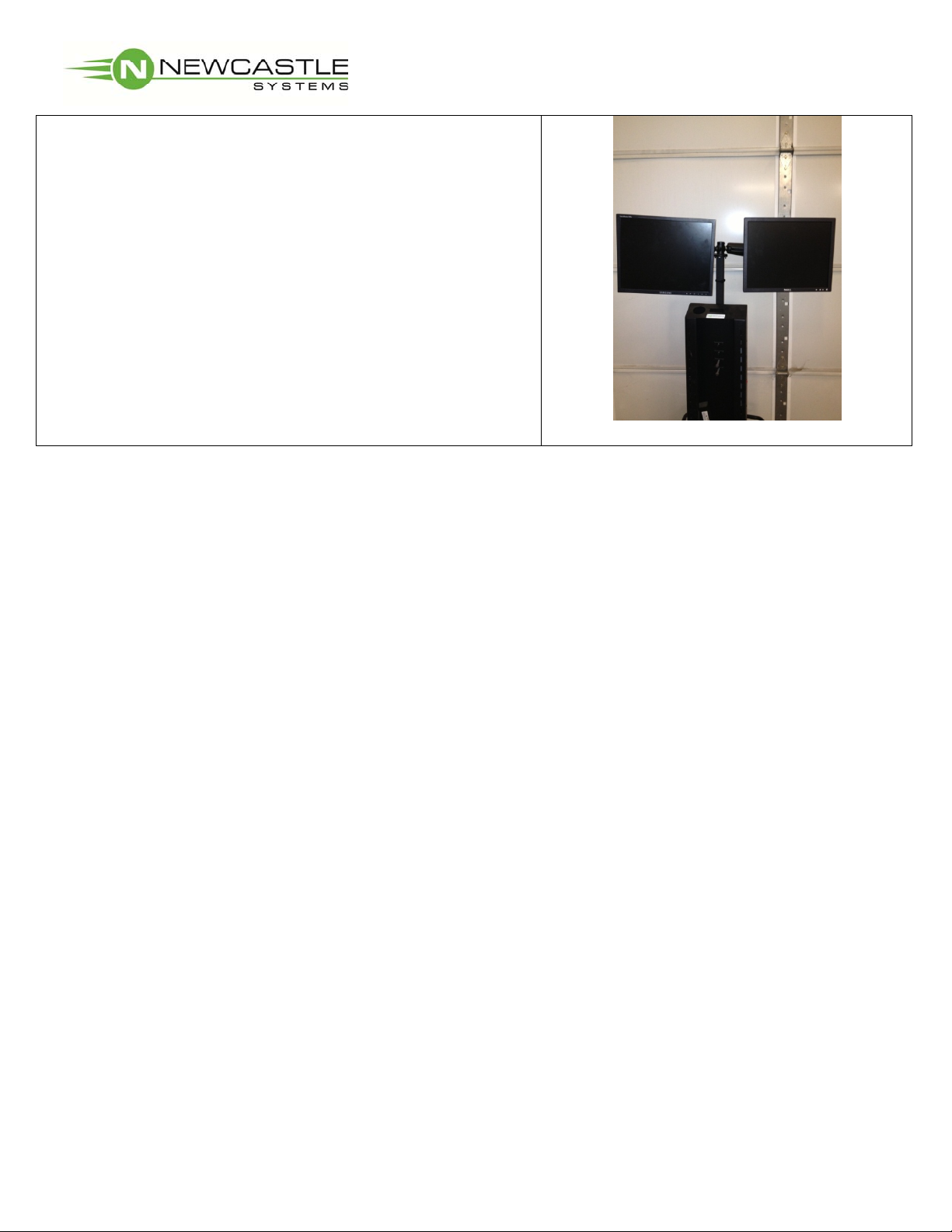

B179 Dual Monitor Mount & 30” Pole for NB/PC Series
Installation:
1. Attach post to back of mast using (2) Bolts 3/8-16 X 2
BHSCS supplied.
2. Attach Dual Monitor holder to the top of the post using (3)
Bolts #10-32x3/4 BHSCS and (3) Nuts #10 K-Lock supplied.
3. Attach monitors to plate using (4) M4 x .7 x 16 mm socket
cap screws supplied.




