NewTek 35X4K User manual

35X4K NDI UHD PTZ Video Camera
User Manual
Version V4.0
（English）
J.BC.0205.0101

1
CONTENT
CONTENT............................................................................................................................................................................................ 1
SAFETY GUIDES................................................................................................................................................................................ 2
PACKING LIST....................................................................................................................................................................................3
QUICK START.....................................................................................................................................................................................3
PRODUCT HIGHLIGHTS..................................................................................................................................................................4
CAMERA SPEC................................................................................................................................................................................... 4
CAMERA INTERFACE...................................................................................................................................................................... 6
CAMERA DIMENSION...................................................................................................................................................................... 6
IR REMOTE CONTROLLER............................................................................................................................................................ 7

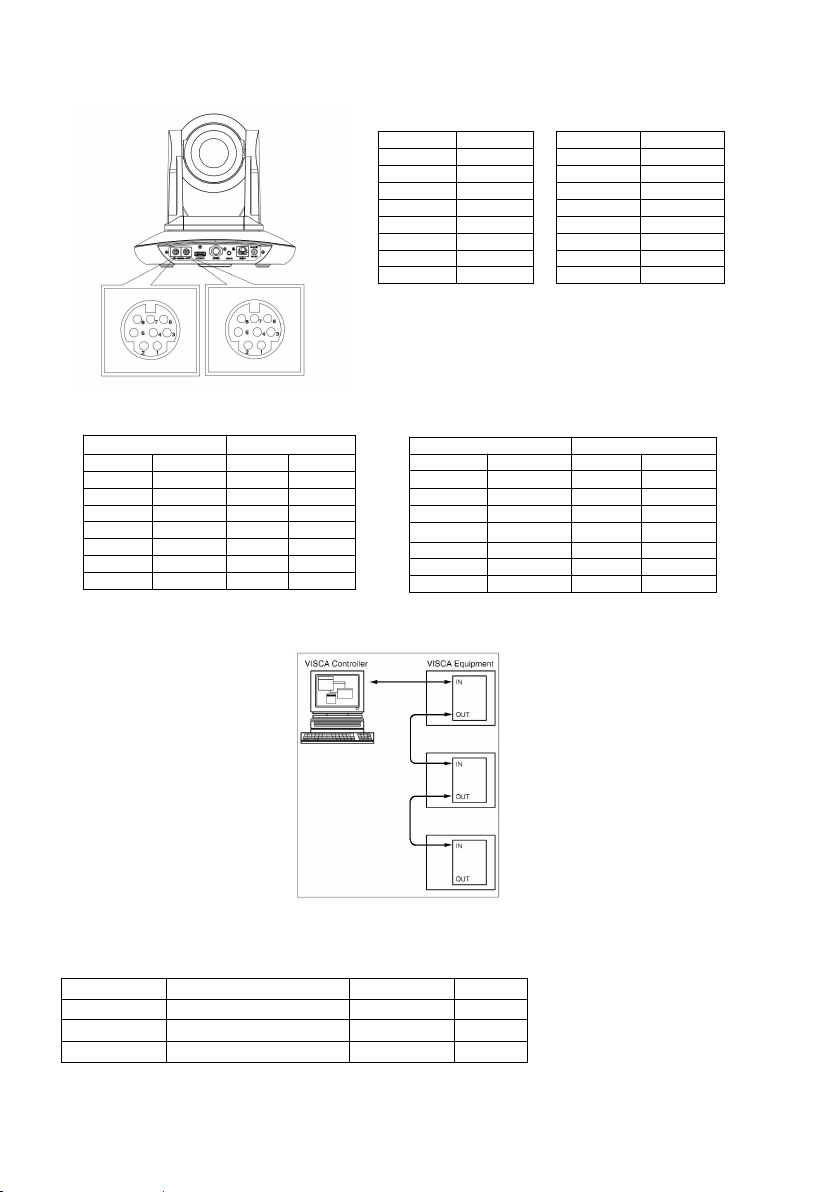

VISCA IN（RS232 PORT)...................................................................................................................................................................9
VISCA PROTOCOL.......................................................................................................................................................................... 10
PELCO-D PROTOCOL..................................................................................................................................................................... 19
PELCO-P PROTOCOL......................................................................................................................................................................20
OSD MENU.........................................................................................................................................................................................21
UVC CONTROL.................................................................................................................................................................................25
WEB SETTING.................................................................................................................................................................................. 26
VIEW RTSP VIDEO VIA VLC..........................................................................................................................................................31
NEWTEK TOOLS GUIDE................................................................................................................................................................32
VISCA OVER IP................................................................................................................................................................................. 34

2
SAFETY GUIDES
1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the
camera.
2.The camera power input range is 100-240V AC(50-60Hz),ensure the power supply input within this rate before powering on.
3.The camera power voltage is 12V DC, rated currency is 2A. We suggest you use it with the original power supply adapter supplied
by the factory.
4.Please keep the power cable, video cable and control cable in a safe place. Protect all cables especially the connectors.
5.Operational environment: 0℃-50℃, humidity less than 90%.To avoid any danger, do not put anything inside the camera, and keep
away from the corrosive liquid.
6.Avoid stress, vibration and damp during transportation, storage and installation.
7.Do not detect the camera housing and cover. For any service, please contact authorized technicians.
8.Video cable and control cable should be individually shielded, and cannot be substituted with other cables. Do not direct the
camera lens towards strong light, such as the sun or the intensive light.
9.Use a dry and soft cloth to clean the camera housing. Applied with neutral cleaning agent when there is need to clean. To avoid
damage on the camera lens, never use strong or abrasive cleaning agents on the camera housing.

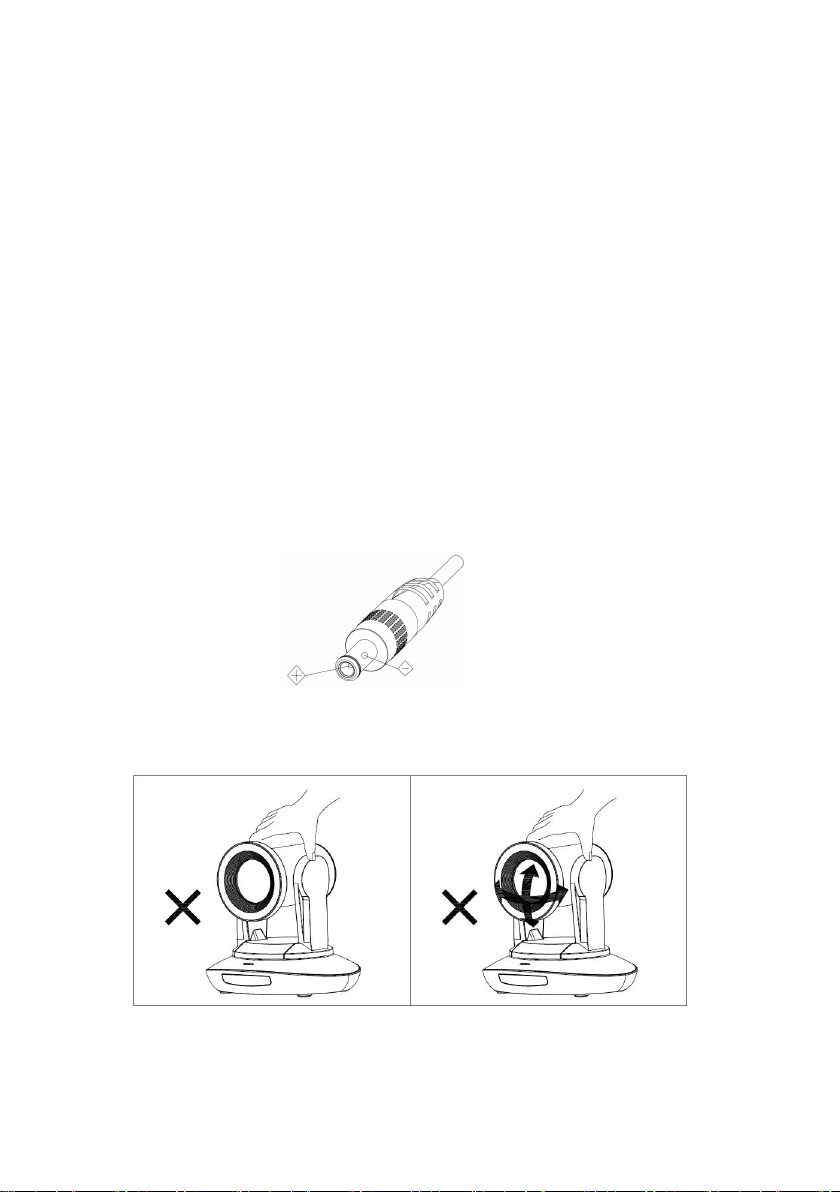

10.Do not move the camera by holding the camera head. To avoid mechanical trouble, do not rotate the camera head by hand.
NEVER MOVE THE CAMERA MANUALLY WHEN IT IS WORKING.
11. Put the camera on fixed and smooth desk or platform, avoid leaned installation.
12. Power Supply Polarity (Drawing)
Note:
The video quality may be affected by the specific frequencies of electromagnetic field.
Never grasp the head of the camera, and never move the camera by hand when it is working, otherwise, mechanism maybe
destroyed.

3
PACKING LIST
Check all bellow items when open the package:
Camera······················································································1
Power Adapter············································································· 1
Power Cable················································································1
RS232 Control Cable····································································· 1
USB3.0 Cable··············································································1
Remote Controller·········································································1
User Manual··············································································· 1
Double-sided Adhesive···································································1
QC certification············································································1

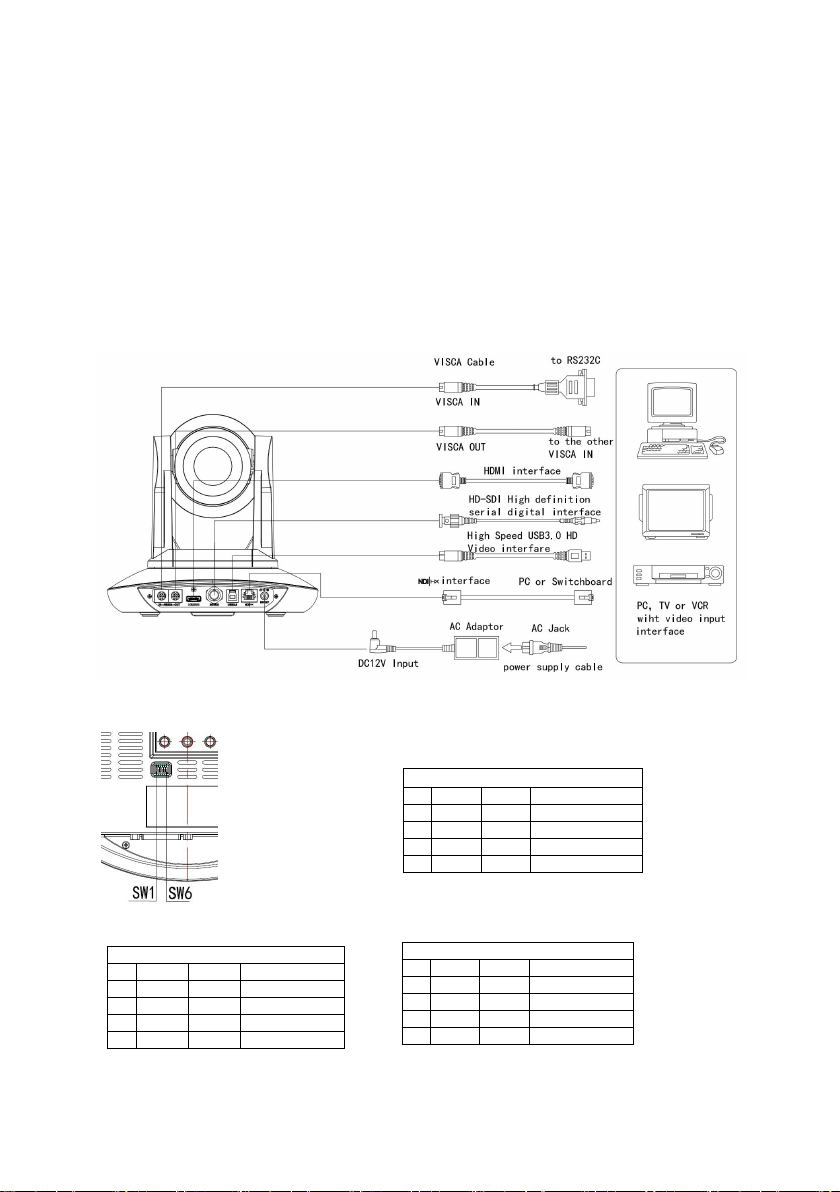

QUICK START
1.Check all cable connections before power on.
2.Dial Switch Setting (at the bottom of the camera):
Dial Switch(ARM)
SW-1
SW-2
Instruction
1
OFF
OFF
Updating mode
2
ON
OFF
Debugging mode
3
OFF
ON
Undefined
4
ON
ON
Working mode
Dial Switch
SW-3
SW-4
Instruction
1
OFF
OFF
reserve
2
ON
OFF
reserve
3
OFF
ON
reserve
4
ON
ON
reserve
Dial Switch
SW-5
SW-6
Instruction
1
OFF
OFF
Undefined
2
ON
OFF
Working mode
3
OFF
ON
Updating mode
4
ON
ON
Undefined

4
PRODUCT HIGHLIGHTS
Adopts most advanced ISP, 1/1.7 inch 12MP sensor, providing 3840*2160 p30 Ultra HD video resolution.
4K wide angle optical lens: 35x optical zoom, with 60 degree field of view.
4K video over IP, H.264, H.265 encoding.
Support NewTek NDI V4.5 video transmission and control.
NDI|HX, HDMI, 3G-SDI, USB outputs, fit for different application, 4K video streaming over IP and HDMI optional.
White Balance, Exposure, Focus, Iris can be adjusted automatically or manually.
Support POE: one single CAT5/6 to get video, control and power supply.
Special Focusing Algorithm: fast and precise focusing performance when zooming or moving.
Smooth PTZ mechanical design, accurate pan tilt motor control.
128 presets supported; Exposure parameter and white balance parameter can be saved in presets (in manual mode).
Standard Sony VISCA, IP VISCA, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP.
Daisy chain supported, max 7 cameras connected in VISCA protocol.
Image flip function, support upside-down installation.
Supplied with functional IR remote controller, can set IP address via OSD menu.
Fast video format switch: less than 3 seconds.
Supported field upgrade for ISP, ARM, FPGA and USB.
USB3.0 port compatible with USB2.0 output.
Support RS232/RS485/UVC control.
Standard UVC1.5 protocol, seamlessly compatible with major video conferencing software and platform.
Support IR transfer function, code of the third party remote controller can be transferred to the host via VISCA IN port,
in case client’s development.
OSD menu in English and Chinese supported. IP address, streaming resolution and size can be set in OSD menu.
CAMERA SPEC
Video Format
HDMI
3840*2160P30/25
1920*1080P60/50/30/25/59.94/29.97/24
1920*1080I60/50/59.94
1280*720P60/50/30/25/59.94/29.97
SDI
1920*1080P60/50/30/25/59.94/29.97/24
1920*1080I60/50/59.94
1280*720P60/50/30/25/59.94/29.97
USB
1920*1080P60/50/30/25(USB3.0)
1280*720P60/50/30(USB3.0)
1280*720P25(USB3.0&USB2.0)
1024*576P30(USB3.0&USB2.0)
960*540P30(USB2.0)
640*360P30(USB2.0)
512*288P30(USB2.0)
NDI
3840*2160@15~30;
1920*1080@15~30;
1280*720@15~30;
1024*576@15~30;
640*360@15~30(low bandwidth mode)
Video Interface
HDMI, SDI, NDI|HX, USB3.0, USB2.0
Sensor
CMOS sensor
Zoom
F5.8～203mm(35X), F1.5 – 4.8. View Angle:60°(Far)-2.02°(Near)
Rotation Angle
Pan: -170° ~ +170°; Tilt: -30° ~ +90°

5
Rotation Speed
Pan: 0°~120°/s ; Tilt: 0°~80°/s
Preset:
Remote controller: 10; RS232: 128; Accuracy: 0.1°
Control Port
RS232, RS485, NDI|HX(VISCA over IP), USB3.0(UVC1.5), USB2.0(UVC1.1)
Network Speed
1000M
Video encode
H.264/H.265
Bit Rate Control
Variable Bit Rate, Constant Bit Rate
Video Bit Rate
1024Kbps~51200Kbps
IP Protocol
TCP/IP, HTTP, RTSP, DHCP, RTMP, Onvif
POE+
Supported
NDI
Supported
Daisy Chain
Support RS232 serial daisy chain
Minimum Lux
0.01lux
White Balance
ATW/Manual/Auto/Indoor/Outdoor/Push
Exposure
Auto/Manual/Shutter/Iris/Bright
Focus
Auto / Manual
Iris
Auto / Manual
Electric Shutter
Auto / Manual
Gamma
Supported
WDR
Supported
BLC
Supported
2D Noise Reduction
Supported
3D Noise Reduction
Supported
Anti Flicker
OFF/50Hz/60Hz
Pan Tilt Flip
Supported
Input Voltage
DC12V/POE+(IEEE802.3at)
Dimension
220mm×190mm×205.8mm
Net Weight
1.75KG
Note: when HDMI port output 4K, SDI port no video output.

6
CAMERA INTERFACE
1. Camera Lens
2. Camera Base
3. IR Receiver Panel
4. Power Indicator Light
5. Dial Switch
6. Tripod Screw Hole
7. Installation Hole
8. RS232 control port (in put)
9. RS232 control port(out put)
10. HDMI port
11. 3G-SDI port
12. USB port
13. NDI|HX port
14. DC12V plug
CAMERA DIMENSION(MM)

7
IR REMOTE CONTROLLER
POWER
Under normal working mode, short press POWER key, to enter standby mode;
Press it again, the camera will do self-configuration, then go back to HOME position.
It will go to preset position if power on model has been set before.
FREEZE
Short press FREEZE key to freeze/ unfreeze the image.
IRT (IR Transfer/IR Pass)
Open / close the IR pass function. Once press the IRT key, the camera will receive and
Pass the IR remote control signal to the codec/terminal (via VISCA IN port).
SET 1~SET4 ADDRESS SETTING
Long press for 3seconds until the key light ON, to set camera address.
CAM1~CAM4（CAMERA SELECTING）
Short press to select the relative camera.
NUMBER KEY (1-9)
Set preset: long press (3 seconds) the number key to set preset.
Run preset: Short press the number key to run preset.
CLR PRE (CLEAR PRESET)
CLR PRE+ number key: to clear the relative preset.
Long press to clear all preset.

8
FOCUS KEY ( ON THE LEFT)
Manual focus, only valid under manual focus model.
ZOOM KEY( ON THE RIGHT SIDE)
Set the zoom rate
NAVIGATE KEY: UP/DOWN/LEFT/RIGHT
Under working mode, use navigate key to set the pan tilt, and select menu when enter OSD.
OK /HOME KEY
Under working mode, short press OK to make the camera go back to HOME position; and confirm the selection when enter OSD.

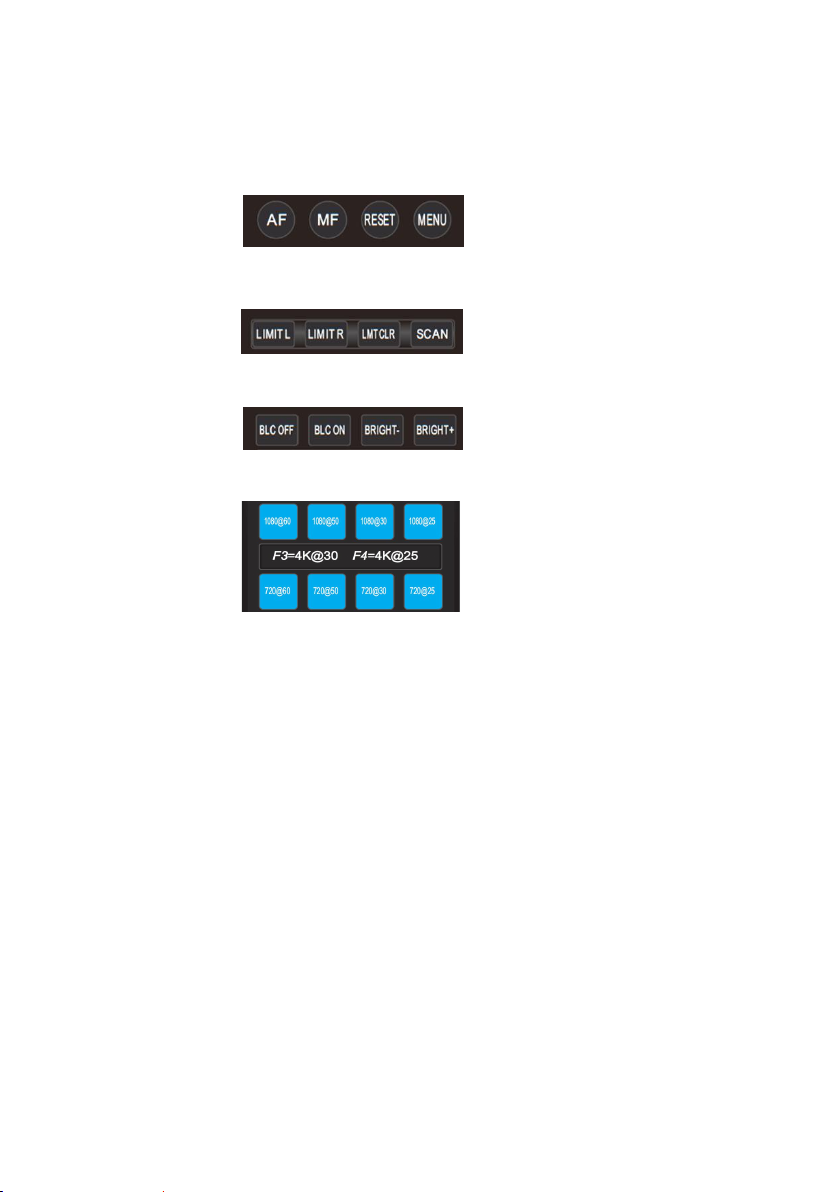

AF: Auto Focus
MF: Manual Focus
RESET: Press 3 seconds to reset camera
MENU: Enter OSD menu
LEARN+LIMIT L key:Set the pan tilt left limit position.
LEARN+LIMIT R key:Set the pan tilt right limit position.
LEARN+LMT CLR key:Clear the limit position.
BLC OFF/ BLC ON：Not Available
BRIGHT-/BRIGHT+: Set image brightness, only valid under bright priority exposure mode.
Video Format Keys:
Long press 3 seconds to select different video format output.
Note:
Long press F3 to switch to 3840*2160P30 mode (HDMI)
Long press F4 to switch to 3840*2160P25 mode (HDMI)
