WARNINGS
IDS312 Page 3/ 14
WARNINGS
PRECAUTIONS
-
repairable part.
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.
Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the
system. If a liquid gets into the system, please have it inspected by a NEXO qualified technician.
The connection should be performed by qualified technician, by ensuring that power is off.
Operating temperature with temperate climate: 0°C to +40°C (+32°F to +104); -20°C à +60°C (-4°F to +140°F) for storage.
SAFETY INFORMATIONS
Read this manual before using the speaker.
Keep this manual available for further reference.
Observe all warnings and cautions.
Please check the NEXO Web site nexo-sa.com to get the most up-to-date version of this manual.
Ensure you are aware of the safety rules applying to rigging, stacking or installing on tripod or speaker stand. Failure to observe
these rules may expose persons to potential wounds or even death.
Only use the system with accessories specified by NEXO.
Please always consult a NEXO-accredited technician if the installation needs architectural works and observe following precautions:
Mounting Precautions:
- Please select screws and mounting location supporting 4 times the system weight.
- Do not expose the system to excessive dust, vibrations, to extreme cold or hot temperatures, to reduce the risk of
damaging components.
- Do not place the system in an unstable position: it could fall accidentally.
- cations are adapted and that its height does not exceed
.
Connection and Powering Precautions:
- Unplug connected cables before moving the system.
- Power off the system before connecting the system.
- When switching on the installation, the amplifier must be powered last; when switching the installation off, shut off the
amplifier first.
- If you work by cold temperatures, progressively raise the level to nominal value during the first minutes of use, to allow the
system components to stabilize.
Please check regularly the system condition.
HIGH SOUND PRESSURE LEVELS
Exposure to very high sound pressure levels may cause permanent hearing losses. Degrees of hearing losses may be different
from one person to another, but almost everybody will be affected if exposed to high sound pressure levels during a long period of
time. The OSHA (Occupational Safety and Health Administration) American Agency specified the following maximal exposures:
Number of Hours
Sound Pressure Level (dBA),
Slow Response
8
90
6
92
4
95
3
97
2
100
1 ½
102
1
105
½
110
¼ or less
115
WASTE OF ELECTRIC OR ELECTRONIC EQUIPMENT
This symbol on the product or its packaging indicates that this product must not be treated as household waste.
Instead, it is your responsibility to hand it over to a designated collection point for the recycling of waste
electrical and electronic equipment. By ensuring your waste equipment is recycled, you will help prevent
potential negative consequences for the environment and human health, which could appear if this product was
not recycled. Recycling helps spare natural resources. For more information about the recycling of this product,
please contact your local city office, your household waste disposal service or your reseller.
Equipment
Page 4/ 14 IDS312
EQUIPMENT
Quick connect in the top cover for ID84. (except IDS312-1), 2x NL4 connectors (cable gland for IDS312-I).
1 location for accessory assembly.

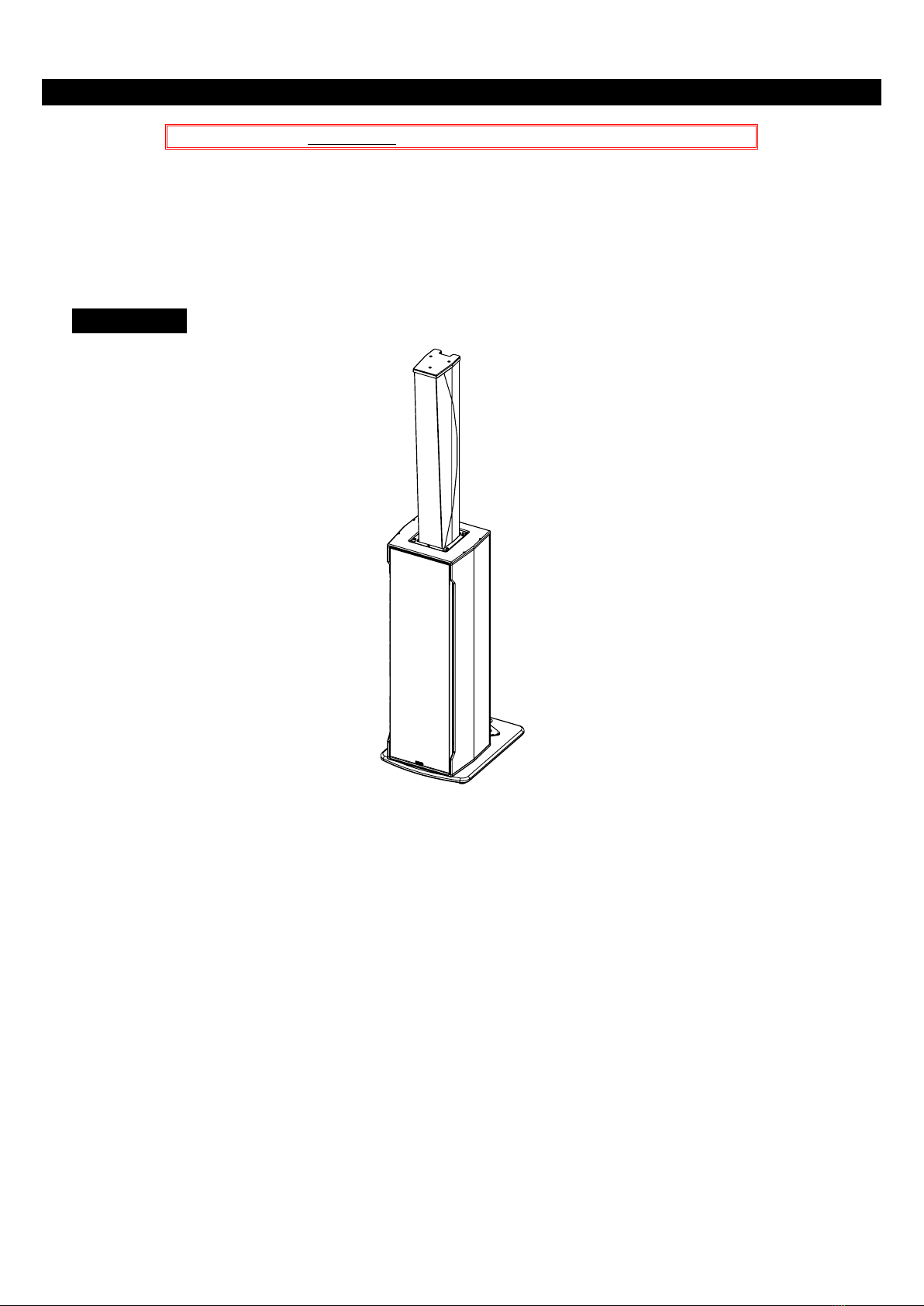

Assembly with ID84
Open the trap above IDS312.
Place ID84 on IDS312, magnet keeps it in place
IMPORTANT
Speaker must always be installed on a horizontal surface.
Stand height and footprint must be defined to prevent assembly
from collapsing.
Ensure that audience is not allowed within a safety area which
radius is equal or higher than assembly height.
Test steadiness of the assembly by pushing in all directions.
DESCRIPTION
IDS312 Page 5/ 14
DESCRIPTION
→IDS312 is a compact and powerful subwoofer, ideally complementing ID84 speakers
→Versions:
•IDS312: for Touring Application; black, white
•IDS312-TIS: for Touring Application, with Installation grille; black, white
•IDS312-I: for Permanent Installation; black, white
→IDS312 subwoofer is equipped with two Speakon NL4 connectors, with parallel-wired pins, and a quick connect in the top
cover for ID84 (except IDS312-I).

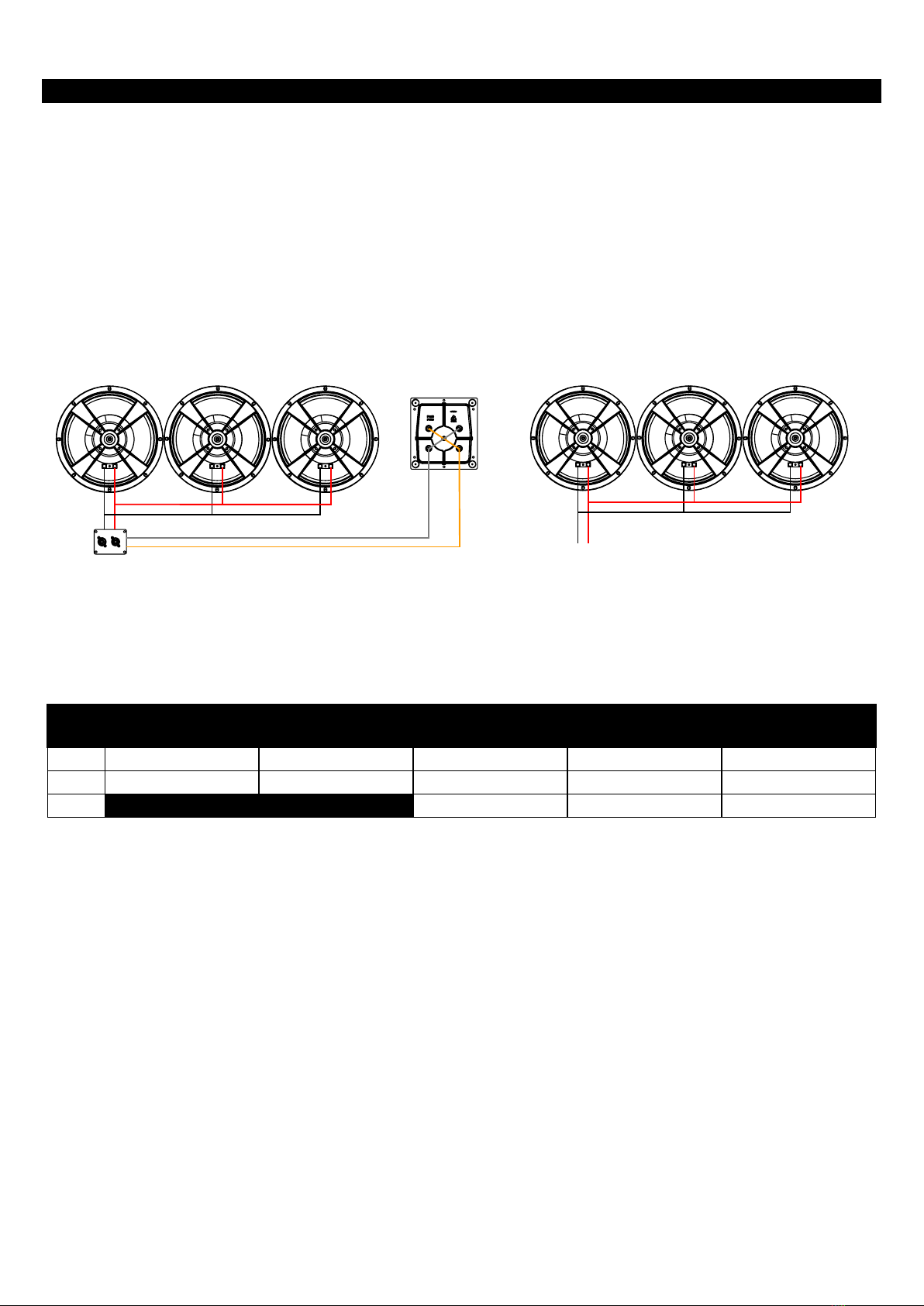

→IDS312 / IDS312-TIS uses the 1+/1- pins, (2+/2- through).
→IDS312-I is equipped with a cable gland M20 (clamping range, Ø 5 to 12 mm), supplied with a fixed cable 2x 2.5 mm2section,
length 2m, outside diameter 12mm ±1 mm
→Amplification
•IDS312 subwoofer must be used with a NEXO processor to handle EQ, phase alignment, crossover and
excursion/thermal protection for the system loudspeaker.
•The following table shows the number of IDS312 subwoofers usable with each solution.
DTD +
DTDAMP4X0.7
DTD +
DTDAMP4X1.3
NXAMP4X1mk2
NXAMP4X2mk2
NXAMP4X4mk2
ID84
1 per chanel
1 per chanel
Up to 2 per chanel
Up to 2 per chanel
Up to 2 per chanel
ID84L
1 per chanel
1 per chanel
Up to 2 per chanel
Up to 2 per chanel
Up to 2 per chanel
IDS312
1 per chanel
1 per chanel
1 per chanel
PRESET
Page 6/ 14 IDS312
PRESET
Please consult nexo-sa.com for NEXO TD Controllers firmware information.
•40 Hz 85 Hz
•40 HZ 120 Hz
•40 Hz 150 HZ.
•63 Hz 120 Hz
•63 Hz 150 Hz
With ID84
ACCESSORIES
IDS312 Page 7/ 14

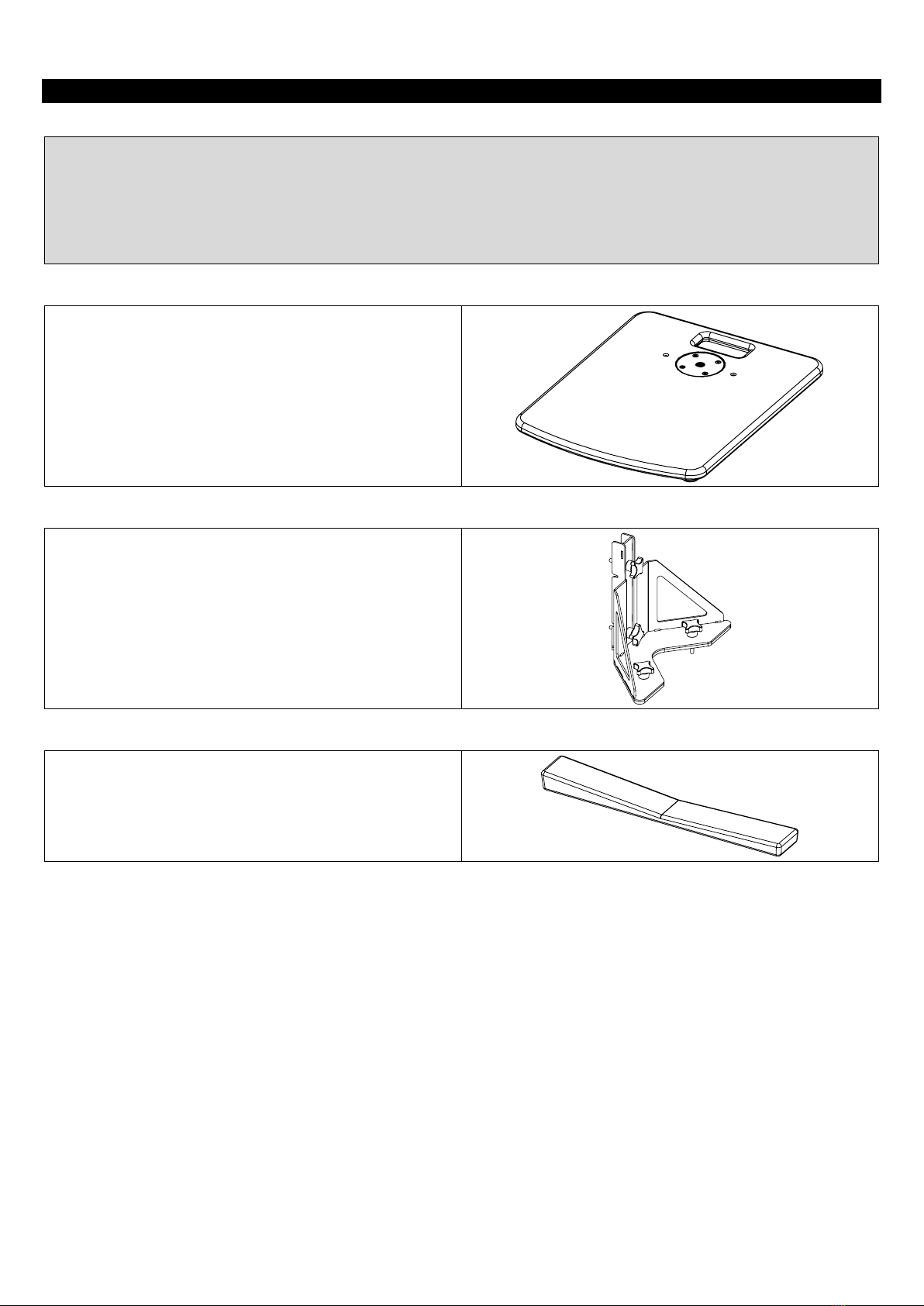

ACCESSORIES
WARNINGS
All IDS312 accessories are specifically rated in agreement with structural computations.
Never use other accessories –including push-pins –when assembling IDS312 cabinets than the ones provided by NEXO:
NEXO will decline responsibility over the entire IDS312 accessory range if any component is purchased from different
supplier.
PROHIBITED: IDS312 with ID84/ID84L without dedicated accessory
VNT-BP600
Base plate for ID84/ID84L/IDS312
IDT-BPADAPT must be used to secure ID84/ID84L/IDS312 to
the base plate
•1x ID84L + 1x ID84
•1x IDS312 + 1x ID84
IDT-BPADAPT
Bracket for ID84/ID84L/IDS312, use to secure the assembly with
VNT-BP600
IDT-MAT312 (a pair provided with IDS312)
Rubber pad to use IDS312 in horizontal
IDT-BAG312: transport bag for 1X IDS312 + pair of IDT-MAT312
IDT-2CASE312: flight case for 2X IDS312 + 2 pairs of IDT-MAT312
ARRAY EQ
Page 8/ 14 IDS312
ARRAY EQ

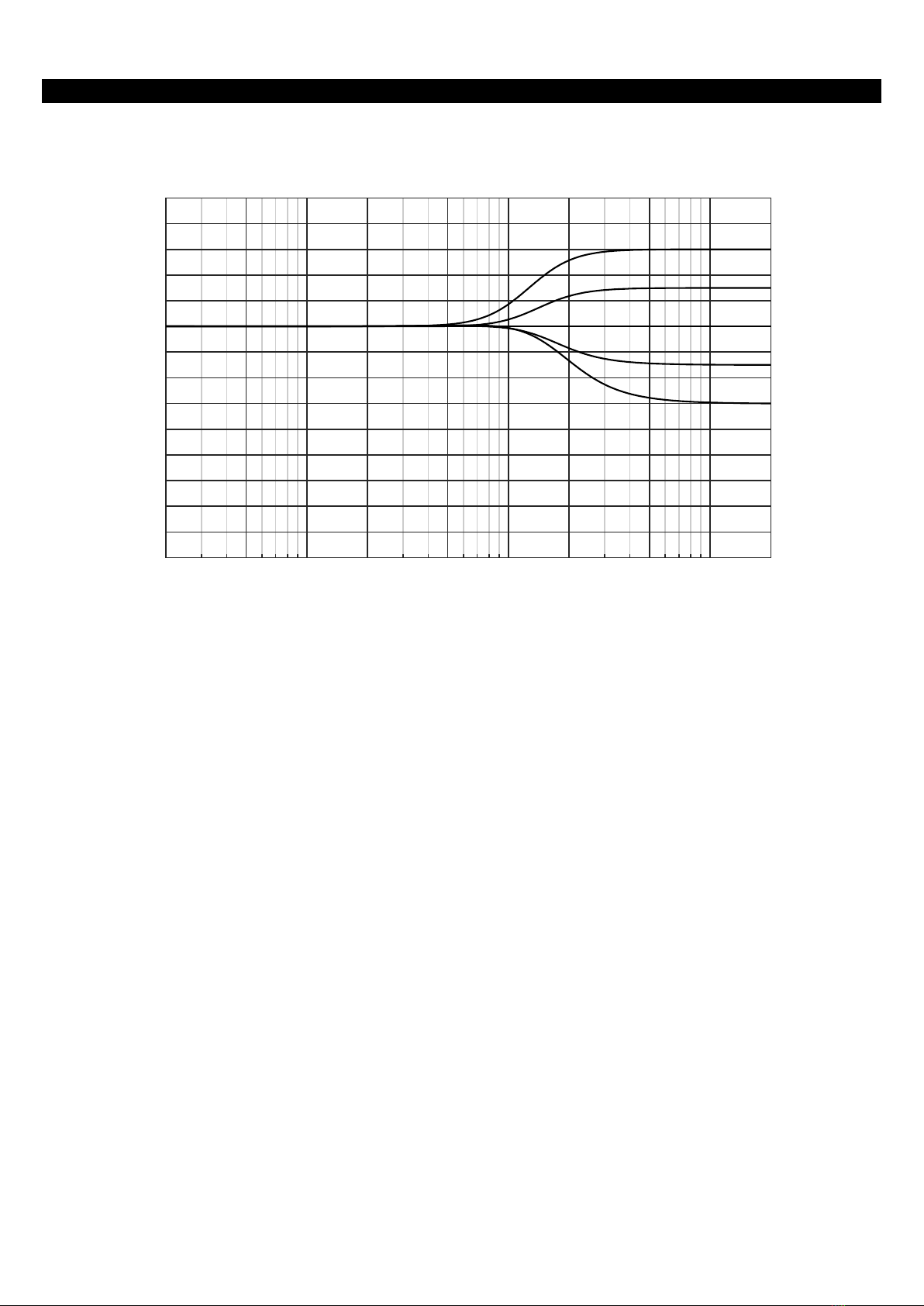

The ArrayEQ allows to adjust the system frequency response in its lower range
(see curves below, with different ArrayEq values):
MAINTENANCE
IDS312 Page 9/ 14
MAINTENANCE

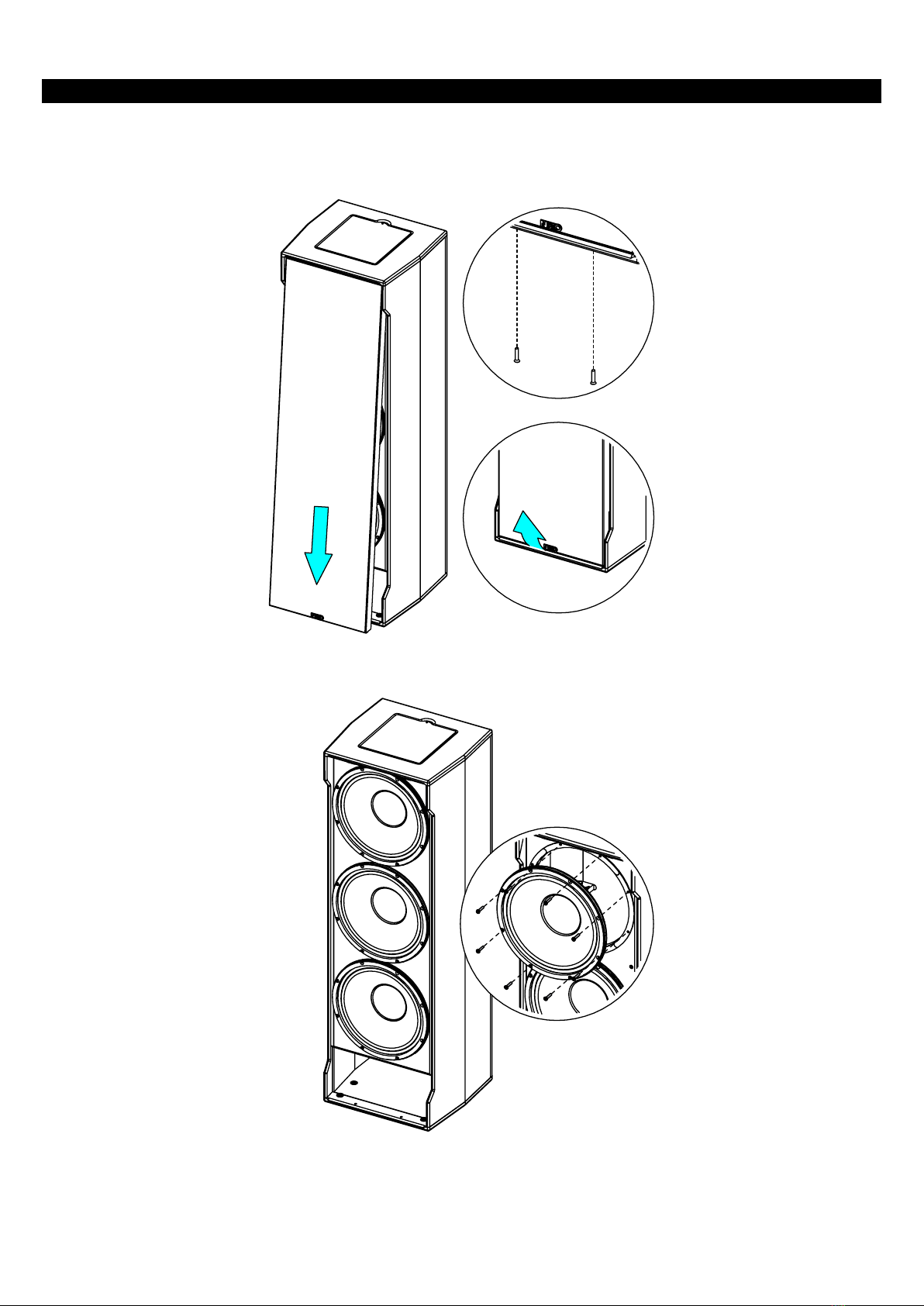

Grille Changing:
•Remove 2 screws. Tx25. Tightening torque 2.0Nm
•Tilt slightly the grille and pull it downward.
12’’ Driver
•Remove 8 screws for each driver. Tightening torque 3.5Nm
MAINTENANCE
Page 10 / 14 IDS312
Spare parts
IDS312 T&TIS
MARK
QUANTITY
REFERENCE
DESIGNATION
1
1
05IDS312TOP
Top cover plate Black
1
05IDS312TOP-PW
Top cover plate White
2
3
05HPB12ND
HP12
3
05N12ND-4R/K
Recone kit
3
1
05IDS312UA
Complete grille Black (with fasteners) for T version
1
05IDS312UA-PW
Complete grille White (with fasteners) for T version
1
05IDS312UA-I
Complete grille Instal Black (with fasteners) for TIS version
1
05IDS312UA-IPW
Complete grille Instal White (with fasteners) for TIS version
4
4
05PATIN100
Rubber pad with nuts & washers
5
1
05IDS312FPA
CNX complete Black (with screws)
1
05IDS312FPA-PW
CNX complete White (with screws)
MAINTENANCE
IDS312 Page 11 / 14
IDS312-I
MARK
QUANTITY
REFERENCE
DESIGNATION
1
3
05HPB12ND
HP12
3
05N12ND-4R/K
Recone kit
2
1
05IDS312UA-I
IDS312 grille Install Black
1
05IDS312UA-IPW
IDS312 grille Install White
3
4
05PATIN100
Rubber pad with nuts & washers
4
1
05PREPM20-2
Cable gland Black
1
05PREPM20-2PW
Cable gland White
TECHNICAL SPECIFICATIONS
Page 12 / 14 IDS312
TECHNICAL SPECIFICATIONS
IDS312 WITH NEXO ELECTRONICS
Model
IDS312
Frequency range (±6dB)
40Hz 120Hz
Peak SPL Level (1m)
138 dB Peak
Operating voltage
35Vrms (105Vpeak)
Crossover Frequency
40-85 Hz; 40-120 Hz; 40-150 Hz; 63-120 Hz; 63-150 Hz
Nominal Impedance
2
SPECIFICATIONS
Model
IDS312
Components
3x 12Long excursion Neodymium driver
Material
Baltic birch plywood
Finish
Black (RAL9005), white (RAL9016) powder coating or custom RAL
Front finish
Magnelis® front grille
Magnelis® front grille Automotive grade front cloth (versions I and TIS)
Fittings
Handle on the back
Threated M6 inserts on the back
Quick connect in the top cover (except IDS312-I)
Connector
2x NL4, 4 poles connectors
1x cable gland with 2x core cable (version I)
Weight
31 kg / 68.3 lb
Dimensions
