Nexo IDS110-E User manual
DP2118-05e-DI
IDS110-E IDS110-T
IDS210-E IDS210-T
User manual
TABLE OF CONTENTS
Page 2/ 14 IDS110 - IDS210 - Accessories
TABLE OF CONTENTS
TABLE OF CONTENTS___________________________________________________________________ 2
WARNINGS ____________________________________________________________________________ 3
EQUIPMENT ___________________________________________________________________________ 4
DESCRIPTION__________________________________________________________________________ 6
PRESET_______________________________________________________________________________ 7
CROSSOVER FREQUENCY_______________________________________________________________ 7
ACCESSORIES _________________________________________________________________________ 8
ARRAY EQ_____________________________________________________________________________ 8
MAINTENANCE_________________________________________________________________________ 9
TECHNICAL SPECIFICATIONS ___________________________________________________________ 11
USER NOTES _________________________________________________________________________ 12
EU Conformity declaration
We,
NEXO SA
ZA DU PRE DE LA DAME JEANNE
60128 PLAILLY –France
Declare under our sole responsibility that the product
Type
Serial number
Passive Loudspeaker
IDS110 –IDS210
On the product
Is in conformity with the provisions of the following directive
including all applicable amendments:
2014/35/UE (Low Voltage Directive)
Applied rules and standards:
Plailly, December 18th, 2015
EN 13155, EN 62368
Joseph CARCOPINO, R&D Director
WARNINGS
IDS110 - IDS210 - Accessories Page 3/ 14
WARNINGS
PRECAUTIONS
-repairable part.
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.
Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. If a
liquid gets into the system, please have it inspected by a NEXO qualified technician.
When flying outdoor systems ensure that the system is not exposed to excessive wind or snow loads and is protected from rainfall.
In case of wind greater than 8 on Beaufort scale (72km/h 45mph), a touring system has to be landed or an additional securing has to be
implanted.
For fixed installations, wind loading has to be taken into account in accordance to the national standards
The connection should be performed by qualified technician, by ensuring that power is off.
Operating temperature with temperate climate: 0°C to +40°C (+32°F to +104); -20°C à +60°C (-4°F to +140°F) for storage.
SAFETY INFORMATIONS
Read this manual before using the speaker.
Keep this manual available for further reference.
Observe all warnings and cautions.
Please check the NEXO Web site nexo-sa.com to get the most up-to-date version of this manual.
Ensure you are aware of the safety rules applying to rigging, stacking or installing on tripod or speaker stand. Failure to observe these rules may
expose persons to potential wounds or even death.
Only use the system with accessories specified by NEXO.
Please always consult a NEXO-accredited technician if the installation needs architectural works and observe following precautions:
Mounting Precautions:
- Please select screws and mounting location supporting 4 times the system weight.
- Do not expose the system to excessive dust, vibrations, to extreme cold or hot temperatures, to reduce the risk of damaging components.
- Do not place the system in an unstable position: it could fall accidentally.
-
not move the tripod with the system in position.
Connection and Powering Precautions:
- Unplug connected cables before moving the system.
- Power off the system before connecting the system.
- When switching on the installation, the amplifier must be powered last; when switching the installation off, shut off the amplifier first.
- If you work by cold temperatures, progressively raise the level to nominal value during the first minutes of use, to allow the system
components to stabilize.
Please check regularly the system condition.
HIGH SOUND PRESSURE LEVELS
Exposure to very high sound pressure levels may cause permanent hearing losses. Degrees of hearing losses may be different from one person to
another, but almost everybody will be affected if exposed to high sound pressure levels during a long period of time. The OSHA (Occupational
Safety and Health Administration) American Agency specified the following maximal exposures:
Number of Hours
Sound Pressure Level (dBA),
Slow Response
8
90
6
92
4
95
3
97
2
100
1 ½
102
1
105
½
110
¼ or less
115
WASTE OF ELECTRIC OR ELECTRONIC EQUIPMENT
This symbol on the product or its packaging indicates that this product must not be treated as household waste. Instead, it is
your responsibility to hand it over to a designated collection point for the recycling of waste electrical and electronic equipment.
By ensuring your waste equipment is recycled, you will help prevent potential negative consequences for the environment and
human health, which could appear if this product was not recycled. Recycling helps spare natural resources. For more
information about the recycling of this product, please contact your local city office, your household waste disposal service or
your reseller.
EQUIPMENT
Page 4/ 14 IDS110 - IDS210 - Accessories
EQUIPMENT
Handle on both side, connector plate M20 on the top (only T version), 4x M6 inserts on the bottom (remove the
pad).
EQUIPMENT
IDS110 - IDS210 - Accessories Page 5/ 14
Assembly on distance rod or speaker stand
Place distance rod on the connector plate (M20) of the Sub.
Place ID24 on the distance rod / monitor stand
IMPORTANT
Speaker stand must be rated for ID24 weight.
Speaker stand must always be installed on a horizontal surface.
Stand height and footprint must be defined to prevent assembly
from collapsing.
Ensure that audience is not allowed within a safety area which
radius is equal or higher than assembly height.
Test steadiness of the assembly by pushing in all directions.
WARNING:
Height Hmust not exceed 2 m (6.6 ft).
The M20 base plate located on IDS110-T and IDS210-T should
be used only with speakers like ID24 with the IDT-TVP
accessory attached
The distance rod M20 35mm is not supplied.
DESCRIPTION
Page 6/ 14 IDS110 - IDS210 - Accessories
DESCRIPTION
→The IDS110 and the IDS210 are two compact and powerful subwoofers, ideally complementing the ID24 speakers. Their low-
→ID
→
→Versions:
•IDS110-T: for ; Handles M20 threaded base; Black, white.
•IDS110-E: for permanent installation; Black, white.
•IDS210-T: M20 threaded base; Black, white.
•IDS210-E: for permanent installation; Black, white.

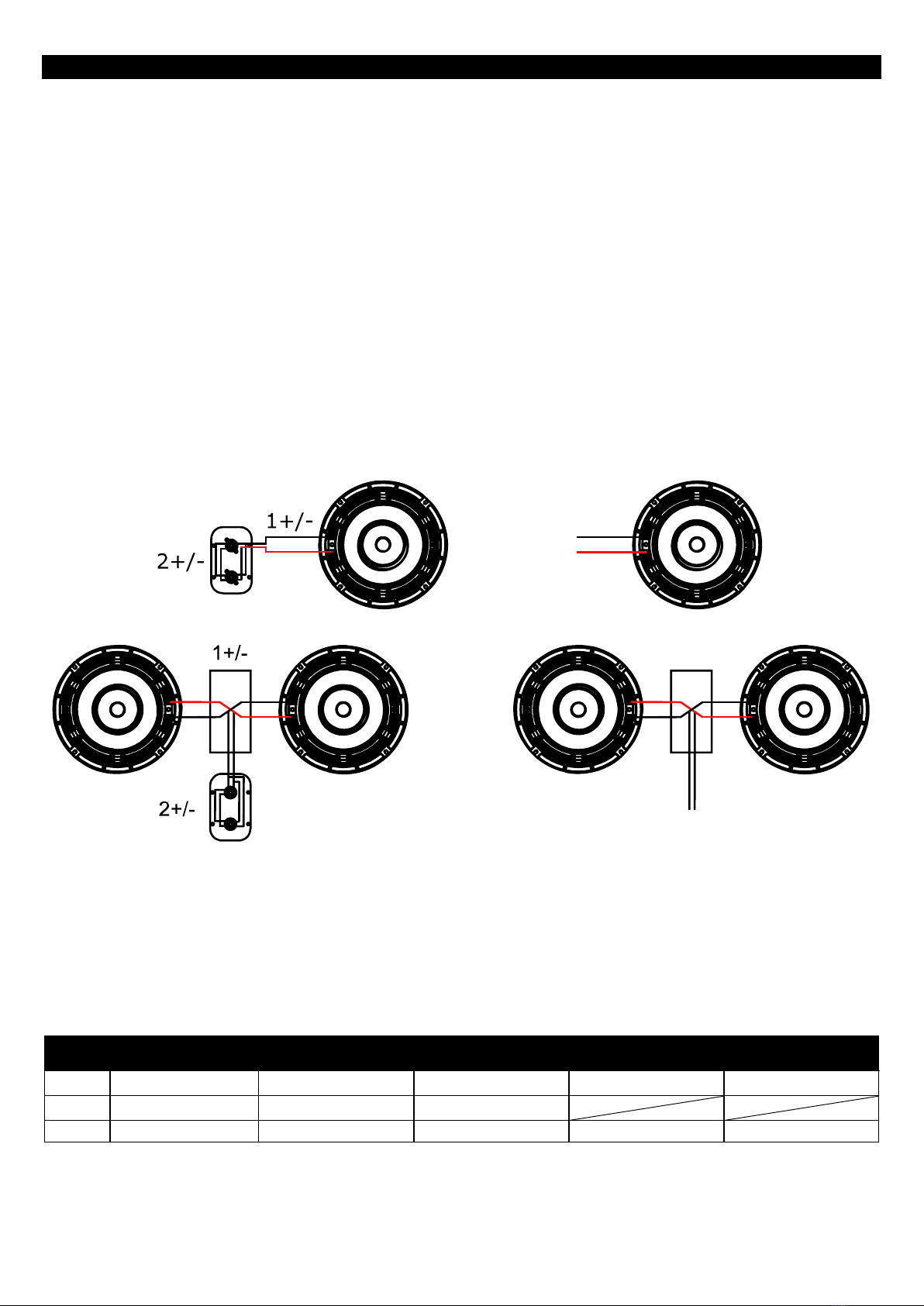

→Connectors:
•IDS110t / IDS210t: equipped with two Speakon NL4 connectors with parallel-wired pins, one on each side and two
on the back. The 1+/1- pins are used by the sub.
•IDS110-E / IDS210-E: The subwoofer is supplied with a fixed cable 2 x 2.5mm2 section, length 2m, outside diameter
9mm ±1mm.
(+) : Red / Brown ; (-) : Black / Blue
→Amplification
•The IDS110 and IDS210 subwoofers MUST be used with a NEXO processor to handle EQ, phase alignment,
crossover and excursion/thermal protection for the system loudspeakers. There are two NEXO processor series
supporting the IDS110 and IDS210 subwoofers: NXAMP (4-channel) amplified processors and DTD processors DTD
(stereo + sub). DTD processors ensure optimal performances when used with DTDAMP power amplifiers (IDS110
only).
•The following table shows the number of IDS110 / IDS210 subwoofers usable with each solution.
NXAMP4x1MK2
NXAMP4x2MK2
NXAMP4x4MK2
DTD + DTDAMP 4x0.7
DTD + DTDAMP 4x1.3
IDS110
1 or 2 perchannel
1 or 2 perchannel
1 or 2 per channel
1 perchannel
1 perchannel
IDS210
1 per channel
1 perchannel
1 perchannel
Recommended
PRESET
IDS110 - IDS210 - Accessories Page 7/ 14
PRESET
Please consult nexo-sa.com for NEXO TD Controllers firmware information.
There are two setting ranges for surrounding speakers IDS110 and IDS210:
→setups (available on NXAMP and DTD); For a traditional use of the subwoofer in omnidirectional radiation (require at
least one subwoofer and a channel of amplifier).
→setups (only available on NXAMP); For a directional use (cardioid) of subwoofers (require at least two subwoofers
and two channels of amplifier):
•
•.
CROSSOVER FREQUENCY
Choose the crossover frequency value to application:
•85 Hz Recommended for a use with speakers type PS or PLUS serie.
•120 Hz Recommended for a use with speakers type ID24.
ACCESSORIES
Page 8/ 14 IDS110 - IDS210 - Accessories
ACCESSORIES
WARNINGS
All IDS110/210 accessories are specifically rated in agreement with structural computations.
Never use other accessories –including push-pins –when assembling IDS110/210 cabinets than the ones provided by NEXO:
NEXO will decline responsibility over the entire IDS110/210 accessory range if any component is purchased from different
supplier.
PROHIBITED: ID24 below IDS110/210 without dedicated accessory
IDI-SWM01
Wall mounting
Eyebolt
IDT-COVER110: Cover for IDS110-T
ARRAY EQ
The ArrayEQ allows to adjust the system frequency response in its lower range
(see curves below, with different ArrayEq values):
MAINTENANCE
IDS110 - IDS210 - Accessories Page 9/ 14
MAINTENANCE
NOTE:
Speakers can be sent back to NEXO for recycling
10” driver access
Remove the trap (8 screws).
IDS110
IDS210
MAINTENANCE
Page 10 / 14 IDS110 - IDS210 - Accessories

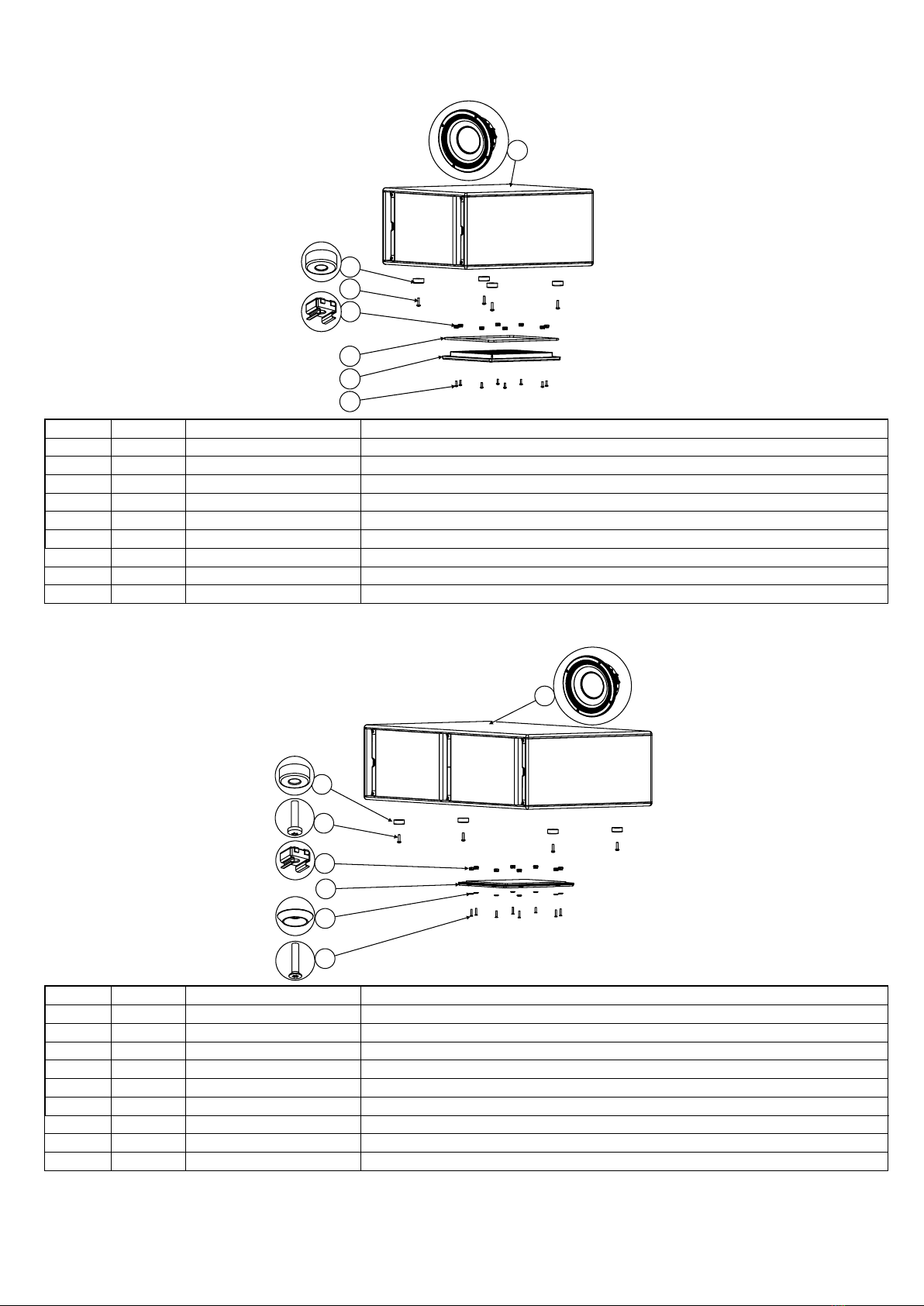

Spare parts
IDS110
MARK
QUANTITY
REFERENCE
DESIGNATION
1
1
05HPB10-4F
10”Driver (with screw and gasket)
2
4
05FTCC
Pied plastique 38x15
3
4
05VXTCBX625N-EM
Screw VXCBXN 6x25 (x10)
4
8
05VECRM5-2
Cage Nut M5 (x10)
5
1
05JNEOID10T
Trap Gasket
6
1
05PID10TRAP
Black Trap
1
05PID10TRAPSW
White Trap
7
8
05VXTCBX516N-EL
Screw VXCBXN 5x16 Black (x10)
8
05VXTCBX516-EL
Screw VXCBX 5x16 White (x10)
IDS210
MARK
QUANTITY
REFERENCE
DESIGNATION
1
2
05HPB10-4F
10”Driver (with screw and gasket)
2
4
05FTCC
Plastic Pad 38x15
3
4
05VXTCBX625N-EM
Screw VXCBXN 6x25 (x10)
4
8
05VECRM5-2
Cage Nut M5 (x10)
5
1
05COVERIDS210N
Black Trap (with gasket)
1
05COVERIDS210
White trap (with gasket)
6
8
05VRX5FN
Black spring washer (x10)
8
05VRX5FB
White spring washer (x10)
7
8
05VXTCFX520N-EL
Screw VXFXN 5x20 Black (x10)

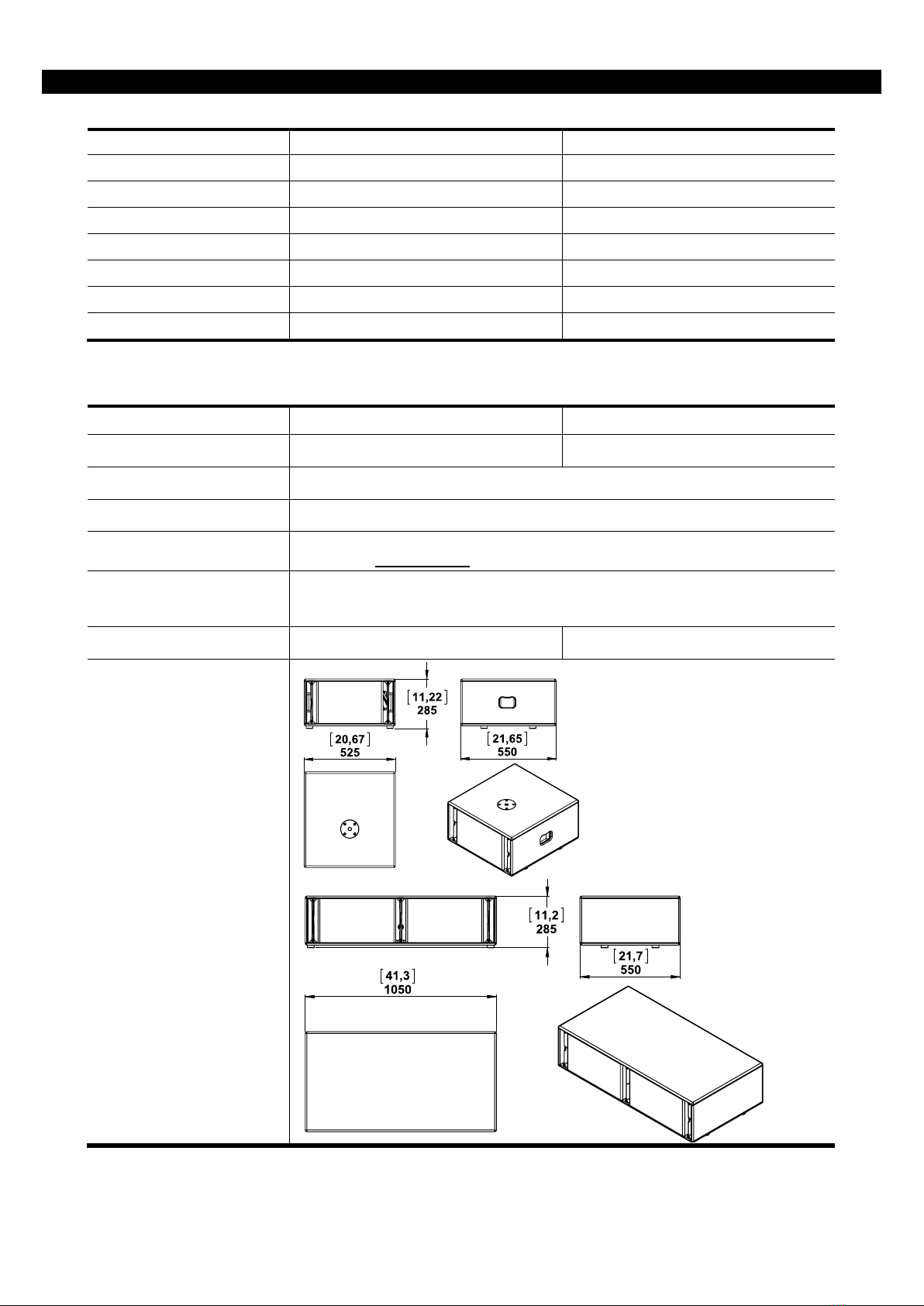

TECHNICAL SPECIFICATIONS
IDS110 - IDS210 - Accessories Page 11 / 14
TECHNICAL SPECIFICATIONS
IDS110 –IDS210 WITH NEXO ELECTRONICS
Model
IDS110
IDS210
Frequency Range
43Hz 130Hz (+/- 3dB)
43Hz 130Hz (+/- 3dB)
Sensitivity (1W / 1m)
97dB SPL Nominal
103dB SPL Nominal
Operating voltage
45Vrms (180Vpeak)
45Vrms (180Vpeak)
Peak SPL Level (1m)
125dB Peak
131dB Peak
Crossover Frequency
85Hz / 120Hz
85Hz / 120Hz
Nominal Impedance
Recommended Amplification
400 to 650W
800 to 1300W
SPECIFICATIONS
Model
IDS110
IDS210
Components
2
Material
Finnish birch plywood
Finish
Black or White structured paint
Fittings
4x M6 Inserts
M20 flange (T version only)
Connector
Touring version: 2x NL4, 4 poles connectors
Instal version: 1x Cable gland with 2 cores cable
Weight
21 kg / 47 lb
37 kg / 82 lb
Dimensions
USER NOTES
Page 12 / 14 IDS110 - IDS210 - Accessories
USER NOTES
USER NOTES
IDS110 - IDS210 - Accessories Page 13 / 14
