NextBase Uno Cinema Pro User manual

Instruction Manual
Duo Cinema Pro
Professional Automotive Rear Seat Entertainment System
Uno Cinema Pro

EN-2
Cinema Pro Instruction Manual
Regulatory Statements
FCC Statement
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CE Compliance Statement
This device meets the EU requirements (1999/5/EC) on the limitation of
exposureofthegeneralpublictoelectromagneticeldsbywayofhealth
protection.
WEEE Compliance Statement
This symbol on the product or on the packaging indicates that this
can not be disposed of as household waste. You must dispose
of your waste equipment and/or battery by handing it over to
the applicable take-back scheme for the recycling of electronic
equipment and/or battery. For more information please contact your
localhouseholdwastedisposalofce.

EN-2 EN-3
Cinema Pro Instruction Manual
Safety Instructions
Read through this manual carefully and observe the following safety
instructions before operating this device.
• Use only the car power cable and accessories supplied by dealer. Use of
unauthorized accessories may void the warranty.
• Do not install near any heat sources such as radiators, heat registers,
stoves,orotherequipment(includingampliers)thatproduceheat.
• Keep this device away from water, drinks, or all types of liquids.
• Do not drop or apply excessive force to this device.
• Disconnect this device from the power supply when not in use.
• It is forbidden by law to duplicate, broadcast, play in public, or rent
copyrighted material without permission.
• Do not use alcohol based products to clean your device. Clean only with
dry cloth. Always disconnect this device from the power source before
cleaning.
• Refer all servicing to authorized repair centres only. Do not attempt to
repair this device yourself. Doing so may result in electric shock and will
void the warranty.
• Keep this manual in a convenient place for future reference.
SPECIAL NOTE REGARDING USE OF THIS DEVICE IN A VEHICLE
• We strongly advise against the driver of a vehicle using this device, whilst
moving.
• Most countries and states have laws which prohibit or severely restrict the
use of this device in vehicles while driving, where the driver can see the
screen. Please adhere to these laws.
• Do not leave this device in places where the temperature is extremely low
(about -10ºC or lower) or extremely high (about 50ºC or higher), such as
inside the passenger cabin or trunk in midsummer.
• Always switch the engine on before connecting power via the car power
cable.
• Always disconnect the power from this device before switching off the
engine.

EN-4
Cinema Pro Instruction Manual
Contents
Introduction ...................................................................................................5
Package Contents ........................................................................................... 5
Uno Cinema Pro ........................................................................................ 5
Duo Cinema Pro ........................................................................................ 6
Specications .................................................................................................. 7
Media Support List .......................................................................................... 8
Product Overview ............................................................................................ 9
Player ......................................................................................................... 9
Stanchion Mount ...................................................................................... 10
Remote Control ..............................................................................................11
Functions Overview ..................................................................................11
Replacing the Battery ...............................................................................11
Getting Started ............................................................................................12
Installing Cinema Pro in Vehicle .................................................................... 12
Basic Connection .......................................................................................... 15
Turning the Power On/Off ............................................................................. 16
Turn the Power On................................................................................... 16
Turn the Power Off ................................................................................... 16
Making Connection ....................................................................................... 17
Insert the DVD Disc ................................................................................. 17
Connect to HDMI Input Source ................................................................ 18
Insert USB Flash Drive ............................................................................ 18
Connect Headphones .............................................................................. 19
Monitor Sharing (Duo Cinema Pro only) ..................................................20
Screen Mirroring With Your Smartphone .................................................21
Conguring the Settings ............................................................................23
General Operations ....................................................................................... 23
Switch the Input Source ........................................................................... 23
Media Playback ....................................................................................... 24
ConguringtheSettings ................................................................................ 27
DVD Menu (DVD/USB input source only) ................................................ 27
Auto Power Menu ........................................................................................
Reset Menu .................................................................................................

EN-4 EN-5
Cinema Pro Instruction Manual
Introducon
“Cinema Pro” is a new dual-screen rear seat car entertainment system that
will revolutionize the way we view in car entertainment. Cinema Pro has been
designed to keep passengers entertained on the move with the greatest of
ease. Users can easily send videos, pictures, and music from their portable
deviceorUSBashdrivetoCinemaProtowatchwhattheywant.
Package Contents
The following items come with your package. If any of them is missing, please
contact your local dealer.
Uno Cinema Pro
Player Stanchion Mount
123
Quick Start Guide
Remote Control Carrying Bag Quick Start Guide T-cable
12V/5A
5V/2.4A
Cigarette Charger Cable Lock Hex Key L-wrench

EN-6
Cinema Pro Instruction Manual
Duo Cinema Pro
Players
123
Quick Start Guide
Stanchion Mounts Remote Control Carrying Bag Quick Start
Guide
12V/5A
5V/2.4A
T-cable 1 T-cable 2 T-cable 3 Cigarette
Charger
Cable Lock Hex Key
L-wrench
Note:
♦The actual products might appear slightly different from illustration shown above.

EN-6 EN-7
Cinema Pro Instruction Manual
Specicaons
Item Description
Panel
Display 10.1” Active Matrix Color TFT LCD
Aspect Ratio 16:9
Resolution 1024 x RGB x 600
Luminance 300nits (typical)
DVD
Supported Disc
DVD, DVD-R, DVD+R, DVD-RW, DVD+RW,
DVD-R DL, DVD-RW DL, VCD2.0, SVCD,
CD, CD-R, CD+R, CD-RW, CD+RW
Supported
Format
DVD-Video Navigation Ver1.0, VCD
Ver1.0/2.0, SVCD, D-DA, Data (MP3, JPEG,
MPEG 1/2/4)
USB
Version USB 2.0 (Media Play)
File System FAT, FAT16, FAT32
Charging 5V/1.5A
HDMI Input HDMI Type A: HDMI 1.3 / 1.4
HDMI TypeC: HDMI 1.3 / 1.4
Speaker
Maximum
Output
• 2W (maximum)
• 1.5W (typical)
Total Harmonic 0.2% (maximum)
Signal/Noise ≥60dB
Channel
Separation ≥40dB
Dynamic Range ≥70dB
Output Level 2Vpp (typical)
(Input 0dB 1KHz)
Acoustic Noise 50 dB
Remote Control Key
Support
(NEXTBASE 16-key RC)
NEC Format

EN-8
Cinema Pro Instruction Manual
Item Description
Operating Voltage 9V to 16V/2.2A
Operating / Performance
Temperature -10°C to 50°C
Function Temperature
-10°C to 50°C functional but may not meet
specications(anydeviationsmustbe
recoverable)
Storage Temperature -20°C to 60°C
Housing Dimension 267 x 195 x 32 mm
Unit Weight 1.750 kg
Media Support List
Video Video Type Audio Type
DVD Video/(ISO)
• MPEG-1
• MPEG-2
• LPCM
• AC3
• MPEG-1 Layer 2
• MPEG-1 Layer 3
• DTS
AVI (.avi, .divx)
• MPEG-1
• DIVX 3/4/5/6
• Motion JPEG
• MPEG-4 SP/ASP(XviD)
• MPEG-4 AVC(H.264)
• VC-1
• LPCM, uLaw, aLaw
• MPEG-AUDIO
• HE-AAC,LC-AAC
• AC3,DolbyDigital Plus
• DTS
• MS-ADPCM
• WMA. WMA pro
Audio
MPEG-1 Layer 3
JPEG

EN-9
Cinema Pro Instruction Manual
Product Overview
Player
Speakers
Open button
HDMI1 port
HDMI2 port
USB port
Headphone jack
DC IN jack
Volume
(Up) key
Volume
(Down) key
Stop key
Mount slot
Power key
Source key
Play/Pause
key
IR Headphone LEDs

EN-10
Cinema Pro Instruction Manual
Stanchion Mount
Bracket
Backplate
DC IN jack
AV IN port
Locking latches
Latch pads

EN-11
Cinema Pro Instruction Manual

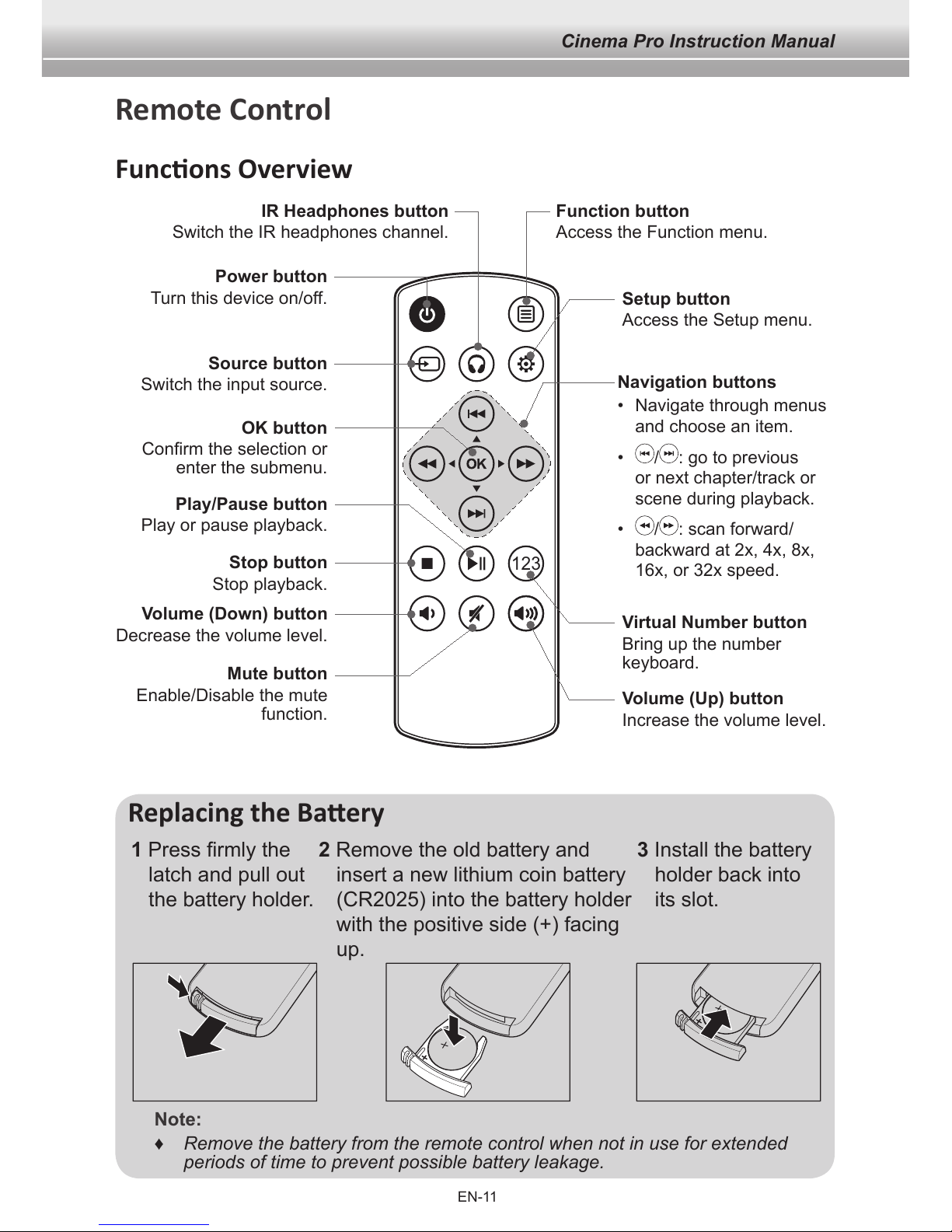

Remote Control
Funcons Overview
Replacing the Baery
1Pressrmlythe
latch and pull out
the battery holder.
2 Remove the old battery and
insert a new lithium coin battery
(CR2025) into the battery holder
with the positive side (+) facing
up.
3 Install the battery
holder back into
its slot.
Note:
♦Remove the battery from the remote control when not in use for extended
periods of time to prevent possible battery leakage.
Power button
Turn this device on/off.
Source button
Switch the input source.
IR Headphones button
Switch the IR headphones channel.
123
Function button
Access the Function menu.
Navigation buttons
• Navigate through menus
and choose an item.
• / : go to previous
or next chapter/track or
scene during playback.
• / : scan forward/
backward at 2x, 4x, 8x,
16x, or 32x speed.
Virtual Number button
Bring up the number
keyboard.
Volume (Up) button
Increase the volume level.
OK button
Conrmtheselectionor
enter the submenu.
Play/Pause button
Play or pause playback.
Volume (Down) button
Decrease the volume level.
Mute button
Enable/Disable the mute
function.
Setup button
Access the Setup menu.
Stop button
Stop playback.

EN-12
Cinema Pro Instruction Manual
Geng Started
Installing Cinema Pro in Vehicle
Thisdeviceisspecicallydesignedtobemountedbehindthedriverand/or
passenger seat(s).
1 Remove the headrest(s) and carefully route the cable(s).
For Uno Cinema Pro
Route the T-cable into the hole of the pole on the seat.

EN-12 EN-13
Cinema Pro Instruction Manual
For Duo Cinema Pro
Route the T-cable 2 and T-cable 3 into the holes of the poles on each side of
the seat. Then from the bottom of the seat, connect both ends of the T-cable
2 and T-cable 3 to the T-cable 1 connectors.
2 Replace the headrest(s) into place.
3 Remove the screws to release both locking latches on the stanchion mount.

EN-14
Cinema Pro Instruction Manual
4 Position the bracket on the bars of the headrest. Fasten the screws on both
lockinglatchestoxthebracketrmlyonthebars.
5 Connect the player with the AV/Power cable (one end of the car power
cable) as shown in the following illustration.
6 Slide the mount slot of the player into the backplate of the stanchion mount
fully until it clicks into place.

EN-14 EN-15
Cinema Pro Instruction Manual
7 Adjust the player to the desired viewing angle.
Note:
♦To remove the player from the stanchion
mount, pull and hold the release latch
upwards and then slide the player off to
disengage the connection.
Basic Connecon
For proper connection method, refer to the illustration below.
12V/5A
5V/2.4A
12V/5A
5V/2.4A
Cigarette
Charger

EN-16
Cinema Pro Instruction Manual
Turning the Power On/O
Make sure the cigarette charger is properly connected to the cigarette lighter
socket of your vehicle.
Turn the Power On
If the Auto Power function is enabled, this device will automatically turn on
when the vehicle engine starts up. Otherwise, press the button to manually
turn this device on.
Note:
♦To enable the Auto Power function, refer to “Auto Power Menu” on page 30.
Turn the Power O
Press and hold the button for at least 2 seconds to turn this device off.
Note:
♦You can also turn off this device by touching the key on the player.

EN-16 EN-17
Cinema Pro Instruction Manual
Making Connecon
This section guides you on how to insert a DVD disc and connect your Cinema
Pro to an external device.
Note:
♦ Do not unplug the USB ash drive or disconnect the cable connection during the le
playback.
Insert the DVD Disc
1 On the player, press the Open button and carefully open the disc cover.
2 Place the disc in the compartment with the label facing up. Make sure that it
is completely seated in the indent.
3 Close the disc cover by gently pressing until it clicks into place.

EN-18
Cinema Pro Instruction Manual
Connect to HDMI Input Source
You can use this device to play your favorite multimedia content (videos,
pictures, and music) from your portable device (i.e. smartphone or tablet).
1 Connect one end of the HDMI cable to the HDMI1/HDMI2 port of the player.
2 Connect the other end of the HDMI cable to the HDMI port of the portable
device.
Insert USB Flash Drive
YoucanalsousethisdevicetoplayyourlesstoredintheUSBashdrive.
SimplyplugintheUSBashdrivetotheUSBportoftheplayer.
Note:
♦ To copy your favorite multimedia les, plug in the USB ash drive into your
computer USB port and transfer the les to the root directory of the USB ash drive.

EN-18 EN-19
Cinema Pro Instruction Manual
Connect Headphones
Cinema Pro is equipped with built-in speakers. However, you may also use a
set of headphones for personal listening. To use headphones, just plug in your
headphone cable into the headphone jack of the player.
With the built-in IR transmitter, you can use wireless headphones. When the
IR headphone is connected to the player, you can select the channel your
prefer by simply pressing the button on the remote control.
Press the button repeatedly to toggle the IR headphones channel.
Channel A Channel B Off
Note:
♦When the headphones are connected, the speakers of Cinema Pro will be muted.
♦When the IR headphones are connected, the built-in speakers are not muted. To
adjust the volume level of the speakers, do the following:
BOn the player, you can adjust the volume level by touching the or key on
the device or pressing the volume button ( or ) on the remote control. To
mute the speakers, press the button on the remote control.
♦To avoid hearing damage, it is highly recommended to set the volume level to its
minimum level rst before plugging in the headphones.

EN-20
Cinema Pro Instruction Manual
Monitor Sharing (Duo Cinema Pro only)
Withthisfunction,youcancongurebothplayerstoplaythesamemedia
content simultaneously.
1 Select the player that you want to be the primary screen. Then press the
button.
2 Press the or button to select (Monitor Sharing).
3 Press the buttontoconrmtheselection.Bothplayerswilldisplaythe
same screen.
